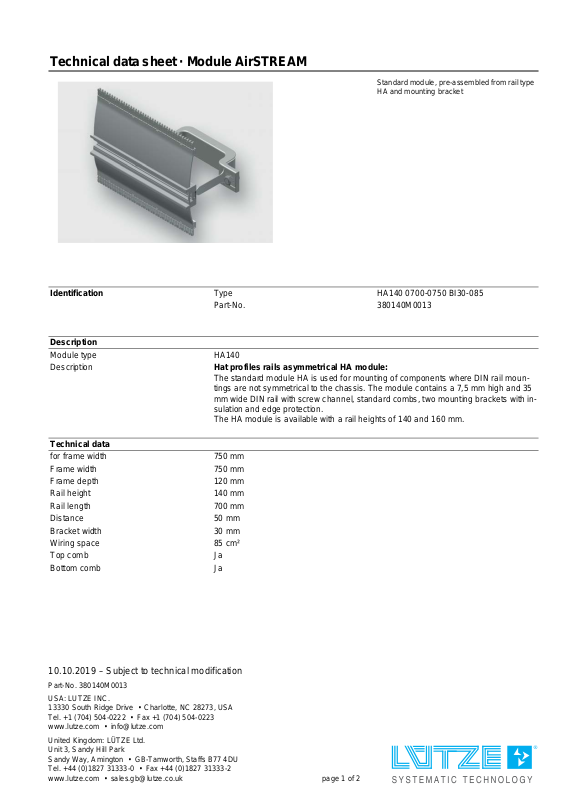

Technical data sheet · Module AirSTREAM
Standard module, pre-assembled from rail type
HA and mounting bracket
Subject to technical modification 380140M0013
Identification Type HA140 0700-0750 BI30-085
Part-No. 380140M0013
Description
Module type HA140

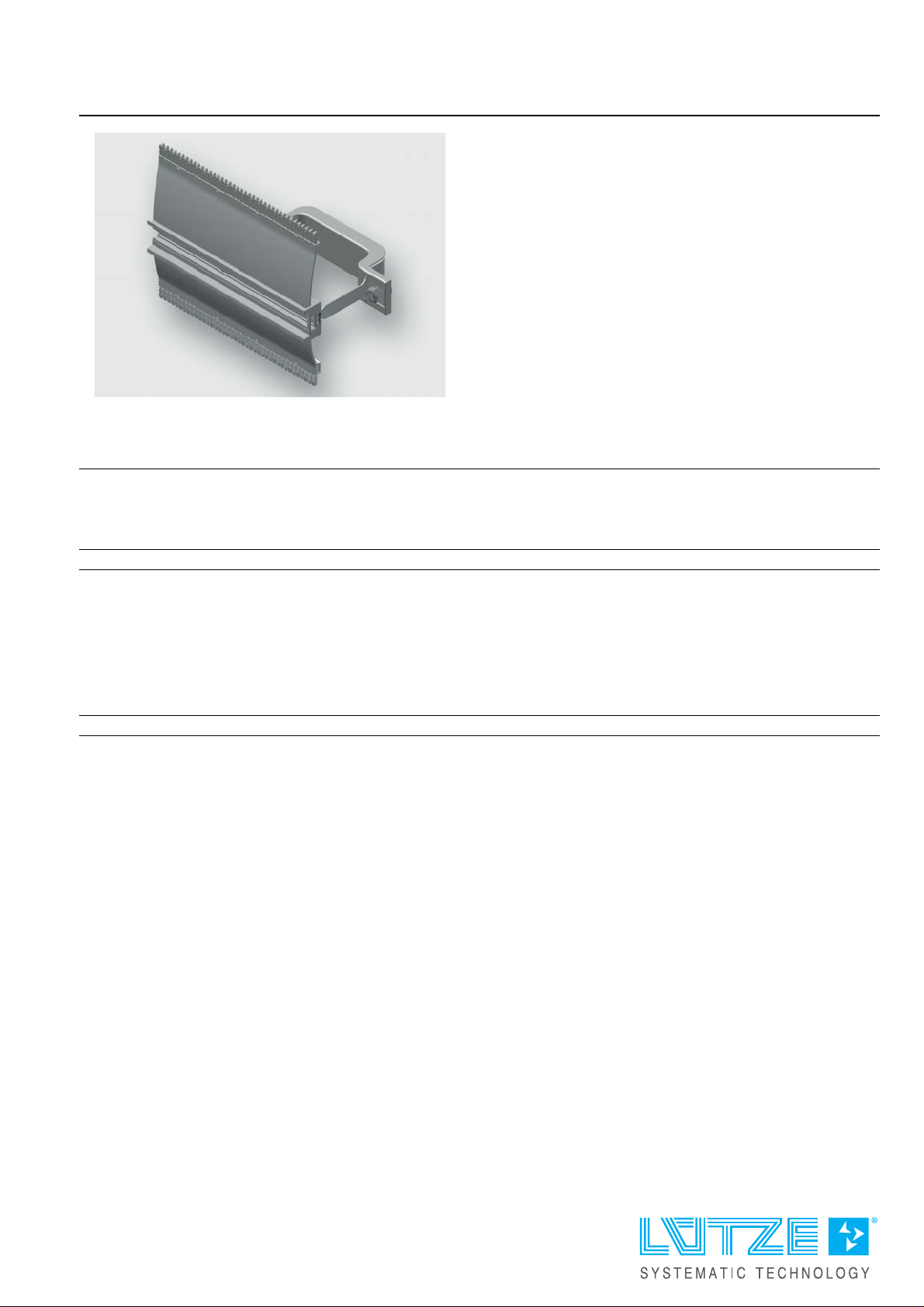

Description Hat profiles rails asymmetrical HA module:
The standard module HA is used for mounting of components where DIN rail mountings are not symmetrical to the chassis. The module contains a 7,5 mm high and 35
mm wide DIN rail with screw channel, standard combs, two mounting brackets with insulation and edge protection.
The HA module is available with a rail heights of 140 and 160 mm.
Technical data
for frame width 750 mm
Frame width 750 mm
Frame depth 120 mm
Rail height 140 mm
Rail length 700 mm
Distance 50 mm
Bracket width 30 mm
Wiring space 85 cm²
Top comb Ja
Bottom comb Ja
10.10.2019 – Subject to technical modification
Part-No. 380140M0013
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 1 of 2
Page 2
Technical data sheet · Module AirSTREAM
General
Material Aluminum
Surface bright
Dimensions

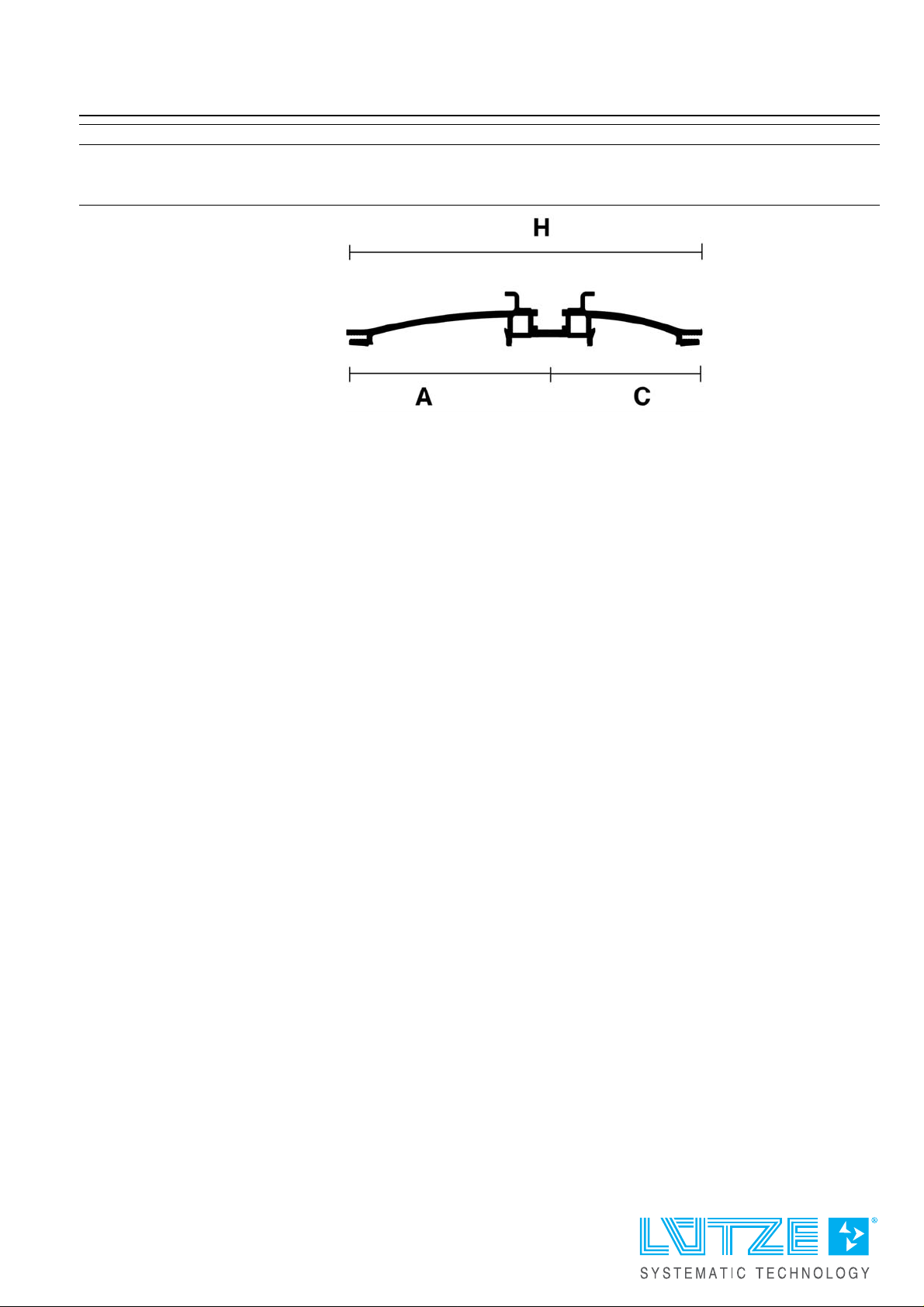

A80 mm
