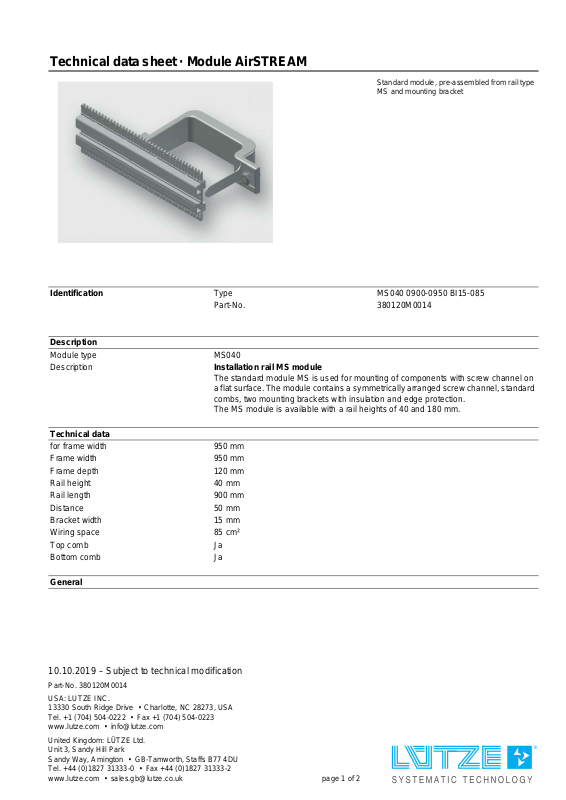

Technical data sheet · Module AirSTREAM

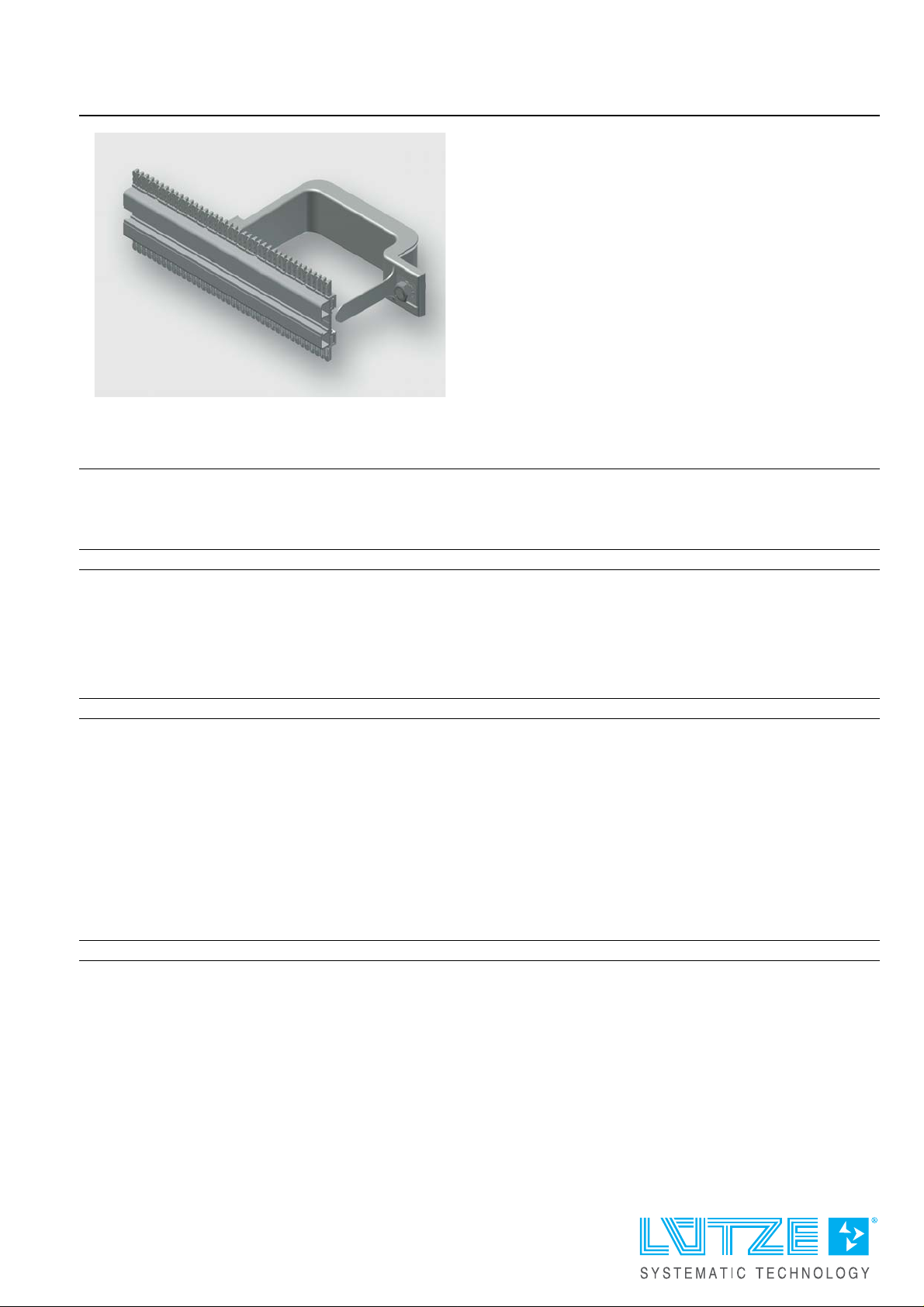

Standard module, pre-assembled from rail type
MS and mounting bracket
Subject to technical modification 380120M0014
Identification Type MS040 0900-0950 BI15-085
Part-No. 380120M0014
Description
Module type MS040
Description Installation rail MS module
The standard module MS is used for mounting of components with screw channel on
a flat surface. The module contains a symmetrically arranged screw channel, standard
combs, two mounting brackets with insulation and edge protection.
The MS module is available with a rail heights of 40 and 180 mm.
Technical data
for frame width 950 mm
Frame width 950 mm
Frame depth 120 mm
Rail height 40 mm
Rail length 900 mm
Distance 50 mm
Bracket width 15 mm
Wiring space 85 cm²
Top comb Ja
Bottom comb Ja
General
10.10.2019 – Subject to technical modification
Part-No. 380120M0014
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 1 of 2
Page 2
Technical data sheet · Module AirSTREAM
Material Aluminum
Surface bright

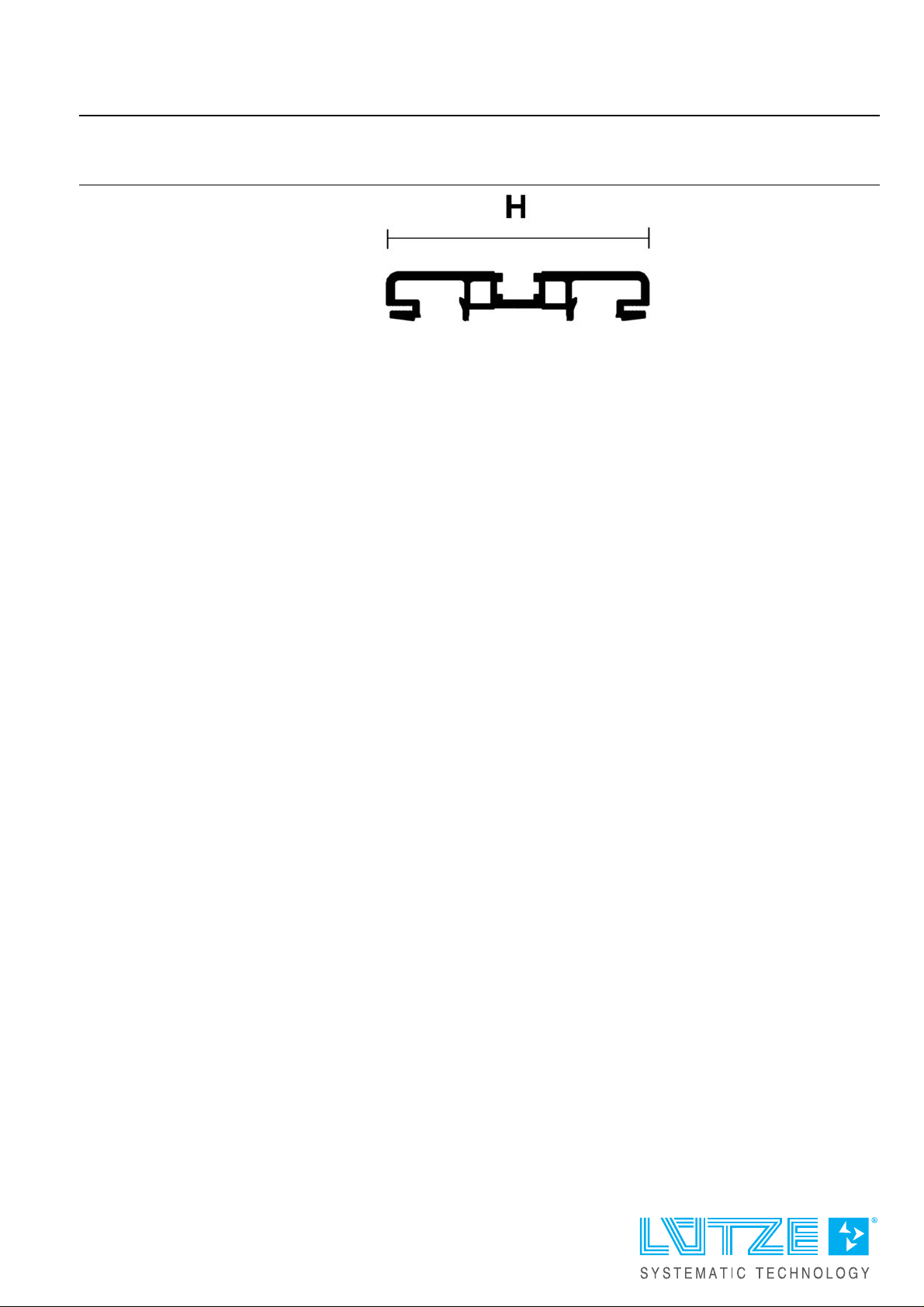

Dimensions
