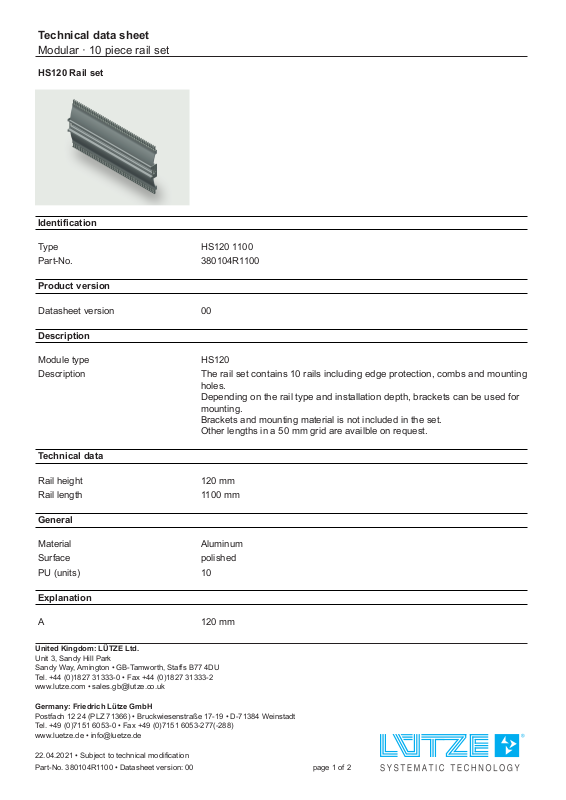

Page 1
Technical data sheet
Modular · 10 piece rail set
HS120 Rail set
Identification
Type HS120 1100
Part-No. 380104R1100
Product version
Datasheet version 00
Description
Module type HS120
Description
The rail set contains 10 rails including edge protection, combs and mounting
holes.
Depending on the rail type and installation depth, brackets can be used for
mounting.
Brackets and mounting material is not included in the set.
Other lengths in a 50 mm grid are availble on request.
Technical data
Rail height 120 mm
Rail length 1100 mm
General
Material Aluminum
Surface polished
PU (units) 10
Explanation
A 120 mm
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
22.04.2021 • Subject to technical modification
Part-No. 380104R1100 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
Modular · 10 piece rail set

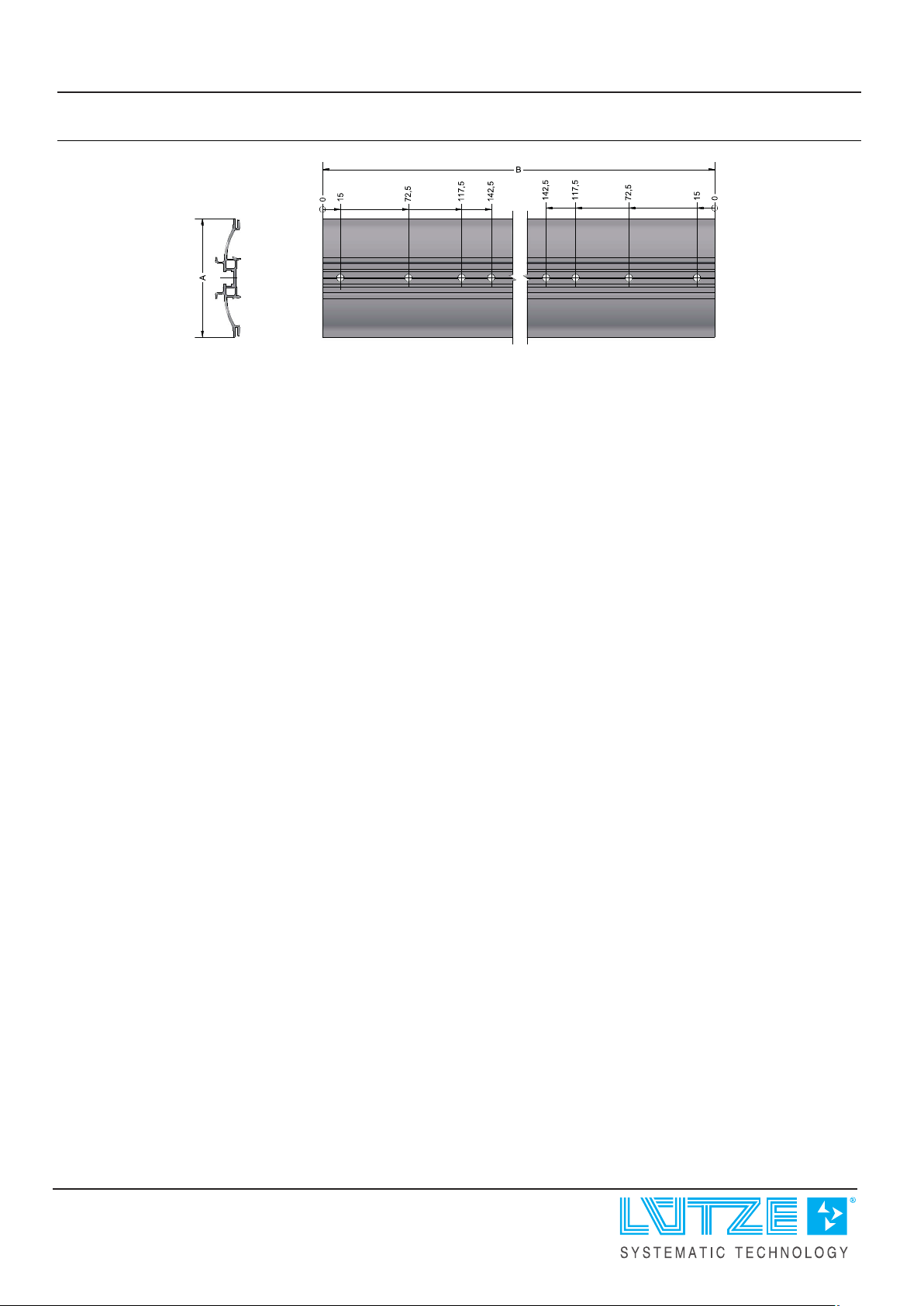

Dimensions
22.04.2021 – Subject to technical modification
Part-No. 380104R1100 • Datasheet version: 00 page 2 of 2
