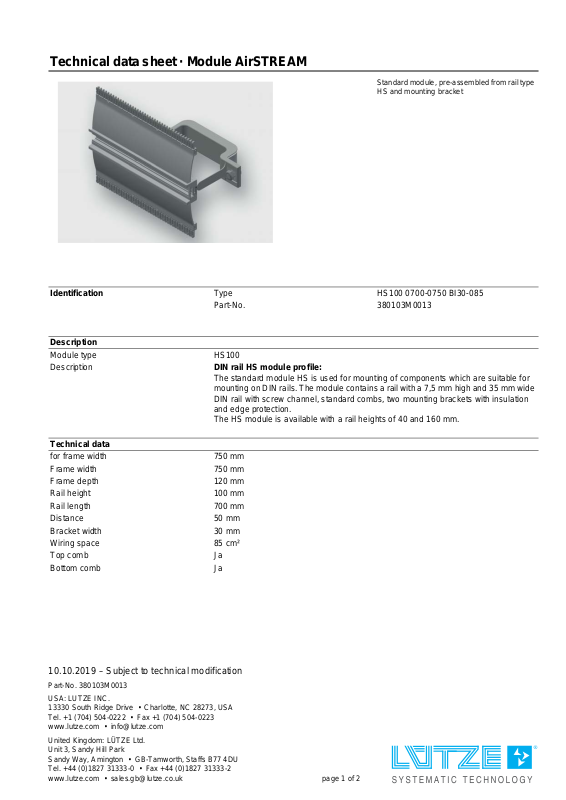

Technical data sheet · Module AirSTREAM

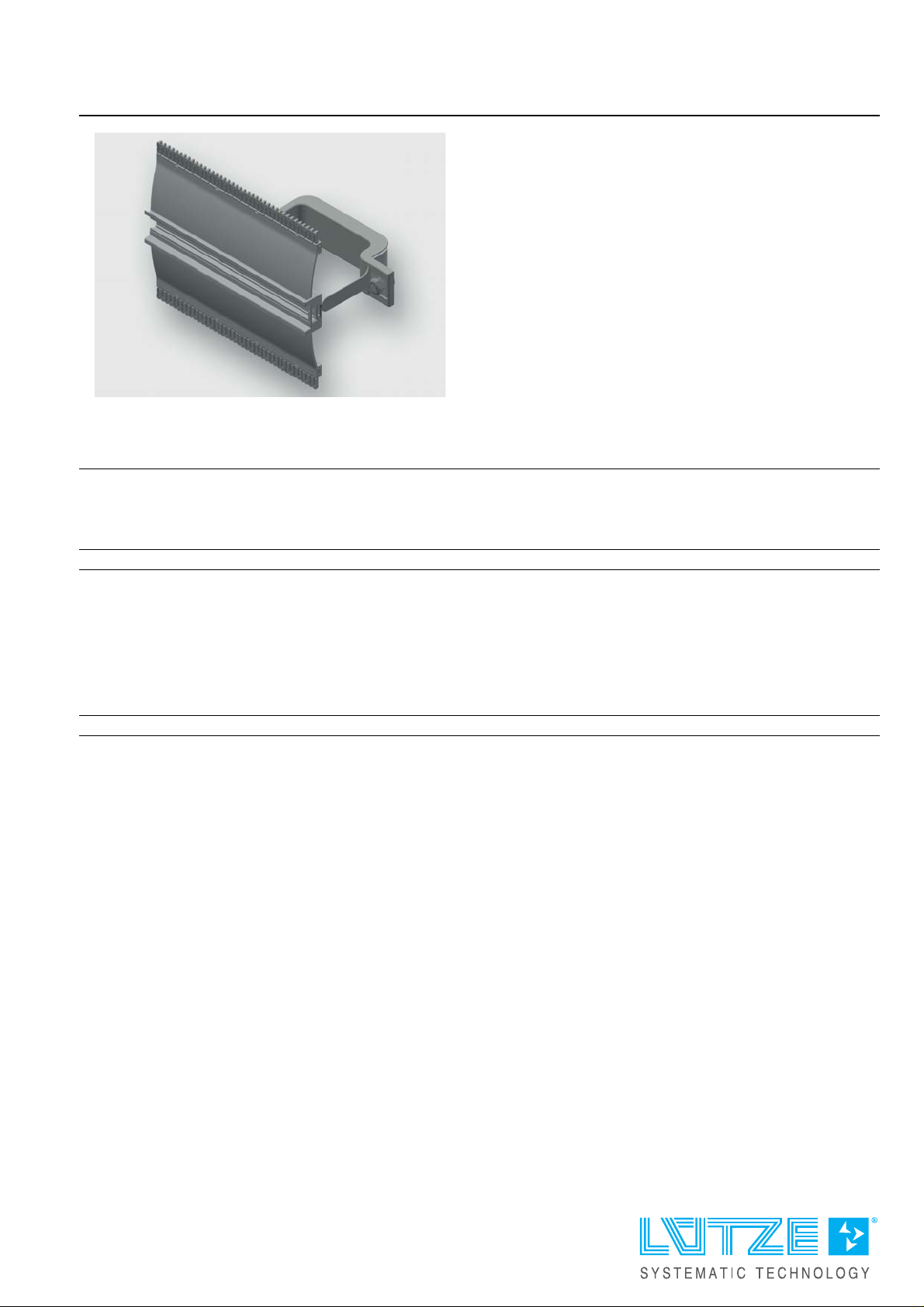

Standard module, pre-assembled from rail type
HS and mounting bracket
Subject to technical modification 380103M0013
Identification Type HS100 0700-0750 BI30-085
Part-No. 380103M0013
Description
Module type HS100
Description DIN rail HS module profile:
The standard module HS is used for mounting of components which are suitable for
mounting on DIN rails. The module contains a rail with a 7,5 mm high and 35 mm wide
DIN rail with screw channel, standard combs, two mounting brackets with insulation
and edge protection.
The HS module is available with a rail heights of 40 and 160 mm.
Technical data
for frame width 750 mm
Frame width 750 mm
Frame depth 120 mm
Rail height 100 mm
Rail length 700 mm
Distance 50 mm
Bracket width 30 mm
Wiring space 85 cm²
Top comb Ja
Bottom comb Ja
10.10.2019 – Subject to technical modification
Part-No. 380103M0013
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 1 of 2
Page 2
Technical data sheet · Module AirSTREAM
General
Material Aluminum
Surface bright

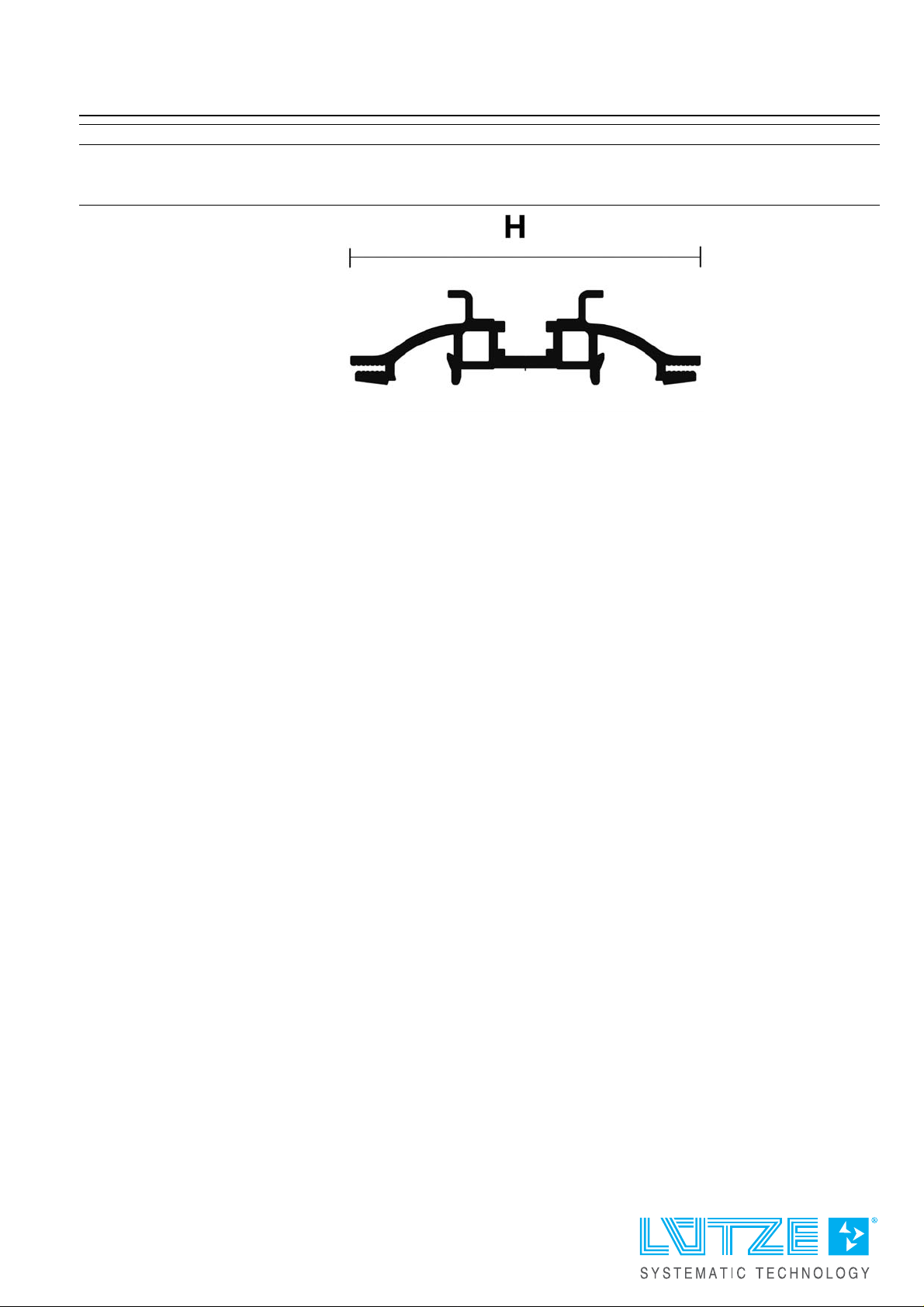

Dimensions
H100 mm
