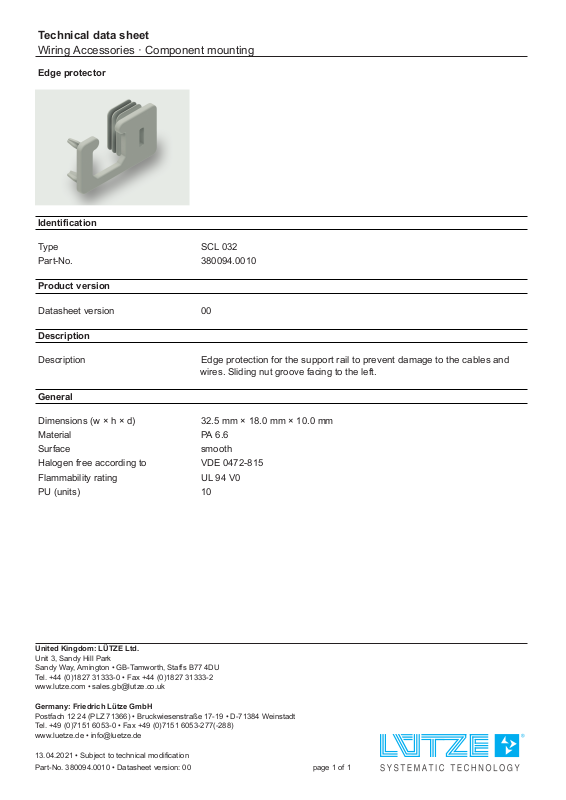

Technical data sheet
Wiring Accessories · Component mounting
Edge protector
Identification
Type SCL 032
Part-No. 380094.0010
Product version
Datasheet version 00
Description
Description
Edge protection for the support rail to prevent damage to the cables and
wires. Sliding nut groove facing to the left.
General
Dimensions (w × h × d) 32.5 mm × 18.0 mm × 10.0 mm
Material PA 6.6
Surface smooth
Halogen free according to VDE 0472-815
Flammability rating UL 94 V0
PU (units) 10
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
13.04.2021 • Subject to technical modification
Part-No. 380094.0010 • Datasheet version: 00 page 1 of 1
