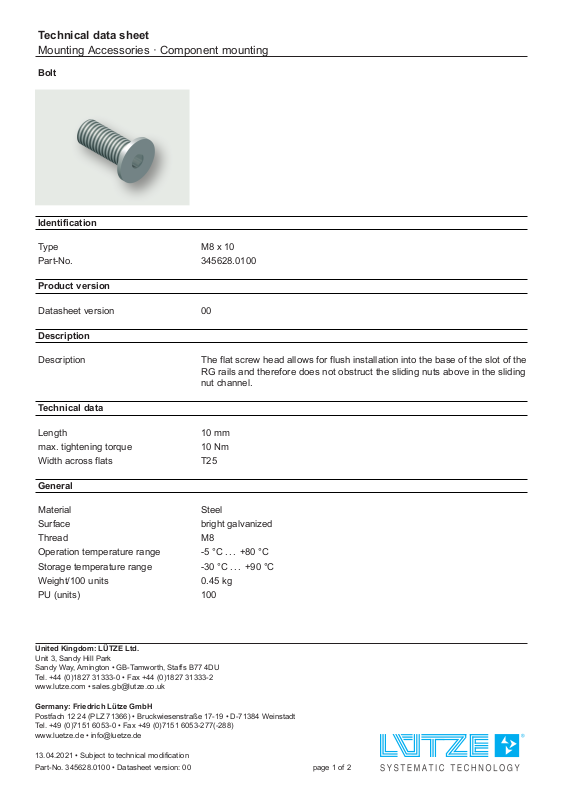

Technical data sheet
Mounting Accessories · Component mounting
Bolt
Identification
Type M8 x 10
Part-No. 345628.0100
Product version
Datasheet version 00
Description
Description
The flat screw head allows for flush installation into the base of the slot of the
RG rails and therefore does not obstruct the sliding nuts above in the sliding
nut channel.
Technical data
Length 10 mm
max. tightening torque 10 Nm
Width across flats T25
General
Material Steel
Surface bright galvanized
Thread M8
Operation temperature range -5 °C . . . +80 °C
Storage temperature range -30 °C . . . +90 °C
Weight/100 units 0.45 kg
PU (units) 100
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
13.04.2021 • Subject to technical modification
Part-No. 345628.0100 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
Mounting Accessories · Component mounting

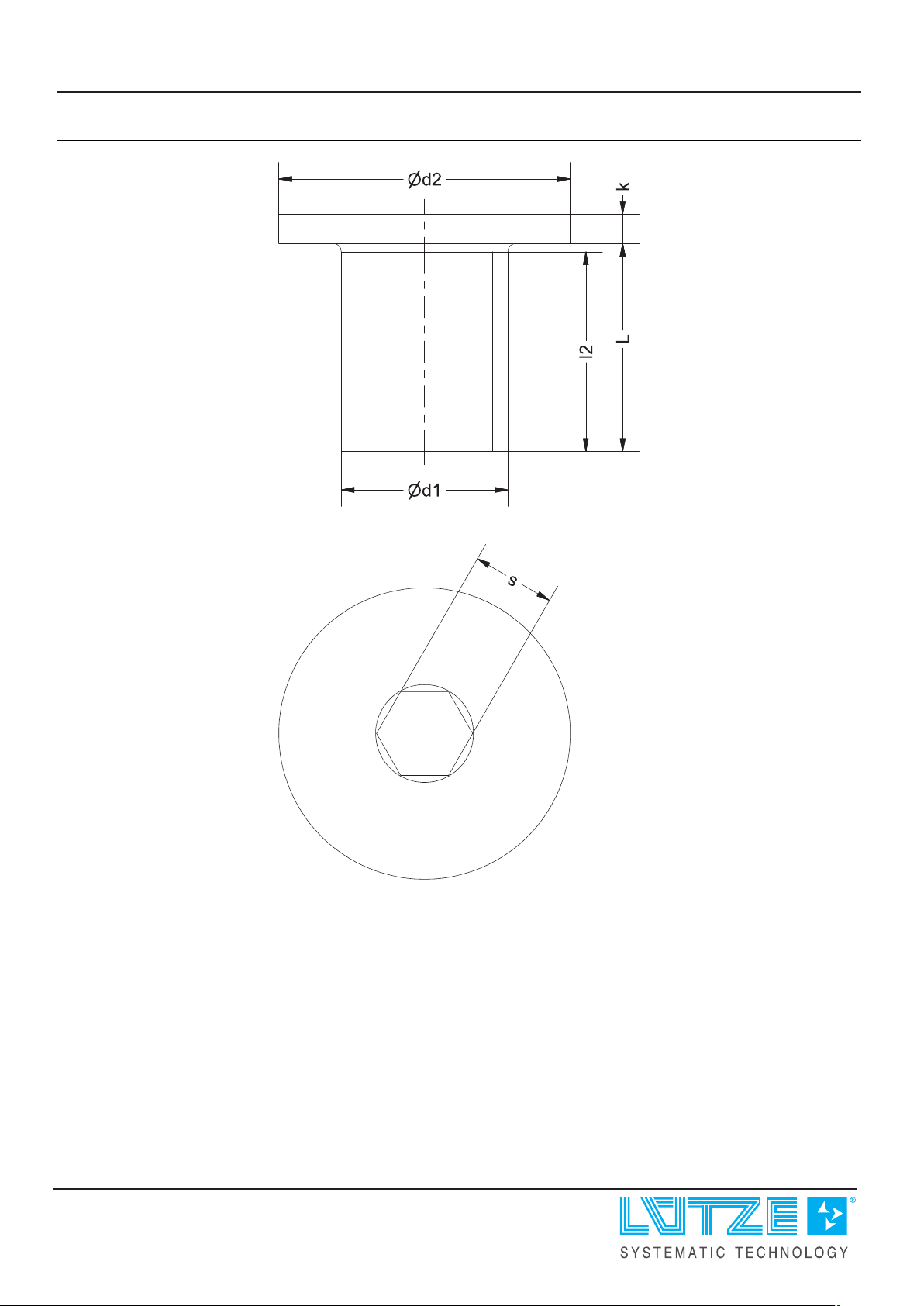

Dimensions
13.04.2021 – Subject to technical modification
Part-No. 345628.0100 • Datasheet version: 00 page 2 of 2
