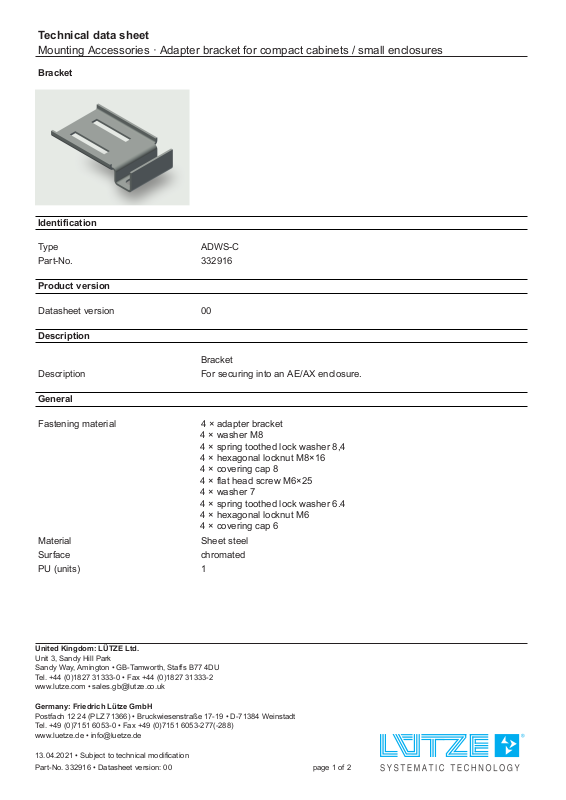

Technical data sheet
Mounting Accessories · Adapter bracket for compact cabinets / small enclosures
Bracket
Identification
Type ADWS-C
Part-No. 332916
Product version
Datasheet version 00
Description
Bracket
Description For securing into an AE/AX enclosure.
General
Fastening material 4 × adapter bracket
4 × washer M8
4 × spring toothed lock washer 8,4
4 × hexagonal locknut M8×16
4 × covering cap 8
4 × flat head screw M6×25
4 × washer 7
4 × spring toothed lock washer 6.4
4 × hexagonal locknut M6
4 × covering cap 6
Material Sheet steel
Surface chromated
PU (units) 1
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
13.04.2021 • Subject to technical modification
Part-No. 332916 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
Mounting Accessories · Adapter bracket for compact cabinets / small enclosures

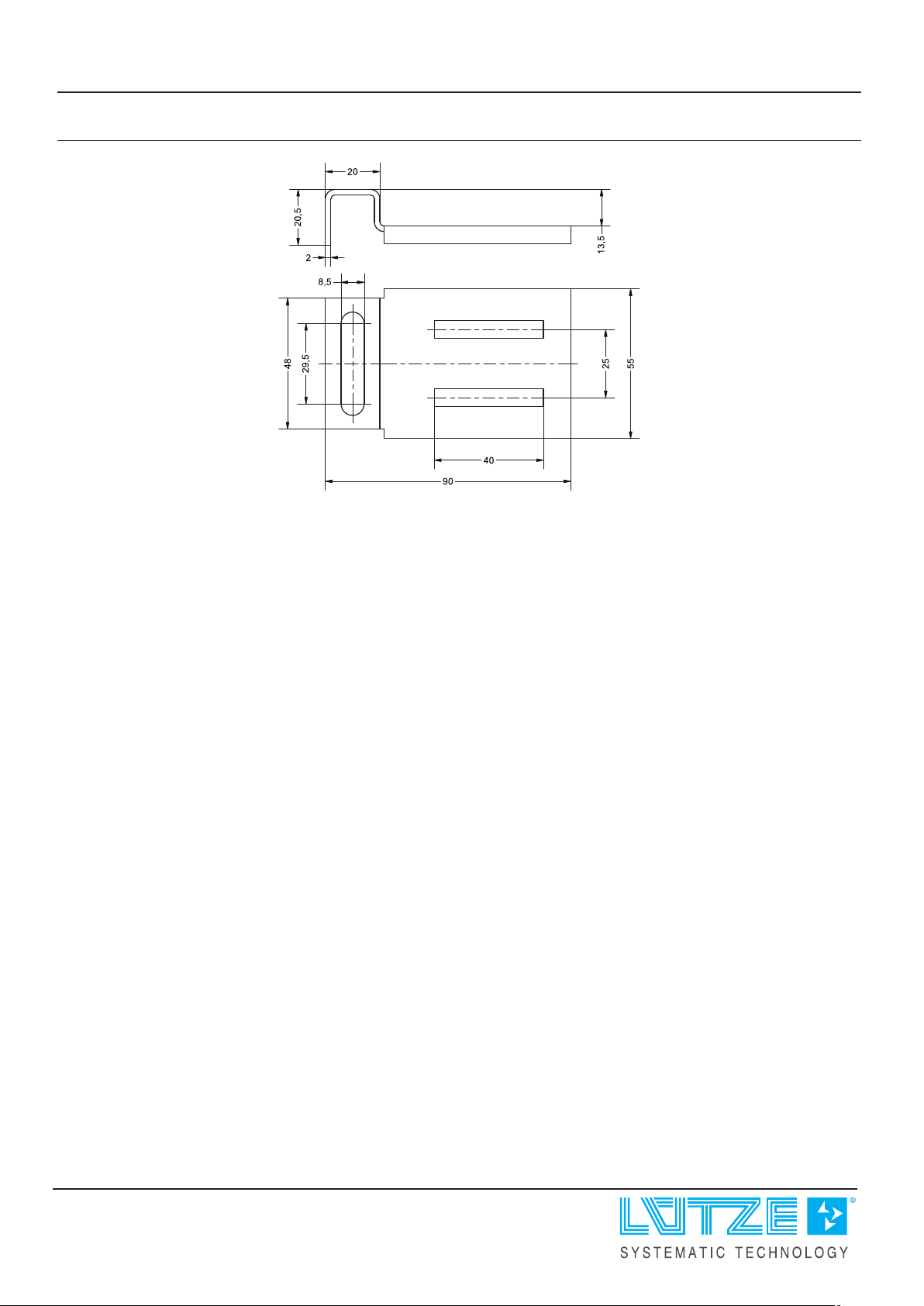

Dimensions
13.04.2021 – Subject to technical modification
Part-No. 332916 • Datasheet version: 00 page 2 of 2
