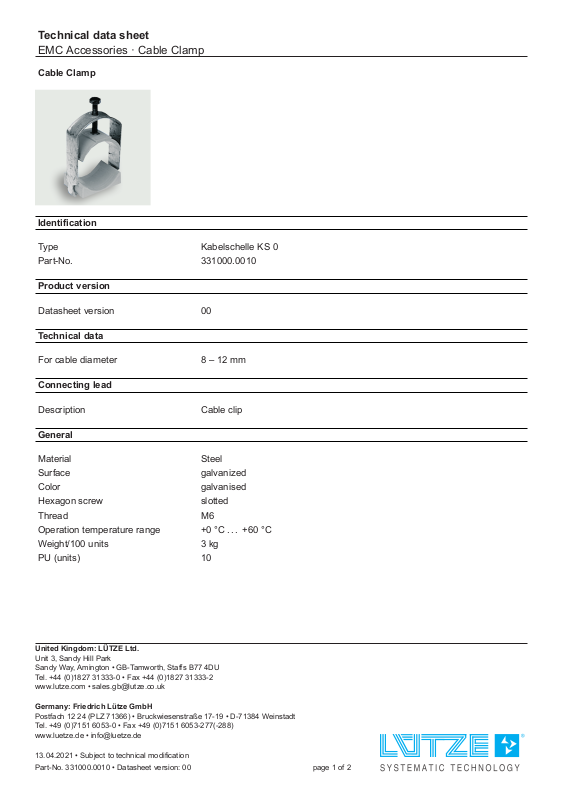

Page 1
Technical data sheet
EMC Accessories · Cable Clamp
Cable Clamp
Identification
Type Kabelschelle KS 0
Part-No. 331000.0010
Product version
Datasheet version 00
Technical data
For cable diameter 8 – 12 mm
Connecting lead
Description Cable clip
General
Material Steel
Surface galvanized
Color galvanised
Hexagon screw slotted
Thread M6
Operation temperature range +0 °C . . . +60 °C
Weight/100 units 3 kg
PU (units) 10
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
13.04.2021 • Subject to technical modification
Part-No. 331000.0010 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
EMC Accessories · Cable Clamp
Accessories
Accessories can be used on Lütze rails:
Part.-No. 380582Mxxxx
Part.-No. 380583Mxxxx
Part.-No. 380586Mxxxx
Part.-No. 380587Mxxxx
Notes and Comments
Comments Includes a plastic (polypropylene) counter insert
If two or three cables/wires have to be laid in one cable clip, a double trough
from the company OBO Bettermann (Part-No. 1196111) can be used.
If necessary, higher cable clamps must be used.
Dimensions
13.04.2021 – Subject to technical modification
Part-No. 331000.0010 • Datasheet version: 00 page 2 of 2
