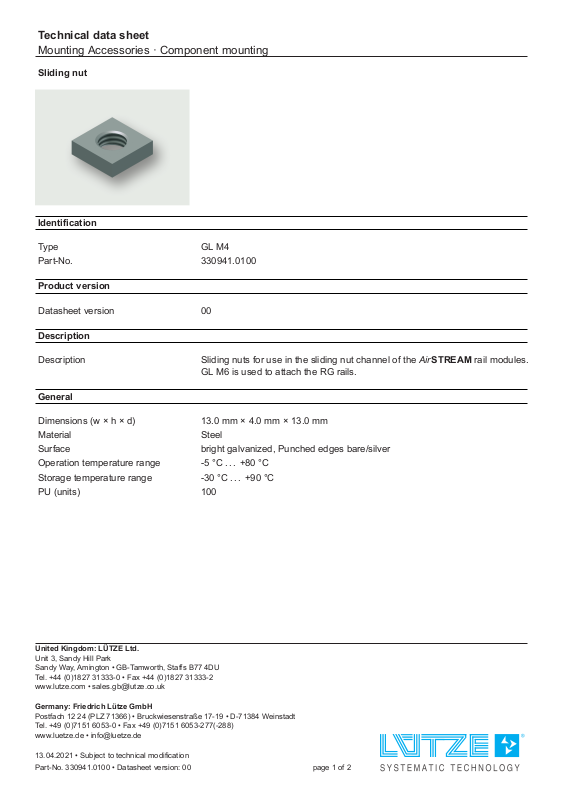

Page 1
Technical data sheet
Mounting Accessories · Component mounting
Sliding nut
Identification
Type GL M4
Part-No. 330941.0100
Product version
Datasheet version 00
Description
Description
Sliding nuts for use in the sliding nut channel of the AirSTREAM rail modules.
GL M6 is used to attach the RG rails.
General
Dimensions (w × h × d) 13.0 mm × 4.0 mm × 13.0 mm
Material Steel
Surface bright galvanized, Punched edges bare/silver
Operation temperature range -5 °C . . . +80 °C
Storage temperature range -30 °C . . . +90 °C
PU (units) 100
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
13.04.2021 • Subject to technical modification
Part-No. 330941.0100 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
Mounting Accessories · Component mounting
Dimensions
13.04.2021 – Subject to technical modification
Part-No. 330941.0100 • Datasheet version: 00 page 2 of 2
