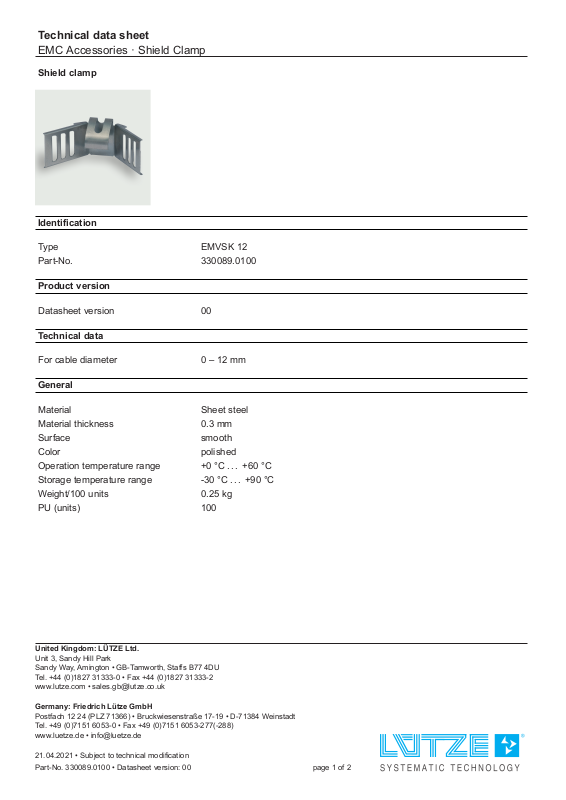

Page 1
Technical data sheet
EMC Accessories · Shield Clamp
Shield clamp
Identification
Type EMVSK 12
Part-No. 330089.0100
Product version
Datasheet version 00
Technical data
For cable diameter 0 – 12 mm
General
Material Sheet steel
Material thickness 0.3 mm
Surface smooth
Color polished
Operation temperature range +0 °C . . . +60 °C
Storage temperature range -30 °C . . . +90 °C
Weight/100 units 0.25 kg
PU (units) 100
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
21.04.2021 • Subject to technical modification
Part-No. 330089.0100 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
EMC Accessories · Shield Clamp

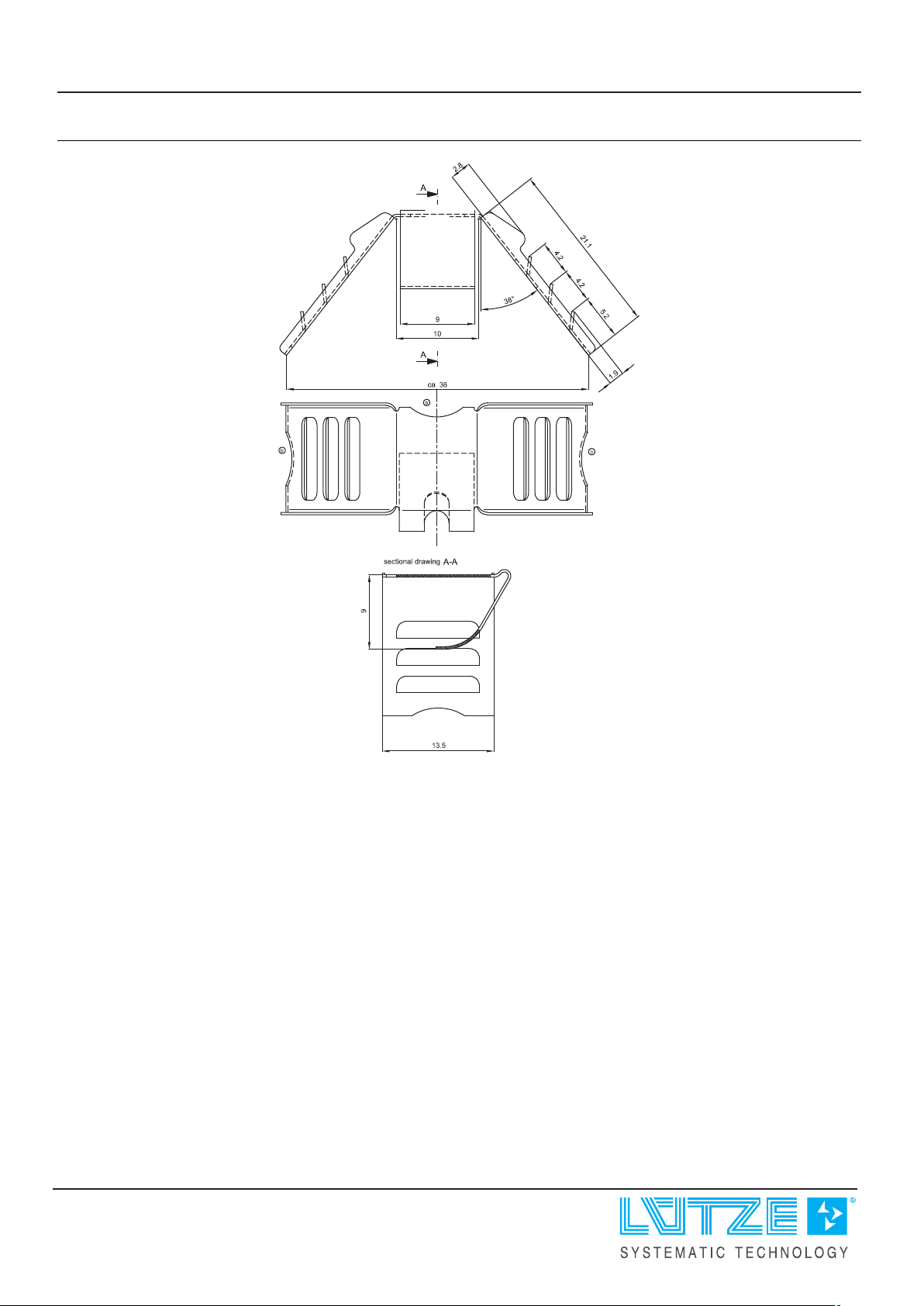

Dimensions
21.04.2021 – Subject to technical modification
Part-No. 330089.0100 • Datasheet version: 00 page 2 of 2
