Technical data sheet
EMC Accessories · Snap-on Element
Snap-on element for snapping onto DIN rail
for attaching a grounding clamp
Identification
Type EMVRE H 1
Part-No. 330088.0010
Product version
Datasheet version 00
Technical data
Length 18 mm
Connecting lead
Description Snap-on element
General
Material Sheet steel
Surface polished
Color polished
Operation temperature range -20 °C . . . +60 °C
Weight/100 units 0.7 kg
PU (units) 10
Note Attenuation measurement: shield contact on DIN rail (see diagram)
Notes and Comments
Comments Suitable for all crosspieces and DIN profile TS35
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
21.04.2021 • Subject to technical modification
Part-No. 330088.0010 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
EMC Accessories · Snap-on Element

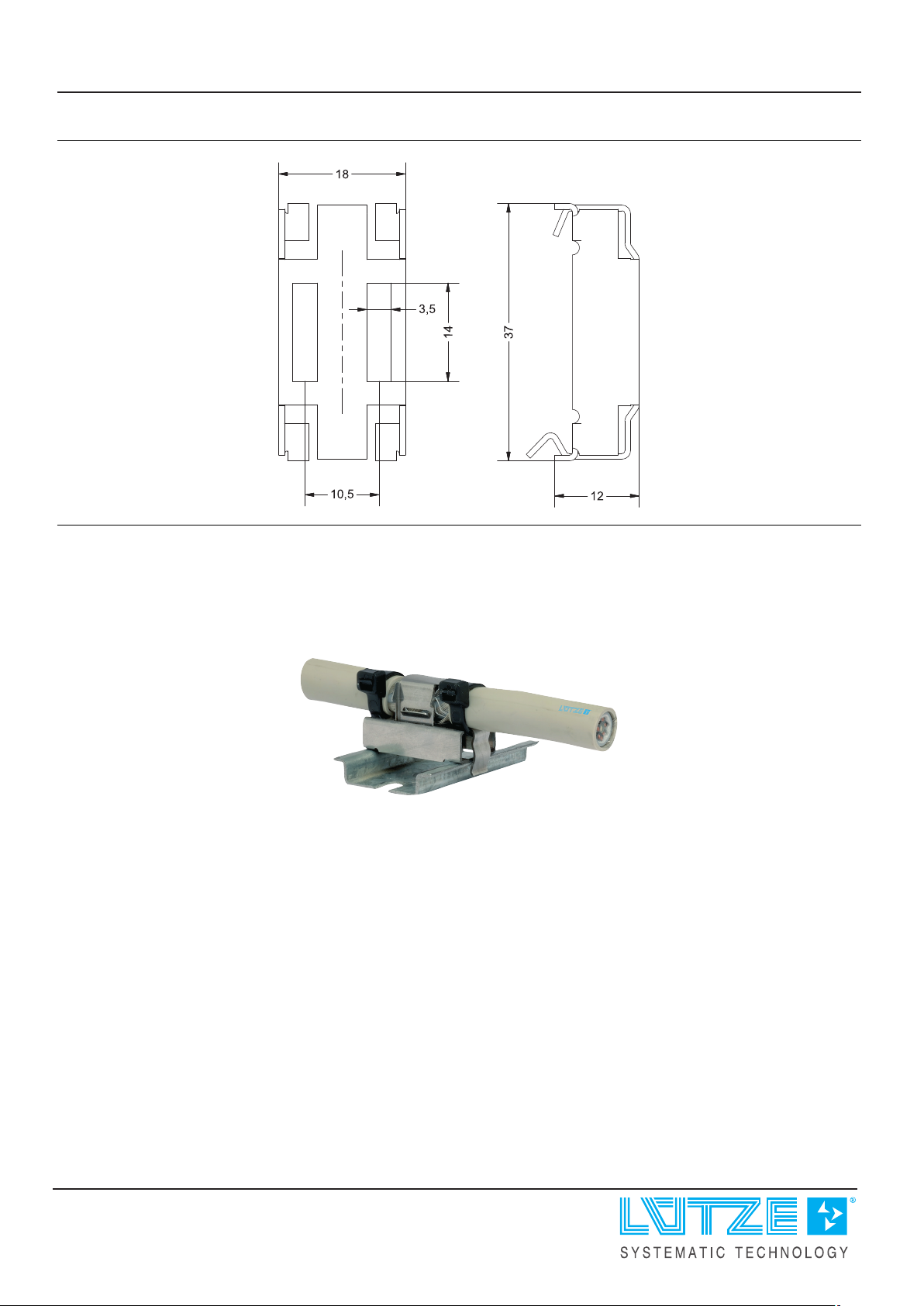

Dimensions
Use
21.04.2021 – Subject to technical modification
Part-No. 330088.0010 • Datasheet version: 00 page 2 of 2
