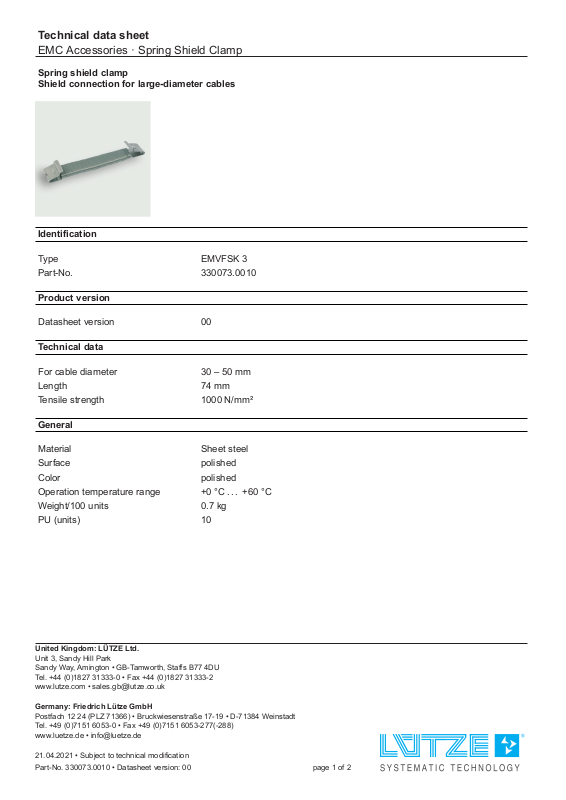

Page 1
Technical data sheet
EMC Accessories · Spring Shield Clamp
Spring shield clamp
Shield connection for large-diameter cables
Identification
Type EMVFSK 3
Part-No. 330073.0010
Product version
Datasheet version 00
Technical data
For cable diameter 30 – 50 mm
Length 74 mm
Tensile strength 1000 N/mm²
General
Material Sheet steel
Surface polished
Color polished
Operation temperature range +0 °C . . . +60 °C
Weight/100 units 0.7 kg
PU (units) 10
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
21.04.2021 • Subject to technical modification
Part-No. 330073.0010 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
EMC Accessories · Spring Shield Clamp

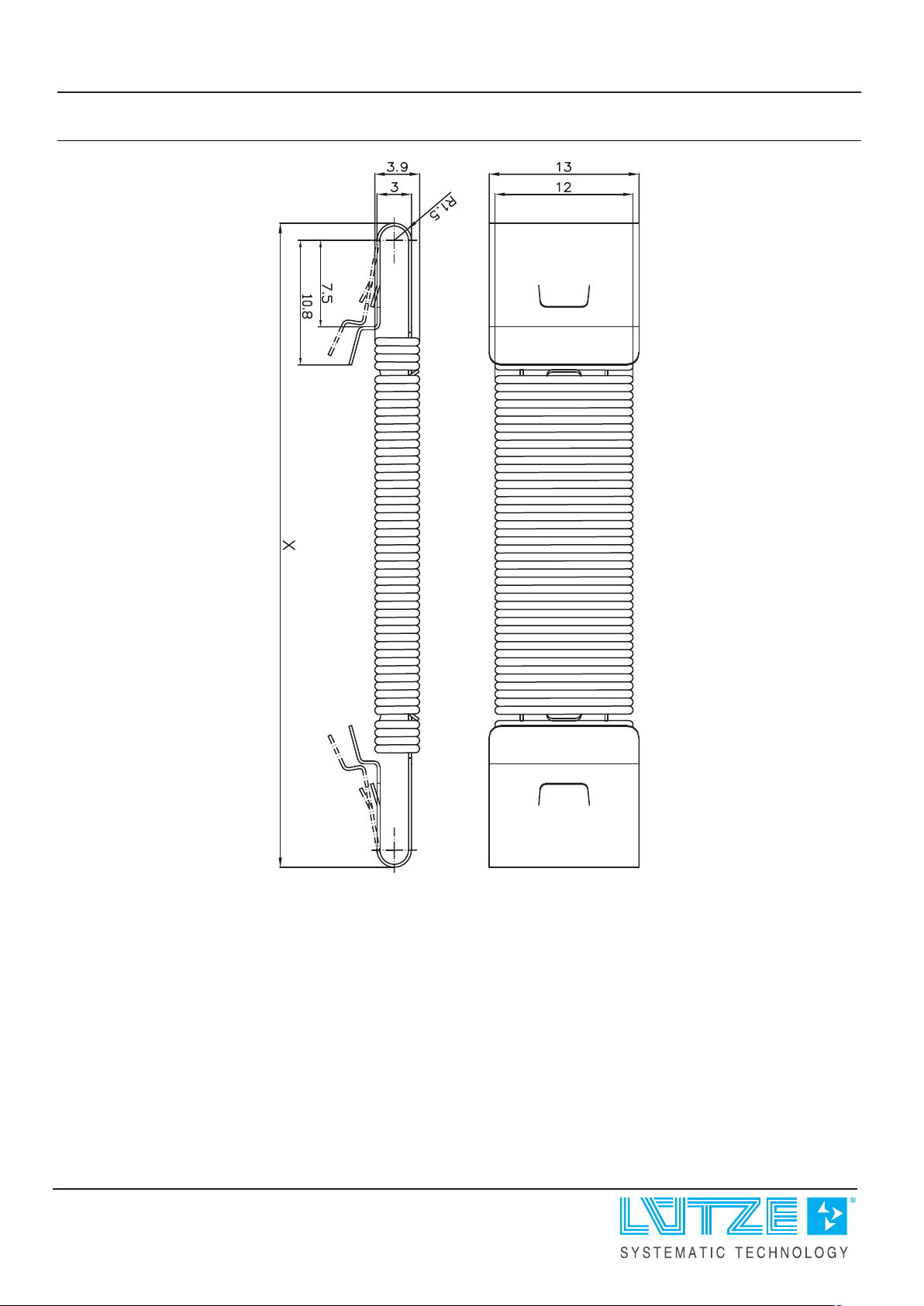

Dimensions
21.04.2021 – Subject to technical modification
Part-No. 330073.0010 • Datasheet version: 00 page 2 of 2
