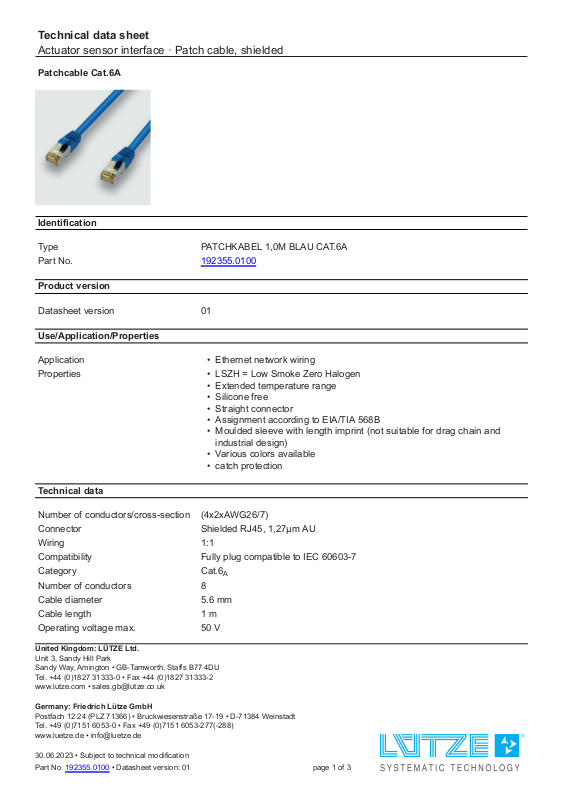

Page 1
Technical data sheet
Actuator sensor interface · Patch cable, shielded
Patchcable Cat.6A
Identification
Type PATCHKABEL 1,0M BLAU CAT.6A
Part No.
Product version
Datasheet version 01
192355.0100
Use/Application/Properties
Application • Ethernet network wiring
Properties • LSZH = Low Smoke Zero Halogen
• Extended temperature range
• Silicone free
• Straight connector
• Assignment according to EIA/TIA 568B
•
Moulded sleeve with length imprint (not suitable for drag chain and
industrial design)
• Various colors available
• catch protection
Technical data
Number of co n d u cto r s/cr o ss- se cti o n (4x2xAWG26/7)
Connector Shielded RJ45, 1,27µm AU
Wiring 1:1
Compatibility Fully plug co m p a ti b l e to IEC 60603-7
Category Cat.6
A
Number of co n d u cto r s 8
Cable diameter 5.6 mm
Cable length 1 m
Operating voltage max. 50 V
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
30.06.2023 • Subject to technical modifica ti o n
Part No.
192355.0100 • Datasheet version: 01 page 1 of 3
Page 2
Technical data sheet
Actuator sensor interface · Patch cable, shielded
Temperature range fixed -20 °C . . . +75 °C
Minimum bending radius fixed 6×D

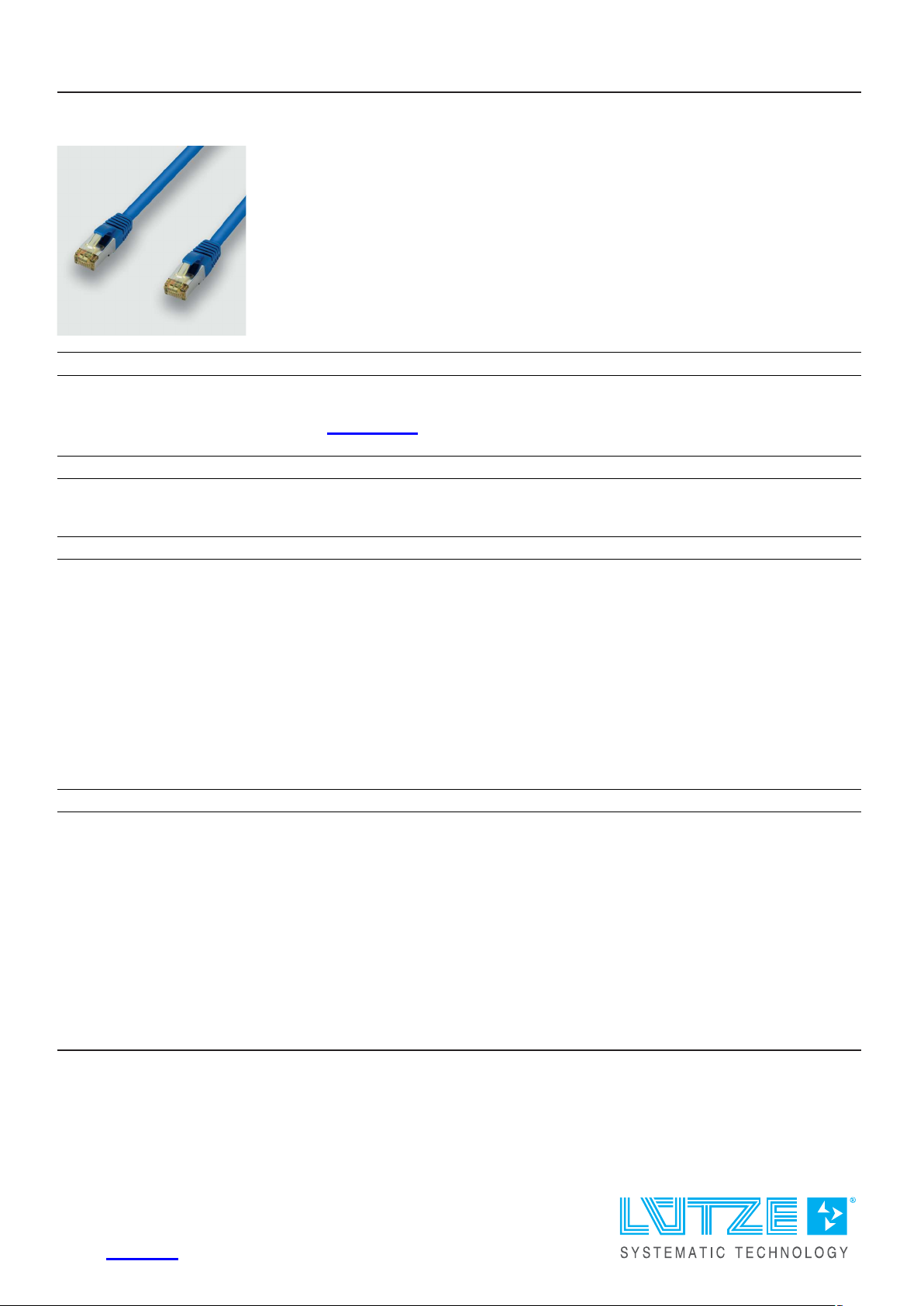

Product photo
Construction
Ethernet Key S/FTP
Number of co n d u cto r s/cr o ss- se cti o n (4x2xAWG26/7)
Number of co n d u cto r s 8
Jacket color blue
Sleeve color blue
General
The produ ct photos are not to scale and do not represent detailed images of
the respective products.
Ordering instructions:
The LÜTZE Art. no. consists of two blocks that are separated by a dot:
6 digits before the dot: technical design
4 digits after the dot: length code in cm
Ex.: 198360.0500 corresponds to a length of 5.0 m
Special features:
No minimum order quantity
Standard lengths:
0.5 m / 1.0 m / 2.0 m / 3.0 m / 5.0 m / 10.0 m
Other types on request
When ordering, please specify se r i a l number and length key
Additional types on re q u e st
Certifications/Standards
Burning behavior according to IEC 603 3 2 - 1
Halogen free according to IEC 6 0 7 5 4 - 2

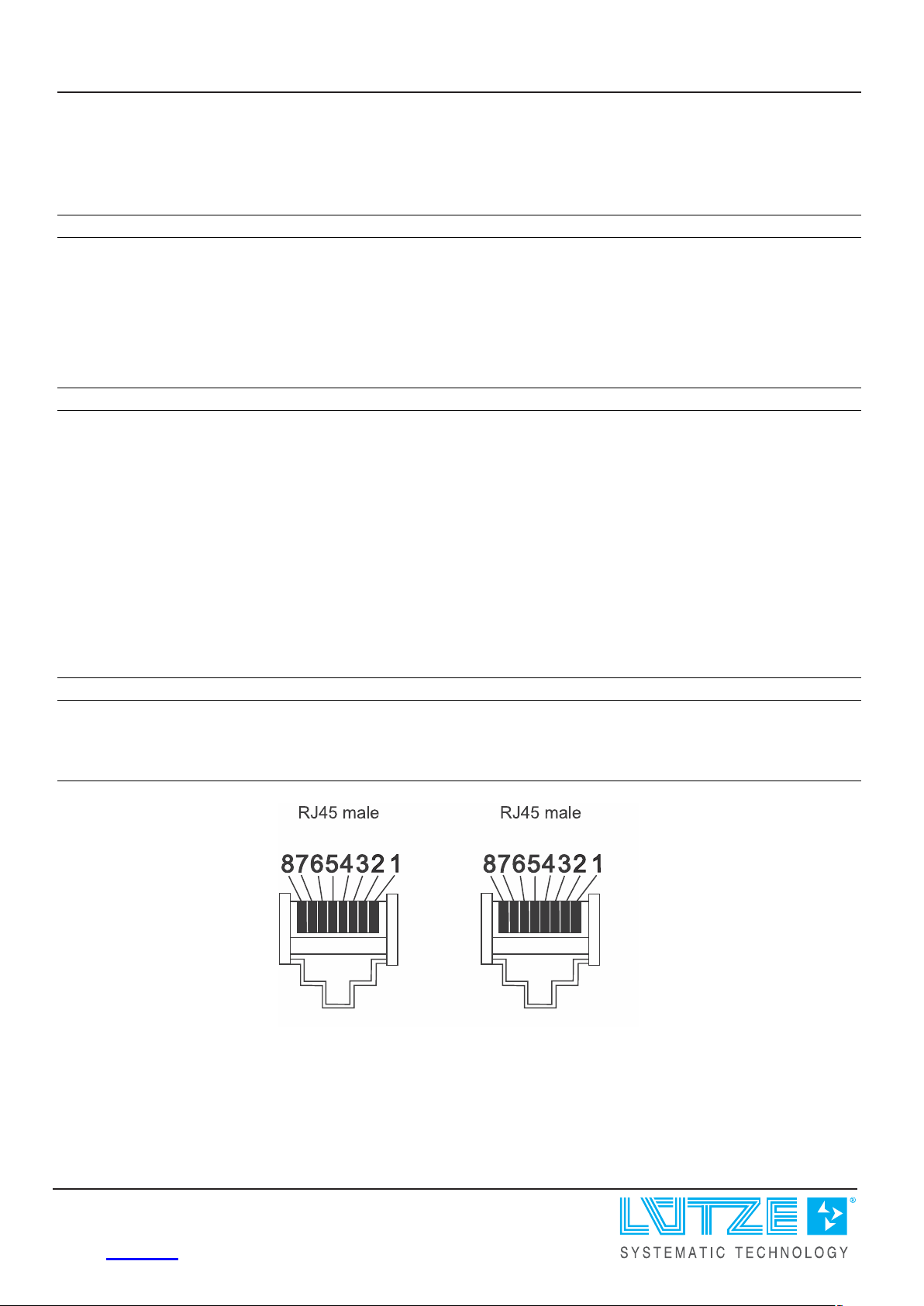

Pin layout
30.06.2023 – Subject to technical modifica ti o n
Part No. 192355.0100 • Datasheet version : 01 page 2 of 3
Page 3
Technical data sheet
Actuator sensor interface · Patch cable, shielded

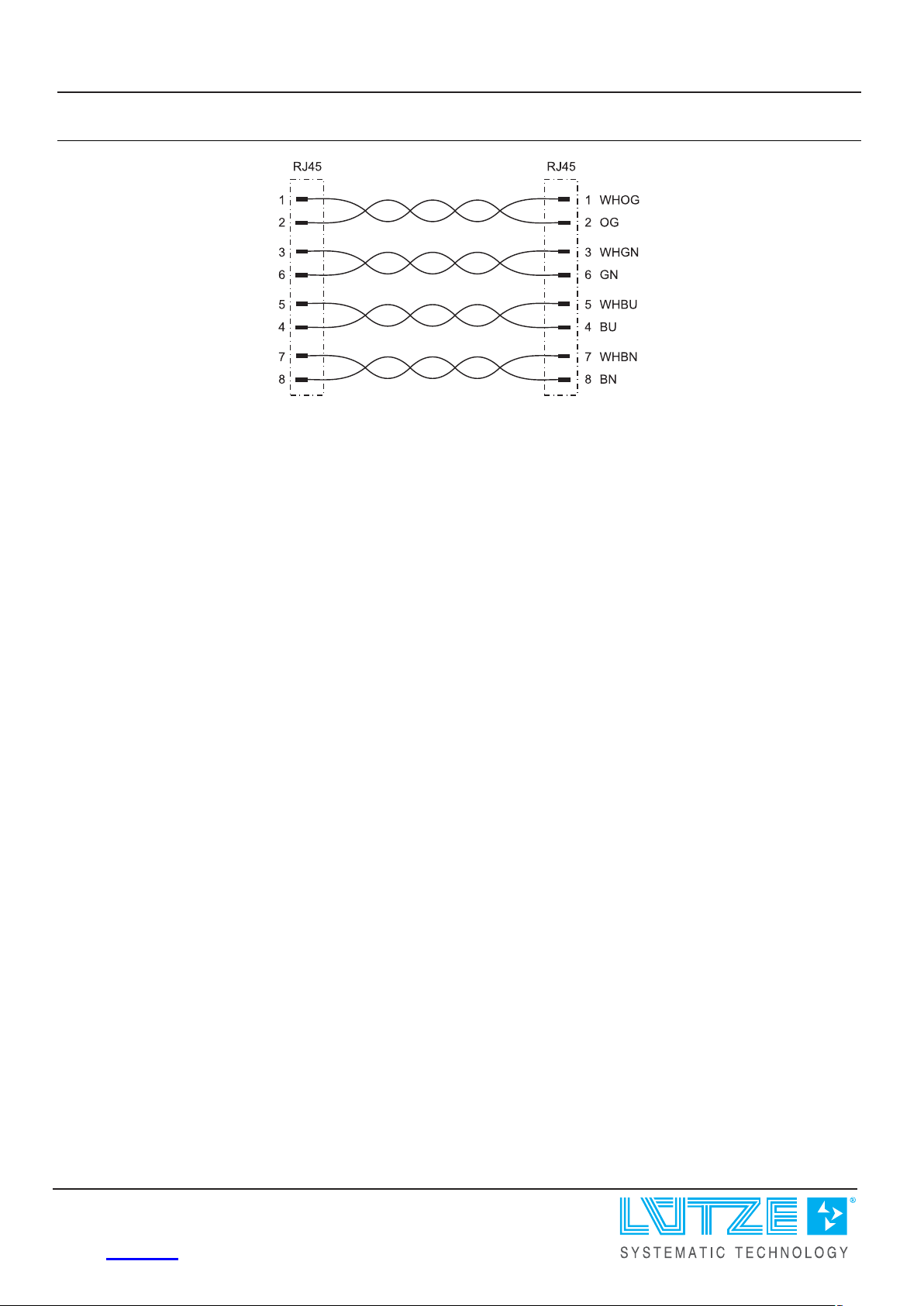

Circuit diagram
30.06.2023 – Subject to technical modifica ti o n
Part No.
192355.0100 • Datasheet version: 01 page 3 of 3
