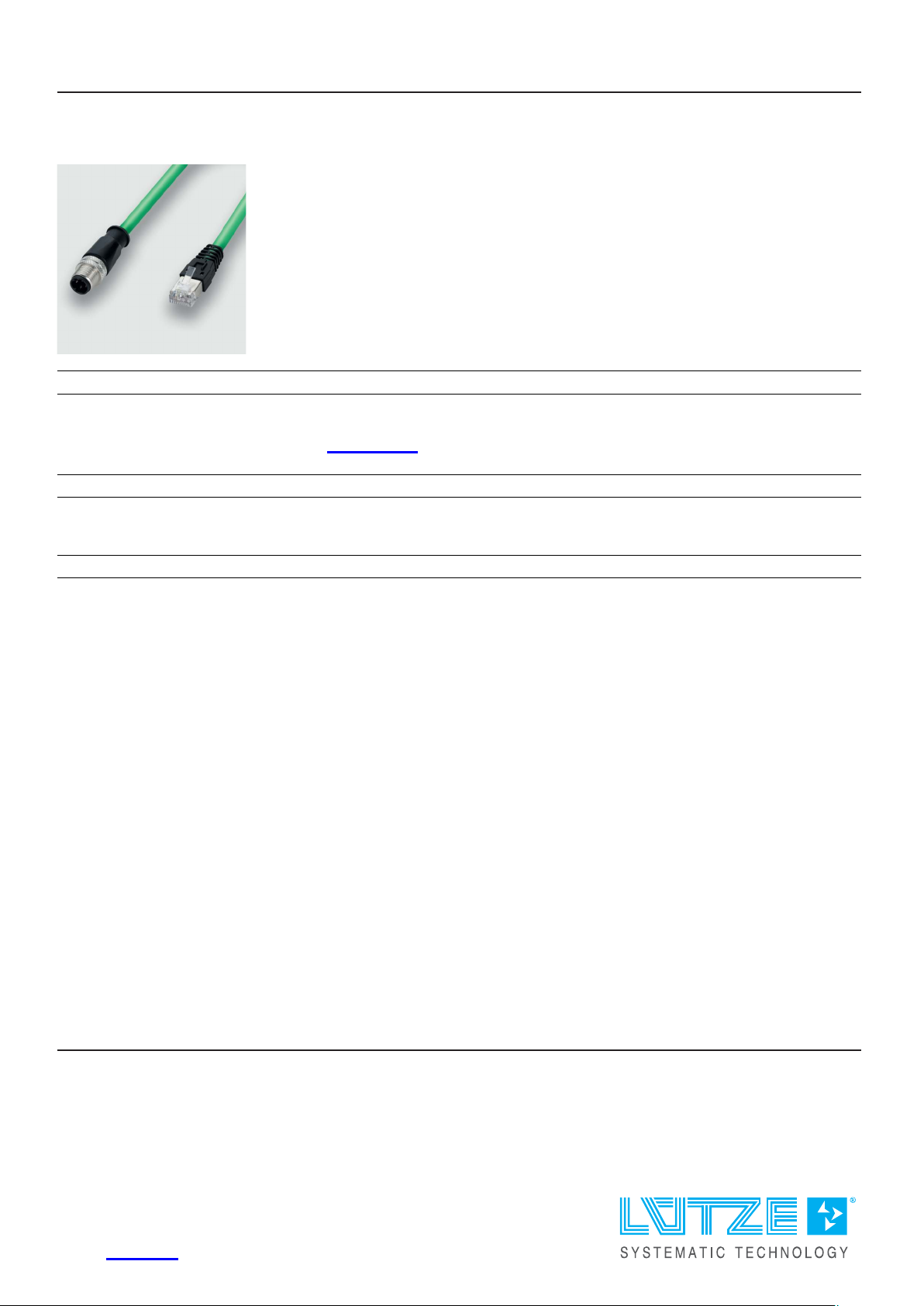

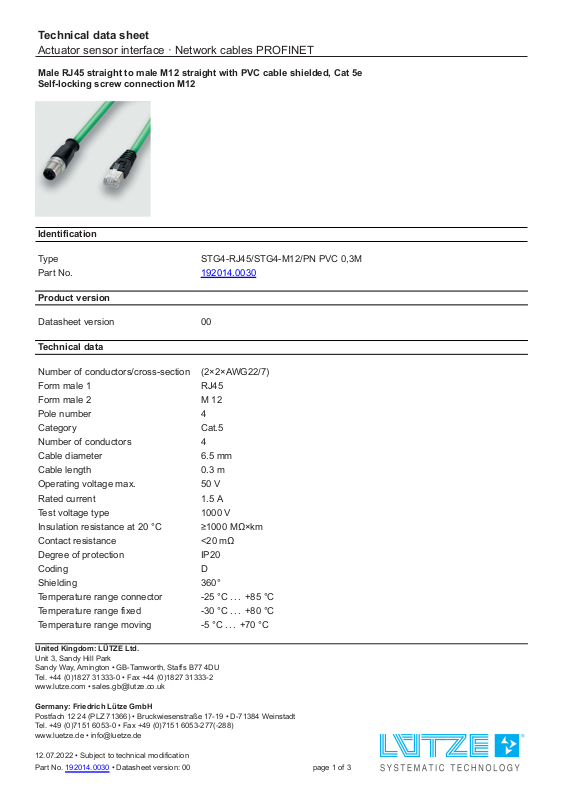

Technical data sheet
Actuator sensor interface · Network cables PROFINET
Male RJ45 straight to male M12 straight with PVC cable shielded, Cat 5e
Self-locking screw connection M12
Identification
Type STG4-RJ45/STG4-M12/PN PVC 0,3M
Part No.
Product version
192014.0030
Datasheet version 00
Technical data
Number of conductors/cross-section (2×2×AWG22/7)
Form male 1 RJ45
Form male 2 M 12
Pole number 4
Category Cat.5
Number of conductors 4
Cable diameter 6.5 mm
Cable length 0.3 m
Operating voltage max. 50 V
Rated current 1.5 A
Test voltage type 1000 V
Insulation resistance at 20 °C ≥1000 MΩ×km
Contact resistance <20 mΩ
Degree of protection IP20
Coding D
Shielding 360°
Temperature range connector -25 °C . . . +85 °C
Temperature range fixed -30 °C . . . +80 °C
Temperature range moving -5 °C . . . +70 °C
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • sales.g b @ l u tze .co .u k
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • info @ l u e tze .d e
12.07.2022 • Subject to technical modification
Part No.
192014.0030 • Datasheet version: 00 page 1 of 3
Page 2
Technical data sheet
Actuator sensor interface · Network cables PROFINET
Minimum bending radius fixed 6×D
Minimum bending radius moving 12×D
Mounting Breakaway torque 0.4 Nm
Construction
Number of conductors/cross-section (2×2×AWG22/7)
Number of conductors 4
Conductor marking yellow • orange • white • blue
Conductor insulation TPE-O
Jacket material PVC
Jacket color green RAL 6018
General
Housing material TPU, PA
Color of the housing black
Contact material CuSn, gold-plated
Thread material Zinc die-casting, nickel-plated
Mounting Breakaway torque 0.4 Nm
Weight/unit 0.035 kg
PU (units) 1
Note CE These products are in conformity with the EU Low Voltage Directive 2014/
35/EU
Equipment/Spare parts
Accessories Torque setting tool M 12: Part-No. 490091 | DM-SET M12 | PU: 1 uni t

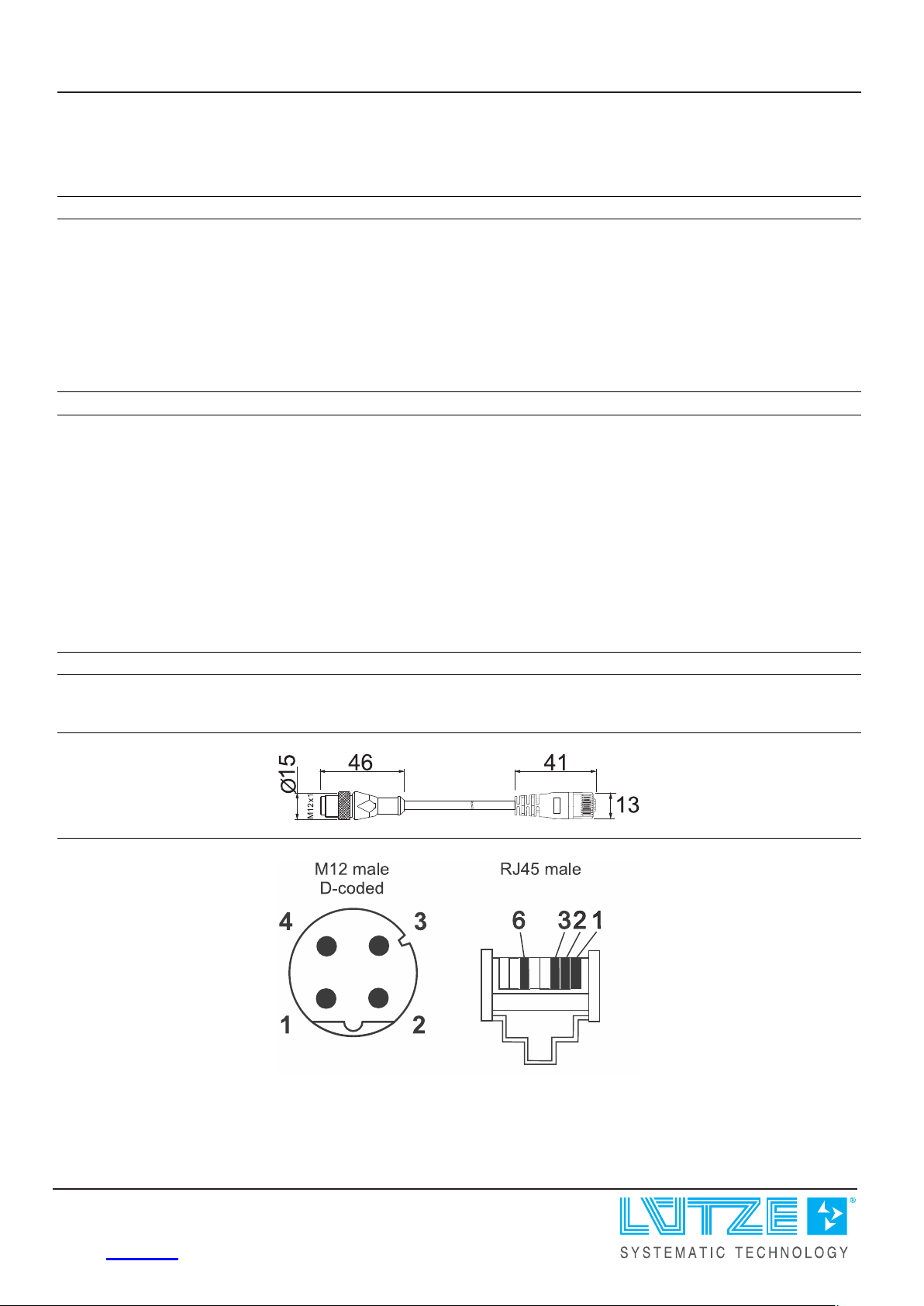

Dimensions
Pin layout
12.07.2022 – Subject to technical modification
Part No.
192014.0030 • Datasheet version: 00 page 2 of 3
Page 3
Technical data sheet
Actuator sensor interface · Network cables PROFINET

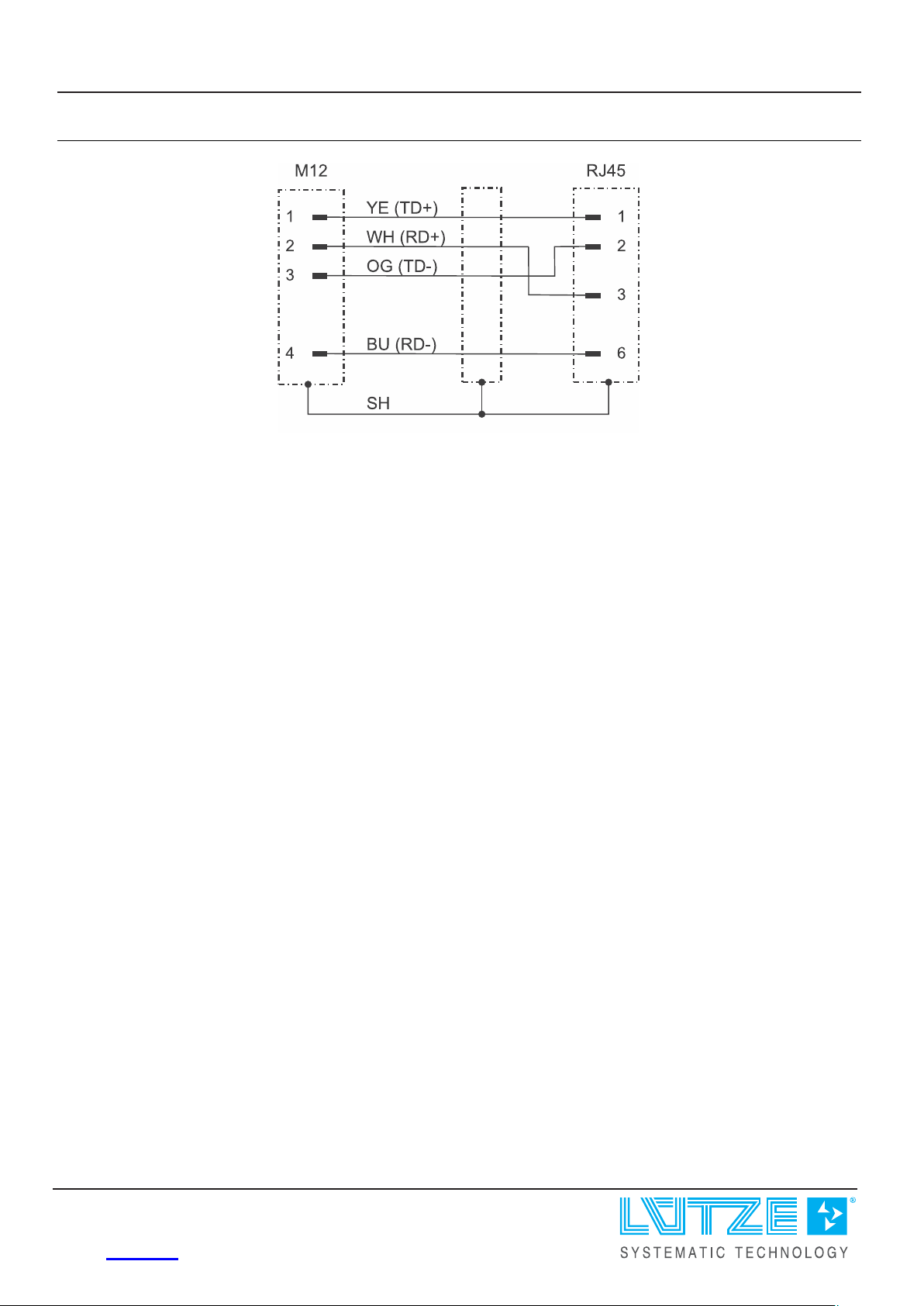

Circuit diagram
12.07.2022 – Subject to technical modification
Part No.
192014.0030 • Datasheet version: 00 page 3 of 3
