LUTZE 192013.1000 Specification

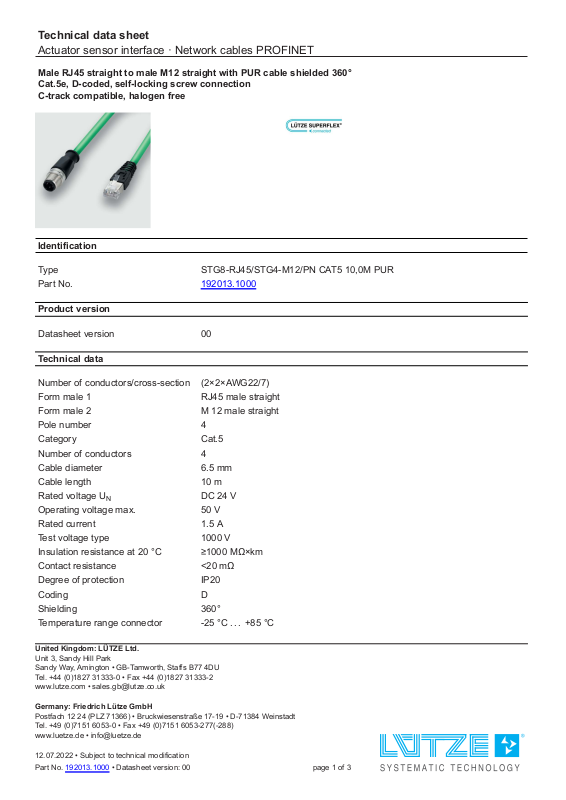

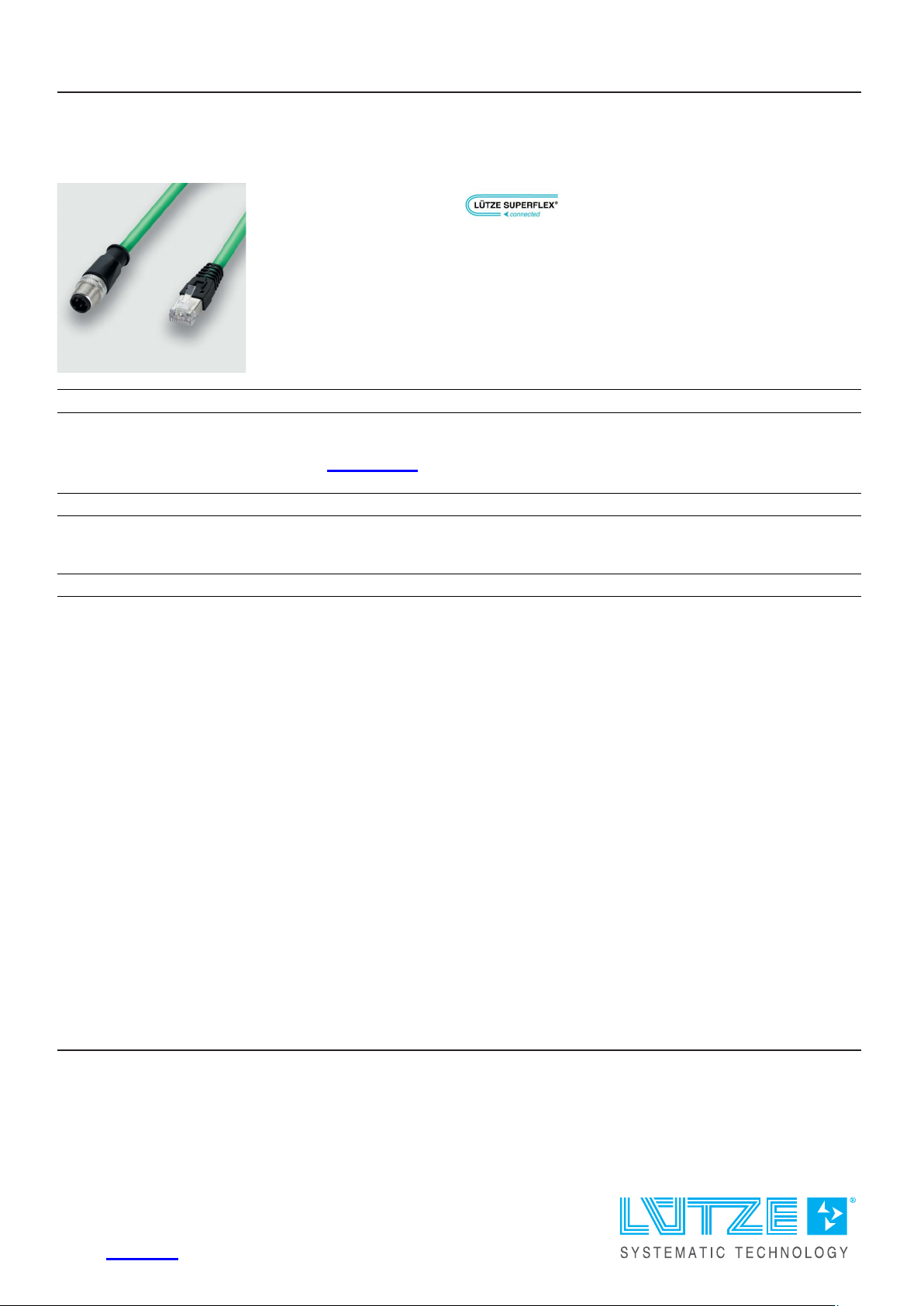

Technical data sheet

Actuator sensor interface · Network cables PROFINET

Male RJ45 straight to male M12 straight with PUR cable shielded 360°
Cat.5e, D-coded, self-locking screw connection
C-track compatible, halogen free

Identification

Type STG8-RJ45/STG4-M12/PN CAT5 10,0M PUR

Part N o .

Product version

192013.1000

Datasheet version 00

Technical data

Number of conductors/cross-section (2×2×AWG22/7)

Form male 1 RJ45 male straight

Form male 2 M 12 mal e strai g h t

Pole number 4

Category Cat.5

Number of conductors 4

Cable diameter 6.5 m m

Cable length 10 m

Rated voltage U

N

DC 2 4 V

Operating voltage max. 50 V

Rated current 1.5 A

Test voltage type 1000 V

Insulation resistance at 20 °C ≥1000 MΩ×km

Contact resistance <20 mΩ

Degree of protection IP20

Coding D

Shielding 360°

Temperature range connector -25 °C . . . +85 °C

United Kingdom: LÜTZE Ltd.

Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

Germany: Friedrich Lütze GmbH

Postfach 12 24 (PLZ 71366) • Bruckwie se n str a ße 17-19 • D-71384 Weinstadt
Tel. [phone] • Fax [phone](-288)
www.luetze.de • [email protected]

12.07.2022 • Subject to technical modification

Part No.

192013.1000 • Datasheet version: 00 page 1 of 3

Technical data sheet

Actuator sensor interface · Network cables PROFINET

Temperature range fixed -40 °C . . . +80 °C

Temperature range moving -30 °C . . . +70 °C

Minimum bending radius fixed 6×D

Minimum bending radius moving 12×D

Mounting Breakaway torque 0.4 Nm

Construction

Number of conductors/cross-section (2×2×AWG22/7)

Number of conductors 4

Conductor marking yellow • o r a n g e • white • blue

Conductor insulation TPE-O

Jacket m a te r i a l PUR

Jacket co l o r green RAL 6018

General

Housing material TPU, PA

Color of the h o u si n g black

Contact material CuSn, gold-plated

Thread material Zinc d i e - ca sti n g , nickel - p l a te d

Mounting Breakaway torque 0.4 Nm

Weight/unit 0.645 kg

PU (u n i ts) 1

Note CE The se pro d u cts are in conform i ty with the EU Low Voltage Directive 2014/

35/EU

Equipment/Spare parts

Accessories Torque setting tool M 12: Part-No . 4900 9 1 | DM-SET M12 | PU: 1 unit

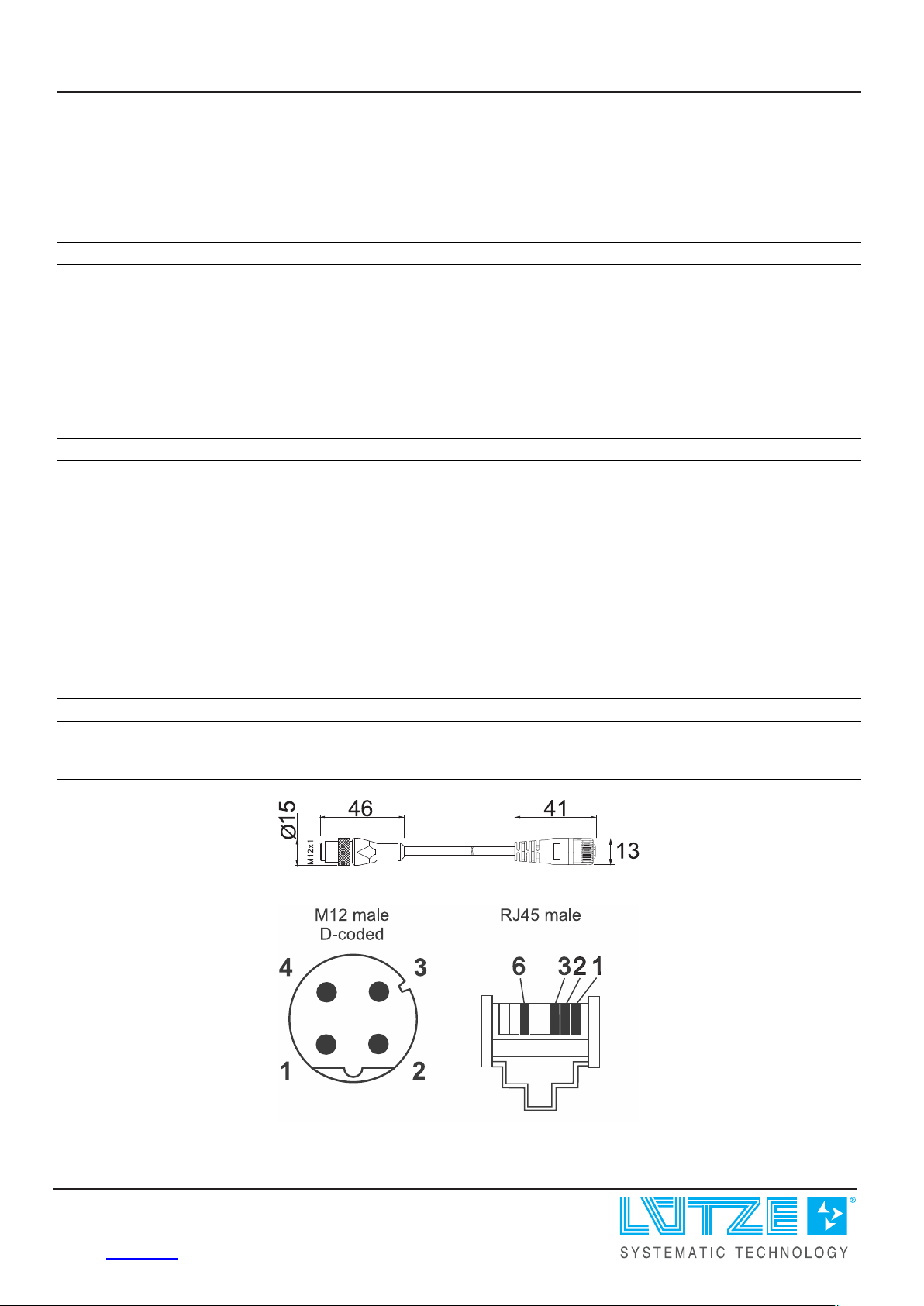

Dimensions

Pin layout

12.07.2022 – Subject to technical modification

Part No.

192013.1000 • Datasheet version: 00 page 2 of 3

Technical data sheet

Actuator sensor interface · Network cables PROFINET

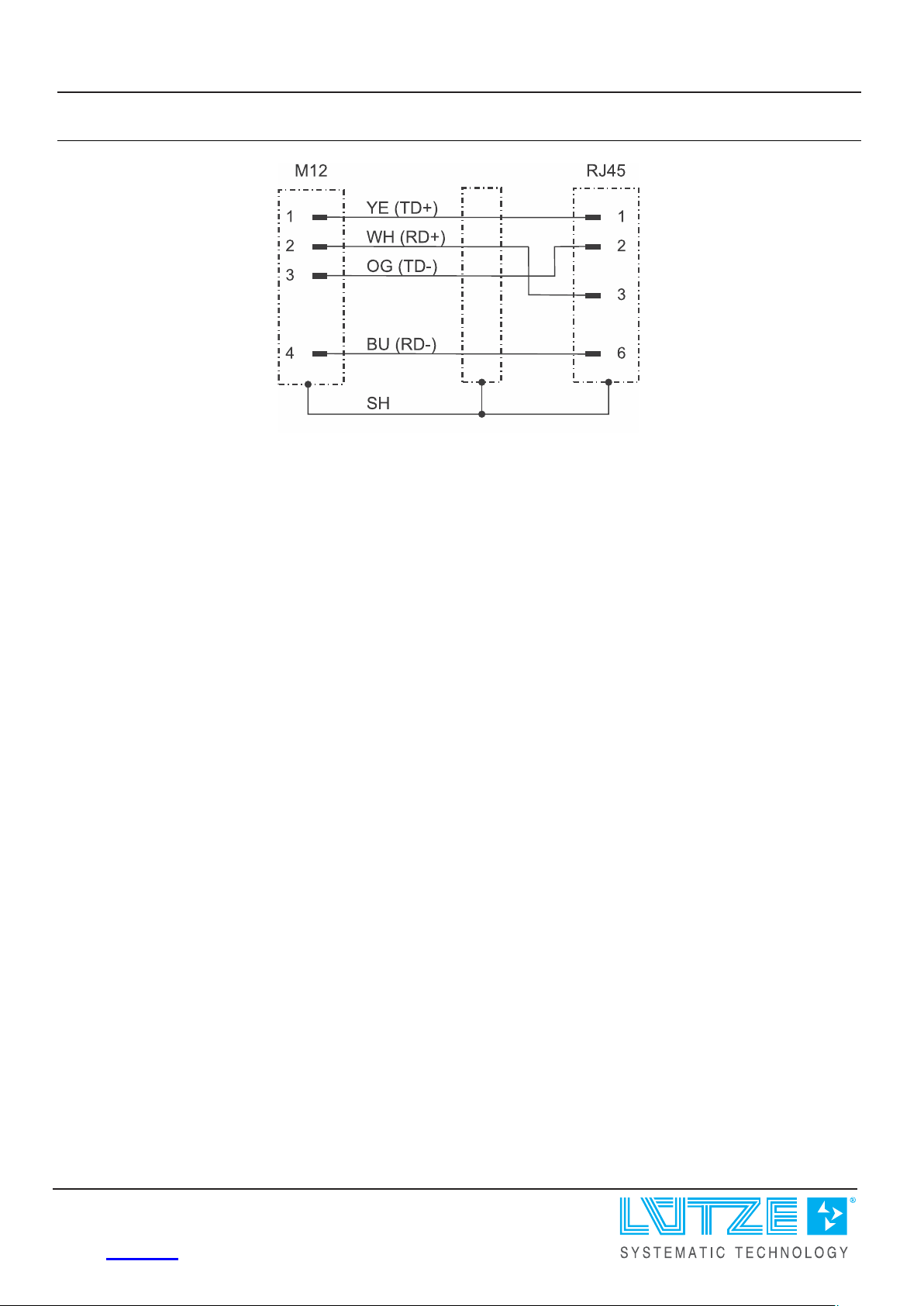

Circuit diagram

12.07.2022 – Subject to technical modification

Part No.

192013.1000 • Datasheet version: 00 page 3 of 3
