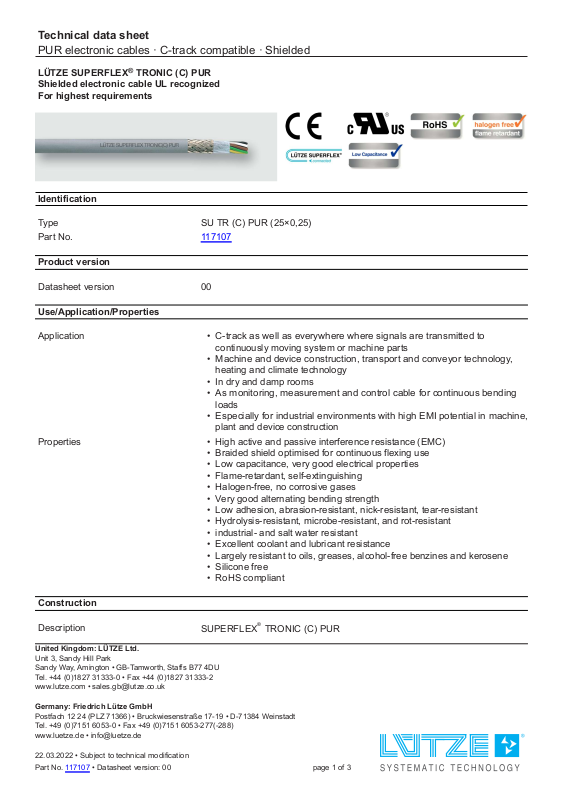

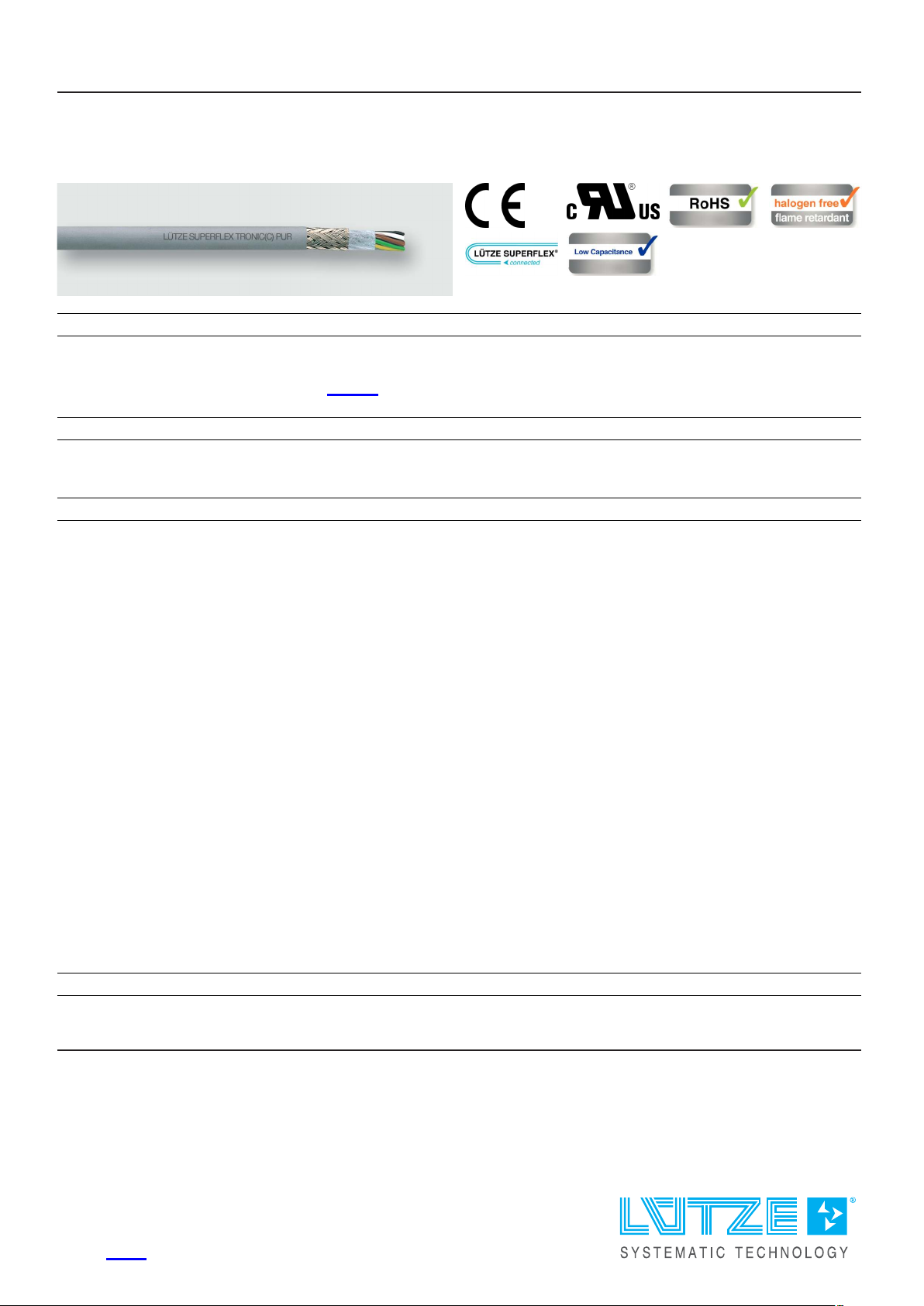

Page 1
Technical data sheet
PUR electronic cables · C-track compatible · Shielded
LÜTZE SUPERFLEX®TRONIC (C) PUR
Shielded electronic cable UL recognized
For highest requirements
Identification
Type SU TR (C) PUR (25×0,25)
Part No.
Product version
Datasheet version 00
117107
Use/Application/Properties
Application •
C-track as well as everywhere where signals are transmitted to
continuously moving system or machine parts
•
Machine and device construction, transport and conveyor technology,
heating and climate technology
• In dry and damp rooms
•
As monitoring, measurement and control cable for continuous bending
loads
•
Especially for industrial environments with high EMI potential in machine,
plant and device construction
Properties • High active and passive interference resistance (EMC)
• Braided shield optimised for continuous flexing use
• Low capacitance, very good electrical properties
• Flame-retardant, self-extinguishing
• Halogen-free, no corrosive gases
• Very good alternating bending strength
• Low adhesion, abrasion-resistant, nick-resistant, tear-resistant
• Hydrolysis-resistant, microbe-resistant, and rot-resistant
• industrial- and salt water resistant
• Excellent coolant and lubricant resistance
• Largely resistant to oils, greases, alcohol-free benzines and kerosene
• Silicone free
• RoHS compliant
Construction
Description
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
22.03.2022 • Subject to technical modification
Part No.
117107 • Datasheet version: 00 page 1 of 3
SUPERFLEX®TRONIC (C) PUR
Page 2
Technical data sheet
PUR electronic cables · C-track compatible · Shielded
Number of conductors/cross-section (25×0.25)
Number of conductors 25
Cross-section, metric 0.25 mm²
Cross-section AWG AWG 24
Jacket material PUR
Jacket color grey RAL 7001
Outer Ø 9.5 mm
Outer Ø 0.374 inch
Surface adhesion-free, matte
Weight 13.2 kg/100 m
Weight 85 Lbs/Mft
Cu-Index 9.5 kg/100 m
Cu-Index 57 Lbs/Mft
Construction Element 1
Element construction (25 × 0.25)
Conductor CU-wire bare
Conductor category IEC 60228, Class 6
Superfinely stranded DIN VDE 0295
class 6
Conductor marking Color coded
Conductor marking standard DIN 47100
Conductor insulation Special TPE
Overall construction
Overall stranding conductors layered construction
layer pitch optimised
conductors twisted without mechanical stress
Overall wrapping Fleece taping
Overall shield Braid shield
tinned copper wires
optical cover approx. 85 %
Jacket characteristics Flame-retardant
self-extinguishing
Halogen free
Oil resistant
grease-resistant
petrol-resistant (alcohol-free)
kerosene-resistant
Silicone-free
Technical data
Rated voltage 300 V
Test voltage type AC 1500 V
Temperature according to UL 80 °C
Temperature range moving -25 °C . .. +80 °C
Temperature range fixed -40 °C . .. +80 °C
22.03.2022 – Subject to technical modification
Part No. 117107 • Datasheet version: 00 page 2 of 3
Page 3
Technical data sheet
PUR electronic cables · C-track compatible · Shielded
Minimum bending radius moving 12×D
Minimum bending radius fixed 6×D
Bending cycles ≥5 Mio
Travel distance ≤20 m
Speed 4 m/s
Acceleration 5 m/s²
Technical Data Element 1
Element construction (25 × 0.25)
Insulation resistance at 20 °C ≥1000 MΩ×km
Certifications/Standards
Certifications cURus
UL style AWM 20549
Conformity CE
RoHS
REACH
Burning behavior according to IEC 60332-2-2
DIN EN 60332-2-2
UL 1581
Horizontal Flame Test
UL FT2
Oil resistant according to DIN EN 50363-10-2
Halogen free according to IEC 60754-1
DIN EN 60754-1
UV-resistant according to UL 1581/2556-300h
General
Note CE These products are in conformity with the EU Low Voltage Directive 2014/
35/EU
22.03.2022 – Subject to technical modification
Part No.
117107 • Datasheet version: 00 page 3 of 3
