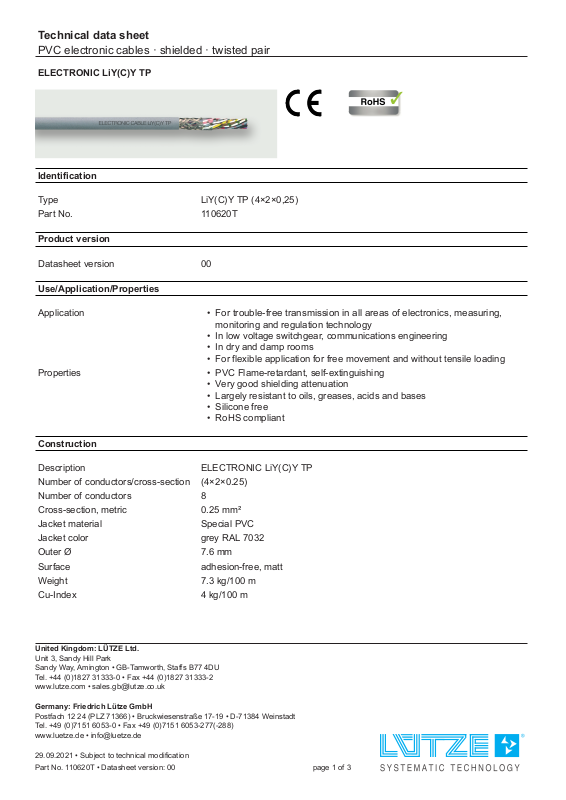

Technical data sheet
PVC electronic cables · shielded · twisted pair
ELECTRONIC LiY(C)Y TP
Identification
Type LiY(C)Y TP (4×2×0,25)
Part No. 110620T
Product version
Datasheet version 00
Use/Application/Properties
Application •
For trouble-free transmission in all areas of electronics, measuring,
monitoring and regulation technology
• In low voltage switchgear, communications engineering
• In dry and damp rooms
• For flexible application for free movement and without tensile loading
Properties • PVC Flame-retardant, self-extinguishing
• Very good shielding attenuation
• Largely resistant to oils, greases, acids and bases
• Silicone free
• RoHS compliant
Construction
Description ELECTRONIC LiY(C)Y TP
Number of conductors/cross-section (4×2×0.25)
Number of conductors 8
Cross-section, metric 0.25 mm²
Jacket material Special PVC
Jacket color grey RAL 7032
Outer Ø 7.6 mm
Surface adhesion-free, matt
Weight 7.3 kg/100 m
Cu-Index 4 kg/100 m
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
29.09.2021 • Subject to technical modification
Part No. 110620T • Datasheet version: 00 page 1 of 3
Page 2
Technical data sheet
PVC electronic cables · shielded · twisted pair
Construction Element 1
Element construction (4 × 2 × 0.25)
Conductor CU-wire bare
Conductor category IEC 60228, Class 5
Finely stranded DIN VDE 0295
Class 5
Conductor marking Color coded
Conductor marking standard DIN 47100
Conductor insulation Special PVC
Overall construction
Overall stranding stranded pairs
Overall wrapping Foil taping
Overall shield Braid shield
tinned copper wires
optical cover approx. 80 %
Jacket characteristics Flame-retardant
self-extinguishing
Oil resistant
grease-resistant
acid-resistant
alkali-resistant
Silicone-free
Technical data
Rated voltage 300 V
Test voltage type AC 1200 V
Temperature range moving -5 °C . .. +70 °C
Temperature range fixed -30 °C . .. +70 °C
Minimum bending radius moving 15×D
Minimum bending radius fixed 6×D
Technical Data Element 1
Element construction (4 × 2 × 0.25)
Insulation resistance at 20 °C ≥20 MΩ×km
Operating capacitance wire-wire approx.120 pF/m
Operating capacitance wire-shield approx.160 pF/m
Certifications/Standards
Conformity CE
RoHS
REACH
Burning behavior according to IEC 60332-1
DIN EN 60332-1-2
VDE 0482 322-1-2
29.09.2021 – Subject to technical modification
Part No. 110620T • Datasheet version: 00 page 2 of 3
Page 3
Technical data sheet
PVC electronic cables · shielded · twisted pair
General
Note CE These products are in conformity with the EU Low Voltage Directive 2014/
35/EU
29.09.2021 – Subject to technical modification
Part No. 110620T • Datasheet version: 00 page 3 of 3
