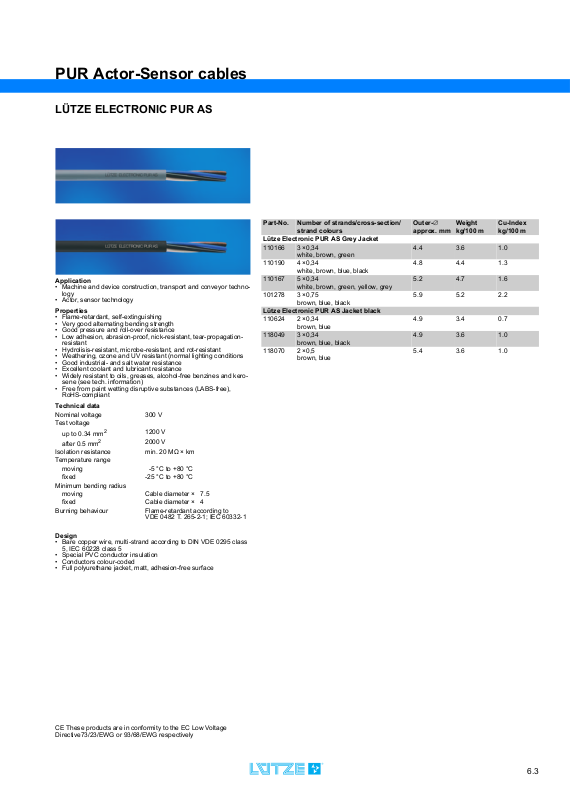

PUR Actor-Sensor cables
LÜTZE ELECTRONIC PUR AS
Application
• Machine and device construction, transport and conveyor technology
• Actor, sensor technology
Properties
• Flame-retardant, self-extinguishing
• Very good alternating bending strength
• Good pressure and roll-over resistance
• Low adhesion, abrasion-proof, nick-resistant, tear-propagationresistant
• Hydrolisis-resistant, microbe-resistant, and rot-resistant
• Weathering, ozone and UV resistant (normal lighting conditions
• Good industrial- and salt water resistance
• Excellent coolant and lubricant resistance
• Widely resistant to oils, greases, alcohol-free benzines and kerosene (see tech. information)
• Free from paint wetting disruptive substances (LABS-free),
RoHS-compliant
Technical data
Nominal voltage 300 V
Test voltage
up to 0.34 mm
after 0.5 mm
Isolation resistance min. 20 MΩ × km
Temperature range
moving -5 °C to +80 °C
fixed -25 °C to +80 °C
Minimum bending radius
moving Cable diameter × 7.5
fixed Cable diameter × 4
Burning behaviour Flame-retardant according to
2
2
1200 V
2000 V
VDE 0482 T. 265-2-1; IEC 60332-1
Part-No. Number of strands/cross-section/
Lütze Electronic PUR AS Grey Jacket
110166 3×0,34
110190 4× 0,34
110167 5×0,34
101278 3× 0,75
Lütze Electronic PUR AS Jacket black
110624 2× 0,34
118049 3×0,34
118070 2× 0,5
strand colours
white, brown, green
white, brown, blue, black
white, brown, green, yellow, grey
brown, blue, black
brown, blue
brown, blue, black
brown, blue
Outer-∅
approx. mm
4.4 3.6 1.0
4.8 4.4 1.3
5.2 4.7 1.6
5.9 5.2 2.2
4.9 3.4 0.7
4.9 3.6 1.0
5.4 3.6 1.0
Weight
kg/100 m
Cu-Index
kg/100 m
Design
• Bare copper wire, multi-strand according to DIN VDE 0295 class
5, IEC 60228 class 5
• Special PVC conductor insulation
• Conductors colour-coded
• Full polyurethane jacket, matt, adhesion-free surface
CE These products are in conformity to the EC Low Voltage
Directive73/23/EWG or 93/68/EWG respectively
6.3
