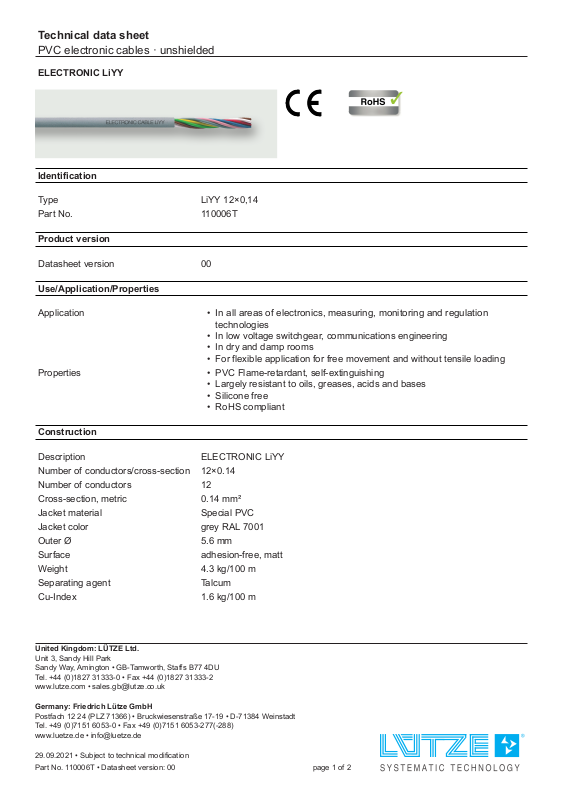

Page 1
Technical data sheet
PVC electronic cables · unshielded
ELECTRONIC LiYY
Identification
Type LiYY 12×0,14
Part No. 110006T
Product version
Datasheet version 00
Use/Application/Properties
Application •
In all areas of electronics, measuring, monitoring and regulation
technologies
• In low voltage switchgear, communications engineering
• In dry and damp rooms
• For flexible application for free movement and without tensile loading
Properties • PVC Flame-retardant, self-extinguishing
• Largely resistant to oils, greases, acids and bases
• Silicone free
• RoHS compliant
Construction
Description ELECTRONIC LiYY
Number of conductors/cross-section 12×0.14
Number of conductors 12
Cross-section, metric 0.14 mm²
Jacket material Special PVC
Jacket color grey RAL 7001
Outer Ø 5.6 mm
Surface adhesion-free, matt
Weight 4.3 kg/100 m
Separating agent Talcum
Cu-Index 1.6 kg/100 m
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
29.09.2021 • Subject to technical modification
Part No. 110006T • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
PVC electronic cables · unshielded
Construction Element 1
Element construction 12×0.14
Conductor CU-wire bare
Conductor category IEC 60228, Class 5
Finely stranded DIN VDE 0295
Class 5
Conductor marking Color coded
Conductor marking standard DIN 47100
Conductor insulation Special PVC
Overall construction
Overall stranding layered construction
Jacket characteristics Flame-retardant
self-extinguishing
Oil resistant
grease-resistant
acid-resistant
alkali-resistant
Silicone-free
Technical data
Rated voltage 300 V
Test voltage type AC 1200 V
Temperature range moving -5 °C . .. +70 °C
Temperature range fixed -30 °C . .. +70 °C
Minimum bending radius moving 12×D
Minimum bending radius fixed 4×D
Technical Data Element 1
Element construction 12×0.14
Insulation resistance at 20 °C ≥20 MΩ×km
Operating capacitance wire-wire approx.120 pF/m
Certifications/Standards
Conformity CE
RoHS
REACH
Burning behavior according to IEC 60332-1
DIN EN 60332-1-2
VDE 0482 322-1-2
General
Note CE These products are in conformity with the EU Low Voltage Directive 2014/
35/EU
