Lutron Electronics TM-9017SD Operation Manual

PT 100 ohm, type K/J/T/R/E/S

PRECISION 0.01°

THERMOMETER

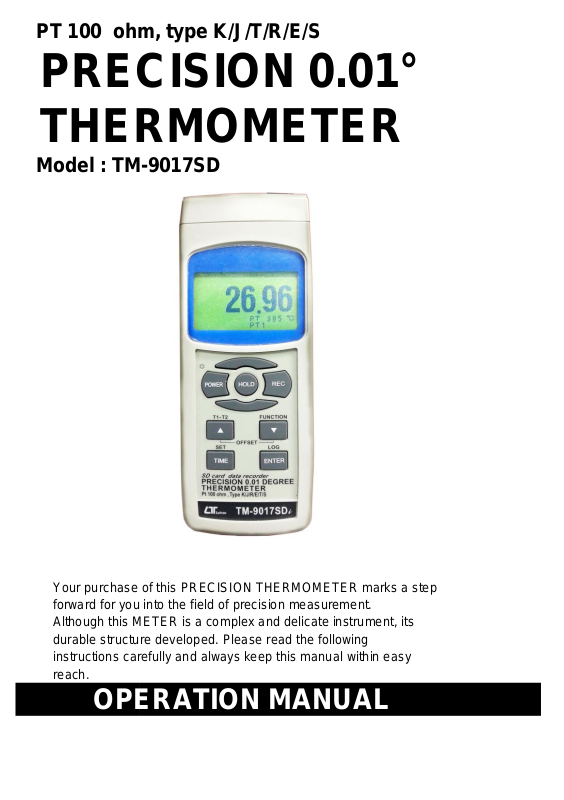

Model : TM-9017SD

Your purchase of this PRECISION THERMOMETER marks a step
forward for you into the field of precision measurement.
Although this METER is a complex and delicate instrument, its
durable structure developed. Please read the following
instructions carefully and always keep this manual within easy
reach.

OPERATION MANUAL

TABLE OF CONTENTS

1. FEATURES..................................................................................................................................

1

2. SPECIFICATIONS...........................................................................................................................

2

3. FRONT PANEL DESCRIPTION.............................................................................................

6

4. MEASURING PROCEDURE...............................................................................................

7

4-1 Function selection and measurement.........................................................................................

7

4-2 T1-T2 measurement..........................................................................................

9

4-3 Data Hold................................................................................................................

10

4-4 Data Record ( Max., Min. reading )...............................................................................................................

10

4-5 LCD Backlight ON/OFF.........................................................................................

10

5. DATALOGGER......................................................................................................................................

11

5-1 Preparation before execute datalogger function...............................................................................

11

5-2 Auto Datalogger ( Set sampling time ≧ 1 second )..................................................

11

5-3 Manual Datalogger ( Set sampling time = 0 second )................................................

12

5-4 Check time and sampling time information..........................................................................................................

13

5-5 SD Card Data structure..................................................................................................

13

6. Saving data from the SD card to the computer.............................................................

15

7. ADVANCED SETTING..........................................................................................................

17

7-1 Set clock time ( Year/Month/Date, Hour/Minute/ Second ).....................................

17

7-2 Set sampling time .................................................................................................................

18

7-3 Auto power OFF management ......................................................................................

18

7-4 Set beeper Sound ON/OFF............................................................................................

19

7-5 Decimal point of SD card setting................................................................................................

19

7-6 SD memory card format....................................................................................................

20

7-7 Select the temperature unit to ℃ or ℉ ...............................................................

20

7-8 Select the Thermometer to Type K or Type J/T/R/E/S………………………………...

20

8. POWER SUPPLY from DC ADAPTER................................................................................

21

9. BATTERY REPLACEMENT........................................................................................

21

10. RS232 PC serial interface............................................................................................................

22

11. OFFSET ADJUSTMENT........................................................................................

24

12. Optional Type K Temp. probe............................................................................................................

26

13. PATENT...........................................................................................................................................

26

1. FEATURES

* Type K/J/T/E/R/S, Pt 100 ohm, measurement .
*

Type K : -100 to 1300 ℃.

*

Type J : -100 to 1200 ℃.

*

Pt 100 ohm : -199.99 to 850.00 ℃.

*

℃/℉, 0.01 degree / 0.1 degree / 1 degree.

* 2 channels ( Pt 1, Pt 2, Pt 1- Pt 2 ), 1 channels

Thermocouple Type K or J/T/R/E/S .

* Microcomputer circuit provides intelligent function and high accuracy.
*

Offset adjustment for the Type K/J/T/E/R/S measurement.

* Offset adjustment for the Pt 100 measurement.
*

Measuring unit can select to ℃ or ℉.

*

Real time SD memory card Datalogger, it Built-in Clock

and Calendar, real time data recorder, sampling time set
from 1 second to 3600 seconds.

* Manual datalogger is available ( set the sampling

time to 0 second ), during execute the manual datalogger
function, it can set the different position ( location ) No.
( position 1 to position 99 ).

* Innovation and easy operation, computer is not need to

setup extra software, after execute datalogger, just take
away the SD card from the meter and plug in the SD card
into the computer, it can down load the all the measured
value with the time information ( year/month/date/
hour/minute/second ) to the Excel directly, thenuser can

make the further data or graphic analysis by themselves.
* SD card capacity : 1 GB to 16 GB.
* LCD with green light backlight, easy reading.
* Can default auto power off or manual power off.
* Data hold, record max. and min. reading.
* Microcomputer circuit, high accuracy.
* Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
* RS232/USB PC COMPUTER interface.
* Heavy duty & compact housing case.

1

2. SPECIFICATIONS

2-1 General Specifications

Circuit Custom one-chip of microprocessor LSI

circuit.

Display LCD size : 52 mm x 38 mm

LCD with green backlight ( ON/OFF ).
Channels Pt1, Pt2, Pt1- Pt2, Thermocouple Type .
Sensor type Type K thermocouple probe.

Type J/T/E/R/S thermocouple probe.

PT 100 ohm probe

*

Cooperate with an 0.00385 alpha

coefficient, meet DIN IEC 751.

Resolution

0.01℃/0.1℃/1℃, 0.01℉/ 0.1℉/1 ℉.

Datalogger Auto 1 second to 3600 seconds
Sampling Time

@ Sampling time can set to 1 second,

Setting range

but memory data may loss.

Manual Push the data logger button

once will save data one time.

@ Set the sampling time to

0 second.

@ Manual mode, can also select the

1 to 99 position ( Location ) no.

Memory Card SD memory card. 1 GB to 16 GB.

Advanced

* Set clock time ( Year/Month/Date,

setting

Hour/Minute/ Second )
* Set sampling time
* Auto power OFF management
* Set beep Sound ON/OFF
* Decimal point of SD card setting
* SD memory card Format
*

Set temperature unit to ℃ or ℉

*

Set thermocouple type to K/J/R/E/T/S.

2

Temperature Automatic temp. compensation for the
Compensation

type K/J/T/E/R/S thermometer.

Linear Linear Compensation for the full range.
Compensation
Offset Available for Type K/J/T/E/R/S and
Adjustment Pt 100 ohm.
Probe Input Type K/J/T/E/R/S
Socket 2 pin thermocouple socket.

Pt 100 ohm : 4 DIN socket.

Over Indication Show " - - - - ".
Data Hold Freeze the display reading.
Memory Recall Maximum & Minimum value.
Sampling Time Approx. 1 second.
of Display
Data Output

RS 232/USB PC computer interface.

* Connect the optional RS232 cable

UPCB-02 will get the RS232 plug.
* Connect the optional USB cable

USB-01 will get the USB plug.

Power off Auto shut off saves battery life or

manual off by push button.

Operating

0 to 50 ℃.

Temperature

Operating

Less than 85% R.H.

Humidity
Power Supply * AC/DC power adapter is optional.

( UM3, AA ) x 6 PCs, or equivalent.

* AC/DC power adapter is optional.

adapter is optional ).

3

Power Current Normal operation ( w/o SD card save

data and LCD Backlight is OFF) :

Approx. DC 8.5 mA.

When SD card save the data but and
LCD Backlight is OFF) :

Approx. DC 30 mA.
* AC/DC power adapter is optional.

consumption will increase approx.

14 mA.

Weight 278 g/0.61 LB ( meter only ).

Dimension

177 x 68 x 45 mm
(7.0 x 2.7x 1.9 inch)

Accessories * Instruction manual......................................

1 PC

Included
Optional * Type K thermocouple probe.
Accessories TP-01, TP-02A. TP-03, TP-04, TP-05.

* Pt 100 ohm probe, TP-100.
* SD Card ( 1 GB )
* SD Card ( 2 GB )
* USB cable, USB-01.
* RS232 cable, UPCB-02.
* Data Acquisition software,

SW-U801-WIN., SW-E802.
* AC to DC 9V adapter.
* Hard carrying case, CA-06.
*

Soft carrying case, CA-05A.

2-2 Electrical Specifications (23±5 ℃)

PT 100 ohm

Resolution Range Accuracy

0.01 ℃

-199.99 to 850.00 ℃

± ( 0.4 % + 1 ℃ )

0.01 ℉ -327.00 to 1562.00 ℉

± ( 0.4 % + 1.8 ℉ )

*

Pt 100 ohm probe TP-10 0 is the optional accessory.

4

Type K/J/T/E/R/S

Sensor Resolution Range Accuracy
Type

Type K

0.1 ℃

-50.1 to -100.0 ℃

± ( 0.4 % + 1 ℃ )

-50.0 to 1300.0 ℃ ± ( 0.4 % + 0.5 ℃ )

0.1 ℉

-58.1 to -148.0 ℉

± ( 0.4 % + 1.8 ℉ )

-58.0 to 2372.0℉

± ( 0.4 % + 1 ℉ )

Type J

0.1 ℃

-50.1 to -100.0 ℃

± ( 0.4 % + 1 ℃ )

-50.0 to 1200.0℃

± ( 0.4 % + 0.5 ℃ )

0.1 ℉

-58.1 to -148.0 ℉

± ( 0.4 % + 1.8 ℉ )

-58.0 to 2192.0 ℉ ± ( 0.4 % + 1 ℉ )

Type T

0.1 ℃

-50.1 to -100.0 ℃

± ( 0.4 % + 1 ℃ )

-50.0 to 400.0 ℃ ± ( 0.4 % + 0.5 ℃ )

0.1 ℉

-58.1 to -148.0 ℉

± ( 0.4 % + 1.8 ℉ )

-58.0 to 752.0 ℉ ± ( 0.4 % + 1 ℉ )

Type E

0.1 ℃

-50.1 to -100.0 ℃

± ( 0.4 % + 1 ℃ )

-50.0 to 900.0 ℃ ± ( 0.4 % + 0.5 ℃ )

0.1 ℉

-58.1 to -148.0 ℉

± ( 0.4 % + 1.8 ℉ )

-58.0 to 1652.0 ℉ ± ( 0.4 % + 1 ℉ )

Type R

1 ℃ 0 to 1700 ℃ ± ( 0.5 % + 3 ℃ )

1 ℉

32 to 3092 ℉

± ( 0.5 % + 5 ℉ )

Type S

1 ℃ 0 to 1500 ℃ ± ( 0.5 % + 3 ℃ )

1 ℉

32 to 2732 ℉

± ( 0.5 % + 5 ℉ )

Remark :

a. Accuracy value is specified for the meter only.
b. Accuracy is tested under the meter's environment temperature

within 23 ±5℃.

c. Linearity Correction :

Memorize the thermocouple's curve into the intelligent CPU
circuit,

@ Above specification tests under the environment RF Field Strength

less than 3 V/M & frequency less than 30 MHz only.

5

3. FRONT PANEL DESCRIPTION

Fig. 1

3-1 Display. 3-11 Reset Button

3-2 Power Button (Backlight Button )

3-12 DC 9V adapter socket

3-3 Hold Button

3-13 Battery compartment/Cover

3-4 REC Button 3-14 Battery Cover Screws

3-5 ▲ Button ( T1-T2 Button)

3-15 Stand

3-6 ▼ Button ( Function Button )

3-16 Tripod Fix Nut

3-7 Time Button (SET Button )

3-17 Thermocouple input socket (Type K/J/T/R/E/S )

3-8 Enter Button ( Logger Button)

3-18 PT2 input socket ( Pt 100 ohm )

3-9 SD card socket 3-19 PT1 input socket ( Pt 100 ohm )
3-10 RS-232 output terminal

6

4. MEASURING PROCEDURE

4-1 Function selection and measurement

1) Turn on the meter by pressing the " Power Button "
( 3-2, Fig. 1 ) > 1.5 seconds continuously.

*

Pressing the " Power Button " ( 3-2, Fig. 1 )

continuously and > 1.5 seconds again will turn off the

meter.

2) The meter can select 5 kind function as :

a. Thermocouple Type , Pt1 , Pt2
b.

Pt1 Thermometer.

c.

Pt2 Thermometer.

d. Pt1, Pt2 Thermometer.
e. Thermocouple Type Thermometer.

Pressing the " Function Button " ( 3-6, Fig. 1 )

continuously ( not release the button ), the Display

will show the following text in sequence :

Until the Display show the desired mode ( Function ),
just release the " Function Button " ( 3-6, Fig. 1 ), the
meter will execute this function with default.

7
