Maestro RF 0–10 V Sensor Dimmer / RF Sensor Switch SensorVive
®
1
Maestro RF 0 –10 V Sensor Dimmer /
RF Sensor Switch
Lutron Maestro RF 0 –10 V Sensor Dimmers / RF
Sensor Switches are lighting controls with passive
infrared sensors that automatically control the lights
in an area. These sensors detect heat from
occupants moving within an area to determine when
the space is occupied.
Features Lutron Clear Connect RF technology, which
enables wireless communication with Radio Powr
Savr sensors and Pico remote controls for light
control and general switched loads.
These products are also compatible with the Vive
hub which enables a simple setup process using a
standard web browser on any Wi-Fi enabled phone,
tablet or computer. It also enables control and
monitoring of all Vive devices. The Vive hub can be
added at any time, however system reprogramming
will be required. For a complete list of features
supported with the Vive hub, see specification
submittal 369902 at www.lutron.com
3691097d 1 08.27.2020
Dimmer Switch
Features
• Controls 0 –10 V- electronic fluorescent ballasts or
LED driver load types
1
• Passive infrared motion detection with exclusive
Lutron XCT Technology for fine motion detection
• 180° sensor field-of-view
• Up to 30 ft × 30 ft (9 m × 9 m) [900 ft2 (81 m2)]
major motion coverage and 20 ft × 20 ft (6 m × 6m)
[400ft2 (36 m2)] minor motion coverage
• Occupancy version can be set to auto-on/auto-off or
manual-on/auto-off
• Adjustable timeout (1, 5, 15, or 30 minutes)
• Adjustable settings for auto-on light level (occupancy
level): Fully adjustable from 1% –100%
• Adjustable settings for auto-off light level (vacancy
level): Fully adjustable from 0% –100%
• Adjustable sensitivity level: High, Med, Low, Min
• Off warning fades lights to off over a period of
10seconds
1
• Adaptive switching algorithm for extended relay life
• Smart ambient light detection (ALD)
• Works with up to 10 Pico remote controls,
1 Radio Powr Savr daylight sensor, and 10 Radio
Powr Savr PIR sensors
• High-end trim and low-end trim to adjust maximum
and minimum light levels
• Uses Lutron’s “Off While Occupied” feature
2
Note: This product requires a neutral wire connection to function.
1
Only available with the sensor dimmer. Not available with the sensor switch.
2
For more information visit: www.lutron.com/TechnicalDocumentLibrary/048687.pdf
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Maestro RF 0–10 V Sensor Dimmer / RF Sensor Switch SensorVive
®
2
3691097d 2 08.27.2020
Models Available
Model Number Description Sensor Operation Load Types
MRF2S-8SD010-XX 1Occupan cy / vacancy singl e-pole /
MRF2S-8SS-XX
MRF2S-8SDV010-XX 1Vacancy sin gle-pole / multi-lo cation
MRF2S-8SSV-XX
1
XX in model number represents color / finish code. See Colors and Finishes on page 10.
1
1
multi-location sensor dimmer
Occupan cy / vacancy singl e-pole /
multi-location sensor switch
sensor dimmer
Vacancy sin gle-pole / multi-lo cation
sensor switch
Notes:
• Neutral is required for product to function. If a neutral wire is not present, consult a licensed electrician.
• When power is applied, the sensor dimmer / switch can be manually turned on or off after the first 10seconds and
will automatically control the load after 2minutes.
• The sensor dimmer works with all ballasts and drivers that provide a current source compliant to IEC 60929
Annex E.2.
• The 0 –10 V- control wires are not to exceed 250 ft (76.2 m) in length, and must have a size of no less than
20 AWG (0.75 mm2).
• The 0 –10 V- wires may be installed as Class 1 or Class 2 per NECR or local jurisdiction.
• Do not install dimmers / switches to control receptacles or motor-operated appliances.
Auto-On / Auto- Off or
Manual-On / Auto-Off
Auto-On / Auto- Off or
Manual-On / Auto-Off
Manual- On / Auto-Off
Manual- On / Auto-Off
For use with permanently installed electronic
fluorescent ballast or LED driver lighting loads
For use with all lighting loads and fan loads
up to 4.4 A
For use with permanently installed electronic
fluorescent ballast or LED driver lighting loads
For use with all lighting loads and fan loads
up to 4.4 A
SPECIFICATION SUBMITTAL Page
Job Name:
Model Numbers:
Job Number:
Maestro RF 0–10 V Sensor Dimmer / RF Sensor Switch SensorVive
®
3
Specifications
Regulatory Approvals
• UL® Listed to U.S. and Canadian safety requirements
• Complies with Title 20 and Title 24 Section 110.9
• NOM Certification
Power
• Operating voltage: 120 / 277 V~ 50 / 60 Hz,
8 A (USA and Mexico), 120 V~ 50 / 60 Hz, 8 A
(Canada) of 0 –10 V- electronic fluorescent ballasts
or LED drivers for sensor dimmer, and all lighting
loads for sensor switch
• Operating voltage for fan: 120 V~ 50 / 60 Hz, up to
4.4 A (1/6 HP)
1
Loads
• Sensor Dimmer
– Works with all ballasts and drivers that provide a
current source compliant to IEC 60929 Annex E.2,
and whose inrush current does not exceed NEMA
410 standards for electronic fluorescent ballast and
LED driver loads of 8 A steady state current
– Supports Electronic Off functionality for voltages
less than 0.5 V
– 50 mA max sink current
– Controls up to 25 ballasts or drivers (IEC 60929
Annex E.2 requires the ballast / driver to limit the
current to 2.0 mA maximum)
– No minimum load
• Sensor Switch
– Works with all lighting loads and fan loads up
to 4.4 A
– Can control light and fan loads simultaneously
2
1
3691097d 3 08.27.2020
Key Design Features
Dimmer
• On a single-tap, lights fade On to previous level or
fade Off
• On a double-tap, lights go to full On
• Light levels can be fine-tuned by pressing and
holding the dimming rocker until the desired light
level is reached
• High-end trim (adjust maximum light level that can be
achieved for energy savings or personal preference)
• Low-end trim (adjust minimum light level that can be
dimmed down to prevent flickering lights or personal
preference)
System Communications and Capacity
• Maestro Wireless controls communicate with the
Pico remote controls and Radio Powr Savr sensors
through radio frequency (RF).
• Receives wireless inputs from up to 10 Pico remote
controls, 10 Radio Powr Savr occupancy / vacancy
sensors, and 1 Radio Powr Savr daylight sensor.
• Maestro Wireless controls must be located within
60 ft (18 m) line-of-sight or 30 ft (9 m) through
walls of Radio Powr Savr sensors and Pico remote
controls. The 60 ft (18 m) range is not reduced by a
ceiling tile obstruction.
Additional Information on Sensors
• For more information, please see
www.lutron.com/occvacsensors
• Lutron Customer Assistance: 1.844.LUTRON1
Environment
• Ambient operating temperature: 32 °F to 104 °F
(0°C to 40 °C), 0% – 90% humidity, non-condensing;
indoor use only
Warranty
• 5 Year Limited Warranty
For additional Warranty information, please visit:
www.lutron.com/TechnicalDocumentLibrary/
Sensor_Warranty.pdf
1
When controlling light and fan loads simultaneously with a single switch, the maximum load capacity per switch is 4.4 A at 120 V~.
Only the sensor switch can be used to control fan loads.
2
This only applies to the Vacancy versions of these devices.
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Maestro RF 0–10 V Sensor Dimmer / RF Sensor Switch SensorVive
®
4
Custom Settings (default settings shown in bold )
Note: This is how to program these settings in
Stand-Alone applications (when not part of the
Vive system). For a complete list and description
of available settings for Stand-Alone applications,
refer to Application Note #687 (048687) at
www.lutron.com. For set-up, programming, and
troubleshooting with a Vive system, please refer to
the installation instructions included with the Vive hub
or at www.lutron.com/vive
: Timeout
• 30 min
• 15 min
• 5 min
• 1 min
Mode: Sensor Modes
Lights automatically turn off in all sensor modes
• Occ: Occupancy mode (Auto-On / Auto-Off)
• Lrn: Occupancy with learning ALD mode
• Fixd: Occupancy with fixed ALD mode
• Vac: Vacancy mode (Manual-On / Auto-Off)
PIR: Passive Infrared Sensitivity
• High
• Med
• Low
• Min
Fixed ALD Light Level
• High
• Med
• Low
4
• Min
1
2
2
2,3
3691097d 4 08.27.2020
Walk-Thru Mode (MRF2S-8SD010 and
MRF2S-8SS only)
2
• Disabled
• Enabled
Occupancy Level
5,6
A programmable setting that determines the light
level the sensor dimmer will turn on to once
occupancy has been detected
Vacancy Level
5,6
The level to which the sensor dimmer dims or turns
off when motion has not been detected for the
timeout period
Electronic Off
2,6,7
• Enabled
• Disabled
Low-End Trim
6,8
• Fully adjustable from 1% to 45%
High-End Trim
6,8
• Fully adjustable from 55% to 100%
1
Sensor Mode is locked as “Vacancy” in vacancy only models
(MRF2S-8SDV010 and MRF2S-8SSV), in standalone applications.
This restriction is removed in the Vive system.
2
Setting not available once device is configured in the Vive system.
3
ALD is when the sensor determines how much ambient light is enough,
based on a fixed level you select. If there is enough light, it will NOT turn
the lights On.
4
Low is the default setting for any sensor that is set by the user to
“Occupancy with fixed ALD mode”.
5
Fully adjustable from 1% to 100% within the adjustable range of low-end
and high-end trim.
6
Only available with the sensor dimmer. Not available with sensor switch.
7
If enabled, the driver remains powered, but the lights turn off. This
requires that the driver support this method of control. If disabled, the
driver had power removed every time the lights are turned off. All drivers
support this method of control.
8
Setting is fully variable within each range.
SPECIFICATION SUBMITTAL Page
Job Name:
Model Numbers:
Job Number:
Maestro RF 0–10 V Sensor Dimmer / RF Sensor Switch SensorVive
®
5
3691097d 5 08.27.2020
Placement and Operation
• The ability of the sensor dimmer / switch to detect motion requires line-of-sight of room occupants and must have
an unobstructed view.
• Hot objects and moving air currents can affect the performance of the sensor dimmer / switch. For best
performance, the sensor dimmer / switch should be mounted at least 4 ft (1.2 m) away from HVAC vents and
light bulbs.
• The performance of the sensor dimmer / switch depends on a temperature differential between the ambient room
temperature and that of room occupants. Warmer rooms may reduce the ability of the sensor dimmer / switch to
detect occupants.

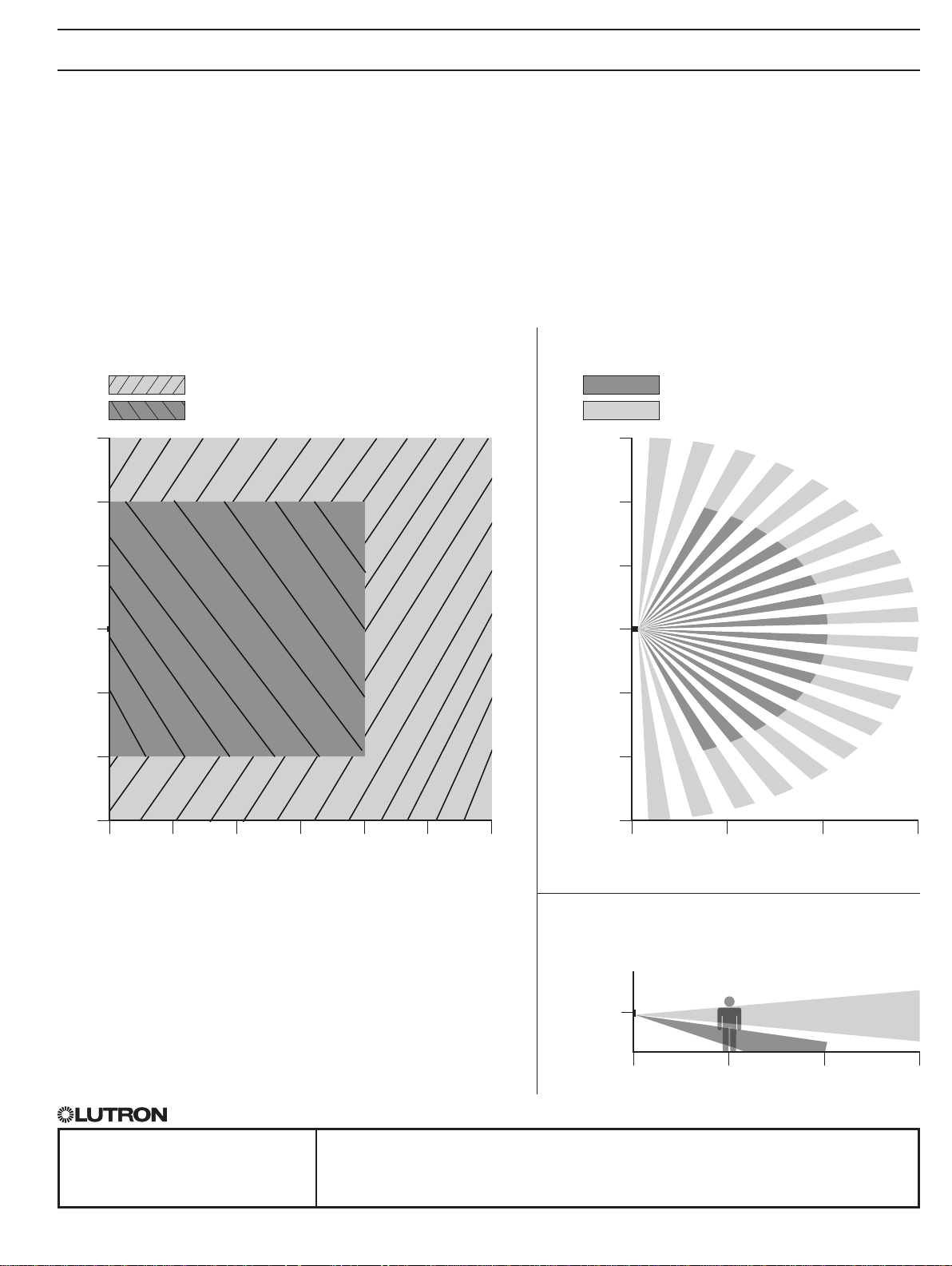

NEMA WD7 Test Grid Coverage
(High Sensitivity Setting)
Major motion coverage: 900 ft2 (81 m2)
Minor motion coverage: 400 f t2 (36 m2)
15 ft
(4.5 m)
10 ft
(3 m)
5 ft
(1.5 m)
0
5 ft
(1.5 m)
10 ft
(3 m)
Horizontal Beam Diagram
(For Reference Only)
Beam 1
Beam 2
15 ft
(4.5 m)
10 ft
(3 m)
5 ft
(1.5 m)
0
5 ft
(1.5 m)
10 ft
(3 m)
15 ft
(4.5 m)
0 5 ft 10 ft 15 ft 20 ft 25 ft 30 ft
(1.5 m) (3 m) (4.5 m) (6 m) (7.5 m) (9m)
15 ft
(4.5 m)
0 10 ft 20 ft 30 ft
(3 m) (6 m) (9m)
Vertical Beam Diagram
(For Reference Only)
4 ft
(1.2 m)
0 10 ft 20 ft 30 ft
(3 m) (6 m) (9m)
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Maestro RF 0–10 V Sensor Dimmer / RF Sensor Switch SensorVive
®
6

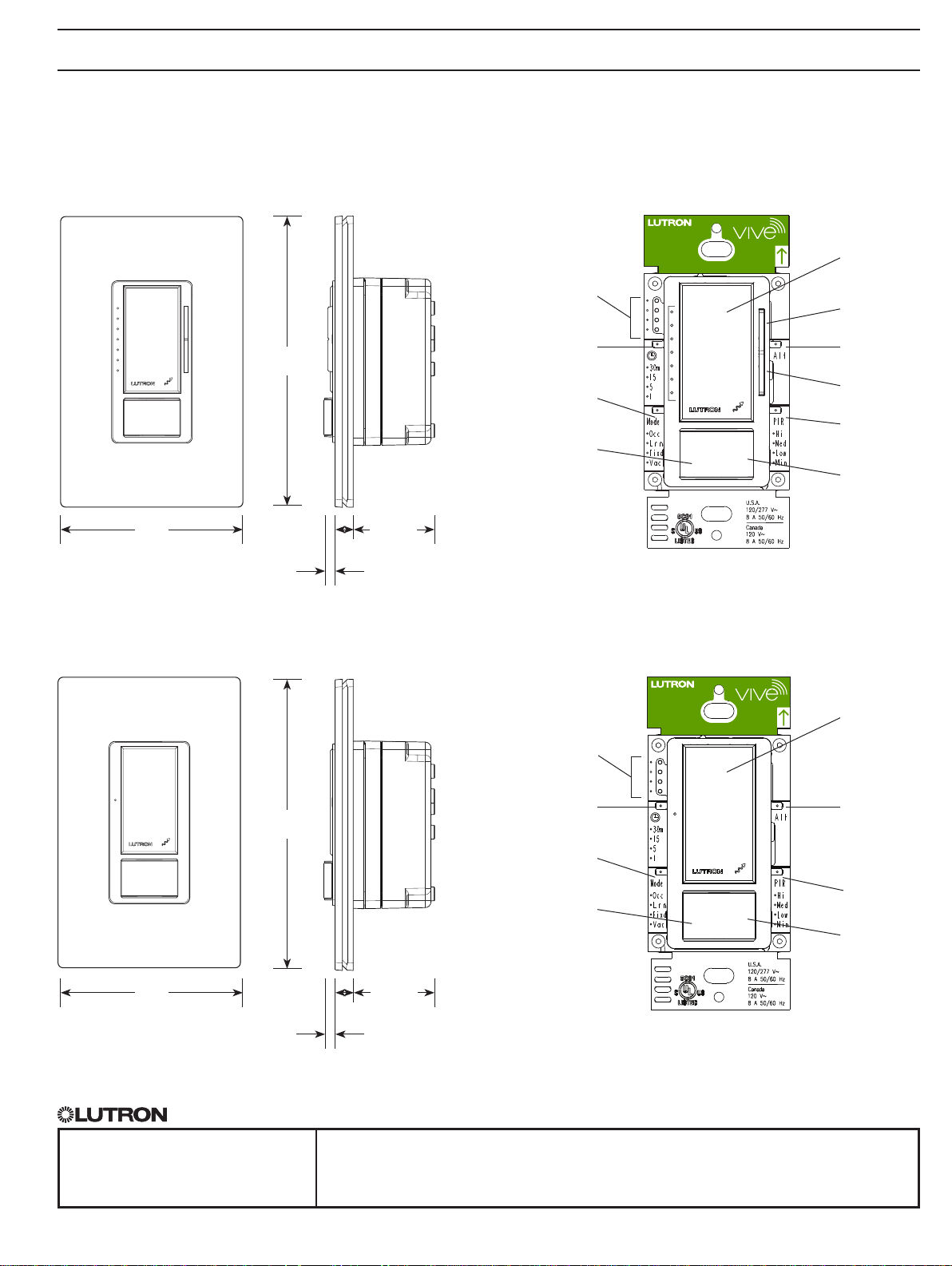

Measurements shown as: in (mm)
Dimmer
Front View
411⁄16
(119)
Side View
OperationDimensions
Indicator
LEDs
Timeout
button
Sensor Mode
button
Sensor LED
(behind lens)
lutron.com
1.844.588.7661
Turn Off Power
Arrêtez le Courant
Desconecte la
Corriente
1
2
3
4
3691097d 6 08.27.2020
Tap switch
(tap on/of f )
Raise
Alt bu tton *
Lower
PIR sensitivity
button
PIR lens
Switch
Front View
215⁄16
(75)
411⁄16
(119)
5/16 (8)
1/8 (3)
Side View
11⁄8
(28.5)
Indicator
LEDs
Timeout
button
Sensor Mode
button
Sensor LED
(behind lens)
lutron.com
1.844.588.7661
Turn Off Power
Arrêtez le Courant
Desconecte la
Corriente
1
2
3
4
Tap switch
(tap on/of f )
Alt bu tton *
PIR sensitivity
button
PIR lens
215⁄16
(75)
* Alt button is always used in conjunction with another button.
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
11⁄8
(28.5)
5/16 (8)
1/8 (3)
Model Numbers:
®
Mounting *
7
Maestro RF 0–10 V Sensor Dimmer / RF Sensor Switch SensorVive
3691097d 7 08.27.2020
Wallbox
Recommended dimensions:
3.5 in (89 mm) D × 3 in (76 mm) H × 2 in (51 mm) W
Sensor Dimmer
Wallplate adapter/ Wallplate
(sold separately)
Mounting
screws
Adapter
mounting
screws
* Mounting is the same for the dimmer and the switch.
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Maestro RF 0–10 V Sensor Dimmer / RF Sensor Switch SensorVive
®
8
3691097d 8 08.27.2020

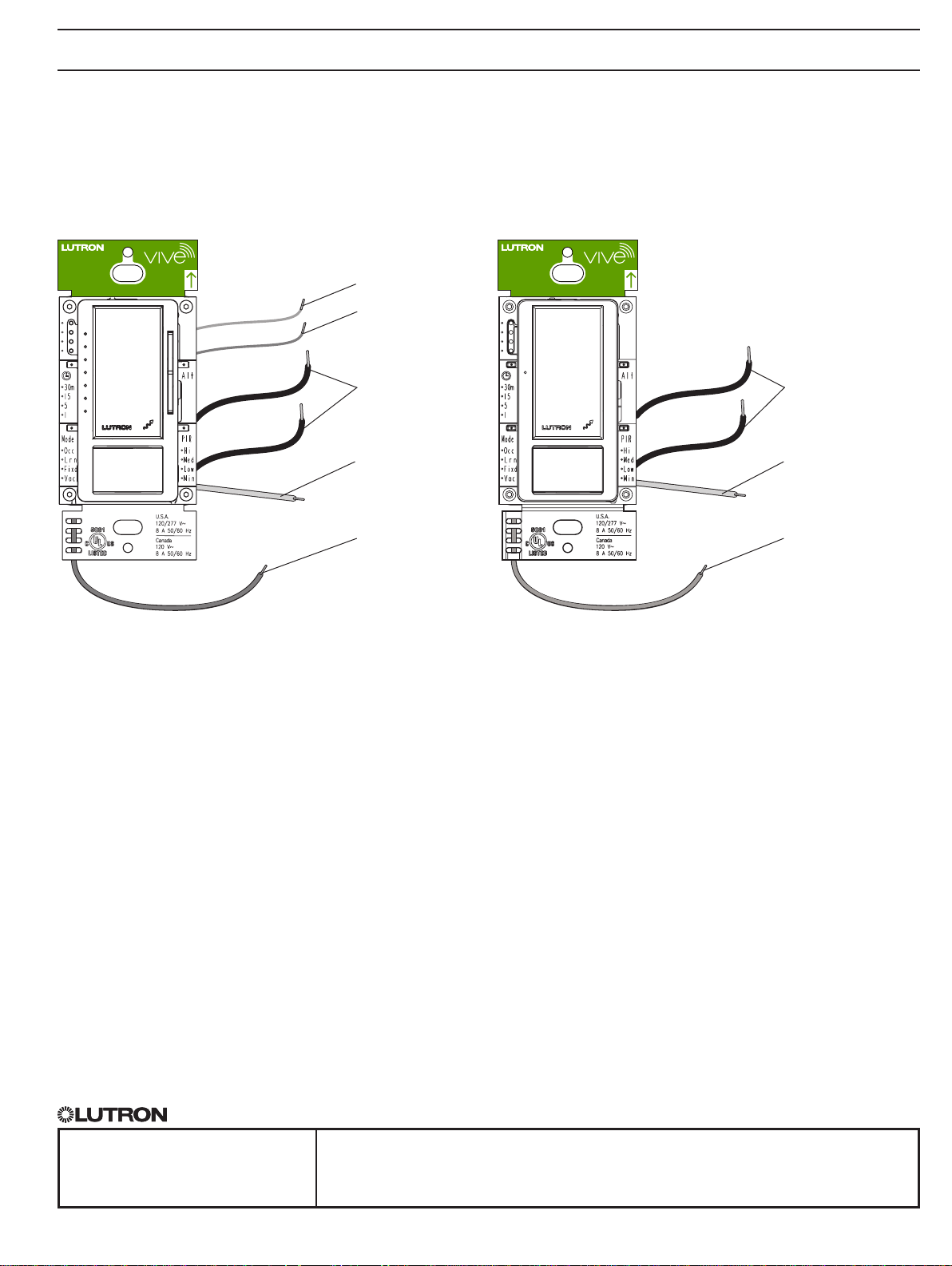

Wiring Connections
In order to function all wires must be connected. Before installing wallplate, program all desired settings.
Dimmer Switch
lutron.com
1.844.588.7661
Turn Off Power
Arrêtez le Courant
Desconecte la
Corriente
Violet wire
0–10 V- (+)
Pink* wire
0–10 V- (–)
Black wires L ine / Hot
or Switched Hot
(interchangeable)
White wire
(connects to
neutral)
Green ground wire
(must be connected
to ground)
lutron.com
1.844.588.7661
Turn Off Power
Arrêtez le Courant
Desconecte la
Corriente
Black wires L ine / Hot
or Switched Hot
(interchangeable)
White wire
(connects to
neutral)
Green ground wire
(must be connected
to ground)
* This wire/terminal may be gray on older products or in retrofit applications.
SPECIFICATION SUBMITTAL Page
Job Name:
Model Numbers:
Job Number:
Maestro RF 0–10 V Sensor Dimmer / RF Sensor Switch SensorVive
®
9
Wiring: Single-Pole Dimmer Installation
Neutral Connection Required
lutron.com
1.844.588.7661
Turn Off Power
Arrêtez le Courant
Desconecte la
Corriente
Line / Hot
120 / 277 V~ 50 / 60 Hz 8 A
120 V~ 50 / 60 Hz 8 A Canada
Black Black
Pink* 0–10 V- (–)
Violet 0 –10 V- (+)
Up to 25 drivers total and up
to 50 mA maximum
Pink* (–)
Violet (+)
Pink* (–)
Violet (+)
Ballast or
Driver
Ballast or
Driver
3691097d 9 08.27.2020
Up to 25 drivers total
and up to 8 A maximum
White
Black
White
Black
Green
White
Ground
Neutral
* This wire/terminal may be gray on older products or in retrofit applications.
Wiring: Single-Pole Switch Installation
Neutral Connection Required
lutron.com
1.844.588.7661
Turn Off Power
Arrêtez le Courant
Desconecte la
Line / Hot
120 / 277 V~ 50 / 60 Hz 8 A
120 V~ 50 / 60 Hz 8 A Canada
120 V~ 50 / 60 Hz 4.4 A Fan Loads
Black Black
Corriente
Green
White
Ballast or
Driver
Ballast or
Driver
White
Black
White
Black
Neutral
Ground
Wiring: 3-Way and Multi-Location Installation
For instructions on how to install these devices in a multi-location retrofit or new application such as a 3-way
installation, please refer to the app note located at www.lutron.com/TechnicalDocumentLibrary/048687.pdf
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
®
Colors and Finishes
10
Gloss Finishes
Maestro RF 0–10 V Sensor Dimmer / RF Sensor Switch SensorVive
3691097d 10 08.27.2020
White
WH
Almond
AL
Gray
GR
Black
BL
Ivory
IV
Light Almond
LA
Brown
BR
• Due to printing limitations, colors and finishes shown cannot be guaranteed to perfectly match actual
product colors.
• Color chip keychains are available for more precise color matching:
– Gloss Finishes: DG-CK-1
)Lutron, Lutron, Maestro, Clear Connect, Vive, Pico, Radio Powr Savr, XCT, and C)L are trademarks or registered trademarks of Lutron Electronics Co.,
Inc. in the US and/or other countries.
All other product names, logos, and brands are property of their respective owners.
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Loading...
