Lutron QSGRJ-3P-TWH Installation Manual

Page 1

Please Read

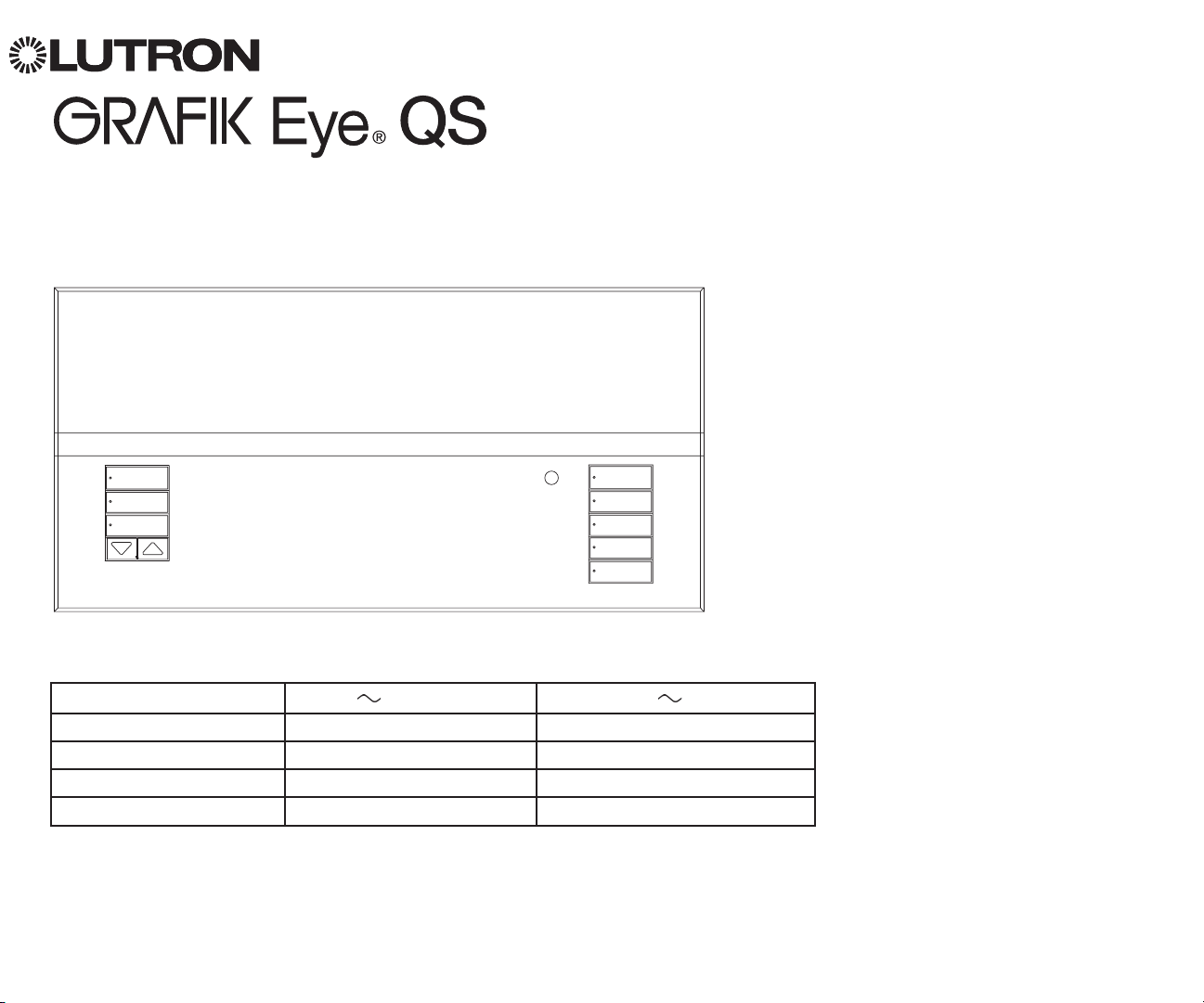

Control Unit

Installation and Operation Guide

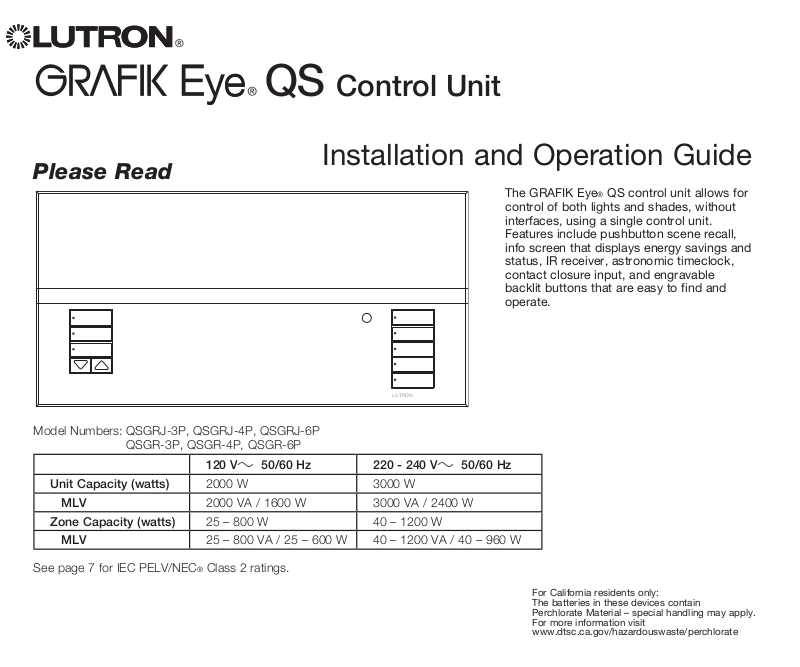

The GRAFIK Eye® QS control unit allows for control of both lights and shades, without interfaces, using a single control unit. Features include pushbutton scene recall, info screen that displays energy savings and status, IR receiver, astronomic timeclock, contact closure input, and engravable backlit buttons that are easy to find and operate.

LUTRON

Model Numbers: QSGRJ-3P, QSGRJ-4P, QSGRJ-6P

QSGR-3P, QSGR-4P, QSGR-6P

120 V 50/60 Hz 220 - 240 V 50/60 Hz

Unit Capacity (watts) 2000 W 3000 W

MLV 2000 VA / 1600 W 3000 VA / 2400 W

Zone Capacity (watts) 25 – 800 W 40 – 1200 W

MLV 25 – 800 VA / 25 – 600 W 40 – 1200 VA / 40 – 960 W

See page 7 for IEC PELV/NEC

® Class 2 ratings.

For California residents only: The batteries in these devices contain Perchlorate Material – special handling may apply. For more information visit www.dtsc.ca.gov/hazardouswaste/perchlorate

Page 2

Contents

Features and Functions of the

GRAFIK Eye® QS Control Unit . . . . . . . . . . . . . . . . . 3

Wiring the GRAFIK Eye® QS Control Unit

Overview of Line Voltage/Mains Wiring . . . . . . . . . 4

Line Voltage Wiring Details. . . . . . . . . . . . . . . . . . . 5

Overview of IEC PELV/NEC® Class 2 Wiring . . . . . 7

QS Link Control Wiring Details. . . . . . . . . . . . . . . . 8

Power Group Wiring Example . . . . . . . . . . . . . . . . 9

Powering More Than 3 Wallstations Example. . . 10

Completing Installation of the

GRAFIK Eye® QS Control Unit . . . . . . . . . . . . 11

General Functionality . . . . . . . . . . . . . . . . . . . 12

Pre-Programmed Button Functionality . . . . . 13

Zone Button Operation

Zone LED Displays for % of Lighting Levels. . . . 14

Programming Mode

Entering and Exiting Programming Mode . . . . . . 15

Navigating Menus in Programming Mode . . . . . .15

Wireless Mode. . . . . . . . . . . . . . . . . . . . . . . . . 16

FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Zone Setup

Assigning Load Types. . . . . . . . . . . . . . . . . . . . . . 17

Assigning Non-Dim Load Type. . . . . . . . . . . . . . . 17

Setting Load Types . . . . . . . . . . . . . . . . . . . . . . . .18

Setting High End or Low End Trim. . . . . . . . . . . . 19

Setting Minimum Level (optional). . . . . . . . . . . . . 19

Labeling a Zone (optional) . . . . . . . . . . . . . . . . . . 20

Scene Setup

Setting Zone Levels, Fade Rates,

and Shade Group Actions . . . . . . . . . . . . . . . . . 21

Labeling a Scene (optional) . . . . . . . . . . . . . . . . . 22

Enabling/Disabling Daylighting in a Scene . . . . . 22

Setting Save Mode

Save Mode Settings . . . . . . . . . . . . . . . . . . . . . . . 23

Quick Scene Programming:

Save by OK Mode . . . . . . . . . . . . . . . . . . . . . . . . 23

Contact Closure Input (CCI) Setup

CCI Mode Settings . . . . . . . . . . . . . . . . . . . . . . . . 24

CCI Type Settings . . . . . . . . . . . . . . . . . . . . . . . . . 25

Occupancy Sensor Setup . . . . . . . . . . . . . . . . 26

Associating Wireless Occupancy Sensors . . . . . 27

Selecting the Mode . . . . . . . . . . . . . . . . . . . . . . . .28

Scene Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Zone Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Labeling an Occupancy Sensor (optional). . . . . . 31

Configuring Occupancy Sensor Settings

(optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Daylight Sensor Setup . . . . . . . . . . . . . . . . . . 33

Associating Wireless Daylight Sensors . . . . . . . . 34

Assigning Sensors. . . . . . . . . . . . . . . . . . . . . . . . . 35

Labeling a Daylight Sensor (optional) . . . . . . . . .36

Pico® Wireless Control Setup . . . . . . . . . . . . . 37

Associating with a GRAFIK Eye® QS

Wireless Control Unit . . . . . . . . . . . . . . . . . . . . . 38

Associating through a QS Sensor Module . . . . . 39

IR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Enabling/Disabling the IR Receiver . . . . . . . . . . . 41

Associating the QS IR Eye with a

GRAFIK Eye® QS Control Unit . . . . . . . . . . . . . . 42

Associating through a QS Sensor Module . . . . . 44

Associating Sivoia® QS Shades/Drapes

and GRAFIK Eye® QS Control Units. . . . . . . 45

Adjusting Shade Settings

Setting Limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Preset Adjustment: Simple Method . . . . . . . . . . . 47

Preset Adjustment: Advanced Method . . . . . . . .47

Naming a Group of Shades . . . . . . . . . . . . . . . . .48

Associating Multiple GRAFIK Eye® QS

Control Units . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Timeclock Operation

Setting Time and Date . . . . . . . . . . . . . . . . . . . . . 50

Setting Location . . . . . . . . . . . . . . . . . . . . . . . . . .51

Setting Daylight Saving Time . . . . . . . . . . . . . . . . 51

Adding an Event . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Deleting an Event . . . . . . . . . . . . . . . . . . . . . . . . .53

Viewing an Event . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Setting a Holiday . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Viewing a Holiday . . . . . . . . . . . . . . . . . . . . . . . . . 54

Deleting a Holiday . . . . . . . . . . . . . . . . . . . . . . . . . 54

Copying a Schedule . . . . . . . . . . . . . . . . . . . . . . . 55

Deleting a Schedule . . . . . . . . . . . . . . . . . . . . . . . 55

Afterhours . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Afterhours Examples. . . . . . . . . . . . . . . . . . . . . . . 57

Setting Up Afterhours . . . . . . . . . . . . . . . . . . . . . . 58

Ending Afterhours . . . . . . . . . . . . . . . . . . . . . . . . . 58

Diagnostics and Special Settings

Enabling/Disabling the Timeclock . . . . . . . . . . . . 59

Enabling/Disabling the Backlighting . . . . . . . . . . 59

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Setting the Security Password . . . . . . . . . . . . . . . 60

Language Selection . . . . . . . . . . . . . . . . . . . . 61

Faceplate Removal . . . . . . . . . . . . . . . . . . . . . 61

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 62

Troubleshooting: Wireless Functions. . . . . . . 63

Troubleshooting: Shade Functions . . . . . . . . 64

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Contact Information . . . . . . . . . . . . . . . . . . . . 65

GRAFIK Eye® QS Control Unit Installation and Operation Guide 2

Page 3

Features and Functions of the GRAFIK Eye® QS Control Unit

Hinged faceplate

Zone numbers

Zone raise/lower buttons

Zone LEDs display current

lighting zone levels

Optional Shade

button groups

Preset and raise/lower

buttons with integral LEDs

(maximum of 3 button

groups)

Hinged faceplate

{

Timeclock button

Displays current

timeclock info

OK button

Used for programming

Infrared receiver

For handheld remote use

USB type mini B

For programming via PC

Info screen

Displays status or programming functions

Master buttons

Temporarily raise and lower lighting levels on unit

Scene buttons

With integral scene indicator LEDs

GRAFIK Eye® QS Control Unit Installation and Operation Guide 3

Page 4

Wiring the GRAFIK Eye® QS Control Unit:

1 2 3 4 5 6 L N

Overview of Line Voltage/Mains Wiring

1 2

A B C

1 2 3 4

1 2 3 4 5 6 L N

Line Voltage/Mains Cables and Load Wiring

Terminal labels:

L: Hot/Live N: Neutral : Ground

1-6: Dimmed/Switched

line voltage outputs

12 AWG (4.0 mm2) each terminal

120 - 127 V or 220 - 240 V Distribution Panel

Incandescent load

Load controlled by power module or interface

Power module or interface

GRAFIK Eye® QS Control Unit Installation and Operation Guide 4

Page 5

Wiring the GRAFIK Eye® QS Control Unit: Line Voltage Wiring Details

• Useproperlycertifiedcableforallline

voltage/mains cables.

• Propershort-circuitandoverload

protection must be provided at the distribution panel. You can use up to a 20 A circuit breaker for your installation.

• Installinaccordancewithalllocaland

national electrical codes.

• IECPELV/NEC® Class 2 terminals may

be temporarily unplugged for ease of IR, occupancy sensor, and control wiring.

Notice: Risk of damage to unit. Do not

•

connect line voltage/mains cable to IEC

PELV/NEC® Class 2 terminals.

Step 1: Install wallbox. Mount a 3½ in (89 mm) deep 4-gang U.S. wallbox on a dry, flat indoor surface that is accessible and allows for system programming and operation. Allow at least 4½

in (110 mm) clearance above and below the faceplate to ensure proper heat dissipation. Allow 1 in (25 mm) for faceplate overhang on all sides.

Note: 4-gang wallbox available from

Lutron;P/N241400.

Faceplate overhangs wallbox on all sides; allow 1 in (25 mm)

LUTRON

4` in (110 mm)

LUTRON

Step 2: Test load wiring.

• TurnpowerOFFatthecircuitbreakeror

fuse box.

• Connectastandardlightswitchbetween

the live lead and load wire to test the circuit.

• TurnpowerONandcheckforshortor

open circuits. If load does not operate, the circuit is open. If the circuit breaker trips (fuse blows or opens), a load short may exist. Correct short or open circuits and test again.

Hot/Live

Neutral

Switch

Load

GRAFIK Eye® QS Control Unit Installation and Operation Guide 5

Step 3: Check control unit wiring.

Earth/ground terminal connection must

•

be made as shown in line voltage wiring diagrams.

Do not mix different load types on the

•

same zone.

• Follow all local and national electrical codes when installing IEC PELV/

® Class 2 wiring with line voltage/

NEC

mains wiring.

WARNING! Shock hazard. May result in serious injury or death. Always turn off circuit breaker or remove main fuse from power line before doing any work. Before connecting the loads to the GRAFIK Eye® QS control unit, test the loads for short-circuits.

Page 6

Wiring the GRAFIK Eye® QS Control Unit: Line Voltage Wiring Details (continued)

Step 4: Connect line voltage and loads to control unit.

• Strip9 in (8 mm) of insulation off the line voltage/mains cables in the wallbox.

9 in

(8 mm)

• Connectthelinevoltage/mains,ground,

and load wires to the appropriate terminals on the back of the control unit.

L: Hot/Live

 N:Neutral

: Ground Terminals 1-6: Dimmed/Switched

line voltage outputs

The recommended installation torque is

5.0 in∙lb(0.6N∙m) for line voltage/mains connections and 5.0 in∙lb(0.6N∙m) for the earth/ground connection.

Note: See the zone setup section for a

list of compatible load types and instructions for programming the GRAFIK Eye® QS control unit to properly recognize them.

Notice: Risk of damage to unit. GRAFIK Eye® QS control units must be in stalled by a qual i fied electrician in accordance with all applica ble reg u la tions and building codes. Im prop er wiring can result in dam age to control units or oth er equipment.

Note: To avoid over heat ing and pos si ble damage to equipment, do not install control units to dim re cep ta cles, mo tor-op erated ap pli ances, or flu o res cent lighting not equipped with Lutron Hi-lume®, Eco-10®, Tu-Wire®, electron ic dim ming ballasts, or other devices approved for your location. In dimmed mag net ic low-voltage cir cuits, you can pre vent trans former overheating and failure by avoid ing excessively high current flow. Do not op erate control units with any lamps re moved or burned out; re place any burned out lamps imme di ate ly; use only transform ers that in cor po rate ther mal pro tection or fused pri ma ry wind ings. Control units are de signed for res i den tial and commercial use, for indoor use only.

GRAFIK Eye® QS Control Unit Installation and Operation Guide 6

Page 7

1 2

A B C

N H 1 2 3 4 5 6

1 2

Wiring the GRAFIK Eye® QS Control Unit:

1 2

Overview of IEC PELV/NEC

IR Wiring

18 AWG (1.0 mm2) each terminal

From external IR connection (by others)

Contact Closure Input Wiring

24 V 50 mA For settings, see CCI Mode Setup.

Example:

Occupancy sensor (maximum 1)

Signal +V Input Circuit Common

LUT-ELI-3PH

Example:

Emergency lighting interface (maximum 1)

Note: The GRAFIK Eye

mustbepoweredbyaNormal/Emergency

distribution panel for proper ELI operation. Refer to the LUT-ELI-3PH Installation Guide for the complete wiring diagram.

18 AWG (1.0 mm2) each terminal

® QS control unit

® Class 2 Wiring

1 2

1: IR DATA 2: IR COM

A B C

A: CCI SIG B: 24 V

C: CCI COM

QS Link Control Wiring

24 V 100 mA

1 2

A B C

1 2 3 4

1 2 3 4 5 6 L N

Common and power (terminals 1 and 2):

Two 18 AWG (1.0 mm2) each terminal (for link <500 ft/153 m) Two 12 AWG (4.0 mm2) each terminal (for link 500-2000 ft/153-610 m)

1 2 3 4

To control stations, shades, or other

A B C

A: CCI SIG B: 24 V

C: CCI COM

GRAFIK Eye® QS control units

Data (terminals 3 and 4):

Twisted, shielded pair 22 AWG (0.5 mm2) each terminal

1: COM 2: 24 V * 3: MUX 4: MUX

Note: Use appropriate wire connecting devices as specified by local codes.

* Do not connect terminal 2

between any GRAFIK Eye® QS control unit and any other power supply, including another GRAFIK Eye® QS control unit. See “Power Group Wiring” for a detailed wiring example.

GRAFIK Eye® QS Control Unit Installation and Operation Guide 7

Page 8

Wiring the GRAFIK Eye® QS Control Unit:

LUTRON

LUTRONLUTRON

LUTRON

QS Link Control Wiring Details

• SystemcommunicationusesIECPELV/NEC®

Class 2 wiring.

• Followalllocalandnationalelectricalcodeswhen installingIECPELV/NEC® Class 2 wiring with line

voltage/mains wiring.

• Eachterminalacceptsuptotwo18AWG(1.0mm2) wires.

• Totallengthofcontrollinkmustnotexceed 2000 ft (610 m).

• Makeallconnectionsinthecontrolunit’swallbox.

• WiringcanbeT-tappedordaisy-chained.

• IECPELV/NEC® Class 2 24 V 150 mA.

System Limits

The QS wired communication link is limited to 100

devices or 100 zones. The GRAFIK Eye® QS control unit supplies 3 Power Draw Units (PDUs) on the QS link. Refer to the QS Link Power Draw Units specification submittal

(LutronPN369405)formoreinformationconcerning

Power Draw Units.

Wire Sizes (check compatibility in your area)

Daisy-Chain Wiring Example

GRAFIK Eye® QS

control unit

LUTRON

T-Tap Wiring Example

GRAFIK Eye® QS

control unit

QS smart

power

panel

Sivoia

® QS

shade/drape

LUTRON

Sivoia

shade/

drape

LUTRON

GRAFIK Eye® QS

QS smart power panel

seeTouch

LUTRON

control unit

® QS

wallstation

LUTRON

seeTouch

wallstations

LUTRON

® QS

LUTRONLUTRON

LUTRON

QS Link Wiring Length Wire Gauge Lutron Cable Part Number

Less than 153 m (500 ft) Power (terminals 1 and 2)

1 pair 1.0 mm

Data (terminals 3 and 4) 1 twisted, shielded pair 0.5 mm

153 to 610 m (500 to 2 000 ft)

Power (terminals 1 and 2) 1 pair 4.0 mm

Data (terminals 3 and 4) 1 twisted, shielded pair 0.5 mm

(18 AWG) GRX-CBL-346S (non-plenum)

GRX-PCBL-346S (plenum)

(22 AWG)

(12 AWG) GRX-CBL-46L (non-plenum)

GRX-PCBL-46L (plenum)

(22 AWG)

GRAFIK Eye® QS Control Unit Installation and Operation Guide 8

Page 9

Wiring the GRAFIK Eye® QS Control Unit: Power Group Wiring Example

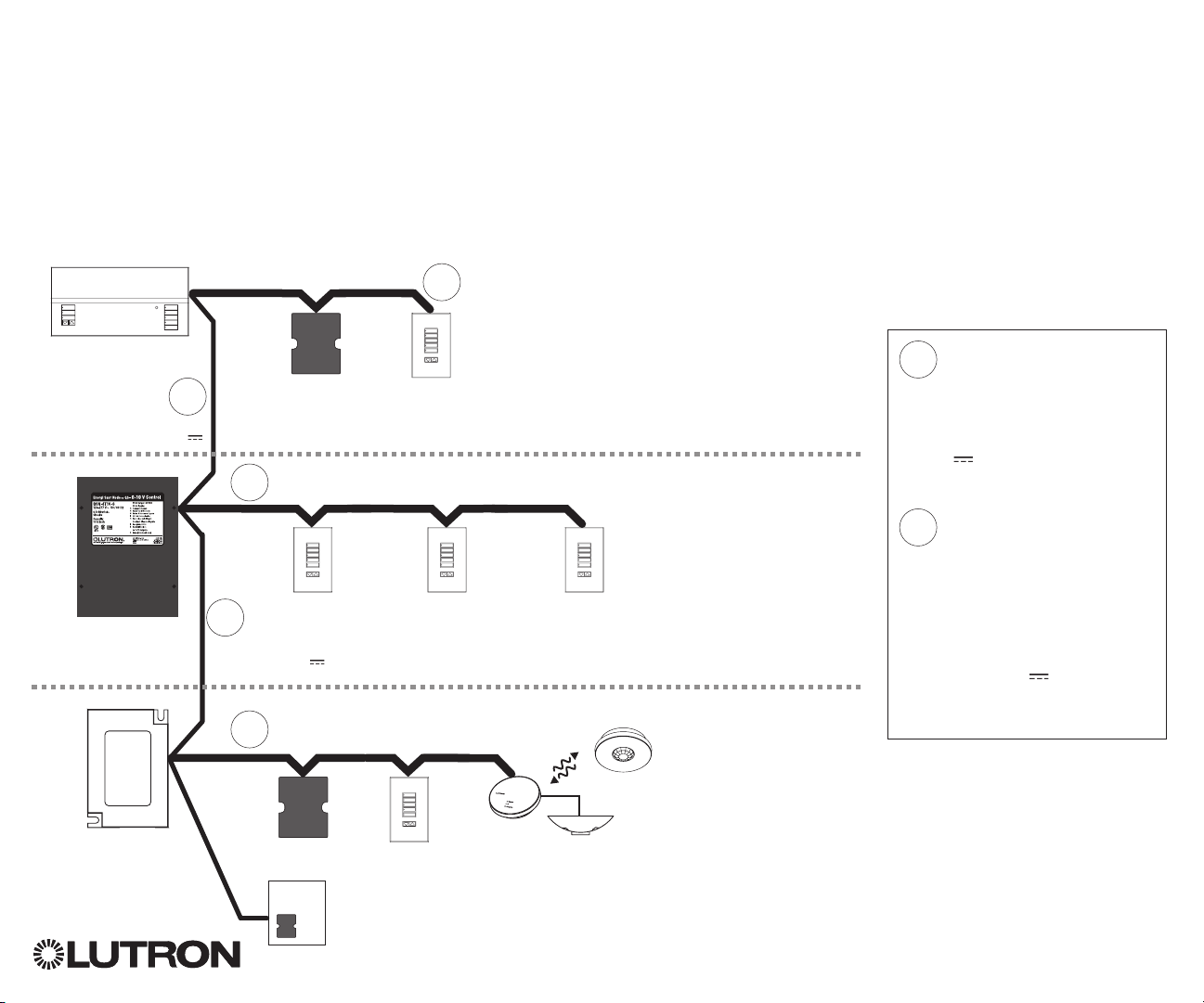

On the QS link, there are devices that supply power and devices that consume power. Each device has a specic number of Power Draw Units (PDUs) it either supplies or consumes. A Power Group consists of one device that supplies power and one or more devices that consume power; each Power Group may have only one power-supplying device. Refer to the QS Link Power Draw Units specificationsubmittal(LutronPN369405)formoreinformationconcerningPDUs.

Within Power Groups on the QS link, connect all 4 terminals (1, 2, 3, and 4), shown by the letter A in the diagram. Between devices on

theQSlinkthatsupplypower,connectonlyterminals1,3,and4(NOTterminal2),shownbytheletterBonthediagram.

Wiring can be T-tapped or daisy-chained.

Power Group 1

LUTRON

GRAFIK Eye® QS control unit Supplies PDUs

(Do not connect

terminal 2: 24 V

Control Interfaces Consume PDUs

)

LUTRON

Wallstations Consume PDUs

Power Group 2

Connect all 4 terminals within a power group:

1: Common 2: 24 V 3 and 4: Data

Energi Savr Node unit Supplies PDUs

QS Power Supply Supplies PDUs

(Do not connect terminal 2: 24 V

LUTRON LUTRON

)

Control Interfaces Consume PDUs

LUTRON

Wallstations Consume PDUs

Quantum® Supplies PDUs

Wallstations Consume PDUs

LUTRON

QS Sensor Module with Occupancy Sensor Consumes PDUs

GRAFIK Eye® QS Control Unit Installation and Operation Guide 9

Connect only 3 terminals between power groups:

1: Common 3 and 4: Data

Do not connect Terminal 2: 24 V

Power Group 3

Page 10

Wiring the GRAFIK Eye® QS Control Unit: Powering More Than 3 Wallstations Example

The GRAFIK Eye® QS control unit can power up to 3 seeTouch® wallstations. An external 24 V power supply is required to power more than three wallstations.

• The +24 VDC wire from the power supply connects to QS link terminal 2 on all of the wallstations it is powering. This wire does not connect to terminal 2 on the GRAFIK Eye® QS control unit.

1 twisted pair 22 AWG

GRAFIK Eye® QS control unit

(rear view)

1 2 3 4 5 6 L N

(0.5 mm

1 2 3 4

A B C

1 2

(1) 18 AWG (1.0 mm Common

)

• The Common wire from the power supply connects to QS link terminal 1 on all of the wallstations it is powering and terminal 1 on the GRAFIK Eye® QS control unit.

Lutron cable GRX-CBL-346S-500 (non-plenum) or GRX-PCBL-346S-500 (plenum)

seeTouch

4 3 2 1

• The communication signals on the QS link (terminals 3 and 4) connect from the wallstations to the GRAFIK Eye® QS control unit on twisted, shielded cable just as when an additional power supply is not being used. Control unit shown in rear view.

® QS wallstations

4 3 2 1

To power source

QSPS-P1-1-50 (powers up to 8 seeTouch wallstations)

GRAFIK Eye® QS Control Unit Installation and Operation Guide 10

® QS

Page 11

Completing Installation of the GRAFIK Eye® QS Control Unit

1. Mount the control unit in the wallbox as shown using the four screws pro vid ed.

Note: Follow all local and national electrical codes when installing IEC

PELV/NEC® Class 2 wiring with line

voltage/mains wiring.

2. Verify installation:

• Restore power.

• Press the top scene button. The LED will

light.

Press the zone raise and lower buttons.

•

Make sure the control unit is dimming all connected loads.

3. Apply the protective overlay to the control unit.

7.9 in

(200 mm)

3.5 in (87 mm)

Note: When tightening mounting screws, make sure that the hinged cover and faceplate will open fully, as shown.

3.75 in

(95 mm)

Wall

Protective overlay (apply after installation)

GRAFIK Eye® QS Control Unit Installation and Operation Guide 11

Page 12

General Functionality

The info screen turns off 30 seconds after the last button press or completion of the last scene change. See example screens below.

The Master buttons activate the info screen. These buttons temporarily raise or lower all dimmable lights (except those programmed as unaffected in the current scene). Adjustments are temporary and do not affect scene programming.

Scene 1

Master raise Master lower

Master buttons

OK button

Note: Master buttons affect all zones.

Timeclock

The OK button activates the info screen (when off), which then shows the current scene and its fade time.

In Save Always mode, it allows fade time adjustment. In Save by OK mode, pressing a second time allows zone adjustment; pressing a third time

Scene 1

Adjust fade

3 seconds

(back) button

allows fade adjustment.

The timeclock button activates the info screen and displays the current time and the next event scheduled to occur. Pressing a second time displays the time, date, and afterhours status. Pressing a third time displays location and sunrise/sunset times.

11:23 AM Fri

Next: 5:00 PM

Scene 1

Pressing a fourth time displays the language selection screen. Pressing once more returns to the first screen.

GRAFIK Eye® QS Control Unit Installation and Operation Guide 12

Page 13

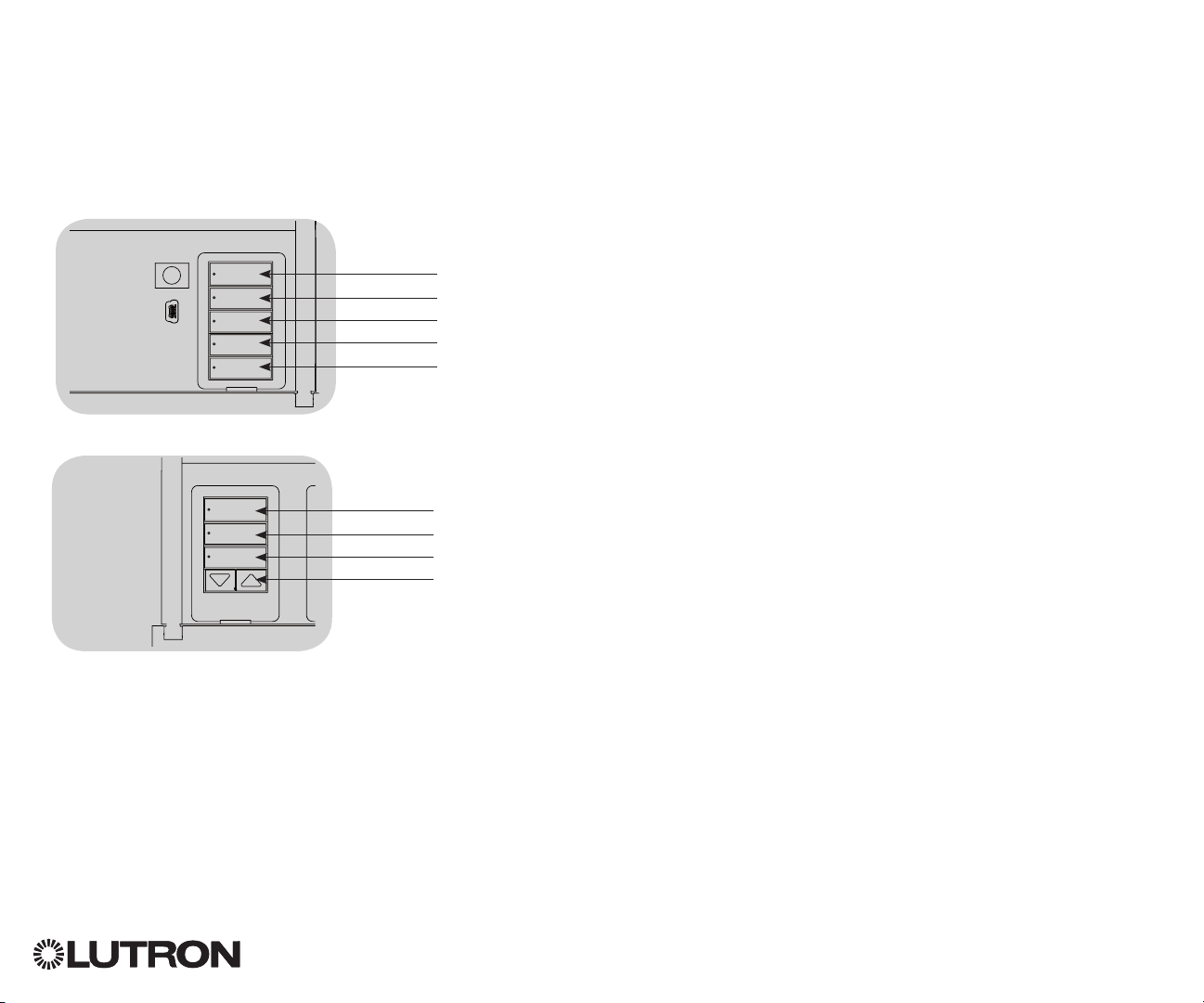

Pre-Programmed Button Functionality

9-16

1-8

1 2

69 10

11 12

815 16

9-16

1-8

The GRAFIK Eye® QS control unit controls most lighting loads without special programming. Each unit ships with pre-programmed default settings for the scene and shade buttons. For load types other than those shown below (dimmable or non-dim), assign the load type before proceeding. See the scene setup section for instructions on changing scene settings.

Scene Button Pre-Programming for Dimmable Loads

Scene 1: All zones to 100% Scene 2: All zones to 75% Scene 3: All zones to 50% Scene 4: All zones to 25% All zones Off

Shade Button Pre-Programming for Sivoia® QS shades

All shades fully open All shades to 50% All shades fully closed Lower/Raise all shades (Applies only to units with shade keypads)

GRAFIK Eye® QS Control Unit Installation and Operation Guide 13

Page 14

Zone Button Operation

Each zone column (LEDs and buttons) represents one zone of lights. Pressing any button on a column turns on the info

screenanddisplaysthezone’scurrent

light level and current energy savings.

Pressing the raise and lower buttons on a zone causes different actions depending on zone type (see below).

Dimmable zones:

• Pressandholdtoraise/loweralllightsina

zone; release to stop

• Pressraiseorlowertostopazonethatis

fading

• Raisinglightsfromofftofullonorlowering

from full on to off takes 5 seconds

• Pressraiseandlowersimultaneouslyto

toggle between full on and off

• Pressandholdlowerfor6secondsafter

the zone has gone to 0% light level to set the zone as unaffected in the current scene. The zone will not change when this scene is initiated, and the Master buttons will not raise/lower the zone in this scene.

Non-dim zones:

• Pressraisetoturnzoneon

• Presslowertoturnzoneoff

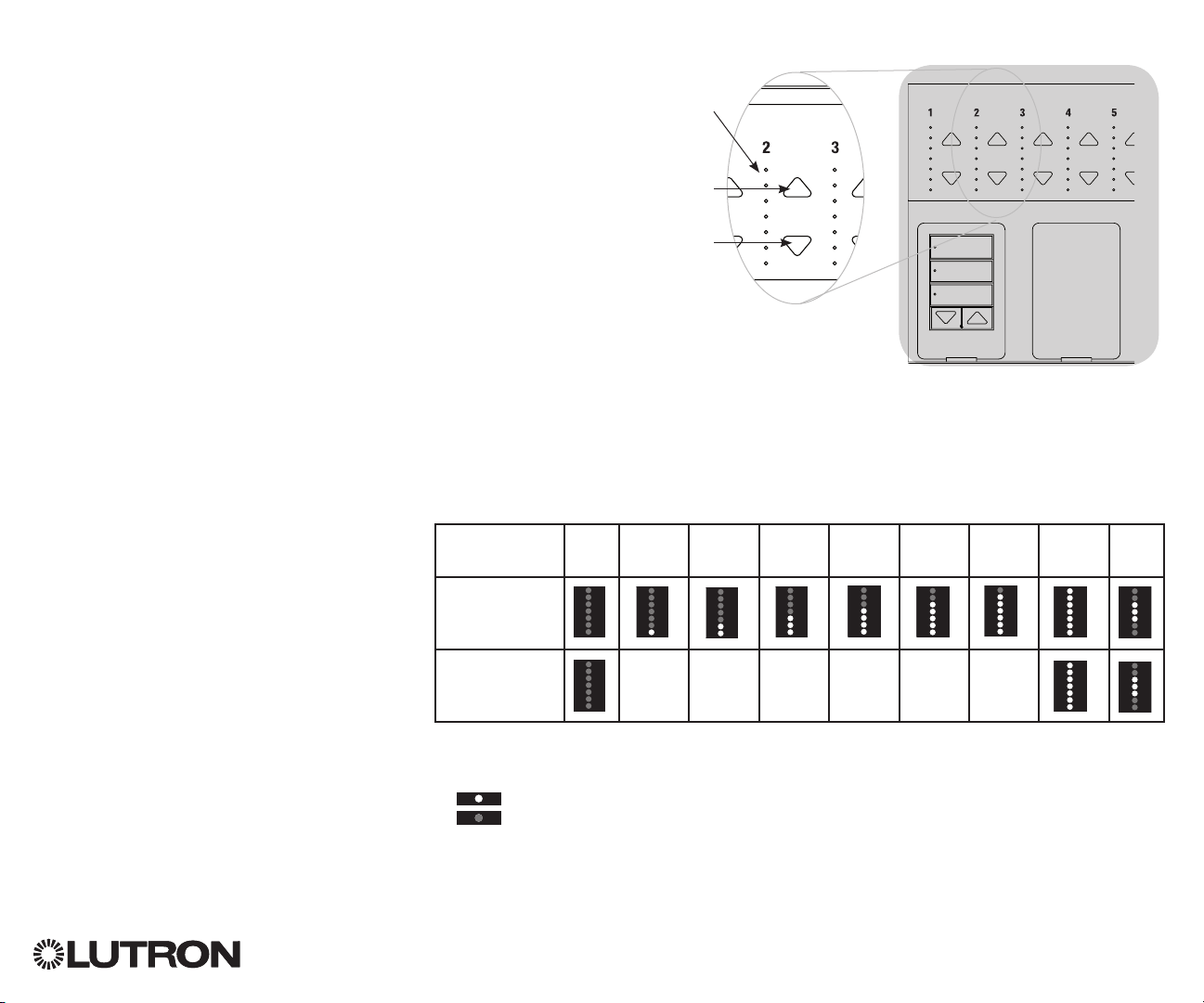

Zone LEDs LEDs indicate light level (see below)

Zone Raise

Zone Lower

Zone LED Displays for % of Lighting Levels

Light Level

Off 1–17 18-33 34-49 50-66 67-82 83-99 On/

(%)

Dimmable Load Types

Non-Dim Load Types

100

Note: To set zone types, see the zone

setup section.

Legend:

UA = Unaffected (lights are not affected by

LED lit LED off

scene button or Master buttons)

GRAFIK Eye® QS Control Unit Installation and Operation Guide 14

Page 15

Programming Mode

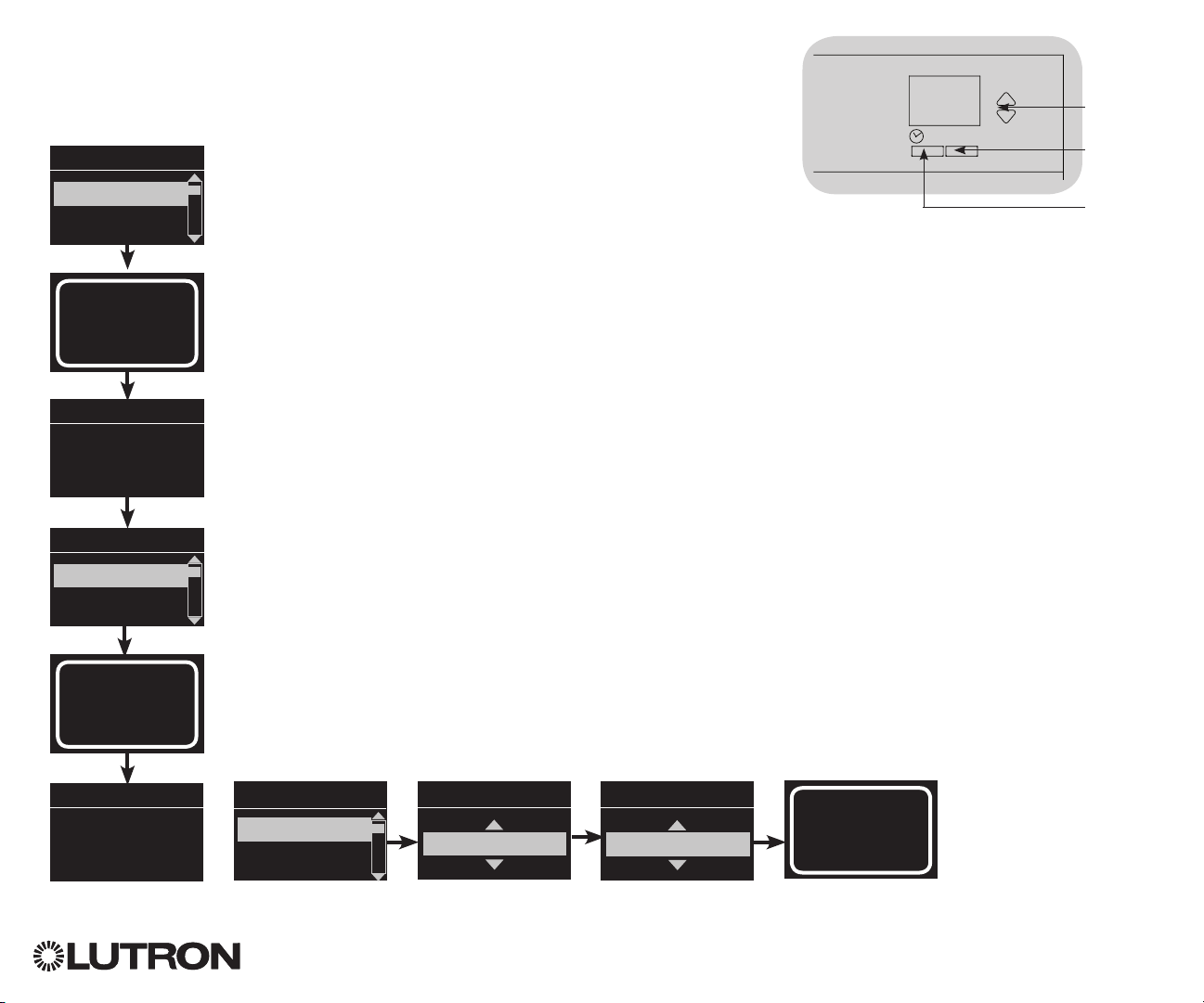

Entering and Exiting Programming Mode

Main menu

Timeclock

Scene setup

Scene 1

Fade time 3 seconds

Navigating Menus in Programming Mode

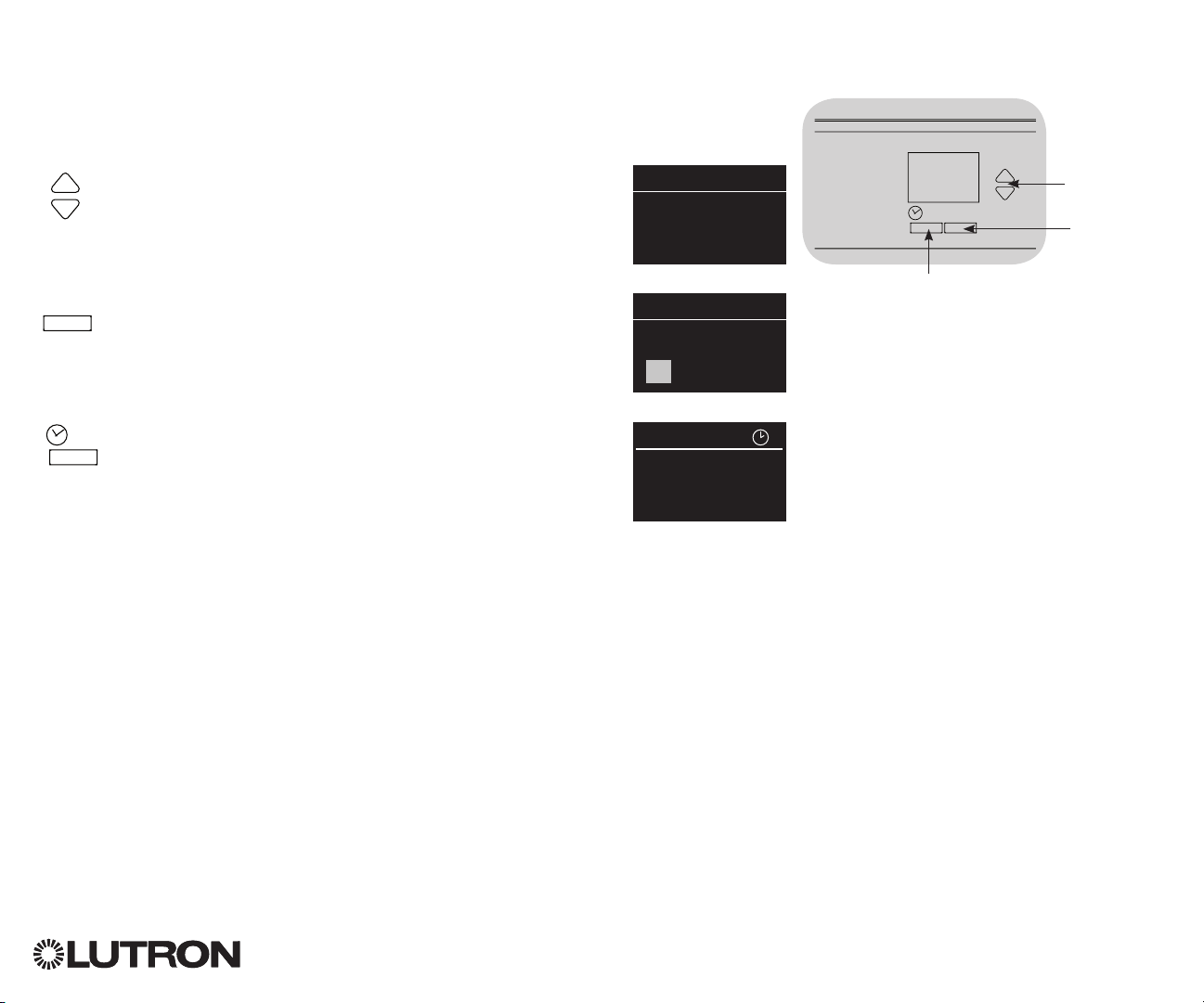

Master Buttons The Master buttons allow you to move through the menu choices. The current choice is highlighted on the info screen.

OK Button The OK button chooses the current highlighted menu choice. This will either take you to the next menu or accept a setting you

haveselected.WhenthescreendisplaysaYes/Noquestion,the

OK button is “Yes”. Timeclock Button

The timeclock button functions as a “back” button during programming mode. Pressing the timeclock button takes you back one step in the current menu. Pressing it repeatedly will eventually return you to the main menu, but will not exit

programmingmode.WhenthescreendisplaysaYes/No question,theTimeclockbuttonis“No”.

Entering programming mode: Press and hold the top and bottom scene buttons simultaneously for 3 seconds. The LEDs in the scene buttons will scroll from top to bottom, confirming that you are in programming mode, and the info screen will display the main menu.

Exiting programming mode: Press and hold the top and bottom scene buttons simultaneously for 3 seconds. The info screen will go to Scene 1.

Master buttons

OK button

Timeclock (back) button

Press and hold the top and bottom buttons for 3 seconds to enter or exit programming mode

GRAFIK Eye® QS Control Unit Installation and Operation Guide 15

Page 16

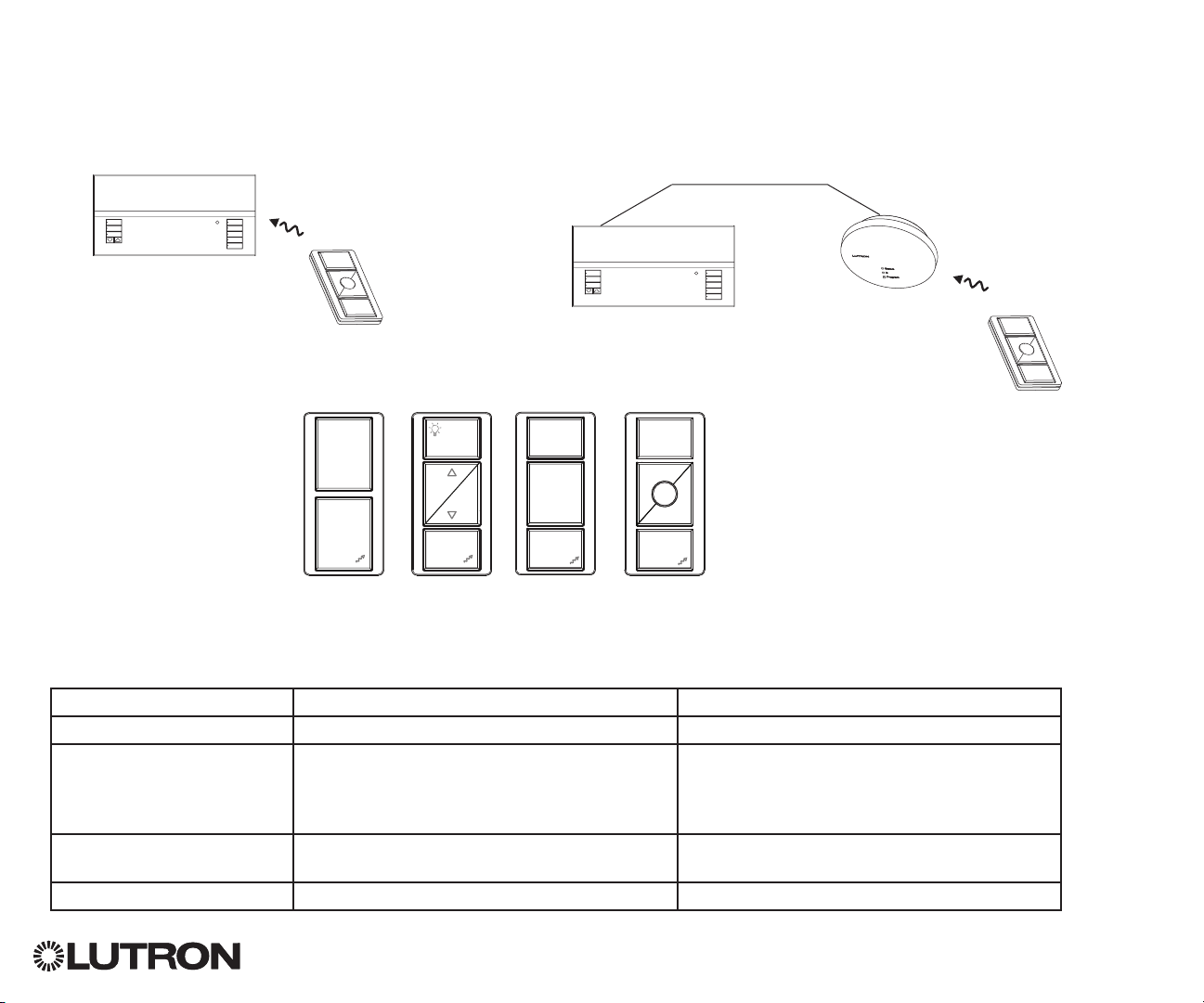

Wireless Mode

Many models of the GRAFIK Eye® QS control unit support wireless communication with

other Lutron® products. This feature allows for easy integration of wireless sensors, keypads, remotes, and shades for single-room wireless applications, as well as compatibility with other Lutron wireless systems such as RadioRA® 2. (See the RadioRA®2SetupGuide;LutronPN044254.)

Units supporting wireless communication are labeled “GRAFIK Eye® QS Wireless” on

the front label of the unit.

The wireless feature of the GRAFIK Eye® QS Wireless control unit has three (3) modes

of operation.

• Disabled: Use for wired-only systems.

• Enabled: The GRAFIK Eye

commands from nearby Lutron QS wireless (and compatible) products.

• Ignore Programming (default): The GRAFIK Eye respond to normal operation commands from wireless devices associated while in Enabled mode.

Changing the wireless mode of the GRAFIK Eye® QS Wireless control unit:

Main menu

Shade labels

Wireless Mode

Enabled

Saved

® QS Wireless control unit will respond to any programming

® QS Wireless control unit will only

1. Enter programming mode.

2. Use the Master buttons to highlight “Wireless Mode” and press the OK button to accept.

3. Use the Master buttons to highlight the desired wireless mode, and press the OK button to accept.

4. The info screen will display a confirming “Saved” message.

5. Exit programming mode.

Notes

The wireless signal has a range of 30 ft (9 m) through standard

•

construction or 60 ft (18 m) line of sight.

• WhenusedwithinaRadioRA® 2 system, the wired QS link on the

GRAFIK Eye® QS control unit is disabled, and certain features that do not pertain to RadioRA® 2 are not accessible.

Master

FCC Information

Changes or modifications not expressly approved by Lutron Electronics Co. could void the user’s authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential and commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipment

and receiver.

• Connecttheequipmentintoanoutletona

circuit different from that to which the receiver is connected.

• Consultthedealeroranexperiencedradio/TV

technician for help.

buttons

OK button

Timeclock (back) button

GRAFIK Eye® QS Control Unit Installation and Operation Guide 16

Page 17

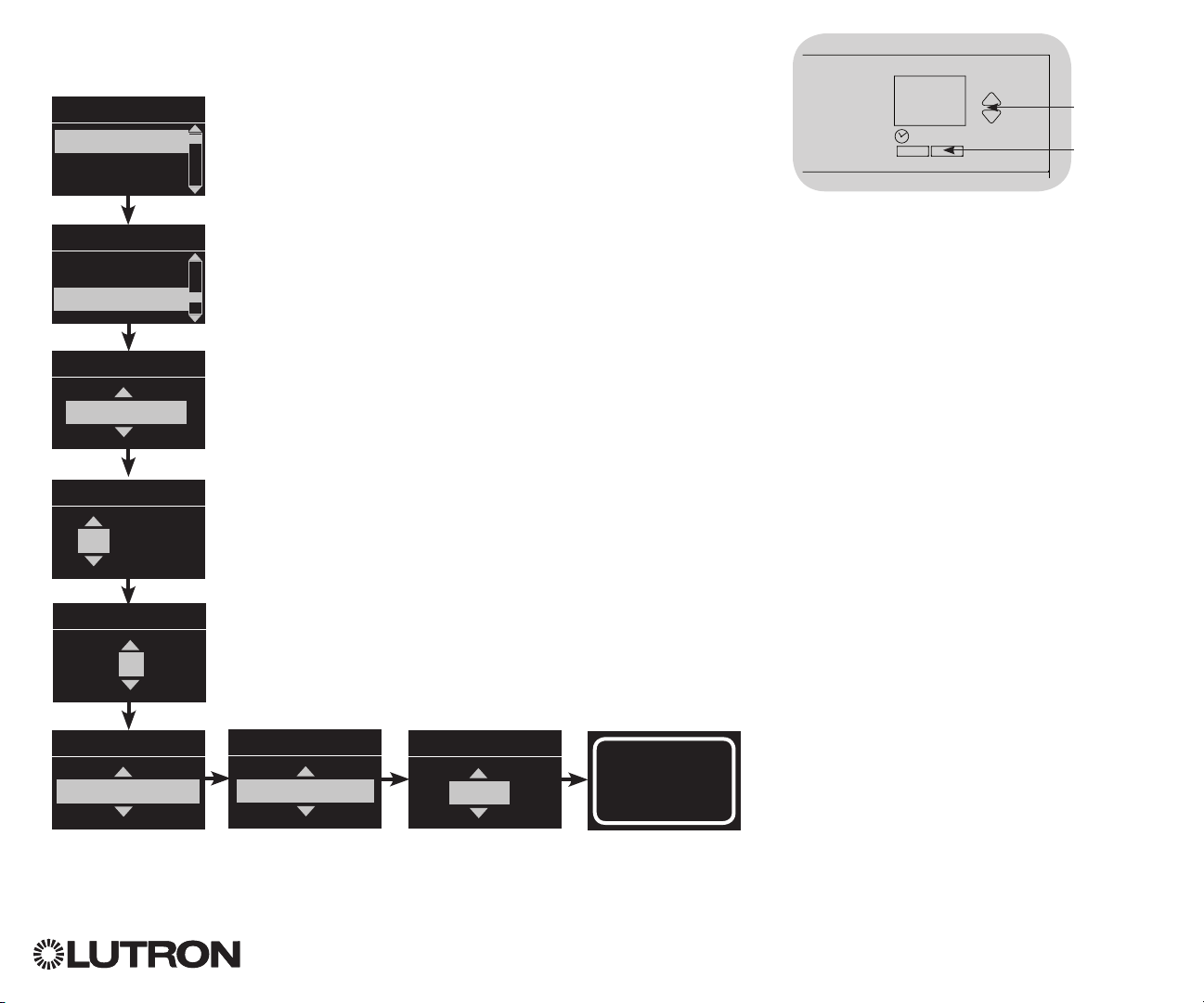

Zone Setup

Assigning Load Types

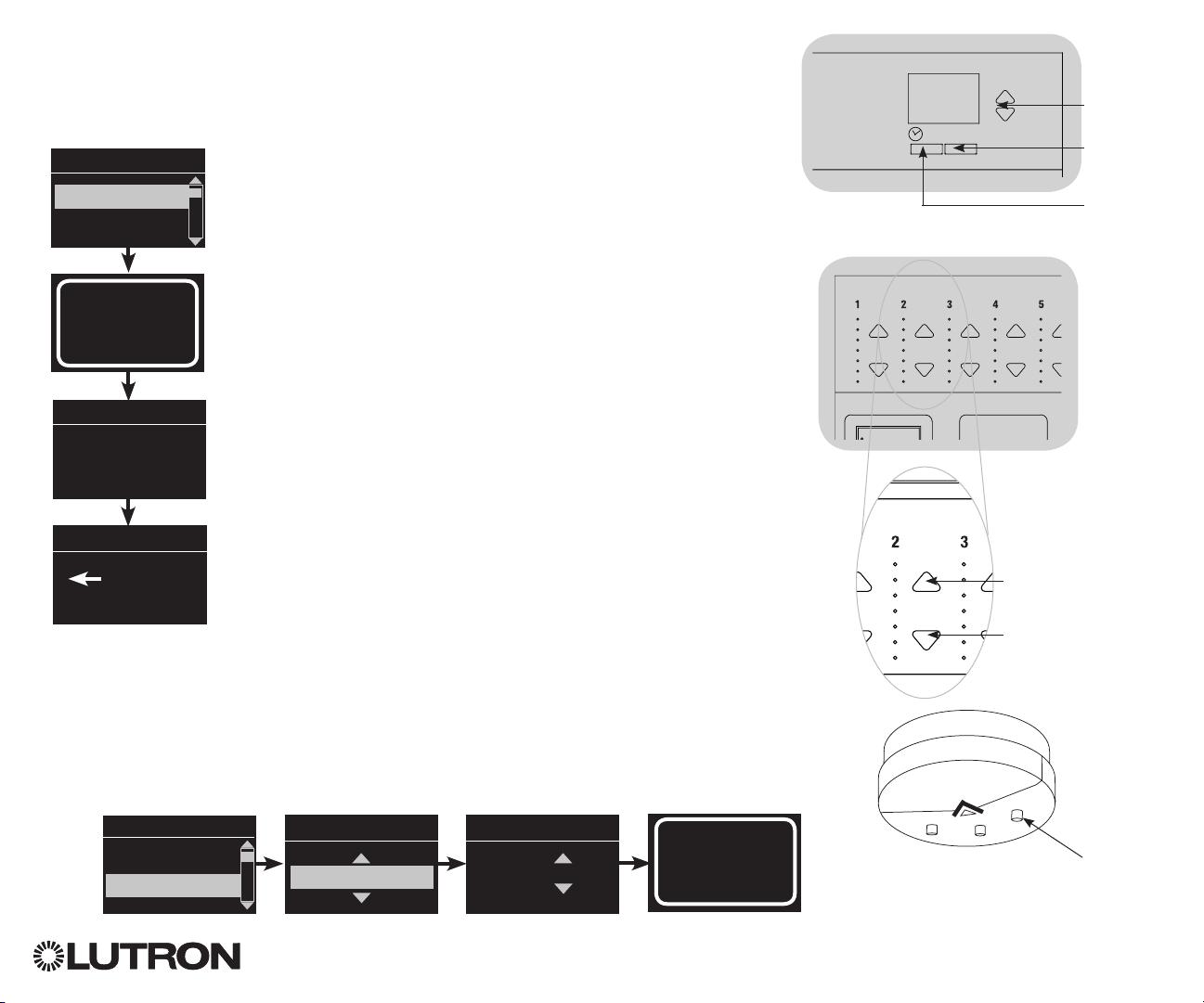

Main menu

CCI Setup

Zone setup

1. Enter programming mode.

2. Use the Master buttons to highlight

3. Use the Master buttons to highlight

Zone Setup

Load Type

Non-Dim Load Type

4. Use the zone raise/lower buttons to

Load Type

Set zones

5. The info screen will confirm that

6. Exit programming mode.

Saved

“Zone setup” and press the OK button to accept.

“Load type”. Press the OK button to accept. See “Setting Load Types” table on the next page.

choose the load type for that zone. See the list on the next page for supported load types. Press the OK button to accept.

your load type has been saved.

Master

1 2 3 4 5 6

buttons

OK button

Use the zone raise/lower buttons to choose the load type for that zone.

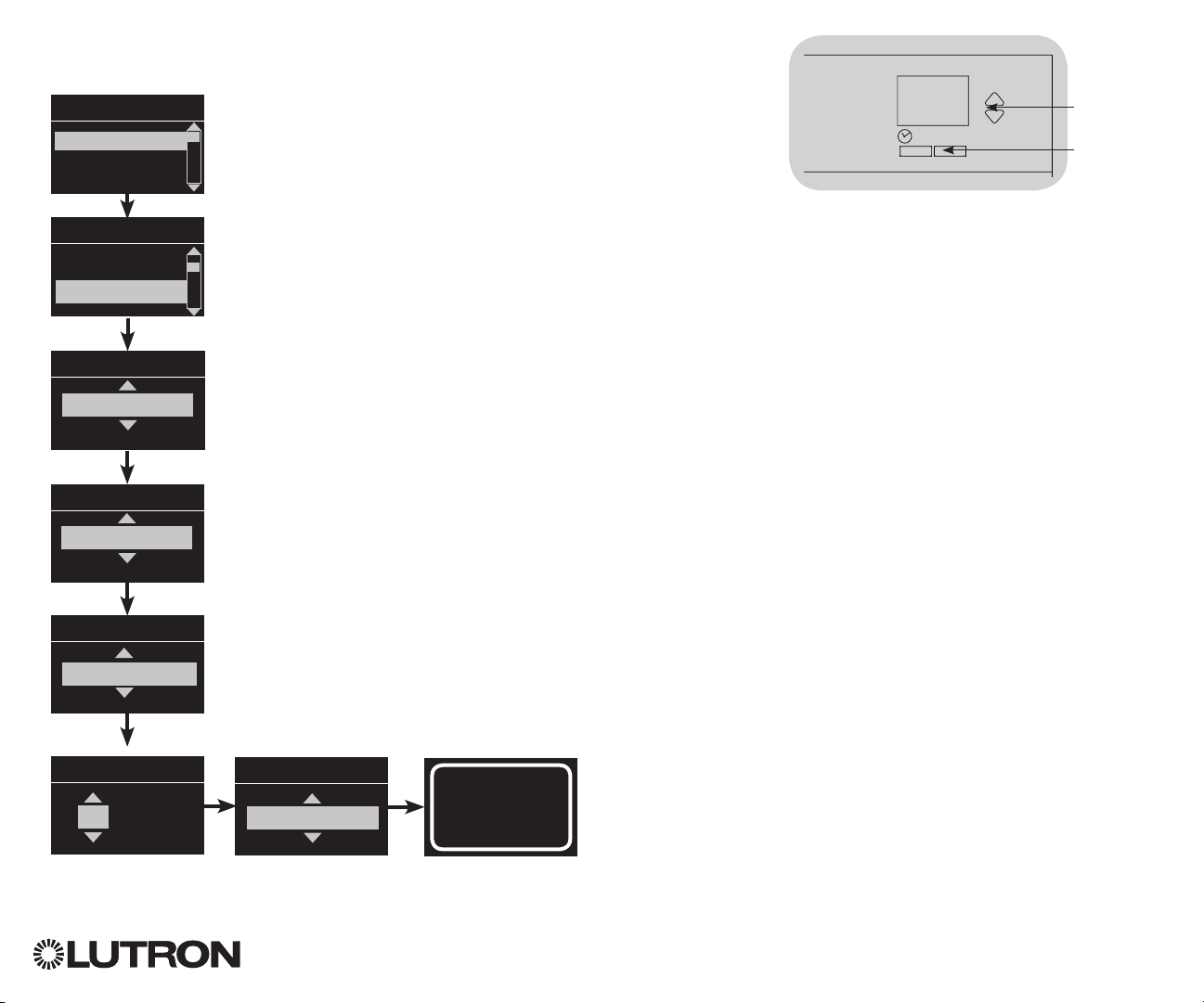

Assigning Non-Dim Load Type

Zones assigned to non-dim loads have three available configurations:

Main menu

• LOFO: Last On, First Off

• FOFO: First On, First Off

CCI Setup

Zone setup

• FOLO: First On, Last Off Scenes made up of both dim and non-dim

load types will toggle the non-dim loads before the dim loads in a “First” on/off

Zone Setup

configuration, and after the dim loads in a “Last” on/off configuration.

Load Type

Non-Dim Load Type

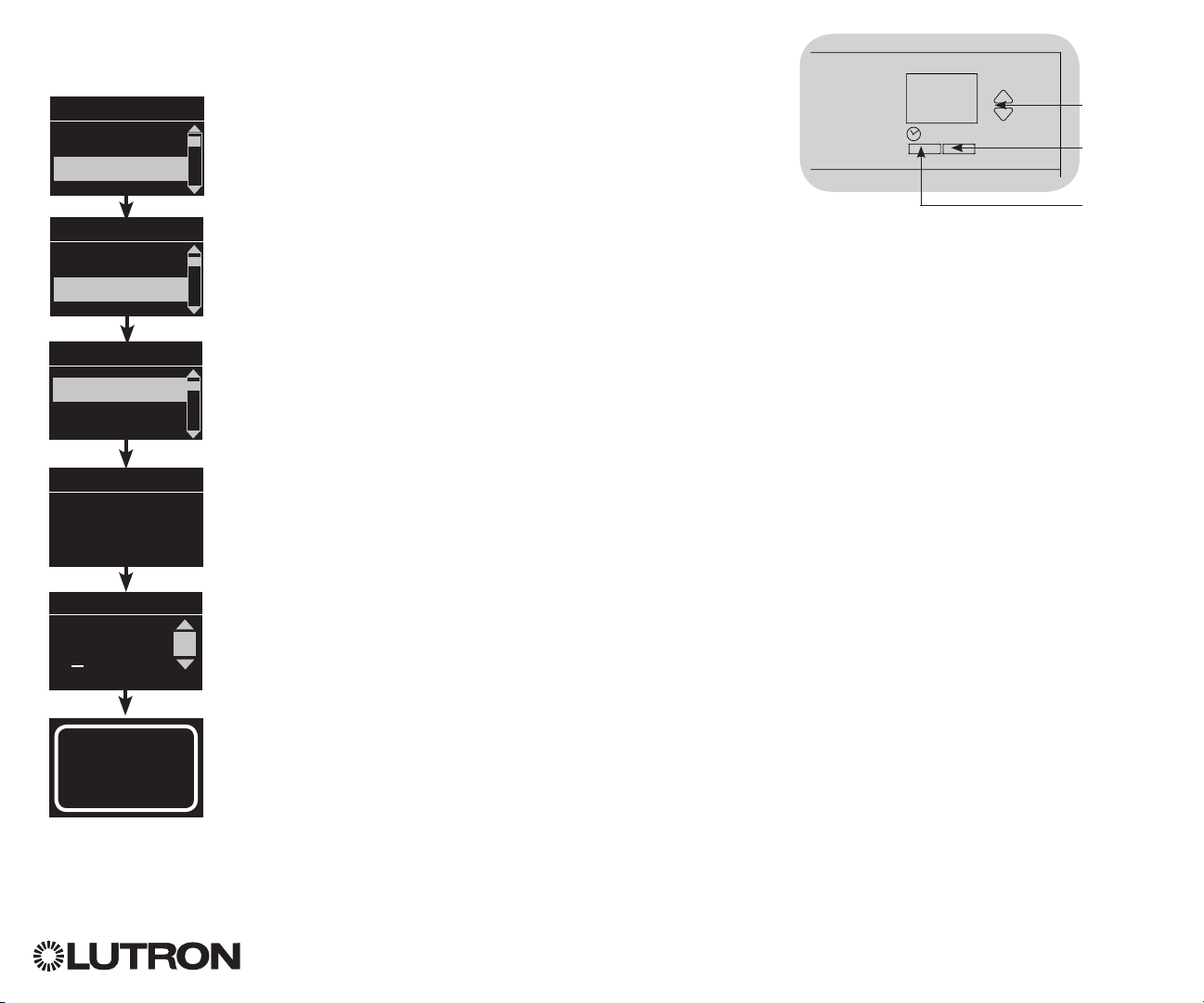

1. Enter programming mode.

2. Use the Master buttons to highlight “Zone setup” and press the OK button to accept.

3.UsetheMasterbuttonstohighlight“Non-Dim

Load Type

Set zones

Load type”. Press the OK button to accept. See “Setting Load Types” table on the next page.

4. Use the zone raise/lower buttons to choose

the non-dim load type for that zone. (Zones not programmed as non-dim will be displayed as Unaffected.) Press the OK button to

Saved

accept.

5. The info screen will confirm that your load

type has been saved.

6. Exit programming mode.

GRAFIK Eye® QS Control Unit Installation and Operation Guide 17

Page 18

Zone Setup (continued)

LUTRON

Setting Load Types

Fixture load type Choose this load type from the menu

Incandescent Incandescent Power module

MLV (magnetic low-voltage) MLV Power module

ELV (electronic low-voltage) — Power module

Hi-Lume

®/Eco-10® — Fluorescent module

0-10 V — Fluorescent module

Non-dim lighting loads Non-dim Non-dim

1 – 6

Zones

Neon/Cold cathode

Tu-Wire® Tu-Wire Tu-Wire

Advance Mark X

DMX — DMX

RGB/CMY DMX — RGB/CMY DMX

Cree LR4/LR6 LED Cree LR4/LR6 LED Fluorescent module

Direct control via GRAFIK Eye® QS control unit

LUTRON

Control via power module or interface

on the GRAFIK Eye® QS control unit:

Neon, CC Neon, CC

® Tu-Wire Tu-Wire

LUTRON

Power module or interface

Load Type Notes

• Allelectroniclow-voltage

(ELV) lighting used with an interface must be rated for reverse phase control dimming. Before installing an ELV light source, verify with the manufacturer that their transformer can be dimmed. When dimming, an ELV interface (such as the PHPM-PA-DV-WH) must be used with the control unit.

• ForallDMXorRGB/CMYDMX lighting,anexternalDMXinterface (suchastheQSE-CI-DMX)must

be used with the control unit.

• Maximumtotallightingloadfor

Lutron® Tu-Wire® and Advance

MarkX® electronic dimming

ballasts (120 to 127 V only) must not exceed 6 A per zone or 16 A per unit.

Zone ratings:

•Notallzonesmustbeconnected;

however, connected zones must have a minimum load:

120 - 127 V : 25 W

220 - 240 V : 40 W

•Maximumzoneloads:

120 - 127 V : 800 W

220 - 240 V : 1200 W

•Maximumtotallightingloadfor

magnetic low-voltage (MLV) varies by input voltage: 120 - 127 V : 800 VA / 600 W 220 - 240 V : 1200 VA / 960 W

GRAFIK Eye® QS Control Unit Installation and Operation Guide 18

Page 19

Zone Setup

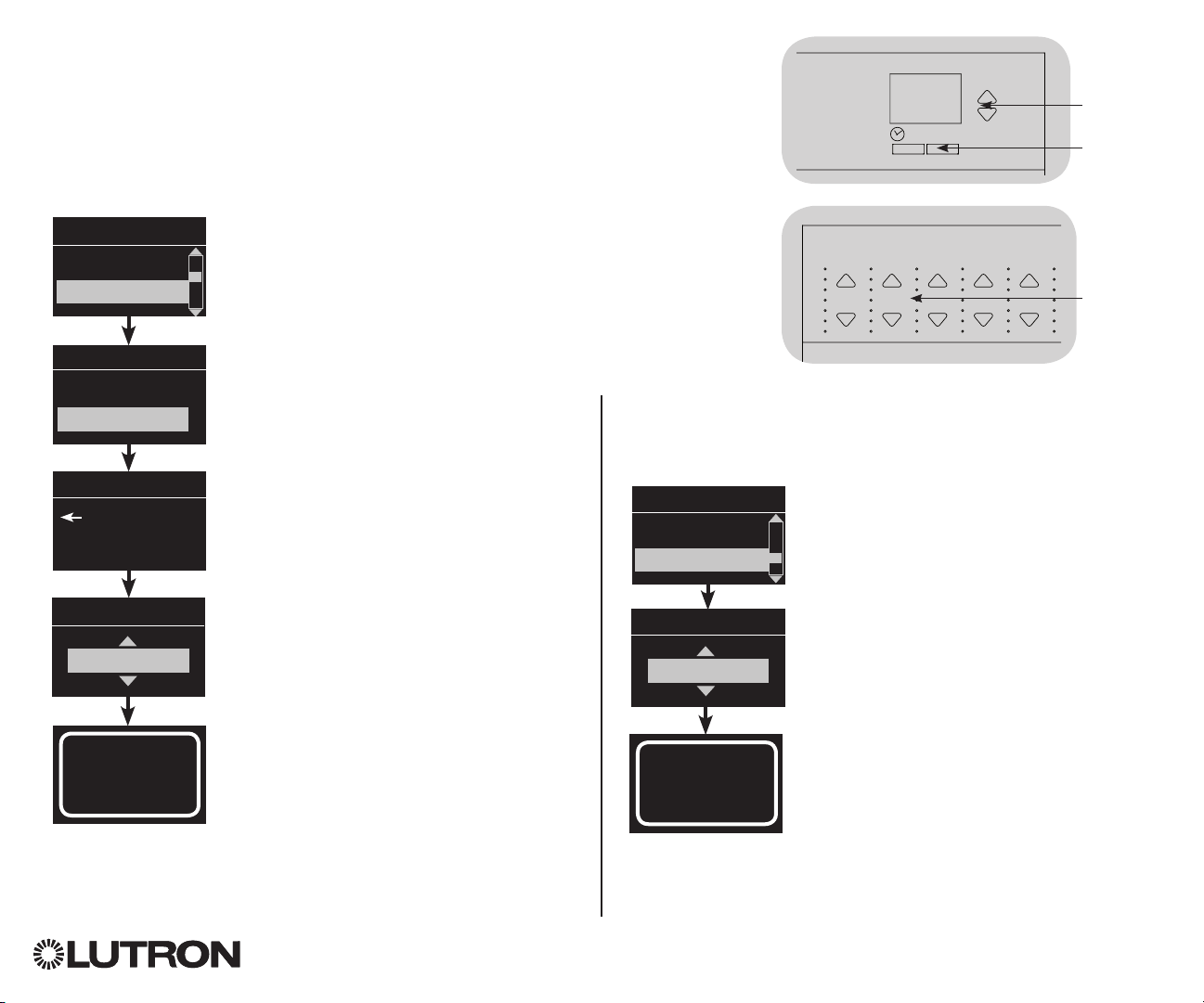

Setting High End or Low End Trim

•

If you are unsure about appropriate high and low end settings,

please contact Lutron Technical Support for assistance.

• High and low end trim settings limit the maximum and minimum output of a dimming zone. Trim levels are set automatically when the load type is programmed.

Main menu

CCI Setup

Zone setup

1. Enter programming mode.

2. Use the Master buttons to highlight “Zone setup” and press the OK button to accept.

3. Use the Master buttons to highlight “High end” or “Low end” (this example shows

Zone setup

High end

Low end

low end). Press the OK button to accept.

4. Use the zone raise/lower buttons to set the high end or low end trim for that zone. The info screen will display each zone number and percentage as you adjust it. Press the OK button to accept.

Low end

Set zones

5. The info screen will confirm that your setting has been saved.

6. Exit programming mode.

Zone 2

10%

Saved

Master

1 2 3 4 5 6

buttons

OK button

Use the zone raise/lower buttons to set the high end or low end trim for that zone.

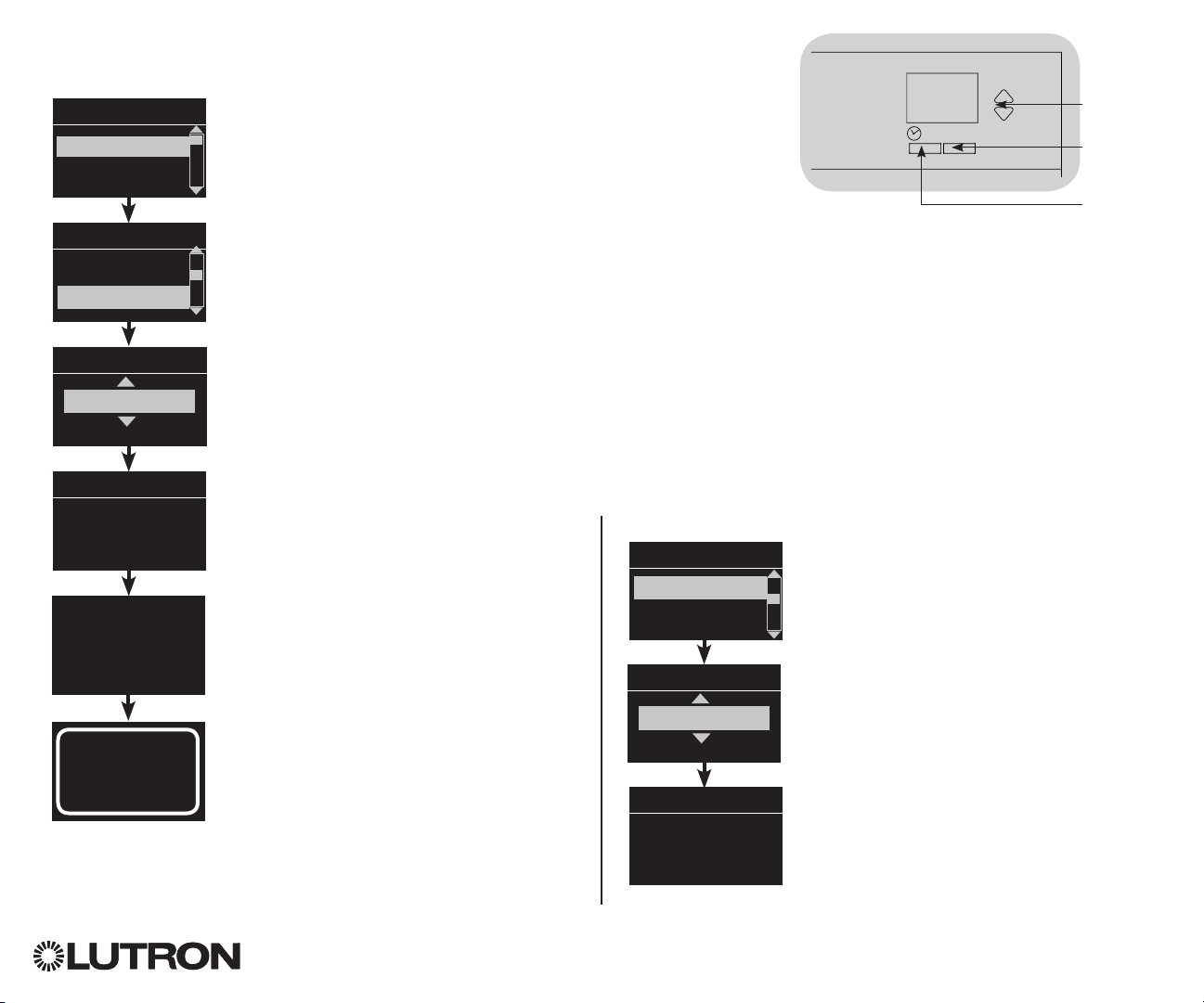

Setting Minimum Level (optional)

Some local regulations specify a minimum lighting level for dimming zones in occupied buildings. If this pertains to you, follow these steps to set up your minimum lighting level.

Zone setup

Low end

Min level

1. Enter programming mode and select “Zone setup,” then “Min level”. Press the OK button to accept.

2. Use the Master buttons to highlight “OFF” if you want your lights to go all the way off at their minimum light level,

Min level

or “10%” if you want that to be the minimum light level. Press the OK button

Off

to accept. Note:Non-dimloadswill turn off

regardless of the minimum level setting.

3. The info screen will confirm that your minimum level has been saved.

Saved

4. Exit programming mode.

GRAFIK Eye® QS Control Unit Installation and Operation Guide 19

Page 20

Zone Setup

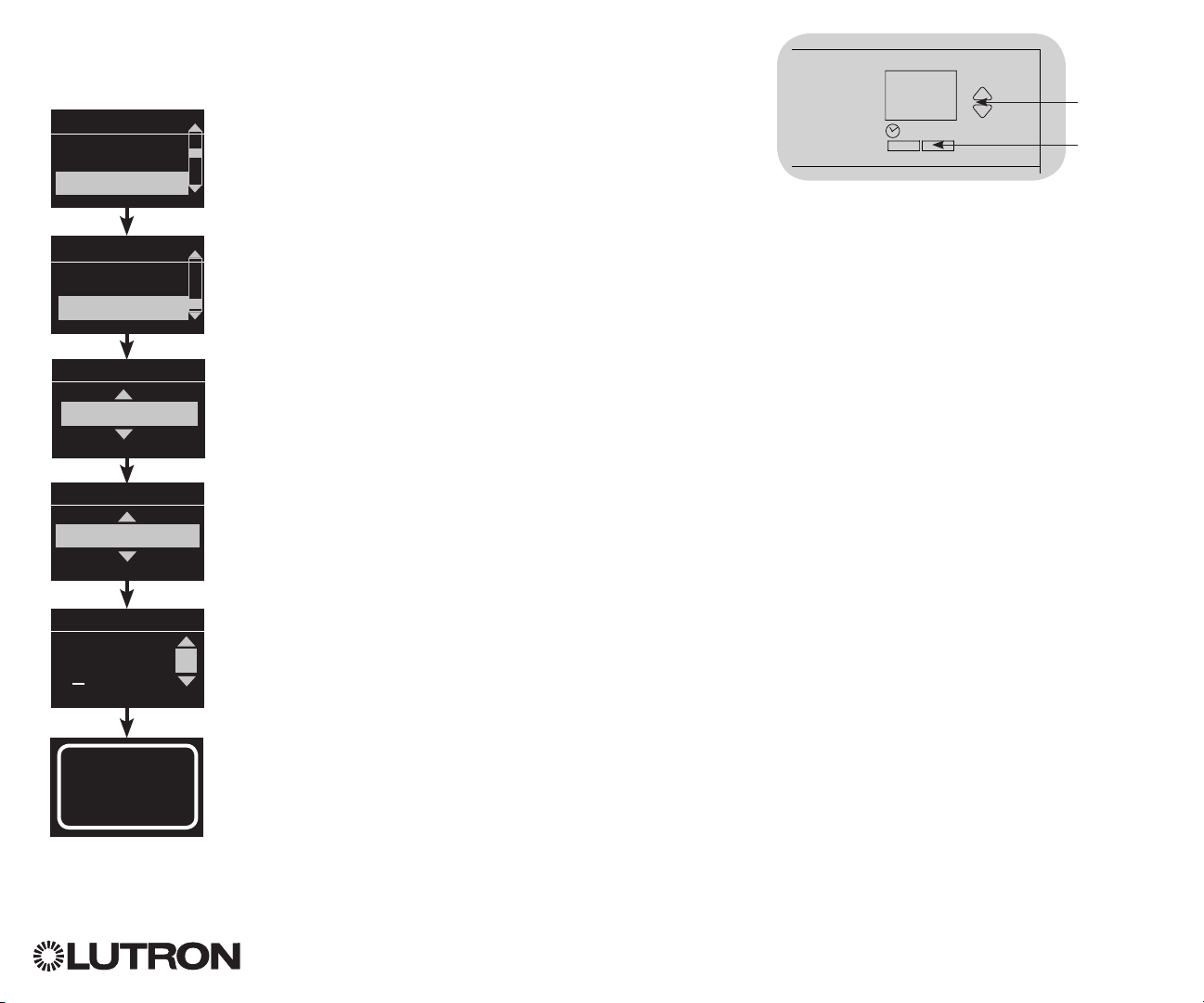

Labeling a Zone (optional)

Main menu

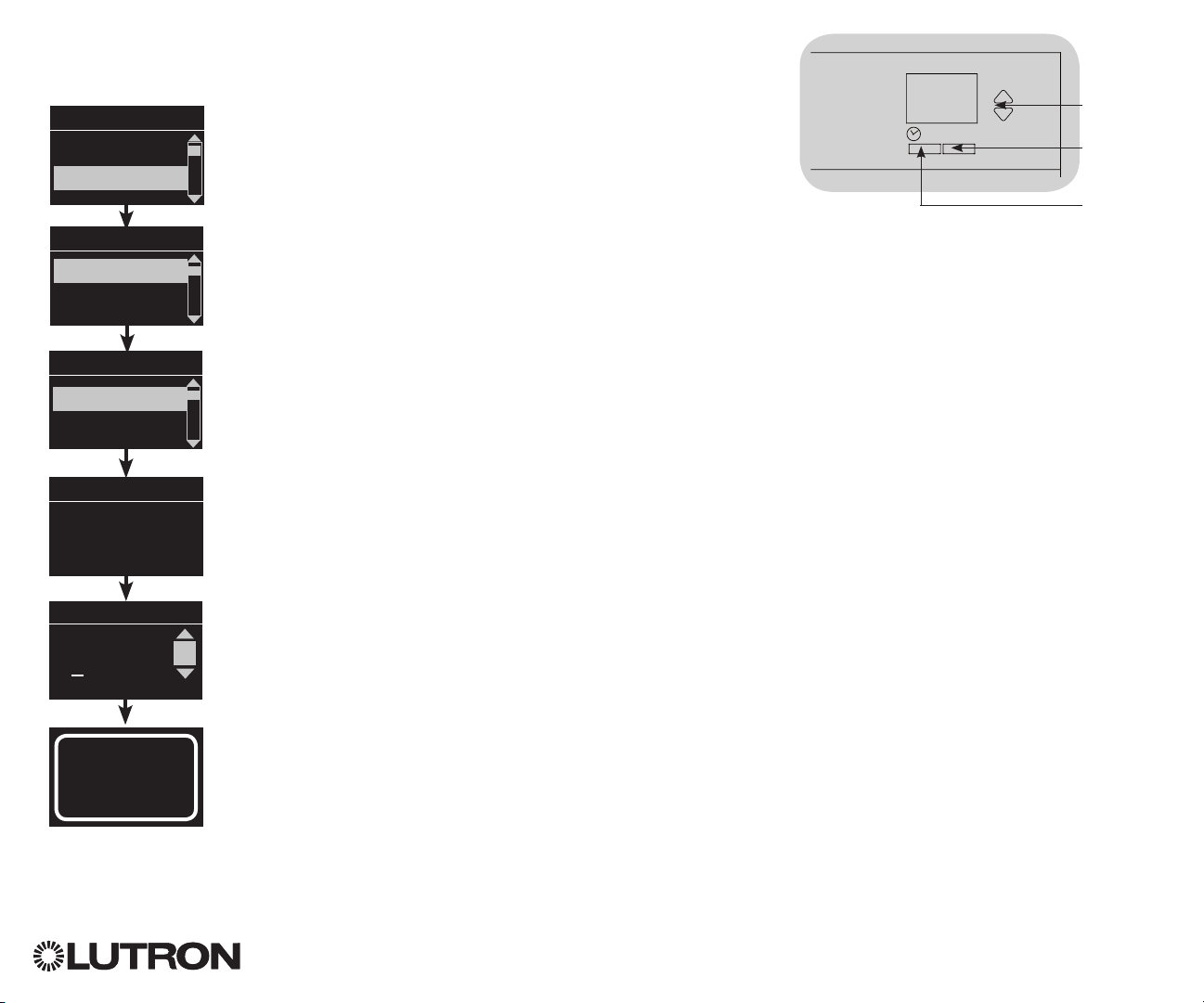

1. Enter programming mode.

2. Use the Master buttons to highlight “Zone setup” and press

CCI Setup

Zone setup

the OK button to accept.

3. Use the Master buttons to highlight “Label” and press the OK button to accept.

4. Use the Master buttons to change the zone number to your

Zone setup

Min level

Label

desired zone. Custom zone labels will appear if previously set. Press the OK button to accept.

5. Use the Master buttons to highlight “Custom” and press the OK button to accept. Or, highlight “Default” to return the zone label to the default (e.g., Zone 1).

Label zone

Zone 2

6. Use the Master buttons to scroll through the characters (lowercase and uppercase letters, plus numbers 0 through 9). The character you are currently changing will be underlined on the screen. Press OK to select the character you want, then repeat for all available characters. Choose a space (no character) and press OK for any remaining characters. Press

Label zone 2

Custom

the OK button to accept.

Note: Custom zone labels will always begin with the zone

7. The info screen will confirm that your name has been saved.

8. Exit programming mode.

Label zone 2

1 / 11

1: A

number and a colon (e.g., 1: Uplights).

Master

buttons

OK button

Saved

GRAFIK Eye® QS Control Unit Installation and Operation Guide 20

Page 21

Scene Setup

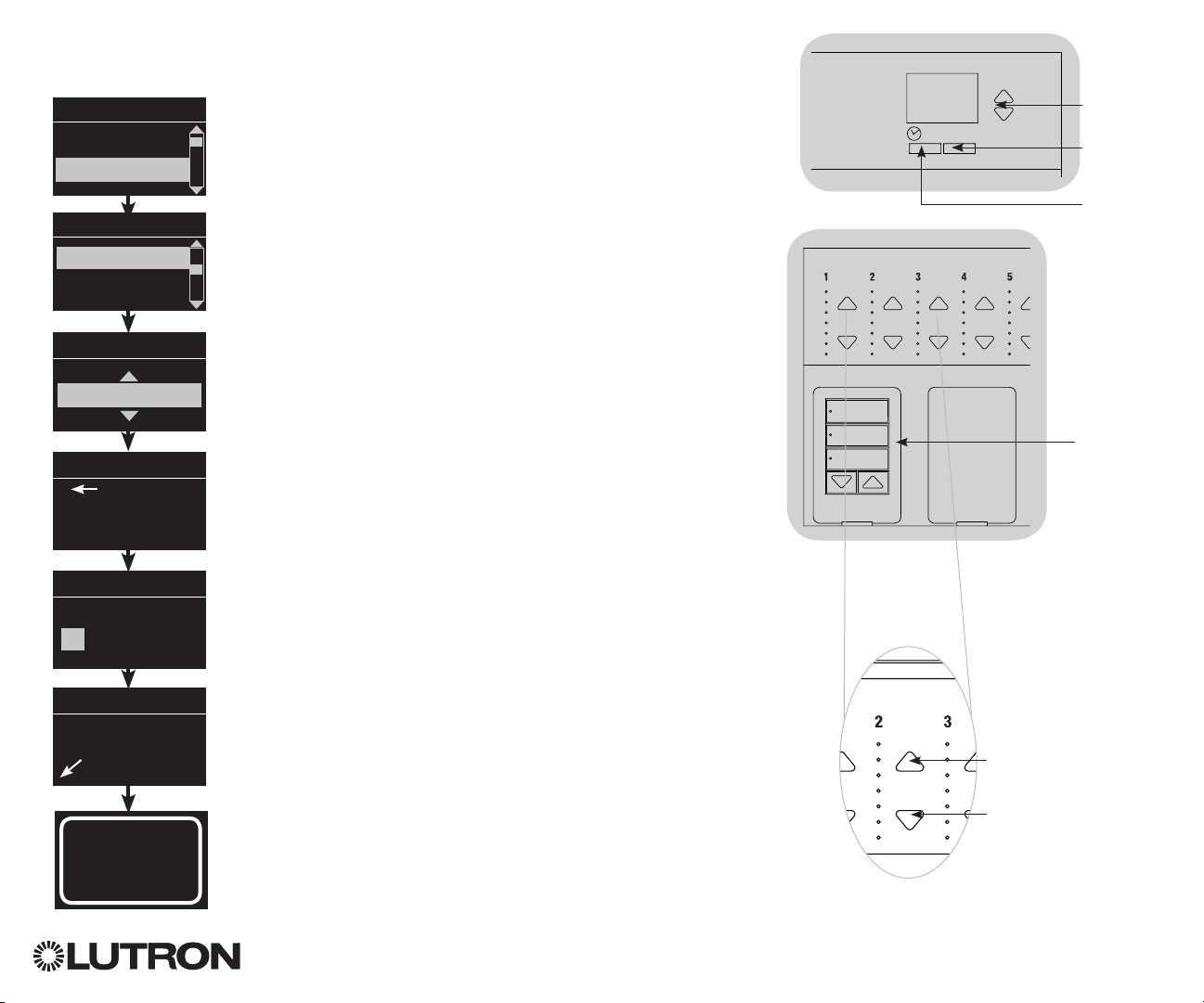

Setting Zone Levels, Fade Rates, and Shade Group Actions

Main menu

Timeclock

Scene setup

Levels

Labels

Scene setup

Scene 1

Set zones

3 seconds

Scene 1

Adjust fade

seconds

Scene 1

Set shade

Groups

1. Enter programming mode.

2. Use the Master buttons to highlight “Scene setup” and press the OK button to accept.

3. Use the Master buttons to highlight “Levels” to adjust lighting and/or shade levels. Press the OK button to accept. Use the Master buttons to highlight the scene number of your desired scene. Press the OK button to accept.

4. Set each zone to the desired light level for this scene using the zone raise/lower buttons. The info screen will display the zone and percentage as you adjust it.

To set a zone as unaffected, lower the light levels all the way

to off, then hold the zone lower button for 3 seconds. The screen will display “---” and the three middle LEDs for the zone will be lit to indicate this zone is unaffected by the scene (the zone will not change when this scene is initiated).

When all zones are at the desired level, press the OK button to

accept.

5. Use the Master buttons to set the fade time for this scene. Press the OK button to accept.

6. Note: This step is applicable only if you have shades on your

system. If you do not have or do not wish to set shade groups for this scene, press the OK button to skip this step.

Set each shade group to the desired level for this scene. When all shade groups are at the desired level, press the OK button to accept. For shade programming, see the section on adjusting shade settings.

7. The info screen will confirm that your scene has been saved.

8. Exit programming mode.

Master buttons

OK button

Timeclock (back) button

Shade button group

Zone raise

Zone lower

Saved

GRAFIK Eye® QS Control Unit Installation and Operation Guide 21

Page 22

Scene Setup

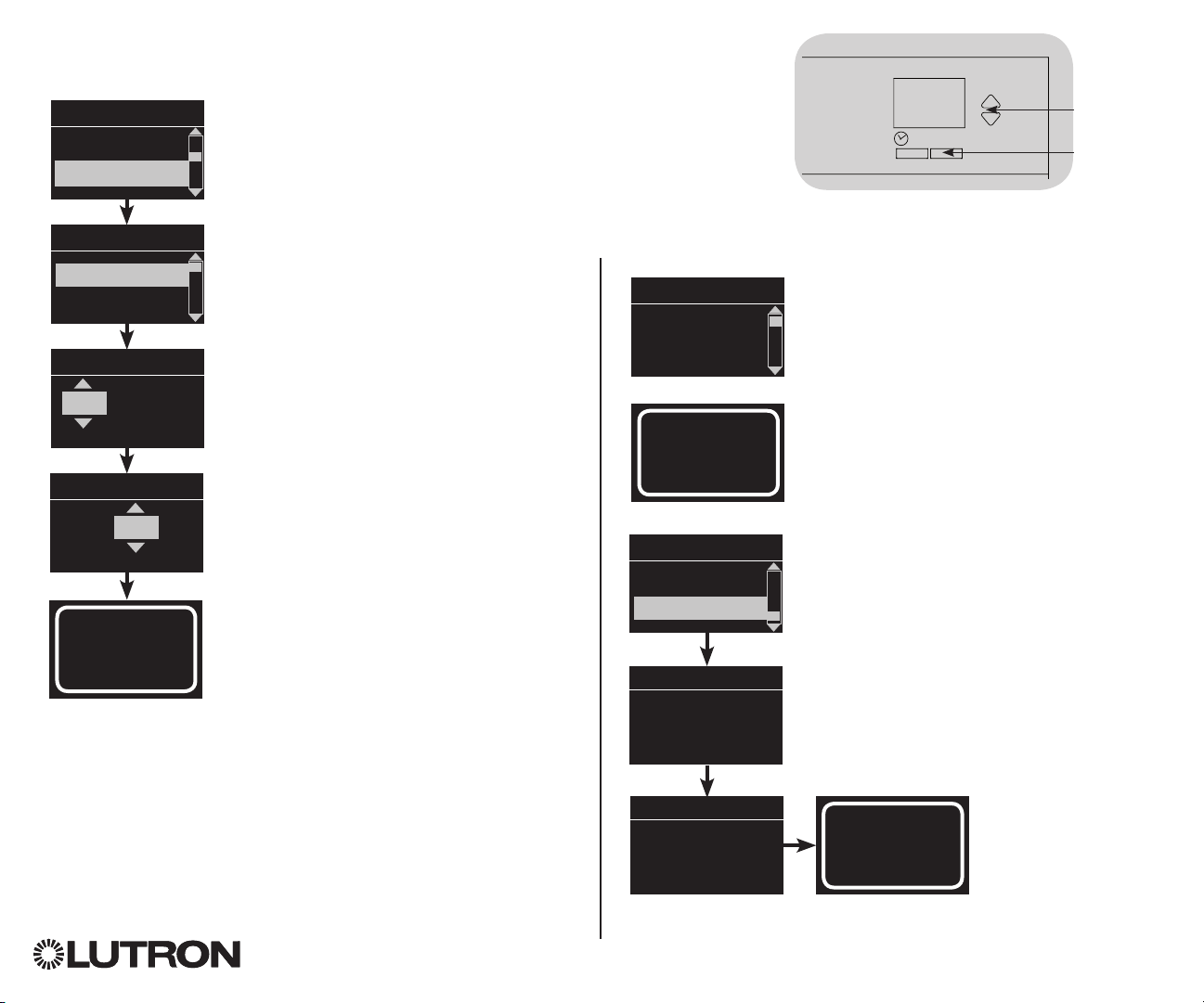

Labeling a Scene (optional)

Main menu

Timeclock

Scene setup

1. Enter programming mode.

2. Use the Master buttons to highlight “Scene setup” and press the OK button to accept.

3. Use the Master buttons to highlight

Scene setup

Levels

Labels

“Labels” and press the OK button to accept.

4. Use the Master buttons to highlight your desired scene. Press the OK button to accept.

5. Use the Master buttons to highlight

Select scene:

“Custom” and press the OK button to accept.

Scene 1

6. Use the Master buttons to scroll through the characters (lowercase and uppercase letters, plus numbers

Label scene 1

Custom

0 through 9). The character you are currently changing will be underlined on the screen. Press OK to select the character you want, then repeat for all available characters. Choose a space (no character) and press OK

Label scene 1

1 / 10

1: A

for any remaining characters. Press the OK button to accept.

7. The info screen will confirm that your name has been saved.

8. Exit programming mode.

Saved

Enabling/Disabling Daylighting in a Scene

Scene setup

Labels

Daylighting

1. Enter programming mode.

2. Use the Master buttons to highlight “Scene setup” and press the OK button to accept.

3. Use the Master buttons to highlight “Daylighting” and press the OK button to

Daylighting

Scene 1

accept.

4. Use the Master buttons to highlight your desired scene. Press the OK button to accept.

5. Use the Master buttons to select “Enable” or “Disable”. When daylighting is disabled in a scene, the GRAFIK Eye® QS control unit will

Scene 1

Daylighting

Enable

not respond to daylight sensors information when that scene is active. Press OK to save.

6. Exit programming mode.

Master buttons

OK button

Saved

GRAFIK Eye® QS Control Unit Installation and Operation Guide 22

Page 23

Setting Save Mode

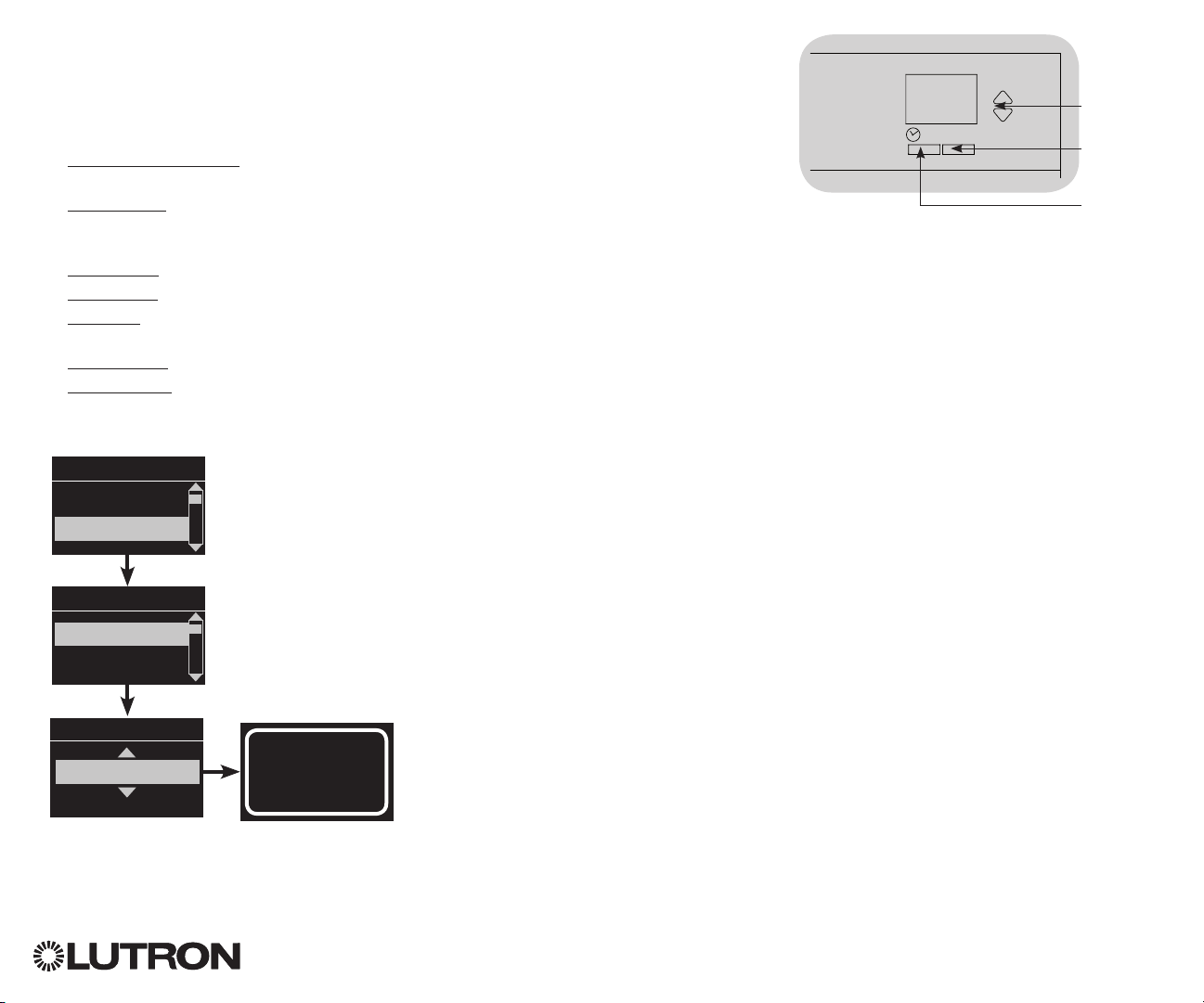

The Save Mode of the GRAFIK Eye® QS control unit can be adjusted to turn quick

scene programming on and off, or to disable the use of zone and/or scene buttons for specific applications.

Main menu

Scene setup

Save mode

Save always

Saved

Save Mode Settings

Save by OK (default): Quick scene programming mode; zone

adjustments are temporary until the OK button is pressed to confirm the selection.

Save always: Automatically save changes made to lighting

levels or fade time to Off (Master button changes are temporary).

Save never: Do not save any temporary changes to lighting

levels or fade time.

Four scenes (typically used for rented spaces): Zone raise/

lower buttons are disabled. Master raise/lower buttons, wallstations, and IR receiver are still enabled for adjustment of light level, but these changes are not saved.

Button disable (typically used in a public space): Only the

timeclock button, IR receiver, and wallstations can be used to make temporary changes.

Changing the Save Mode

1. Enter programming mode.

2. Use the Master buttons to highlight “Save mode” and press the OK button to accept.

3. Use the Master buttons to highlight the desired save mode. The save modes are listed and explained below.

4. Press the OK button to accept. The info screen will confirm that your save mode has been saved.

5. Exit programming mode.

Master

Zone raise/lower buttons

buttons

OK button

Quick Scene Programming: Save by OK Mode

By default, the GRAFIK Eye® QS control unit is in “Save by OK” mode, which allows you to quickly set scenes without entering program mode.

1. Press the button for the scene you want to set; its LED will light and the lights will go to the current settings.

2. Use the zone raise/lower buttons to set all lights to the desired levels. Press the OK button to select.

3. Set the fade time to the desired length using the Master buttons, and press the OK button to save.

4. The info screen will confirm that the new scene settings have been saved.

Notes

Using the Master buttons to raise or

•

lower lighting settings is still temporary.

To set a zone to unaffected (---), press

•

and hold the zone lower button for 6 seconds after the zone has gone to 0% light level.

GRAFIK Eye® QS Control Unit Installation and Operation Guide 23

Page 24

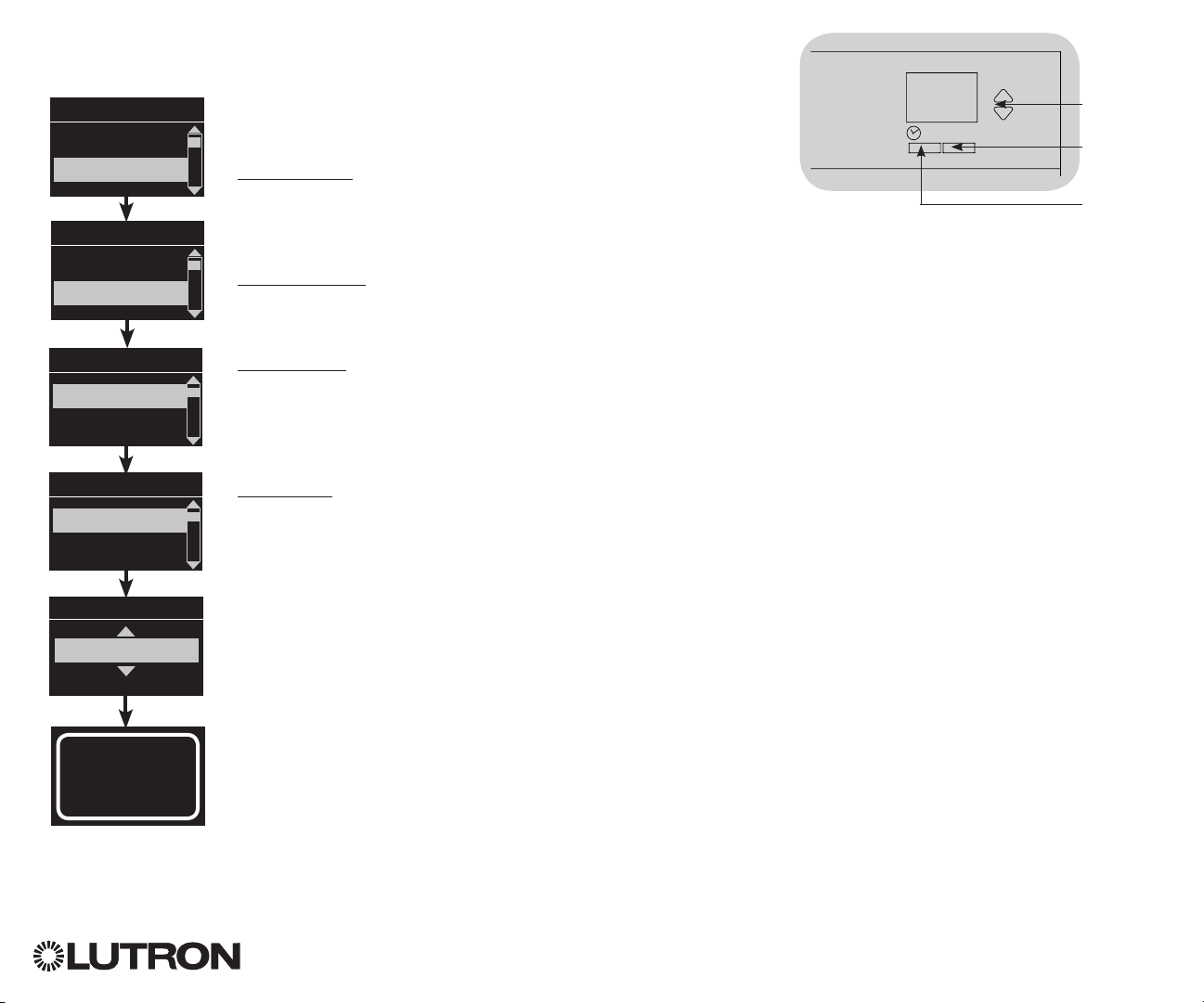

Contact Closure Input (CCI) Setup

(wired directly to the GRAFIK Eye® QS control unit)

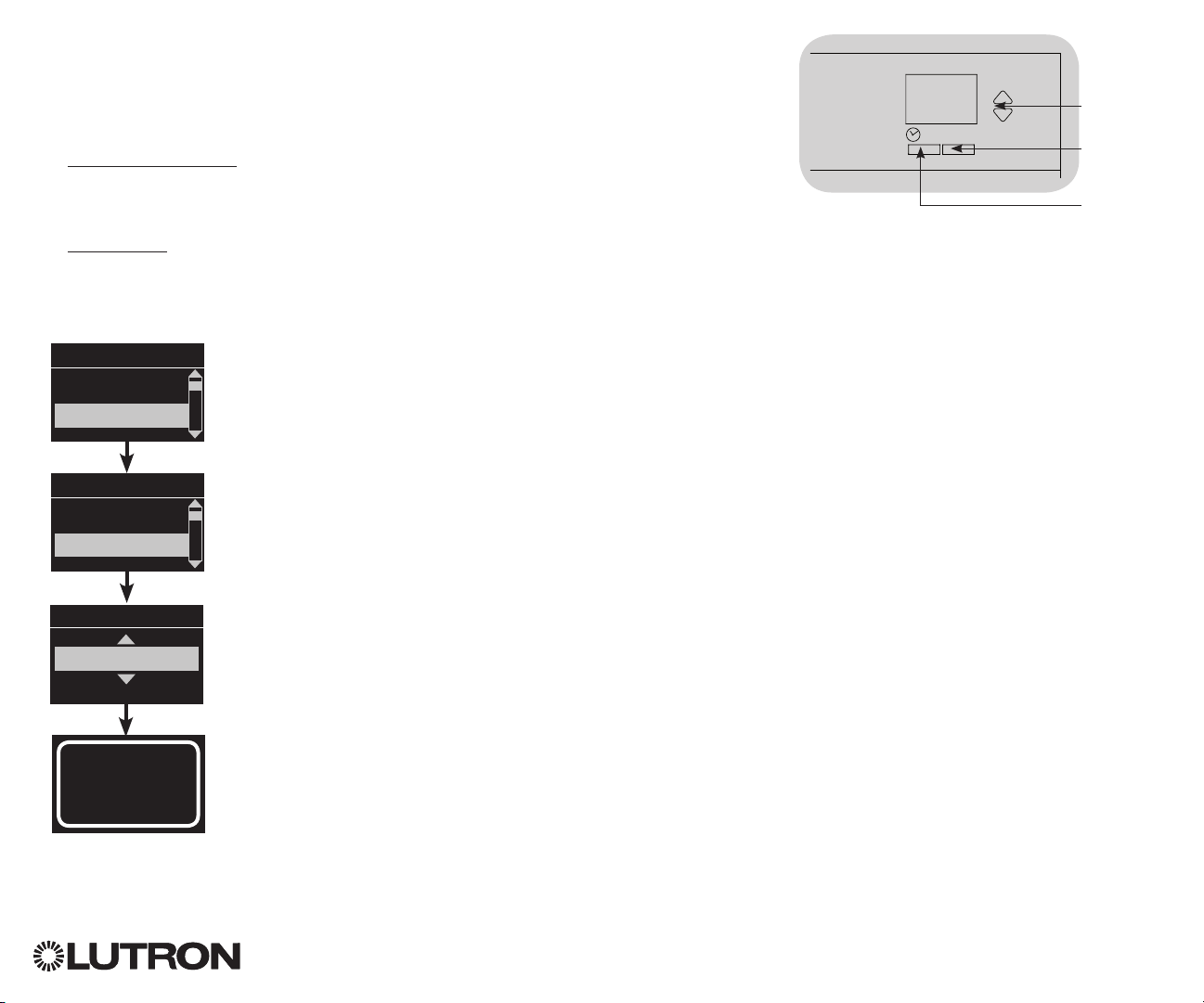

The integral contact closure input (CCI) on the back of the GRAFIK Eye® QS control unit can be configured as:

Occupancy (default): Allows a wired occupancy sensor to be included in the list of available sensors when setting up occupancy actions.

Emergency: This setting allows the GRAFIK Eye

® QS control unit to work with a

LUT-ELI-3PH emergency lighting interface. When an emergency situation is detected, all lights will go to full on, and will not change until the emergency signal is cleared.

Afterhours: Allows the CCI to start and end Afterhours. Timeclock: Allows the CCI to enable and disable the timeclock. Lockout: Prevents the user from making any changes to the control unit. The current scene will stay on until the CCI

enables normal operation. NeverSave: Prevents any changes from being saved while the CCI is being used. Disable CCI: The CCI will have no effect on the system and will not appear on the list of available occupancy sensors

within the sensor setup menu.

Changing the operation of the contact closure input:

Main menu

Save Mode

CCI Setup

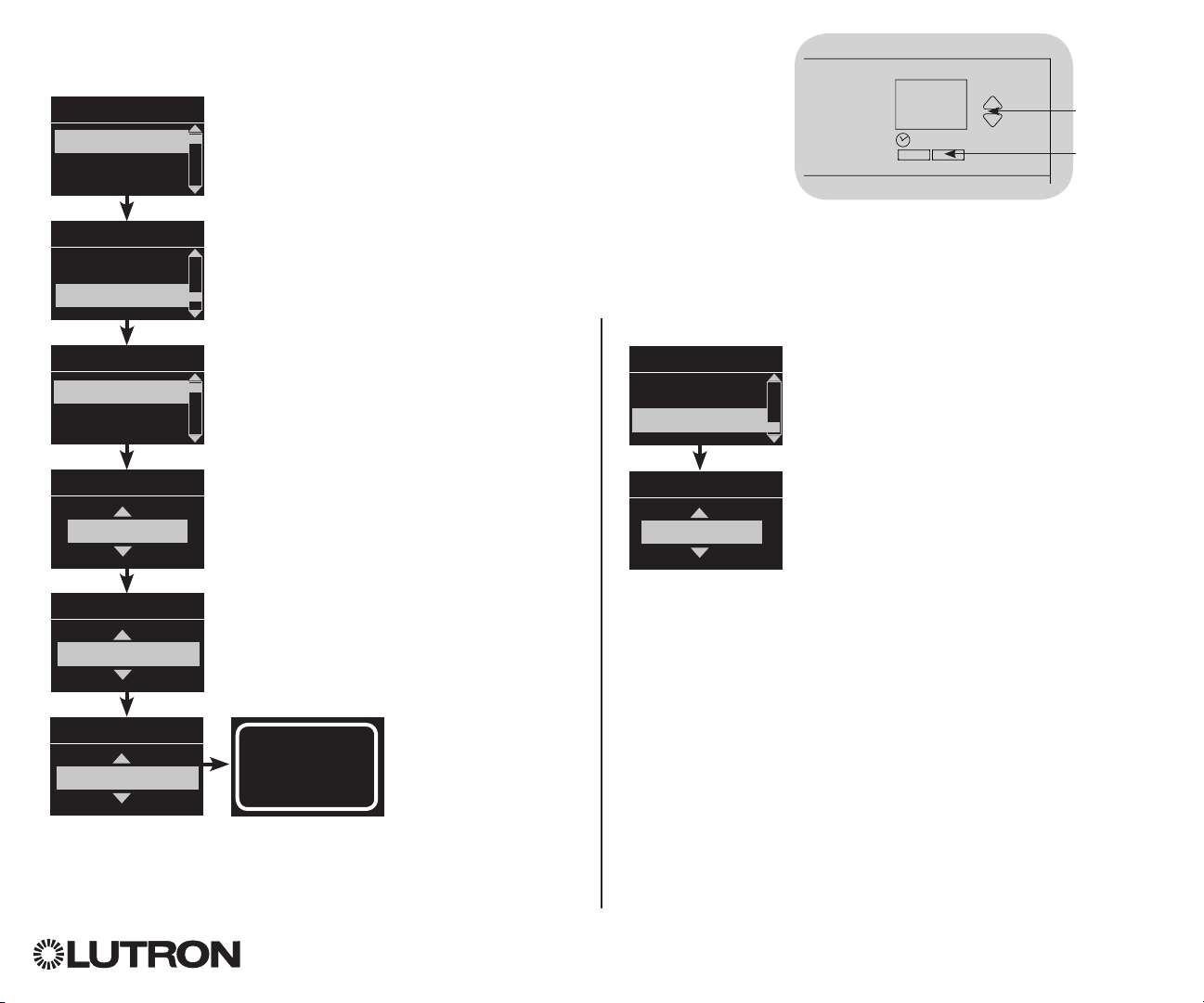

1. Enter programming mode.

2. Use the Master buttons to highlight “CCI Setup” and press the OK button to accept.

3. Use the Master buttons to highlight “CCI Mode” and press the OK button to accept.

4. Use the Master buttons to highlight the mode you wish the CCI to control. Press the OK button to accept.

5. The info screen will confirm that your setting has been saved.

CCI menu

CCI Mode

CCI Type

6. Exit programming mode.

Master buttons

OK button

Timeclock (back) button

CCI Mode

Occupancy

Saved

(continued on the next page)

GRAFIK Eye® QS Control Unit Installation and Operation Guide 24

Page 25

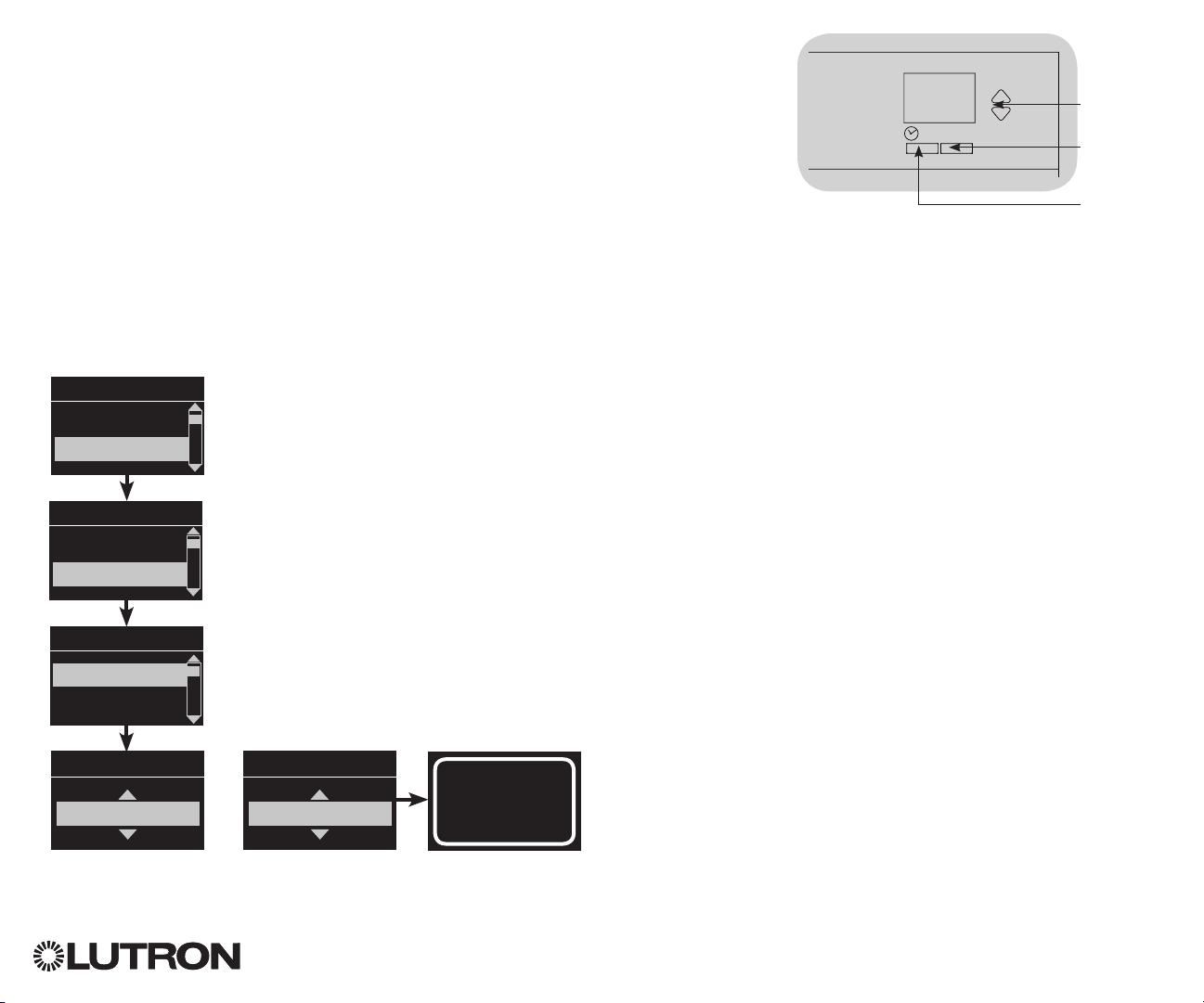

Contact Closure Input (CCI) Setup (continued)

(wired directly to the GRAFIK Eye® QS control unit)

The integral contact closure input (CCI) on the back of the GRAFIK Eye® QS control unit is compatible with either type of contact closure device:

Maintained (default): The GRAFIK Eye® QS control unit will act on both a contact closure and a contact open/release event. Example: CCI Mode set to Afterhours. Contact closure starts Afterhours. Contact open/release ends Afterhours.

Momentary: The GRAFIK Eye Example: CCI Mode set to Afterhours. Contact closure starts Afterhours. Contact open/release has no effect. Second contact closure ends Afterhours.

Changing the type of contact closure input:

Main menu

Save Mode

CCI Setup

1. Enter programming mode.

2. Use the Master buttons to highlight “CCI Setup” and press the OK button to accept.

3. Use the Master buttons to highlight “CCI Type” and press the OK button to accept.

4. Use the Master buttons to highlight the type you wish the CCI to

CCI menu

CCI Mode

CCI Type

control. Press the OK button to accept.

5. The info screen will confirm that your setting has been saved.

6. Exit programming mode. Note: The Emergency CCI Mode is different from the other CCI

CCI Type

Maintained

® QS control unit will act on only contact closure events.

modes in that Emergency Mode will activate on a contact open/release and will deactivate on a contact closure. The CCI must be set to Maintained (default) for proper Emergency Mode operation.

Master

buttons

OK button

Timeclock (back) button

Saved

GRAFIK Eye® QS Control Unit Installation and Operation Guide 25

Page 26

Wired to QSM

LUTRON

Wired to Grak Eye

LUTRON

Wireless to Grak Eye

Wired to QSM

LUTRON

Wired to QSE-IO

LUTRON

Wired to Grak Eye

Wired to Eco device

LUTRON

Wireless to Grak Eye

Wired to QSM

LUTRON

Wired to QSE-IO

LUTRON

Wired to Grak Eye

Wired to Eco device

Wireless to QSM

LUTRON

Wired to QSM

Wired to QSE-IO

LUTRON

Wired to Grak Eye

Occupancy Sensor Setup

Lutron® occupancy and vacancy sensors work with the GRAFIK Eye® QS Wireless control unit to automatically adjust light levels when occupancy or vacancy is detected.

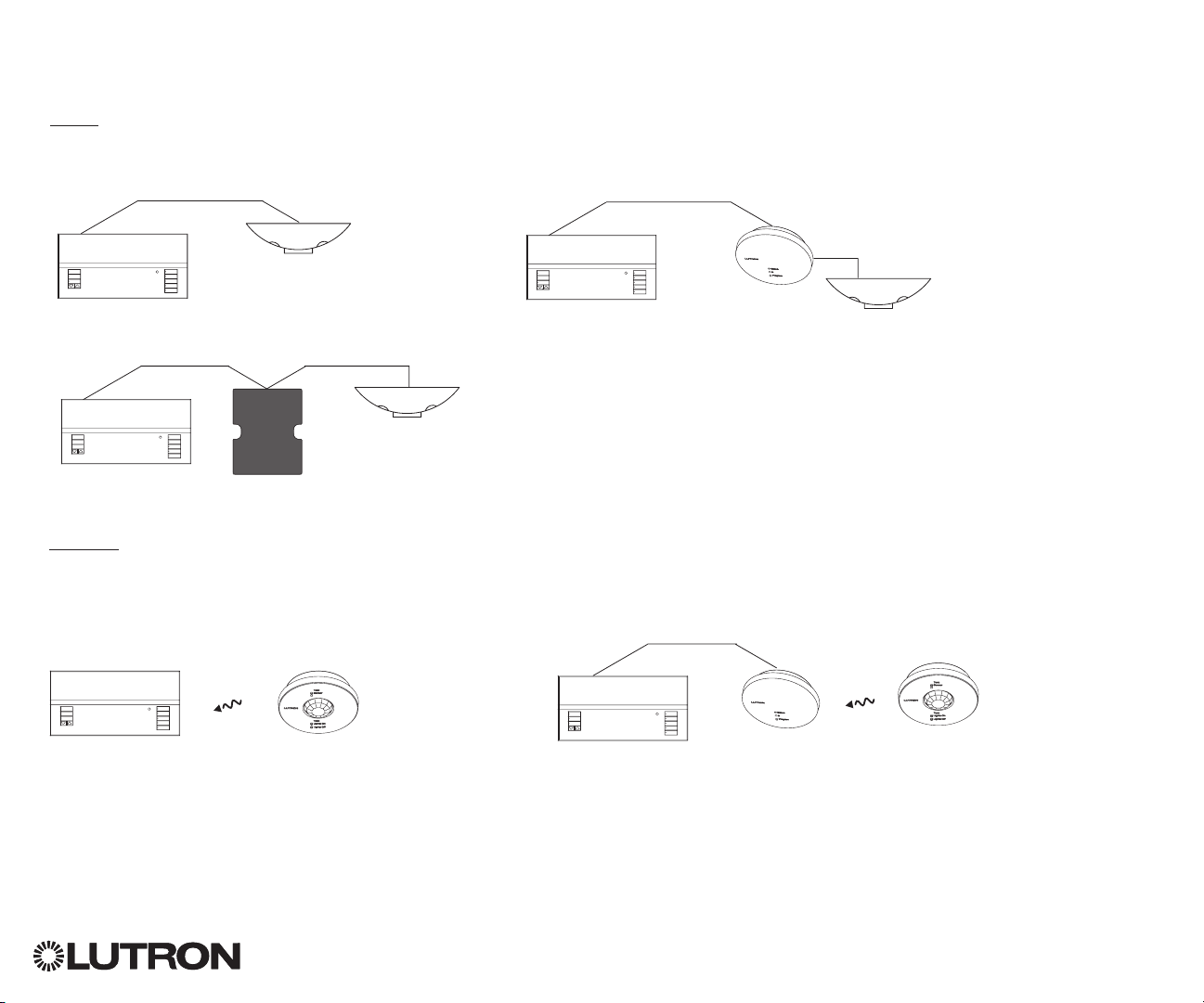

Wired occupancy and vacancy sensors may be connected to the contact closure input on the GRAFIK Eye® QS control unit, a QS Sensor Module (QSM), or a Contact Closure Interface in the GRAFIK Eye® QS system.

CCI Connection

GRAFIK Eye® QS control unit

QS Link

GRAFIK Eye® QS control unit

Wired

LUTRON

Occupancy Sensor

Wired

LUTRON

Occupancy Sensor

QSE-IO

QS Link

GRAFIK Eye® QS control unit

LUTRON

Sensor Module

(QSM)

Wired Occupancy Sensor

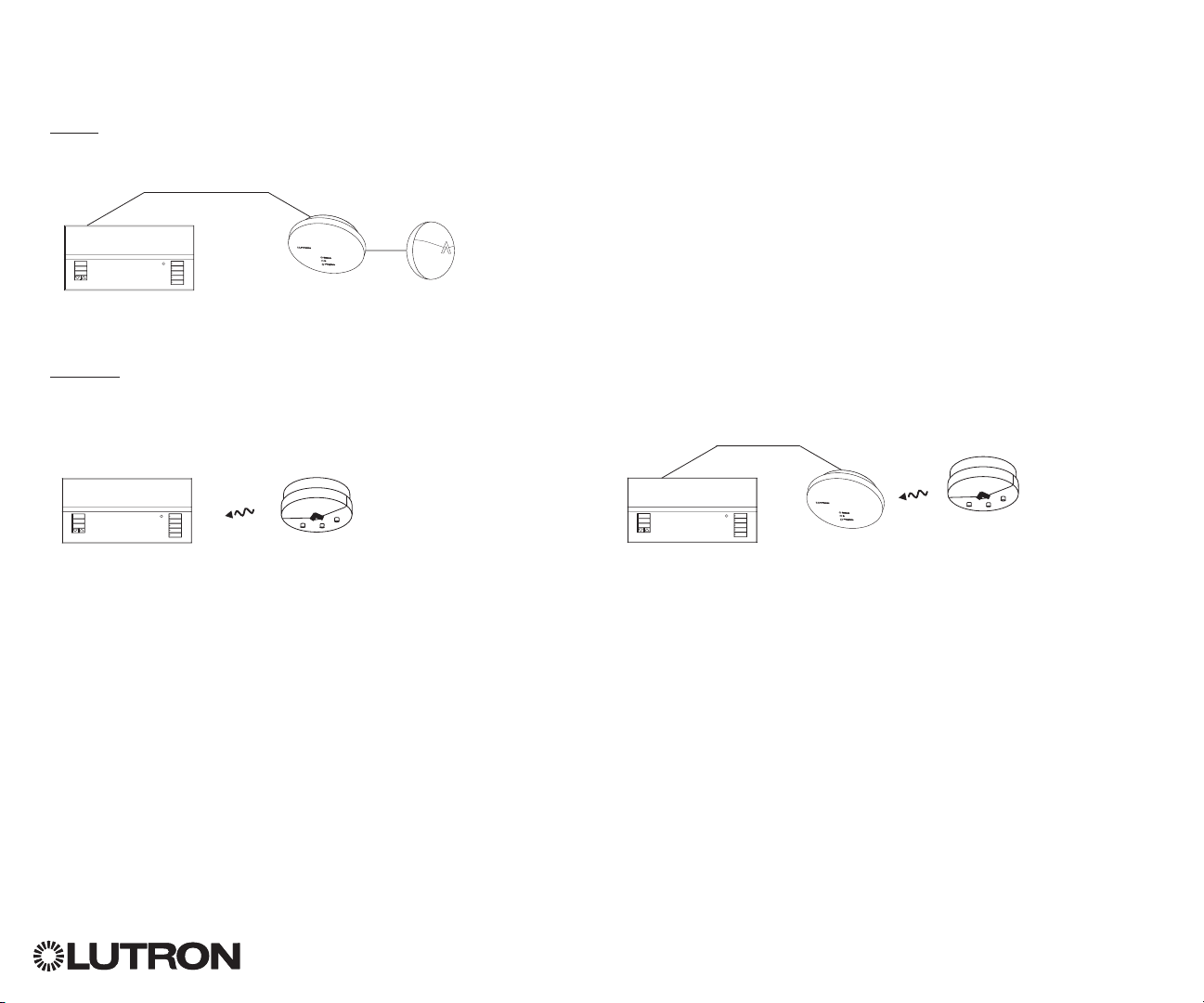

Wireless Radio Powr SavrTM occupancy and vacancy sensors can be associated with a GRAFIK Eye® QS Wireless or QSM. Wireless sensors must first be associated to one of these devices before they will be recognized by a GRAFIK Eye® QS Wireless system. (This section applies to installations where the GRAFIK Eye® QS Wireless is being used in a single-room wireless installation. Refer to the RadioRA® 2 installation guide for setting up wireless occupancy and vacancy sensors in a RadioRA® 2 system.)

QS Link

LUTRON

GRAFIK Eye® QS control unit

Wireless Occupancy Sensor

The following steps are required to program occupancy sensors with a GRAFIK Eye® QS control unit.

1. Connect wired sensors, or associate wireless sensors.

2. Choose the mode of operation (scene control or zone control).

3. Select sensors.

4. Assign sensor actions.

5. Configure sensor settings (optional).

GRAFIK Eye® QS control unit

LUTRON

Sensor Module (QSM)

GRAFIK Eye® QS Control Unit Installation and Operation Guide 26

Wireless Occupancy Sensor

Page 27

Occupancy Sensor Setup

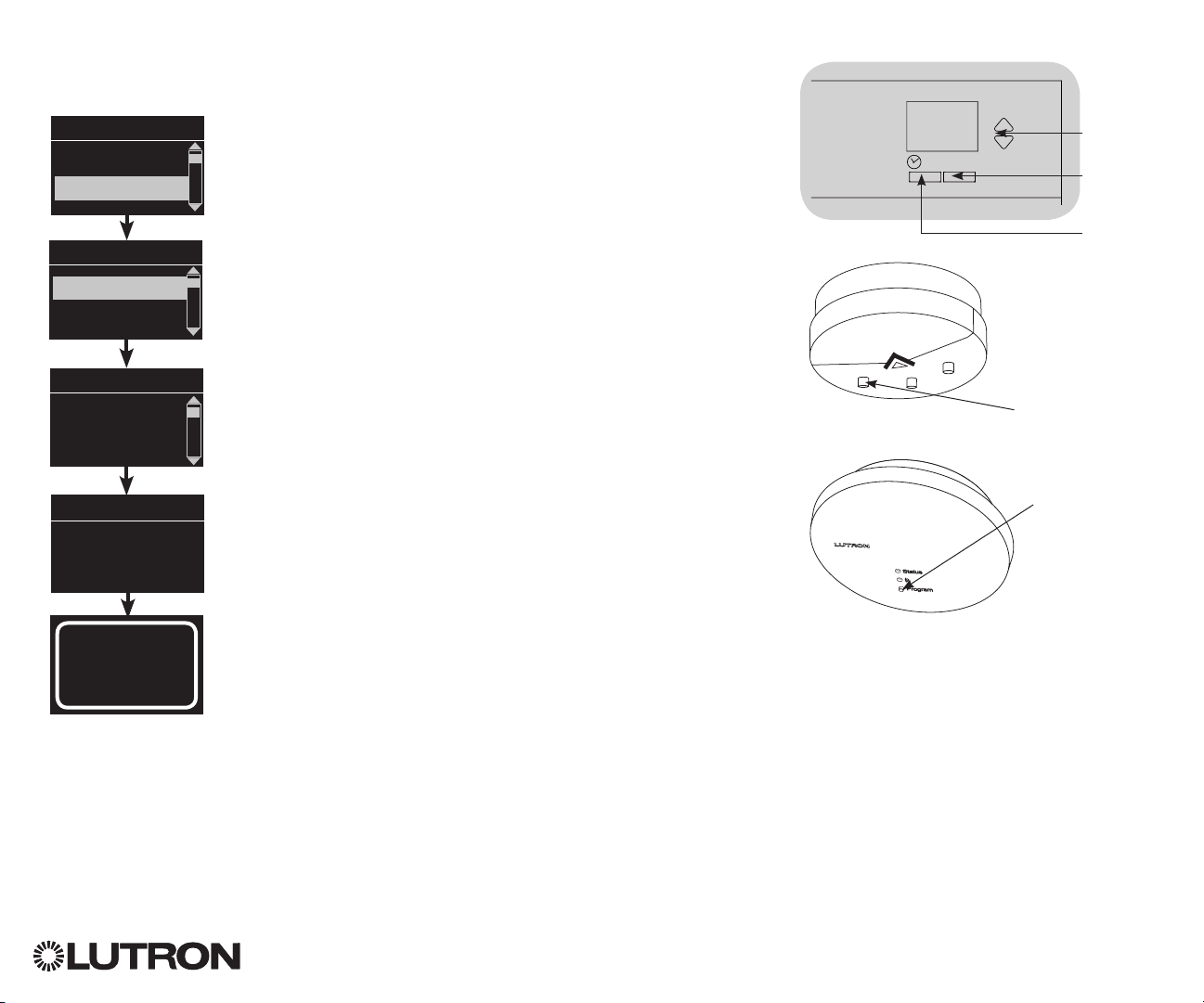

Associating wireless occupancy sensors and GRAFIK Eye® QS Wireless control units (for wireless enabled units only):

Main menu

Zone Setup

Sensor Setup

Add wireless sensors

Daylight

Add wireless sensors

Initiate association

of sensors

Occupancy

xxxx-xxxx

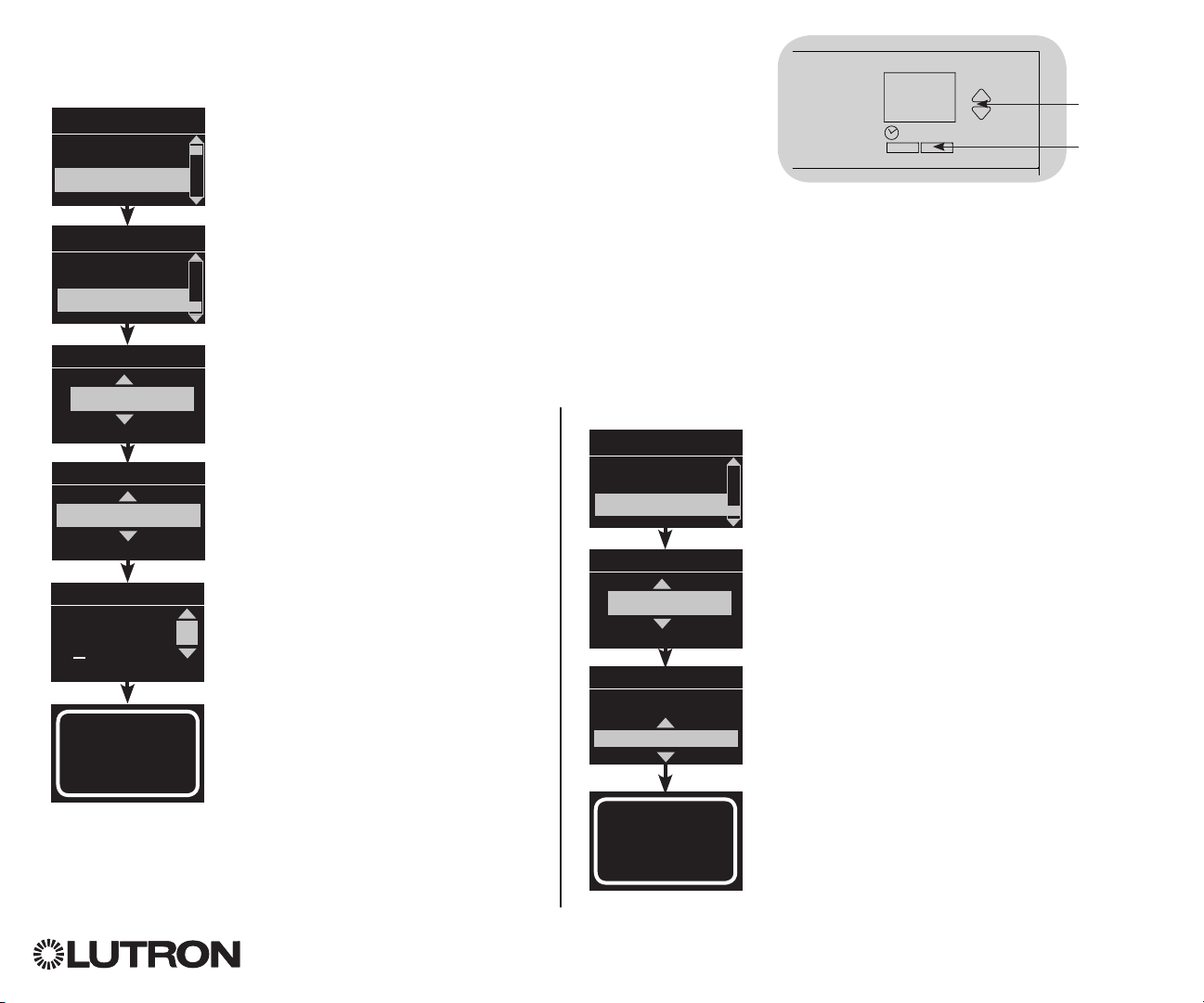

1. Make sure the wireless mode of the GRAFIK Eye® QS control unit is “Enabled”.

2. Enter programming mode.

3. Use the Master buttons to highlight “Sensor setup” and press

the OK button to accept.

4. Use the Master buttons to highlight “Add wireless sensors” and

press the OK button to accept.

5. Press and hold the “Lights Off” button ( on some sensors) on

the occupancy sensor for 6 seconds. The lens will start flashing and the info screen on the GRAFIK Eye® QS Wireless control unit

willdisplaythesensor’sserialnumber.

6. Press the OK button on the GRAFIK Eye® QS control unit. A

screen will confirm that the sensor has been assigned. (To disassociate a wireless occupancy sensor from the GRAFIK Eye® QS control unit, Refer to the Radio Powr SavrTM occupancy sensor install guide to return the sensor to its “out-of-box” functionality. Doing so will remove its programming from the GRAFIK Eye® QS control unit.)

7. Repeat the above steps for all desired sensors.

8. Exit programming mode.

Master

9-16

1-8

buttons

OK button

Timeclock (back) button

Press and hold “Lights Off” or button to associate/ disassociate

Press OK to Save

*Assigned*

Saved

Associating wireless occupancy sensors through QS Sensor Modules (QSM):

1. Press and hold the Program button on the QSM for 3 seconds to enter programming mode. There will be 1 audible beep and the Status LED will begin flashing. The info screen on the GRAFIK Eye® QS control unit will display that the QSM is in programming mode.

2. Press and hold the “Lights Off” button ( on some sensors) on the occupancy sensor for 6 seconds. There will be 3 audible beeps from the QSM to verify association.

3. Press and hold the Program button on the QSM for 3 seconds to exit programming mode.

Note: The wireless signal has a range of 30 ft (9 m) through

standard construction or 60 ft (18 m) line of sight.

GRAFIK Eye® QS Control Unit Installation and Operation Guide 27

Radio Powr Savr

Occupancy Sensors

QS Sensor Module (QSM)

Program button

Page 28

Occupancy Sensor Setup

When the GRAFIK Eye® QS system is first powered up, occupancy sensors connected to the contact closure input (and the first three associated wireless Radio Powr SavrTM

occupancysensors)willautomaticallyoperateinSceneMode.Theirdefaultswillbe“No

Action” for the occupied state and “Scene Off” for the unoccupied state. For additional sensors and/or alternate functionality, please complete all required programming actions.

Selecting the Mode

Scene Mode (default) is useful when the GRAFIK Eye® QS control unit is controlling

lights in a single room or area. Up to four sensors can be assigned to the GRAFIK Eye QS control unit to activate a scene when the space is occupied, and another scene when unoccupied.

Zone Mode is useful when the GRAFIK Eye® QS control unit is controlling lights in

multiple areas within a room. Up to four sensors can be assigned to each zone (a sensor can be assigned to more than one zone) to send the zones to configurable occupied and unoccupied levels.

Main menu

Zone Setup

Sensor Setup

Daylight

Occupancy

Occ Sensor

Mode

Actions

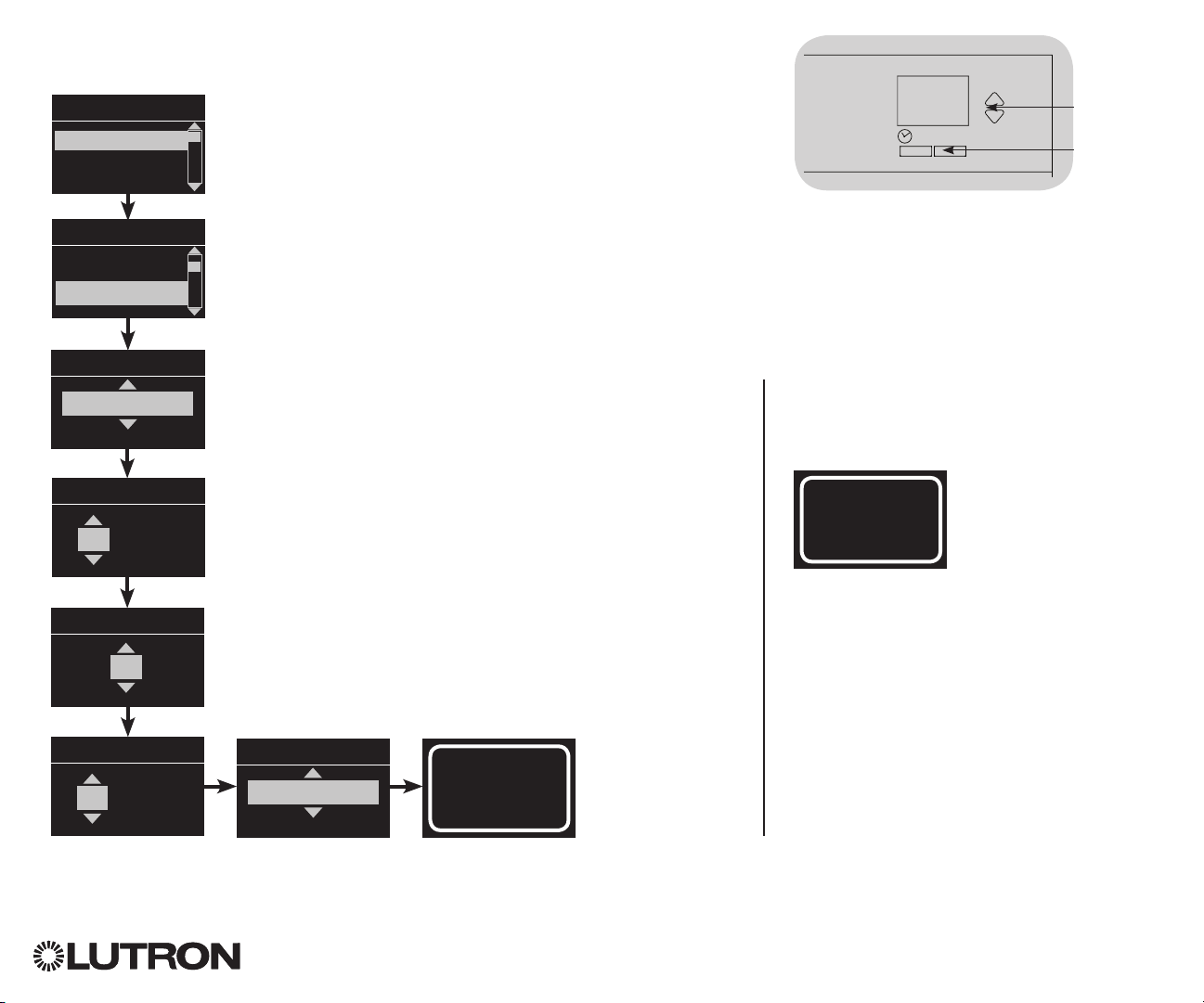

1. Enter programming mode.

2. Use the Master buttons to highlight “Sensor setup” and press

the OK button to accept.

3. Use the Master buttons to highlight “Occupancy” and press the

OK button to accept.

4. Use the Master buttons to highlight “Mode” and press the

OK button to accept.

5. Use the Master buttons to highlight “Zone Mode” to assign

sensors to zones, or “Scene Mode” (default). Press the OK button to accept. A screen will confirm your selected mode has been saved and you will return to the Daylight Sensor screen.

Note: Changing modes will remove all previous occupancy

assignments.

Master

buttons

OK button

Timeclock (back) button

Occ Sensor

Scene Mode

Occ Sensor

Zone Mode

Saved

GRAFIK Eye® QS Control Unit Installation and Operation Guide 28

Page 29

Occupancy Sensor Setup

Scene Mode

This step allows you to assign up to four occupancy sensors to the GRAFIK Eye® QS

control unit.

Occ Sensor

Setup

Labels

Searching

Saved

Sensor x/y

xxxx-xxxx

Assignment

Assign

Unassign

Selecting Sensors

1. If not already done, associate occupancy sensors and set to “Scene Mode”.

2. Use the Master buttons to highlight “Setup” and press the OK button to accept. The info screen will display “Searching” while the unit detects available occupancy sensors.

3. Use the Master buttons to scroll through the list of available occupancy sensors. When the desired sensor is displayed, press the OK button to select it. Then choose “Assign” or “Unassign” from the following menu and press OK. Once a sensor has been assigned, it will appear with an asterisk (*) in the sensor list. Repeat for additional sensors.

Note: If wireless sensors are not found, verify that they are

associated correctly.

Setting the Sensor Action

1. Press the Timeclock (back) button to return to the Occ Sensor screen. Use the Master buttons to highlight “Actions” and press the OK button. By default, the occupied scene is set to

“NoAction”andtheunoccupiedsceneissetto“SceneOff”.

2. Use the Master buttons to highlight the scene you wish to

use for occupied status and press the OK button to accept. Repeat for the scene you wish to use for unoccupied status. Press the OK button to accept.

3. Exit programming mode.

Master

buttons

OK button

Timeclock (back) button

*Assigned*

Saved

Sensor *x/y

xxxx-xxxx

Occ Sensor

Actions

3 seconds

Setup

Occupied Scene

Scene 1

Unoccupied Scene

Saved

Scene Off

Saved

GRAFIK Eye® QS Control Unit Installation and Operation Guide 29

Page 30

Occupancy Sensor Setup

Zone Mode

This step allows you to assign up to four occupancy sensors per zone to the GRAFIK

Eye® QS control unit. Sensors can be added to more than one zone.

Occ Sensor

Setup

Labels

Searching

Saved

Sensor x/y

xxxx-xxxx

Sensor

Set Zones

Sensor *x/y

xxxx-xxxx

Selecting Sensors

1. If not already done, associate sensors and set to “Zone Mode”.

2. Use the Master buttons to highlight “Setup” and press the

OK button to accept.

3. You can assign up to four sensors per zone, and a sensor can

be assigned to more than one zone. Use the Master buttons to scroll through the sensors until the one you wish to assign or unassign is highlighted, and press the OK button to select it.

4. Use the zone raise and lower buttons for each desired zone

to assign or unassign the sensor to that zone. The zone raise button assigns the displayed sensor, and the zone lower button unassigns it. Press the Timeclock (back) button to return to the list of available sensors. Once a sensor has been assigned, it will appear with an asterisk (*) in the sensor list. Repeat for additional sensors.

Note: If wireless sensors are not found, verify that they are

associated correctly.

Setting the Sensor Action

1. Press the Timeclock (back) button to return to the Occ Sensor

screen. Use the Master buttons to highlight “Actions” and press the OK button to accept.

2. Use the zone raise and lower buttons to adjust each zone to the

desired occupied level and press the OK button to save. To set a zone as unaffected, lower the light levels all the way to off, then hold the zone lower button for 3 seconds. The screen will display “---” and the three middle LEDs for the zone will be lit to indicate this zone is unaffected by the scene (the zone will not change when this scene is initiated).

3. Use the zone raise and lower buttons to adjust each zone to the

desired unoccupied level, and press the OK button to save.

4. Exit programming mode.

Master

Zone raise: Press to assign the displayed sensor

Zone lower: Press to unassign the displayed sensor

buttons

OK button

Timeclock (back) button

Occ Sensor

Actions

3 seconds

Setup

Occupied

Select Occupied

Level

Unoccupied

Saved

Select Unoccupied

Level

Saved

GRAFIK Eye® QS Control Unit Installation and Operation Guide 30

Page 31

Occupancy Sensor Setup

Labeling an Occupancy Sensor (optional)

Main menu

Zone Setup

Sensor Setup

Daylight

Occupancy

Occ Sensor

Labels

Settings

Sensor x/y

xxxx-xxxx

1. Enter programming mode.

2. Use the Master buttons to highlight “Sensor Setup” and press the OK button to accept.

3. Use the Master buttons to highlight “Occupancy” and press the OK button to accept.

4. Use the Master buttons to highlight “Labels” and press the OK button to accept.

5. Use the Master buttons to display an occupancy sensor to label and press OK to select.

7. Exit programming mode.

Master

buttons

OK button

Timeclock (back) button

Label sensor x/y

1 / 11

1: A

Saved

GRAFIK Eye® QS Control Unit Installation and Operation Guide 31

Page 32

Occupancy Sensor Setup

Configuring Occupancy Sensor Settings (optional)

Main menu

Zone Setup

Sensor Setup

Daylight

Occupancy

Occ Sensor

Settings

Diagnostics

Settings

Auto Turnoff

Zone Fade

Auto Turnoff

5 minutes

Saved

Occupancy Sensor Settings

Note: These settings affect all sensors assigned to the

GRAFIK Eye® QS control unit.

Grace Period: If the GRAFIK Eye® QS control unit is

transitioning to an unoccupied state, motion detected within the grace period will return the lights to the previously occupied level. Range: 15 – 30 seconds (default 15 seconds).

Vacancy Delay: An additional time delay after vacancy is

detected and before unoccupied action occurs. Use when occupancy sensor does not provide sufficient delay. Range: 0 – 30 minutes (default 0 minutes).

Auto Turnoff: If lights assigned to an occupancy sensor are

turned on manually without the sensor reporting occupancy, the GRAFIK Eye® QS control unit can be set to automatically turn off the lights after a set time delay. Disable this feature by setting the time delay to 0 (disabled). Range: Disabled or 1 – 30 minutes (default Disabled).

Zone Fade: When in Zone Mode, lights can be set to fade to

the unoccupied levels over this period of time. Range: 0 – 59 seconds; 1 – 10 minutes (default 10 seconds).

Configuring the Sensor Settings:

1. Enter programming mode.

2. Use the Master buttons to highlight “Sensor Setup” and press the OK button to accept.

3. Use the Master buttons to highlight “Occupancy” and press the OK button to accept.

4. Use the Master buttons to highlight “Settings” and press the OK button to accept.

5. Use the Master buttons to highlight the setting you wish to configure. Press the OK button to accept.

6. Use the Master buttons to adjust the value of the selected setting. Press the OK button to accept.

7. The info screen will confirm that your setting has been saved.

8. Exit programming mode.

Master

buttons

OK button

Timeclock (back) button

GRAFIK Eye® QS Control Unit Installation and Operation Guide 32

Page 33

Daylight Sensor Setup

Wired to QSM

LUTRON

Wireless to Grak Eye

Wired to QSM

Wired to Eco device

LUTRON

Wireless to Grak Eye

Wired to QSM

Wired to Eco device

Wireless to QSM

Lutron® daylight sensors work with the GRAFIK Eye® QS Wireless control unit to automatically adjust electric light levels when natural light in the room changes.

Wired daylight sensors may be connected to a QS Sensor Module (QSM) in the QS system.

QS Link

LUTRON

GRAFIK Eye® QS

LUTRON

control unit

Wireless Radio Powr SavrTM daylight sensors can be associated with a GRAFIK Eye® QS control unit or QSM. Wireless sensors must first be associated with one of these devices to be recognized by a GRAFIK Eye® QS wireless system.

Sensor Module

(QSM)

Wired Daylight Sensor

QS Link

LUTRON

GRAFIK Eye control unit

® QS

LUTRON

Wireless Daylight Sensor

GRAFIK Eye® QS control unit

The following steps are required to program daylight sensors with a GRAFIK Eye® QS control unit. Instructions for each step are on the pages that follow.

1. Connect wired sensors, or associate wireless sensors.

2. Assign sensors to zones.

3. Calibrate the system to achieve the desired response to natural light. Note:TheDaylightingfeatureisnotsupportedfortheDMXloadtype.

GRAFIK Eye® QS Control Unit Installation and Operation Guide 33

Sensor Module

(QSM)

Wireless Daylight Sensor

Page 34

Daylight Sensor Setup

Associating wireless daylight sensors and GRAFIK Eye® QS Wireless control units (for wireless enabled units only):

Main menu

Zone Setup

Sensor Setup

Add wireless sensors

Daylight

Add wireless sensors

Initiate association

of sensors

Daylight

xxxx-xxxx

Press OK to Save

*Assigned*

Saved

1. Make sure the wireless mode of the GRAFIK Eye® QS control

unit is “Enabled”.

2. Enter programming mode.

3. Use the Master buttons to highlight “Sensor setup” and press the OK button to accept.

4. Use the Master buttons to highlight “Add wireless sensors” and press the OK button to accept.

5. Press and hold the “Link” button on the daylight sensor until the sensor starts flashing. The info screen on the GRAFIK Eye® QS control unitwilldisplaythesensor’sserialnumber.

6. Press the OK button on the GRAFIK Eye® QS control unit. A screen will confirm that the sensor has been assigned. (To disassociate a wireless daylight sensor from the GRAFIK Eye® QS control unit, Refer to the Radio Powr SavrTM daylight sensor install guide to return the sensor to its “out-of-box” functionality. Doing so will remove its programming from the GRAFIK Eye® QS control unit.)

7. Repeat the above steps for all desired sensors.

8. Exit programming mode.

Associating wireless daylight sensors through QS Sensor Modules (QSM):

1. Press and hold the Program button on the QSM for 3 seconds

to enter programming mode. There will be 1 audible beep and the Status LED will begin flashing. The info screen on the GRAFIK Eye® QS control unit will display that the QSM is in programming mode.

2. Press and hold the “Link” button on the daylight sensor for 6

seconds. There will be 3 audible beeps from the QSM to verify association.

3. Press and hold the Program button on the QSM for 3 seconds

to exit programming mode.

Note: The wireless signal has a range of 30 ft (9 m) through

standard construction or 60 ft (18 m) line of sight.

Radio Powr Savr

Daylight Sensor

QS Sensor Module (QSM)

Master buttons

OK button

Timeclock (back) button

Link button

Program button

GRAFIK Eye® QS Control Unit Installation and Operation Guide 34

Page 35

Daylight Sensor Setup

This step allows you to assign sensors to zones on the GRAFIK Eye® QS control unit.

Each zone can be assigned to only one sensor, but sensors can be assigned to more than one zone.

Daylight Sensor

Setup

Calibrate

Searching

Saved

Sensor x/y

xxxx-xxxx

Sensor

Set Zones

Selecting Sensors

1. If not already done, associate daylight sensors.

2. Use the Master buttons to highlight “Setup” and press the OK button to accept. Available sensors will be displayed.

3. Use the Master buttons to scroll through the sensors until the one you wish to assign or unassign is highlighted, and press the OK button to select it.

4. Use the zone raise and lower buttons for the desired zones to assign or unassign the sensor to those zones. The zone raise button assigns the displayed sensor, and the zone lower button unassigns it. Press the Timeclock (back) button to return to the list of available sensors. Repeat for additional sensors.

Calibrating the Sensors

1. Put any wireless Radio Powr SavrTM daylight sensors associated with the desired zones into Calibrate Mode: Press and hold the “Cal” button for 6 seconds until the sensor flashes. Note: After 5 minutes, Calibrate Mode will timeout, and the

sensor will return to normal mode.

2. Press the Timeclock (back) button to return to the Daylight Sensor screen. Use the Master buttons to highlight “Calibrate” and press the OK button to accept.

3. Use the Master buttons to select the desired zone and press the OK button to accept.

4. Use the Master buttons to select the desired light level for the zone, and press the OK button to accept. Repeat for all zone levels you wish to calibrate.

5. Exit programming mode.

Note: If wireless sensors are not found, verify that they are

associated correctly.

Master

Zone raise: Press to assign the displayed sensor

Zone lower: Press to unassign the desired sensor

buttons

OK button

Timeclock (back) button

Daylight Sensor

Setup

3 seconds

Calibrate

Sensor Name

Zone 1

Adjust Light

More light

Less light

Saved

Radio Powr Savr

Daylight Sensor

Cal button

GRAFIK Eye® QS Control Unit Installation and Operation Guide 35

Page 36

Daylight Sensor Setup

Labeling a Daylight Sensor (optional)

Main menu

Zone Setup

Sensor Setup

1. Enter programming mode.

2. Use the Master buttons to highlight “Sensor Setup” and press the OK button to accept.

3. Use the Master buttons to highlight “Daylight” and press the OK button to accept.

Sensor Setup

Daylight

Occupancy

4. Use the Master buttons to highlight “Labels” and press the OK button to accept.

5. Use the Master buttons to display a daylight sensor to label and press OK to select.

6. Use the Master buttons to scroll through the characters (lowercase and uppercase letters, plus numbers 0 through 9).

Daylight Sensor

Labels

Diagnostics

The character you are currently changing will be underlined on the screen. Press OK to select the character you want, then repeat for all available characters. Choose a space (no character) and press OK for any remaining characters. The info screen will confirm that your name has been saved. Repeat for all desired sensors.

Sensor x/y

xxxx-xxxx

7. Exit programming mode.

Label sensor x/y

1 / 11

1: A

Master

buttons

OK button

Timeclock (back) button

Saved

GRAFIK Eye® QS Control Unit Installation and Operation Guide 36

Page 37

Pico® Wireless Control Setup

Direct to Grak Eye

LUTRON

Wireless to QSM

Lutron’sPico® wireless controls can be associated with a GRAFIK Eye® QS system to control the light level of a specific zone or to

act as a scene controller. Pico® wireless controls can be associated directly to GRAFIK Eye® QS Wireless control units, or to a wired or wireless GRAFIK Eye® QS control unit via a QS Sensor Module (QSM) wired on the QS link.

QS Link

GRAFIK Eye® QS control unit

LUTRON

Pico® Wireless

GRAFIK Eye control unit

® QS

Control

Available Pico® Wireless Control Models

2-button 3-button2-button

with

raise/lower

3-button

with

raise/lower

Functionality of the Pico® wireless control

Zone Function Scene Function

Top (On) Button All assigned zones 100% Scene 1

Center (Preset) Button (if available)

All assigned zones at programmed preset level

Scene 16

(Press and hold to save current levels on

current scene

Raise/Lower Buttons (if available)

assigned zone as preset)

Vary intensity of all assigned zones Vary intensity of all zones affected by

Bottom (Off) Button All assigned zones Off Scene Off

QS Sensor Module (QSM)

® Wireless

Pico Control

GRAFIK Eye® QS Control Unit Installation and Operation Guide 37

Page 38

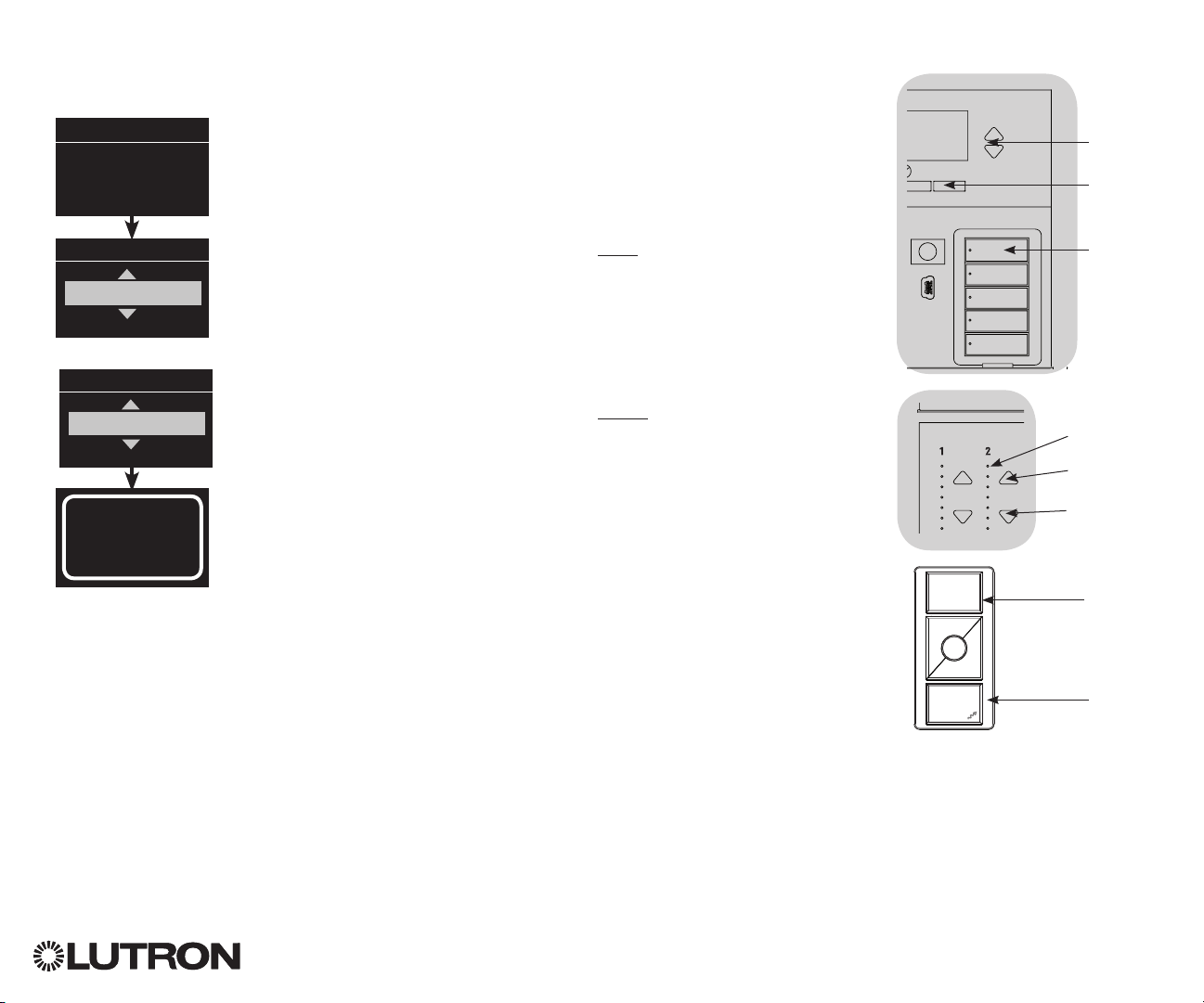

Pico® Wireless Control Setup

Associating the Pico® wireless control with a GRAFIK Eye® QS Wireless control unit:

(for wireless enabled GRAFIK Eye® QS control units only)

Pico

Change type?

Press OK

Change type?

Zone

Change type?

Scene

Saved

1. Make sure the wireless mode of the GRAFIK Eye® QS control unit is “Enabled”.

2. On the Pico® wireless control, press and hold the top (on) and bottom (off) buttons for 3 seconds. The info screen on the GRAFIK Eye® QS control unit will display the Pico® options. Press the OK button on the GRAFIK Eye® QS control unit to select the desired operation type for the Pico®.

3a. To assign the Pico® wireless control as a zone controller, use the Master

buttons to select “Zone” and press the OK button to accept. Use the zone raise/lower buttons for a zone to select a desired preset level, and then press the zone raise and lower buttons simultaneously for 1 second (until the zone LEDs flash at the programmed preset level). Repeat for all zones you wish to control with the Pico® wireless control.

3b. To assign the Pico® wireless control as a scene controller, use the Master

buttons to select “Scene” and press the OK button to accept. Press and hold the top scene button on the GRAFIK Eye® QS control unit for 3 seconds (until the scene LEDs flash).

4. On the Pico® wireless control, press and hold the top and bottom buttons for 3 seconds until the LEDs on the GRAFIK Eye® QS control unit stop flashing.

Note: The wireless signal has a range of 30 ft (9 m) through standard

construction or 60 ft (18 m) line of sight.

Master

buttons

OK button

Press and hold the top scene button for 3 seconds to assign Pico

® as

a scene controller.

Zone LEDs

Zone Raise

Zone Lower

Top/On button

Bottom/Off button

Pico® Wireless Control

GRAFIK Eye® QS Control Unit Installation and Operation Guide 38

Page 39

Pico® Wireless Control Setup

Associating the Pico® wireless control through a QS Sensor Module (QSM):

(for wired or wireless enabled GRAFIK Eye® QS control units)

QSM

Programming

QSM

Change type?

Press OK

Change type?

Zone

Change type?

Scene

Saved

2. Press and hold the bottom button on the Pico® wireless control for 6 seconds. There will be 3 audible beeps from the QSM to verify association.

3. Press and hold the Program button on the QSM for 3 seconds to exit programming mode.

4. On the Pico® wireless control, press and hold the top (on) and bottom (off) buttons for 3 seconds, until the LEDs on the GRAFIK Eye® QS control unit begin to flash and the QSM beeps 1 time. Press the OK button on the GRAFIK Eye® QS control unit to select the desired operation mode for the Pico® wireless control.

5a. To assign the Pico® wireless control as a zone controller, use

the Master buttons to select “Zone” and press the OK button to accept. Use the zone raise/lower buttons for a zone to select a desired preset level, and then press the zone raise and lower buttons simultaneously for 1 second (until the zone LEDs flash at the programmed preset level). Repeat for all zones you wish to control with the Pico® wireless control.

5b. To assign the Pico® wireless control as a scene controller, use

the Master buttons to select “Scene” and press the OK button to accept. Press and hold the top scene button on the GRAFIK Eye® QS control unit for 3 seconds (until the scene LEDs flash).

6. On the Pico® wireless control, press and hold the top and bottom buttons for 3 seconds until the LEDs on the GRAFIK Eye® control unit stop flashing and the QSM beeps 1 time.

Program button

QS Sensor Module (QSM)

Top/On button

Bottom/Off button

Pico® Wireless Control

GRAFIK Eye® QS Control Unit Installation and Operation Guide 39

Page 40

IR Setup

Direct to Grak Eye

LUTRON

Through QS IREye

LUTRON

Wired to QSM

Direct to Grak Eye

LUTRON

Through QS IREye

Wired to QSM

Direct to Grak Eye

LUTRON

Through QS IREye

An infrared (IR) remote can directly control the GRAFIK Eye® QS control unit through the infrared receiver on the front of the GRAFIK Eye® QS control unit.

IR Remote

GRAFIK Eye® QS control unit

LUTRON

An externally powered IR repeater can also be connected to the IR terminals on the GRAFIK Eye® QS control unit to obtain IR remote control. This is useful for integrating third party devices with the GRAFIK Eye® QS control unit (e.g. home theater applications.) For a complete list of the GRAFIK Eye®QScontrolunit’sIRprogramming commands, please see www.lutron.com/qs.

IR Terminal

GRAFIK Eye® QS control unit

Third Party Device

LUTRON

IR Remote

An IR remote can also indirectly control the GRAFIK Eye® QS control unit through the QS IR Eye or a Lutron® IR receiver wired to a QS Sensor Module (QSM) to control the light level of a specific zone or to act as a scene controller. The QS IR Eye and IR receivers wired to the QSM must first be associated with the GRAFIK Eye® QS control unit before they will be recognized by a GRAFIK Eye® QS system.

QS Link

IR Remote

GRAFIK Eye® QS

LUTRON

control unit

QS IR Eye

QS Link

GRAFIK Eye® QS control unit

LUTRON

QS Sensor Module (QSM)

IR Remote

Wired IR Receiver

GRAFIK Eye® QS Control Unit Installation and Operation Guide 40

Page 41

IR Setup

Enabling/disabling the IR receiver on the GRAFIK Eye® QS control unit: Note: These steps will also enable or disable the IR terminals on the

Main menu

Wireless Mode

IR Setup

IR menu

Integral IR

Timeclock

Programming

Integral IR

Enabled

Saved

GRAFIK Eye® QS control unit.

1. Enter programming mode.

2. Use the Master buttons to highlight “IR Setup” and press the OK button to

3. Use the Master buttons to highlight “Integral IR” and press the OK button to

accept.

4. Use the Master buttons to highlight either “Enabled” or “Disabled” and press

the OK button to accept. The info screen will confirm that your settings have been saved.

5. Exit programming mode.

Master

buttons

OK button

GRAFIK Eye® QS Control Unit Installation and Operation Guide 41

Page 42

IR Setup

The QS IR Eye offers advanced programmable scene control depending on the IR remote being used. Use the chart below to select the appropriate control mode on the GRAFIK Eye® QS control unit:

IR Remote Control Mode

GRX-IT 4 Buttons & Off or 5 Buttons GRX-8IT 8 Buttons & Off

MIR-ITFS Favorite or Zone control C-FLRC Favorite or Zone control Third Party IR Remote Default

Associating the QS IR Eye with a GRAFIK Eye® QS control unit:

IR Eye

Change type?

Press OK

Note: ForusewithLutronremotemodelsGRX-ITandGRX-8IT,orwith

third-party IR remotes.

1. Point the IR remote at the QS IR Eye. To enter programming mode, press and

hold the top and bottom buttons on the remote for 3 seconds until the LED on the QS IR Eye begins to flash slowly.

2. Press and hold the top scene button on the GRAFIK Eye® QS control unit for

Change type?

Scene

3 seconds. The scene LEDs will flash to confirm that the QS IR Eye has been associated. Press the OK button to continue.

3. Use the Master buttons to select “Scene” and press the OK button to accept.

4. Use the Master buttons to select one of the scene control types (listed below)

to correspond to the IR remote that will be used with the QS IR Eye. Press the OK button to accept. If “Default” was not selected, the info screen will prompt you to select which

Change type?

scene will correspond to the top button of the IR remote. Use the Master buttons to select the desired scene, and press the OK button to accept. The

Default Scene

info screen will confirm that your settings have been saved. Note: The “Default” scene control type will activate whichever scene command

is transmitted to the GRAFIK Eye® QS control unit.

5. Point the IR remote at the QS IR Eye. To exit programming mode, press and

Button Setup

hold the top and bottom buttons on the remote for 3 seconds.

GRX-IT

Master buttons

OK button

Press and hold the top scene button for 3 seconds to associate QS IR Eye

GRX-8IT

First Scene

Saved

LED

QS IR Eye

GRAFIK Eye® QS Control Unit Installation and Operation Guide 42

Page 43

IR Setup

Associating the QS IR Eye with a GRAFIK Eye® QS control unit (continued):

IR Eye

Change type?

Press OK

Change type?

Zone

Saved

Change type?

Scene

Change type?

Note: For use with Lutron® remote models MIR-ITFS and C-FLRC.

1. Point the IR remote at the QS IR Eye. To enter programming mode, press and hold the “On” (top) button on the remote for 5 seconds, then, within 1 second, press and hold the “Off” (bottom) button on the remote for 5 seconds. The LED on the QS IR Eye will begin to flash slowly. Press the OK button on the GRAFIK Eye® QS control unit to continue.

2a. To assign the QS IR Eye as a zone controller, use the Master buttons to

select “Zone” and press the OK button to accept. Use the zone raise/lower buttons on the GRAFIK Eye® QS control unit to select a desired preset level, then press the zone raise and lower buttons simultaneously for 1 second (until the zone LEDs flash at the programmed preset level). Repeat for all zones you wish to assign to the QS IR Eye. The info screen will confirm that your settings have been saved.

2b. To assign the QS IR Eye as a scene controller, use the Master buttons to

select “Scene” and press the OK button to accept. Use the Master buttons to select “Favorite”, and press the OK button to accept. Use the Master buttons to select your desired favorite scene, and press the OK button to accept. Press and hold the top scene button on the GRAFIK Eye® QS control unit for 3 seconds (until the scene LEDs flash). The info screen will confirm that your settings have been saved.

3. Point the IR remote at the QS IR Eye. To exit programming mode, press and hold the “On” (top) button on the remote for 5 seconds, then, within 1 second, press and hold the “Off” (bottom) button on the remote for 5 seconds.

Master

buttons

OK button

Press and hold the top scene button for 3 seconds to associate QS IR Eye

Zone LEDs

Zone Raise

Zone Lower

LED

Favorite

Button Setup

Favorite Scene

QS IR Eye

Saved

MIR-ITFS C-FLRC

GRAFIK Eye® QS Control Unit Installation and Operation Guide 43

Page 44

IR Setup

Associating IR receivers through a QS Sensor Module (QSM):

Main menu

Wireless Mode

IR Setup

IR menu

Integral IR

Programming

Searching...

Saved

IR Setup x/y

xxxx-xxxx

QS 1

QSM

Change Type? Press OK

1. Upon power up, the QSM will automatically detect and configure wired IR receivers after a valid signal is received. Use an IR remote to send a signal to all connected receivers in the system.

2. Enter programming mode on the GRAFIK Eye® QS control unit.

3. Use the Master buttons to highlight “IR Setup” and press the OK button to accept

4. Use the Master buttons to highlight “Programming” and press the OK button to accept. The info screen will display “Searching” while the unit detects available infrared receivers.

5. Use the Master buttons to scroll through the list of available infrared receivers (the displayed IR receiver will flash). When the desired IR receiver is displayed, press the OK button to select it. Press the OK button again to continue.

6a. To assign the IR receiver as a zone controller, use the Master

buttons to select “Zone” and press the OK button to accept. Use the zone raise/lower buttons for a zone to select a desired preset level, then press the zone raise and lower buttons simultaneously for 1 second (until the zone LEDs flash at the programmed preset level). Repeat for all zones you wish to control with the IR receiver.

6b. To assign the IR receiver as a scene controller, use the Master

buttons to select “Scene” and press the OK button to accept. Press and hold the top scene button on the GRAFIK Eye® QS control unit for 3 seconds (until the scene LEDs flash).

7. Press the Timeclock (back) button twice to return to the list of available IR receivers and repeat as needed.

8. Exit programming mode on the GRAFIK Eye® QS control unit.

QS Sensor

Module (QSM)

Master buttons

OK button

Press and hold the top scene button for 3 seconds to assign IR receiver as a scene controller.

Zone LEDs

Zone Raise

Zone Lower

Change type?

Zone

Change type?

Scene

Saved

Wired IR

Receiver

Saved

GRAFIK Eye® QS Control Unit Installation and Operation Guide 44

Page 45

Associating Sivoia® QS Shades/Drapes and GRAFIK Eye® QS Control Units

When a GRAFIK Eye one or more shade button groups, you can associate the shade button groups on the control unit with the shades so the shade buttons can directly control the shades.

® QS system consists of Sivoia® QS shades (or drapes) and a GRAFIK Eye® QS with

For Sivoia® QS Shades wired directly to the GRAFIK Eye® QS control unit:

To associate or disassociate shades with a shade button group:

1. On the GRAFIK Eye® QS control unit shade button group you wish to assign shades to, enter shade programming mode: Press and hold the top (open) and bottom (close) buttons simultaneously for 3 seconds. The top and bottom LEDs will flash. Shades that are unassigned will move to up (open), and shades that are assigned will move to close (down).

2. Tap the top (open) button to start assigning.

3. Tap the top (open) button repeatedly to cycle forward through the addresses; tap the bottom (close) button to cycle backward.

4. Press the shade group lower button to associate the shade. Press the shade group raise button to disassociate the shade.

Lower button: Press to associate Raise button: Press to disassociate

5. Exit shade programming mode: Press and hold the top (open) and bottom (close) buttons simultaneously for 3 seconds. The top and bottom LEDs will stop flashing.

For Wireless Sivoia® QS Shades:

To associate shades with a shade button group:

1. Make sure the wireless mode of the GRAFIK Eye® QS control unit is “Enabled”.

2. On the GRAFIK Eye® QS control unit shade button group you wish to assign shades to, enter shade programming mode: Press and hold the top (open) and bottom (close) buttons simultaneously for 3 seconds. The top and bottom LEDs will flash.

3. The LEDs on the electronic drive unit (EDU) and the wireless antenna of unassociated shades/drapes will blink slowly. On the shade/drape that you wish to associate with the shade button group, tap any button; the LED on the EDU will blink rapidly to indicate the shade is now associated with the shade button group on the GRAFIK Eye® QS control unit.

4. Repeat step 2 to associate additional shades/drapes to that shade button group.

5. Exit shade programming mode: Press and hold the top (open) and bottom (close) buttons simultaneously for 3 seconds. The top and bottom LEDs will stop flashing.

6. Repeat steps 1 through 5 for additional shade button groups, as applicable.

To disassociate shades with a shade button group:

Repeat, in the same order, the steps above for associating

shades/drapes. When in shade programming mode, tap any button on the electronic drive unit (EDU) of the shades/ drapes that you wish to disassociate from the shade button group; the green LEDs on the EDU and antenna will blink slowly to indicate the shade is disassociated from the shade button group on the GRAFIK Eye® QS control unit.

Note: The wireless signal has a range of 30 ft (9 m) through

standard construction or 60 ft (18 m) line of sight.

Open

Preset

Press and hold the top (open) and bottom (close) buttons on the GRAFIK Eye® QS control unit shade button group to enter or exit shade programming mode.

LED

Sivoia® QS Wireless shade/drape EDU

GRAFIK Eye® QS Control Unit Installation and Operation Guide 45

Page 46

1 2

69 10

11 12

815 16

9-16 1-8

Adjusting Shade Settings (for Wired and Wireless Sivoia® QS Shades/Drapes)

Setting Limits

(for wired shades/drapes only)

Note:

Entering Limit Setup mode

may cause shades to move approximately 8 in (200 mm) up or down. Be sure that each shade is

positioned so that the fabric can safely move 8 in (200 mm) up or down before entering Limit Setup mode.

1. On any shade button group, press and hold simultaneously the top and raise buttons. The LEDs next to the top and bottom buttons will cycle.

At any time while in Limit Setup mode,

you can move all shades together to their current open limit by double-tapping the top button, or to their current close limit by double-tapping the bottom button.

Note: Shade/drape electronic drive units

(EDUs) must first be associated to a shade button group before its limits can be adjusted.

2. Select the EDU you want to adjust using the top button on the shade button group. Each time you press and release the top button, a different EDU that is assigned to that shade button group will open and close in an 8 in (200 mm) range to indicate it is selected.

Tap the top button until the EDU for the

shade you wish to adjust moves. (You can also use the bottom button, which moves through the assigned EDUs in the opposite order.)

3. Adjust the currently selected EDU to the desired level for the open limit (the maximum the shade is allowed to open) using the raise and lower buttons.

4. Press and hold the top button on the shade button group for 5 seconds to store the current position as the open limit. The LED next to the top button will flash quickly for 2 seconds.

5. Adjust the currently selected EDU to the desired level for the close limit (the maximum the shade is allowed to close) using the raise and lower buttons.

6. Press and hold the bottom button on the shade button group for 5 seconds to store the current position as the close limit. The LED next to the bottom button will flash quickly for 2 seconds.

7. Repeat steps 2 through 6 to set the open and close limits for each shade assigned to the shade button group.

8. Press and hold simultaneously the top and raise buttons on the shade button group to exit Limit Setup mode.

Note: Remote limits cannot be set for

Sivoia® QS wireless shades through the GRAFIK Eye® QS control unit. Limits must be set manually at the wireless shade EDU. (See the Sivoia® QS wireless shade instructions.).

GRAFIK Eye® QS Control Unit Installation and Operation Guide 46

Page 47

1 2

69 10

11 12

815 16

9-16 1-8

Adjusting Shade Settings (for Wired and Wireless Sivoia® QS Shades/Drapes)

1 2

69 10

11 12

815 16

9-16 1-8

Preset Adjustment: Simple Method

1. Use the raise and lower buttons on the shade button group to set all electronic drive units (EDUs) of the shades to the desired preset levels.

2. Press and hold the middle button on the shade button group for 5 seconds to save the EDU preset positions. The LED next to the button will flash and then light continuously, indicating the preset has been stored.

Note: Once EDU presets have been

assigned to buttons on a shade button group, those presets are accessible for an EDU only using the shade button group it is assigned to, and a shade button group can access preset levels only for those EDUs assigned to it.

Preset Adjustment: Advanced Method

• The advanced method for adjusting presets is needed only if you wish to have the shades assigned to the shade button group set at different positions in the preset. If, however, you wish all the shades in the group to be lined up with one another in the preset, you should use the Simple Method at left.

Entering Assignment mode will cause the

•

shades to move between their open and close limits. Verify that the open and

close limits have been set correctly.

1. On the shade button group whose preset you wish to adjust, press and hold simultaneously the top and bottom buttons. The LEDs next to the buttons will flash. EDUs for the assigned shades will move to their closed limits, and EDUs for unassigned shades will move to their open limits.

2. Press and release the middle button on that shade button group. The adjacent LED will blink rapidly. EDUs for assigned shades will automatically move to their current preset settings.

3. Use the raise and lower buttons to move all EDUs for assigned shades together to the desired preset setting.

4. To move an EDU individually to its desired preset setting, select the EDU using the top button on the shade button group. Each time you press and release the top button, a different EDU that is assigned to that shade button group will open and close in an 8 in (200 mm) range. Press repeatedly until the EDU for the shade you wish to adjust moves. Adjust that EDU to the desired height using the raise and lower buttons.

Repeat this step for all assigned EDUs.

5. Once you are satisfied that all the assigned EDUs are set to the positions you want to assign as the preset, press and hold the middle button on the shade button group for 5 seconds. The preset will be saved.

6. Press and hold simultaneously the top and bottom buttons on the shade button group for 5 seconds to exit to normal mode. The LEDs next to the buttons will stop flashing.

GRAFIK Eye® QS Control Unit Installation and Operation Guide 47

Page 48

Adjusting Shade Settings

(for Wired and Wireless Sivoia® QS Shades/Drapes)

Naming a Group of Shades

Main menu

Zone Setup

Shade Labels

Select group

Shade Grp 1

Label shade grp

Custom

Label shade grp 1

1 / 11

1: A

1. Enter programming mode.

2. Use the Master buttons to highlight “Shade Labels” and press the OK button to accept.

3. Use the Master buttons to highlight your desired shade group. Press the OK button to accept.

4. Use the Master buttons to highlight “Custom” and press the OK button to accept.

5. Use the Master buttons to scroll through the characters (lowercase and uppercase letters, plus numbers 0 through 9). The character you are currently changing will be underlined on the screen. Press OK to select the character you want, then repeat for all available characters. Choose a space (no character) and press OK for any remaining characters. Press the OK button to accept.

6. The info screen will confirm that your name has been saved.

7. Exit programming mode.

Master

buttons

OK button

Saved

GRAFIK Eye® QS Control Unit Installation and Operation Guide 48

Page 49

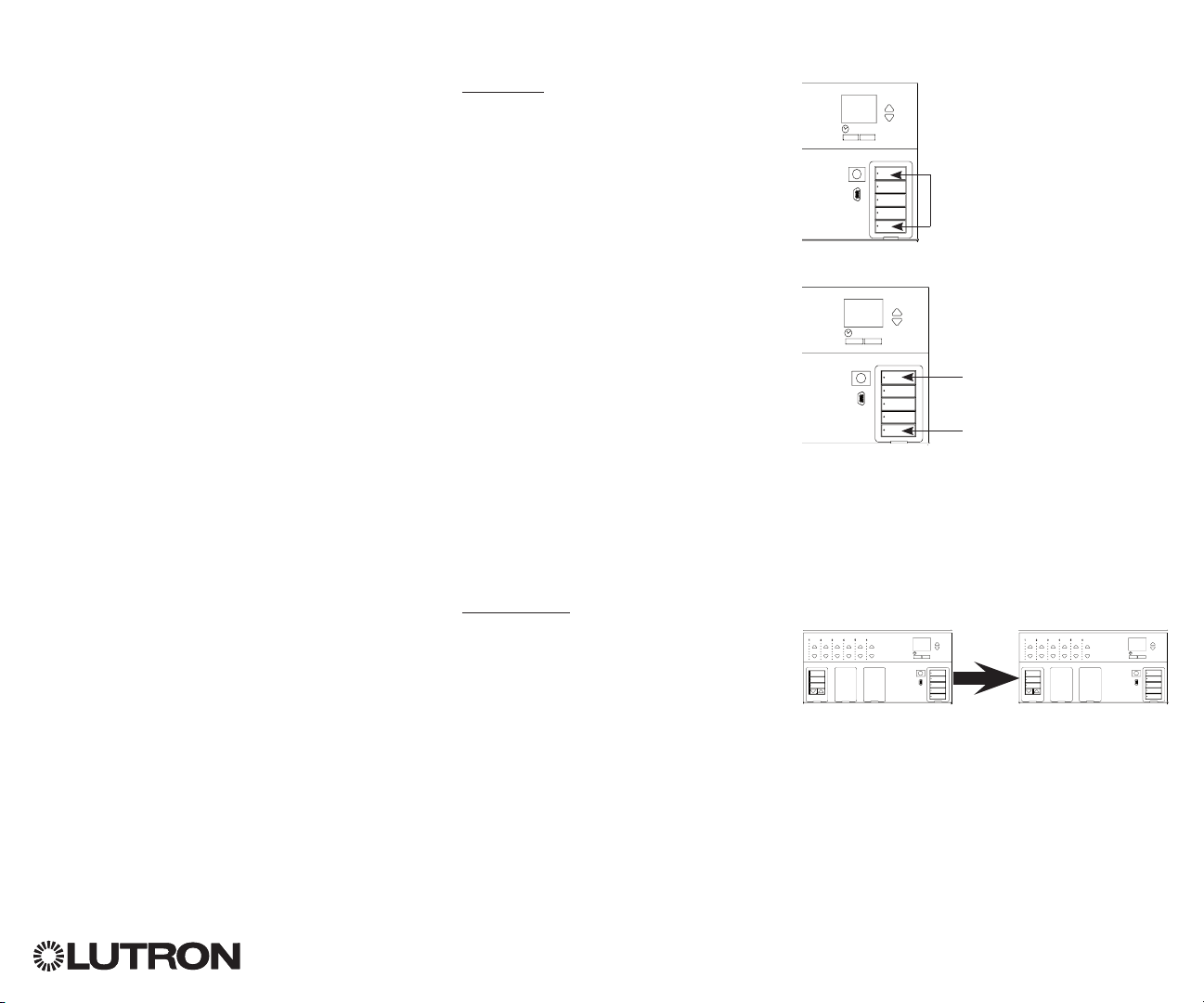

Associating Multiple GRAFIK Eye® QS Control Units

When there is more than one GRAFIK Eye® QS control unit in a system, it is often convenient to associate them so that certain functions carry over to other associated GRAFIK Eye® QS control units.

• Wired units: When first wired on the QS link, all unprogrammed GRAFIK Eye® QS wired control units will replicate scene activations and Master button presses by other control units on the link. Associating or disassociating control units determines which units on the QS link will “talk” or “listen” to each other. Control units associated on a wired QS link will also replicate timeclock and contact closure settings.

• Wireless units: GRAFIK Eye

® QS

Wireless control units will not automatically replicate scene activations or Master button presses, and must be programmed to do so. (Associating two wireless control units will not pass timeclock and contact closure settings to each other.) When associating multiple wireless control units, make sure the wireless mode of both units is set to “Enabled.”

Note: The wireless signal has a range

of 30 ft (9 m) through standard construction or 60 ft (18 m) line of sight.

To associate two GRAFIK Eye® QS control units:

1. Begin with the GRAFIK Eye® QS control unit that will “talk” (button presses will be replicated on the other control unit; in the drawing below this is GRAFIK Eye® QS control unit A). Press and hold the top and bottom scene buttons until the LEDs flash (about 3 seconds).

2. Continue with the GRAFIK Eye® QS control unit that will “listen” (replicate button presses on the other control unit; in the drawing below this is GRAFIK Eye® QS control unit B). Press and hold the top scene button until the LEDs flash (about 3 seconds).

3. Return to the GRAFIK Eye® QS control unit that will “talk” (A). Press and hold the top and bottom scene buttons until the LEDs stop flashing (about 3 seconds).

4. Repeating the process in reverse allows GRAFIK Eye® QS control unit A to also “listen” to GRAFIK Eye® QS control unit B, so that both units will follow each other.

To disassociate two GRAFIK Eye® QS control units:

Simply repeat the association steps, in the same order; press and hold the bottom scene button on B to disassociate.

On the unit that will “talk”, press and hold the top and bottom scene buttons for 3 seconds to begin or end association or disassociation with the unit that will “listen”.

Associate

Disassociate

On the unit that will “listen”, press and hold the top scene button for 3 seconds to associate, or press and hold the bottom scene button for 3 seconds to disassociate with the unit that will “talk”.

OK OK

GRAFIK Eye® QS control unit A “Talks” to GRAFIK Eye® QS control unit B; scene activation and Master button presses activated on control unit A are replicated on control unit B.

GRAFIK Eye® QS control unit B “Listens” to GRAFIK Eye® QS control unit A; control unit B replicates scene activations and Master button presses on control unit A.

GRAFIK Eye® QS Control Unit Installation and Operation Guide 49

Page 50

Timeclock Operation

Setting Time and Date

Main menu

Timeclock

Scene setup

Timeclock

End afterhours

Time & date

Set format

12 Hr

Set time

: 00 AM

1. Enter programming mode.

2. Use the Master buttons to highlight “Timeclock” and press the OK button to accept.

3. Use the Master buttons to highlight “Time & date” and press the OK button to accept.

4. Use the Master buttons to highlight either “12 Hr” or “24 Hr” format for time display and press the OK button to accept.

5. Use the Master buttons to highlight the current hour and press the OK button to accept. Repeat for the current minutes.

6. Use the Master buttons to highlight the current year and press the OK button to accept. Repeat for the current month and date.

7. The info screen will confirm that your time and date have been saved.

8. Exit programming mode.

Master

buttons

OK button

Set time

08 : AM

Set date

: 00

2009

Set date

March

Set date

Saved

GRAFIK Eye® QS Control Unit Installation and Operation Guide 50

Page 51

Timeclock Operation

Setting Location

Main menu

Timeclock

Scene setup

Timeclock

Time & date

Location

Location by

Country, City

Lat/Longitude

Country

08 : 00

USA

State

Pennsylvania

City

Philadelphia

1. Enter programming mode.

2. Use the Master buttons to highlight “Timeclock” and press the OK button to accept.

3. Use the Master buttons to highlight “Location” and press the OK button to accept.

4. Use the Master buttons to set your location by either country and city or latitude and longitude. Press the OK button to accept.

5. Use the Master buttons to highlight the country and press the OK button to accept. Repeat for the state and closest city.

6. The info screen will confirm that your time and date have been saved.

7. Exit programming mode.

Saved

Setting Daylight Saving Time

Timeclock

1. Enter programming mode and select “Timeclock”. Use the Master

Location

Set DST

buttons to highlight “Set DST” and press the OK button to accept.

2. Use the Master buttons to highlight “YES” if your location observes

DST

daylightsavingtime,or“NO”ifit

does not. Press the OK button to

: 00

Yes

accept.

3. If yes, use the Master buttons to choose either “USA 2007” (the second Sunday in March to the first

SundayinNovember),or“Other.”

For “Other,” follow the screens to set start and end dates and amount of time.

4. Press the OK button to accept. The info screen will confirm that your time and date have been saved.

5. Exit programming mode.

Master

buttons

OK button

GRAFIK Eye® QS Control Unit Installation and Operation Guide 51

Page 52

Timeclock Operation

Adding an Event

Main menu

Timeclock

Scene setup

Timeclock

View events

Add events

Monday

Add events

Local

Add events

Time of day

Set time

1. Enter programming mode.

2. Use the Master buttons to highlight “Timeclock” and press the OK button to accept.

3. Use the Master buttons to highlight “Add events” and press the OK button to accept.

4. Use the Master buttons to highlight the recurrence for this event: day of the week, holiday, weekdays or weekends. Press the OK button to accept.

5. Use the Master buttons to highlight the location of the timeclock event (local or remote). Press the OK button to accept.

•LocaleventsaffectscenescontrolledbytheGRAFIKEye® QS Control Unit

•RemoteeventsaffectscenescontrolledbyanotherdeviceontheQSlink(e.g.EnergiSavrNodeTM QS)

Note: Remote timeclock events provide a virtual timeclock to devices on the QS link without a built-in

6. Use the Master buttons to highlight the type of the event (fixed time of day or a relative time to sunrise or sunset). Press the OK button to accept.

7. For a fixed-time event, use the Master buttons to highlight the hour for your event to begin; press the OK button to accept. Repeat for the minutes. For a relative time event, use the Master buttons and the OK button to set the hour, then the minutes relative to sunrise or sunset (maximum of 1 hour, 59 minutes before or after sunrise or sunset).

8. Use the Master buttons to highlight the desired action for the timeclock event:

•Scenes1-16,Off

•ShadeGroups1-3open,preset,orclose

•Start/EndAfterhours

•Enable/DisableOccupancy

•Enable/DisableOccupiedEvents

•Enable/DisableDaylighting

9. The info screen will confirm that your event has been saved.

10. Repeat steps 4 through 9 for additional events.

11. Exit programming mode.

Add events

Master

buttons

OK button

timeclock. This allows the GRAFIK Eye® QS control unit to activate scenes on other devices without affecting the space it controls.

: 00 AM

Scene

Scene 1

Saved

GRAFIK Eye® QS Control Unit Installation and Operation Guide 52

Page 53

Timeclock Operation

Deleting an Event

Main menu

Timeclock

Scene setup

Timeclock

Copy schedule

Delete events

Delete

Monday

Delete

8:00 AM Scene 5

Delete?

01/03

Deleted

1. Enter programming mode.

2. Use the Master buttons to highlight “Timeclock” and press the OK button to accept.

3. Use the Master buttons to highlight “Delete events” and press the OK button to accept.

4. Use the Master buttons to highlight the day of the week (or holiday) when the event occurs; press the OK button to accept.

5. Use the Master buttons to highlight the event to delete; press the OK button to accept.

6. A screen will appear, verifying you wish to delete the event. Press the OK button to accept and delete; otherwise, press the timeclock button to go back.

7. The info screen will confirm that your event has been deleted.

8. Exit programming mode.

Viewing an Event

Timeclock

View events

Delete events

Add events

View events

Monday

View

1/3

8:00 AM Scene 5

Master

buttons

OK button

Timeclock (back) button

1. Enter programming mode, select “Timeclock,” and select “View events”.

2. Use the Master buttons to highlight the day of the week (or holiday) when the event occurs; press the OK button to accept.

3. Use the Master buttons to highlight the event to view; press the OK button to accept.

4. Press the OK button to return to the Timeclock menu.

5. Exit programming mode.

GRAFIK Eye® QS Control Unit Installation and Operation Guide 53

Page 54

Timeclock Operation

Setting a Holiday

Timeclock

Delete schedule

Holiday

Add event

Set holiday

View holiday

Set holiday

1/25

Feb

Set holiday

1/25

Monday

Feb

Saved

1. Enter programming mode.

2. Use the Master buttons to highlight “Timeclock” and press the OK button to accept.

3. Use the Master buttons to highlight “Holiday” and press the OK button to accept.

4. Use the Master buttons to highlight “Set holiday” and press the OK button to accept.

5. Use the Master buttons to highlight the month of the holiday and press the OK button to accept. Repeat for the date.

6. The info screen will confirm that your holiday has been set.

7. Exit programming mode.

Note: The GRAFIK Eye® QS control

unit supports up to 25 unique holidays. Follow the steps in “Adding an Event” to add Holiday timeclock events.

Viewing a Holiday

View Holiday

1/25

Feb 14

Monday

No Holidays

Deleting a Holiday

Holiday

View holiday

Delete holiday

1/2

Monday

Feb 14

Delete holiday

1/2

Delete?

Master

buttons

OK button

1. Enter programming mode, select “Timeclock,” select “Holiday,” and select “View holiday”.

2. Use the Master buttons to scroll through the dates of the programmed holidays.

3. If no holidays are programmed, the info screen will display a screen informing you.

4. Exit programming mode.

1. Enter programming mode, select

“Timeclock,” select “Holiday,” and select “Delete holiday”.

2. Use the Master buttons to highlight the

holiday you wish to delete (or delete all holidays) and press the OK button to accept.

3. Press the OK button to delete the

selected holiday. The info screen will confirm that your holiday has been deleted.

4. Exit programming mode.

Deleted

GRAFIK Eye® QS Control Unit Installation and Operation Guide 54

Page 55

Timeclock Operation

Copying a Schedule

Timeclock

Copy schedule

Delete schedule

Delete events

Copy from

Monday

Copy to

Monday

Tuesday

Timeclock

Monday

Overwrite all events?

Saved

1. Enter programming mode.

2. Use the Master buttons to highlight “Timeclock” and press the OK button to accept.

3. Use the Master buttons to highlight “Copy Schedule” and press the OK button to accept.

4. Use the Master buttons to highlight the day you want to copy the schedule from and press the OK button to accept.

5. Use the Master buttons to highlight the day you want to copy the schedule to and press the OK button to accept.

6. The info screen will ask you to confirm overwriting all events occurring on the selected day to copy to; press the OK button to accept.

7. Exit programming mode.

Deleting a Schedule

Timeclock

Delete events

Delete schedule

Monday

Sunday

Delete

Sunday

schedule?

Master

buttons

OK button

1. Enter programming mode, select “Timeclock,” and select “Delete schedule”.

2. Use the Master buttons to highlight the day of the schedule you wish to delete and press the OK button to accept.

3. The info screen will confirm that your event has been deleted.

4. The info screen will ask you to confirm deleting the schedule on the selected day; press the OK button to accept.

5. Exit programming mode.

Deleted

GRAFIK Eye® QS Control Unit Installation and Operation Guide 55

Page 56

Afterhours

The Afterhours feature of the GRAFIK Eye® QS control unit can be used to automatically set lights to an energy-saving level (typically “Scene Off”). This feature allows occupants to manually turn on lights, but will automatically turn them off after a specified amount of time.

When Afterhours starts, the lights will flash to alert occupants that the lights will soon fade to the Afterhours Scene. Occupants then can press a keypad button to extend the time until the Afterhours feature flashes the lights again.

The Afterhours feature of the GRAFIK Eye

• Enabled: The GRAFIK Eye

® QS control unit will allow the Afterhours feature to be activated.

® QS control unit has three (3) modes of operation:

• Follow: The GRAFIK Eye® QS control unit will execute the Afterhours settings of another associated device on the QS link.

• Disabled (default): The GRAFIK Eye® QS control unit will not start the Afterhours feature (even if it receives commands from a

Timeclock event, contact closure input, or another device on the QS link).

Note: The Afterhours feature must be programmed to start or end through Timeclock events, the integral contact closure input, or

another associated device on the QS link. The GRAFIK Eye® QS control unit will activate this feature only if the Afterhours mode has been set to “Enabled” or “Follow”.

Afterhours Settings

Flash count: The amount of times the lights will flash to alert the room that the Afterhours Scene will soon be activated. Range: 0 to 15 flashes (default 3 flashes) Delay time: The amount of time after the end of the “Flash count” before the Afterhours Scene is activated. Range: 1 to 180 minutes (default 15 minutes) Warn time: The amount of time the system will wait after the Afterhours Scene is interrupted before flashing the lights again and

restarting the Delay Time countdown. Range: 1 to 180 minutes (default 5 minutes) Afterhours scene: The scene that the GRAFIK Eye® QS control unit will activate when the Delay Time expires. Range: Scenes 1 to 16, Off (default Scene 5)

(See example on the next page.)

GRAFIK Eye® QS Control Unit Installation and Operation Guide 56

Page 57

Afterhours

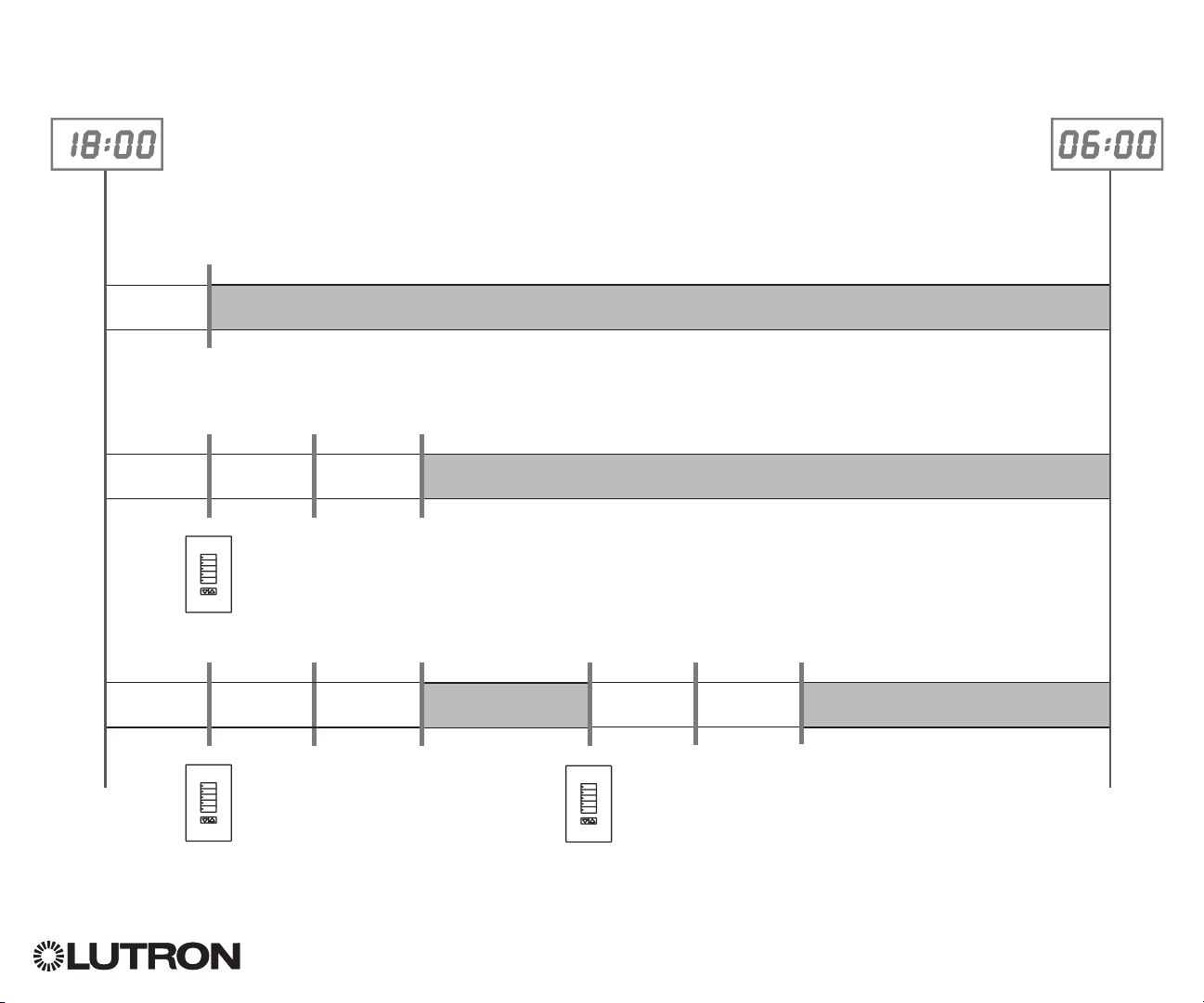

Afterhours Examples

Afterhours starts; Lights flash

Example 1: Typical Office

Delay time

Example 2: Late Night at Office

Delay time

Example 3: Late Night/Security Check

Afterhours Scene

Warn Time

Button press: Office worker

Delay time (lights flash)

Afterhours ends

Afterhours Scene

Warn Time Warn TimeDelay time

Button press: Office worker

Delay time (lights flash)

Afterhours Scene Afterhours Scene

Button press: Security guard

Delay time (lights flash)

GRAFIK Eye® QS Control Unit Installation and Operation Guide 57

Page 58

Afterhours

Setting Up Afterhours

Main menu

Timeclock

Scene setup

Timeclock

Holiday

Afterhours setup

Afterhours

Enabled

Warn time

minutes

Flash count

Delay time

minutes

1. Enter programming mode.

2. Use the Master buttons to highlight “Timeclock”, and press

3. Use the Master buttons to highlight “Afterhours setup”, and

4. Use the Master buttons to select the desired Afterhours mode,

5. (If the Afterhours mode was set to “Enabled”)

6. Exit programming mode.

the OK button to accept.

press the OK button to accept.

and press the OK button to accept.

Use the Master buttons to highlight the desired values for Flash count, Delay time, Warn time, and Afterhours scene. Press the OK button to accept each setting. The info screen will confirm that your Afterhours settings have been saved.

Afterhours

Scene 5

Saved

Master

buttons

OK button

Ending Afterhours

Once activated, the Afterhours feature can

be overridden at any time and ended through the programming menu.

1. Enter programming mode.

End afterhours

2. Use the Master buttons to highlight “Timeclock”, and press the OK button to accept.

3. Use the Master buttons to highlight “End Afterhours”, and press the OK button to accept. The info screen will confirm that afterhours mode is ended.

4. Exit programming mode.

GRAFIK Eye® QS Control Unit Installation and Operation Guide 58

Page 59

Diagnostics and Special Settings

Enabling/Disabling the Timeclock

The timeclock can be enabled or disabled as desired.

Timeclock

Monday

Enabled

Saved

1. Enter programming mode. Use the Master buttons to select “Timeclock.” Press the OK button to accept.

2. Use the Master buttons to highlight either

“Enabled” or “Disabled”. Press the OK button to accept. The info screen will confirm that your setting has been saved.

3. Exit programming mode.

Master

buttons

OK button

Enabling/Disabling the Backlighting

The backlighting on the info screen can be enabled or disabled as

desired.

Backlighting

Monday

Enabled

1. Enter programming mode and select “Backlighting”. Press the OK button to accept.

2. Use the Master buttons to highlight either

“Enabled” or “Disabled”. Press the OK button to accept. The info screen will confirm that your setting has been saved.

3. Exit programming mode.

Saved

Diagnostics

If you are having trouble with your control unit and call

Lutron Technical Support, you may be asked for diagnostic information about your unit.

Diagnostics

1. Enter programming mode and select “Diagnostics”. Press the OK

Device SN

Link Info

button to accept.

2. Use the Master buttons to highlight

the option that will display the required information. The info screen can display the device serial number, link information, code

Link info

version, or USB status. There is also an option to reset the USB connection (do this only if asked to by Lutron Technical Support).

4. Exit programming mode.

GRAFIK Eye® QS Control Unit Installation and Operation Guide 59

Page 60

Diagnostics and Special Settings (continued)

Setting the Security Password

A four-digit password can be set as a security feature to protect the

programming settings on the GRAFIK Eye® QS control unit.

Diagnostics

Reset USB

Password

Set Password

Disable

Password

4 / 4

1: ABCD

Saved

1. Enter programming mode

2. Select “Diagnostics” and press the OK button to accept.

3. Select “Password” and press the OK button to accept.

4. Select “Set Password” and press the OK button to accept.

5. You will be prompted to input a four-digit password. Use the Master buttons to scroll through the characters (uppercase letters and numbers 0 through 9 only). The character you are currently changing in the password will appear underlined on the info screen. Press OK to select the desired character, and repeat for the remaining characters.

The info screen will confirm that your setting has been saved.

6. Exit programming mode.

Enter Password

4 / 4

1: * * * *

When you re-enter programming mode after setting your password, you will be prompted to enter your password. Use

the method in Step 5 above to select and enter each character. Note: The characters will appear on the info screen as asterisks.

Master buttons

OK button

Password

To disable your password, follow Steps 1 through 4 of “Setting the Security

Set Password

Disable

GRAFIK Eye® QS Control Unit Installation and Operation Guide 60

Password”, and select “Disable” on the Password menu.

Page 61

Language Selection

Faceplate Removal

The GRAFIK Eye® QS control unit is capable of operating in the following languages:

English

•

• French

• Spanish

• German

• Italian

• Portuguese

To change the language to one of these choices, press the Timeclock button four times, until the “Language” screen

isdisplayed.(Note:Donotputtheunit

in programming mode.) Use the Master buttons to highlight your preferred language, and press the OK button to select and save.

Master

buttons

OK button

The faceplates may need to be removed to change the color or to write in zone labels. To remove either faceplate, open it fully (flush to the wall), and pull up (for the top faceplate) or down (for the bottom faceplate) to pull the hinges out of their slots.

Replace by sliding the hinges back into their slots.

Pull up to remove top faceplate

1 2 3 4 5 6

Timeclock (back) button

Pull down to remove bottom faceplate

GRAFIK Eye® QS Control Unit Installation and Operation Guide 61

Page 62

Troubleshooting

Symptom Possible Causes Solution

Unit does not power up

Unit does not control loads

Circuit breaker is tripping

Zone control does not work

Zone control yields incorrect results

One or more zones are always “full on” and zone intensity is not adjustable Zone control affects more than one zone

Faceplate is warm Normal operation Solid-state controls dissipate about 2% of the connected load as heat. No action is required

Circuit Breaker is off Switch circuit breaker on

Miswire Verify wiring to unit and loads

System short circuited Find and correct shorts

System overload Verify zone/unit loading is within ratings (see Zone Setup section)

Miswire Make sure loads are connected to the right zones

Loose or disconnected wire Connect zone wires to loads

Burned out lamps Replace bad lamps

Incorrect load type selected Assign the zone to the appropriate load type (see Zone Setup section)

Dimming limits set incorrectly Adjust High End/Low End values (see Zone Setup section)

Miswire Make sure loads are connected to the right zones

Shorted line output Check wiring; if wiring is correct, call Lutron Technical Support

Unit does not allow scene change or zone adjustments

Cannot program fade time from “Scene Off”

Integral (direct-wired) contact closure input does not work

QS devices on link are not working

Timeclock events do not occur

Sunrise or sunset events do not occur at the correct time

Unit is in wrong save mode Change to correct save mode

QS device in system has locked the unit Check programming and state of QS devices

Fade time from “Scene Off” is not

Fade time from “Scene Off” is always 3 seconds programmable; can only program fade time to “Scene Off”

Miswire Check wiring on contact closure input

Input CCI signal is not received Verify the input device is operating properly

Unit is in wrong CCI mode and/or type Change to correct CCI mode and/or type for your application

Miswire or loose connection on QS link Verify QS link wiring to all devices

QS device is not associated Place the QS device into programming mode, and hold the “Scene 1” button on the

GRAFIK Eye

® QS control unit to associate the two devices

QS device programming is incorrect Verify the functionality and programming on the QS devices

Timeclock is disabled Enable the timeclock

Time/date is not set correctly Set the time/date

Location is not set correctly Set the latitude and longitude of the unit’s location

Holiday schedule is in effect Normal schedule will resume when the holiday ends

GRAFIK Eye® QS Control Unit Installation and Operation Guide 62

Page 63

Troubleshooting (continued)

Symptom Possible Causes Solution

Device does not respond to infrared controls

Security lockout from programming mode

IR Receiver is disabled Enable the IR receiver

Miswire or loose connection on rear IR terminal Verify rear IR terminal wiring

Security password set incorrectly Call Lutron Technical Support to reset password

Troubleshooting: Wireless Functions

(for wireless enabled units only)

Symptom Possible Causes Solution

Cannot associate a wireless device to a unit

Associated wireless devices do not control unit

Wireless devices operate incorrectly

Wireless devices selectively operate

Info screen often prompts for wireless device association

Unit does not support wireless functionality Verify the unit says “GRAFIK Eye® QS Wireless” on the front label.

Unit in incorrect wireless mode Change wireless mode to “Enabled”

Maximum number of devices have been associated with unit

Wireless device is out of range Verify wireless device is in range: 30 feet (9 m) through standard construction, 60 feet (18 m)

Wireless device has been unassigned from unit Reassign wireless device to unit

Devices are not receiving power Check wireless device’s battery/power wiring

Unit in incorrect wireless mode Change to correct wireless mode (“Ignore Programming” or “Enabled”)

Multiple devices are associated to the unit with contrasting settings

Wireless device is out of range Verify wireless device is in range: 30 ft (9 m) through standard construction, 60 ft (18 m) line

Radio Powr Savr calibration mode

System is not configured correctly Make sure wireless device settings are programmed as desired

Intended settings were not saved Reprogram wireless device settings

Wireless devices not located correctly Follow instructions for each device to verify it is located for ideal performance

Unit wireless mode set to “Enabled” and nearby wireless systems are being programmed

TM daylight sensors not in

Remove devices or associate with a different unit

line of sight

Verify the settings of wireless devices are consistent

of sight

Follow instructions to calibrate daylight sensors

Change wireless mode to “Ignore Programming”

GRAFIK Eye® QS Control Unit Installation and Operation Guide 63

Page 64

Troubleshooting: Shade Functions

Symptom Possible Causes Solution

Shade EDU (electronic drive unit) will not move

Shade button group will not control any shade

Shade EDU does not fully open or fully close

Shade moves in the opposite direction when raise/lower buttons are pushed

Shade button group does not operate all the shades it is assigned to

Shades in a room move on their own

Unable to set limits on

® QS wireless shades

Sivoia through the GRAFIK Eye QS control unit.

EDU is not powered Connect power to EDU

Shade fabric is caught on something Check and unbind shade fabric

EDU is not assigned to a shade button group Assign the EDU to a shade button group

All limits are set to the same height Verify limit settings

Communications link is not wired to the EDU

EDU has been unassigned from shade button

Check and wire the EDU link

Reassign the EDU to the shade button group

group

Limits have been set incorrectly Set limits correctly

Shade fabric is caught on something Check and unbind shade fabric

Open and close limits have been reversed Set limits correctly

EDU has been unassigned from shade button

Reassign the EDU to the shade button group

group

All limits are set to the same height Verify limit settings

EDU is not wired correctly Check and rewire EDU

Shade button group is not wired correctly Check and rewire shade button group

EDUs are assigned to a shade button group in

Reassign the EDU to the correct shade button group

another room

Normal operation Limits must be set manually on the Sivoia

installation guide)

® QS wireless EDU (see Sivoia® QS wireless shade

GRAFIK Eye® QS Control Unit Installation and Operation Guide 64

Page 65

Warranty

Lutron Electronics Co., Inc. One Year Limited Warranty

For a period of one year from the date of purchase, and subject to the exclusions and restrictions described below, Lutron warrants each new unit to be free from manufacturing defects. Lutron will, at its option, either repair the defective unit or issue a credit equal to the purchase price of the defective unit to the Customer against the purchase price of comparable replacement part purchased from Lutron. Replacements for the unit provided by Lutron or, at its sole discretion, an approved vendor may be new, used, repaired, reconditioned, and/or made by a different manufacturer. If the unit is commissioned by Lutron or a Lutron approved third party as part of a Lutron commissioned lighting control system, the term of this warranty will be extended, and any credits against the cost of replacement parts will be prorated, in accordance with the warranty issued with the commissioned system, except that the term of the unit’s warranty term will be measured from the date of its commissioning.

EXCLUSIONS AND RESTRICTIONS

This Warranty does not cover, and Lutron and its suppliers are not responsible for:

1. Damage, malfunction or inoperability diagnosed by Lutron or a Lutron approved third party as caused by normal wear and tear, abuse, misuse, incorrect installation, neglect, accident, interference or environmental factors, such as (a) use of incorrect line voltages, fuses or circuit breakers; (b) failure to install, maintain and operate the unit pursuant to the operating instructions provided by Lutron and the applicable provisions of the National Electrical Code and of the Safety Standards of Underwriter’s Laboratories; (c) use of incompatible devices or accessories; (d) improper or insufficient ventilation; (e) unauthorized repairs or adjustments; (f) vandalism; or (g) an act of God, such as fire, lightning, flooding, tornado, earthquake, hurricane or other problems beyond Lutron’s control.

2. On-site labor costs to diagnose issues with, and to remove, repair, replace, adjust, reinstall and/or reprogram the unit or any of its components.

3. Equipment and parts external to the unit, including those sold or supplied by Lutron (which may be covered by a separate warranty).

4. The cost of repairing or replacing other property that is damaged when the unit does not work properly, even if the damage was caused by the unit.

EXCEPT AS EXPRESSLY PROVIDED IN THIS WARRANTY, THERE ARE NO EXPRESS OR IMPLIED WARRANTIES OF ANY TYPE, INCLUDING ANY IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY. LUTRON DOES NOT WARRANT THAT THE UNIT WILL OPERATE WITHOUT INTERRUPTION OR BE ERROR FREE. NO LUTRON AGENT, EMPLOYEE OR REPRESENTATIVE HAS ANY AUTHORITY TO BIND LUTRON TO ANY AFFIRMATION, REPRESENTATION OR WARRANTY CONCERNING THE UNIT. UNLESS AN AFFIRMATION, REPRESENTATION OR WARRANTY MADE BY AN AGENT, EMPLOYEE OR REPRESENTATIVE IS SPECIFICALLY INCLUDED HEREIN, OR IN STANDARD PRINTED MATERIALS PROVIDED BY LUTRON, IT DOES NOT FORM A PART OF THE BASIS OF ANY BARGAIN BETWEEN LUTRON AND CUSTOMER AND WILL NOT IN ANY WAY BE ENFORCEABLE BY CUSTOMER. IN NO EVENT WILL LUTRON OR ANY OTHER PARTY BE LIABLE FOR EXEMPLARY, CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR

LOSS OF PROFITS, CONFIDENTIAL OR OTHER INFORMATION, OR PRIVACY; BUSINESS INTERRUPTION; PERSONAL INJURY; FAILURE TO MEET ANY DUTY, INCLUDING OF GOOD FAITH OR OF REASONABLE CARE; NEGLIGENCE, OR ANY OTHER PECUNIARY OR OTHER LOSS WHATSOEVER), NOR FOR ANY REPAIR WORK UNDERTAKEN WITHOUT LUTRON’S WRITTEN CONSENT ARISING OUT OF OR IN ANY WAY RELATED TO THE INSTALLATION, DEINSTALLATION, USE OF OR INABILITY TO USE THE UNIT OR OTHERWISE UNDER OR IN CONNECTION WITH ANY PROVISION OF THIS WARRANTY, OR ANY AGREEMENT INCORPORATING THIS WARRANTY, EVEN IN THE EVENT OF THE FAULT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY, BREACH OF CONTRACT OR BREACH OF WARRANTY OF LUTRON OR ANY SUPPLIER, AND EVEN IF LUTRON OR ANY OTHER PARTY WAS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOTWITHSTANDING ANY DAMAGES THAT CUSTOMER MIGHT INCUR FOR ANY REASON WHATSOEVER (INCLUDING, WITHOUT LIMITATION, ALL DIRECT DAMAGES AND ALL DAMAGES LISTED ABOVE), THE ENTIRE LIABILITY OF LUTRON AND OF ALL OTHER PARTIES UNDER THIS WARRANTY ON ANY CLAIM FOR DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE MANUFACTURE, SALE, INSTALLATION, DELIVERY, USE, REPAIR, OR REPLACEMENT OF THE UNIT, OR ANY AGREEMENT INCORPORATING THIS WARRANTY, AND CUSTOMER’S SOLE REMEDY FOR THE FOREGOING, WILL BE LIMITED TO THE AMOUNT PAID TO LUTRON BY CUSTOMER FOR THE UNIT. THE FOREGOING LIMITATIONS, EXCLUSIONS AND DISCLAIMERS WILL APPLY TO THE MAXIMUM EXTENT ALLOWED BY APPLICABLE LAW, EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PURPOSE.

TO MAKE A WARRANTY CLAIM

To make a warranty claim, promptly notify Lutron within the warranty period described above by calling the Lutron Technical Support Center at (800) 523-9466. Lutron, in its sole discretion, will determine what action, if any, is required under this warranty. To better enable Lutron to address a warranty claim, have the unit’s serial and model numbers available when making the call. If Lutron, in its sole discretion, determines that an on-site visit or other remedial action is necessary, Lutron may send a Lutron Services Co. representative or coordinate the dispatch of a representative from a Lutron approved vendor to Customer’s site, and/or coordinate a warranty service call between Customer and a Lutron approved vendor. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. NEC is a registered trademark of the National Fire Protection Association, Quincy, Massachusetts. Advance Mark X is a registered trademark of the Advance Transformer Company. Lutron, seeTouch, Quantum, and GRAFIK Eye are registered trademarks and Radio Powr Savr and Energi Savr Node are trademarks of Lutron Electronics Co., Inc. © 2012 Lutron Electronics Co., Inc.

®, Sivoia, Hi-lume, Eco-10, Tu-Wire, Radio RA, Pico,

Contact Information

Internet: www.lutron.com E-mail: product@lutron.com

WORLD HEADQUARTERS USA

Lutron Electronics Co., Inc. 7200 Suter Road, Coopersburg, PA 18036-1299 TEL +1.610.282.3800

FAX+1.610.282.1243 Toll-Free1.888.LUTRON1

Technical Support 1.800.523.9466

North and South America Technical Hotlines

USA, Canada, Caribbean: 1.800.523.9466 Mexico: +1.888.235.2910 Central/South America: +1.610.282.6701

EUROPEAN HEADQUARTERS United Kingdom

Lutron EA Ltd. 6 Sovereign Close, London, E1W 3JF United Kingdom TEL +44.(0)20.7702.0657

FAX+44.(0)20.7480.6899 FREEPHONE(UK)0800.282.107

Technical support +44.(0)20.7680.4481

ASIAN HEADQUARTERS Singapore

Lutron GL Ltd. 15 Hoe Chiang Road, Tower 15, Euro Asia Centre,

Singapore 089316

TEL +65.6220.4666

FAX+65.6220.4333

Asia Technical Hotlines

NorthernChina:10.800.712.1536

Southern China: 10.800.120.1536 Hong Kong: 800.901.849 Indonesia: 001.803.011.3994 Japan: +81.3.5575.8411 Macau: 0800.401 Singapore: 800.120.4491 Taiwan: 00.801.137.737 Thailand: 001.800.120.665853 Other countries: +65.6220.4666

Lutron Electronics Co., Inc.

P/N032-305Rev.C02/2012

Lutron QSGRJ-3P-TWH Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
