Lutron Maestro LED User manual
Maestro
1
Maestro LED+ Fan / Light Control
Quiet fan-speed control with dimmer for dimmable
LED and CFL bulbs.
Features
• LED+ includes the most advanced technology
for superior dimming of LED, CFL, halogen, and
incandescent bulbs.
• Tap on to preset light level / fan speed; tap off.
•
Tap twice for full on.
• Touch rocker to adjust light level / fan speed.
• Four fan speeds plus off.
• Indicator lights display light level and fan speed.
• Single-pole only.
• No canopy module required.
• Requires separate wires for fan and light.
• No neutral wire required.
• UL Listed to control:
— Dimmable LEDs
— Dimmable compact fluorescent lamps (CFLs) with
integrated ballast
— Halogen
— Incandescent
• Low-end adjustment to accommodate a wide range
of bulbs.
• FASS - Front Accessible Service Switch for fixture
bulb replacement.
• Prevents tripping of AFCI breakers.
• 100% factory tested.
• Fault Detection / Indication
— Light pull chain off detection
— Lamp failure detection
— Short circuit detection / protection
• Formerly C•L.
Product Specific Features
• Capable of controlling up to 75 W dimmable
LED / CFL or 250 W incandescent / halogen
lighting loads.
• Capable of controlling up to 1.5 A paddle-type
ceiling fan loads.
Model Number
MACL-LFQ-XX
MACL-LFQH-XX 2
MACL-LFQH-XX-C 3
Notes:
1
XX in the model number represents color / finish code; see section “Colors and Finishes” above.
2
For clamshell packaging, add an "H" after "Q".
3
Clamshell packaged product for Canada.
Job Name:
1
Single-pole
Single-pole
Single-pole
SPECIFICATION SUBMITTAL Page
Model Numbers:
Wallplate sold separately
Colors and Finishes
Gloss Finishes
WH White IV Ivory
AL Almond LA Light Almond
GR Gray BR Brown
BL Black
Satin Colors
SW Snow MN Midnight
TP Taupe BI Biscuit
ES Eggshell PD Palladium
HT Hot MR Merlot
PL Plum SI Sienna
TC Terracotta BG Bluestone
GB Green Briar GS Goldstone
MS Mocha Stone ST Stone
DS Desert Stone LS Limestone
For the latest color offerings please see our website:
http://www.lutron.com/satincolors
Wallbox ControlsLED+ Fan / Light Control
3691057c 1 04.27.20
Job Number:
Maestro
2
Specifications
Wallbox ControlsLED+ Fan / Light Control
3691057c 2 04.27.20
Regulatory Approvals
• UL Listed to U.S. and Canadian safety
requirements
— UL 1472 / CSA C22.2 184.1 (dimmer)
— UL 1917 (fan)
— NOM
• Meets requirements of NEMA SSL7-2015
Power and Ratings
• 120 V~ 60 Hz
• 1.5 A fan rating - single fan only
• 75 W dimmable LED / CFL or 250 W
incandescent / halogen light rating
Environment
• For indoor use only
• Operating temperatures 32°F (0°C) to 104°F (40°C)
• 0% to 95% relative humdity, non-condensing
Performance
• Power-failure memory
• Electrostatic discharge tested
• Precise color matching
• Mechanical air-gap switch to disconnect load power
• Dual power supply for light pull chain off detection
Dimensions
4 $ in
(119 mm)
2 ^ in
(75 mm)
Note: Requires a U.S. wallbox 2 ` in (64 mm)
deep minimum.
5 / 16 in
(8 mm)
9
1
/ 16 in
(39 mm)
Warranty
• 1 Year Limited Warranty
For additional Warranty information, please visit
www.lutron.com/TechnicalDocumentLibrary/
369-119_Wallbox_Warranty.pdf
2 # in
(66 mm)
Application Requirements
• When using LEDs or CFLs, only bulbs marked
or rated as DIMMABLE can be used.
• For a complete list of approved DIMMABLE LEDs
please visit www.lutron.com/LEDfinder

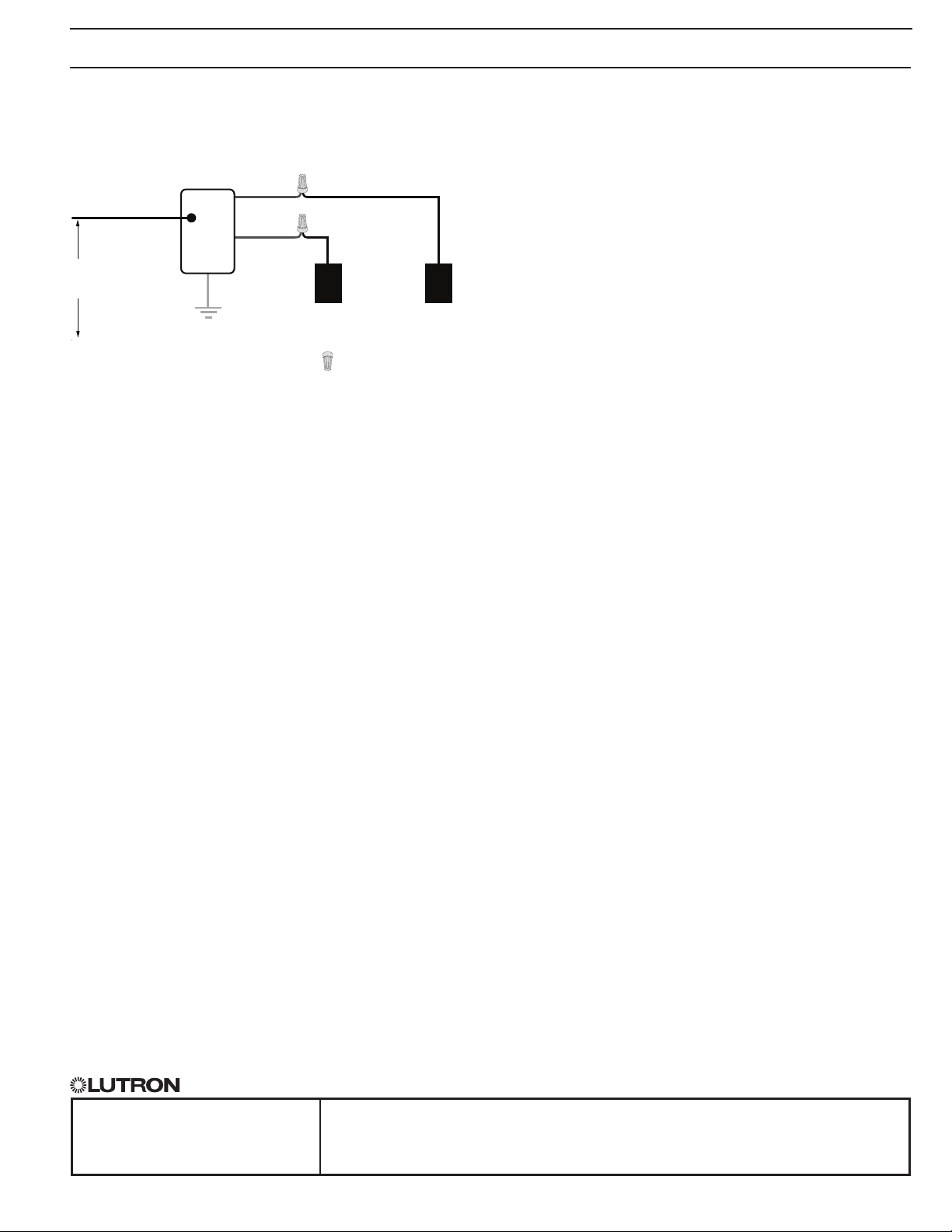

• Requires separate wires for fan and light.
• Not for use with DC motor fans or fans with
remote controls.
• Not for use with bathroom or kitchen
exhaust-type fans.
SPECIFICATION SUBMITTAL Page
Job Name:
Model Numbers:
Job Number:
