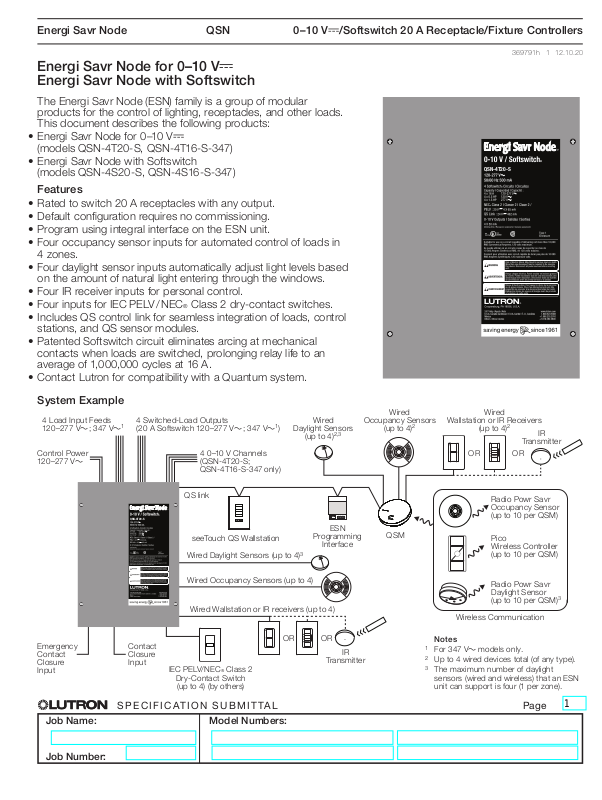

Lutron Energi Savr Node User Manual

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

QSN-4T20-S

1

QSN

369791h 1 12.10.20

Energi Savr Node for 0–10 V­Energi Savr Node with Softswitch

The Energi Savr Node (ESN) family is a group of modular
products for the control of lighting, receptacles, and other loads.
This document describes the following products:

• Energi Savr Node for 0–10 V-
(models QSN-4T20-S, QSN-4T16-S-347)

• Energi Savr Node with Softswitch
(models QSN-4S20-S, QSN-4S16-S-347)

Features

• Rated to switch 20 A receptacles with any output.

• Default configuration requires no commissioning.

• Program using integral interface on the ESN unit.

• Four occupancy sensor inputs for automated control of loads in
4 zones.

• Four daylight sensor inputs automatically adjust light levels based
on the amount of natural light entering through the windows.

• Four IR receiver inputs for personal control.

• Four inputs for IEC PELV / NEC® Class 2 dry-contact switches.

• Includes QS control link for seamless integration of loads, control
stations, and QS sensor modules.

• Patented Softswitch circuit eliminates arcing at mechanical
contacts when loads are switched, prolonging relay life to an
average of 1,000,000 cycles at 16 A.

• Contact Lutron for compatibility with a Quantum system.

QSN-4T20-S

System Example

4 Load Input Feeds
120 –277 V~ ; 347 V~

Control Power
120 –277 V~

Emergency
Contact
Closure
Input

4 Switched-Load Outputs

1

(20 A Softswitch 120–277 V~ ; 347 V~1)

4 0–10 V Channels
(QSN-4T20-S;
QSN-4T16-S-347 only)

QS link

QSN-4T20-S

seeTouch QS Wallstation

Wired Daylight Sensors (up to 4)

Wired Occupancy Sensors (up to 4)

Wired Wallstation or IR receivers (up to 4)

Contact
Closure
Input

IEC PELV/NEC® Class 2

Dry-Contact Switch

(up to 4) (by others)

Wired

Daylight Sensors

(up to 4)

Programming

Interface

3

OR

OR

Transmitter

2,3

ESN

Occupancy Sensors

(up to 4)

QSM

IR

Wired

2

Wallstation or IR Receivers

Notes

1

For 347 V~ models only.

2

Up to 4 wired devices total (of any type).

3

The maximum number of daylight

sensors (wired and wireless) that an ESN
unit can support is four (1 per zone).

Wired

2

(up to 4)

Transmitter

OR

Wireless Communication

OR

Radio Powr Savr
Occupancy Sensor
(up to 10 per QSM)

Pico
Wireless Controller
(up to 10 per QSM)

Radio Powr Savr
Daylight Sensor
(up to 10 per QSM)

IR

3

SPECIFICATION SUBMITTAL Page

Job Name:

Model Numbers:

Job Number:

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

2

QSN

369791h 2 12.10.20

Specifications

Regulatory Approvals

• UL® Listed

• CSA

• NOM

• Lutron Quality Systems registered to ISO 9001:2015

• Complies with requirements for use in other spaces
used for environmental air (plenums) per
NEC® 2017 300.22(C)(3)

• Meets the Canadian National Building Code plenum
requirements for a concealed space used as a plenum
within a floor or roof assembly

• For commercial use, Class A only

Power

• Control Power: 120 V~; 220–240 V~;
277 V~ 50 / 60Hz

• Lightning strike protection meets ANSI/IEEE standard

62.41-1991. Can withstand voltage surges of up to
6000V~ and current surges of up to 3000 A

• Current draw: 0.5A max

• 10-year power failure memory: restores lighting to
levels prior to power interruption

• Latching relays keep previously illuminated zones on
when control power feed is lost

Environment

• Ambient Temperature Operating Range:
32ºF to 104ºF (0ºC to 40ºC)

• Relative humidity: less than 90% non-condensing

• For indoor use only

• Thermal dissipation: 40 BTU / hr

Terminal Wiring

• Control Power Wiring: 14 AWGto 12AWG
(2.5 mm2 to 4.0mm2)

• Load Wiring: 14 AWGto 12AWG
(2.5 mm2 to 4.0mm2)

• 0–10 V Wiring: 20 AWGto 12AWG
(0.5 mm2to 4.0mm2)

• Input Group Wiring: 20 AWGto 12AWG
(0.5 mm2to 4.0mm2); maximum wire run length to
each input not to exceed 150ft (46m)

• QS Link Wiring: 22 AWGto 12AWG
(0.5 mm2to 4.0mm2)

• Contact Closure Wiring: 20 AWGto 12AWG
(0.5 mm2to 4.0mm2)

Physical Design and Mounting

• NEMA Type1, IP-20 protection

• Surface-mount

Load Types (relay ratings)

• Rated to control 120-277 V~ 20 A receptacles with
any output.

• When using the Energi Savr Node to control
receptacles, it may be used with, but is not limited to,
the following:

– Monitors
– Fans
– Humidifiers
– Printers

Note: Refer to the manufacturer’s guidelines for

acceptable switching methods.

• When using the Energi Savr Node to control
receptacles, it may NOT be suitable for use with
devices that require any of the following:

– Shut-down process before power is interrupted,

such as computers.

– Cool-down process before power is interrupted,

such as projectors.
– Programming, such as clocks or DVRs.
– Long warm-up cycle.

SPECIFICATION SUBMITTAL Page

Job Name:

Job Number:

Model Numbers:

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

3

QSN

369791h 3 12.10.20

Specifications (continued)

Load Types (relay ratings) (continued)

• Not for use with loads that present a hazard if

automatically energized (e.g., heaters).

• Any receptacles that are controlled by an automatic

control device must be marked with “uControlled”
located on the controlled receptacle outlet where visible
after installation as stated in 2017 NEC® Article 406.3(E).

Relay Ratings

120 – 277 V~

QSN-4S20-S
QSN-4T20-S
QSN-4S16-S-347

Load Type

Tungste n 20 A 16 A
AC General Use 20 A 16 A
Electric Discharge Lamp 16 A 16 A
Electric Ballast

(NEMA 410)
Resistive 20 A 16 A
Inductive 20 A 16 A

Motor

QSN-4T16-S-347

16 A 16 A

1.0 HP 120 V~

2.0 HP 277 V~

347 V~

QSN-4S16-S-347
QSN-4T16-S-347

—

Input Default Associations

Inputs/Outputs Zone 1 Zone 2 Zone 3 Zone 4

Group 1

Group 2

Group 3

Group 4

Occ
Daylight
IR
Switch
Occ
Daylight
IR
Switch
Occ
Daylight
IR
Switch
Occ
Daylight
IR
Switch
CCI
Emergency CCI

X
X
X
X

X
X
X
X

X
X
X
X

X
X
X

X
X X X X
X X X X

Softswitch 120 – 277V~; 374 V~

• For Softswitch relay ratings see the Relay Ratings
chart under Load Types section.

• Relay is mechanically held.

0–10 V- Output Ratings (QSN-4T20-S)

• Each output sinks up to 50mA maximum.

• Each output sinks current only (load device must
provide 10V- supply).

• Provides an IEC PELV / NEC® Class2 isolated 0–10V
output signal that conforms to IEC 60929.

Occupancy Sensors

• Up to 16 occupancy sensors can be programmed to
the Energi Savr Node device.

• Manual Programming: up to 4 occupancy sensors
wired directly to the Energi Savr Node device, up to
4 occupancy sensors wired to a QS Sensor Module
(QSM), and up to 10 wireless occupancy sensors
through the same QSM; the total programmed to the
Energi Savr Node device cannot exceed 16.

• HHD (iPod/iPhone) Programming: up to 16 occupancy
sensors from any source (wired directly to the
Energi Savr Node device, wired to any other
Energi Savr Node device, or wired/wireless from any
QSM on the QS link); the total programmed to the
Energi Savr Node device cannot exceed 16.

• Use Lutron occupancy sensors to control one or
more zones.

• Lutron occupancy sensors can be programmed to
automatically turn on the lights and receptacles in an
area when it becomes occupied and turn off the lights
and receptacles in an area after it becomes vacant.

• For spaces that require vacancy mode operation
for lights, a single occupancy sensor can control a
zone of lights in vacancy mode and control a zone of
receptacles in occupancy mode.

SPECIFICATION SUBMITTAL Page

Job Name:

Model Numbers:

Job Number:

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

4

QSN

369791h 4 12.10.20

Specifications (continued)

Occupancy Sensors (continued)

• Each of the four occupancy inputs can power one Lutron
occupant sensor.

• Each area’s occupied scene and unoccupied scene can
be programmed independently.

• Occupancy sensor must provide a dry-contact closure
or solid-state output.

• Additional occupancy sensors can be used with the
Energi Savr Node device. Refer to the “Programming
Options and Features” table for system rules.

seeTouch QS Controls

• seeTouch QS wallstations can be configured to control
ESN unit scenes or zones.

• In zone toggle mode, zone buttons can be assigned to
one or more zones on any ESN unit connected to the
QS Link.

• In scene mode, wallstations can be assigned to one or
more ESN units connected to the QS Link.

• LED indicator displays zone or scene status.

Table 1: seeTouch QS Wallstation Configurations

# Buttons

Wallstation
Function

Zone Toggle
Scene 1, Off (toggle) 1, Of f 1, 2, Off 1–4, Off N/A

1 2 3 5 7

    

IR Wallstation or Receiver Input

• Four inputs for IR receivers or wallstations for control of
lighting zones can be connected directly to the ESN unit

• Use Lutron Pico wired control or CC-4BRL-WH
wallstation to control one or more zones.

• Up to four additional wired wallstations or IR receivers
can be assigned when associated with a QSM.

• Associate additional QSMs and sensors/controls with
ESN unit when programming with an Apple iPod touch
or iPhone. Refer to “Programming Options” section
for details.

Daylight Sensors

• Lutron daylight sensors allow daylight harvesting with
programmable effect on light output.

• Four daylight sensors can be connected directly to
the ESN unit.

• Use Lutron EC-DIR-WH sensors to control one or
more zones.

• Alternatively, up to 4 sensors (Lutron wired daylight
sensors or Radio Powr Savr daylight sensors) can be
assigned when associated with a QSM.

• The maximum number of Lutron daylight sensors
(wired or wireless), either wired directly to the unit or
indirectly (associated with a QSM) cannot exceed 4.

• Associate additional QSMs and sensors / controls
with ESN unit when programming with an Apple iPod
touch or iPhone. Refer to “Programming Options”
section for details.

Contact Closure Input (CCI)

• Activate scenes using momentary or maintained
closures from an external device such as a timeclock.

• Start or stop Afterhours Mode using a maintained
closure.

• The attached device must provide a dry-contact
closure or solid-state output.

• Configurable for Normally-Open (NO) or
Normally-Closed (NC) operation.

• Input is miswire-protected up to 36 V-.

SPECIFICATION SUBMITTAL Page

Job Name:

Job Number:

Model Numbers:

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

5

QSN

369791h 5 12.10.20

Specifications (continued)

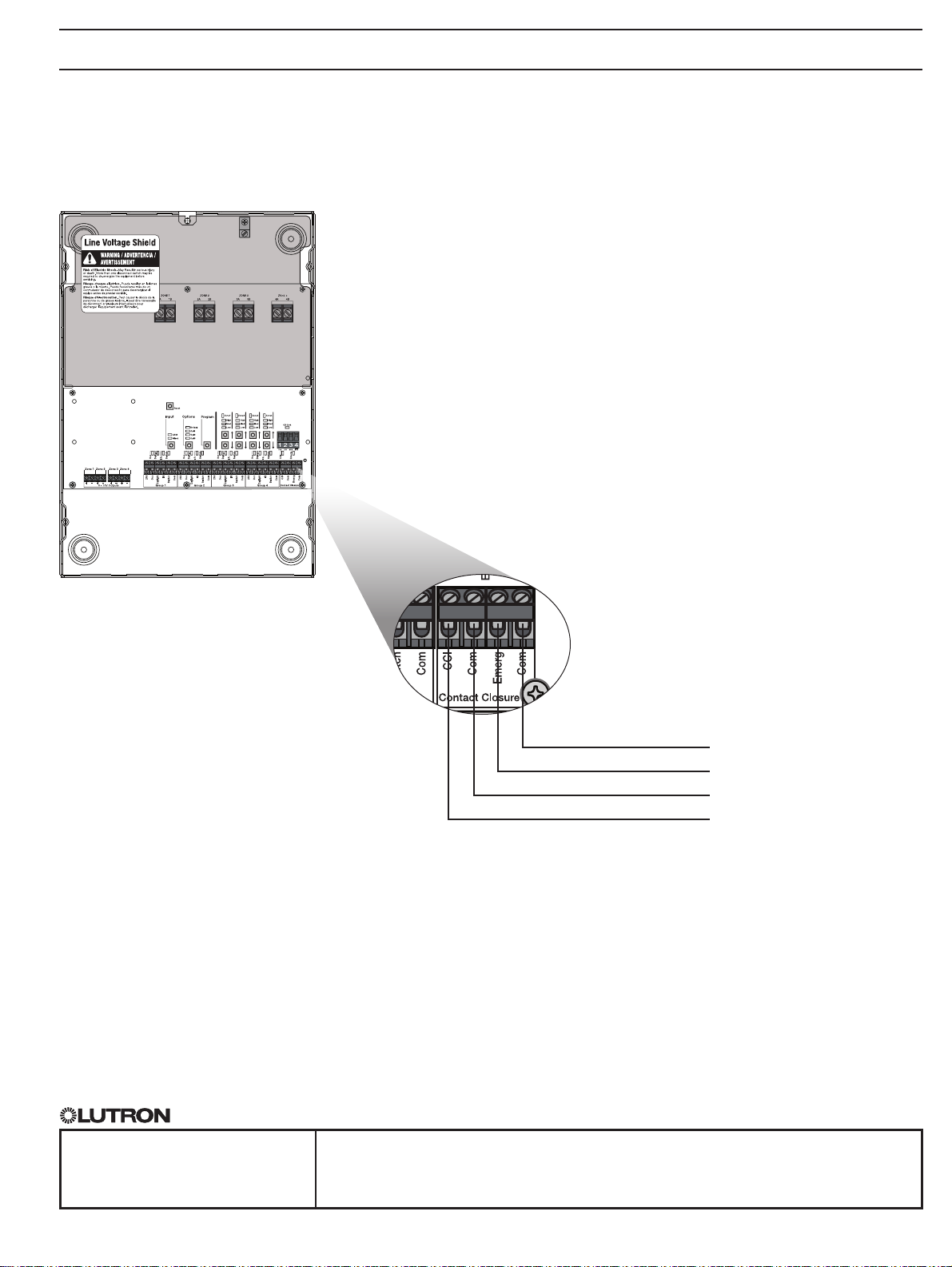

Emergency Contact Closure Input

• By default, contact closure input from Lutron Emergency
Lighting Interface (LUT-ELI-3PH), security, or fire
alarm systems turns all zones on to full output when
emergency state is detected.

• Emergency contact closure input is normally closed (NC).
The ESN unit is shipped with a jumper pre-installed.

• Response of each zone is configurable.

• Attached devices, by default, will go to maximum output
and ignore control inputs.

• No operations will be allowed until emergency signal
is cleared.

• The attached device must provide a dry-contact closure
or solid-state output.

• Input is miswire-protected up to 36 V-.

• Emergency CCI cannot control other ESN units.

Functionality with GRAFIK Eye QS

• ESN unit follows GRAFIK Eye QS scene activations when
associated with the GRAFIK Eye QS.

• ESN unit responds to commands initiated by the GRAFIK
Eye QS astronomic time clock when associated with the
GRAFIK Eye QS.

• ESN unit operates in afterhours mode when associated
with a GRAFIK Eye QS that is in afterhours mode.

Functionality with QSE-IO

• ESN unit responds to scene commands initiated by the
QSE-IO if the QSE-IO DIP switches have been set to
either scene selection mode, zone toggle mode, partition
mode, or occupancy sensor mode.

Functionality with QSE-CI-NWK-E

• Integrate ESN unit with touchscreens, PCs, A / V
systems, or other digital systems and devices.

• Recall scenes and set / adjust zone levels.

IEC PELV / NEC® Class 2 Dry-Contact Switches

• Four inputs for IEC PELV / NEC® Class 2 dry-contact
switches can be assigned to turn on and off one or
more zones.

• Configure for momentary or maintained operation.

QS Link Limits

• Each ESN unit can provide up to 14 Power Draw
Units (PDUs) for other QS devices. Refer to the QS
Link Power Draw Unit specification submittal (Lutron
P/N369405) for more information concerning PDUs.

• The QS Link can have up to 100 devices and
100 zones.

• Each ESN unit counts as 1 device towards the
100device limit.

• Each ESN unit counts as 4 zones towards the
100zone limit.

QSM (QS Sensor Module)

• Use the QSM to integrate Radio Powr Savr
occupancy sensors, Radio Powr Savr daylight
sensors, and Pico wireless controllers to control
zones on the ESN unit.

• Associate 1 QSM per ESN unit with manual
programming.

• Associate multiple QSMs per ESN unit with Apple
iPod touch or iPhone programming (requires
QSE-CI-AP-D and Wi-Fi router). See “Programming
Options” for details.

• Assign up to 10 Radio Powr Savr occupancy sensors
per ESN unit via QSM.

• Assign up to 4 Radio Powr Savr daylight sensors per
ESN unit via QSM.

• Assign up to 10 Pico wireless controllers per ESN unit
via QSM.

• The sensors and Pico wireless controllers associated
with the QSM should be mounted within 60 ft (18 m)
line of sight, or 30 ft (9 m) through walls, of the QSM.

• Wire and power up to 4 wired sensors per QSM
– Daylight Sensors
– Occupancy Sensors
– Infrared (IR) Receivers or Wallstations

• Refer to QSM Specification Submittal for
more information.

SPECIFICATION SUBMITTAL Page

Job Name:

Job Number:

Model Numbers:

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

6

QSN

369791h 6 12.10.20

Programming Options

Manual Programming

• Use buttons on the front of the ESN unit.

• Use manual programming in installations with only one
ESN unit and with one QSM or fewer on the QS link.

HHD Programming

• Requires ESN Programming Interface (QSE-CI-AP-D).

• Requires Apple iPod touch or iPhone mobile
digital device.

• Use the intuitive programming application for the
Apple iPod touch or iPhone to program systems with
multiple ESN units and QSMs on the QS link.

• Wireless router required for programming with an
Apple iPod touch or iPhone only.

• Wireless router may be removed for normal operation.

• Ethernet connection may be made via an ESN
Programming Interface (QSE-CI-AP-D) or an ESN QS
unit with integral Ethernet jack.

• Lutron recommends that an ESN Programming
Interface (or ESN QS unit with Ethernet jack) be wired
to an Ethernet jack in the space for ease of access
and proximity to power for the wireless router.

• Works with any standard wireless router that supports
multicast packets.

• Apple iPod touch or iPhone can program all ESN QS
units connected to an ESN Programming Interface via
the QS Link (except when part of a Quantum system).

• ESN app is required and is available from the Apple
App Store online marketplace.

ESN Unit ESN Unit ESN Unit

QS Link

QS Link

ESN Programming Interface

QSE-CI-AP-D

1

Standard CAT5 / CAT5E cable: Total length not to exceed 300 f t (100 m)

2

Note: ESN units are not designed to exist on an open network. Connection to an open network

could result in reduced performance and Ethernet connectivity issues.

Dedicated Ethernet Connection

for ESN units

Wireless Router

(by others)

1,2

QSM QSM QSM

Apple iPod touch or iPhone

mobile digital device

SPECIFICATION SUBMITTAL Page

Job Name:

Model Numbers:

Job Number:

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

7

QSN

369791h 7 12.10.20

Programming Options and Features

Manual Programming HHD Programming

ESN units connected to 1
QS Link

QSMs connected to 1 QS link Not more than 1 Multiple (100 QS devices limit applies)

Wired Occupancy Sensors

System Limits • 4 connected directly to ESN unit;

Can be assigned to… Any zone(s) on the ESN unit Zones on ESN unit or share to other ESN units on same

Occupancy Dependency
Supported

Wireless Occupancy Sensors

System Limits Associate 10 occupancy sensors to QSM

Can be assigned to… Any zone(s) on the ESN unit Zones on ESN unit or share to other ESN units on same

Occupancy Dependency
Supported

Wired Daylight Sensors

System Limits Maximum of 1 daylight sensor per zone

Can be assigned to… Any zone(s) on the ESN unit Zones on ESN unit or share to other ESN units on same

Disable daylighting in Scenes No Yes

Wireless Daylight Sensors

System Limits • Maximum of 1 daylight sensor per zone;

Can be assigned to… Any zone(s) on the ESN unit Zones on ESN unit or share to other ESN units on same

Disable daylighting in Scenes No Yes

Pico Wireless Controllers

System Limits Associate 10 Pico wireless controllers to

Can be assigned to… Any zone on the local ESN unit Zones on ESN unit or share to other ESN units on same

IR Receivers and Wallstations

System Limits • 4 connect directly to the ESN unit;

Can be assigned to… Any zone on the local ESN unit Zones on ESN unit or share to other ESN units on same

Not more than 1 Multiple (100 QS devices and 100 zone limits apply)

• Up to 4 wired to QSM

No Yes

to control zones on the ESN unit

No Yes

connected directly to the ESN unit or to the
QSM

• Associate wireless daylight sensors to
the QSM

QSM to control zones on the ESN unit

• Up to 4 wired to the QSM

• Requires ESN Programming Interface QSE-CI-AP-D

• Requires Apple iPod touch or iPhone mobile digital device

• Maximum of 16 occupancy sensors per ESN

• Up to 100 total occupancy sensors per QS link (wired
and wireless)

QSlink

• Maximum of 16 occupancy sensors per ESN

• Up to 100 total occupancy sensors per QS link (wired
and wireless)

QSlink

• Maximum of 2 daylight sensors per zone;

• Up to 100 total daylight sensors per QS link (wired
and wireless)

QSlink

• Maximum of 2 daylight sensors per zone;

• Associate up to 10 wireless daylight sensors per QSM;

• Up to 100 total daylight sensors per QS link (wired
and wireless)

QSlink

Up to 100 total controls per QS link (wired wallstations, Pico
wireless controllers, IR receivers)

QSlink

Up to 100 total controls per QS link (wired wallstations, Pico
wireless controllers, IR receivers)

QSlink

SPECIFICATION SUBMITTAL Page

Job Name:

Model Numbers:

Job Number:

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

8

QSN

369791h 8 12.10.20

Programming Options and Features (continued)

Manual Programming HHD Programming

NEC® Dry-Contact Switches Inputs

Can be assigned to… Any zone(s) on the connected ESN Any zone(s) on the connected ESN

Contact Closure Input

Can be assigned to… Any zone(s) on the ESN unit Any or all local ESN unit zones
Functions • Sweep to off

Afterhours Configuration • Afterhours timeout: 15 minutes

Emergency Contact Closure Input

Can be assigned to… Any zone(s) on the ESN unit Any or all local ESN zones
Emergency Light level Configurable Configurable

seeTouch QS wallstations

Scene Keypads assigned to… Any zone(s) on the ESN unit Any zone(s) on one or more ESN units on the QS link
Scene + Off Keypads

assigned to…
Zone toggle keypad buttons

assigned to…
Change Keypad to Scene

or Zone
Changing keypads to shade,

panic, fine tune

Zone Configuration Parameters

Load type 0–10, 10–0, or switched 0–10, 10 –0, or switched
High-end trim Adjustable Adjustable
Low-end trim Adjustable Adjustable
Absolute minimum level Adjustable Adjustable

Scenes

Available scenes Scenes 1–16 + Off Scenes 1–16 + Off
GRAFIK Eye QS Share scenes, timeclock events, afterhours

QSE-IO Scene, zone toggle, occupancy Scene, zone toggle, occupancy
QSE-CI-NWK-E Yes Yes

• Enabl e / disable af terhours

• Turn on to preset and turn off

• Blink-warn timeout: 5 minutes

Any zone(s) on the ESN unit Any zone(s) on one or more ESN units on the QS link

Any zone(s) on the ESN unit Any zone(s) on on or more ESN units on the link

Yes Yes

No Yes

events, or remote zone mapping to ESN
units on QS Link

• Requires ESN Programming Interface QSE-CI-AP-D

• Requires Apple iPod touch or iPhone mobile digital device

• Sweep to off

• Enabl e / disable af terhours

• Turn on to preset and turn off

• Load shed

Afterhours timeout and blink-warn timeouts are
configurable

Share scenes, timeclock events, afterhours events, or
remote zone mapping to ESN units on QS Link

SPECIFICATION SUBMITTAL Page

Job Name:

Model Numbers:

Job Number:

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

9

QSN

369791h 9 12.10.20

Mechanical Dimensions

All dimensions shown as in (mm)

9.25

(235)

7. 5 0

(190.50 )

Line Voltage Shield

1.80

(45.72)

1.03

(26.04)

0.88

(22.23)

1.41

(35.81)

1.0 0

(25.40)

Do not use
side knockouts

3.14

(79.71)

Job Name:

11. 2 5
(286)

0.20 (5.16) Ø

13.25

(336.55)

SPECIFICATION SUBMITTAL Page

Model Numbers:

Job Number:

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

10

QSN

369791h 10 12.10.20

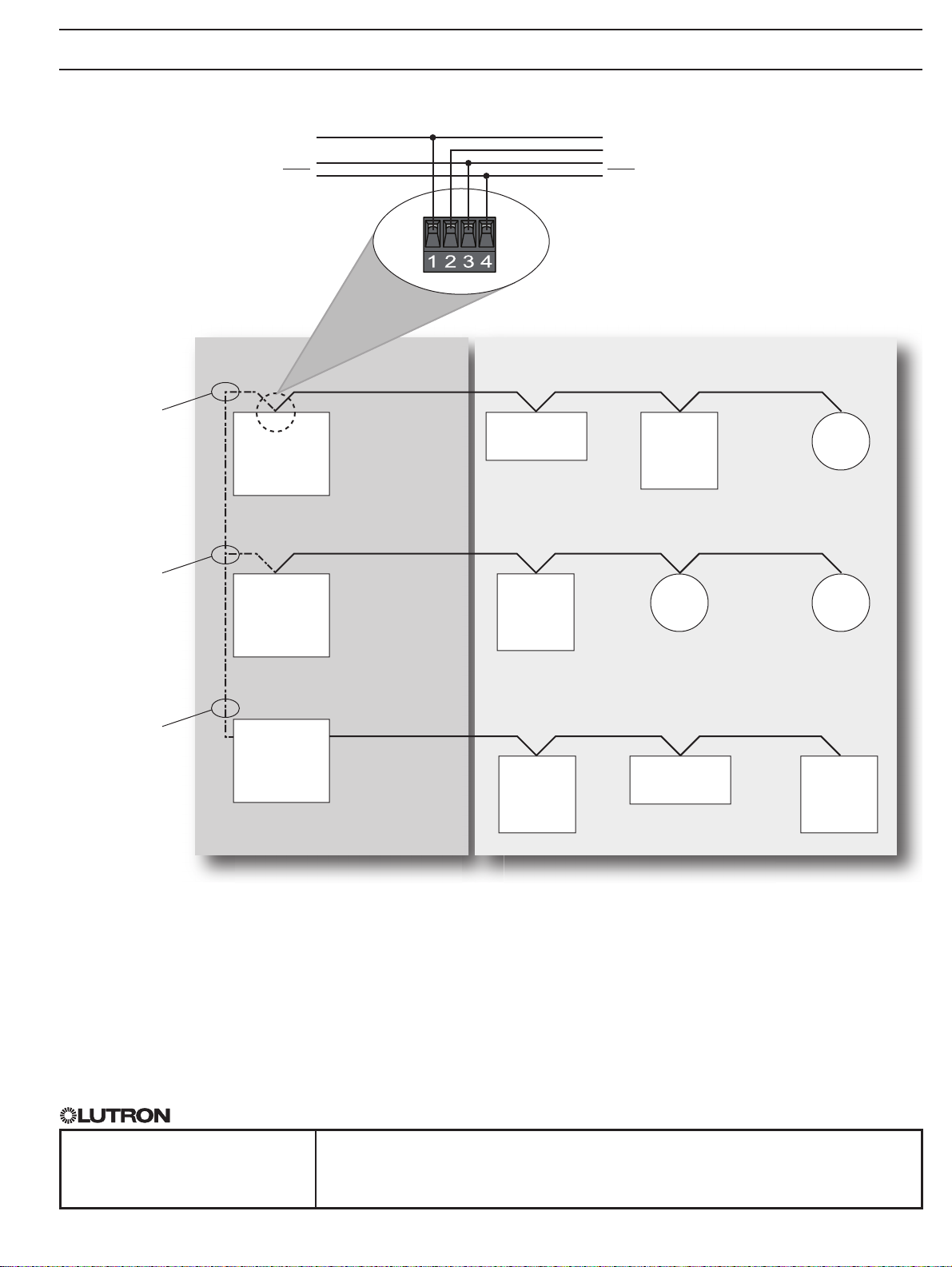

Wiring: QS Link

Only terminals 1, 3, and 4 connected
between devices that supply PDUs

Terminal 2 NEVER connected

between devices that supply PDUs

Devices that
supply PDUs

Terminal 2 (+24 V)
NEVER connected*

ESN QS unit

QS Link: no terminal 2QS Link: no terminal 2

Terminal 2 (+24 V)
NEVER connected*

ESN QS unit

COM

MUX
MUX

QS Link: all 4 terminals

QS Link: all 4 terminals

Devices that
consume PDUs

QS Inpu t /

Output Interface

Wired

QS Keypad

COM
+24 V
MUX
MUX

All 4 terminals connected to QS link
devices that consume PDUs

Wired

QS Keypad

QSM QSM

QSM

Terminal 2 (+24 V)
NEVER connected*

QS Link

power supply**

QS Link Wiring Rules
* Terminal 2 (+24 V) should NEVER be connected between devices that supply PDUs.
** For QS Link power supply wiring connection details, refer to the installation instructions for the specific power supply model being used.

QS Link: all 4 terminals

Wired

QS Keypad

QS Inpu t /

Output Interface

SPECIFICATION SUBMITTAL Page

Job Name:

Model Numbers:

Wired

QS Keypad

Job Number:

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

11

QSN

369791h 11 12.10.20

Wiring: IEC PELV / NEC® Class 2 Inputs

Input Group Wiring

• 20to 12AWG (0.5to 4.0mm2)

• Strip length: 1/4in (6mm)

• Torque: 5 in-lb (0.5 N•m)

Note: There are four input groups;
each group has the same inputs as shown in the diagram below.

Group 1 shown Group 2 shown

COM: Common

SWITCH: IEC PELV / NEC® Class 2

IR: IR Receiver*

DAYLIGHT: Daylight Sensor

OCC: Occupancy Sensor

20 V: 20 V-

Note: Maximum wire run length to each
input not to exceed 150 ft (46 m).

Red

Yell o w

IR Transmitter IR Transmitter

* Note: Only one IR device may be connected per input. If the IR signal from a daylight sensor is

connected, a wall control may not be connected to the same input, and vice-versa.

** Connect the gray wire on -R model occupancy sensors.

Black

LUTRON

Red

Occupancy SensorDaylight / I R Sensor*

Black

Blue/Gray**

IEC PELV / NEC® Class 2

Dry-Contact Switch

20 V

Red

White

IR Receiver or

Wired Wallstation*

IR

COM

Black

Job Name:

Job Number:

SPECIFICATION SUBMITTAL Page

Model Numbers:

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

12

QSN

369791h 12 12.10.20

Wiring: Contact Closure Inputs (CCI and Emerg)

Contact Closure Wiring

• 20 to 12AWG (0.5 to 4.0mm2)

• Strip length: 1/4in (6mm)

• Torque: 5 in-lb (0.5 N•m)

Job Name:

Job Number:

COM: Common

EMERG: Emergency

COM: Common

CCI: Contact Closure Input

SPECIFICATION SUBMITTAL Page

Model Numbers:

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

13

QSN

369791h 13 12.10.20

Wiring: 4 Circuits, Multiple Feeds

Load Wiring

• Two (2) 14 to 12AWG (2.5 to 4.0mm2)

• Strip length: 3/8in (8.5mm)

• Torque: 7 in-lb (0.79 N•m)

Distribution Panel

Hot
Hot
Hot
Hot
Hot

Neutral

Neutral
Neutral
Neutral

Neutral

Ground

Neutral Wires

Ground

Lug

Attention Installer

Any receptacles that are controlled by an automatic control device
must be marked with “uControlled” located on the controlled
receptacle outlet where visible after installation as stated in 2017 NEC®
Article 406.3(E).

Zone 1

Zone 2

Zone 3

Zone 4

Hot Feed (1A)

Hot Feed (2A)

Switched Hot (1B)

Switched Hot (2B)

Hot Feed (4A)

Hot Feed (3A)

Switched Hot (4B)

Switched Hot (3B)

u

Controlled

Load

Load

u

Controlled

Hot

1A 2A 3A 4A1B 2B 3B 4B

Neutral

Zone Switching:

120 –277 V~

0–10 V Zones:
(QSN-4T20-S)

Zone

Zone

1

2

Zone

Zone

1

2

+

–––––––

+++

0–10 V Outputs

Zone

3

Zone

3

+++

Zone

Zone

4

+

4

–

0–10 V - Wiring

(QSN-4T20-S)

0–10 V- Wiring (QSN-4T20-S)

• 20 to 12AWG (0.5 to 4.0mm2)

• Strip length: 1/4in (6mm)

• Torque: 5 in-lb (0.5 N•m)

• 0-10 V- control wires for zones 1-4 can be installed using NECR
Class 1 or Class 2 wiring methods.

• 0–10 V zones 1–4 are not isolated from each other.

• Negative (–) terminals are not internally connected to each other;
both positive (+) and negative (–) connections must be made.

WARNING . Entra pment / Fire Ha zard. To avoid the risk of entrapment, serious injur y, or death, these controls must not be used to control

equipment which is not visible from every control location or which could create hazardous situations such as entrapment if operated accidentally.
Examples of such equipment which must not be operated by these controls include (but are not limited to) motorized gates, industrial doors, space
heaters, etc. It is the installer’s responsibility to ensure that the equipment being controlled is visible from every control location and that only suitable
equipment is connected to these controls. Failure to do so could result in serious injury or death.

• Follow all national and local codes for separation requirements.

• If any pair of 0-10 V- control wires are installed using NECR Class 1
wiring methods, then these wires must be physically separated from
all other Class 2 wiring in the Energi Savr Node in accordance with
NECR guidance on separation of Class 1 and 2 wires.

• If one pair of 0-10 V- control wires are wired using NECR
Class 1 wiring methods, then all pairs of 0-10 V- control wires must
be installed using NECR Class 1 wiring methods.

Job Name:

Job Number:

SPECIFICATION SUBMITTAL Page

Model Numbers:

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

14

QSN

369791h 14 12.10.20

Wiring: 4 Circuits, Multiple Feeds, 120 V~ Receptacles and 347 V~ Lighting

Load Wiring

• Two (2) 14 to 12AWG (2.5 to 4.0mm2)

• Strip length: 3/8in (8.5mm)

• Torque: 7 in-lb (0.79 N•m)

120 V~
Distribution Panel

Hot
Hot

Neutral

Ground

Hot
Hot

Neutral

Ground

347 V~
Distribution Panel

Neutral Wires

Ground

Lug

Attention Installer

Any receptacles that are controlled by an automatic control device
must be marked with “uControlled” located on the controlled
receptacle outlet where visible after installation as stated in 2017 NEC®
Article 406.3(E).

Zone 1

Zone 2

Zone 3

Zone 4

Hot Feed (1A)

Hot Feed (2A)

Switched Hot (1B)

Switched Hot (2B)

Hot Feed (4A)

Hot Feed (3A)

Switched Hot (4B)

Switched Hot (3B)

u

Controlled

Load

Load

u

Controlled

Hot

Neutral

Zone Switching:

120 –347 V~

0–10 V Zones:
(QSN-4T16-S-347)

1A 2A 3A 4A1B 2B 3B 4B

Zone

1

Zone

1

+

–––––––

+++

0–10 V Outputs

Zone

2

Zone

2

Zone

3

Zone

3

+++

Zone

Zone

4

+

4

–

0–10 V- Wiring (QSN-4T16-S-347)

Voltage Barrier
Separates 120 V~ and 347 V~
as required by 2012 Canadian
Electrical Code, Article 12-3030

0–10 V - Wiring

(QSN-4T16-S-347)

• 20 to 12AWG (0.5 to 4.0mm2)

• Strip length: 1/4in (6mm)

• Torque: 5 in-lb (0.5 N•m)

• Connect only IEC PELV / NEC® Class 2 circuits or connect only non-IEC
PELV / NEC® Class 2 circuits to 0–10 V zones 1–4.

• 0–10 V zones 1–4 are not isolated from each other.

• Negative (–) terminals are not internally connected to each other; both
positive (+) and negative (–) connections must be made.

• Follow all national and local codes for separation requirements.

WARN ING. Entr apment / Fire Ha zard. To avoid the risk of entrapment, serious injury, or death, these controls must not be used to
control equipment which is not visible from every control location or which could create hazardous situations such as entrapment if
operated accidentally. Examples of such equipment which must not be operated by these controls include (but are not limited to)
motorized gates, industrial doors, space heaters, etc. It is the installer’s responsibility to ensure that the equipment being controlled is
visible from every control location and that only suitable equipment is connected to these controls. Failure to do so could result in
serious injury or death.

Job Name:

Job Number:

SPECIFICATION SUBMITTAL Page

Model Numbers:

®

Energi Savr Node 0 –10 V-/Softswitch 20 A Receptacle/Fixture Controllers

15

QSN

369791h 15 12.10.20

Wiring: 4 Circuits, Single Feed

Load Wiring

• Two (2) 14 to 12AWG (2.5 to 4.0mm2)

• Strip length: 3/8in (8.5mm)

• Torque: 7 in-lb (0.79 N•m)

Distribution Panel A

Hot
Neutral

Ground

Distribution Panel B

Hot
Neutral
Ground

Ground

Load

Load

Load

Load

Neutral Wires

Hot

Neutral

Zone Switching:

120 –277 V~; 347 V~

0–10 V Zones:
(QSN-4T20-S)

Ground

Lug

Hot Feed (1A)

Switched Hot (1B)

Switched Hot (2B)

1A 2A 3A 4A1B 2B 3B 4B

Zone

1

Zone

1

+++++++

–––––––

0–10 V Outputs

Zone

2

Zone

2

Zone

3

Zone

3

Zone

Switched Hot (3B)

4

+

Zone

4

–

Switched Hot (4B)

0–10 V - Wiring

(QSN-4T20-S)

0–10 V- Wiring (QSN-4T20-S)

• 20 to 12AWG (0.5 to 4.0mm2)

• Strip length: 1/4in (6mm)

• Torque: 5 in-lb (0.5 N•m)

• Connect only IEC PELV / NEC® Class 2 circuits or connect only non-IEC
PELV / NEC® Class 2 circuits to 0–10 V- zones 1–4.

• 0–10 V- zones 1–4 are not isolated from each other.

• Negative (–) terminals are not internally connected to each other; both
positive (+) and negative (–) connections must be made.

• Follow all national and local codes for separation requirements.

The Lutron logo, Lutron, Energi Savr Node, Radio Powr Savr, Softswitch, Pico, Quantum, seeTouch, and GRAFIK Eye are trademarks or registered trademarks of Lutron Electronics
Co., Inc. in the US and/or other countries.
Apple, iPhone, and iPod touch are trademarks of A pple Inc., registered in the U.S. and other countries.
App Store is a service mark of Apple, Inc.

All other product names, logos, and brands are propert y of their respective owners.

SPECIFICATION SUBMITTAL Page

Job Name:

Model Numbers:

Job Number:
