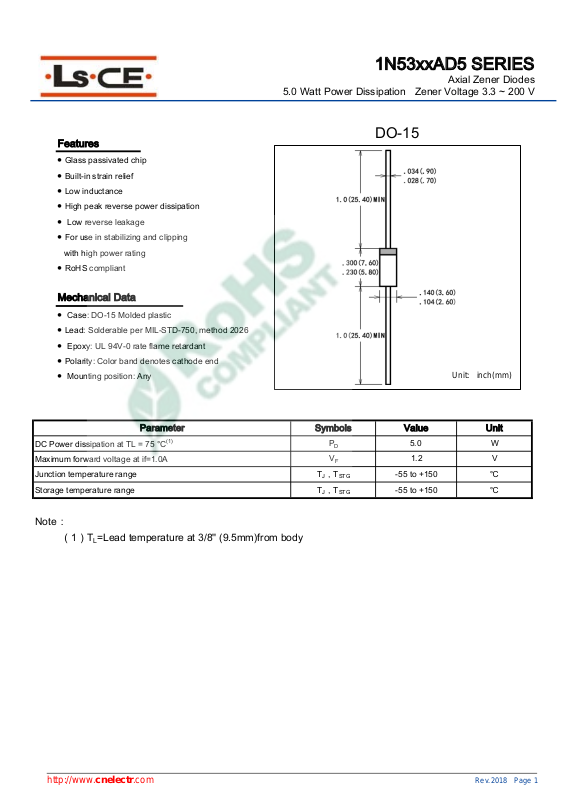

Page 1
1N53xxAD5 SERIES
5.0 Watt Power Dissipation
Axial Zener Diodes
Zener Voltage 3.3 ~ 200 V
Features
● Glass passivated chip
● Built-in strain relief
● Low inductance
● High peak reverse power dissipation
● Low reverse leakage
● For use in stabilizing and clipping
with high power rating
● RoHS compliant
Mechanical Data
● Case: DO-15 Molded plastic
● Lead: Solderable per MIL-STD-750, method 2026
● Epoxy: UL 94V-0 rate flame retardant
● Polarity: Color band denotes cathode end
● Mounting position: Any
DO-15
Unit: inch(mm)
Parameter
DC Power dissipation at TL = 75 °C
Maximum forward voltage at if=1.0A
Junction temperature range
Storage temperature range
(1)
Note：
（1）TL=Lead temperature at 3/8'' (9.5mm)from body
Symbols Value Unit
P
V
TJ，T
TJ，T
D
F
STG
STG
5.0 W
1.2 V
-55 to +150 ℃
-55 to +150 ℃
http://www.cnelectr.com
Rev.2018 Page 1
Page 2
5.0 Watt Power Dissipation

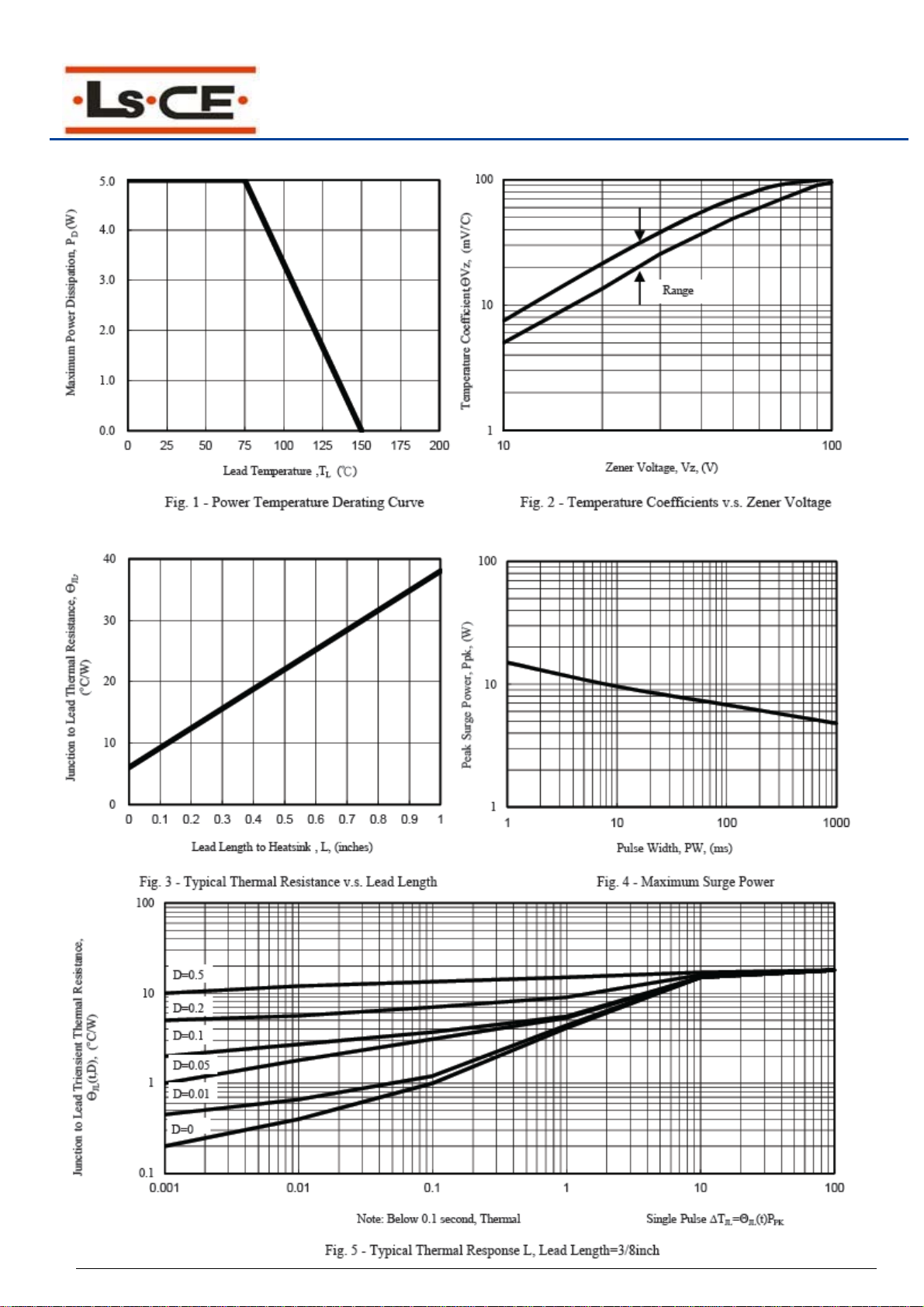

Ratings and Characteristics Curves (TA=25℃ unless otherwise noted)
1N53xxAD5 SERIES
Axial Zener Diodes
Zener Voltage 3.3 ~ 200 V
http://www.cnelectr.com
Rev.2018 Page 2
Page 3
1N53xxAD5 SERIES
5.0 Watt Power Dissipation
Axial Zener Diodes
Zener Voltage 3.3 ~ 200 V
Part Number
1N5333AD5
1N5334AD5
1N5335AD5
1N5336AD5
1N5337AD5
1N5338AD5
1N5339AD5
1N5340AD5
1N5341AD5
1N5342AD5
1N5343AD5
1N5344AD5
1N5345AD5
1N5346AD5
1N5347AD5
1N5348AD5
1N5349AD5
1N5350AD5
1N5351AD5
1N5352AD5
1N5353AD5
1N5354AD5
1N5355AD5
1N5356AD5
1N5357AD5
1N5358AD5
1N5359AD5
1N5360AD5
1N5361AD5
1N5362AD5
1N5363AD5
1N5364AD5
1N5365AD5
1N5366AD5
1N5367AD5
1N5368AD5
1N5369AD5
1N5370AD5
1N5371AD5
1N5372AD5
1N5373AD5
1N5374AD5
1N5375AD5
1N5376AD5
1N5377AD5
1N5378AD5
1N5379AD5
1N5380AD5
1N5381AD5
1N5382AD5
1N5383AD5
1N5384AD5
1N5385AD5
1N5386AD5
1N5387AD5
1N5388AD5
Nominal Zener Voltage @I
V
Z AVE.
(V) V
Z MIN.
(V) V
Z MAX.
T
IZT(mA)
(V)
Maximum Zener Impedance
Z
(Ω)
Z
ZT MAX.
@I
ZT
ZK MAX.
@I
(Ω)
ZK
IZK(mA)
Maximum Reverse
Leakage Current
IR(uA)
@V
VR(V)
R
IZM（mA）
3.3 3.14 3.47 380 3.0 400 1.00 300 1.0 1437
3.6
3.9
4.3
4.7
5.1
5.6
6.0
6.2
6.8
7.5
8.2
8.7
9.1
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
19.0
20.0
22.0
24.0
25.0
27.0
28.0
30.0
33.0
36.0
39.0
43.0
47.0
51.0
56.0
60.0
62.0
68.0
75.0
82.0
87.0
91.0
100.0
110.0
120.0
130.0
140.0
150.0
160.0
170.0
180.0
190.0
200.0
3.42 3.78 350 2.5 500 1.00 150 1.0 1317
3.71 4.10 320 2.0 500 1.00 50 1.0 1216
4.09 4.52 290 2.0 500 1.00 10 1.0 1103
4.47 4.94 260 2.0 450 1.00 5 1.0 1009
4.85 5.36 240 1.5 400 1.00 1.0 1.0 930
5.32 5.88 220 1.0 400 1.00 1.0 2.0 856
5.70 6.30 200 1.0 300 1.00 1.0 3.0 790
5.89 6.51 200 1.0 200 1.00 1.0 3.0 765
6.46 7.14 175 1.0 200 1.00 10.0 5.2 700
7.13 7.88 175 1.5 200 1.00 10.0 5.7 630
7.79 8.61 150 1.5 200 1.00 10.0 6.2 580
8.27 9.14 150 2.0 200 1.00 10.0 6.6 545
8.65 9.56 150 2.0 150 1.00 7.5 6.9 520
9.50 10.50 125 2.0 125 1.00 5 7.6 475
10.45 11.55 125 2.5 125 1.00 5 8.4 430
11.40 12.60 100 2.5 125 1.00 2 9.1 395
12.35 13.65 100 2.5 100 1.00 1 9.9 365
13.30 14.70 100 2.5 75 1.00 1 10.6 340
14.25 15.75 75 2.5 75 1.00 1 11.5 315
15.20 16.80 75 2.5 75 1.00 1 12.2 295
16.15 17.85 70 2.5 75 1.00 0.5 12.9 280
17.10 18.90 65 2.5 75 1.00 0.5 13.7 265
18.05 19.95 65 3.0 75 1.00 0.5 14.4 250
19.00 21.00 65 3.0 75 1.00 0.5 15.2 237
20.90 23.10 50 3.5 75 1.00 0.5 16.7 216
22.80 25.20 50 3.5 100 1.00 0.5 18.2 198
23.75 26.25 50 4.0 110 1.00 0.5 19.0 190
25.65 28.35 50 5.0 120 1.00 0.5 20.6 176
26.60 29.40 50 6.0 130 1.00 0.5 21.2 170
28.50 31.50 40 8.0 140 1.00 0.5 22.8 158
31.35 34.65 40 10.0 150 1.00 0.5 25.1 144
34.20 37.80 30 11.0 160 1.00 0.5 27.4 132
37.05 40.95 30 14.0 170 1.00 0.5 29.7 122
40.85 45.15 30 20.0 190 1.00 0.5 32.7 110
44.65 49.35 25 25.0 210 1.00 0.5 35.8 100
48.45 53.55 25 27.0 230 1.00 0.5 38.8 93.0
53.20 58.80 20 35.0 280 1.00 0.5 42.6 86.0
57.00 63.00 20 40.0 350 1.00 0.5 45.5 79.0
58.90 65.10 20 42.0 400 1.00 0.5 47.1 76.0
64.60 71.40 20 44.0 500 1.00 0.5 51.7 70.0
71.25 78.75 20 45.0 620 1.00 0.5 56.0 63.0
77.90 86.10 15 65.0 720 1.00 0.5 62.2 58.0
82.65 91.35 15 75.0 760 1.00 0.5 66.0 54.5
86.45 95.55 15 75.0 760 1.00 0.5 69.2 52.5
95.00 105.0 12 90.0 800 1.00 0.5 76.0 47.5
104.5 115.5 12 125.0 1000 1.00 0.5 83.6 43.0
114.0 126.0 10 170.0 1150 1.00 0.5 91.2 39.5
123.5 136.5 10 190.0 1250 1.00 0.5 98.8 36.6
133.0 147.0 8 230.0 1500 1.00 0.5 106 34.0
142.5 157.5 8 330.0 1500 1.00 0.5 114 31.6
152.0 168.0 8 350.0 1650 1.00 0.5 122 29.4
161.5 178.5 8 380.0 1750 1.00 0.5 129 28.0
171.0 189.0 5 430.0 1750 1.00 0.5 137 26.4
180.5 199.5 5 450.0 1850 1.00 0.5 144 25.0
190.0 210.0 5 480.0 1850 1.00 0.5 152 23.6
Maximum
DC Zener
Current
http://www.cnelectr.com
Rev.2018 Page 3
