Page 1

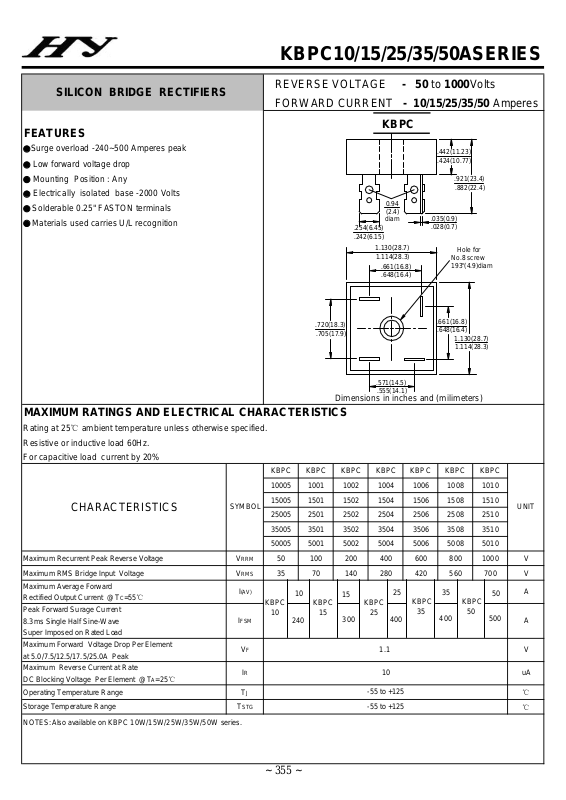

KBPC10/15/25/35/50ASERIES
KBPC
10
15
25
240
400
500
SILICON BRIDGE RECTIFIERS
FEATURES
●Surge overload -240~500 Amperes peak
● Low forward voltage drop
● Mounting Position : Any
● Electrically isolated base -2000 Volts
● Solderable 0.25" FASTON terminals
● Materials used carries U/L recognition
REVERSE VOLTAGE - 50 to 1000Volts
FORWARD CURRENT - 10/15/25/35/50 Amperes
.442(11.23)
.424(10.77)
.921(23.4)
.882(22.4)
0.94
.720(18.3)
.705(17.9)
.254(6.45)
.242(6.15)
1.130(28.7)
1.114(28.3)
(2.4)
diam
.661(16.8)
.648(16.4)
.035(0.9)
.028(0.7)
Hole for
No.8 screw
193"(4.9)diam
.661(16.8)
.648(16.4)
1.130(28.7)
1.114(28.3)
.571(14.5)
.555(14.1)
Dimensions in inches and (milimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Resistive or inductive load 60Hz.
For capacitive load current by 20%
KBPC KBPC KBPC KBPC KBPC KBPC KBPC
10005 1001 1002 1004 1006 1008 1010
CHARACTERISTICS
Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V
Maximum RMS Bridge Input Voltage VRMS 35 70 140 280 420 560 700 V
Maximum Average Forward
Rectified Output Current @TC=55℃
Peak Forward Surage Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load
Maximum Forward Voltage Drop Per Element
at 5.0/7.5/12.5/17.5/25.0A Peak
Maximum Reverse Current at Rate
DC Blocking Voltage Per Element @TA=25℃
Operating Temperature Range TJ
Storage Temperature Range TSTG
NOTES:Also available on KBPC 10W/15W/25W/35W/50W series.
SYMBOL
I(AV)
IFSM
VF
IR
15005 1501 1502 1504 1506 1508 1510
25005 2501 2502 2504 2506 2508 2510
35005 3501 3502 3504 3506 3508 3510
50005 5001 5002 5004 5006 5008 5010
KBPC
10
KBPC
15
KBPC
25
300 400
1.1 V
10 uA
-55 to +125
-55 to +125
KBPC
35
35
KBPC
50
UNIT
50
A
A
℃
℃
~ 355 ~
Page 2
RATING AND CHARACTERISTIC CURVES
KBPC25
KBPC50
KBPC35
500
600
KBPC50
KBPC25/35
KBPC15
KBPC10/15/25/35/50A SERIES
FIG.1-MAXIMUM FORWARD SURGE CURRENT
50
400
300
AMPERES
200
100
PEAK FORWARD SURGE CURRENT ,
0
1
KBPC10
10010
NUMBER OF CYCLES AT 60Hz
FIG.3-TYPICAL FORWARD
CHARACTERISTICS
40
30
20
AMPERES
10
KBPC10
0
AVERAGE FORWARD OUTPUT CURRENT ,
FIG.2- DERATING CURVE
OUTPUT RECTIFIED CURRENT
50
CASE TEMPERATURE,℃
100
150
KBPC35/50
100
10
1.0
AMPERES
0.1
INSTANTANEOUS FORWARD CURRENT ,
0.01
0.6
0.4
INSTANTANEOUS FORWARD VOLTAGE,VOLTS
0.8 1.0 1.2 1.4
1.6
KBPC15
KBPC25
KBPC10
FIG.4-TYPICAL REVERSE
CHARACTERISTICS
10
1.0
0.1
MICROAMPERES
INSTANTANEOUS REVERSE CURRENT,
0.01
0
PERCENT OF RATED PEAK REVERSE VOLTAGE
TJ=25℃
12020 40 60 80 100 140
~ 356 ~
