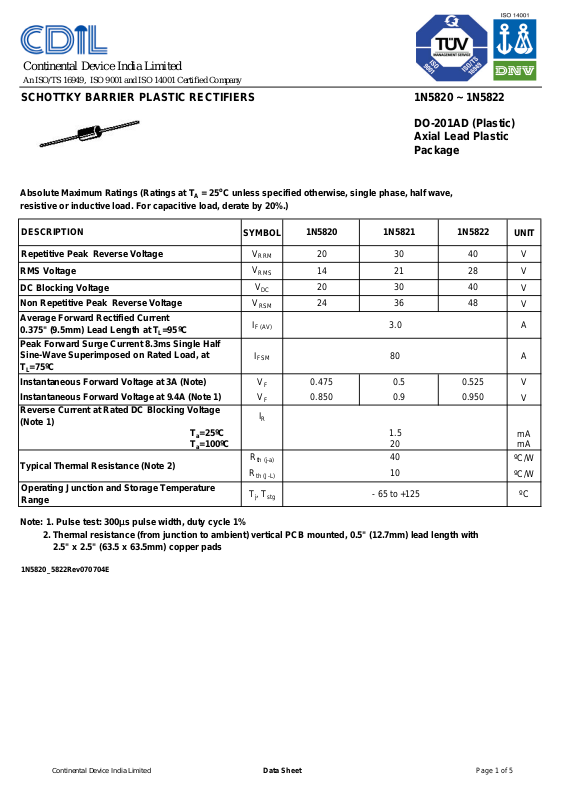

SCHOTTKY BARRIER PLASTIC RECTIFIERS
1N5820 ~ 1N5822
DO-201AD (Plastic)
Axial Lead Plastic
Package
T
a
=25ºC
T
a
=100ºC
mA
2.5" x 2.5" (63.5 x 63.5mm) copper pads
Average Forward Rectified Current
20
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
Absolute Maximum Ratings (Ratings at TA = 25oC unless specified otherwise, single phase, half wave,
resistive or inductive load. For capacitive load, derate by 20%.)
DESCRIPTION
Repetitive Peak Reverse Voltage
RMS Voltage
DC Blocking Voltage
Non Repetitive Peak Reverse Voltage 24 36 48
0.375" (9.5mm) Lead Length at TL=95ºC
SYMBOL UNIT
V
RRM
V
RMS
V
DC
V
RSM
I
F (AV)
1N5820 1N5821 1N5822
20 30 40
14 21 28
20 30 40
3.0
Peak Forward Surge Current 8.3ms Single Half
Sine-Wave Superimposed on Rated Load, at
I
FSM
80
TL=75ºC
Instantaneous Forward Voltage at 3A (Note)
Instantaneous Forward Voltage at 9.4A (Note 1)
Reverse Current at Rated DC Blocking Voltage
(Note 1)
V
F
V
F
I
R
0.475
0.5
0.850 0.9
0.525
0.950
1.5
Typical Thermal Resistance (Note 2)
Operating Junction and Storage Temperature
Range
R
th (j-a)
R
th (J-L)
Tj, T
stg
40
10
- 65 to +125
V
V
V
V
A
A
V
V
mA
ºC/W
ºC/W
ºC
Note: 1. Pulse test: 300µµs pulse width, duty cycle 1%
2. Thermal resistance (from junction to ambient) vertical PCB mounted, 0.5" (12.7mm) lead length with
1N5820_5822Rev070704E
Continental Device India Limited
Data Sheet Page 1 of 5
Page 2
DIM
Min
Max
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company

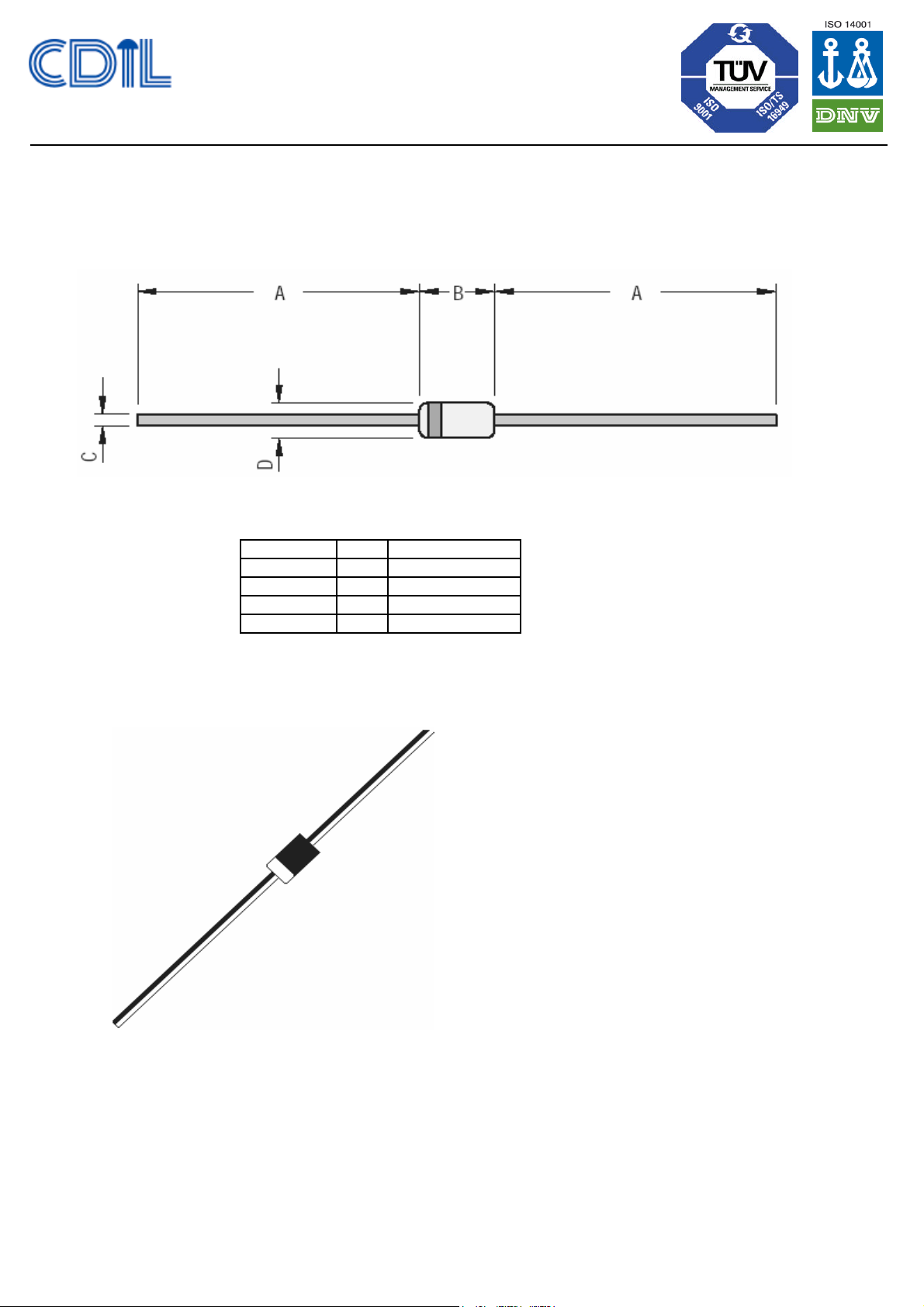

DO-201AD Axial Plastic Package
Cathode is marked by a Band
A 25.40
B 8.50 9.50
C 1.20 1.30
D 2.00 2.70
All Dimensions are in mm
Continental Device India Limited Data Sheet Page 2 of 5
Page 3
DO-201AD Package and Packaging
10.8K

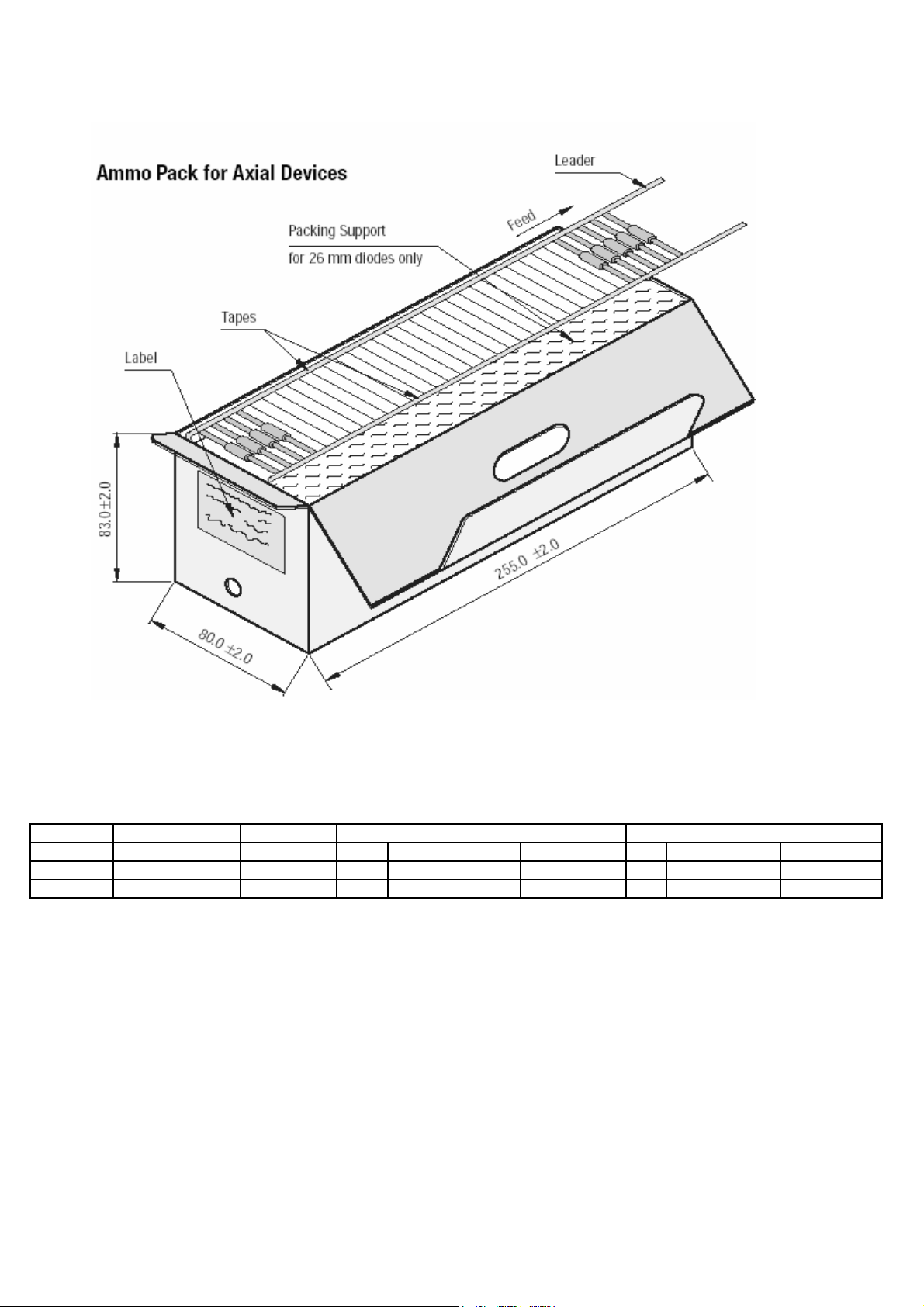

AMMO PACKING FOR DO-201AD
All Dimensions are in mm
Packaging Information
Package/ Packaging Type Std. Packing
Case Type Qty Qty Size L x W x H Gross Weight Qty Size L x W x H Gross Weight
DO-201AD T&A 1,200 1.2K 29 x 8 x 15 1.68
T & A: Tape and Ammo Pack
Inner Carton Outer Carton
(cm) (Kg) (cm) (Kg)
46 x 36 x 25 15.3
Continental Device India Limited Data Sheet Page 3 of 5
Page 4
DO-201AD Package and Packaging

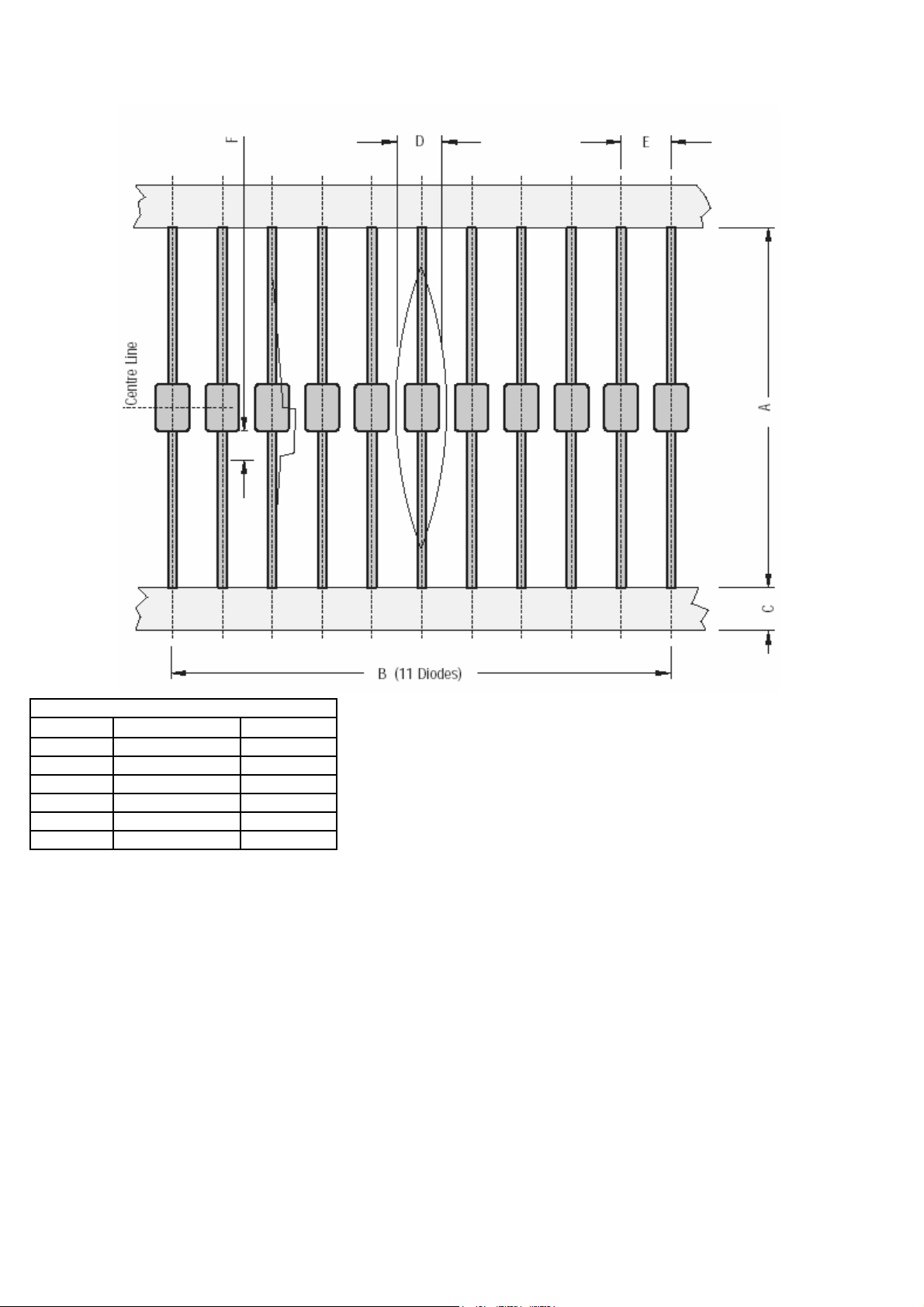

AXIAL TAPE FOR DO-201AD
DO-201AD 52 mm Tape
DIM Min Max
A 50.0 54.0
B 95.0 105.0
C 5.60 6.50
D 1.5R
E 9.50 10.50
F 1.25
All Dimensions are in mm
TAPE SPECIFICATIONS
1. 300 mm (Min) leader tape on every roll.
2. No. of empty places allowed 0.25% without consecutive empty places.
3. Ends of leads shall normally not protrude beyond the tapes.
4. Components shall be held sufficiently in the tape or tapes so that
they can not come free in normal handling.
Continental Device India Limited Data Sheet Page 4 of 5
Page 5
Customer Notes
1N5820 ~ 1N5822
DO-201AD (Plastic)
Axial Lead Plastic
Package
