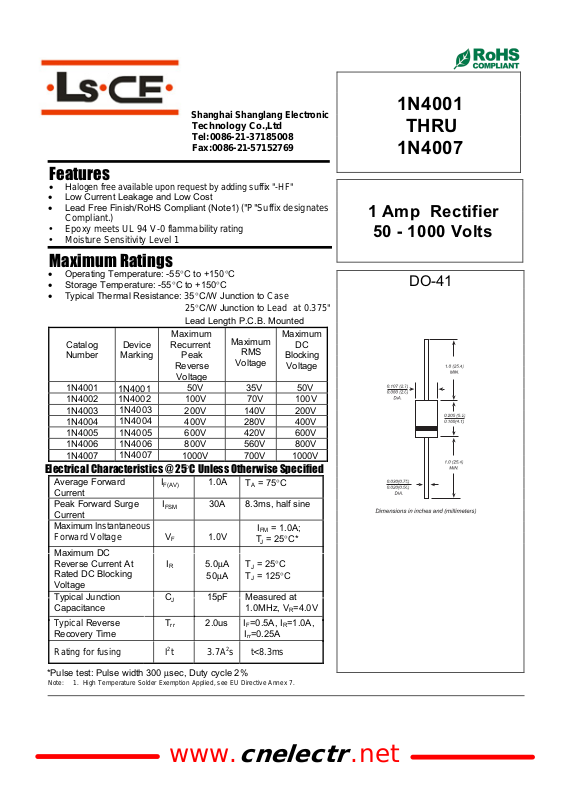

Shanghai Shanglang Electronic
Technology Co.,Ltd
Tel:0086-21-37185008
Fax:0086-21-57152769
Features
• Halogen free available upon request by adding suffix "-HF"
• Low Current Leakage and Low Cost
• Lead Free Finish/RoHS Compliant (Note1)
Compliant.)
• Epoxy meets UL 94 V-0 flammability rating
• Moisture Sensitivity Level 1
("P"Suffix designates
Maximum Ratings
• Operating Temperature: -55°C to +150°C
• Storage Temperature: -55°C to +150°C
• Typical Thermal Resistance: 35°C/WJunction toCase
25°C/WJunction toLead at 0.375"
Lead Length P.C.B. Mounted
Maximum
Catalog
Number
1N4001 50V 35V 50V
1N4002 1N4002 100V 70V 100V
1N4003 200V 140V 200V
1N4004 400V 280V 400V
1N4005 600V 420V 600V
1N4006 800V 560V 800V
1N4007 1000V 700V 1000V
Device
Marking
1N4001
1N4003
1N4004
1N4005
1N4006
1N4007
Recurrent
Peak
Reverse
Voltage
Maximum
RMS
Voltage
Electrical Characteristics @ 25°C Unless Otherwise Specified
Average Forward
Current
Peak Forward Surge
Current
Maximum Instantaneous
Forward Voltage V
Maximum DC
Reverse Current At
Rated DC Blocking
Voltage
Typical Junction
Capacitance
Typical Reverse
Recovery Time
I
F(AV)
I
FSM
F
I
R
C
J
T
rr
1.0A
30A 8.3ms, half sine
1.0V
5.0µA
50µA
15pF Measured at
2.0usIF=0.5A, IR=1.0A,
TA= 75°C
TJ= 25°C
TJ= 125°C
1.0MHz, V
=0.25A
I
rr
Maximum
Blocking
Voltage
I
= 1.0A;
FM
TJ = 25°C*
R
DC
=4.0V
1N4001
THRU
1N4007
1 Amp Rectifier
50 - 1000 Volts

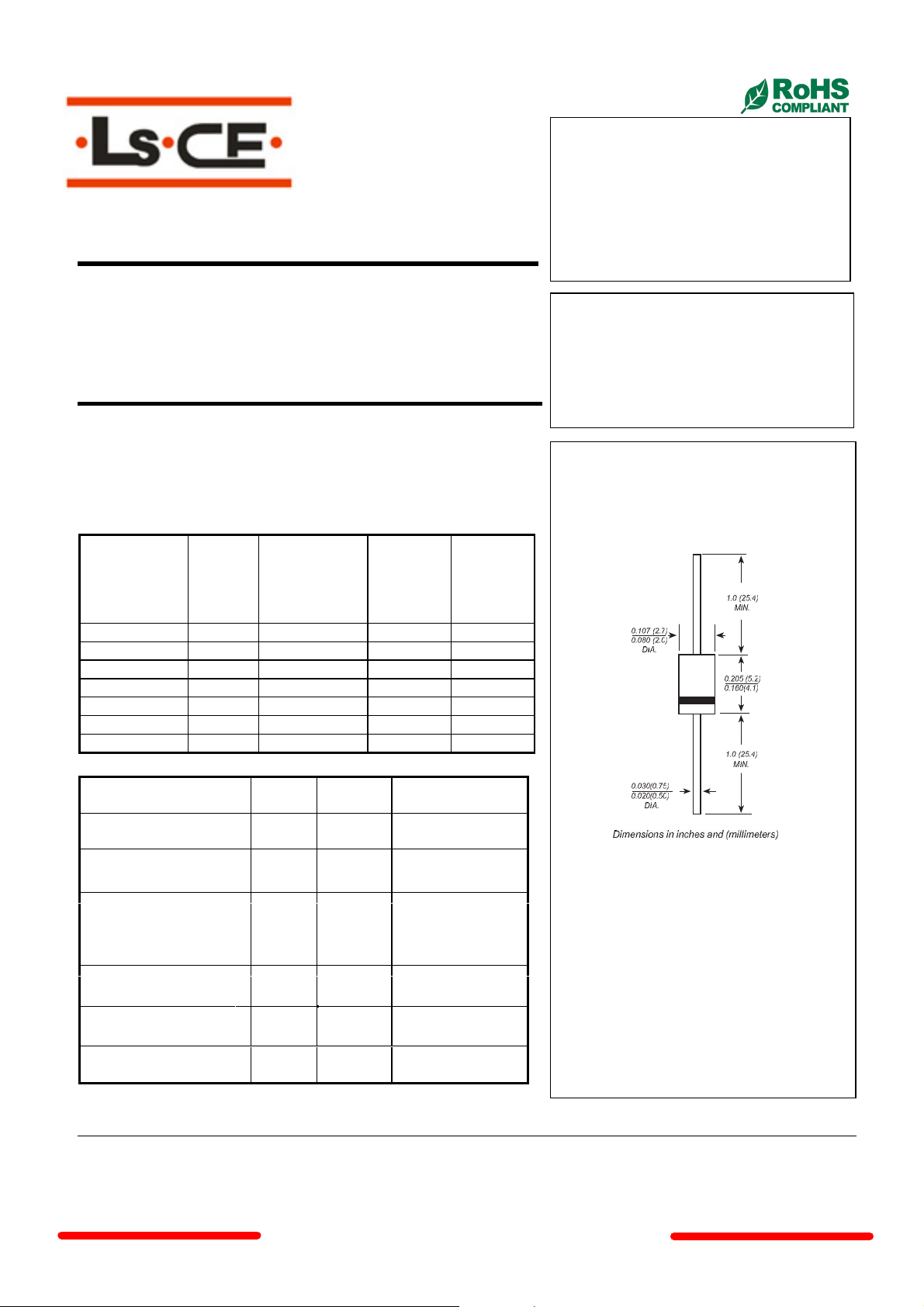

DO-41
Rating for fusing I2t 3.7A2s t<8.3ms
*Pulse test: Pulse width 300 µsec, Duty cycle 2%
Note: 1. High Temperature Solder Exemption Applied, see EU Directive Annex 7.
www.
cnelectr
.net
Page 2
1N4001 thru 1N4007

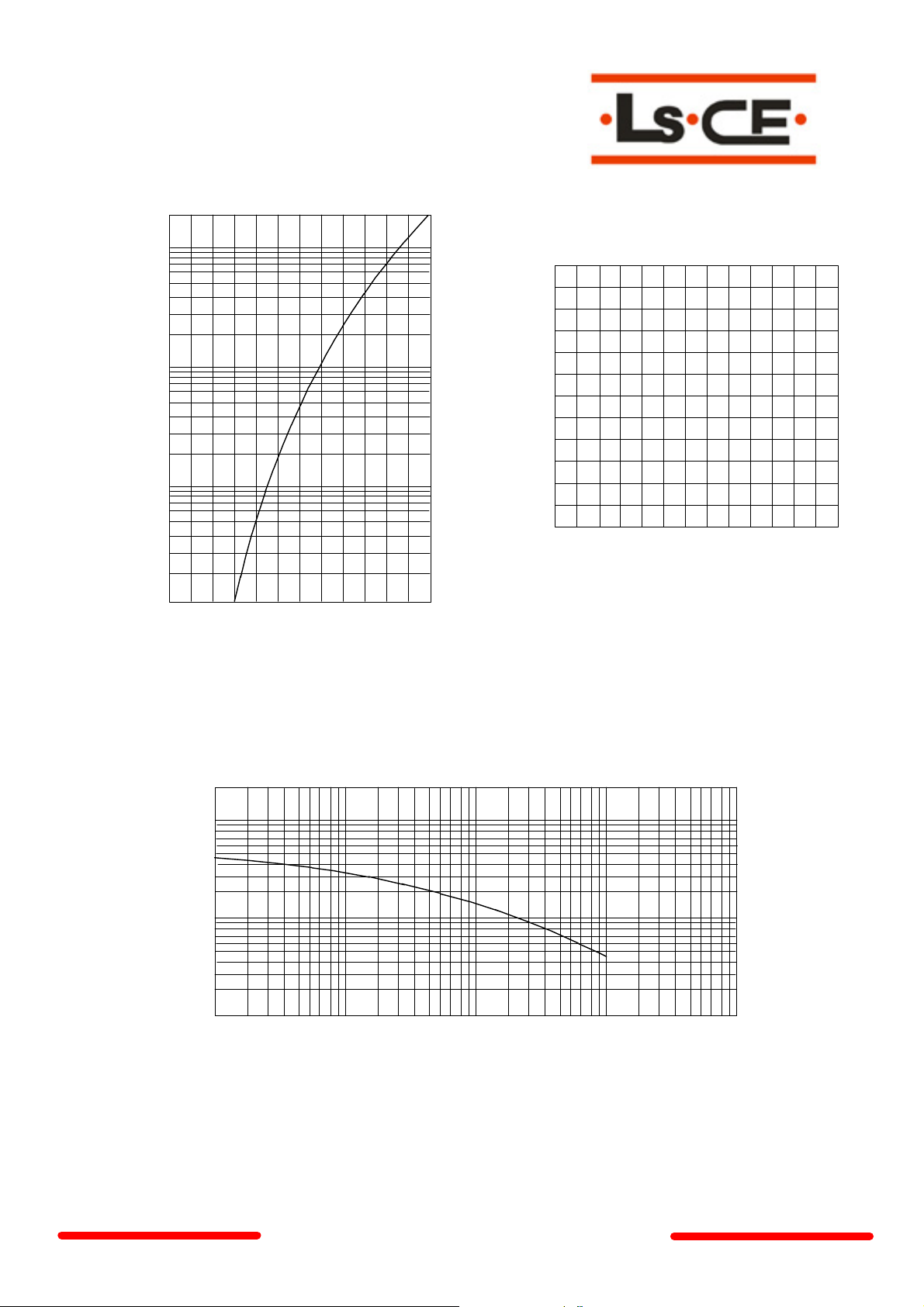

Figure 1
Typical Forward Characteristics
20
10
6
Figure 2
Forward Derating Curve
1.2
Amps
4
2
1
.6
.4
.2
.1
.06
.04
.02
.01
.4 .6
Instantaneous Forward Current - Amperes versus
Instantaneous Forward Voltage - Volts
25°C
.8
1.0 1.2
Volts
1.4
Amps
1.0
.8
.6
.4
.2
Single Phase, Half Wave
60Hz Resistive or Inductive Load
0
0
°C
Average Forward Rectified Current - Amperesversus
Ambient Temperature -°C
150
17550 75 100 125
Figure 3
Junction Capacitance
100
60
40
20
pF
10
6
4
2
1
.1 .2 1.4 2 10 20
T
=25°C
J
Volts
Junction Capacitance - pF versus
Reverse Voltage - Volts
404 100
200
400 1000
www.
cnelectr
.net
Page 3
1N4001 thru 1N4007

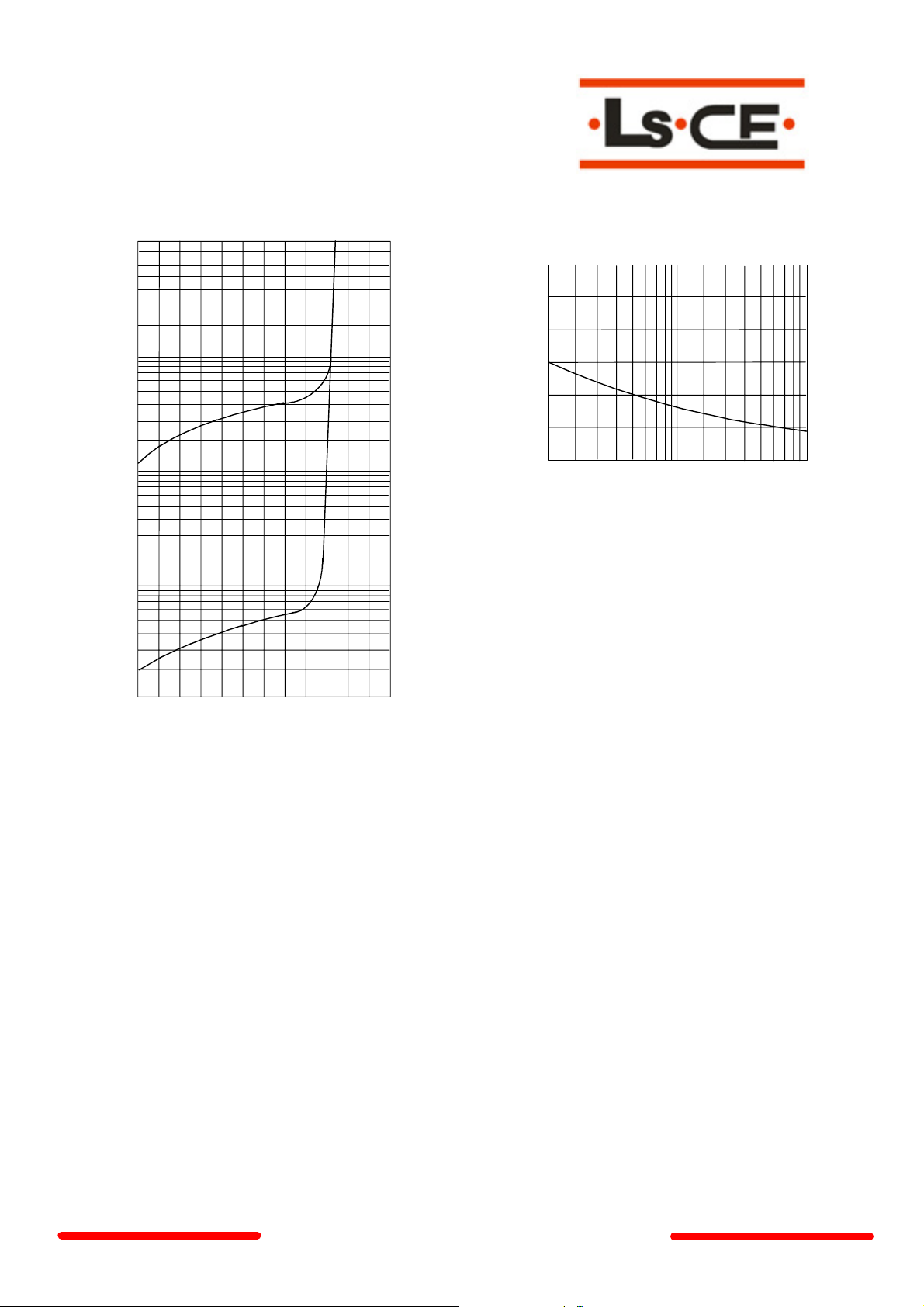

Figure 4
Typical Reverse Characteristics
100
60
40
Figure 5
Peak Forward Surge Current
60
50
µAmps
20
10
6
4
T
=100°C
A
2
1
.6
.4
.2
=25°C
T
A
.1
.06
.04
.02
.01
20
40 60 80
Volts
Instantaneous Reverse Leakage Current - MicroAmperes versus
Percent Of Rated Peak Reverse Voltage - Volts
100
120
140
Amps
40
30
20
10
0
1 100
Peak Forward Surge Current - Amperes versus
Number Of Cycles At 60Hz - Cycles
4
6 10 20
2
8
Cycles
40
60
80
