LED DALI DT8 to DT6 converter - User Manual
Item no.: LC-004-805
1. Product Description
DALI-interface module for the conversion of DALI DT8-Tc commands to DALI DT6 commands.
For tunable white control of 2 DALI DT6 1-channel LED power supplies. Das Modul findet in
einer Unterputzdose Platz. Konfiguartion via PC Softwaretool DALI-Cockpit und mit DALI USB
Interface.
3. Description
2. Specifications
1. conversion of DALI DT8-Tc commands to DALI DT6 commands
2. for tunable white control of 2 DALI DT6 1-channel LED power supplies
3. 1 DALI Address (DT8, Type Tc)
4. Separate outputs for coldwhite and warmwhite channel (factory default)
5. Alternative output mode: dimlevels for coldwhite and warmwhite channel are sent to
groups (G0 and G1)
6. Easy system expansion with the help of DALI Expander, DALI Expander 3 or Repeater PS
7. configuration with PC-software tool DALI-Cockpit and DALI USB interface
power supply aus DALI-Bus
typ. current consumption 2mA + Strombeda<rf Subkreis
Input/Output DALI / 2x DALI
number of DALI addresses 1 (DT8)
max. wire cross-section upto 1,5 mm2
dimensions (l x w x h) in mm 59 x 33 x 15mm
weight 14g
4. Dimensions
Installation
The devicd is supplied by the DALI-signal line. The current consumption depends on the number
of connected DALI ballasts. The own consumption is 2mA.
If more dimmers shoudl be connected to the output the number of led power supplies can be
increased easily with the help of DALI Repeater PS, DALI Expander or DALI Expander 3.
Function
The DALI DT8 to DT6 converter represents one control gear on the DALI-line (DT8, Mode Tc).
Commands for diming and colour temperature adaption are converted in dimlevels for a cold
white and a warm white channel. Depending on the output mode the dimlevels are sent either
broadcast on two separate outputs (Out1: cold; Out2: warm, factory default) or on both outputs
to group G0 (cold) and G1 (warm).
The output mode (DT8 to DT6 Trnsmit Mode) can be set easily in the DALI-Cockpit in the tab
„Extensions“.
5. Instruction
DALI DT8 auf DT6 Umsetzer
DALI DT8 to DT6 converter
LC-004-805
DALI
OUT 1
DT6 | CW
DA
DA
DA
DALI
IN
DT8
DALI
OUT 2
DT6 | WW
DA
DA
DA
DA
DA
DALI
AKTOR
CW
DA
DA
DALI
AKTOR
WW
Bei mehr als 1 DALI Aktor pro Ausgang am DT8 auf DT6 Umsetzer wird ein Expander benötigt
With more than 1 DALI device per output on the DT8 to DT6 converter, an expander is required
DALI DT8 auf DT6 Umsetzer
DALI DT8 to DT6 converter
LC-004-805
DALI
OUT 1
DT6 | CW
DA
DA
DA
DALI
IN
DT8
DALI
OUT 2
DT6 | WW
DA
DA
DA
PE
L
230V~
POWER
N
PE
L
230V~
POWER
N
DA
DA
DALI
AKTOR 1
CW
DA
DA
DALI
AKTOR 2
CW
DA
DA
DALI
AKTOR 3
CW
DA
DA
DALI
AKTOR 3
WW
DA
DA
DALI
AKTOR 2
WW
DA
DA
DALI
AKTOR 1
WW
DA
DA
DALI Tuneable
White Controller
DT8
Bei 1 DALI Aktor pro Ausgang am DT8 auf DT6 Umsetzer
With 1 DALI device per output on the DT8 to DT6 converter
OUTPUT
DALI
DALI Expander
Output: max. 64 DALI Aktoren
LC-004-164
DA
DA
POWER
IN
230V~
L’
N
DA
DA
DALI
INPUT
DA
DA
L
SWITCH
DIM
DA
DA
OUTPUT
DALI
DALI Expander
Output: max. 64 DALI Aktoren
LC-004-164
DA
DA
POWER
IN
230V~
L’
N
DA
DA
DALI
INPUT
DA
DA
L
SWITCH
DIM
DA
DA
DALI PS2 Bus Stromversorgung
Leuchteneinbau | Bus Power Supply
Fitting In Luminaires
LC-004-150
DA
POWER
IN
230V~
DA
L
N
DALI
OUTPUT
max.
220mA
ca.16V=

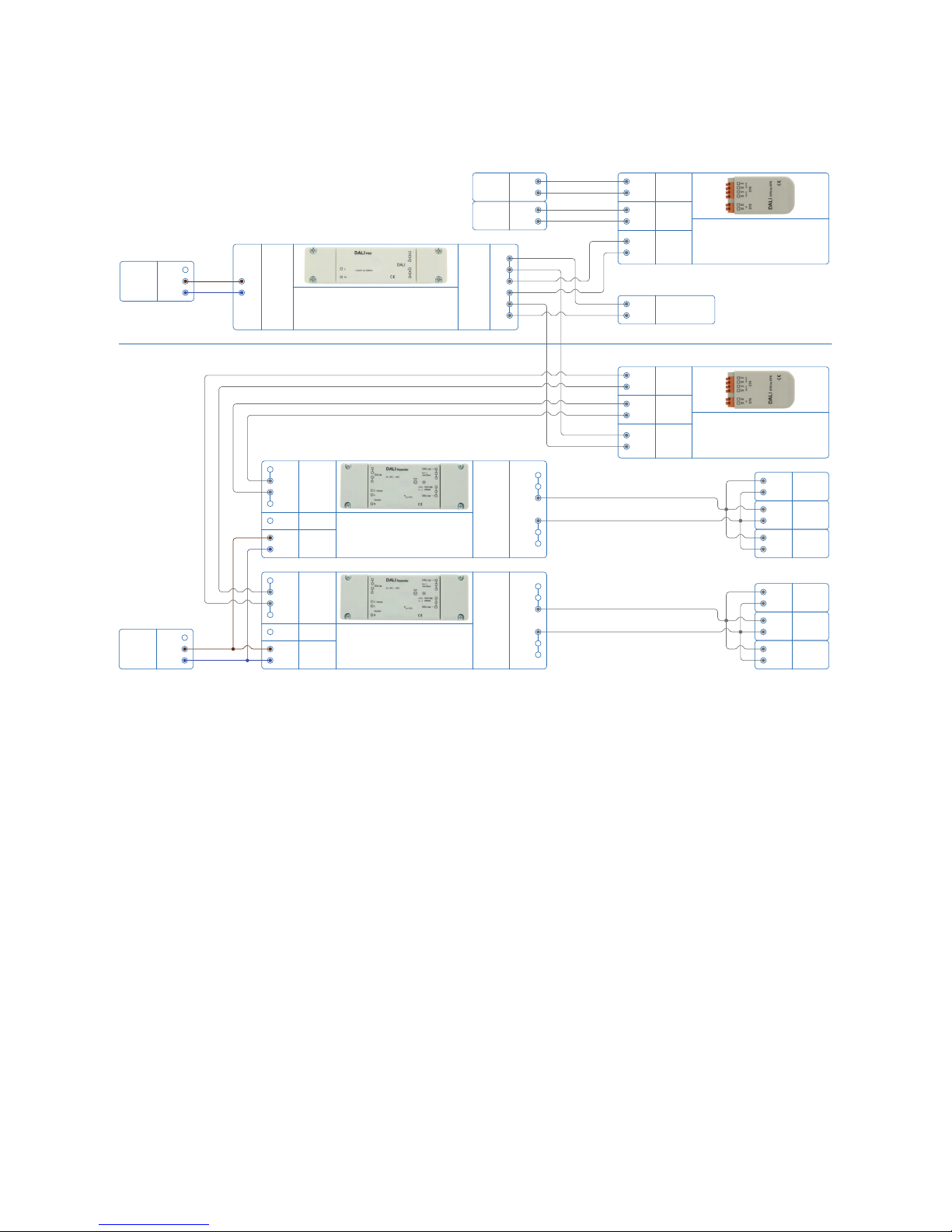

6. Wiring Diagram
