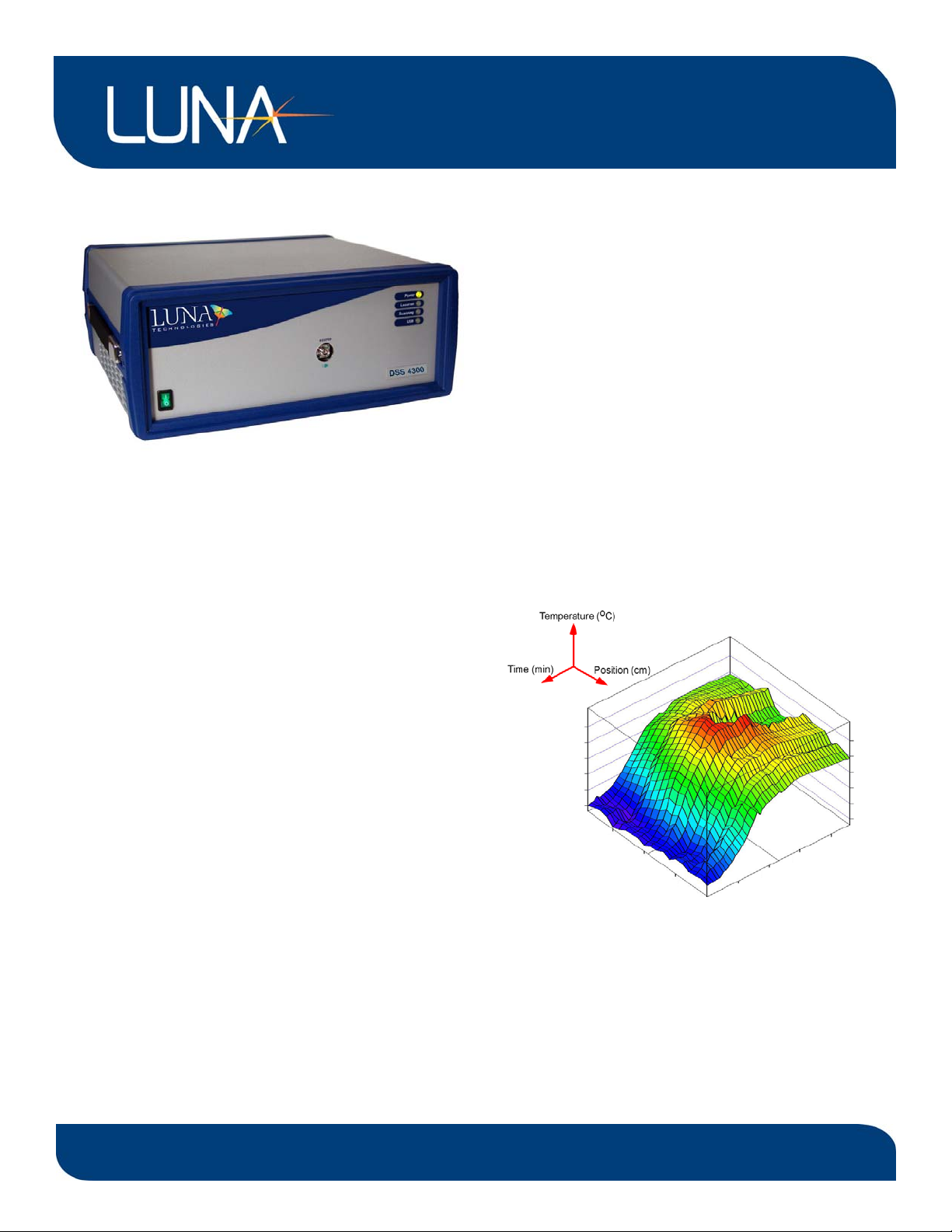

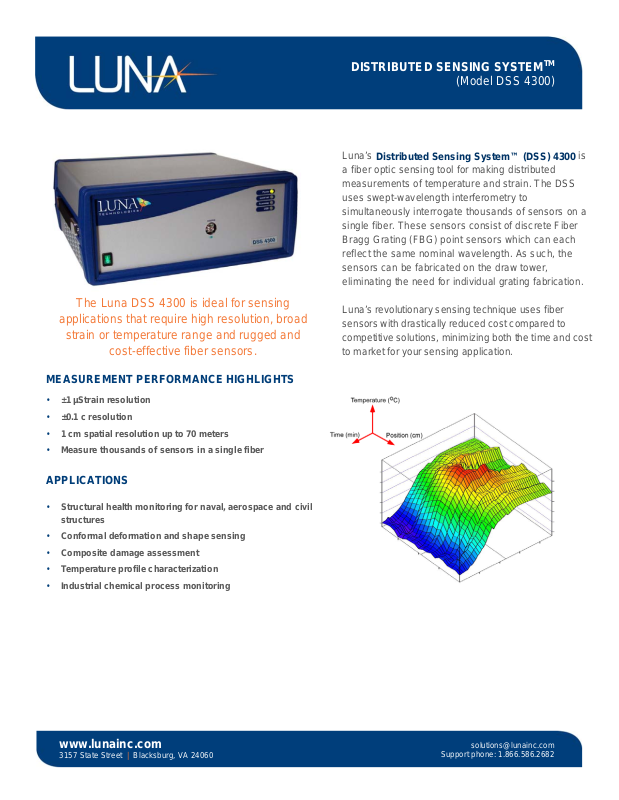

DISTRIBUTED SENSING SYSTEM
(Model DSS 4300)
The Luna DSS 4300 is ideal for sensing
applications that require high resolution, broad
strain or temperature range and rugged and
cost-effective fiber sensors.
MEASUREMENT PERFORMANCE HIGHLIGHTS
• ±1 µStrain resolution
• ±0.1 c resolution
• 1 cm spatial resolution up to 70 meters
• Measure thousands of sensors in a single fiber
APPLICATIONS
• Structural health monitoring for naval, aerospace and civil
structures
• Conformal deformation and shape sensing
• Composite damage assessment
• Temperature profile characterization
• Industrial chemical process monitoring
Luna’s
a fiber optic sensing tool for making distributed
measurements of temperature and strain . The DSS
uses swept-wavelength interferometry to
simultaneously interrogate thousands of sensors on a
single fiber. These sensors consist of discrete Fiber
Bragg Grating (FBG) point sensors which can each
reflect the same nominal wavelength. As such, the
sensors can be fabricated on the draw tower,
eliminating the need for individual grating fabrication.
Luna’s revolutionary sensing technique uses fiber
sensors with drastically reduced cost compared to
competitive solutions, minimizing both the time and cost
to market for your sensing application.
Distributed Sensing System™ (DSS) 4300
is
www.lunainc.com
3157 State Street | Blacksburg, VA 24060
Support phone: 1.866.586.2682
Page 2
DSS 4300
PARAMETER SPECIFICATION UNITS
Maximum Sensing Length:
70 meters
Sensor Spatial Resolution1:
Strain:
Resolution2:
Range
3,4:
Temperature:
Resolution: ±0.1 C
Range5:
Wavelength range6:
Wavelength:
Resolution:
Accuracy7:
Measurement Rate8:
0.3 Hz
1 Typical parameter for sensing fiber fabrication
2 Temperature and strain accuracies are calculated from spectral shift of FBGs using 1 GHz
[see A. Othonos and K. Kalli, Fiber Bragg Gratings (Actech House, Boston, 1999)].
3 Based on available wavelength scan range and calibration coefficients for SMF-28 type fiber
4 For every FBG-sensor simultaneously with FBG wavelength in center of laser range and for laser scan range of
40 nm.
5 Based on material properties of polyimide-coated SMF-28 type fiber.
6 Range is nominal.
7 Accuracy maintained by an internal NIST-traceable HCN gas cell
8 For 1.25 nm scan range
1.0 cm
±1 µStrain
±15,000 µStrain
-50 to 300 C
1525 – 1605 nm
0.02 pm
±1.5 pm
0.8 C 7 µstrain
CLASS 1 LASER PRODUCT
©Luna Innovations Incorporated, Roanoke, VA
All rights reserved.
TM
is a trademark of Luna Innovations Incorporated.
DSS
LTDSS4300 REV. 006 04/01/13
