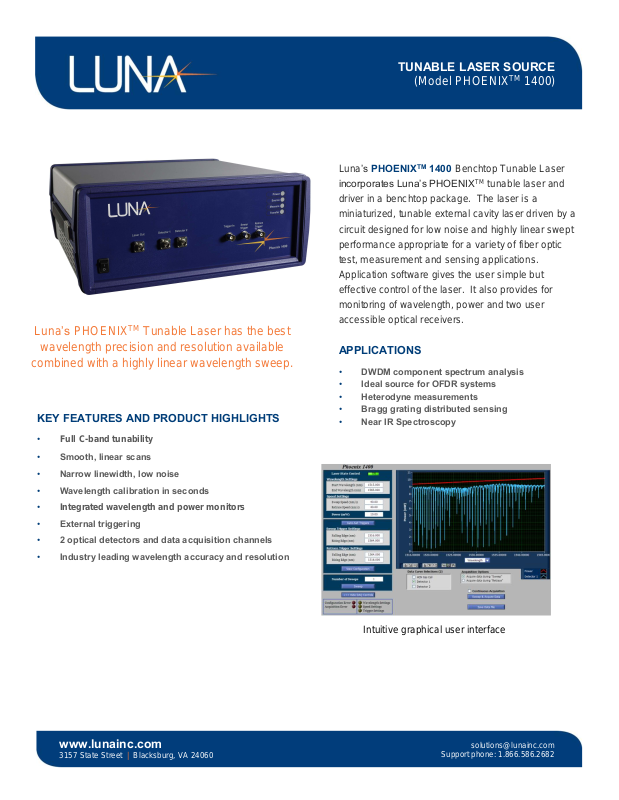

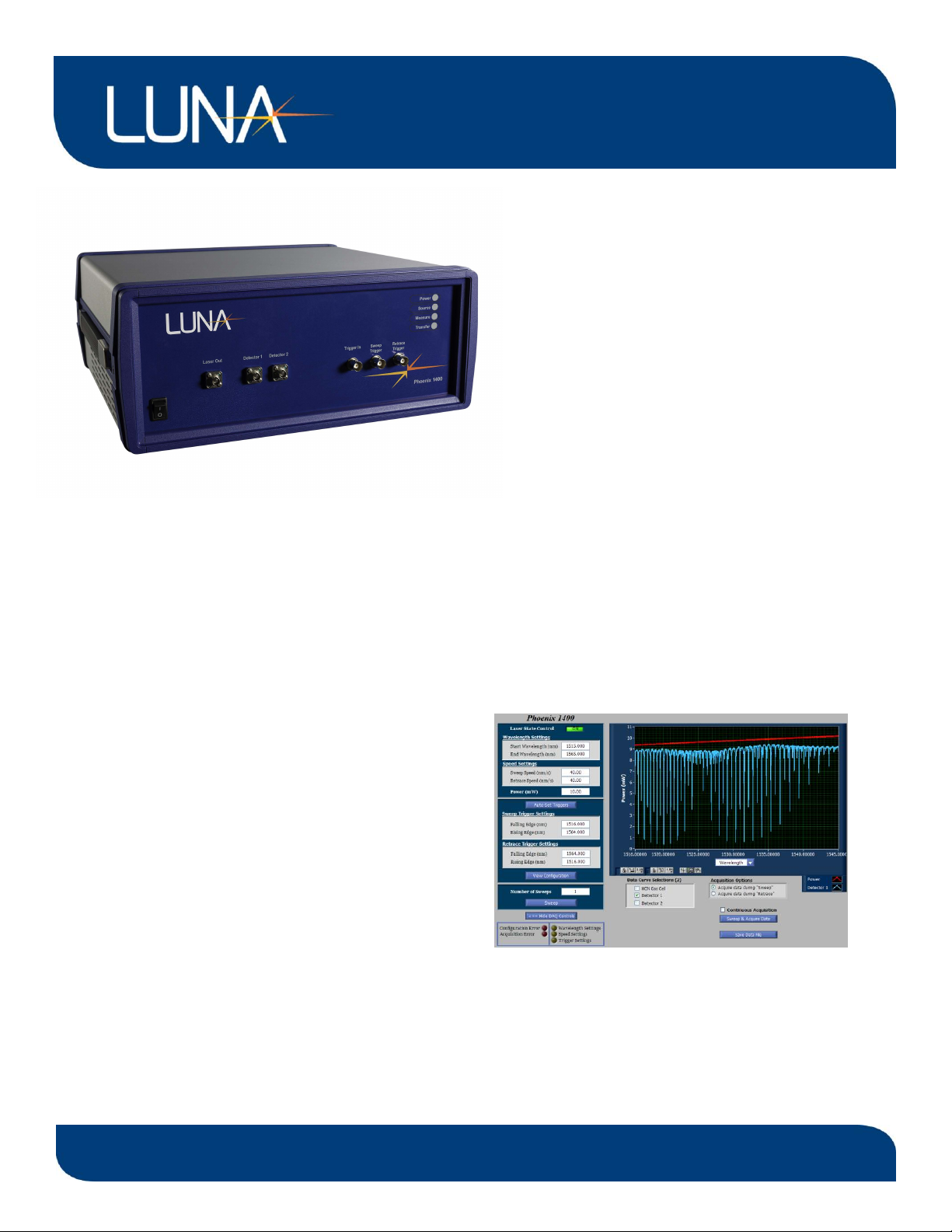

Page 1
TUNABLE LASER SOURCE
(Model PHOENIXTM 1400)
www.lunainc.com
3157 State Street | Blacksburg, VA 24060
Support phone: 1.866.586.2682
Luna’s PHOENIXTM Tunable Laser has the best
wavelength precision and resolution available
combined with a highly linear wavelength sweep.
KEY FEATURES AND PRODUCT HIGHLIGHTS
• Full C-band tunability
• Smooth, linear scans
• Narrow linewidth, low noise
• Wavelength calibration in seconds
• Integrated wavelength and power monitors
• External triggering
• 2 optical detectors and data acquisition channels
• Industry leading wavelength accuracy and resolution
Luna’s PHOENIXTM 1400 Benchtop Tunable Laser
incorporates Luna’s PHOENIX
TM
tunable laser and
driver in a benchtop package. The laser is a
miniaturized, tunable external cavity laser driven by a
circuit designed for low noise and highly linear swept
performance appropriate for a variety of fiber optic
test, measurement and sensing applications.
Application software gives the user simple but
effective control of the laser. It also provides for
monitoring of wavelength, power and two user
accessible optical receivers.
APPLICATIONS
• DWDM component spectrum analysis
• Ideal source for OFDR systems
• Heterodyne measurements
• Bragg grating distributed sensing
• Near IR Spectroscopy
Intuitive graphical user interface
Page 2
PHOENIXTM is a trademark of Luna Innovations Incorporated.
©Luna Innovations Incorporated, Roanoke, VA
All rights reserved.
PHOENIX 1400
LTPHO1400 REV. 005 04/01/2013
PARAMETER
MIN
TYP
MAX
UNITS
Wavelength
Mode Hop Free Tuning Range
1515
1565
nm
Wavelength Set Point Resolution
0.01 pm
Absolute Accuracy
1
±1.5 pm
Wavemeter Accuracy
2
±0.5 pm
Wavemeter Linearity
±50 fm
Stability
3
±50 pm
Tuning
Tuning Rate
1 100
nm/s
Deviation from Linearity
4
±1.5
±2
GHz
Power
Range
6 10
mW
Accuracy
±5 %
Flatness
5
±7
±10
%
Ripple5
±2 %
Noise
Spectral line width
6,7
1.5 MHz
Side mode suppression ratio (nearest mode)
6
43
50 dB
Relative intensity noise
6
-152
-145
dB/Hz
Spontaneous Emission Ratio
6,8
-50
-43
dBc/nm
Inputs
Auxiliary Detectors (SM FC/APC)
Min detectable
Max detectable
Damage threshold
0.02
10
0.03
12
50
0.05
15
mW
Electrical Trigger (BNC)
“Low” voltage
“High” voltage
-0.5
+2.0
0
+3.3
+0.8
+3.8
V
Outputs
Optical Power
SM FC/APC
Electrical Sweep and Retrace Triggers (BNC)
+1 M load
+50 M load
+2.5
+1.7
V
All measurements assume warm-up time of 1.5 hrs.
1 Determined by internal NIST-traceable gas cell reference.
2 Measured after wavelength auto-calibration.
3 For 24 hr period within ± 5 C after laser calibration.
4 Over full wavelength range at 10 nm/s.
5 At 10 mW tuning at 10 nm/s over full wavelength range.
6 Measured with laser set to 1540 nm with10 mW output power.
7 Phase noise distribution full width at half maximum at center wavelength integrated over 1 ms. Measurements indicate that the intrinsic laser
linewidth (the limit at which the integration time goes to zero) is less than 100 kHz.
8 Measured with optical spectrum analyzer set at 1 nm resolution bandwidth.
CLASS 1 LASER PRODUCT
