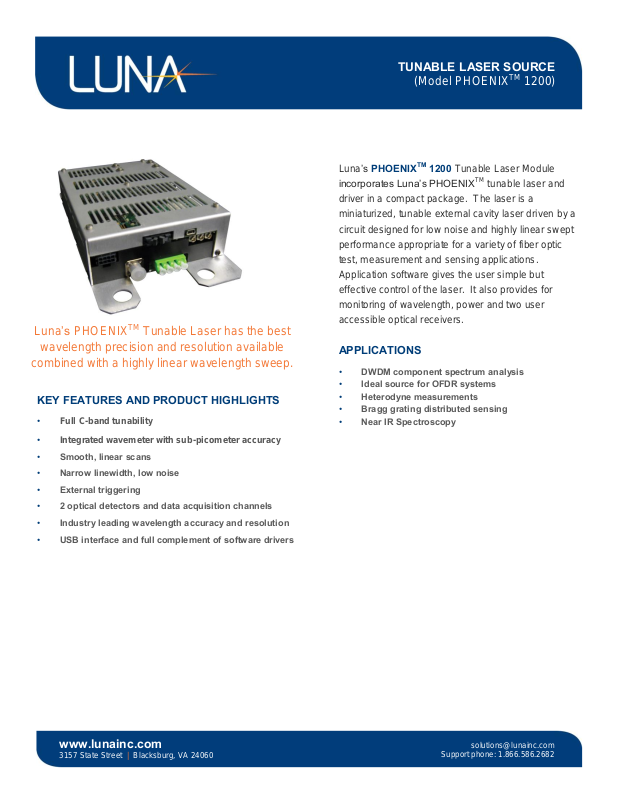

TUNABLE LASER SOURCE
(Model PHOENIXTM 1200)
www.lunainc.com
3157 State Street | Blacksburg, VA 24060
Support phone: 1.866.586.2682
Luna’s PHOENIXTM Tunable Laser has the best
wavelength precision and resolution available
combined with a highly linear wavelength sweep.
KEY FEATURES AND PRODUCT HIGHLIGHTS
• Full C-band tunability
• Integrated wavemeter with sub-picometer accuracy
• Smooth, linear scans
• Narrow linewidth, low noise
• External triggering
• 2 optical detectors and data acquisition channels
• Industry leading wavelength accuracy and resolution
• USB interface and full complement of software drivers

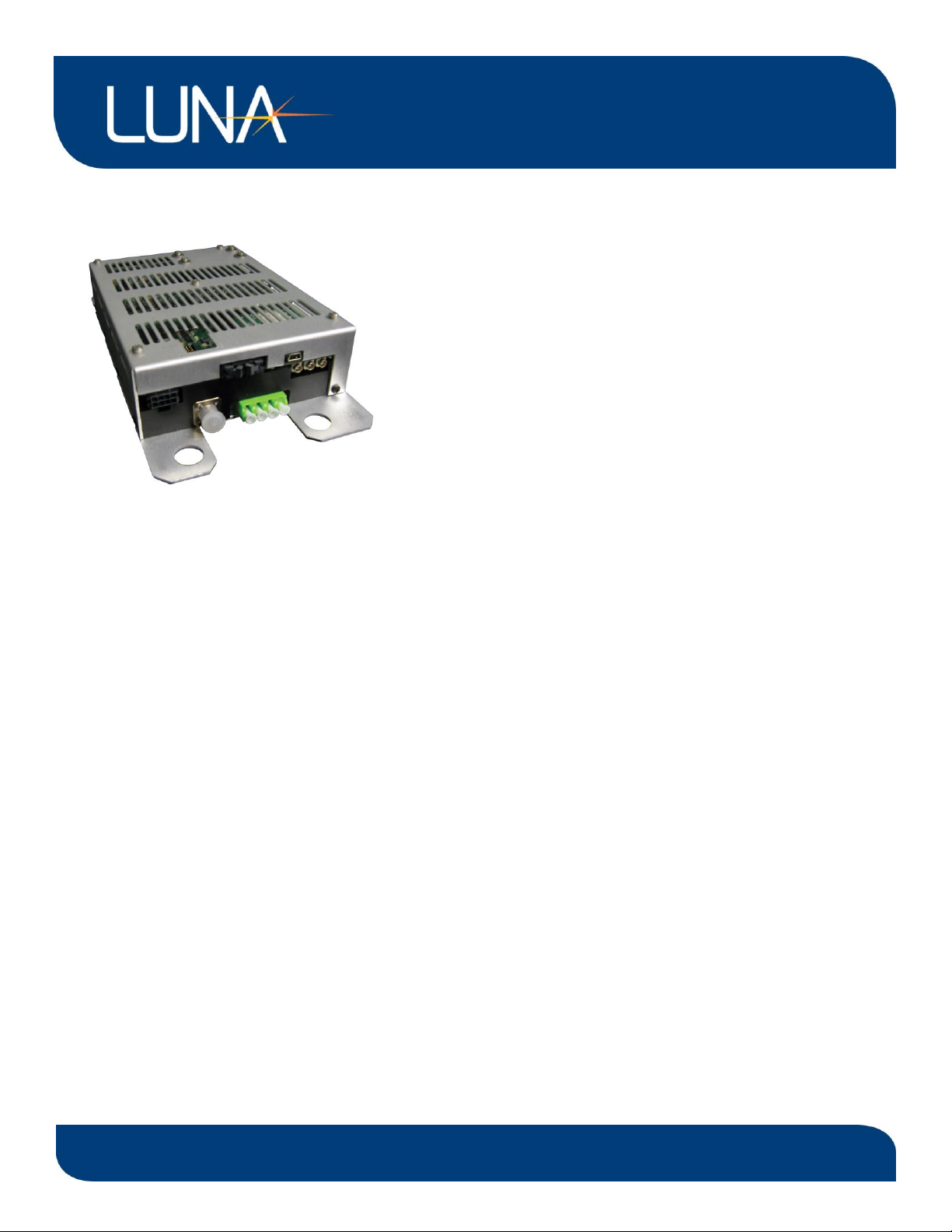

Luna’s PHOENIXTM 1200 Tunable Laser Module
incorporates Luna’s PHOENIX
TM
tunable laser and
driver in a compact package. The laser is a
miniaturized, tunable external cavity laser driven by a
circuit designed for low noise and highly linear swept
performance appropriate for a variety of fiber optic
test, measurement and sensing applications.
Application software gives the user simple but
effective control of the laser. It also provides for
monitoring of wavelength, power and two user
accessible optical receivers.
APPLICATIONS
• DWDM component spectrum analysis
• Ideal source for OFDR systems
• Heterodyne measurements
• Bragg grating distributed sensing
• Near IR Spectroscopy
Page 2
PHOENIXTM is a trademark of Luna Innovations Incorporated.
©Luna Innovations Incorporated, Roanoke, VA
All rights reserved.
PHOENIX 1200
LTPHO1200 REV. 006 07/18//2013
PARAMETER
MIN
TYP
MAX
UNITS
Wavelength
Mode Hop Free Tuning Range
1515
1565
nm
Wavelength Set Point Resolution
0.01 pm
Absolute Accuracy
1
±1.5 pm
Wavemeter Accuracy
2
±0.5 pm
Wavemeter Linearity
±50 fm
Stability
10.5
pm/°C
Tuning
Tuning Rate
1 100
nm/s
Deviation from Linearity
3
±1.5
±2
GHz
Power
Range
8 10
mW
Accuracy
±5 %
Flatness
4
±7
±10
%
Ripple4
±2 %
Noise
Spectral line width
5,6
1.5 MHz
Side mode suppression ratio (nearest mode)
5
43
50 dB
Relative intensity noise
5
-152
-145
dB/Hz
Spontaneous Emission Ratio
5,7
-50
-43
dBc/nm
Inputs
Auxiliary Detectors (SM FC/APC)
Detectable Range
0.001
~
1.0
mW
Electrical Trigger (BNC)
“Low” voltage
“High” voltage
-0.5
+2.0
0
+3.3
+0.8
+3.8
V
Outputs
Optical Connector
SM FC/APC
Electrical Sweep and Retrace Triggers (BNC)
+1 M load
+50 M load
+2.5
+1.7
V
Size
Mechanical
23.5 x 12 x 4.5 cm
Power Requirement
DC Voltages
±12V, +5V, +3.3V, +150V
All measurements assume warm-up time of 1.5 hrs.
1 Determined by internal NIST-traceable gas cell reference.
2 Measured after wavelength auto-calibration.
3 Over full wavelength range at 10 nm/s.
4 At 10 mW tuning at 10 nm/s over full wavelength range.
5 Measured with laser set to 1540 nm with 10 mW output power.
6 Phase noise distribution full width at half maximum at center wavelength integrated over 1 ms. Measurements indicate that the
intrinsic laser linewidth (the limit at which the integration time goes to zero) is less than 100 kHz.
7 Measured with optical spectrum analyzer set at 1 nm resolution bandwidth.
CLASS 1 LASER PRODUCT
