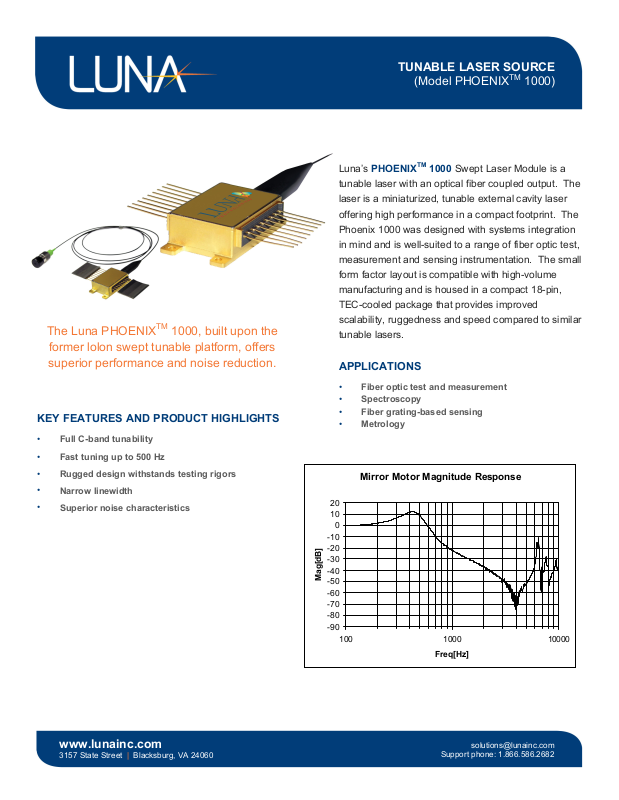

The Luna PHOENIXTM 1000, built upon the
former lolon swept tunable platform, offers
superior performance and noise reduction.
KEY FEATURES AND PRODUCT HIGHLIGHTS
•
Full C-band tunability
TUNABLE LASER SOURCE
(Model PHOENIXTM 1000)

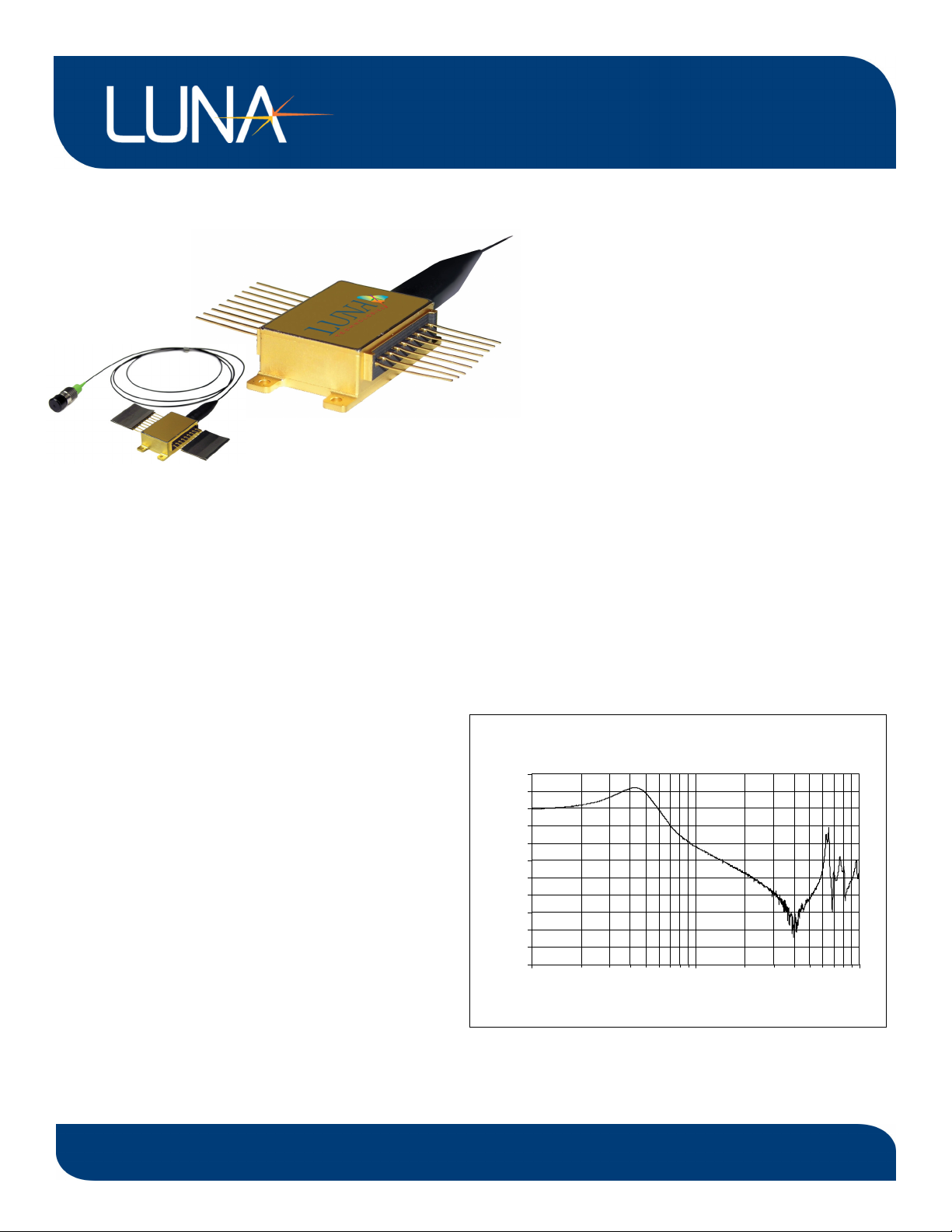

Luna’s PHOENIXTM 1000 Swept Laser Module is a
tunable laser with an optical fiber coupled output. The
laser is a miniaturized, tunable external cavity laser
offering high performance in a compact footprint. The
Phoenix 1000 was designed with systems integration
in mind and is well-suited to a range of fiber optic test,
measurement and sensing instrumentation. The small
form factor layout is compatible with high-volume
manufacturing and is housed in a compact 18-pin,
TEC-cooled package that provides improved
scalability, ruggedness and speed compared to similar
tunable lasers.
APPLICATIONS
•
Fiber optic test and measurement
•
Spectroscopy
•
Fiber grating-based sensing
•
Metrology
•
Fast tuning up to 500 Hz
•
Rugged design withstands testing rigors
•
Narrow linewidth
•
Superior noise characteristics
www.lunainc.com
3157 State Street | Blacksburg, VA 24060
Mirror Motor Magnitude Response
20
10
0
-10
-20
-30
-40
Mag[dB]
-50
-60
-70
-80
-90
100 1000 10000
Freq[Hz]
Support phone: 1.866.586.2682
Page 2
PHOENIX 1000
ABSOLUTE MAXIMUM RATINGS AND NORMAL OPERATING CONDITIONS
PARAMETER MIN MAX UNIT
Storage temperature -40 +85 °C
Storage relative humidity 5 951 %
Operating case temperature range -5 +70 °C
Operating relative humidity
Optical reflection back into swept laser
Fiber output power2 65 mW
1
Non-condensing
2
At maximum drive current of 350 mA
GENERAL OPTICAL AND SWEEP SPECIFICATIONS
PARAMETER MIN TYP MAX UNIT
C-band Tuning Range (mode hop free) 1515 1565 nm
Tuning Modulation Bandwidth (Mirror Motor) 500 Hz
Fiber output power1 8 10 mW
Spectral line width
Side mode suppression ratio (nearest mode) 43 50 dB
Relative intensity noise -152 -145 dB/Hz
Source spontaneous emission -50 -43 dBc/nm
Polarization extinction ratio 20 dB
Optical isolation 40 dB
1
Fiber output power is typical at 250 mA drive current.
2
Phase noise distribution full width at half maximum with 0 V on PZT and 75V on mirror motor control inputs,
integrated over 1 ms.
2
1
5 85 %
-15 dBc
1.0 2.0 MHz
CAUTION: Viewing the laser output
with certain optical instruments may
pose an eye hazard.
©Luna Innovations Incorporated, Roanoke, VA
All rights reserved.
PHOENIX
TM
is a trademark of Luna Innovations Incorporated.
LTPNX1000 REV. 004 10/09/2012
