Wireless Remote Switch (Double Rocker)
WXKG02LM, WXKG03LM
Quick Start Guide
Product Introduction
Wireless Remote Switch (Double Rocker) is a remote control switch, applying
Zigbee wireless communication technology. It uses industry standard 86mm size, and the
panel has the same appearance with the Wall Switch(No Neutral, Double Rocker). It is
easily installed and used once being pasted. It works with the Hub to control Smart Wall
Switch, Smart plug and other smart devices.
* A Hub or Hub function device is required to work with this device.
* Aqara Hub is required to enable Wireless Remote Switch (Double Rocker) to work with
HomeKit technology.
* This device is for indoor use only.
Quick Setup
1. Please add the Hub to the app according to the Hub Quick Start Guide
2. Please open the app, and tap “+” in the top right corner to enter Add Device page.
Select “Wireless Remote Switch (Double Rocker)”, and operates according to
instructions.
*If the connection failed, please move the device closer to the Hub and try again.
Home Scene Device
Hub
Add sub-device
Installation
Effective Range Test: After the device is added successfully, fast press the Wireless
Remote Switch (Double Rocker) for 5 times. If the Hub makes voice prompts, it indicates
that the Wireless Remote Switch (Double Rocker) can communicate effectively with the
Hub.
*Avoid metal surface to maximize signal strength.
Method 1: Place the device where you need it.
Method 2: Peel and stick where the surface is clean and dry.

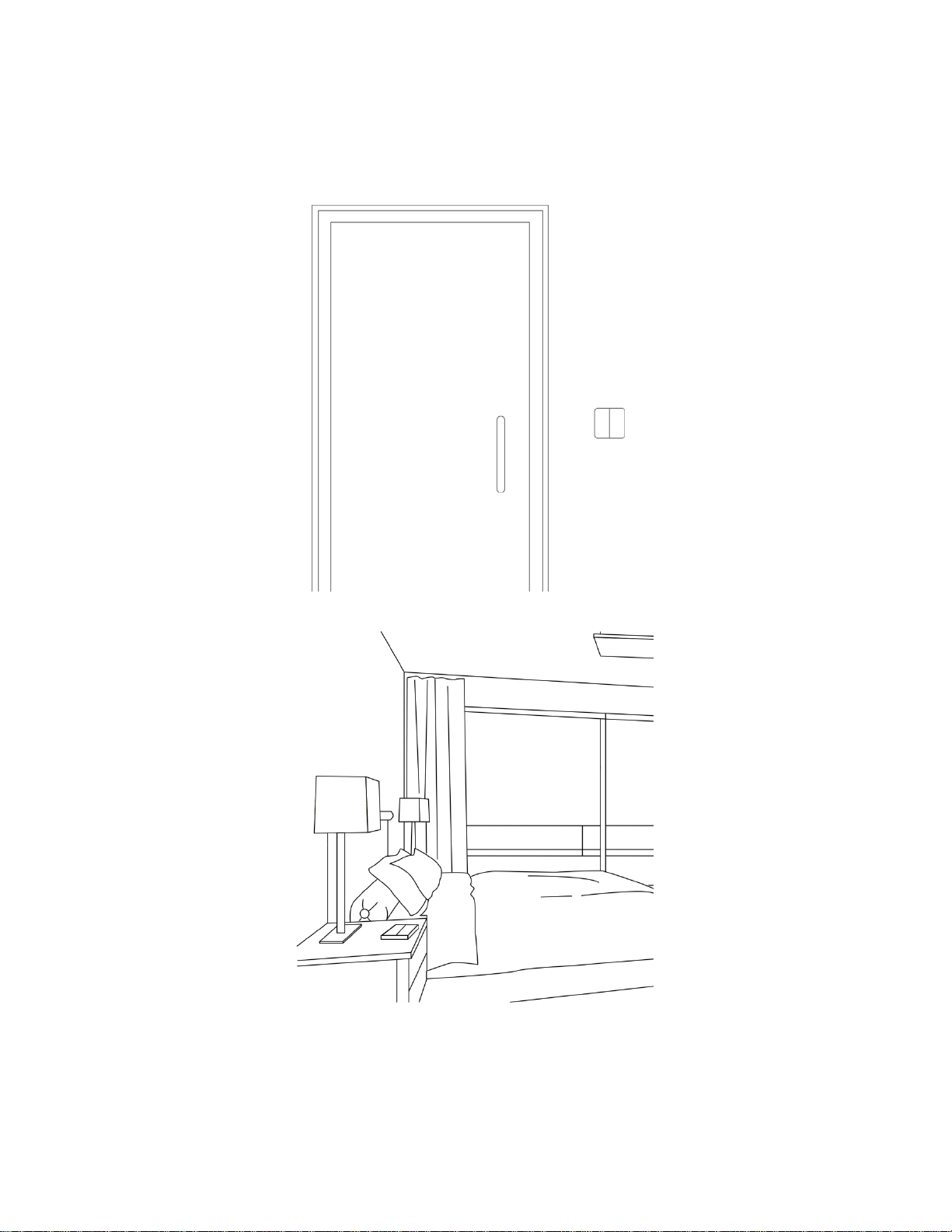

Recommended Scenes
Peel the sticker and stick it where needed
Stick the Wireless Remote Switch to the door and it serves as a doorbell
Place the Wireless Remote Switch beside the bed. You can turn off all lights at the tap of
a button without getting out of bed
Indicator Light Description
Indicator Light Device Status
Blue light blinks once Send command
Blue light blinks three times Not connected
Blue light blinks continuously Connecting to the network
Specifications
Model
：WXKG03LM
Standard：Q/QLML009-2016
Operating Temperature：-5° – +50° C
Operating Humidity：5% – 95% RH, no condensation
Battery：CR2032
Wireless Protocol: Zigbee
FCC ID:2AKIT-WXKG02LM
Federal Communications Commission (FCC) compliance statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate t
he equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FC
C Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer
ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to cor
rect the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
IC:22635-WXKG02LM
t
by
g
IC NOTICE TO CANADIAN USERS
This device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1)
This device may not cause interference, and (2) This device must accept any interference, including interference that may cause
undesired operation of the device. This device complies with RSS‐247 of Industry Canada. Operation is subject to the condition that
this device does not cause harmful interference. This Class B digital apparatus complies with Canadian ICES‐003 (Cet appareil
numérique de la Classe B conforme à la norme NMB‐003 du Canada).
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisé
e aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Cet équipement est conforme aux limites IC d'exposition aux radiations définies pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. Cet émetteur ne doit pas
être situé ou opérant en conjonction avec une autre antenne ou émetteur.
Hereby, LUMI UNITED TECHNOLOGY CO., LTD declares that the Radio Equipment type is in compliance with RED 2014/53/EU.
The full text of the EU Declaration of Conformity is available at the following internet address: www.lumiunited.com/DoC.
This product can be used across EU member states.
Symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and electronic equipment.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
RECYCLING. This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that
this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact
on the environment.
Symbol for “ENVIRONMENT PROTECTION – Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your local Authority or retailer for recycling advice.”
Complies with the EuropeanUnion’s“Restriction of Hazardous Substances Directive, ”whichprotects the environmen
specific hazardous materials and products.
restrictin
