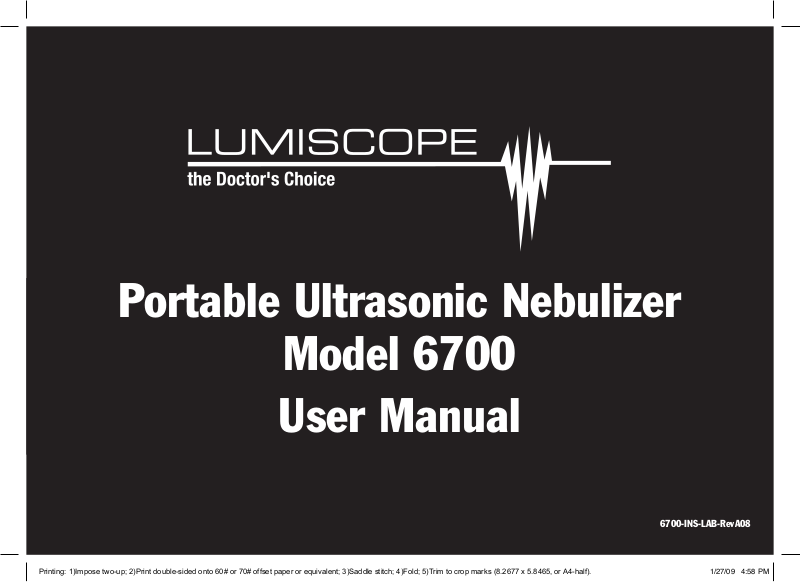

Lumiscope 6700 User Manual

Portable Ultrasonic Nebulizer
Model 6700
User Manual
6700-INS-LAB-RevA08
Printing: 1)Impose two-up; 2)Print double-sided onto 60# or 70# offset paper or equivalent; 3)Saddle stitch; 4)Fold; 5)Trim to crop marks (8.2677 x 5.8465, or A4-half). 1/27/09 4:58 PM
Index
English. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 3
2
6700-INS-LAB-RevA08.indd 2 1/27/09 4:58 PM
CONTENTS
6700 PARTS ............................................................................................................................................................................................4
OPERATION & INDICATION INTRODUCTION
INTENDED USE
IMPORTANT SAFETY PRECAUTIONS
SETUP
.....................................................................................................................................................................................................8
METHOD OF POWERING
WITH THE AC/DC ADAPTER WITH THE OPTIONAL CAR ADAPTER (CIGARETTE LIGHTER)
WITH THE OPTIONAL RECHARGEABLE BATTERY ..............................................................................................................................11
OPERATION
INHALATION THERAPY AUTOMATIC VALVE SYSTEM
MAINTENANCE
CLEANING THE NEBULIZER AFTER EACH USE CLEANING THE NEBULIZER DAILY REPLACING THE MEDICATION CUP
REPLACING THE AIR FILTER STORAGE SAFETY PROTECTIONS
PROTECTION AGAINST INCORRECT POWER SUPPLY
PROTECTION AGAINST OVERHEATING 6700 TECHNICAL SPECIFICATIONS ACCESSORIES INCLUDED LIMITED WARRANTY
........................................................................................................................................................................................5
DANGER: TO REDUCE THE RISK OF ELECTROCUTION: ..................................................................................................................6
WARNING: TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE OR PERSONAL INJURY: .........................................................6
WARNINGS FOR MEDICATION USE...............................................................................................................................................7
...........................................................................................................................................................................................12
......................................................................................................................................................................................13
WARNING: TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE, OR PERSONAL INJURY: ......................................................13
...............................................................................................................................................................................................15
.......................................................................................................................................................................4
.................................................................................................................................................................................5
..........................................................................................................................................................5
.........................................................................................................................................................................10
.............................................................................................................................................................10
..............................................................................................................10
....................................................................................................................................................................12
............................................................................................................................................................13
..................................................................................................................................14
...................................................................................................................................................14
..................................................................................................................................................14
............................................................................................................................................................15
...........................................................................................................................................................................16
.........................................................................................................................16
..............................................................................................................................................16
.........................................................................................................................................................16
.......................................................................................................................................................................17
..............................................................................................................................................................................17
3..
6700-INS-LAB-RevA08.indd 3 1/27/09 4:58 PM
6700 PARTS
1) Air Filter Holder
2) Air Filter
3) Top Cover
4) Nebulization Chamber
5) Air Flow Chamber
6) Medication Cup
7) Main Device
8) Mouthpiece
9) Pediatric Mask
10) Adult Mask
11) AC/DC Adapter (not shown)
12) Carrying Bag
13) Optional: Rechargeable Battery
14) Optional: Car Adapter (Cigarette Lighter) (not shown)
1
2
3
4
5
6
7
8
9
12
10
13
OPERATION & INDICATION
1) Power Indicator Light
2) On/Off Button
3) Air-Flow Chamber Locking Knob
4) Flow Rate Controller
5) AC/DC Power Socket
1 2
4
3
5
4
6700-INS-LAB-RevA08.indd 4 1/27/09 4:58 PM
INTRODUCTION
Thank you for choosing the Lumiscope 6700 portable ultrasonic nebulizer for aerosol therapy. The 6700 is designed and manufactured according to the most advanced technology. It is also characterized by a high operation speed (up to .7ml/minute) and is extremely quiet (noise level below 40dB). The 6700 ultrasonic nebulizer is equipped with a two-valve system which ensures maximum efficiency of inhalation, reducing any medication waste to the minimum.
Intended use
The 6700 is designed to be used by an adult or pediatric patient, under a physician's prescription, to produce medi­cated aerosols for inhalation therapy. Indications for therapy include asthma, chronic bronchitis, infection of the upper respiratory tract, chronic obstructive pulmonary disease, and other respiratory disorders in accordance with a physician's prescription. Do not use this product for any other purpose than the preceding.
IMPORTANT: Before use, read the instructions carefully. Use this device only as indicated.
IMPORTANT SAFETY PRECAUTIONS
When using electrical products, especially when children are present, always follow basic safety precautions, includ­ing the following:
DANGER: Indicates a potential hazard situation or unsafe practice that, if not avoided, will result in death or serious
personal injury.
WARNING: Indicates a potential hazard situation or unsafe practice that, if not avoided, could result in death or serious
personal injury.
Caution: Indicates a potential hazard or unsafe practice that, if not avoided, could result in minor personal injury or product/property
damage.
Note: Provides application recommendations or other useful information to ensure that you get the most from your product.
5..
6700-INS-LAB-RevA08.indd 5 1/27/09 4:58 PM
DANGER: To reduce the risk of electrocution:
1. Always unplug this product immediately after use.
2. Do not use this product while bathing, showering, washing dishes, or close to water sources of any kind.
3. Do not place or store device where it can fall or be pulled into a tub or sink.
4. Do not place device in or drop into water or other liquid.
5. Do not reach for a device that has fallen into water. Unplug it immediately.
WARNING: To reduce the risk of burns, electrocution, fire or personal injury:
1. Never leave this device unattended when plugged in.
2. This product contains small parts that may present a choking hazard to small children. Always use close supervision
when this device is used by or near children or those who require close supervision.
3. Children under the age of 3, or any patient who is unable to use a mouthpiece properly under supervision, should use a
mask.
4. Use this device only as intended and described in this manual. Do not use attachments or accessories not recommended
by GF Health Products, Inc.
5. Never operate this product if:
a. it has a damaged cord or plug, b. it is not working properly or it has been dropped or damaged, c. it has been dropped into water. Return the product to your Graham-Field distributor for examination and repair.
6. Keep the cord away from heated surfaces.
7. Never block the air openings of this product or place it on a soft surface, such as a bed or couch, where the air openings
may be blocked. Keep the air openings free of lint, hair and the like.
6
6700-INS-LAB-RevA08.indd 6 1/27/09 4:58 PM
8. Never drop or insert any object into any openings or hose.
9. Never use this device while drowsy or sleeping.
10. Do not use this device outdoors or operate where aerosol (spray) products are being used.
11. Do not use this device in the presence of flammable anesthesia or where oxygen or nitrous oxide is being administered. This device has no AP or APG protection.
12. Connect this device to a properly grounded outlet only.
13. Unplug the device before filling or cleaning the nebulizer.
14. This device is oil-free. Do not lubricate.
15. Do not remove the nebulizer while the device is operating.
16. Do not leave medication in the nebulizer when it is not in use.
17. Use the nebulizer intermittently; the maximum operating period is 40 minutes. The nebulizer must stand unused for 45 minutes between uses.
18. The mouthpiece and mask are for use by one person only; in order to avoid infection, do not share them.
WARNINGS FOR MEDICATION USE
Always follow the prescribing physician's instructions regarding the type of medication to be used, the dosage, the frequency, and duration of the inhalations. The 6700 has been designed for use with aqueous solutions of medication; medication that is too dense or oily will not be nebulized correctly. If a medication has not been nebulized correctly, dilute it with an equal quantity of physiological solution for inhalations (add 2 ml of physiological solution to 2 ml of oily medication).
7..
6700-INS-LAB-RevA08.indd 7 1/27/09 4:58 PM
SETUP Before using the device, ensure that it has been cleaned as described in
MAINTENANCE/Cleaning the Nebulizer After Each Use
1. Remove the top cover and nebulization chamber from the device.
2. Press the knobs of the air-flow chamber on two sides to remove the air-flow chamber and medication cup from the device.
3. Fill the reservoir of the device with distilled water until it reaches exactly the level marked in red (approximately 4 ml). This amount of water serves as a liq­uid conductor, to conduct the ultrasound waves to the medication, and will never be nebulized.
.
8
6700-INS-LAB-RevA08.indd 8 1/27/09 4:58 PM
4. Carefully insert the medication cup as shown, taking care not to damage it.
5. Pour the physician-prescribed medication into the medication cup. If the dose to
be inhaled is larger than the maximum capacity of the medication cup, divide it into several separate inhalations.
6. Re-install the air-flow chamber, nebulization chamber, and top cover on the de-
vice. Apply sufficient pressure when re-installing to ensure that they are securely closed.
7. Insert the mouthpiece or one of the two provided masks into the front of the
device as shown.
9..
6700-INS-LAB-RevA08.indd 9 1/27/09 4:58 PM
METHOD OF POWERING
After the preparation, connect the device to electrical power. The 6700 can be powered in various ways:
With the AC/DC Adapter
This is designed for use in the home or wherever normal-voltage power supply is available (different connections are available for different voltages).
1. Ensure that device power is OFF. Ensure that the voltage at the socket is the same as that of the transformer, as indicated on the transformer specification plate. Plug the power cord into a properly grounded electrical wall outlet.
2. Insert the transformer plug into the device's power socket.
With the Optional Car Adapter (Cigarette Lighter)
This method allows the patient to take the inhalations when traveling by car.
1. Ensure that the cigarette lighter socket in the car is designed for power of at least 15 watts. Insert the car adapter plug into the cigarette lighter socket.
2. Insert the car adapter pin into the device's power socket.
WARNING: Never use the device while driving.
Cigar ette light er socke t
10
6700-INS-LAB-RevA08.indd 10 1/27/09 4:58 PM
With the Optional Rechargeable Battery
One can also use the optional Ni-MH rechargeable battery for the power input. It provides approximately 80 minutes of operation.
To install the battery: Match the device bottom to the battery top as shown at near right. Slide until you hear it click into place.
To remove the battery: Push down on the battery lock as shown at far right and slide the battery out from beneath the device.
To recharge the battery: Insert the AC/DC adapter into the device's power socket. An orange light indicates the battery is being recharged. The orange light will de-illuminate when charging is complete. The minimum recharge time is 5~6 hours.
Note: The first charge of a new rechargeable battery will require at least 8 hours.
Battery Installation Battery Removal
Battery Recharging
11..
6700-INS-LAB-RevA08.indd 11 1/27/09 4:58 PM
