GF Health Products, Inc.
Atlanta, Georgia 30360
Quick Read Technology
Automatic Wrist
Blood Pressure Monitor
Model 1143
Made and Printed In China
User Manual
1143-INS-LAB-RevAA08
Table of ContentsTwo Year Limited Warranty
GF Health Products, Inc. guarantees this product free from
defects in material and workmanship for a period of two years
from the date of purchase, except as noted below.
This product warranty does not cover damage caused by
misuse or abuse, the attachment of any unauthorized accessory, alteration to the product, or any other conditions whatsoever that are beyond the control of GF Health Products,
Inc. GF Health Products, Inc. shall not be responsible for any
type of incidental, consequential, or special damage. All
implied warranties, including but not limited to those implied
warranties of fitness and merchantability, are limited to the
total duration of two years from the original date of purchase.
To obtain warranty service on your Blood Pressure Monitor,
please contact the Repair Department at 1-800-672-8293.
There is a $15 fee for return shipping and handling. Please
make checks payable to GF Health Products, Inc. Upon
receipt, we will repair or replace, as appropriate, this blood
pressure monitor and return it to you. Warranty is solely
through the Repair Department. Service of this product by
anyone other than the Repair Department voids warranty.
Introduction ..................................................................... 3
About Blood Pressure ................................................ 4, 5
Parts Identification .......................................................... 6
Display Symbols & Explanations .................................... 7
Installing the Batteries .................................................... 8
Correct Measuring Posture ............................................ 9
Applying the Cuffs .................................................. 10, 11
Helpful Tips ................................................................... 12
Measurement Procedures ...................................... 13, 14
Memory Recall ............................................................. 15
Deleting the Memory .................................................... 16
Clock Settings .............................................................. 17
Care & Maintenance .................................................... 18
Troubleshooting ............................................................ 19
Specifications ............................................................... 20
Warranty ....................................................................... 21
21
2
Introduction
Specifications
Congratulations on your purchase of the new Lumiscope
Model 1143. This automatic wrist blood pressure monitor is
both easy-to-use and ideally suited for daily measurements.
The large display includes systolic blood pressure reading,
diastolic blood pressure reading and the pulse rate, all
clearly shown at the completion of each reading.
You can store up to 85 measurements, ideal for users who
want to monitor and track their blood pressure on a regular
basis. The 1143 is compact and portable, making it perfect
for home use and travel.
Blood pressure measurements determined with your 1143
are equivalent to those obtained by a trained observer
using cuff/stethoscope auscultation method, within the limits
prescribed by the American National Standard, Electronic or
Automated Sphygmomanometers.
Please read this manual carefully before use. For specific
information on your own blood pressure, contact your
physician. Please be sure to keep this manual.
Model : 1143
Display System : Liquid Crystal Display
Power source : 2 "AAA" Alkaline batteries
Measurement Method : Oscillometric
Measurement Range : Pressure: 20~300 mmHg
Pulse: 40~200 beats/minute
Accuracy : Pressure: ±3 mmHg
Pulse: within ±5% of reading
Inflation : Electrical Rolling Pump
Pressure Exhaust : Solenoid Valve
Memory : 85 sets
Low Battery Indicator : Yes
Auto shut-off : 2.5 minutes after last key operation
Battery Life : Around 250 operations
Operating : 10˚C~40˚C (50˚F~104˚F)
Environment < 85% RH.
3
Storage Environment : -20˚C~50˚C (-4˚F~122˚F) < 85% RH
Weight : Approximately 150g (w / batteries)
Dimensions : 2.8" (L) x 2.9" (W) x 1.5"(H)
*Specifications are subject to change without notice.
20
Troubleshooting
About Blood Pressure
Message Correction
The pressure measured was lower than
20 mmHg.
Solution: Please measure again.
The pressure measured was higher than
300 mmHg.
Solution: Please measure again.
Pumping error.
Solution: Please check cuff and try
again.
The pressure can not be measured due to
signal noise.
Solution: Please measure again.
The pumping pressure is higher than
300 mmHg.
Solution: Please measure again.
Low battery.
Solution: Check and replace the
batteries if necessary.
What is Blood Pressure?
Blood pressure is the pressure exerted on the artery tube
while blood flows through the arteries. The pressure measured
when the heart contracts and sends blood out of the heart is
systolic (highest) blood pressure. The pressure measured
when the heart dilates with blood flowing back into the heart
is called diastolic (lowest) blood pressure.
Why Measure Your Blood Pressure?
Among the various health problems afflicting people today,
problems associated with high blood pressure are by far the
most common. High blood pressure's dangerously strong
correlation with cardiovascular disease has made measuring
blood pressure a necessity for identifying those at risk.
19
4
About Blood Pressure
Blood Pressure Standard
The World Health Organization (WHO) and National
High Blood Pressure Education Program Coordinating
Committee have developed a blood pressure standard,
according to which areas of low- and high-risk blood pressure
are identified. This standard, however, is a general guideline
and blood pressures vary between different people, age
groups, etc.
It is important that you consult with your physician regularly.
Your physician will tell you your normal blood pressure range
as well as the point at which you will be considered at risk.
Grade 3 Hypertension (Severe)
180
Grade 2 Hypertension (Moderate)
mmHg
160
Care & Maintenance
Do not drop the unit. It’s not shock proof.
Do not modify or disassemble the unit or the
arm cuff.
Use a cloth moistened with water or neutral
detergent to clean the body of the unit. Then
wipe it dry.
Avoid thinner, benzene and other harsh
cleaners.
Grade 1 Hypertension (Mild)
140
130
Systolic Pressure
120
High-Normal
Normal
Optimal
80 85 90 100 110
Diastolic Pressure
mmHg
5
Keep the unit in a suitable place. Avoid high
temperature, direct sunlight, high moisture
and dust.
Remove the batteries if the unit will not be
used for a long time.
18
Z
Z
Z
Clock Settings
Setting the Clock, Date & Time
A. Press and hold the “MEMORY” button
for over 3 seconds. The display will
show a blinking year. Press the “START/
STOP” button to adjust the year when
it’s blinking.
B. Press the “MEMORY” button again.
The “MONTH” will appear and blink to
be adjusted, the “DATE”, “HOUR” and
“MINUTE” will follow as you press and
release the “MEMORY” button.
C. Press the “START/STOP” button to
adjust the values of the “MONTH”,
“DATE”, “HOUR” and “MINUTE” when
they are blinking.
Parts Identification
.
/
/
1. START/STOP
2. Memory Select
17
3. Battery Compartment
4. Wrist Cuff
6

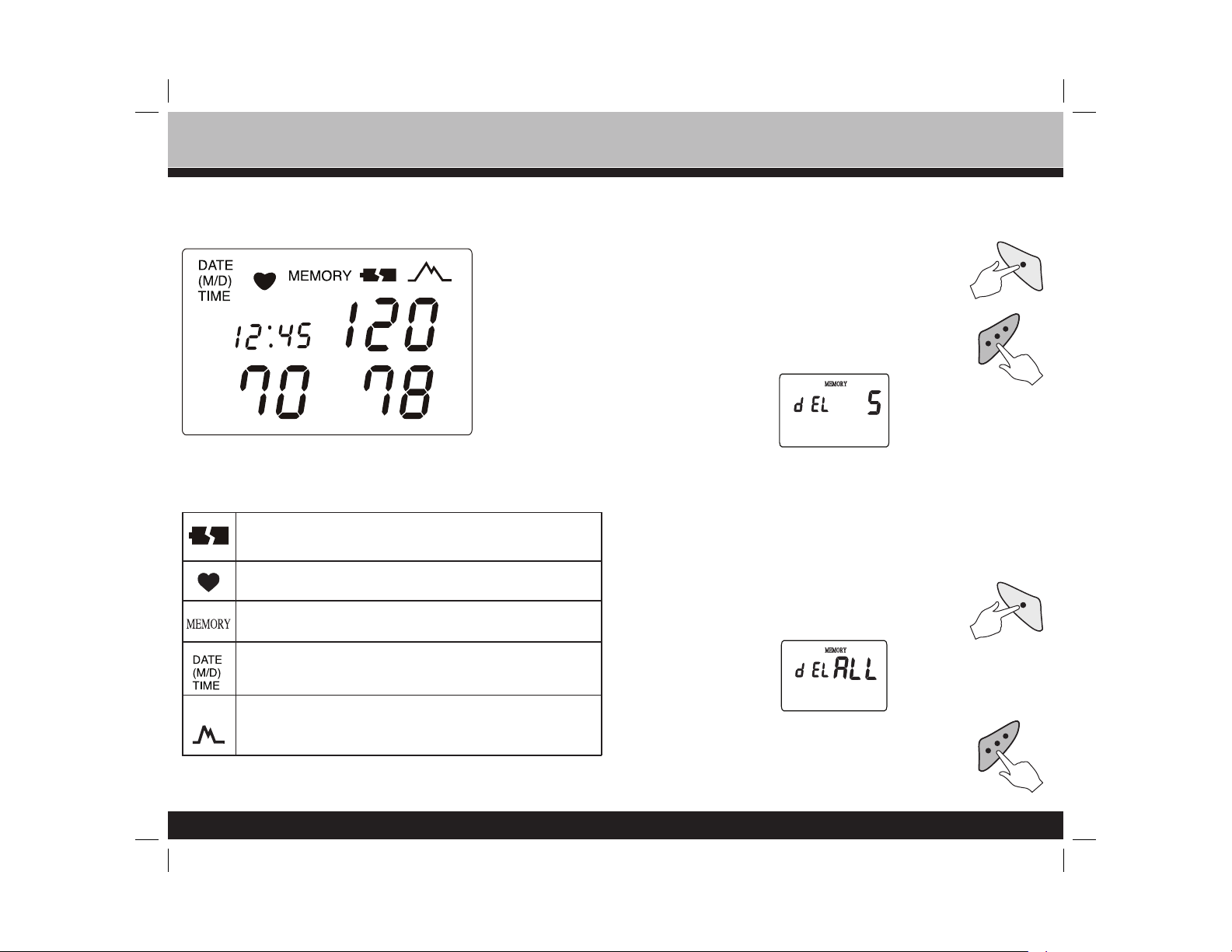

Display Symbols & Explanations
Display Symbols
Systolic Pressure
Diastolic Pressure
Pulse Rate
Display Explanations
Low Battery Indicator: Appears when the
batteries are low or need replacement.
Pulse Symbol: Shows the pulse rate per minute.
Memory: Holds the memory for up to 85 readings.
Deleting the Memory
To delete the memory
1. To delete one memory:
A. Press the “MEMORY” button to display the
record that you wish to delete.
B. Press and hold the “START/STOP” button until
the display shows “DEL”.
C. Once the “DEL” has been displayed, press and hold the
“START/STOP” button again. After 3 beeps, the selected
record has been deleted.
2. To delete all memories:
Follow steps A and B above
C. Press the “MEMORY” button until the display
shows “DEL ALL”.
Date and Time: Shows the exact date (month and
day) and time of each reading.
Quick Read Technology: Detects your blood
pressure with the touch of a button.
7
D. Once the “DEL ALL” has been displayed,
press and hold the “START/STOP”
button again. After 3 beeps, all records
have been deleted.
16
Memory Recall
Installing the Batteries
To see the previously measured values
A. Press the “MEMORY” button to recall the last reading. The
LCD display will show the memory number, actual date
and time simultaneously of the measurement.
Memory
Memory Number
Date
/
Time
To insert the batteries
A. Lift the cover towards you to open the battery
compartment.
B. Insert 2 "AAA" batteries as indicated. Make sure to match
polarities (+, –) on the batteries.
C. Replace the battery cover by inserting the two hooks at
the bottom into the slot, then push on the top area.
B. To view additional readings, push the "MEMORY" button
successively to go through the various readings. (1~85).
15
Note: Please remove batteries when not in use for an extended
period of time. Do not dispose batteries with household garbage.
8
Correct Measuring Posture
Measurement Procedures
A. Place your elbow on a table so
that the cuff is at the same level
as your heart. (Fig. A.)
Note: The level of your heart is
slightly below your armpit.
Relax your entire body, especially
the area between your elbow and fingers.
B. If the cuff is not at the same level
as your heart or if you can not
keep your arm completely still
throughout the reading, use a
soft object such as a folded towel
to support your arm. (Fig. B) Do
not allow hard objects to come in
contact with the wrist cuff.
C. Turn your palm upwards.
Fig. A
Fig. B
C. Quick Read Technology detects your blood pressure
with the touch of a button, which reduces measurement
time significantly and decreases patient discomfort.
Inflating Measuring
Note: It is important to
remain still and quiet
during measurement. Any
significant movement may
affect measurement results.
Results
D. Once the measurements have been displayed, press
the “START/STOP” button to turn off the unit or it will
automatically shut off after 150 seconds.
D. Sit upright in a chair, and take
5-6 deep breaths.
Note: Avoid leaning back or crossing
your legs while the measurement is
being taken. (Fig. C)
9
Start / Stop
Fig. C
14
Measurement Procedures
Applying the Cuff

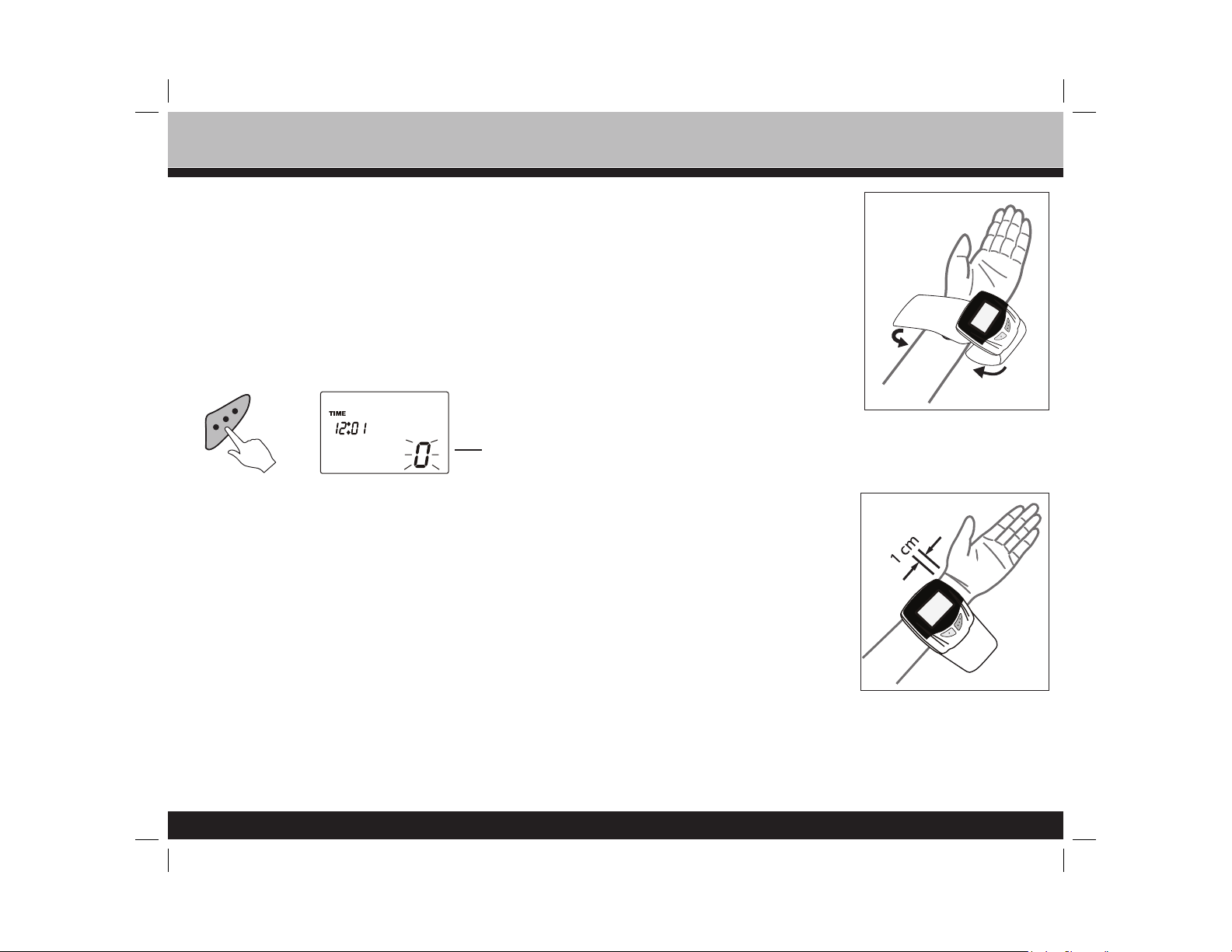

To start the measurement
Note: In order to get your correct measurement result and,
to avoid erroneous measurements, you should be seated
quietly. Your arm, hand, and fingers should be still during the
measurement procedure
A. Press the “START/STOP” button. The display will initially
show a flashing “0”.
Start / Stop
B. After the “0” stops blinking, the unit will automatically
inflate to the appropriate inflation level based on the
user's pulse oscillations. Measurement will then begin.
.
Flashing “0”
Initial Display

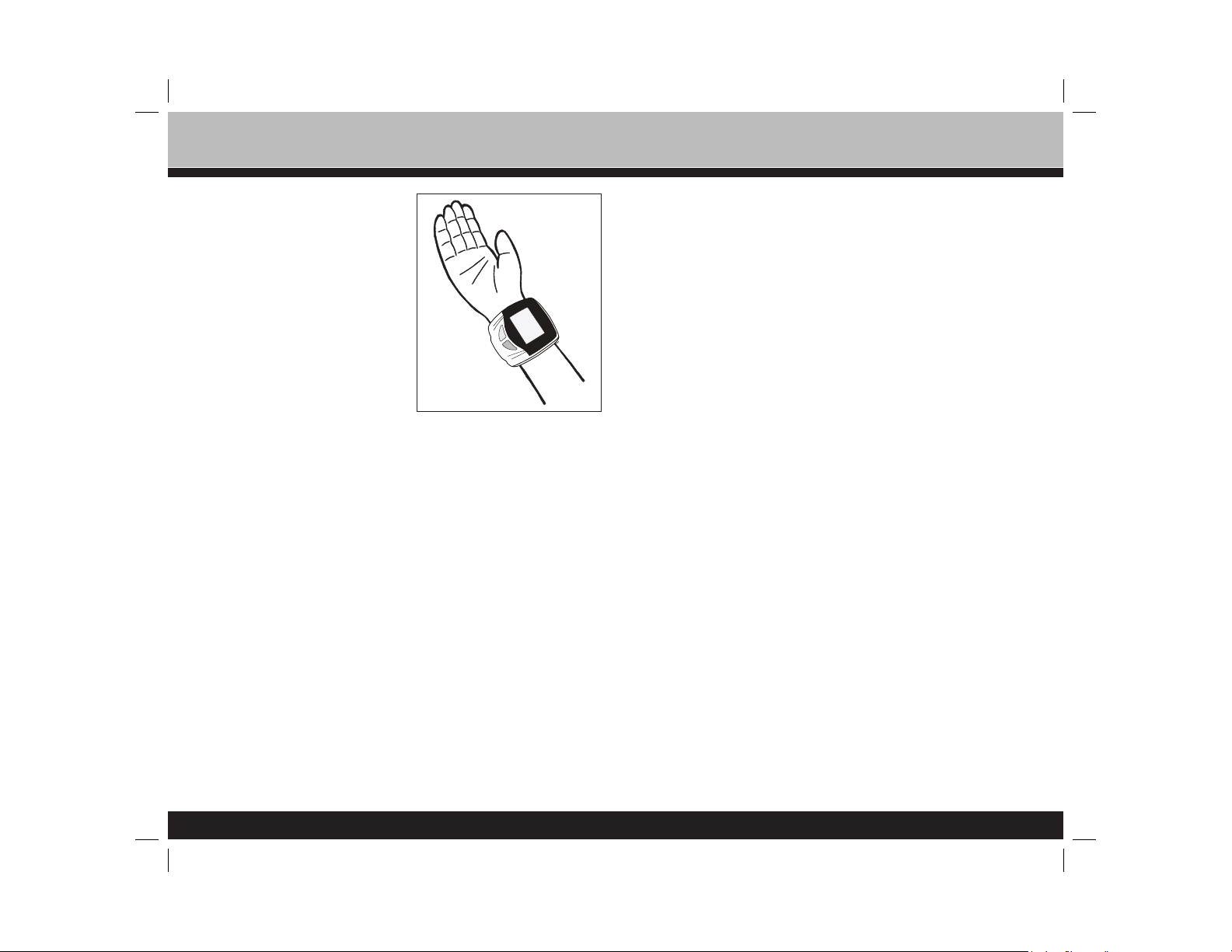

To apply the cuff
A. Remove all watches, jewelry,
etc. prior to attaching the wrist
monitor. Clothing sleeves
should be rolled up and
the cuff should be wrapped
on bare skin for correct
measurements.
B. Apply cuff to left wrist with
palm facing up as Fig. A.
C. Make sure the edge of the
cuff is about 1 cm (1/2 an
inch) from the palm as Fig. B.
D. In order to insure accurate
measurements, fasten
the velcro strap securely
around your wrist so there
is no extra space between
the cuff and the wrist.
Note: If the cuff is not wrapped tight enough, the measurement
values will be inaccurate.
Fig. A
Fig. B
13
10
Applying the Cuff
Helpful Tips
E. If it is not possible to
measure on the left wrist,
attach the cuff on the right
wrist as shown in Fig. C
Fig. C
Here are a few helpful tips to help you obtain a more accurate reading.
A. Do not measure your blood pressure immediately after
consuming a large meal. To obtain more accurate
readings, please wait one hour before measuring.
B. Do not smoke or drink alcohol before measuring your
blood pressure.
C. You should not be physically tired or exhausted while
taking a measurement.
D. It is important that you relax during measurement. Take
a 15-minute rest before a reading.
E. Do not take measurements if you are under stress or
feeling tense.
F. Take your blood pressure at normal body temperature. If
you are feeling cold or hot, wait a while before taking a
measurement.
11
G. If the monitor is stored at very low temperature (near
freezing), place it in a warm location for at least one hour
before using it.
H. Wait about 5 minutes before taking the next pressure
measurement.
12
Loading...
