For event driven CCTV

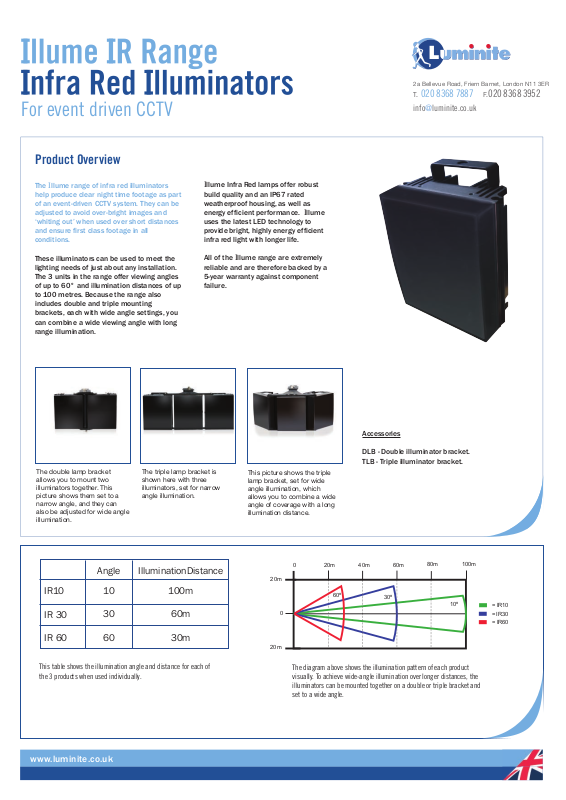

Product Overview
2a Bellevue Road, Friern Barnet, London N11 3ER
T. 020 8368 7887 F. 020 8368 3952
info@luminite.co.uk

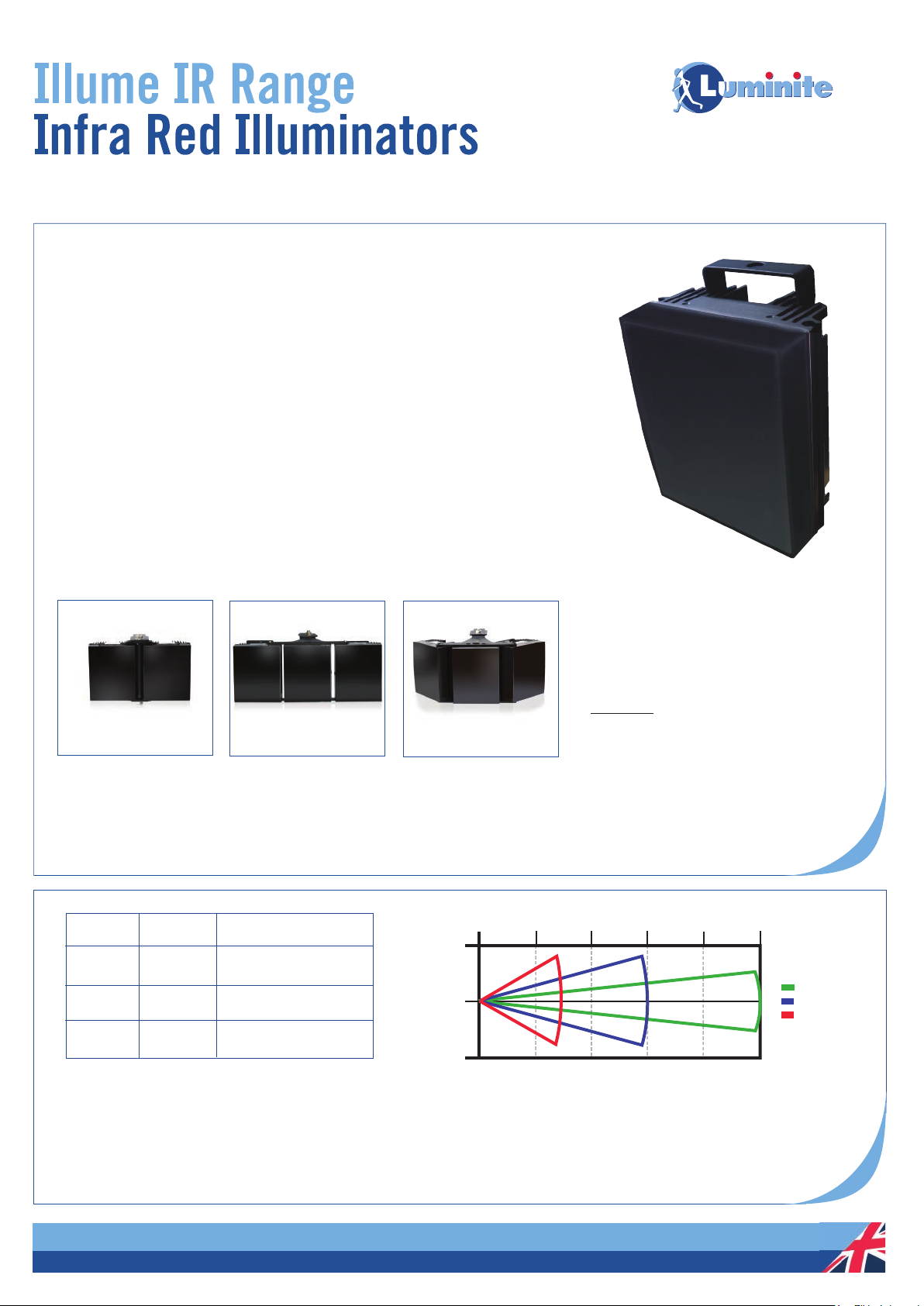

The Illume range of infra red illuminators
help produce clear night time footage as part
of an event-driven CCTV system. They can be
adjusted to avoid over-bright images and
‘whiting out’ when used over short distances
and ensure first class footage in all
conditions.
These illuminators can be used to meet the
lighting needs of just about any installation.
The 3 units in the range offer viewing angles
of up to 60° and illumination distances of up
to 100 metres. Because the range also
includes double and triple mounting
brackets, each with wide angle settings, you
can combine a wide viewing angle with long
range illumination.
The double lamp bracket
allows you to mount two
illuminators together. This
picture shows them set to a
narrow angle, and they can
also be adjusted for wide angle
illumination.
The triple lamp bracket is
shown here with three
illuminators, set for narrow
angle illumination.
Illume Infra Red lamps offer robust
build quality and an IP67 rated
weatherproof housing, as well as
energy efficient performance. Illume
uses the latest LED technology to
provide bright, highly energy efficient
infra red light with longer life.
All of the Illume range are extremely
reliable and are therefore backed by a
5-year warranty against component
failure.
Accessories
DLB - Double illuminator bracket.
TLB - Triple illuminator bracket.
This picture shows the triple
lamp bracket, set for wide
angle illumination, which
allows you to combine a wide
angle of coverage with a long
illumination distance.
Angle IlluminationDistance
IR10
IR 30
IR 60
10
30
60
This table shows the illumination angle and distance for each of
the 3 products when used individually.
100m
60m
30m
www.luminite.co.uk
60m
30º
20m
20m
0
0
20m
40m
60º
The diagram above shows the illumination pattern of each product
visually. To achieve wide-angle illumination over longer distances, the
illuminators can be mounted together on a double or triple bracket and
set to a wide angle.
10º
100m80m
= IR10
= IR30
= IR60
Page 2

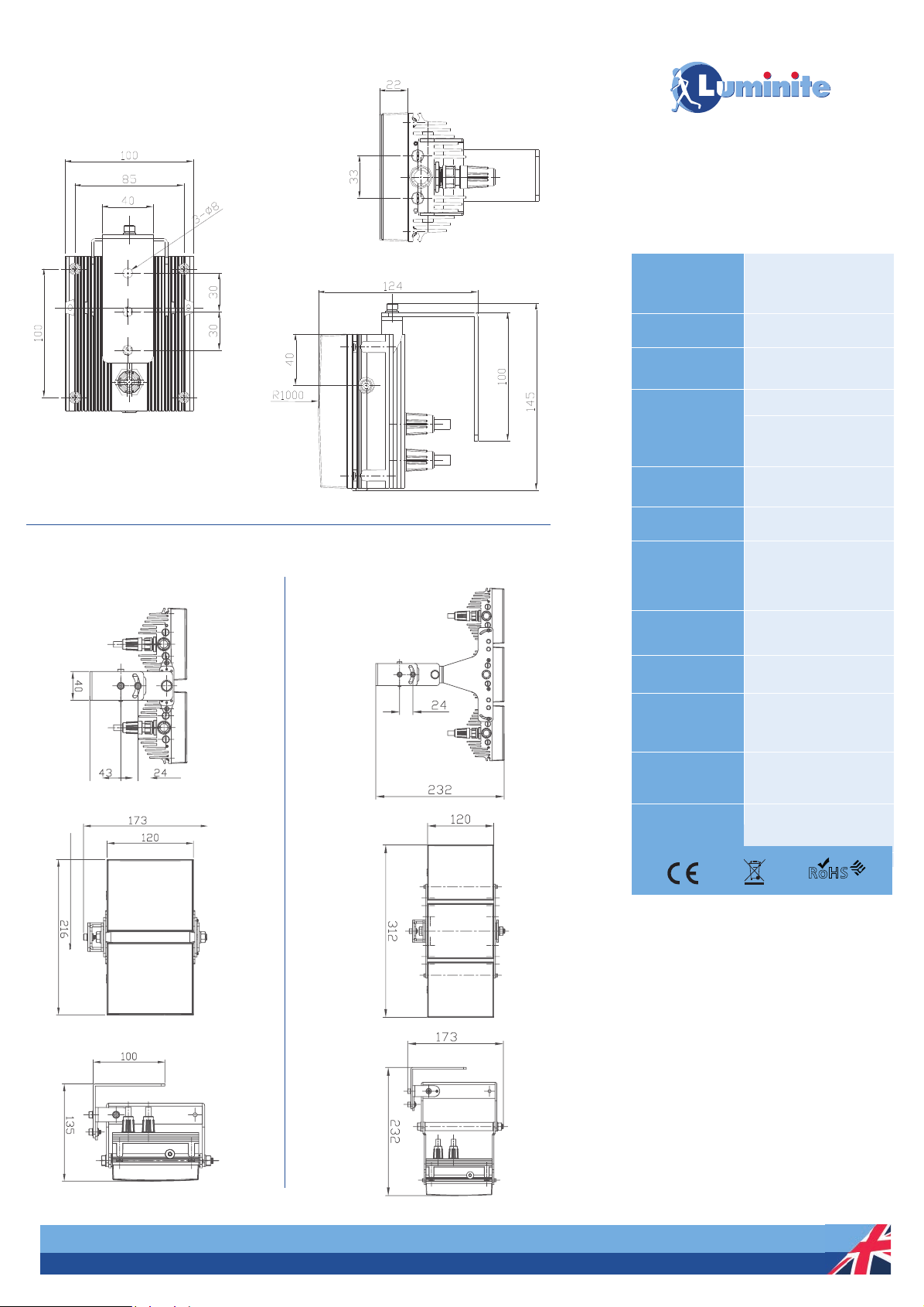

Single Lamp Dimensions
2a Bellevue Road, Friern Barnet, London N11 3ER
T. 020 8368 7887 F. 020 8368 3952
info@luminite.co.uk
Specifications
Double Lamp Dimensions
Triple Lamp Dimensions
Wavelength
Input Power
Power
consumption
Additional function
Minimum
illuminance
Colour
Main material
Work temperature
Work moisture
Storage
temperature
850nm IR LED
24V AC / 12V DC
MAX 25W
Day / Night Input
Photocell for automatic
dawn/dusk ON/OFF,
with level adjustment
Adjustable
Black anodic oxidation
Case: aluminium alloy,
Front Cover
weather resistance
engineering plastic PC
50 Below Zero to 50
Above Zero
10% - 90%
40 Below zero to 60
Above zero
Dimensions
Net weight
All tr ademarks are us ed courtesy of regis tere d owners.
Illume is a registered trademark of Luminite E lectronics Lt d.
The manufacturer reserves the righ t to change specifi cations
without notice.
145 (L) x 100 (W) x
124 (H) mm
0.85Kg
R o HS
COMP LIA NT
