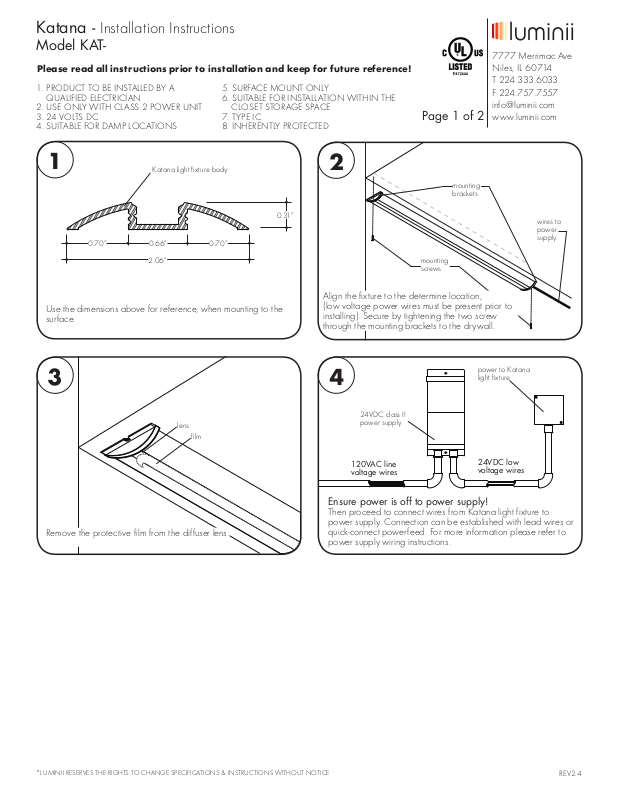

Katana - Installation Instructions
Model KAT-
Please read all instructions prior to installation and keep for future reference!
1. PRODUCT TO BE INSTALLED BY A
QUALIFIED ELECTRICIAN
2. USE ONLY WITH CLASS 2 POWER UNIT
3. 24 VOLTS DC
4. SUITABLE FOR DAMP LOCATIONS
5. SURFACE MOUNT ONLY
6. SUITABLE FOR INSTALLATION WITHIN THE
CLOSET STORAGE SPACE
7. TYPE IC
8. INHERENTLY PROTECTED
Page 1 of 2
7777 Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
[email protected]
www.luminii.com
1
0.70”

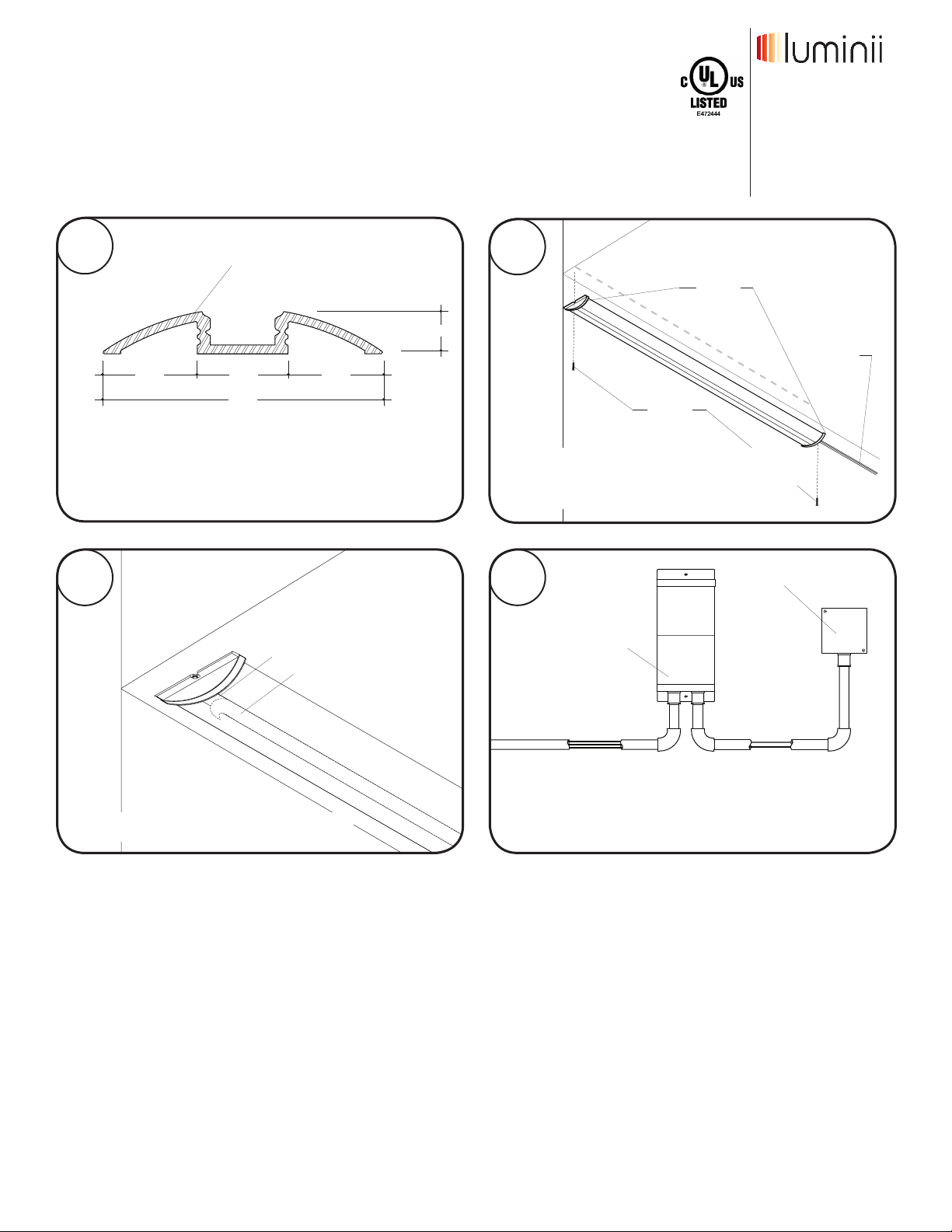

Use the dimensions above for reference, when mounting to the
surface.
Katana light fixture body
0.66”
2.06”
0.70”
0.31”
3
lens
film
2
mounting
brackets
mounting
screws
Align the fixture to the determine location,
(low voltage power wires must be present prior to
installing). Secure by tightening the two screw
through the mounting brackets to the drywall.
power to Katana
4
24VDC class II
power supply
light fixture
wires to
power
supply
Remove the protective film from the diffuser lens.
120VAC line
voltage wires
Ensure power is off to power supply!
Then proceed to connect wires from Katana light fixture to
power supply. Connection can be established with lead wires or
quick-connect powerfeed. For more information please refer to
power supply wiring instructions.
24VDC low
voltage wires
*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATIONS & INSTRUCTIONS WITHOUT NOTICE
REV2.4
Page 2
Katana - Installation Instructions
Model KAT-
Please read all instructions prior to installation and keep for future reference!
1. PRODUCT TO BE INSTALLED BY A
QUALIFIED ELECTRICIAN
2. USE ONLY WITH CLASS 2 POWER UNIT
3. 24 VOLTS DC
4. SUITABLE FOR DAMP LOCATIONS

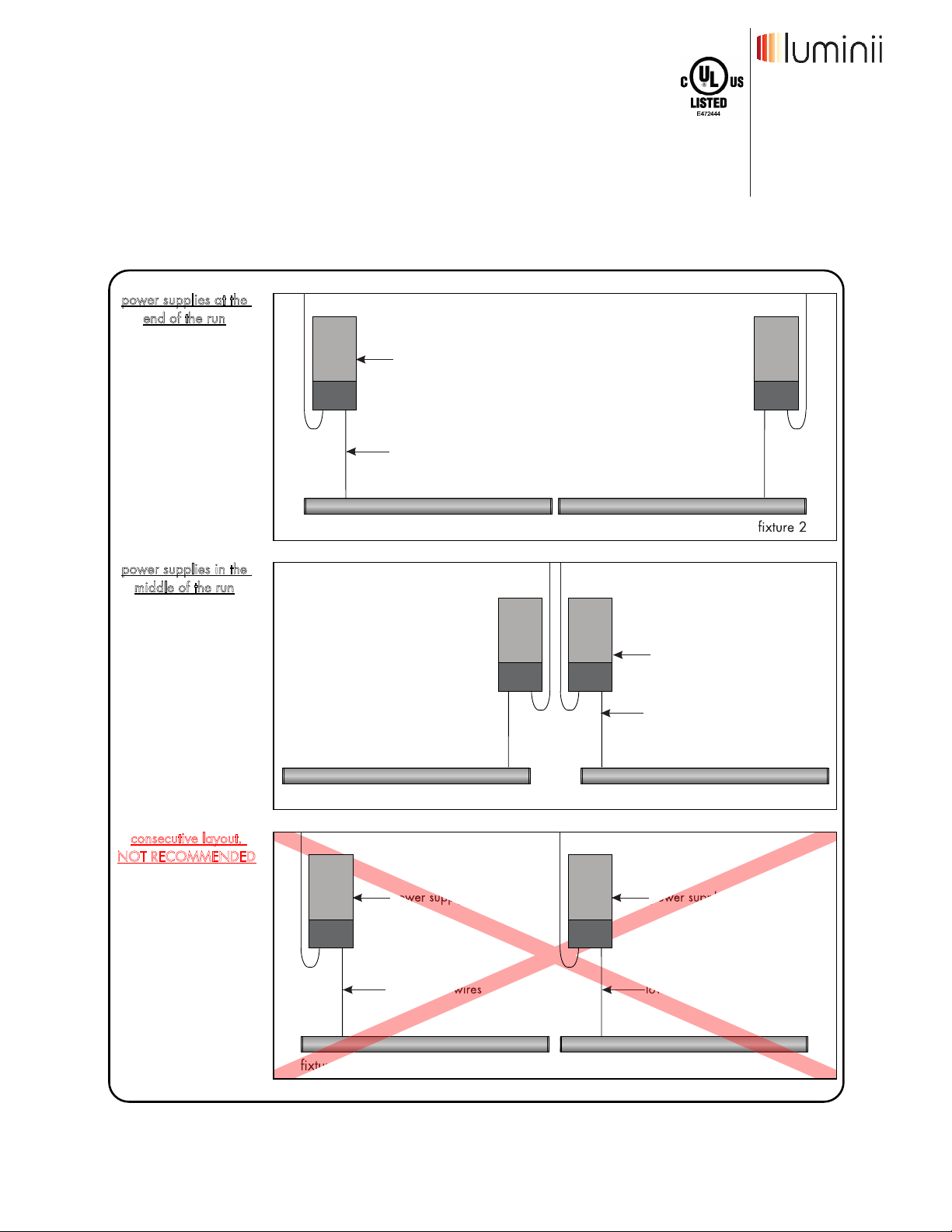

multiple powerfeed layouts
power supplies at the
nd of the run
e
5. SURFACE MOUNT ONLY
6. SUITABLE FOR INSTALLATION WITHIN THE
CLOSET STORAGE SPACE
7. TYPE IC
8. INHERENTLY PROTECTED
power supply
low voltage wires
Page 2 of 2
7777 Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
[email protected]
www.luminii.com
power supplies in the
iddle of the run
m
consecutive layout,
OT RECOMMENDED
N
fixture 1
power supply
power supply
low voltage wires
fixture 1 fixture 2
power supply
low voltage wires
fixture 1
*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATIONS & INSTRUCTIONS WITHOUT NOTICE
low voltage wires
fixture 2
REV2.4
