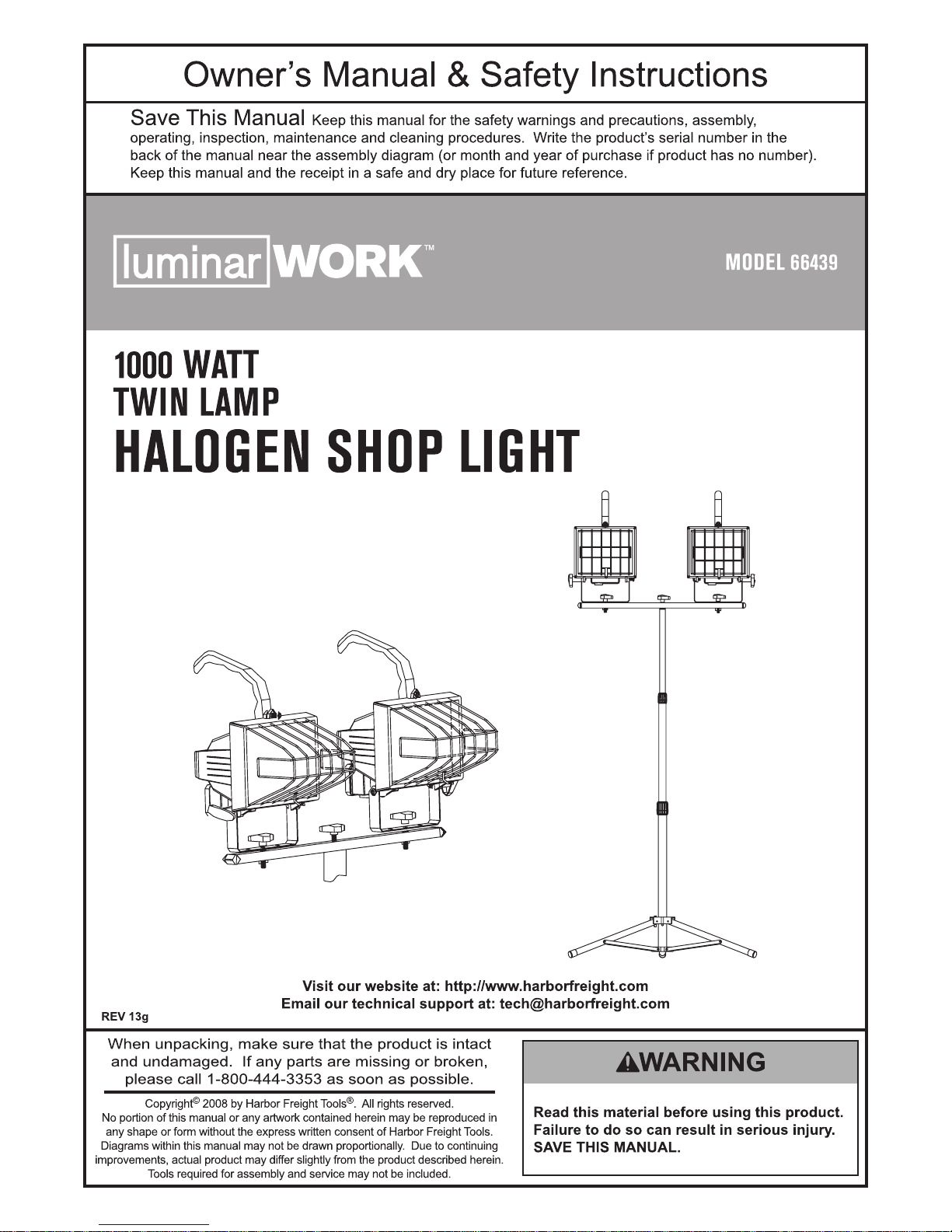

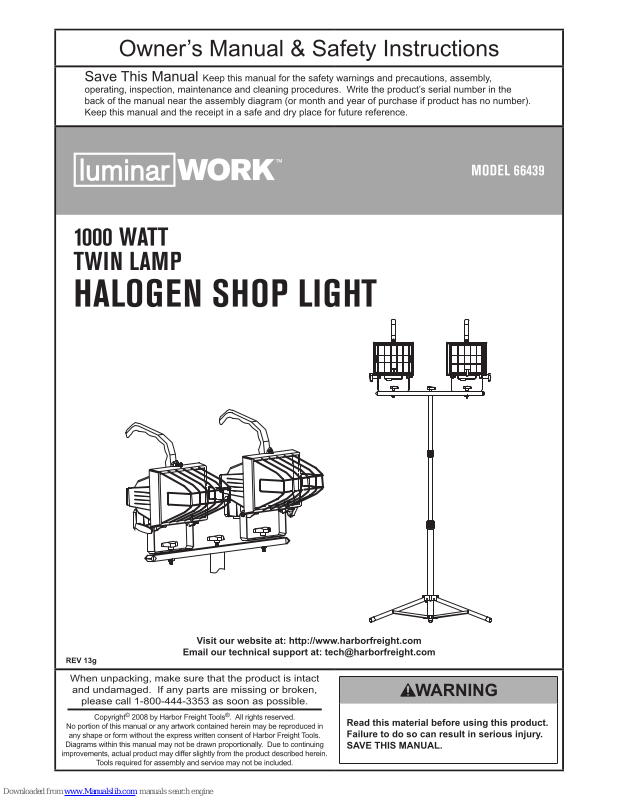

Luminar Work 66439 User Manual

Page 2 For technical questions, please call 1-800-444-3353. Item 66439

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK,

EXPOSURE TO EXCESSIVE UV RADIATION, OR INJURY TO PERSONS.

IMPORTANT SAFETY INSTRUCTIONS

Lighted Lamp is HOT:

WARNING – To reduce the risk of FIRE, ELECTRIC SHOCK,
EXPOSURE TO EXCESSIVE UV RADIATION, OR INJURY TO PERSONS:

1. Turn off/unplug and allow to cool
before replacing bulb.

2. Bulb gets HOT quickly!
Only contact On/Off Button/Plug when turning on.

3. Do not touch hot lens, guard, or enclosure.

4. Do not remain in light if skin feels warm.

5. Do not look directly at lighted lamp.

6. Keep lamp away from materials that may burn.

7. Use only with 500 watt or smaller bulbs.

8. Do not touch the bulb at any time. Use a soft cloth
instead. Oil from your skin may damage the bulb.

9. Do not operate the portable luminaire
with a missing or damaged guard,

lampcontainmentbarrier,orUVlter.

10. Avoid electric shock. Do not use with an extension
cord near water or where water may accumulate.

Keep lamp at least 16 feet (5m) from pools
and spas. Keep plugs and receptacles dry.
Use only on GFCI-protected circuits.
Do not submerge the Light in water.

11. The Light is not waterproof. Use extreme
caution in any wet location.

12. Be careful when placing tripod.
Make certain that the area is clear of debris
and obstructions that may bump the Light.

13. Do not obstruct walkways or
common areas with the cord.

14. Maintain labels and nameplates on the Light.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.

15. This product is not intended for use in a residence
or to be mounted in a cabinet. This product is
not suitable for recessed installation in ceilings
oronbuildings.Thisproductcancauseare.

Page 3For technical questions, please call 1-800-444-3353.Item 66439

16. Do not leave the Light unattended when it is plugged
into an electrical outlet. Turn off the Light, and
unplug it from its electrical outlet before leaving.

17. This product is not a toy.
Keep it out of reach of children.

18. People with pacemakers should consult their

physician(s)beforeuse.Electromagneticeldsin

close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
In addition, people with pacemakers should:

• Avoid operating alone.

• Properly maintain and inspect

to avoid electrical shock.

• Properly ground power cord. Ground
Fault Circuit Interrupter (GFCI) should
also be implemented – it prevents
sustained electrical shock

19. WARNING: Handling the cord on this product will
expose you to lead, a chemical known to the State
of California to cause cancer, and birth defects or
other reproductive harm. Wash hands after handling.
(California Health & Safety Code § 25249.5, et seq.)

20. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.

21. Do not operate a Light in explosive atmospheres,

suchasinthepresenceofammableliquids,

gases, or dust. A Light creates sparks
which may ignite the dust or fumes.

22. Do not abuse the cord. Never use the cord
for carrying, pulling, or unplugging the Light.
Keep the cord away from heat, oil, sharp edges,
and moving parts. Damaged or entangled
cords increase the risk of electric shock.

23. Stay alert, watch what you are doing, and
use common sense when operating a Light.
Do not use a Light while you are tired or under

theinuenceofdrugs,alcohol,ormedication.

A moment of inattention while operating a
Light may result in serious personal injury.

24. Do not use the Light if the On/Off Button does not
turn it on and off. Any Light that cannot be controlled
with the Button is dangerous and must be repaired.

25. HaveyourLightservicedbyaqualiedrepairperson.
Use only identical replacement parts. This will
ensure that the safety of the Light is maintained.

26. Always point the Light away from a wall, whether
the unit is in use or not. If the Light is accidentally
pointed at a wall while it is on or while it is

stillhotwhenturnedoff,aremayresult.

27. Wear ANSI-approved goggles during setup and use.

SAVE THESE INSTRUCTIONS.

Page 4 For technical questions, please call 1-800-444-3353. Item 66439

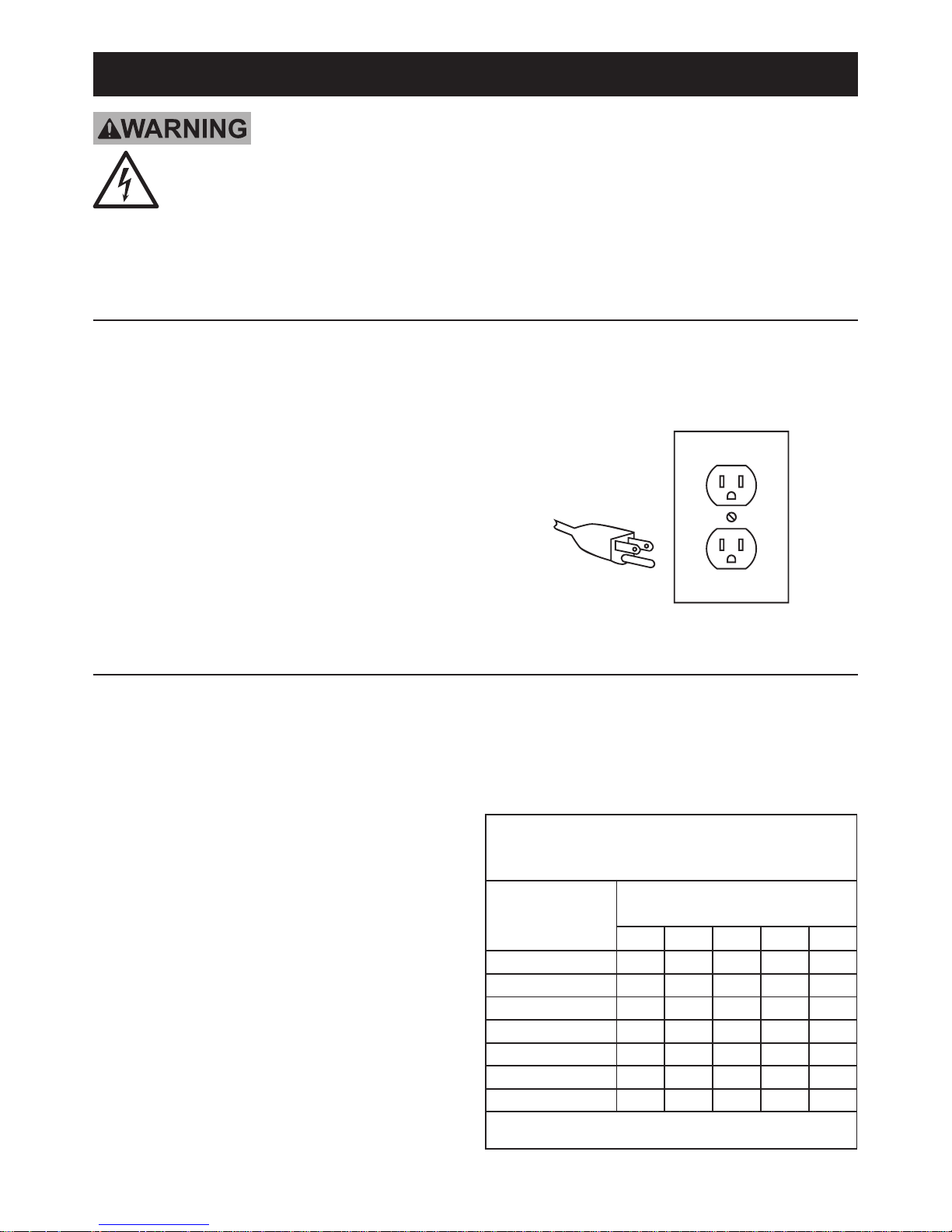

Grounding

TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING
WIRE CONNECTION:

Check with a qualied electrician if you are in doubt as to whether the outlet is properly grounded.

Do not modify the power cord plug provided with the Light. Never remove the grounding prong

from the plug. Do not use the Light if the power cord or plug is damaged. If damaged, have it repaired by a

service facility before use. If the plug will not t the outlet, have a proper outlet installed by a
qualied electrician.

Grounded Lights: Lights with Three-Prong Plugs

1. Lights marked with “Grounding Required” have
a three wire cord and a three prong grounding
plug. The plug must be connected to a properly
grounded outlet. If the Light should electrically
malfunction or break down, grounding provides
a low resistance path to carry electricity away
from the user, reducing the risk of electric
shock. (See 3-Prong Plug and Outlet.)

2. The grounding prong in the plug is connected through
the green wire inside the cord to the grounding
system in the Light. The green wire in the cord must
be the only wire connected to the Light’s grounding
system and must never be attached to an electrically
“live” terminal. (See 3-Prong Plug and Outlet.)

3. The Light must be plugged into an appropriate outlet,
properly installed and grounded in accordance
with all codes and ordinances. The plug and outlet
should look like those in the preceding illustration.

(See 3-Prong Plug and Outlet.)

3-Prong Plug and Outlet

Extension Cords

1. Grounded Lights require a three-wire extension cord.
Double Insulated Lights can use either

a two or three wire extension cord.

2. As the distance from the supply outlet increases,
you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire
causes a serious drop in voltage, resulting in loss of
power and possible tool damage. (See Table A.)

3. The smaller the gauge number of the wire,
the greater the capacity of the cord. For
example, a 14 gauge cord can carry a
higher current than a 16 gauge cord.

4. When using more than one extension cord to
make up the total length, make sure each cord
contains at least the minimum wire size required.

5. If you are using one extension cord for more than
one tool, add the nameplate amperes and use the
sum to determine the required minimum cord size.

6. If you are using an extension cord outdoors, make

sureitismarkedwiththesufx“W-A”(“W”in

Canada) to indicate it is acceptable for outdoor use.

7. Make sure the extension cord is properly wired
and in good electrical condition. Always replace
a damaged extension cord or have it repaired

byaqualiedelectricianbeforeusingit.

8. Protect the extension cords from sharp objects,
excessive heat, and damp or wet areas.

TABLE A: RECOMMENDED

MINIMUM WIRE GAUGE FOR

EXTENSION CORDS* (120 VOLT)

NAMEPLATE

AMPERES

(at full load)

EXTENSION CORD

LENGTH

25´ 50´ 75´ 100´ 150´

0 – 2.0 18 18 18 18 16

2.1 – 3.4 18 18 18 16 14

3.5 – 5.0 18 18 16 14 12

5.1 – 7.0 18 16 14 12 12

7.1 – 12.0 16 14 12 10 -

12.1 – 16.0 14 12 10 - -

16.1 – 20.0 12 10 - - -

* Based on limiting the line voltage drop to five volts at

150% of the rated amperes.

Page 5For technical questions, please call 1-800-444-3353.Item 66439

Symbology

Double Insulated

Canadian Standards Association

Underwriters Laboratories, Inc.

V~

Volts Alternating Current

A

Amperes

n0 xxxx/

min.

No Load Revolutions per Minute (RPM)

WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.

Read the manual before
set-up and/or use.

WARNING marking
concerning Risk of Fire.
Do not cover ventilation ducts.

Keepammableobjectsaway.

WARNING marking concerning
Risk of Electric Shock.
Properly connect power cord
to appropriate outlet.

Specications

Electrical Rating 120VAC / 60Hz / 8A

Bulb 500W /120VAC Halogen (included)

E197534

Page 6 For technical questions, please call 1-800-444-3353. Item 66439

Set Up Instructions

Read the ENTIRE IMPORTANT SAFETY INSTRUCTIONS section at the beginning of this
manual, including all text under subheadings therein before setup or use of this product.

Risk of accidental starting, resulting in serious personal injury. Turn the Power Switch of the Light
OFF and unplug it from the electrical outlet before assembling or making any adjustments.

Deviation from the assembly instructions may result in a risk of re or electric shock.

Note: For additional information regarding the parts listed in the following pages,

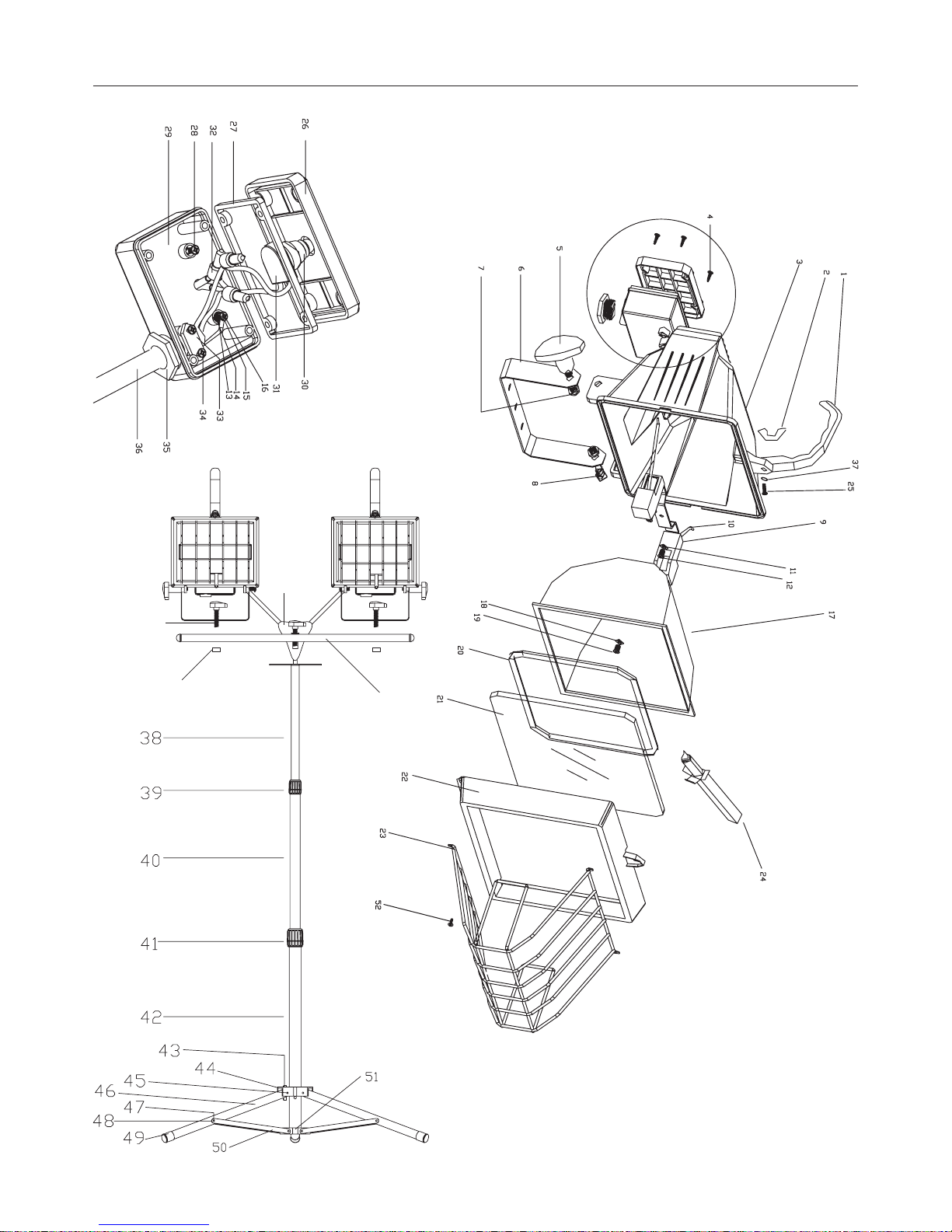

refer to the Assembly Diagram near the end of this manual.

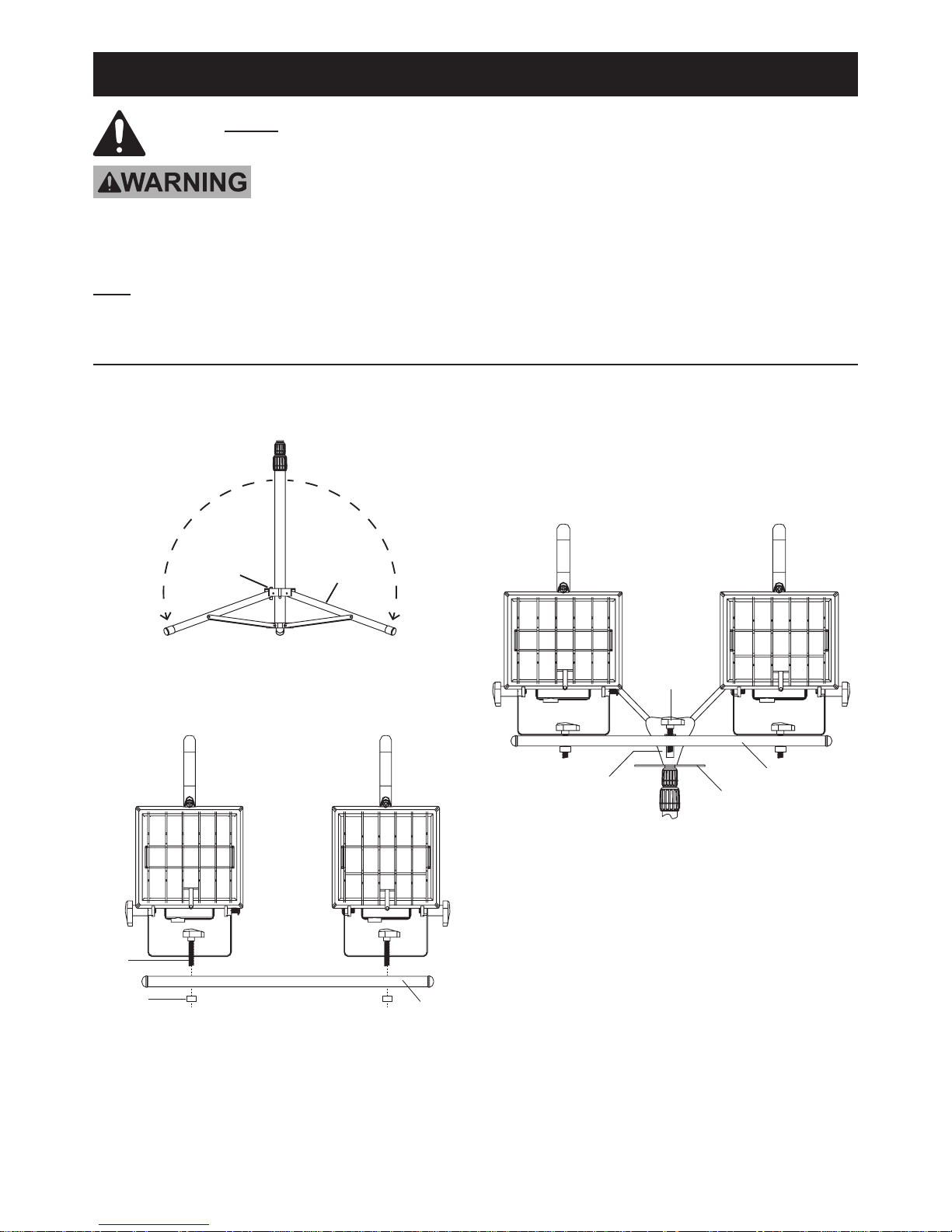

Tripod Setup

1. Loosen the Leg Knob (43) and swing the three Legs
(46) out and down. Then tighten the Leg Knob.
(See Figure A.)

43 46

Figure A

2. Attach the lamp assemblies to the Lamp Mounting
Bar (55), using the Knobs (53) and Nuts (54).
(See Figure B)

54

53

55

Figure B

3. Place the bracket on the Y-connector (56)
on the Lamp Mounting Bar (55) so that the
holes in the center line up. Insert the Knob
(53) through the holes. (See Figure C.)

4. Place the Lamp Mounting Bar (55) onto the Upper
Tube (38) and secure it in place with the Knob (53).
(See Figure C.)

53

56

55

38

Figure C

Page 7For technical questions, please call 1-800-444-3353.Item 66439

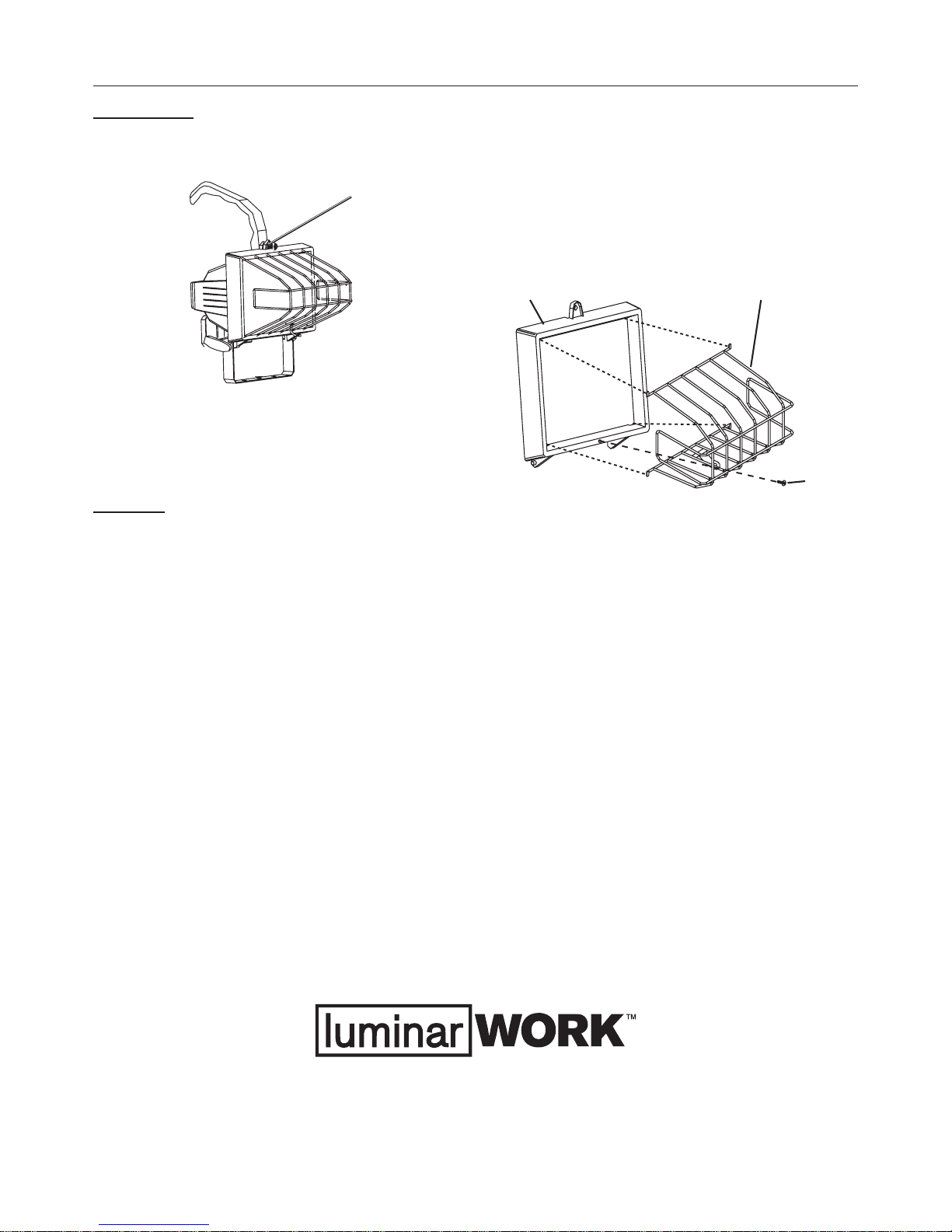

Light Assembly

For each light:

1. Remove the Bolt at the top of the housing
and open the Lamp Cover. See Figure D.

Bolt

Figure D

2. The bulb is shipped in a protective
box inside the light.

3. Insert the Bulb into the Bulb Socket.

CAUTION: Do not touch the Bulb with your bare
hands; oil from skin will drastically shorten the life
span of the bulb if not cleaned with rubbing alcohol
and allowed to dry before use. Handle the bulb with
a soft, clean cloth or clean work gloves instead.

4. Close the Lamp Cover (22) and
secure with the Bolt (25).

5. Place Handle (1) over end of Bolt (25) and
secure in place with Wing Nut (2).

6. Gently squeeze the Wire Cover (23) while
placing its four tabs into the Lamp Cover (22).
Secure the tab on the Wire Cover to the Lamp
Cover using the Screw (52). (See Figure E)

52

2322

Figure E

Page 8 For technical questions, please call 1-800-444-3353. Item 66439

Operating Instructions

Read the ENTIRE IMPORTANT SAFETY INSTRUCTIONS section at the beginning of this

manual, including all text under subheadings therein before setup or use of this product.

1. Plug the Light into a standard 120V
grounded, electric outlet.

2. Push the On/Off switch on the back of the light.

3. WARNING! Keep the Light away from

combustible objects. The light and housing

will get hot enough to start a re.

4. To turn off, push the On/Off switch.

5. To prevent accidents; turn off lights
and disconnect power supply after use.
Allow the Lights to cool. Clean, then store
the Light indoors out of children’s reach.

Page 9For technical questions, please call 1-800-444-3353.Item 66439

Maintenance And Servicing

Procedures not specically explained in this manual must
be performed only by a qualied technician.

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Make sure that the On/Off Button is in the OFF position and unplug the tool from
its electrical outlet before performing any procedure in this section.

TO PREVENT SERIOUS INJURY FROM LIGHT FAILURE:
Do not use damaged equipment. If damage is noted, have the problem corrected before further use.

1. BEFORE EACH USE, inspect the general
condition of the light. Check for:

• loose hardware,

• damaged cord/electrical wiring,

• cracked or broken parts, and

• any other condition that may

affect its safe operation.

2. AFTER USE, allow Light to cool and then wipe
external surfaces of the Light with a clean cloth.

WARNING! If the supply cord of this

light is damaged, it must be replaced only

by a qualied service technician.

Note: Replacement parts may not
be available for this item.

Page 10 For technical questions, please call 1-800-444-3353. Item 66439

Parts List and Diagram

Part Description Qty

1 Handle 2
2 Wing Nut 2
3 Housing 2
4 Screw 8
5 Knob 2
6 Bracket 2
7 Nut 6
8 Bolt 2

9 Bulb Socket 2
10 Sleeve 4
11 Gear Washer 4
12 Screw 4
13 Spring Washer 2
14 Gear Washer 2
15 Large Washer 2
16 Screw 2
17 Reector 2
18 Gear Washer 2
19 Screw 2
20 Seal Ring 2
21 Glass 2
22 Lamp Cover 2
23 Wire Cover 2
24 Bulb 2
25 Bolt 2
26 Junction Box Cover 2
27 Cover Pad 2
28 Screw 2

Part Description Qty

29 Junction Box 2
30 Switch Cap 2
31 Switch 2
32 Clip Connector 6
33 Wire Press Board 2
34 Screw 2
35 Grommet 2
36 Cord 2
37 O-Ring 2
38 Upper Tube 1
39 Height Adjustment Knob 1
40 Middle Tube 1
41 Height Adjustment Knob 1
42 Lower Tube 1
43 Leg Knob 1
44 Upper Slider 1
45 Screw 5
46 Leg 3
47 Rivet 3
48 Rubber Pad 6
49 Leg Tube Sleeve 3
50 Flat Shaft 6
51 Lower Slider 1
52 Screw 1
53 Knob 3
54 Nut 2
55 Lamp Mounting Bar 1
56 Cord - Plug and Y-connector 1

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Record Serial Number Here:

Note: If fan has no serial number, record month

and year of purchase instead.

Note: Some parts are listed and shown for
illustration purposes only, and are not available
individually as replacement parts.

Parts List

Page 11For technical questions, please call 1-800-444-3353.Item 66439

Assembly Diagram

54

53

55

56

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If

ourinspectionveriesthedefect,wewilleitherrepairorreplacetheproductatourelectionorwemayelect

to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return
repaired products at our expense, but if we determine there is no defect, or that the defect resulted from
causes not within the scope of our warranty, then you must bear the cost of returning the product.

Thiswarrantygivesyouspeciclegalrightsandyoumayalsohaveotherrightswhichvaryfromstatetostate.
