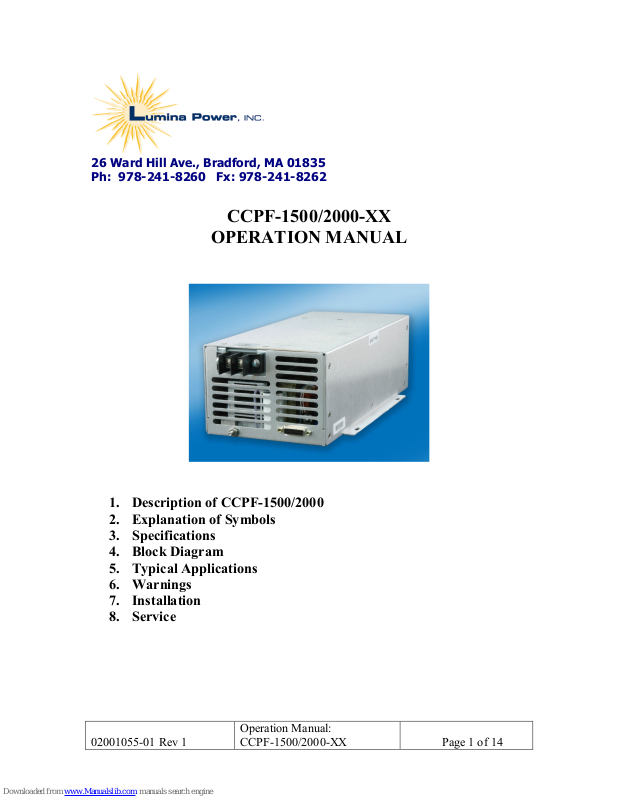

02001055-01 Rev 1
Operation Manual:
CCPF-1500/2000-XX
Page 1 of 14
26 Ward Hill Ave., Bradford, MA 01835
Ph: 978-241-8260 Fx: 978-241-8262
CCPF-1500/2000-XX
OPERATION MANUAL
1. Description of CCPF-1500/2000
2. Explanation of Symbols
3. Specifications
4. Block Diagram
5. Typical Applications
6. Warnings
7. Installation
8. Service
02001055-01 Rev 1
Operation Manual:
CCPF-1500/2000-XX
Page 2 of 14
1. Description of CCPF-1500/2000-XX
The CCPF-1500/2000-XX is a capacitor charging power supply designed for
OEM laser manufacturers. The power supply provides up to 1500J/sec for
line voltages below 140VAC and up to 2000J/sec for line voltages between
200VAC and 240AC. The main power output provides a constant current to
charge up a capacitor to the programmed value. An optional +24V is also
available for auxiliary power.
The CCPF-1500/2000-XX can be configured for maximum output voltages
up to 4000V. XX is the model designation which indicates the maximum
output voltage. As an example, a CCPF-1500 configured for 1000V
maximum output voltage is designated as a CCPF-1500-1P, where the P
indicates a positive output. Positive output is the standard polarity.
Figure 1.1 CCPF-1500/2000-XX Block Diagram
02001055-01 Rev 1
Operation Manual:
CCPF-1500/2000-XX
Page 3 of 14
2. Explanation of Symbols
Hazard: This equipment produces high voltages
which can be fatal. Only service personnel of Lumina
Power, Inc. are qualified to service this equipment.
High Voltage Present. This power supply produces
lethal high voltages. Only service personnel of Lumina
Power, Inc., are qualified to service this equipment.
Only qualified service personnel are permitted to install
this power supply.
Section Intentionally left blank
02001055-01 Rev 1
Operation Manual:
CCPF-1500/2000-XX
Page 4 of 14
3. Specifications
CCPF-1500/2000-XX Specifications
XX = .2P to 4P (Units can be configured for Vout
from 200V to 4000V)
max
Input
Voltage: CCPF-1500: 100-240 VAC, 50Hz to 60Hz
CCPF-2000: 200-240 VAC, 50Hz to 60Hz
Current: CCPF-1500: 20A @100VAC, 7.8 @240VAC
CCPF-2000: 12.5A @200VAC, 11A @240VAC
Output
Power: CCPF-1500: 1500J/sec
CCPF-2000: 2000J/sec
Output Voltage: Configurable from 200V to 4kV.
Output Current: 2 * Pout
Polarity: Positive
Efficiency: >75% at full output
Regulation: 0.5% @100Hz
max
/Vout
max
Interface
Connector: 15 Pin “D”
Vout Program: 0-10V for 0- Vout
Vout Monitor: 0-10V for 0-Vout
Vout
Inhibit Control
End of Charge Status
Over-Temp Status
Monitor: 0-10V for 0-Vout
peak
max
max
max
Environment
Operating Temp: 0 to 40 oC
Storage: -20 to 85 oC
Humidity: 0 to 90% non-condensing
Cooling: Forced air
Dimensions 12.5” x 4” x 5.75”
31.7cm x 10.1cm x 14.6cm
Regulatory
Leakage Current: 350uA
Isolation: 1500VAC/2200VDC
EMI: EN55011 Class A, Group 1 (Conducted and radiated)
Safety: EN60601.1, UL60601-1
02001055-01 Rev 1
Operation Manual:
CCPF-1500/2000-XX
Page 5 of 14
4. Interface Information
CCPF-1500/2000-XX INTERFACE
(15 Pin “D” Sub Connector Female)
PIN # TITLE/DESCRIPTION
1 INHIBIT/FAULT RESET- (Input) This pin is the basic ON/OFF control
pin for the power supply. Grounding pin 1 enables power supply
operation if all faults are clear. Applying +15V to pin 1 prevents the
inverter from operating. NOTE: In PFN applications, the power
supply should be INHIBITED via Pin 1 during the period the PFN
capacitor is discharged into the load. Noise from the discharge could
cause improper operation if the power supply is not INHIBITED.
2 N/C. Do not use.
3 OVER-TEMP STATUS INDICATOR- (Output) 10V (+/- 0.5V)
indication of over-temperature condition. This indicator is normally High
(5V) and will switch to Low (0V) to warn of a pending over-temperature
condition.
4 N/C. Do not use.
5 VOLTAGE PROGRAM- (Input) Output is programmed externally with
a 0 to +10V signal = 0 to Vout
6 OVERVOLTAGE STATUS INDICATOR- (Output) Open collector
output rated 30V, 100mA. Collector is tied internally to 4.02kohm pullup resistor. If the load becomes open circuited, the power supply will
detect the fault and shut down instantaneously, protecting itself and other
equipment from over-voltage. If this occurs, pin 6 is pulled low. To
restart, the INHIBIT/FAULT RESET function (Pin 1) must be toggled.
7 V
PEAK HOLD- (Output) Monitors output voltage with a peak hold
out
circuit. The time constant of the peak hold circuit is approximately 5
seconds. 0 to +10V = 0 to Vout
8 V
MONITOR- (Output) Monitors output voltage. 0 to +10V = 0 to
out
Vout
max
.
max
max
.
.
02001055-01 Rev 1
Operation Manual:
CCPF-1500/2000-XX
Page 6 of 14
CCPF-1500/2000-XX INTERFACE (continued)
PIN # TITLE/DESCRIPTION
9 +15V (Output) Maximum output current is 100mA. This pin is internally
tied to pins 11.
10 N/C. Do not use
11 +15V (Output) Maximum output current is 100mA. This pin is internally
tied to pins 9.
12 N/C. Do not use
13 END OF CHARGE STATUS INDICATOR- (Output) Open collector
output rated 30V, 100mA. Collector is tied internally to 4.02kohm pull-up
resistor. When the load capacitor reaches the programmed voltage, pin 13
is pulled low. Pin 13 will oscillate from high to low as the power supply
replaces charge that is bled through the feedback network.
Latched Low EOC signal is optionally available. The EOC signal will
latch Low when the load cap is fully charged and stays Low until the cap
is emptied by the PFN and the Inhibit signal will reset the EOC signal.
The Inhibit must be active for every charge/discharge cycle.
14 GND
15 N/C. Do not use.
02001055-01 Rev 1
Operation Manual:
CCPF-1500/2000-XX
Page 7 of 14
CCPF-1500/2000-XX
INTERFACE SCHEMATIC
Figure 4.1 CCPF-1500/2000 Interface Schematic
02001055-01 Rev 1
Operation Manual:
CCPF-1500/2000-XX
Page 8 of 14
5. Typical Applications
5.1 Using a CCPF with a pulse forming network (PFN)
The above block diagram shows a typical connection between a CCPF capacitor charging
power supply and a well matched pulse forming network. In a typical operation, when
the CCPF is ENABLED via Pin 1, the INHIBIT function, the CCPF will charge up the
PFN capacitor to the programmed value and then transmit an END OF CHARGE signal
to the user. Before discharging the load capacitor into the PFN, the CCPF should be
disabled via the INHIBIT function. Once the PFN is completely discharged and the SCR
has completely extinguished, the charging function can be ENABLED via the INHIBIT
function and the CCPF will charge the capacitor again to the programmed value. PFN
designers may choose to include a limiting resistor and a reversal protection diode to
protect the power supply if there is any possibility of an arc in the PFN circuitry.
02001055-01 Rev 1
Operation Manual:
CCPF-1500/2000-XX
Page 9 of 14
5.2 Using a CCPF with a square wave network (Reservoir Charging)
In this application, the power supply is ENABLED via the INHIBIT function and charges
up the capacitor bank to the programmed voltage. The IGBT will deliver short, high
current pulses to the flashlamp. The power supply is not INHIBITED during this process
and continuously tops the capacitor bank.
02001055-01 Rev 1
Operation Manual:
CCPF-1500/2000-XX
Page 10 of 14
5.3 Using a CCPF with multiple PFNs or capacitors
In applications where the power supply has to charge 2 or more separate
capacitors which are discharged at different times, diodes must be used in
series with the output to prevent one cap from discharge into the other.
Also, a resistor must be in parallel with each diode to help the power supply
to “see” the cap voltage which is now blocked by the diodes.
Failure to add the parallel resistors will result in over charging the cap as the
power supply does not see the real voltage on the caps.
The diodes must have voltage rated at least 300V higher than the max
voltage and 2 times the current.
The resistor values are calculated as follows:
R (in Ohm) >= 100 * Vout.
P (in Watts) >= V^2 /R.
Multiple PFN system.
02001055-01 Rev 1
Operation Manual:
CCPF-1500/2000-XX
Page 11 of 14
Warning:
Equipment is not suitable for use in presence of a flammable
Anesthetic mixture with air or with oxygen or nitrous oxide.
Warning:
Equipment is not suitable for use in presence of a flammable mixture
with air or with oxygen or nitrous oxide.
Warning:
These power supplies are not provided with any isolation devices and
shall only be used inside other medical equipment that has means to
isolated its circuits electrically from the supply mains on all poles
simultaneously.
6. WARNINGS
02001055-01 Rev 1
Operation Manual:
CCPF-1500/2000-XX
Page 12 of 14
7. Installation
Connection
Description
Required Wire and Connectors
AC Input Power
2 Position terminal strip
At least 14AWG wire
AC Earth
10-32 GND stud
At least 14AWG wire
Interface
15 pin “D” female
15 pin “D” male
HV Output
MHV Female
MHV Male and coax cable rated for at least 150%
of maximum rated output voltage of unit
7.1 These power supplies are designed for and intended only for installation into laser
systems using capacitor – flashlamp circuitry:
Only qualified technicians or qualified assemblers may install these power
supplies into their lasers.
Only qualified Lumina Power personnel may service these power supplies.
There are no user serviceable parts in this equipment.
Required wire and connectors: Refer to the Figure7.1 below for an the
locations of connections. Table 7-1 below shows required cables and connectors:
Table 7-1 CCPF-1500/2000-XX Connections
Mounting of chassis: Refer to Figure 7.1 below for location of four mounting
holes in the power supply flanges.
02001055-01 Rev 1
Operation Manual:
CCPF-1500/2000-XX
Page 13 of 14
Figure 7.1 CCPF-1500/2000-XX Outline Drawing
02001055-01 Rev 1
Operation Manual:
CCPF-1500/2000-XX
Page 14 of 14
ECO
Description
Doc Ctrl
Date
Approved
Initial Release
M J
BO’B
This unit contains no user serviceable parts. Service and repair should be
performed only by qualified personnel from Lumina Power, Inc. For more information
contact
Lumina Power, Inc.
26 Ward Hill Ave.,
Bradford, MA 01960
Ph: 978-241-8260
Fx: 978-241-8262
Ventilation: Unit is forced air cooled via an internal DC fan. A clearance of 2”
should be maintained at either side of the power supply the fan end of the power
supply as well as the grill side of the power supply. Hot air exits the grill side and
should be routed out of the system.
8. SERVICE
