juice extractor
instruction manual
stick blender set
model number: JU4021
after sales support
tel: 1300 366 144
N11013
SGS/060233
Client: ALDI Australia
Project: JU4021
Language: EN
Date: 23.10.2007
Version: 04
Page: 1 (of 12 pages)
Page 2
Barcode: 930 5026 10 000 3 00164
Stainless Steel Juicer
What your 1 year warranty means
Great care has gone into the manufacture of this product and it should therefore provide you with
years of good service when used properly. In the event of product failure within its intended use over
the course of the first 1 year after the date of purchase, we will remedy the problem as quickly as
possible once it has been brought to our attention. In the unlikely event of such an occurrence, or if
you require any information about the product please contact us via our after sales support services,
details of which can be found in this manual and on the product itself.
Client: ALDI Australia
Project: JU4021
Language: EN
2
Date: 23.10.2007
Version: 04
Page: 2 (of 12 pages)
Page 3
Barcode: 930 5026 10 000 3 00164
INTRODUCTION
Thank you for purchasing this product from our LUMINA® range. We believe that we have provided
you with a product that is both reliable and value for money. We encourage you and your friends to
choose from our range of LUMINA® products again in future.
PACKAGE CONTENTS
1 Juicer unit
•
1 Pulp container
•
1 Fruit and vegetable pusher
•
1 Lid with feeding tube
•
1 Removable filter
•
1 Instruction manual
•
2 Warranty stickers
•
1 Warranty certificate
•
Confirm all parts before disposing of carton.
SAFETY INSTRUCTIONS
Carefully read this manual before using this appliance.
•
Make sure that you know how the appliance functions and how to operate it.
•
Maintain the appliance in accordance with the instructions to ensure that it functions properly.
•
Keep this manual with the appliance. If the appliance is to be used by a third party, this instruction
•
manual must be supplied with it.
The safety instructions, by themselves, do not eliminate danger completely, and proper accident
•
prevention measures must always be used.
For any customer query or in the unlikely event of a product failure, please phone or email the
helpline contact details below for assistance, before attempting to return the product to the
retailer.
Toll Free Help line: 1300 366 144
Email: info@telefixsales.com.au
Client: ALDI Australia
Project: JU4021
Language: EN
3
Date: 23.10.2007
Version: 04
Page: 3 (of 12 pages)
Page 4
Barcode: 930 5026 10 000 3 00164
TABLE OF CONTENTS
INTRODUCTION ................................................ 2
PACKAGE CONTENTS ......................................... 2
SAFETY INSTRUCTIONS ................................... 2
SAFETY WARNINGS ......................................... 4
Electrical safety ................................................ 4
OPERATION GUIDE ........................................... 5
Parts Guide ..................................................... 5
Assembly Guide ................................................ 5
Preparing For Use ............................................ 6
Directions For Use ............................................ 6
Tips ................................................................... 7
Troubleshooting................................................ 7
Recipes - Introduction ...................................... 8
Common Questions With Answers ................... 9
Color Source ................................................... 10
Recipes - Basics .............................................. 11
CARE AND CLEANING ...................................... 12
TECHNICAL DATA ............................................. 12
Client: ALDI Australia
Project: JU4021
Language: EN
4
Date: 23.10.2007
Version: 04
Page: 4 (of 12 pages)
Page 5
Barcode: 930 5026 10 000 3 00164
SAFETY WARNINGS
Electrical safety.
When using electric appliances always observe safety regulations where applicable
•
to reduce the risk of fire, electric shock and personal injury.
Always check that the power supply corresponds to the voltage on the rating plate.
•
Supply cord and plug.
Always fully unwind any cord to avoid overheating.
•
Never allow the supply cord to come in contact with hot objects.
•
Do not carry the appliance by the cord or yank the cord to disconnect it from the
•
mains supply.
Disconnect by first switching off the outlet, grasping the plug and pulling it out
•
gently.
Do not let the supply cord hang over the edge of a table or counter.
•
If the supply cord is damaged, it must be replaced by the manufacturer, its service
•
agent or a similarly qualified person in order to avoid a hazard.
Children.
Caution. Keep out of reach of children.
•
This appliance is not intended for use by young children or infirm persons.
•
Young children must be supervised to ensure that they do not play with the
•
appliance.
This appliance is not suitable for use by young children or infirm persons unless
•
adequately supervised to ensure that they can use the appliance safely.
Water.
Do not immerse. Do not immerse any part of this appliance motor assembly or
•
supply cord in water or other liquid.
Do not use with wet hands or use in damp situations.
•
Handling.
Do not drop the appliance.
•
Do not use this appliance if it has been damaged in any way, immersed in water,
•
the supply cord is damaged or the operation is faulty.
Contact with any damaged appliance could result in electric shock.
•
Check the filter every time you want to use the appliance. If you detect any cracks
•
or damage, Do not use the appliance if the filter is damaged.
Make sure all parts are correctly mounted before you switch on the appliance.
•
Only use the appliance when the clamp is locked.
•
Never reach into the feeling tube with your fingers or with an object while the
•
appliance is running. Only the pusher is to be used for this purpose.
Only unlock the clamp after you have switched the appliance off and the filter has
•
stopped rotating.
Unattended.
•
Sharp objects and moving parts.
•
•
Store in a safe place.
•
Liability.
•
Client: ALDI Australia
Project: JU4021
Language: EN
Do not leave the appliance unattended while in use. Disconnect from the power
supply.
WARNING! Do not touch the small cutting blades in the base of the filter. The
cutting blades have very sharp edges.
Do not operate near any body parts. Ensure the blades have stopped rotation
completely before touching any area near the blades.
When not in use store your appliance and all its accessories and instruction
manual in a safe and dry place.
No liability can be accepted for any damage or personal injury caused by noncompliance with these instructions or any other improper use or mishandling.
This appliance is intended for household use only.
5
Date: 23.10.2007
Version: 04
Page: 5 (of 12 pages)
Page 6
Barcode: 930 5026 10 000 3 00164
OPERATION GUIDE
This appliance has been designed for general indoor household use only. Disconnect from the power
supply when not in use.

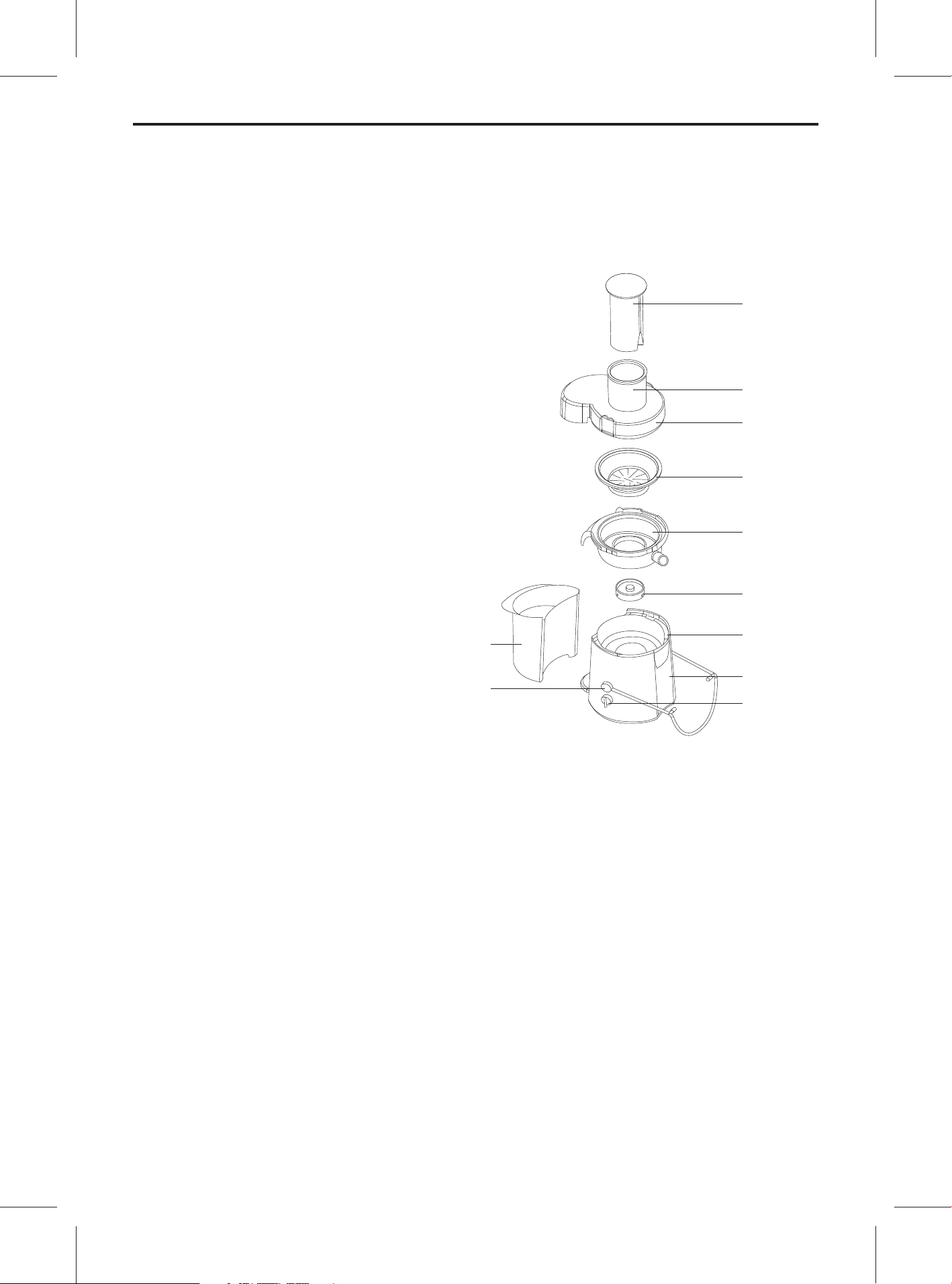

Parts Guide
A. Plunger
B. Feeding Tube
C. Lid
D. Filter
E. Juice Collector
F. Driving Shaft (Do not remove)
G. Motor Unit
H. Spout
I. Control Knob
J. Clamps
K. Pulp Container
A
B
C
D
E
F
K
J
G
H
I
Assembly Guide
Important Note: Maximum Use
WARNING! This appliance has been designed for short-term use only. Refer below guide for usage
times.
Juicer Use - Do not operate the juicer for more than 40 seconds at a time when juicing heavy loads,
•
allowing sufficient cool down time between uses.
CAUTIONS!
Sharp Blades. Handle with care. Do not touch moving blades in the base of the filter.
•
Unattended. Unplug when not in use or before assembly or disassembling.
•
Safety Warnings. Read all safety warnings before use.
•
Client: ALDI Australia
Project: JU4021
Language: EN
6
Date: 23.10.2007
Version: 04
Page: 6 (of 12 pages)
Page 7
Barcode: 930 5026 10 000 3 00164
OPERATION GUIDE

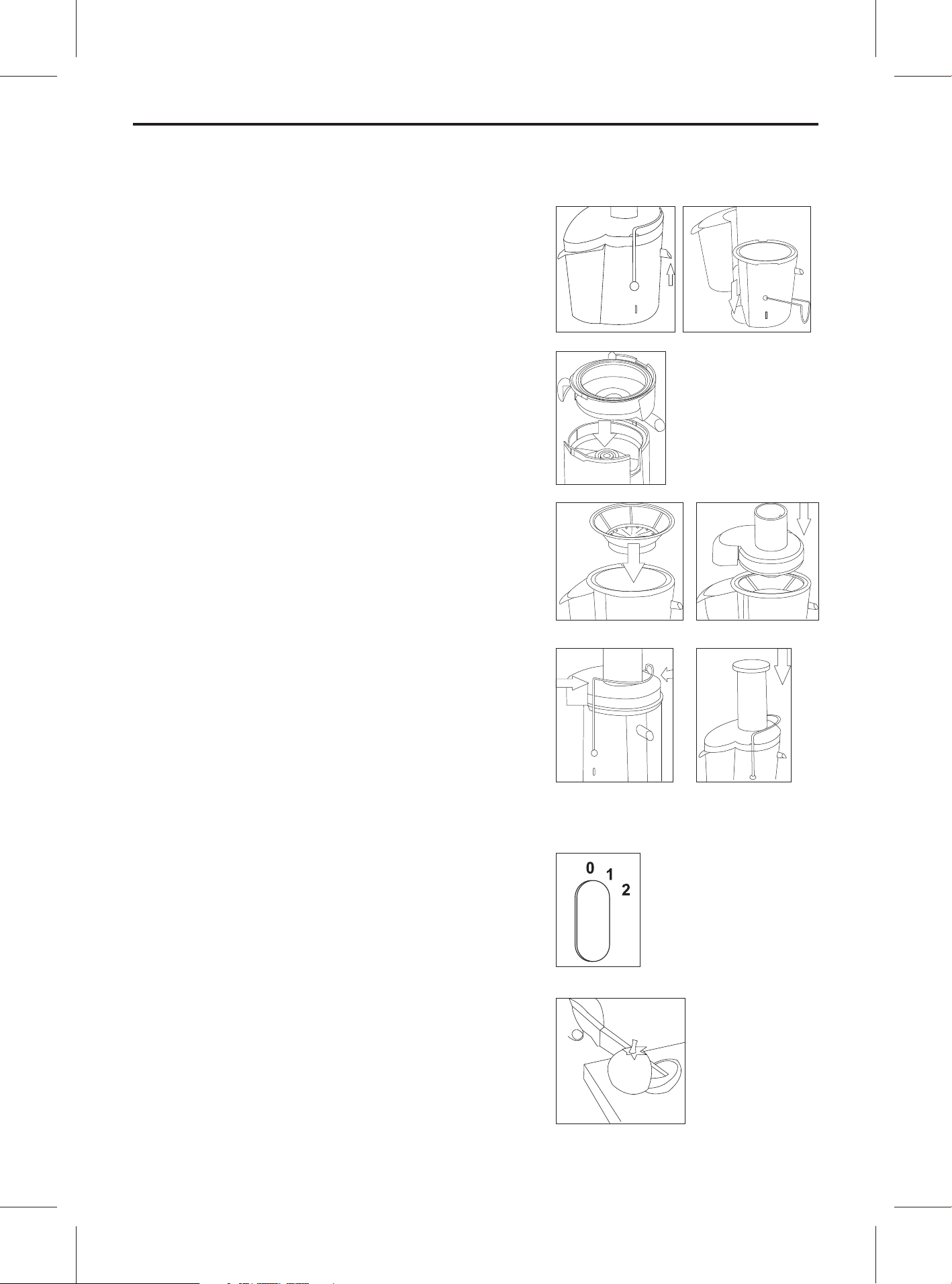

Preparing For Use
1. Make sure your glass or pitcher sits under the spout to
collect the juice.
2. Place the pulp container into the appliance by tilting it
forwards slightly. Insert the top end first and then push
down the bottom end.
3. Place the juice collector into the appliance. Make sure
the rim is flush with the motor unit.
NOTE: While you are preparing juice, you can empty the
pulp container by switching the appliance off and carefully
removing the pulp container. Reassemble the empty pulp
container before you continue juicing.
4. Put the filter in the juice collector. Make sure the filter is
fitted securely onto the driving shaft. The blade should
sit below the rim of the pulp container when in place.
5. Hold the lid over the filter and lower it into position.
1
3
4 5
2
6. Snap the two clamps onto the lid to lock it into place.
(You will hear a click).
NOTE: Make sure the clamp is locked into position on
both sides of the lid.
7. Slide the pusher into the feeding tube by aligning the
groove in the pusher with the small protrusion on the
inside of the feeding tube.
Directions For Use
8. Knob:
• Off
• Position 1 - Standard Speed (For most fruits &
vegetables)
• Position 2 - High Speed (For hard skin & tough foods)
The juicer will only function if all parts have been properly
assembled and the lid has been properly locked in place with
the clamps.
9. For oversized pieces, wash the fruit and/or vegetables
and cut them into pieces that fit into the feeding tube.
6 7
8
9
Client: ALDI Australia
Project: JU4021
Language: EN
7
Date: 23.10.2007
Version: 04
Page: 7 (of 12 pages)
Page 8
Barcode: 930 5026 10 000 3 00164
OPERATION GUIDE
10. Put the pieces in the feeding tube and gently press
them towards the rotating filter with the pusher.
NOTE: Do not exert too much pressure on the pusher,
as this could affect the quality of the juice and damage
the filter.
After you have processed all ingredients and the juice flow
has stopped, switch the appliance off and wait until the
filter has stopped rotating.
10

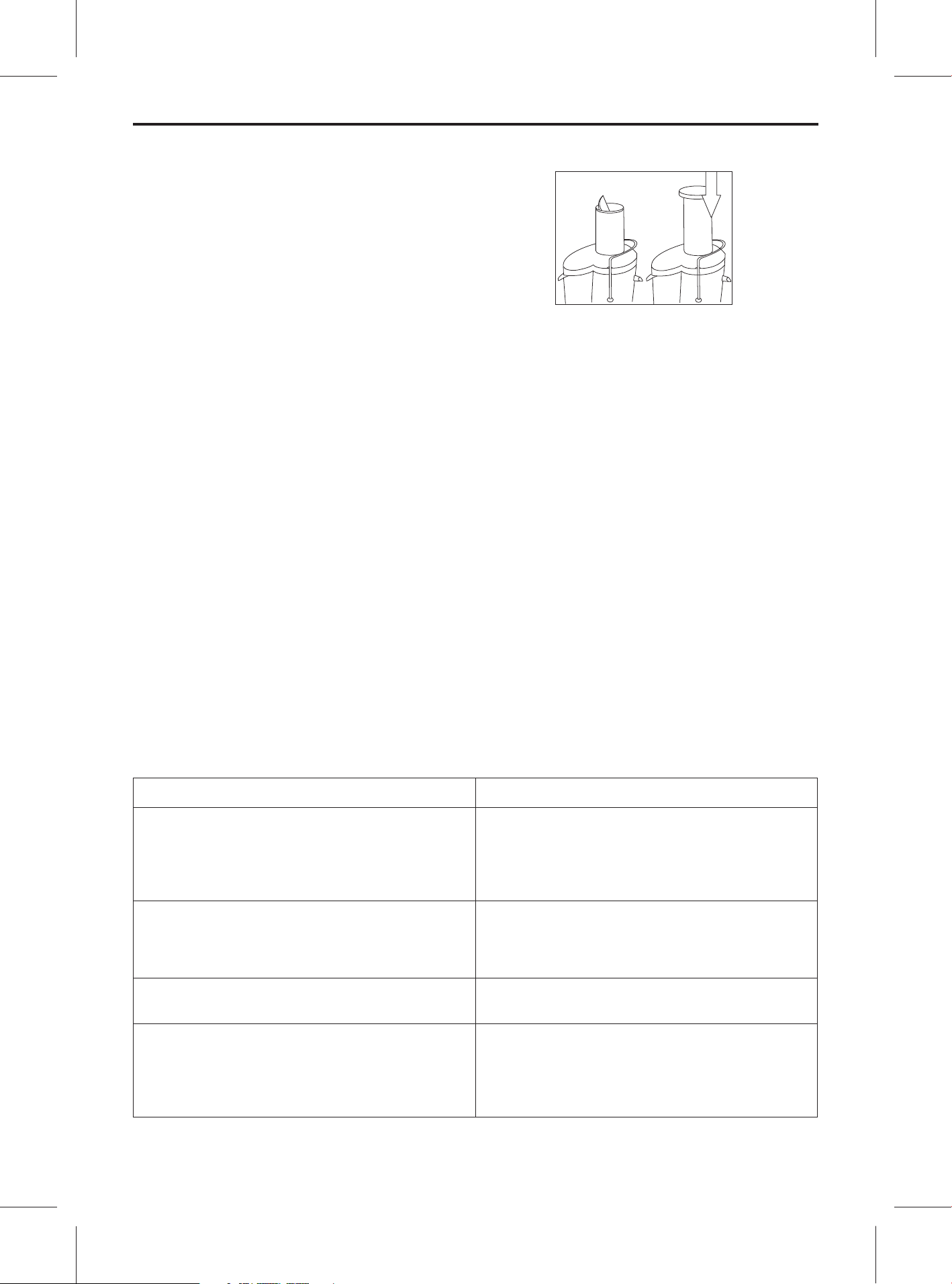

Tips
Use fresh fruit and vegetables, as they contain more juice. Pineapples, beetroots, celery stalks,
•
apples, cucumbers, carrots, spinach, melons, tomatoes, pomegranates, oranges and grapes are
particularly suitable for processing in the juicer.
You do not have to remove thin peels or skins. Only thick peels, e.g. those of oranges, pineapples
•
and uncooked beetroots need to be removed. Also remove the white pith of citrus fruits because it
has a bitter taste.
When preparing apple juice, remember that the thickness of the apple juice depends on the kind
•
of apple you are using. The juicier the apple the thinner the juice. Choose a kind of apple that
produces the type of juice you prefer.
Apple juice turns brown very quickly. You can slow down this process by adding a few drops of
•
lemon juice.
Fruits that contain starch, such as bananas, papayas, avocados, figs, and mangos are not suitable
•
for processing in the juicer. Use a food processor, blender or bar blender to process these fruits
before adding them into the juicer.
Leaves and leaf stalks, e.g. lettuce, can also be processed in the juicer.
•
Drink the juice soon after you have extracted it. If it is exposed to air for some time, the juice will
•
lose its taste and nutritional value. Place in sealed container, to extend taste and nutritional value.
To extract the maximum amount of juice, always press the pusher down slowly.
•
The juicer is not suitable for processing very hard and/or fibrous/starchy fruits or vegetables such
•
as sugar cane.
Troubleshooting
Problem Solution
The juicer does not work. The juicer is equipped with a safety system. It
will not work if the parts have not been mounted
properly. Check whether the parts have been
assembled in the right way, but switch off the
juicer before you do so.
The motor unit gives off an unpleasant smell the
first few times the appliance is used.
The filter is blocked. Switch the appliance off, clean the feeding tube
The filter touches the feeding tube or vibrates
strongly during processing.
This is not unusual. If the appliance continues
to give off this smell after a few uses, check the
quantities you are processing and the processing
time.
and the filter, and process a smaller quantity.
Switch the juicer off and unplug it. Check if
the filter has been properly placed in the juice
collector. The ribs in the bottom of the filter
should fit properly onto the driving shaft. Check
if the filter is damaged.
Client: ALDI Australia
Project: JU4021
Language: EN
8
Date: 23.10.2007
Version: 04
Page: 8 (of 12 pages)
Page 9
Barcode: 930 5026 10 000 3 00164
OPERATION GUIDE
Recipes - Introduction
Freshly squeezed juices are an easy yet refreshing way to stay healthy and increase your intake of
fruits and vegetables. The juicer will not only allow you to have the best tasting treats and drinks, it
will provide high nutritional value to your diet. If you like the amazing taste of fresh juice, it doesn’t
get any better than this. Thank you and enjoy juicing!
To help you get started, we have provided you with the following:
Hints & Tips
In order to get the most out of your JUICING, we highly suggest that you review this section before
you get started.
Recipes
Included are basic recipes. We also encourage you to come up with your own!
Before you begin using your juicer, there are a number of things you should consider in order to get
the most out of your juicer.
We strongly suggest using fresh fruits & vegetables. When they are in season, they taste better.
•
Push the food plunger slowly so you can extract the maximum amount of juice.
•
We suggest peeling any fruits or vegetables that have a “rough” skin .
•
The juicer is best used when you have removed as many seeds and pits as possible prior to juicing.
•
Cleaning can be made easier by placing a plastic bag in the waster collection container.
•
Do not pour liquids through the juicer.
•
Do not use fruits or vegetables when they are at the height of ripeness.
•
Do not freeze juice or pulps longer than one month.
•
We suggest only leaving your juice refrigerated for 1 day, after that it begins to sour.
•
Bundle herbs, sprouts, and leafy green vegetables together for best results. You can even wrap
•
them in a lettuce leaf.
Root ginger adds great taste to all sorts of juice recipes.
•
It is best to store fruits and harder vegetables at room temperature. More delicate foods should be
•
refrigerated.
Feel free to empty the pulp container while juicing - just make sure you turn the juicer off.
•
We strongly advise not to juice the following: Avocado, Rhubarb, Leek, Eggplant, Winter Squash,
Banana, Coconut, Figs, Mango, or Papaya. Use a Food Processor or Blender to process.
By eating a variety of colorful fruits and vegetables (green, yellow/orange, red, blue/purple, and white)
you are giving your body a wide range of nutrients that are important for good health.
Each color offers something unique, like different vitamins, minerals, and disease-fighting
phytochemicals, which work together to protect your health.
Client: ALDI Australia
Project: JU4021
Language: EN
9
Date: 23.10.2007
Version: 04
Page: 9 (of 12 pages)
Page 10
Barcode: 930 5026 10 000 3 00164
OPERATION GUIDE
Common Questions With Answers
Question Answers
Do I need to prepare fruits and vegetables for
juicing?
Is there any order for juicing fruit and
vegetables?
Can I juice the whole orange? Oranges and other citrus fruits can be juiced whole,
What can I do with the residual pulp? The pulp left from juicing is rich in fiber, vitamins,
Can I store freshly squeezed juice in the
refrigerator?
Yes, but preparation is minimal. Simply wash all
fruits and vegetables thoroughly before use, peel any
fruits with hard skin, and remove seeds and pits.
When juicing a variety of fruits and vegetables,
always alternate between soft and hard ingredients.
Hard fruits, such as apples, clean out the micromesh
filter, enabling the next item to be extracted
efficiently. Always end with a hard fruit as this
makes cleaning the mesh filter basket very easy.
but always peel them first. For extra-frothy orange
juice, keep your oranges in the fridge before juicing.
and minerals. It can be used to bulk out hamburger
patties and thicken up soups and casseroles. Pulp
will also add flavor to muffins, flans, mousse, strudel
and cakes. You can even use pulp in the garden as
compost. Regular juicers will create enough pulp for
a worm-farm.
All freshly squeezed juices are best consumed
immediately after juicing - the longer they sit the
more nutrients they lose. Juice is most delicious
when fresh.
Are the Juicer parts dishwasher safe? The juice cover, filter bowl, pulp container, stainless
steel filter basket, and juice pitcher can all be
placed in the dishwasher (on the top shelf only).
Alternatively, keep your juicer clean by rinsing
all of the removable parts under running water
immediately after use.
Client: ALDI Australia
Project: JU4021
Language: EN
10
Date: 23.10.2007
Version: 04
Page: 10 (of 12 pages)
Page 11
Barcode: 930 5026 10 000 3 00164
OPERATION GUIDE
Recipes - Basics
Tomato Juice
• 3.5 lbs. of fresh, ripe, firm tomatoes; washed,
no stems or leaves
Process ingredients through juicer. Serve
immediately!
Spicy: Add a few stalks of celery with leaves
(washed) and fresh ground pepper to taste.
Sweet: Add sugar for sweet tomato juice.
TIP: Fresh tomato juice can be pale, pink &
frothy since it has no additives, coloring, or
preservatives.
Island Blend
• 1 pineapple sliced, top & skin removed
• 1 papaya, sliced & seeds removed (process in
blender)
• 1 large orange, peeled
• 1 mango, peeled & pitted (process in blender)
• 1 guava, peeled & pitted
Process pineapple, orange, and guava through
the Juicer. Add papaya and mango, enjoy!
Apple Juice
• 4 large apples, washed with stems removed
Process through the Juicer. Serve immediately!
TIP: Mix apple varieties for best flavor. Add a
carrot for a sweet difference & vitamin boost.
Spice it up with a sprig of mint or a slice of
ginger.
Afternoon Delight
• 1 orange, peeled
• 1 sweet apple, washed & stem removed
• 1 large carrot, washed, topped & tailed
• 1 grapefruit, peeled
• 1/2 cantaloupe, remove rind & seeds or 1 pear,
washed
Juice apple & carrot first, and then juice the
remaining ingredients. Serve immediately!
Good Morning Juice
• 1 bunch red grapes, washed
• 3 slices pineapple, top removed & skinned
• 1/2 orange, peeled
• 5 fresh strawberries, washed
Process through the juicer. Serve immediately!
Carrot Fruit Juice
• 4 large carrots, washed, & topped & tailed
• 2 sweet apples (such as red or golden
• delicious), washed & stems removed
Process through the juicer. Serve immediately!
Grape Juice
• 1 bunch seedless white or red grapes, washed
• & stemmed
Process through the juicer. Serve immediately!
Wild Watermelon
• 1 chopped, seeded watermelon, skin removed
• 1 container strawberries, hulled
1 cup papaya, peeled and seeded (process in
blender)
Process watermelon and strawberries through
the juicer. Add papaya and serve immediately!
Pineapple Juice
• 4 pineapple spears, top removed & skinned
• 1 medium orange, peeled
Process through the juicer. Serve immediately!
Vegetable Blend
• 1 large carrot, washed, topped & tailed
• 1 small wedge of lemon, peeled & seeded
• 1 head of celery, washed
Process through the juicer. Serve immediately!
Client: ALDI Australia
Project: JU4021
Language: EN
11
Date: 23.10.2007
Version: 04
Page: 11 (of 12 pages)
Page 12
Barcode: 930 5026 10 000 3 00164

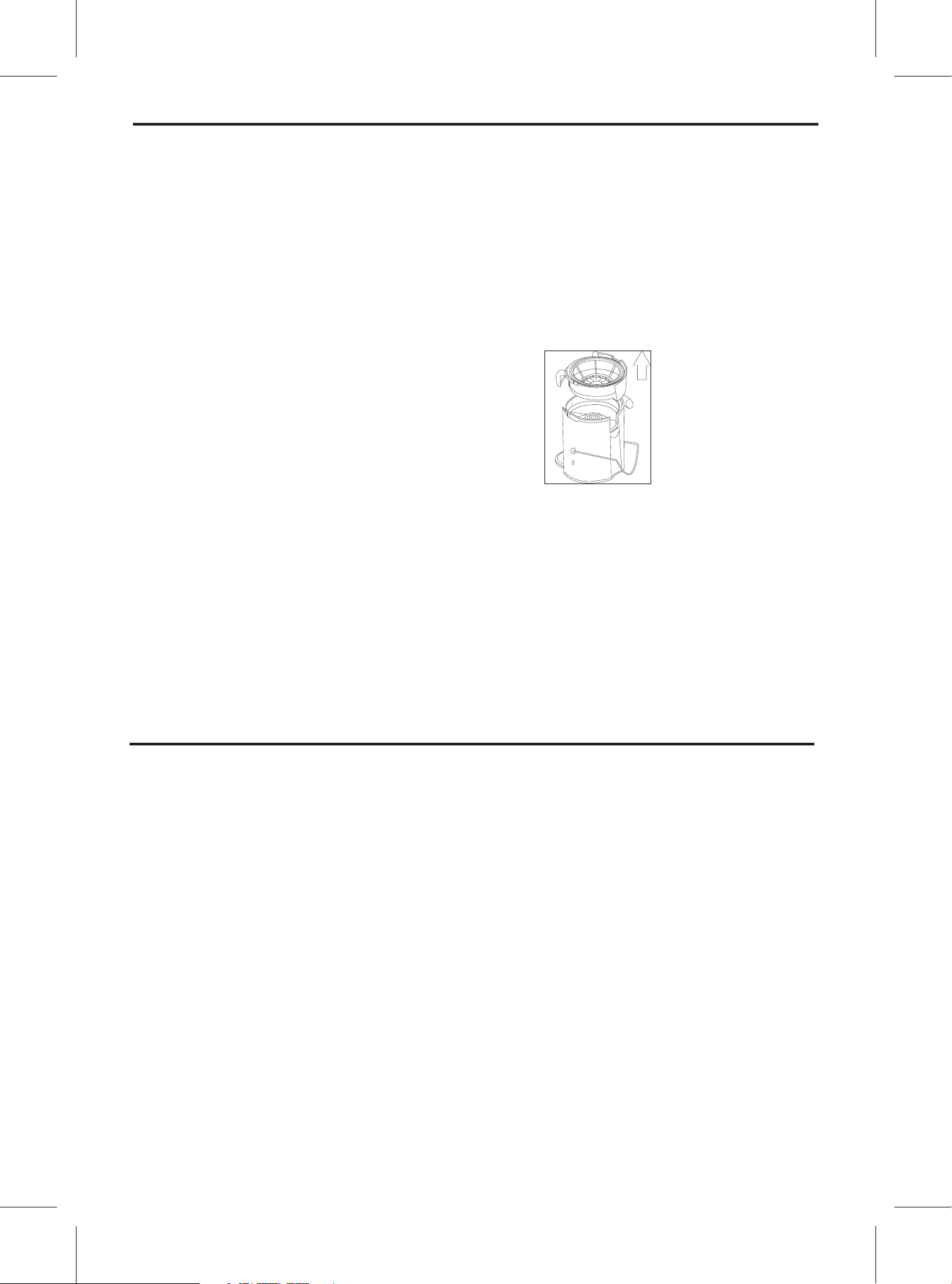

CARE AND CLEANING
Before Cleaning.
When not in use or before cleaning, always disconnect the appliance from the mains supply.
•
Cleaning Guide.
Regularly clean the outside of the main Juicer Unit Body with a soft damp cloth and dry it with a
•
dry towel.
WARNING! Do not immerse any part of the main Juicer Unit Body in water.
•
The juicer is easier to clean if you do so immediately after use.
•
Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean appliance.
•
All detachable parts are dishwasher safe.
•
1. Switch the juicer off, remove the plug and wait until the
filter has stopped rotating.
2. Remove the dirty parts from the motor unit. Disassemble
the juicer in the following order:
• Remove the pulp container
• Remove the pusher
• Open the clamps
• Remove the lid
3. Remove the juice collector together with the filter.
4. Clean these parts with the cleaning brush in warm water
with a mild detergent.
5. Clean the motor unit with a damp cloth.
2
Storage
When not in use store the appliance, accessories and these instructions in a dry place.
•
TECHNICAL DATA
Supply Voltage: 220-240 V ˜ AC 50-60 Hz
Wattage: 500-700 Watt
Client: ALDI Australia
Project: JU4021
Language: EN
12
Date: 23.10.2007
Version: 04
Page: 12 (of 12 pages)
Loading...
