Page 1
TM

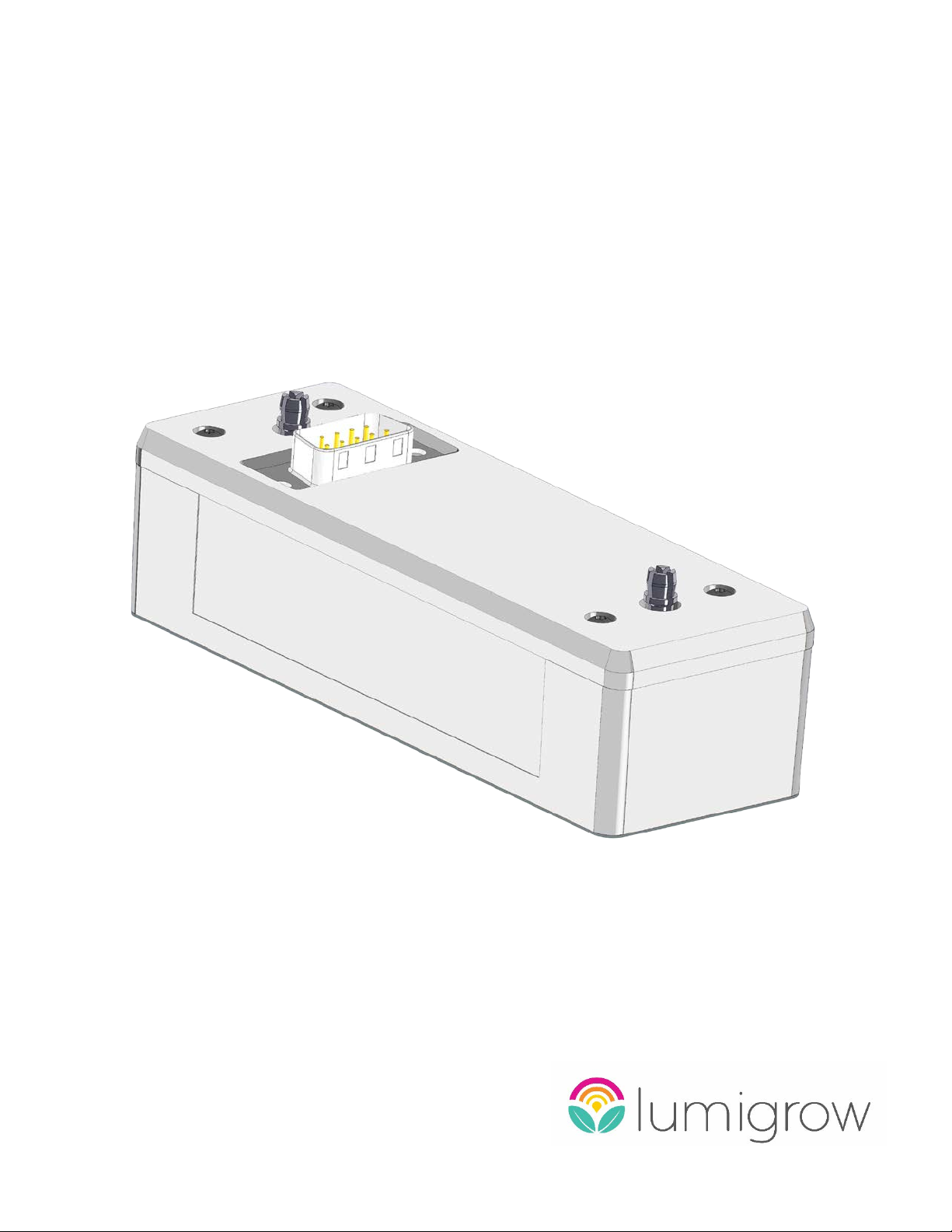

smartPAR
Module
Wireless Control Unit
Installation Guide
Product Code: 9000-5020
Product Description: smartPAR Module
Page 2
Installation Guide | LumiGrow® smartPAR
classe B est conforme à la norme NMB-003 du Canada.
notice.
Thank you for choosing LumiGrow as your preferred LED lighting solution!
Committed to providing the most responsive customer service, the LumiGrow customer support team is always
only a call or click away. To reach support, visit http://lumigrow.com/support or call (800) 514-0487.
TM
Module
Safety First - IMPORTANT
Read, follow, and heed all warnings and precautions.
Turn off all AC power to light fix t ure and w ai t 30 seconds before connecting or
removing smartPAR modules. Fa ilure to do so may damage the smartPAR
module/fixture, and void the module/f ixture warranty.
• Do not immerse the module in water, spray-fog the module with chemicals/fertilizers, or clean with a
high-pressure jet system of any type
• The smartPAR DB-9 port is f or use with LumiGrow smartPAR modules only. Plugging in any other
devices could damage the fixture and void the warranty.
• This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
• This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la
smartPAR
Attach the module to the fixture per the below two steps:
1. Turn off all AC power.
2. Carefully remove the dust cover over the DB-9 connector. A
small screwdriver may be helpful.
3. Orient the two DB-9 connectors together and caref ully insert t he
smartPAR module. The module has two broaching fasteners
that lock in place when the module is fully inserted. When fully
inserted, there should be no gap between the smartPAR module
and fixture.
4. Log on to www.smartpar.lumigrow.com
smartPAR
The smartPAR network infrastructure is based on industry standard Internet protocols. Each smartPAR
module communicates via IEEE 802.11n WiFi to wireless access points. These wireless access points
connect to a LumiGrow specified network infrastructure (sold separately), and utilize your Internet
connection to enable control and monitoring anywhere, anytime.
To order your complete smartPAR network solution, contact your LumiGrow sales associate. LumiGrow can
provide industry standard and scalable network solutions for your specific light plan needs.
TM
Module-Fixture Attachment
TM
Network Equipment
Disposal Instructions
Contact your local waste management company or the nearest collection site to dispose of Electrical and
Electronic Equipment waste, per local and state requirements
Please refer to www.lumigrow.com for warranty
and return policy information
Due to continuous improvements and
innovations, specifications may change without
PN #770-00004-B
LumiGrow Inc.
(800) 514-0487; [email protected]
1480 64th St #150, Emeryville, CA 94608
