AltaDyne® XT Model 773400A
AltaDyne® XD Model 774200A
Alternating Pressure / Low Air Loss
Replacement Mattress System
USER MANUAL
Important: Do not operate the Mattress System
without rst reading and understanding this manual!
Save this manual for future use.
The latest version of this manual can be found online
at www.grahameld.com.
773400A-INS-LAB-RevE14
Page 2
2 773400A-INS-LAB-RevE14
CONTENTS
INTRODUCTION ...................................................................................... 3
INTENDED USE OF THIS DEVICE ........................................................ 3
CONTRAINDICATION ...................................................................... 3
IMPORTANT SAFETY PRECAUTIONS .................................................. 3
DANGER ................................................................................................. 4
WARNING ............................................................................................... 4
NOTICE ................................................................................................... 5
EQUIPMENT SYMBOLS ......................................................................... 6
PRODUCT DESCRIPTION ...................................................................... 6
INSTALLATION ........................................................................................ 7
UNPACKING ........................................................................................... 7
PUMP AND MATTRESS INSTALLATION .............................................. 7
OPERATION ............................................................................................ 8
CONTROL PANEL FUNCTIONS ............................................................ 9
OPERATION .......................................................................................... 10
PRESSURE ADJUSTMENT ................................................................. 11
COMFORT RANGE SETUP ........................................................... 11
ALTERNATING FUNCTION (CYCLE TIME) SETUP ..................... 11
SEAT INFLATION FUNCTION ....................................................... 11
LOW PRESSURE AND ALARM FUNCTION ....................................... 12
QUICK DISCONNECT .......................................................................... 12
CPR FUNCTION.................................................................................... 12
MAINTENANCE ..................................................................................... 13
CLEANING ............................................................................................ 13
GENERAL MAINTENANCE .................................................................. 13
FUSE REPLACEMENT .................................................................. 14
AIR FILTER CLEANING / REPLACEMENT .................................. 14
STORAGE ............................................................................................. 15
TROUBLESHOOTING ........................................................................... 16
SPECIFICATIONS .................................................................................. 17
LIMITED WARRANTY ........................................................................... 19
GF Health Products, Inc. is not responsible for typographical errors. All
illustrations, specications, packaging and warranties contained in this
document are based on the latest product information available at the
time of printing. The most current product information, including the most
current revision of this manual, can be found online at www.grahameld.com.
Graham-Field, Lumex and AltaDyne are registered trademarks of GF Health
Products, Inc.
Page 3
773400A-INS-LAB-RevE14 3
INTRODUCTION
Use this manual for set-up and operation of the Alternating
Pressure / Low Air Loss Mattress System. Read all
instructions before using the mattress system. Save this
manual for future reference.
INTENDED USE OF THIS DEVICE
The AltaDyne XT / AltaDyne XD Alternating Pressure /
Low Air Loss Mattress System is an advanced alternating
pressure relief replacement system and low air loss system
suitable for the prevention and treatment of up to and
including stage 4 pressure ulcers.
Contraindication
WARNING: DO NOT use this product in the presence of
ammable anesthesia. There is a possible re hazard
when this product is used with certain oxygen delivery
equipment.
Use nasal cannula, face mask, or
1
/2 length oxygen tent
to deliver oxygen in the presence of this product.
DO NOT use a full length oxygen tent that extends past
the top surface of the mattress with this product.
IMPORTANT SAFETY PRECAUTIONS
The safety statements presented in this chapter refer
to the basic safety information that should be observed
by those using the Alternating Pressure / Low Air Loss
Mattress System. There are additional safety statements in
other chapters or sections, which may be the same as or
similar to the following, or specic to the operations.
DANGER: Indicates an imminent hazard situation that, if
not avoided, will result in death or serious injury.
WARNING: Indicates a potential hazard situation or
unsafe practice that, if not avoided, could result in
death or serious injury.
Page 4
4 773400A-INS-LAB-RevE14
CAUTION: Indicates a potential hazard or unsafe
practice that, if not avoided, could result in minor or
moderate personal injury.
s NOTICE: Indicates a potential hazard or unsafe practice
that, if not avoided, could result in product or property
damage.
Info: Provides application recommendations or other useful
information to ensure that you get the most from your
product.
DANGER
To reduce the risk of electrocution:
DANGER: Always unplug this product immediately after
using.
DANGER: Do not use this product while bathing.
DANGER: Do not place or store this product where it
can fall or be pulled into a tub or sink.
DANGER: Do not place this product in or drop into
water or other liquid.
DANGER: Do not reach for a product that has fallen
into water. Unplug it immediately.
WARNING
To reduce the risk of burns, electrocution, re,
or personal injury:
WARNING: Do not leave this product unattended when
plugged in.
WARNING: Always use close supervision when this
product is used by, on, or near children or those who
require close supervision.
WARNING: Use this product only as intended and
described in this manual. Do not use attachments or
accessories not recommended by Graham-Field.
Page 5
773400A-INS-LAB-RevE14 5
WARNING: Never operate this product if
a) it has a damaged cord or plug,
b) it is not working properly,
c) it has been dropped or damaged, or
d) it has been dropped into water.
Return the product to your Graham-Field authorized
distributor.
WARNING: Keep the cord away from heated surfaces.
WARNING: Never block the air openings of this product
or place it on a soft surface, such as a bed or couch,
where the openings may be blocked. Keep the air
opening free of lint, hair, and other similar particles.
WARNING: Never drop or insert any object into any
opening or hose.
WARNING: Connect this product only to a properly
grounded power outlet.
WARNING:
Maximum weight capacity for this product is:
AltaDyne XT (773400A): 400 lb (182 kg), EVENLY
DISTRIBUTED.
AltaDyne XD (774200A): 800 lb (364 kg), EVENLY
DISTRIBUTED.
WARNING: Notice for California Customers- California
Proposition 65 WARNING: This product contains a
chemical known to the State of California to cause
cancer and reproductive or developmental harm.
NOTICE
s NOTICE: The pump can be used only with the
accompanying mattress. Do not use it for any other
purpose.
Page 6
6 773400A-INS-LAB-RevE14
EQUIPMENT SYMBOLS
Attention! Consult accompanying documents (this manual)
“BF”symbol: Indicates that this product is in accordance with the
degree of protection against electric shock for type BF equipment
Class II equipment, 2 concentric squares, indicating double
insulation
IPXO
This equipment has no protection against ingress of water
PRODUCT DESCRIPTION
The AltaDyne XT / AltaDyne XD offers both low air loss and
alternating pressure therapy. The pressure and alternating
cycle time are adjustable, in order to maximize therapy
and comfort for each individual. The patented cell-in-cell
feature is designed to prevent bottoming out in the event
of a power failure. The easy-to-operate digital control unit
features a lock-out setting designed to prevent changes by
unauthorized personnel.

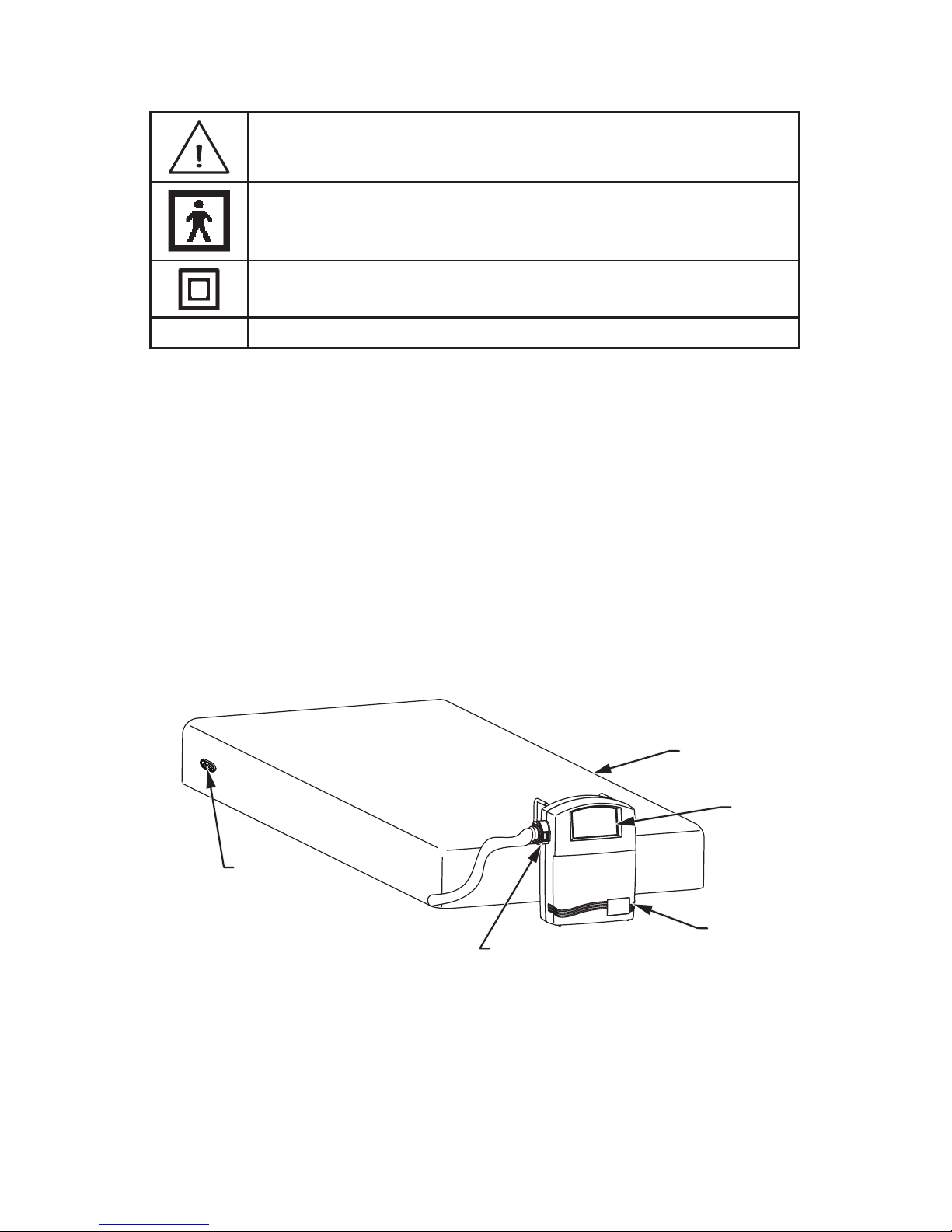

pump and mattress system
control
panel
air tube
connector
CPR valves
mattress
pump unit
Page 7
773400A-INS-LAB-RevE14 7
INSTALLATION
UNPACKING
1. Before unpacking, check for obvious damage to the
carton(s) or its contents. If damage is evident, please
notify the carrier and your Graham-Field authorized
distributor.
2. Remove all loose packing from the carton(s).
3. Carefully remove all components from the carton(s).
4. Inspect all components. If damage is evident, please
notify the carrier and your Graham-Field authorized
distributor.
PUMP AND MATTRESS INSTALLATION

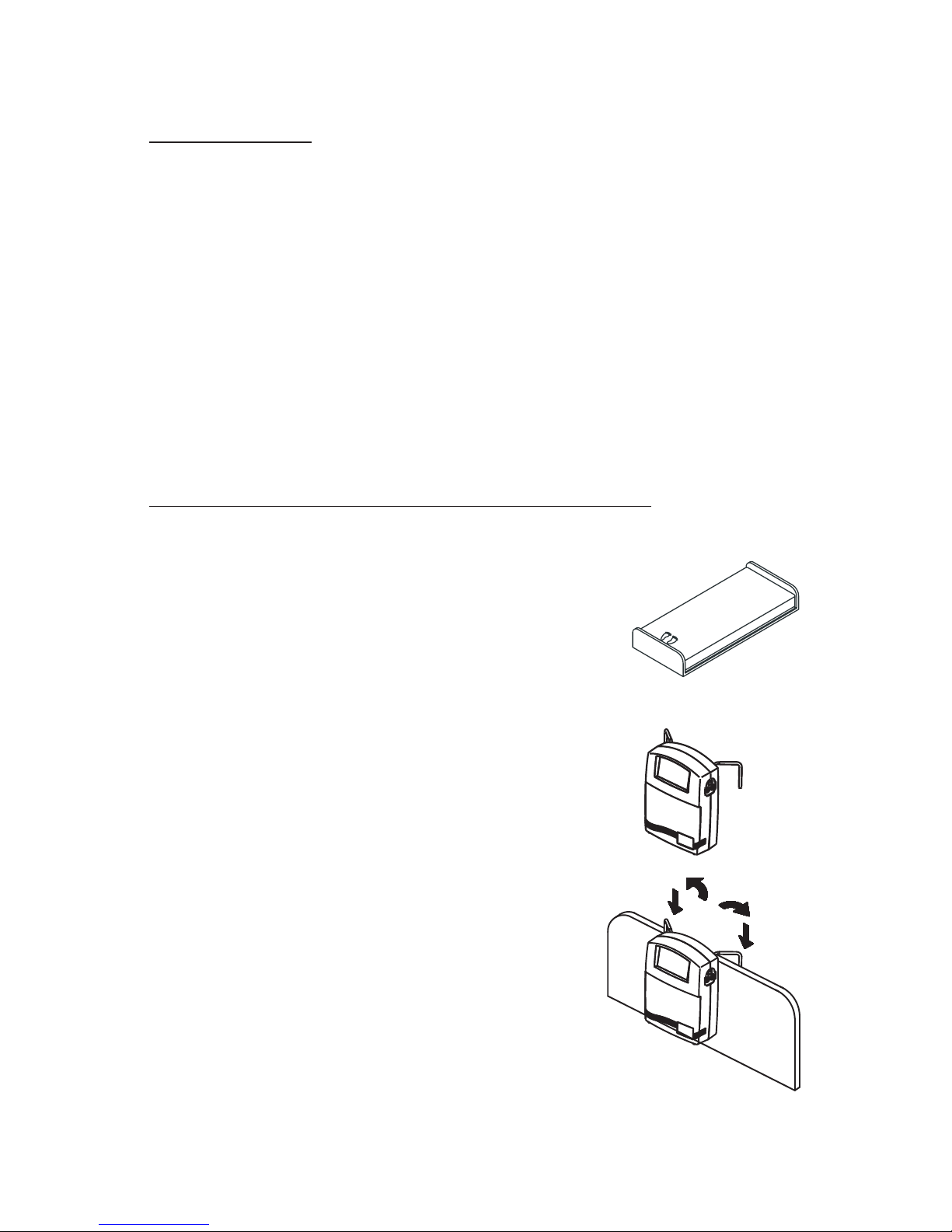

1. Place the mattress on top of the
bed frame; ensure that the foot end
symbol faces up at foot end as shown
at right. Secure the mattress to the
bed by afxing the elastic straps to
the bottom bed frame.
2. Fold open the wire hangers on the back
of the pump as shown at right.
3. Either hang the pump on the bed's
foot end as shown at right, or place
the pump on a at surface easily
accessible to the user, caregiver,
and / or doctor.
s NOTICE: Place the device in a
position where the user, caregiver,
and / or doctor can access it easily.
Page 8
8 773400A-INS-LAB-RevE14

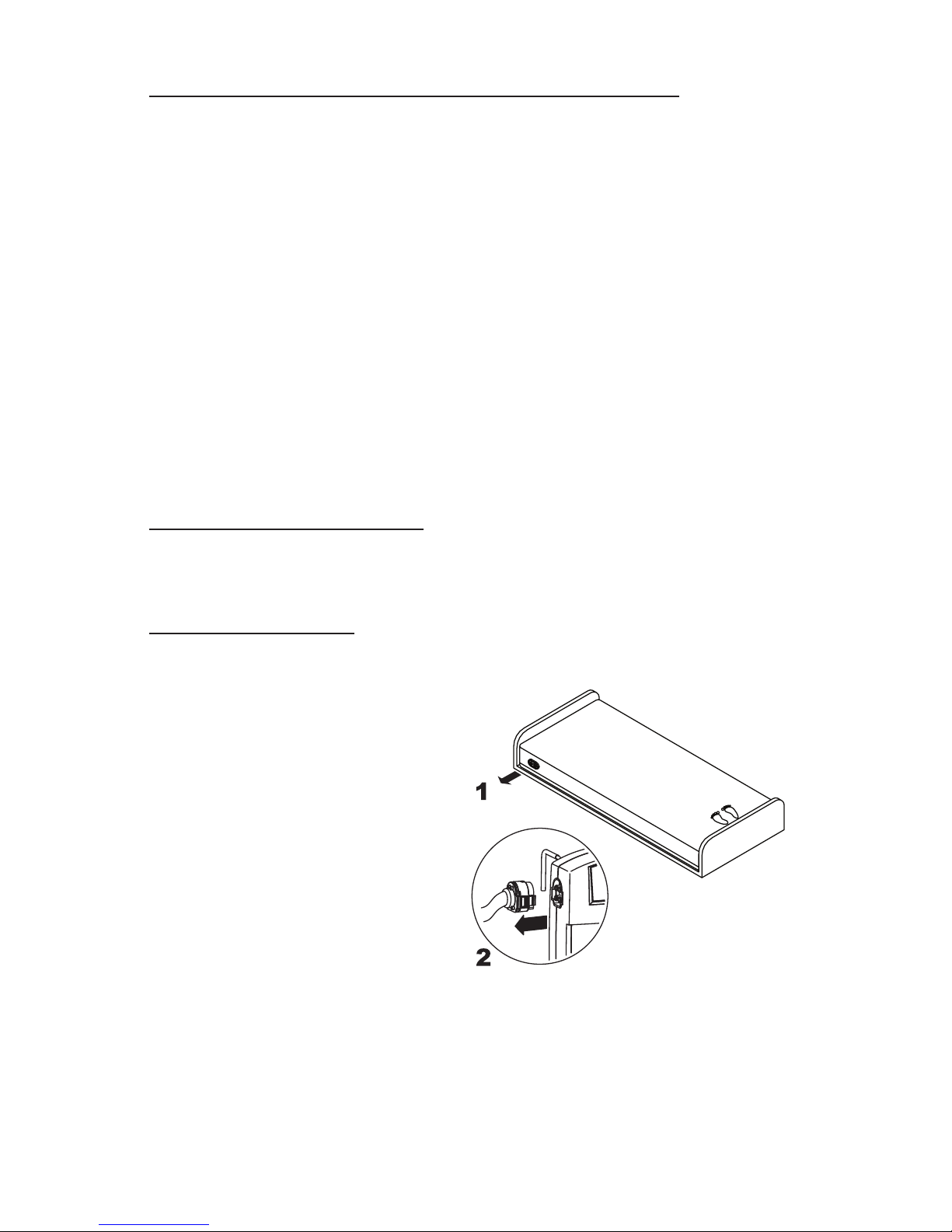

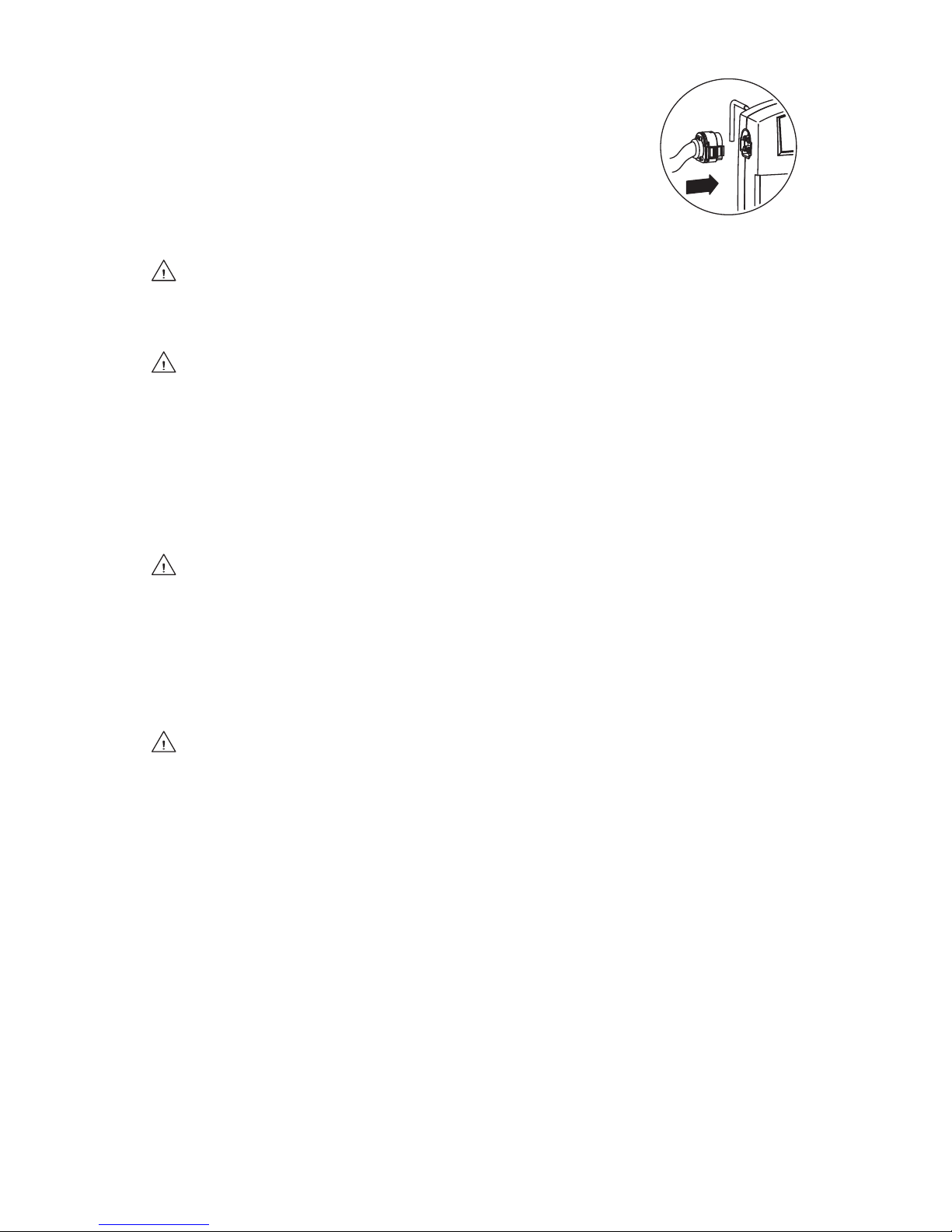

4. Connect the mattress-pump air hose
quick connector as shown at right;
ensure that the connector has clicked
securely into place before continuing.
s NOTICE: Ensure that the air hoses are
not kinked or tucked under the mattress.
WARNING: Locate all cords so that they will not be
stepped on, tripped over, or otherwise subjected to
damage or stress.
WARNING: Do not use a household extension cord if
the electrical cord does not reach the power outlet. Use
of an improper extension cord could result in re and
electric shock. If an extension cord must be used, use
a three conductor cord with ground, properly wired,
in good electrical condition, and keep it as short as
possible.
WARNING: Ensure that the local power voltage is
appropriate for the pump unit.
5. Plug the power cord into a properly grounded electrical
outlet.
OPERATION
WARNING: Always read operating instructions before
use.
Page 9
773400A-INS-LAB-RevE14 9

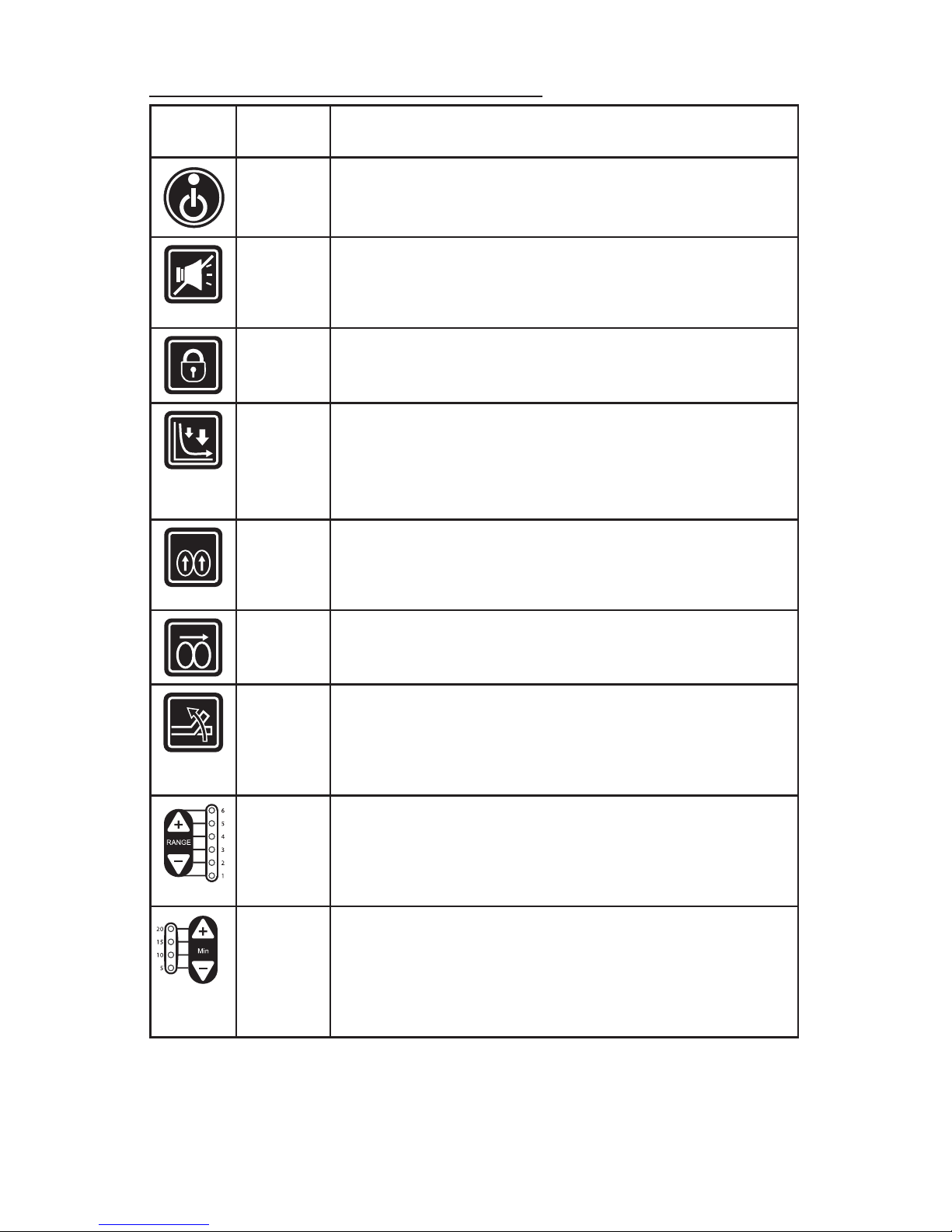

CONTROL PANEL FUNCTIONS
Control
Button
Function Description
Power Turns on the control unit. It takes approximately 15
minutes to inate the mattress.
Alarm
Mute
Enables and disables the audible alarm feature. Press it
to silence the audible alarm. The alarm buzzer will sound
again after three minutes if the pressure has not yet
returned to normal.
Panel
Lock
Locks the current setting to prevent others from
changing it. To unlock the panel, press this button and
hold it for three seconds.
Low
Pressure
Indicator
1. No light: normal condition, mattress is operating
properly.
2. Non-ashing yellow light: pressure has not reached
the preset setting.
3. Flashing yellow light: low pressure.
AutoFirm For maximum ination of mattress. All other functions
are disabled until this button is pressed again. This mode
lasts for 20 minutes, then automatically returns to default
setting.
Static Selects non-alternating mode, similar to a regular air
mattress. To go back to alternating mode, press this
button again.
Seat
Ination
Increases the body zone's pressure above the preset
setting, ensuring adequate support for sitting position
and getting on or off the mattress. Disable this function
when the user is lying down, to prevent excessive
pressure at body zone.
Comfort
Range
Adjusts the comfort level. Use + / - button to increase or
decrease level (+ increases level; - decreases level). The
mattress has 6 comfort ranges: 1 is the softest, 6 is the
rmest. Please consult your physician for the appropriate
setting.
Cycle
Time
Adjusts the cycle time. Use + / - button to increase or
decrease cycle time to that desired. (+ increases cycle
time; - decreases cycle time). Please consult your
physician for the appropriate setting.
AltaDyne XT (773400A) cycles between 5, 10, 15, 20 min.
AltaDyne XD (774200A) cycles between 10, 15, 20, 25 min.
Page 10
10 773400A-INS-LAB-RevE14
OPERATION
Before turning power ON, ensure that air tube connectors
and CPR valves are securely fastened.

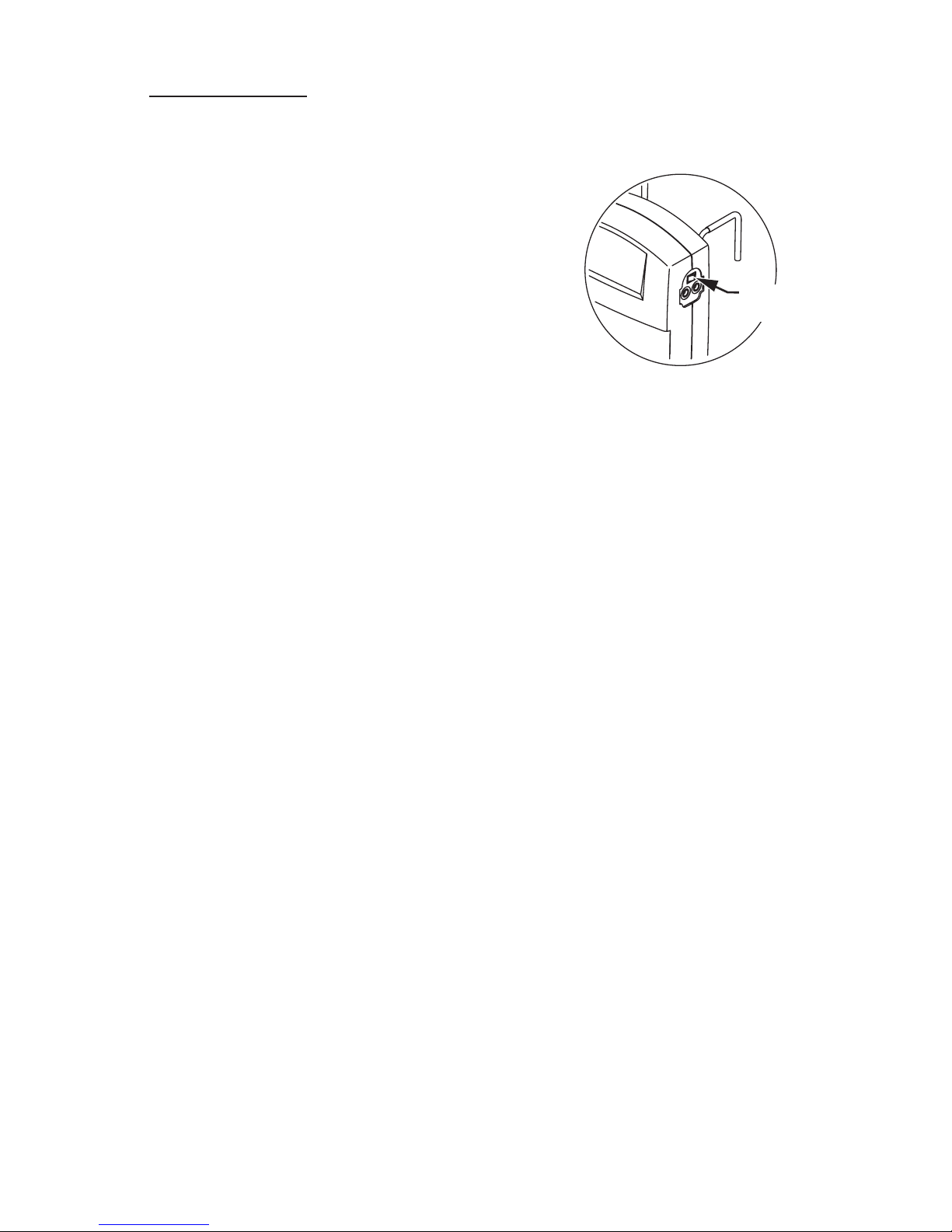

1. Turn the power switch, shown at
right, to the ON position.
2. Press the control panel Power
button to start the system.
3. Press the control panel AutoFirm
button to activate the AutoFirm
function.
Info: Use AutoFirm mode for the quickest inflation at set-up;
AutoFirm mode will last for 20 minutes, then automatically
return to the default setting.
4. The pump will begin delivering air into the mattress.
While the mattress is lling, the low pressure indicator
(non-ashing yellow LED) will illuminate.
5. When the selected pressure level is reached, the low
pressure indicator will de-illuminate.
6. Replace all sheets, blankets, and pillows on the bed.
7. The patient can now lie on the bed. The pressure
may now be adjusted to the physician-prescribed
setting using the control panel Comfort Range button.
The alternating function may now be adjusted to the
physician-prescribed setting using the control panel
Cycle Time button.
power
switch
Page 11
773400A-INS-LAB-RevE14 11
PRESSURE ADJUSTMENT
Generally, a lighter patient will need a lower (softer)
setting while a heavier patient will need a higher (rmer)
setting, but pressure adjustment must ultimately be based
on the patient's weight distribution. A short, stocky person
may be the same weight as a tall, thin person, but their
settings will not be the same. The mattress should be rm
enough to support the patient, yet soft enough so the
patient will sink down to eliminate pressure points. Test
the pressure by placing four ngers below the mattress
under the patient's buttock area; your ngers should just
t. If the t is too loose, decrease the setting. If your ngers
do not t well, increase the setting two notches rmer. Wait
ten minutes and then check again. You should only have
to adjust this setting one time per patient. Please consult
your physician for an appropriate setting.
Comfort range setup
The user can adjust the mattress pressure level by
adjusting the comfort range from 1 to 6: Please consult
your physician for an appropriate setting. When the
Low Pressure Indicator de-illuminates, the mattress has
reached its preset pressure level.
Alternating function (cycle time) setup
The user can adjust the alternating cycle time mode as
follows. Please consult your physician for the appropriate
setting.
AltaDyne XT (773400A) cycles between 5, 10, 15, 20 min.
AltaDyne XD (774200A) cycles between 10, 15, 20, 25 min.
Seat Ination Function
The seat ination function provides extra pressure
compensation around the buttocks area for better surface
support when the patient sits on, gets on, or gets off the
mattress. Disable this function when user is lying down, to
prevent excessive pressure around the buttocks area.
Page 12
12 773400A-INS-LAB-RevE14
LOW PRESSURE AND ALARM FUNCTION
When air pressure is below the preset pressure for a
prolonged period of time, the control panel Low Pressure
Indicator (yellow LED) will ash and the alarm will sound.
Ensure that all connections are secure and correctly
fastened per preceding installation instructions. To silence
the alarm, press the Alarm Mute button; it will be silent
for three minutes but the Low Pressure Indicator will
still ash. After three minutes, if the pressure has not yet
returned to normal, the alarm will sound again.
Info: If the pressure level is consistently low, check for leakage
at air cells or connecting tubes. If necessary, contact your
Graham-Field authorized distributor to replace damaged cells or
tubes.
QUICK DISCONNECT
To disconnect the device quickly, pull the power plug from
the wall connector.
CPR FUNCTION
If CPR must be performed on the patient while the mattress
is in use, to immediately
deate the mattress,
either:
1. Pull the CPR valves
from the mattress in
the location of the
arrow shown at right,
or
2. Disconnect the quick
connector from the
pump in the location
of the arrow shown at right.
Page 13
773400A-INS-LAB-RevE14 13
MAINTENANCE
CLEANING
WARNING: Ensure that the main power plug is
unplugged during cleaning.
Perform the following cleaning procedures before use.
Pump: Wipe the pump with a clean, damp cloth and mild
detergent, and keep it away from dust. Air dry.
s NOTICE: Do not use phenolic products or corrosive or
powdered cleansers to clean the pump.
s NOTICE: Do not immerse or soak the pump.
Mattress: Wipe the mattress unit with a clean, damp cloth
and mild detergent. The mattress may also be cleaned
using a 10% solution of sodium hypochlorite (bleach)
diluted in water. Air dry all parts thoroughly before use.
s NOTICE: Do not use phenolic products to clean the
mattress.
s NOTICE: After cleaning, air dry the mattress without
direct exposure to sunlight.
GENERAL MAINTENANCE
1. Check main power cord and plug for abrasion or
excessive wear.
2. Check mattress cover for signs of wear or damage.
Ensure mattress cover and tubes are connected
correctly.
3. Check airow from the air hose connector.
4. Check the air hose connectors for damage.
5. Check the air hoses for any kink or break. For
replacement, please contact your Graham-Field
authorized distributor.
6. Contact your Graham-Field authorized distributor with
any problems.
Page 14
14 773400A-INS-LAB-RevE14

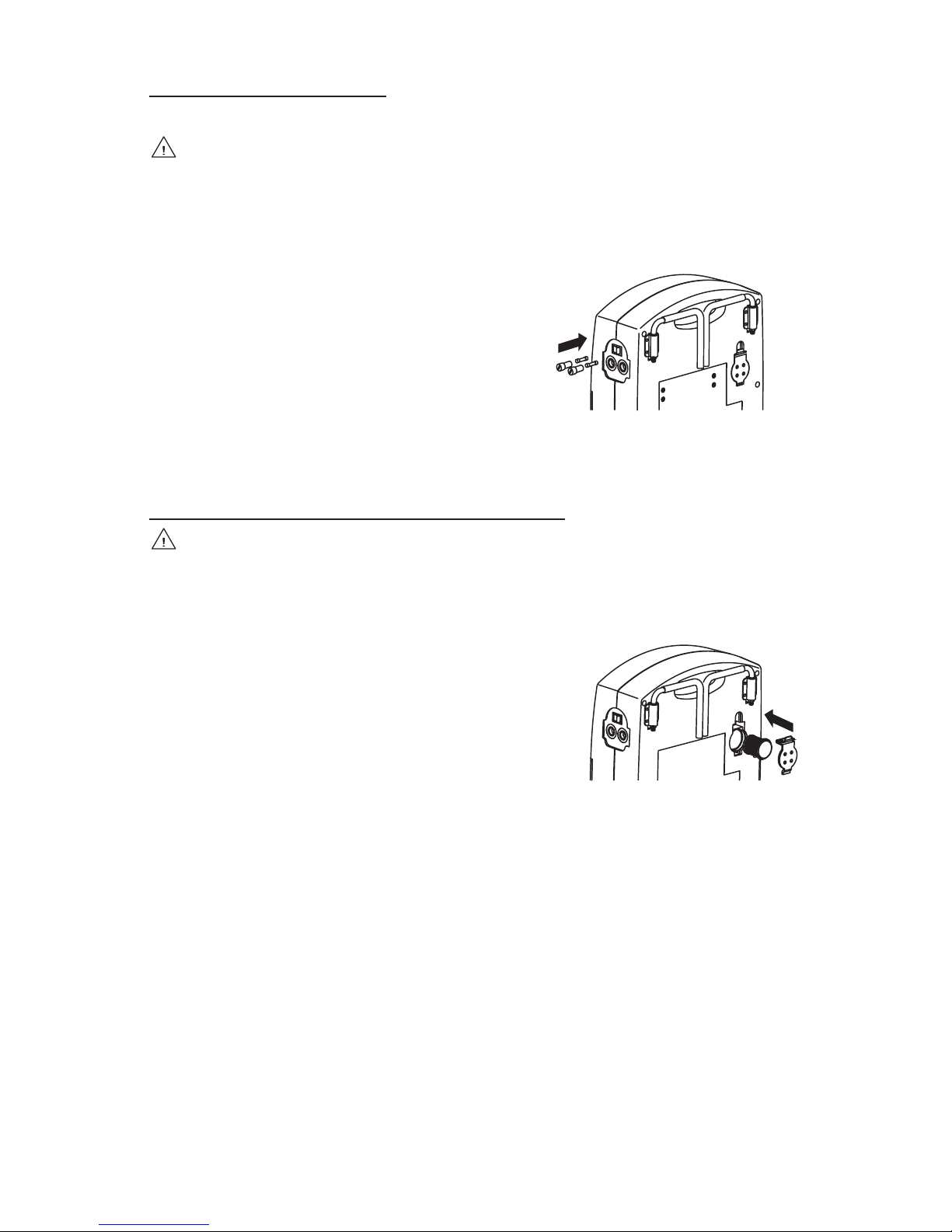

Fuse replacement
tool needed: small screwdriver
WARNING: Ensure that the main power plug is
unplugged before fuse replacement.
1. If you suspect a blown fuse, disconnect the plug from
the wall outlet immediately.
2. Use a small screwdriver to
remove the cover of the fuse
holder (fuse locations are
shown in picture at right).
3. Insert a new fuse of the same
rating.
4. Replace the fuse holder cover.
Air lter cleaning / replacement
WARNING: Ensure that the main power plug is
unplugged before air lter cleaning or replacement.
The air lter is located on the back of the pump. Clean the
air lter once per month.
1. Snap out the air lter plate (lter
location is shown in picture at
right).
2. Remove the air lter. The lter is
reusable, if not torn, and can be
washed gently with a mild detergent and water. Air dry
the lter completely before replacing in pump.
3. Replace lter and plate after lter has dried completely.
Replace the air lter more often than once per month if
it is gray, torn, or the environment is dirty.
4. Contact your Graham-Field authorized distributor for
replacement lters.
Page 15
773400A-INS-LAB-RevE14 15
STORAGE
1. Disconnect the air hose connectors and CPR valves.
Ensure that all cells are deated.
2. Lay the mattress out at and upside down.
3. Lay the air hose connector on the inner side of the
mattress to protect it.
4. Roll from the head end toward the foot end.
5. Stretch the foot-end strap around the rolled mattress to
prevent unrolling.
6. Store mattress and pump in a dust-free environment
with no exposure to direct sunlight.
s NOTICE: Do not fold, crease or stack the mattress.
Page 16
16 773400A-INS-LAB-RevE14
TROUBLESHOOTING
Problem Solution
Power is not ON Ensure that plug is connected to power.
Check if fuse is blown.
Alarm is on
(audible & visible)
Check if the connection between pump and hose (quick
connector) is secure.
Check if the CPR connection is secure.
Check if any air cells have leakage.
Check if all tubing connections along mattress are
secure.
Patient is bottoming
out
Pressure setting may be too low for patient; adjust
comfort range 1 to 2 levels higher, wait a few minutes,
recheck.
Mattress becomes too
rm and pressure can't
be reduced
AutoFirm may have been activated for too long.
Release some air by disconnecting the air tube
connector, change to preferred comfort level,
reconnect.
Air mattress is loose Ensure snap buttons and / or mattress straps are
securely fastened.
Air tube connector
won't t into pump
Press handles on both sides of air tube connector.
Ensure the connector is tightly secured by listening for
"click" while connecting.
No air produced
from some air tube
connector air outlets
This is normal, since this system has alternating mode.
Air outlets alternate to produce air during their preset
cycle time.
Contact your Graham-Field authorized distributor if you
are unable to solve your problem after using the above
steps.
Page 17
773400A-INS-LAB-RevE14 17
SPECIFICATIONS
Standards
This pump and mattress
system has been
independently tested and
successfully approved to the
following standards
UL60601-1, IEC60601-1-2
For U.S. and Canada only
53DG
Medical Equipment: Air Pump
with respect to electrical shock, re and
mechanical hazards only in accordance with
UL60601-1 and CAN / CSA C22.2 No. 601.1
Pump Specication
Power Supply 120V AC 50 / 60 Hz
Fuse Rating 1A
Cycle Time AltaDyne XT
(773400A)
5, 10, 15 or 20 minutes
AltaDyne XD
(774200A)
10, 15, 20 or 25 minutes
Air Output >16 LPM
Dimensions (L x W x H) 14.4" x 10.5" x 5" (37 x 27 x 13 cm)
Weight 9.9 lb (4.5 kg)
Environment Temperature Operation: 50°F to 104°F (10°C to 40°C)
Storage: 14°F to 122°F ( -10°C to 50°C)
Shipping: 14°F to 158°F ( -10°C to 70°C)
Humidity Operation: 30% to 75% non-condensing
Storage: 10% to 90% non-condensing
Shipping: 10% to 90% non-condensing
Atmosphere 10.15 psi ~ 15.37 psi (70 kPa ~ 106 kPa)
Classication Class II, Type BF, Applied Part: Air Mattress
Not suitable for use in the presence of a
ammable anesthetic mixture
IPXO, enclosed equipment without protection
against ingress of water
Continuous operation
Page 18
18 773400A-INS-LAB-RevE14
Mattress Specication
Dimensions
(L x W x H)
AltaDyne XT
(773400A)
78.7" x 35.4" x 8"
(200 cm x 90 cm x 20.3 cm)
AltaDyne XD
(774200A)
78.7" x 42" x 10"
(200 cm x 106.7 cm x 25.4 cm)
Arrangement AltaDyne XT
(773400A)
20 x 8" cells
AltaDyne XD
(774200A)
20 x 10" cells
Material Cover Quilted top sheet
Slip-resistant bottom mat
Top cover fabric: Nylon PU (vapor permeable,
uid resistant)
Cells Nylon PU
Page 19
773400A-INS-LAB-RevE14 19
LIMITED WARRANTY
SCOPE OF WARRANTY
GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair
components, at GF’s sole discretion, that are defective in material or workmanship under normal
use and service. All warranties are conditioned upon the proper use of the products strictly in
accordance with good commercial practice and applicable GF instructions and manuals, including
proper use and maintenance. To the extent that a component is warranted by a third party, GF
conveys all of its rights under that warranty to the original purchaser, to the extent permitted.
This limited warranty shall only apply to defects that are reported to GF’s customer service
team within the applicable warranty period and which, upon examination by GF or its authorized
representative, prove to be a warranty item. This limited warranty is not transferable.
The warranted components and time period are set forth below:
Control unit ....two years
Mattress .........one year
The applicable warranty period shall commence from date of shipment to the original customer,
unless there is an expiration date on the component in which case the warranty shall expire on the
earlier of warranty period or the expiration date.
OBTAINING WARRANTY SERVICE
A GF Customer Service Representative must authorize warranty service. Please contact the GF
Customer Service department by calling 678-291-3207, sending a fax request to 770-368-2386 or by
e-mailing a request to cs@grahameld.com. Specic directions will be provided by the Customer Service
Representative. Failure to abide by the specic directions will result in denial of the warranty claim.
EXCLUSIONS
The warranty does not cover and GF shall not be liable for the following:
1) Defects, damage, or other conditions caused, in whole or in part, by misuse, abuse, negligence,
alteration, accident, freight damage, tampering or failure to seek and obtain repair or replacement
in a timely manner;
2) Products which are not installed, used, or properly cleaned and maintained as required in the
ofcial manual for the applicable product;
3) Products considered to be of a non-durable nature including, but not limited to: casters, lters,
fuses, gaskets, lubricants, and charts;
4) Accessories or parts not provided by GF;
5) Charges by anyone for adjustments, repairs, replacement parts, installation or other work
performed upon or in connection with such products which are not expressly authorized in
writing, in advance, by GF;
6) Any labor or shipping charges incurred in the replacement part installation or repair;
7) Costs and expenses of regular maintenance and cleaning; and
8) Representations and warranties made by any person or entity other than GF.
ENTIRE WARRANTY, EXCLUSIVE REMEDY AND CONSEQUENTIAL DAMAGES DISCLAIMER
THIS WARRANTY IS GF’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED. GF MAKES NO IMPLIED WARRANTIES OF ANY KIND INCLUDING ANY IMPLIED WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IF ANY MODEL OR SAMPLE WAS SHOWN TO THE CUSTOMER, SUCH MODEL OR SAMPLE WAS
USED MERELY TO ILLUSTRATE THE GENERAL TYPE AND QUALITY OF THE PRODUCT AND NOT TO
REPRESENT THAT THE PRODUCT WOULD NECESSARILY CONFORM TO THE MODEL OR SAMPLE IN
ALL RESPECTS.
THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE DEFECTIVE PARTS. GF
SHALL NOT BE LIABLE FOR AND HEREBY DISCLAIMS ANY DIRECT, SPECIAL, INDIRECT, INCIDENTAL,
EXEMPLARY OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO: DAMAGES FOR
LOSS OF PROFITS OR INCOME, LOSS OF USE, DOWNTIME, COVER, OR EMPLOYEE OR INDEPENDENT
CONTRACTOR WAGES, PAYMENTS AND BENEFITS.
The warranties contained herein contain all the representations and warranties with respect
to the subject matter of this document, and supersede all prior negotiations, agreements and
understandings with respect thereto. The recipient of this document hereby acknowledges and
represents that it has not relied on any representation, assertion, guarantee, warranty, collateral
contract or other assurance, except those set out in this document.
For additional information on this product or this warranty, please contact a GF Customer Service
Representative.
NOTES:
1) Additional terms and conditions may apply.
2) Freight claims must be notated on the Bill of Lading and must be made with immediacy. The ICC
regulations govern specic requirements for freight claims. Failure to abide by those regulations
may result in a denial of the freight claim. GF will assist you in ling the freight claim.
3) Claims for any short shipment must be made within thirty (30) days of the invoice date.
GF Health Products, Inc.
2935 Northeast Parkway
Atlanta, GA 30360
Tel 770-368-4700
Fax 770-368-2386
www.grahameld.com
Page 20
Manufactured for:
GF Health Products, Inc.
2935 Northeast Parkway
Atlanta, Georgia 30360
tel: 770-368-4700
fax: 770-368-2386
www.grahamfield.com
© 2005 GF Health Products, Inc.
Made in Taiwan
Loading...
