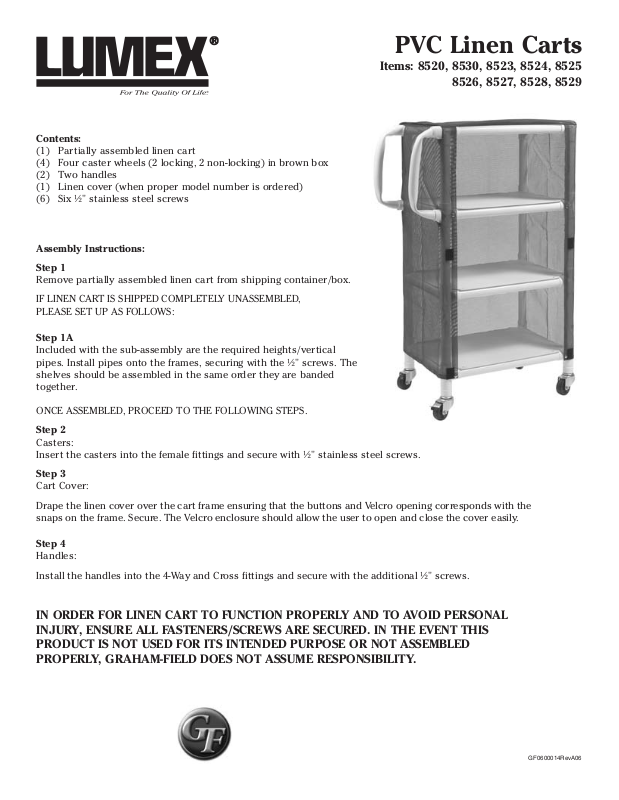

PVC Linen Carts
Items: 8520, 8530, 8523, 8524, 8525
8526, 8527, 8528, 8529
Assembly Instructions:
Step 1
Remove partially assembled linen cart from shipping container/box.
IF LINEN CART IS SHIPPED COMPLETELY UNASSEMBLED,
PLEASE SET UP AS FOLLOWS:
Step 1A
Included with the sub-assembly are the required heights/vertical
pipes. Install pipes onto the frames, securing with the ½" screws. The
shelves should be assembled in the same order they are banded
together.
ONCE ASSEMBLED, PROCEED TO THE FOLLOWING STEPS.
Step 2
Casters:
Insert the casters into the female fittings and secure with ½" stainless steel screws.
Step 3
Cart Cover:
Drape the linen cover over the cart frame ensuring that the buttons and Velcro opening corresponds with the
snaps on the frame. Secure. The Velcro enclosure should allow the user to open and close the cover easily.
Step 4
Handles:
Install the handles into the 4-Way and Cross fittings and secure with the additional ½" screws.
IN ORDER FOR LINEN CART TO FUNCTION PROPERLY AND TO AVOID PERSONAL
INJURY, ENSURE ALL FASTENERS/SCREWS ARE SECURED. IN THE EVENT THIS
PRODUCT IS NOT USED FOR ITS INTENDED PURPOSE OR NOT ASSEMBLED
PROPERLY, GRAHAM-FIELD DOES NOT ASSUME RESPONSIBILITY.
GF0600014RevA06
Contents:
(1) Partially assembled linen cart
(4) Four caster wheels (2 locking, 2 non-locking) in brown box
(2) Two handles
(1) Linen cover (when proper model number is ordered)
(6) Six ½" stainless steel screws
