LIFETIME LIMITED WARRANTY
Quality is the hallmark of all Lumex®products.
Trusted by healthcare professionals and end-users
for over 50 years, Lumex features a full line of
patient aids and specialty healthcare seating.
Lumex products are designed and built to precise
standards and are carefully inspected prior to shipment.
We are dedicated to providing products that will give
our customers years of dependable service.
This Lumex product is warranted to be free of defects in
materials and workmanship for the lifetime of the original
consumer purchaser.
This warranty does not cover product failures due to
normal wear and tear or device misuse. The warranty
does not extend to non-durable components, such as
rubber accessories, which are subject to normal wear
and require periodic replacement.
Should a product defect that is covered by this warranty
arise, we will, at our option, repair or replace the product.
For additional information on this Lumex product or this warranty,
please contact an authorized Graham-Field Health Products Dealer.
All illustrations and specifications in this manual ar
at the time of publication. Graham-Field reserves the right to make changes at anytime, without notice.
© 2005, Graham-Field Health Products, 2935 Northeast Parkway, Atlanta, Georgia 30360.
Printed in China. GF0500029RevA05
e based on the latest product information available
INSTRUCTIONS
& WARRANTY
INFORMATION
Maxi-Drain and Imperial Collection Transfer Benches
7927A, 7929
IIMMPPOORRTTAANNTT:: RREEAADD BBEEFFOORREE UUSSE
E
Page 2
7929 7/15/05 11:17 AM Page 2
INSTRUCTIONS FOR USE –
PLEASE READ ALL INSTRUCTIONS BEFORE USE.
SET-UP
. Remove frame, back, support arm and legs from box.
1
2. Insert support arm into frame until support arm buttons protrude fully
through channel guide holes.
3. Place frame on side on a working surface.
4. Locate channel guides (4 each) on underside of seat. Align seat support
tubes with channel guides.
5. Slide seat support tubes through channel guides until seat support tube
buttons protrude fully through channel guide holes.
6. Attach suction cup legs to frame on same side as support arm. Attach
flange tips to frame legs on opposite side of frame from support arm.
Note: When the transfer bench is in the tub, it should face the faucets with
the support arm on inside of tub.
7. Adjust seat height as directed in Height adjustment section.

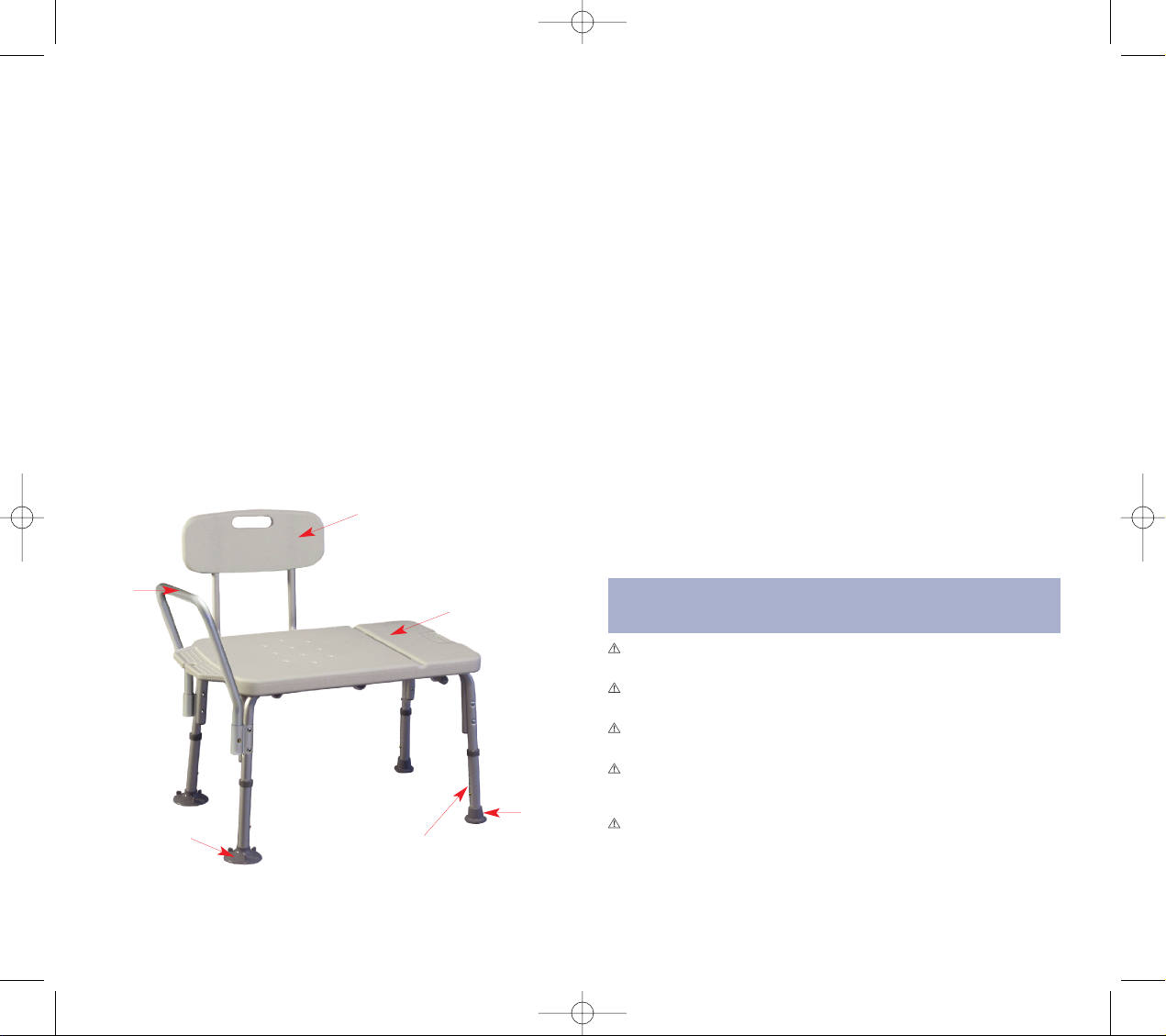

Back Support
Support
Arm
Suction Cup
Height
Adjustment
Holes
Platform
Tip
HEIGHT ADJUSTMENT
1. Depress the height adjustment button and slide the lower leg upward or
downward until the height adjustment button is fully engaged in the
desired hole.
2. Repeat for other 3 legs.
Note: Legs inside the tub may be adjusted to a different height than the legs
outside the tub; however, the legs inside the tub should be adjusted to
the same height, and the legs outside the tub should be adjusted to
the same height.
Note: Transfer benches should be adjusted to a height just above the tub wall.
Note: When removing a transfer bench from the tub, always release the
suction cups by pinching the two tabs together.
MAINTENANCE
• Use a mild soap and water solution, rinse with clear water, then dry with
a soft cloth. Ensure that commode is well rinsed before using.
• Never use organic solvents, abrasive cleaners or scouring pads on
any part of commode
• Check fit and tightness of all nuts, bolts and knobs weekly to ensure
that commode is safe to use.
• To guarantee the best service from your commode, always specify Lumex
replacement parts, available from your Graham-Field Health Products dealer.
SAFETY GUIDELINES –
PLEASE READ BEFORE USE
CCAAUUTTIIOONN:
from a healthcare professional.
CCAAUUTTIIOONN:
Item 7929 has a maximum user weight limitation of 400 lbs.
CCAAUUTTIIOONN:
caused by improper installation, assembly or use of this product.
CCAAUUTTIIOONN:
same height, and that all height adjustment buttons protrude fully
through adjustment holes before use.
CCAAUUTTIIOONN:
immediately. DO NOT use substitute parts.
:
This product should not be used without proper instruction
:
Item 7927A has a maximum user weight limitation of 250 lbs.
:
Lumex assumes no responsibility for any damage or injury
:
Ensure that all four transfer bench legs are adjusted to the
:
If components are damaged or missing, contact your dealer
