VC-A71P/VC-A71PN

4K PTZ Video Camera

Version VCAZ104

To download the latest version of Quick Start Guide,

multilingual user manual, software, or driver, etc.,

please visit Lumens

https://www.MyLumens.com/support

User Manual - English

Table of Contents

Copyright Information ........................................................................................................... 2

Chapter 1 Safety Instructions .............................................................................................. 3

Chapter 2 Package Contents ............................................................................................... 4

Chapter 3 Function Introduction ......................................................................................... 5

3.1 I/O functions Introduction .................................................................................... 5

3.2 Description of LED indicator ................................................................................ 7

3.3 Tally Lamp Function Description ......................................................................... 7

Chapter 4 Instruction for installation .................................................................................. 8

4.1 Camera dimension ................................................................ ................................ 8

4.2 Preparation before installation ............................................................................. 9

4.3 Instruction for installation .................................................................................... 9

4.4 Connecting devices ............................................................................................ 14

Chapter 5 Remote Control and Setting Menu ................................................................... 17

5.1 Functions of remote control ............................................................................... 17

5.2 Setting Menu ........................................................................................................ 18

Chapter 6 Network Function Settings Description .......................................................... 29

6.1 Connecting Camera to Network ......................................................................... 29

6.2 Web Page Function Description ................................................................ ........ 33

Chapter 7 DIP Switch Setting ............................................................................................. 50

7.1 DIP SWITCH ......................................................................................................... 50

Chapter 8 Troubleshooting ................................................................................................ 51

Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information ........... 53

Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc.

Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after

purchasing this product.

In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. The information in this file is

subject to change without prior notice.

To fully explain or describe how this product should be used, this manual may refer to names

of other products or companies without any intention of infringement.

Disclaimer of warranties: Lumens Digital Optics Inc. is neither responsible for any possible technological, editorial errors or omissions, nor responsible for any incidental or related

damages arising from providing this file, using, or operating this product.

Chapter 1 Safety Instructions

Always follow these safety instructions when using the product:

1 Operation

1.1 Please use the product in the recommended operating environment, away from water or source of heat.

1.2 Do not place the product in tilted position or unstable trolley, stand or table.

1.3 Please clean the dust on the power plug prior to usage. Do not insert the product’s power plug into a multiplug to prevent sparks or a fire.

1.4 Do not block the slots and openings in the case of the product. They provide ventilation and prevent the product from overheating.

1.5 Do not open or remove covers, otherwise it may expose you to dangerous voltages and other hazards. Refer all servicing to licensed service personnel.

1.6 Unplug the product from the wall outlet and refer servicing to licensed service personnel when the following situations happen:

 If the power cords are damaged or frayed.  If liquid is spilled into the product or the product has been exposed to rain or water.

2 Installation

2.1 For security considerations, please make sure the standard hanging rack you bought is in line with UL or CE safety approbations and installed by technician personnel approved by agents.

3 Storage

3.1 Do not place the product where the cord can be stepped on as this may result in fraying or damage to the lead or the plug.

3.2 Unplug the product during thunderstorms or if it is not going to be used for an extended period.

3.3 Do not place the product or accessories on top of vibrating equipment or heated objects.

4 Cleaning

4.1 Disconnect all the cables prior to cleaning and wipe the surface with a dry cloth. Do not use alcohol or volatile solvents for cleaning.

5 Batteries (for products or accessories with batteries)

5.1 When replacing batteries, please only use similar or the same type of batteries.

5.2 When disposing of batteries or products, please adhere to the relevant instructions in your country or region for disposing of batteries or products.

 Precautions

This symbol indicates that this equipment may contain dangerous voltage which could cause electric shock. Do not remove the cover (or back). No user-serviceable parts inside. Refer

servicing to licensed service personnel.

This symbol indicates that there are important operating and maintenance instructions in this

User Manual with this unit.

 FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. Notice:

The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority

to operate the equipment.

 IC Warning

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the

interference-causing equipment standard entitled "Digital Apparatus," ICES-003 of Industry Canada.

Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils numeriques de Classe A

prescrites dans la norme sur le material brouilleur: "Appareils Numeriques," NMB-003 edictee par l'Industrie.

 EN55032 CE Warning

Operation of this equipment in a residential environment could cause radio interference.

 KC Warning

This equipment is Industrial (Class A) electromagnetic wave suitability equipment and seller or user should take notice of it,

and this equipment is to be used in the places except for home.

Chapter 2 Package Contents

VC-A71P/VC-A71PN

M3 Screws

Remote Control

Silver x8 / Black x2

Power Cord

Power Adapter

RS-422 Connector

Appearance may vary

depending on

country/region

Metal Plate A

Metal Plate B

Chapter 3 Function Introduction

3.1 I/O functions Introduction

3.1.1 Front View

NO.

Item

Function Descriptions

Tally indicator light

Display the tally light status of the camera

Camera lens

30x HD camera lens

Power LED indicator

Display the status of the camera, please refer to 3.2 Description

of LED indicator

Standby LED indicator

Display the status of the camera, please refer to 3.2 Description

of LED indicator

3.1.2 Back View

<Remark> The figure is an example of VC-A71P. VC-A71PN does not support SDI and USB

output.

NO.

Item

Function Descriptions

RS-232 output

RS-232 output port, at most 7 cameras can be connected in a serial connection

RS-232 input

RS-232 input port, at most 7 cameras can be connected in a serial connection

HDMI 2.0 output

HDMI 2.0 output (Audio output supported)

RS-422 port

RS-422 connecting port, at most 7 cameras can be connected in a serial connection

OUTPUT SWITCH

Adjust the resolution setting. The default is 3840 x 2160/59.94p

10.

Audio input

Support Line In/Mic In

11.

Network port

Network port, supporting routers or hubs with power supply

 VC-A71P : PoE++ (IEEE802.3bt)  VC-A71PN : PoE+ (IEEE802.3at)

12.

DC 12 V power connector

AC power supply connecting port

13.

IR SELECT

The remote control ID setting is only controlled after corresponding to the Camera Select on the remote control

14.

Kensington lock hole

Safety lock slot

15.

USB 3.0 port

It is for connecting to the USB port of the computer to provide

USB signal images

<Remark> Support up to 3840 x 2160/29.97p <Remark> VC-A71PN does not support this output port.

16.

12G-SDI output

12G-SDI output (Audio output supported) <Remark> VC-A71PN does not support this output port.

USB LOCK

3.1.3 Bottom

NO.

Item

Function Descriptions

17.

Mute cooling fan

The cooling fan automatically controls its rotation speed and performs cooling in cope with the operation temperature of the machine <Remark>The cooling fan is not available on VC-A71PN.

18.

Tripod deck lock hole

The camera is mounted on a (specification) 1/4” - 20 UNC tripod

19.

Rotatable foot pad

When using the metal plates of accessories, remove 4 pieces of rotatable food pads on the bottom by rotating counterclockwise, and then install the mental plates

3.2 Description of LED indicator

Status

Power

Standby

Startup in progress

(initialization)

Green light

Orange light

In use

Green light

No indicator

In standby mode

No indicator

Orange light

3.3 Tally Lamp Function Description

3.3.1 Tally Lamp function may be enabled through the control of RS-232 command. Please refer to RS-232 command set document

Chapter 4 Instruction for installation

4.1 Camera dimension

4.1.1.1 Camera front view and side view

 Lengthx width x height: 232 x 188 x 189 mm  Weight: 3.0Kg (excluding the metal plate)

4.1.1.2 Camera base

The camera base has tripod mount lock holes and can be installed on the tripod deckof a standard specification 1/4”-20 UNC.

189

4.2 Preparation before installation

Installation and connection of the HD camera requires special skills. To install by yourself, please follow necessary steps, ensure steady and tight installation of the device, and pay

attention to your safety to avoid any accident.

4.2.1 Ensure the safety of the installation environment. Please do not install the device on unstable ceiling or in a place where the device is in danger of falling to avoid any accident.

4.2.2 Please check whether accessories in the box are complete or not. Please contact the supplier for any shortage, and make sure to keep the accessories in the box intact.

4.2.3 Please choose a proper place for installation of camera in advance. Please determine an installation place according to the following requirements

4.1.1.1 Confirm the position for the object to be captured.

4.1.1.2 Confirm whether the camera is set at a proper distance from other light sources.

4.3 Instruction for installation

4.3.1 I would like to install camera on the desk

4.3.1.1 Precautions for installation

 Please install the machine on a flat desk  Do not grab the camera head by hand when handling the device  Do not rotate the camera head by hand. Improper rotation may result in breakdown

of the camera

4.3.1.2 Installation steps

1. Place the camera on a flat desk directly to ensure the normal vertical and horizontal operation of the machine

4.3.2 I would like to install the camera on the ceiling

4.3.2.1 Prepare for the parts and equipment required during the installation

1. Accessories in the box (metal plates A, B, M3 screw silver x 8, black x 2)

2. Screw for locking on ceiling mounted hanger x 4

3. Drilling machine, screw driver, ladder

4.3.2.2 Metal Plate size diagram

 Metal plate A - machine side

Metal plate A - machine side

Metal plate A locking screw

 Metal plate B - ceiling side

Metal plate B - ceiling side

Metal plate B locking screw

Metal plate B locking bolt

M3 threaded hole

4.3.2.3 Precautions for installation

1. Before installation, please confirm the orientation of the machine relative to the object to be captured

2. It is recommended that the machine should be set at a distance of more than 2 meter away from the object to be captured. Please adjust for a best distance according to the magnification of the lens

3. The machine (including metal plates) is weighed at about 3 kg. If it is to be installed on the ceiling, please use the hanger that has obtained UL security approval to prevent the machine from falling down.

4. Please check whether the camera is installed securely on a regular basis.

5. Please clean the cooling fan located at the bottom to ensure the good heat dissipation effect of the machine on a regular basis.

4.3.2.4 Installation steps

1. Remove 4 pieces of foot pads on the bottom of the camera by rotating the foot pads counterclockwise.

<Remark> Please keep the foot pads properly after removal and store them for

future use.

2 meter ↑

Projector

Computer

2. Fix the metal plate A on the machine base with 4 M3 silver screws

3. Lock the metal plate B on ceiling mounted hanger

<Caution>:

(1) Please use the hanger that has obtained UL security approval (2) Please reserve the hole for the connecting wires of the camera

4. Combine the metal plate A and the metal plate B (1) Push the metal plate A up to the ceiling and then to the right to latch the metal

plate B

(2) And then secure with 2 M3 silver screws and 1 M3 black screw

black screw

4.3.2.5 How to remove

1. Remove the connecting wires from the camera

2. Uninstall the camera together with the ceiling, loosen the three screws that fix the metal plates A and B and push to the left to remove the machine

3. Then remove the screws on the hanger and the machine

4.4 Connecting devices

4.4.1 Connecting RS-232 With RS-232 in/out, at most 7 Lumens cameras can be connected.

 RS-232 pins definition instructions

4.4.2 Connecting RS-422 With RS-422, at most 7 Lumens cameras can be connected.

<Caution> When RS-422 connection is being used, do not use RS-232

connection.

 RS-422 pins definition instructions

 RS-422 connection instructions

1. Hold the two sides of RS-422 connector and pull out in the direction shown by the arrow in the figure below

2. Peel off a section of copper wire (AWG Nos. 28 to 18) and insert it into the connector hole; then use flat screw driver to fix it

3. Insert the wired RS-422 connector back to the Camera. Now the connection is completed

Chapter 5 Remote Control and Setting Menu

5.1 Functions of remote control

No.

Item

Description

Power

Power Switch

Preset

 Numeric Keys 0 - 9: Click to call the

preset

 Appoint an ID (0 ~ 9) to save the current

position data

 Appoint an ID (0 ~ 9) to delete the current

position data

Display OSD menu

Pan/ Tilt

Move the lens

Home-Enter

Go back to the main page / Execute

Zoom

 Fast: Adjust image size  Slow: Fine-tune image size

Focus

 Auto: Auto Focus  Manual: Enable Manual Focus  Far/ Near: Adjust the focal length in Manual


Switch image effect (OFF / Neg / B&W)

L/R Direction Set

L/R Direction / Normal

10.

Camera select

Choose Camera ID 1 ~ 3

11.

Back Light

Turn on/ off back light compensation

12.

Pan/ Tilt Reset

Clear the Pan / Tilt setting

13.

Freeze

Freeze the screen

14.

Mirror

Rotate the image (OFF / Mirror / Flip / Rotate)

15.

Info

Status information

⓫ ⓬ ⓭ ⓮ ➊ ➋ ➌ ➍ ➎

➏ ➐ ➓

⓯

➑

➒

5.3 Setting Menu

<Remark>Press [Menu] on the remote control to enter the setting menu; the bold

underlined values in the following table are defaults.

1st Level

Major Items

2nd Level

Minor Items

3rd Level

Adjustment Values

Function Descriptions

Exposure

Mode

1. Full Auto

2. Shutter Pri

3. Iris Pri

4. Manual

Exposure mode setting

Exposure Comp.

On / Off

AE Level

Exposure Comp. Level

-5 ~ C ~ 5

The value can be adjusted after Exposure Comp. is activated

Spot Light

On / Off

Spot Light Position

X (0 ~ 6) Y (0 ~ 4)

The value can be adjusted after Spot Light is activated

Shutter Pri

60/30 mode

50/25 mode

Adjustable when the

Exposure mode is set to Shutter Pri

1/10000

1/5000

1/3000

1/2500

1/2000

1/1750

1/1500

1/1250

1/1000

1/725

1/600

1/500

1/425

1/350

1/300

1/250

1/215

1/180

1/150

1/120

1/100

1/90

1/75

1/60

1/50

1/30

1/25

1/15

1/12

1/8

1/6

1/4

1/3

1/2

1/1

1st Level

Major Items

2nd Level

Minor Items

3rd Level

Adjustment Values

Function Descriptions

Iris Pri

1. F1.6

2. F2

3. F2.2

4. F2.7

5. F3.2

6. F3.8

7. F4.5

8. F5.4

9. F6.3

10. F7.8

11. F9

12. F11

13. F13

14. F16

15. F18

16. Off

Adjustable when the

Exposure mode is set to Iris Pri

Manual Gain

1. 0 dB

2. 3 dB

3. 6 dB

4. 9 dB

5. 12 dB

6. 15 dB

7. 18 dB

8. 21 dB

9. 24 dB

10. 27 dB

11. 30 dB

12. 33 dB

13. 36 dB

14. 39 dB

15. 42 dB

16. 45 dB

Adjustable when the

Exposure mode is set to Manual

Manual Speed

60/30 mode

50/25 mode

Manually set the shutter

1/10000

1/5000

1/3000

1/2500

1/2000

1/1750

1/1500

1/1250

1/1000

1/725

1/600

1/500

1/425

1/350

1/300

1/250

1/215

1/180

1/150

1st Level

Major Items

2nd Level

Minor Items

3rd Level

Adjustment Values

Function Descriptions

1/120

1/100

1/90

1/75

1/60

1/50

1/30

1/25

1/15

1/12

1/8

1/6

1/4

1/3

1/2

1/1

Manual Iris

1. F1.6

2. F2

3. F2.2

4. F2.7

5. F3.2

6. F3.8

7. F4.5

8. F5.4

9. F6.3

10. F7.8

11. F9

12. F11

13. F13

14. F16

15. F18

16. Off

Manually set the iris

Gain Limit

1. 9 dB

2. 12 dB

3. 15 dB

4. 18 dB

5. 21 dB

6. 24 dB

7. 27 dB

8. 30 dB

9. 33 dB

10. 36 dB

11. 39 dB

12. 42 dB

13. 45 dB

Max. limit value of electron gain

1st Level

Major Items

2nd Level

Minor Items

3rd Level

Adjustment Values

Function Descriptions

Iris Limit

1. F2.2

2. F2.7

3. F3.2

4. F3.8

5. F4.5

6. F5.4

7. F6.3

8. F7.8

9. F9

10. F11

Max. limit value of iris

WDR

1. Off

2. 1

3. 2

4. 3

Smart AE

5. On / Off

Available when “Smart AF” is

White

Balance

Mode

1. Auto

2. Indoor

3. Outdoor

4. One Push WB

5. ATW

6. Manual

7. Sodium Lamp

8. 3000K

9. 4300K

10. 5000K

11. 6500K

12. 8000K

Select the color temperature mode

1. 4000k ~ 7000k

2. 3200k

3. 5800k

4. 1700k ~ 10000k

5. 1700k ~ 10000k

6. Custom

7. 2800k

One Push Trigger

ENTER

One push trigger

Manual Red

0 ~ C ~ 128

Adjustable when the white balance mode is set to Manual

Manual Blue

0 ~ C ~ 128

Adjustable when the white balance mode is set to Manual


Picture Effect

1. Off

2. Neg

3. B & W

Sharpness

0 ~ A ~ 14

1st Level

Major Items

2nd Level

Minor Items

3rd Level

Adjustment Values

Function Descriptions

2D NR

1. Off

2. 1

3. 2

4. 3

3D NR

1. Off

2. LOW

3. Typ

4. Max

Image Mode

1. Default

2. Custom

The user may customize his/her desired image mode.

Image Mode Load

ENTER

Adjustable when the Image mode is set to Custom. After

selected, the corresponding Image mode parameters will be read and applied to Custom

Brightness

0 ~ A ~ 15

Adjustable when the Image mode is set to Custom

Hue

0 ~ A ~ 15

Adjustable when the Image mode is set to Custom

Saturation

0 ~ A ~ 15

Adjustable when the Image mode is set to Custom

Gamma

0 ~ 3

Adjustable when the Image mode is set to Custom

Pan Tilt

Zoom

Pan/Tilt Limit

On / Off

Turn on/off the angle limit setting

Pan Right Limit

0 ~ 170

Limit the right angle

Pan Left Limit

-170 ~ 0

Limit the left angle

Tilt UP Limit

0 ~ 90

Limit the upward angle

Tilt Down Limit

-30 ~ 0

Limit the downward angle

Pan Flip

On / Off

Activate the reverse Pan direction

Tilt Flip

On / Off

Activate the reverse Tilt direction

1st Level

Major Items

2nd Level

Minor Items

3rd Level

Adjustment Values

Function Descriptions

Preset Speed

1. 5 deg/sec

2. 25 deg/sec

3. 50 deg/sec

4. 80 deg/sec

5. 120 deg/sec

6. 160 deg/sec

7. 200 deg/sec

8. 300 deg/sec

Set the rotation speed of the cradle head when Preset is executed

PTZ Speed Comp

On / Off

Set the Pan/Tilt moving speed to vary from the zoom position

Preset Mode

Default/ PTZ Setting

 Default: Call the preset, execute Pan/Tilt/Zoom/Focus + picture parameters setting  PTZ Setting: Call the preset, only execute Pan/Tilt/Zoom/Focus

D-Zoom Limit

x1~x12

Set the D-zoom limit <Remark>3840 x 2160 59.94/

50 does NOT support this setting

PTZ Motion Sync

On / Off

After turning on, operate Preset to achieve PTZ Motion Sync <Remark> This function will refer to the default speed setting, but may automatically adjust the speed due to the difference in PTZ movement range

D-Effect

Mirror

1. Off

2. MIRROR

3. Flip

4. Mirror + Flip

Set the mode at which the image is mirror or flipped

Auto Focus

AF Sensitivity

1. LOW

2. Middle

3. High

For AF triggering speed, the higher the speed is, the faster AF is triggered

1st Level

Major Items

2nd Level

Minor Items

3rd Level

Adjustment Values

Function Descriptions

AF Frame

1. Center Area

2. Full Area

3. Auto

AF frame setting, when central area was set as AF frame, focusing will be on the center of the screen. When Full Frame was set as AF frame, focusing will be calculated based on the full screen

Zoom Tracking

Manual/ Curve Tracking/ Zoom Tracking

This function can only be enabled in the Manual Focus (MF) mode Set the focus mode during lens zooming in Manual Focus mode

PTZ Assist

On / Off

This function can only be enabled in the Manual Focus (MF) mode When PTZ Assist is enabled and PTZ control is in operation, the focus performs only once upon immediate execution. The focus will not be triggered afterward when the scene changes

SMART AF

On / Off

Turn on this function and AF will mainly focus on the face

Ethernet

DHCP

On / Off

Enable/Disable DHCP setting using left and right arrow keys and press [ENTER] to apply setting.

IP Address

192.168.100.100

Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys, and modify the value using the left and right keys or the numeric keys.

1st Level

Major Items

2nd Level

Minor Items

3rd Level

Adjustment Values

Function Descriptions

Subnet Mask

255.255.255.0

Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys, and modify the value using the left and right keys or the numeric keys.

Gateway

192.168.100.254

Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys, and modify the value using the left and right keys or the numeric keys.

Audio

Audio In

Line In/ Mic In

Set Audio In

Audio Enable

On / Off

Turn on/off audio output

Audio Volume

0 ~ A ~ 10

Volume Setting

Audio Delay

On / Off

When audio and video are out of sync, enable this feature to set the audio delay time

<Remark>For VC-A71PN, to support this function, please turn off NDI|HX

Audio Delay Time(ms)

-1~-500ms

Set audio delay time

<Remark> For VC-A71PN, to support this function, please turn off NDI|HX

Encode Type

1. AAC

2. G.711

Set encode type

<Remark> For VC-A71PN, to support this function, please turn off NDI|HX

Encode Sample Rate

1. 48 KHz (AAC)

2. 44.1 KHz (AAC)

3. 16 KHz (AAC)

4. 16 KHz (G.711)

5. 8 KHz (G.711)

Set the encode type and sample rate

<Remark> SDI supports the audio output of 48 KHz only

<Remark> For VC-A71PN, to support this function, please turn off NDI|HX

1st Level

Major Items

2nd Level

Minor Items

3rd Level

Adjustment Values

Function Descriptions

System

Prompt

On / Off

Turn on/off the prompt information on the display

IR Receive

On / Off

When it is Off, the remote control will not be able to control the camera. At this moment, turn off and then turn on the power to restore control of the remote control.

Tally Lamp

On / Off

Select to enable or disable Tally Lamp function.

Tally CMMD Mode

Normal/ Link

Set whether the indicator light is linked with RS232 command  General (Not linked): The

indicator light switch and mode shall be set

separately.  When the indicator light is on and the default mode is off, additional command is required to set the indicator light mode  Setting indicator light mode when the indicator light is off will not trigger the indicator light

 Link:

 When the indicator light is on, the default mode is red light

Setting indicator light mode when the indicator light is off will turn on the indicator light

Language

English / Chinese

1st Level

Major Items

2nd Level

Minor Items

3rd Level

Adjustment Values

Function Descriptions

Initial Position

Last Memory / 1st

Preset

Select the camera lens to return to the last operated position or the first preset position after POWER ON. <Remark>First default position = Preset 0

Control Device

Encoder / Controller

Control Device setting, Controller: for joystick Encoder: for tracking system

Motionless Preset

On / Off

When the function is enabled, the screen will Freeze when Preset is executed. Freeze will be released after Preset is completed.

Control Port

RS-232/ RS-422

Choose whether the control interface used is RS-232 or RS-422

Protocol

VISCA / Pelco D

Baud Rate

9600/ 38400

Choose the transmission speed of the control signal

VISCA Address

0 ~ 7

The Protocol set to VISCA allows the camera ID address to be assigned. Select 0 for automation.

PELCO D Address

1 ~ 255

The Protocol set to Pelco D allows the camera ID address to be assigned.

1st Level

Major Items

2nd Level

Minor Items

3rd Level

Adjustment Values

Function Descriptions

Output Mode

1. 3840 x 2160/59.94p

2. 3840 x 2160/50p

3. 3840 x 2160/29.97p

4. 3840 x 2160/25p

5. 1080p/59.94

6. 1080p/50

7. 1080p/29.97

8. 1080p/25

9. 720p/59.94

10. 720p/50

11. 720p/29.97

12. 720p/25

13. 1080i/59.94

14. 1080i/50

Choose the output resolution <Remark>VC-A71PN does not support 720p/29.97 and 720p/25 output modes <Remark>For HDMI/SDI output, when 1080i mode is set, NDI output is 1080p

Color Space

Standard Profile/ rec.709/ BT.2020

Set the standard for color space <Remark> VC-A71PN does not support this feature

Factory Reset

On / Off

Resume the factory default setting

Status

Display the current setting status

Chapter 6 Network Function Settings Description

6.1 Connecting Camera to Network

6.1.1 Connecting to Internet

Two common connection methods are shown below

1. Connecting via switch or router

2. To connect directly through network cable, the IP address of the computer should be changed so that it is on the same network segment as the camera

e.g.: The factory-preset default IP address of camera is 192.168.100.100. The computer IP address must be set with the same network segment, such as

192.168.100.101, so that the computer can be connected correctly with the camera

 Change network settings

Camera

Computer

Network cable

Switch or router

Network cable

Computer

6.1.2 Using the Browser to View the Images

 Open the browser, and enter the URL of camera in the IP address bar

e.g.: http://192.168.100.100 (default IP address)

 Enter administrator’s account and password

*For the first login, please refer to 6.2.3 Account Management to chang the default

password

6.1.3 Using Lumens VMS Software to View the Images

<Remark> For VC-A71PN, to support this function, please turn off NDI|HX (Please

refer to 6.2.5 Setting-Video)

 Open LUMENS VMS software (Please download from the Lumens official website)  Search for the camera: Press [automatically search for the device] button to

locate the VC-A71P camera

 Click the camera in the list and start operation after connecting to network

<Caution> When using automatic search, the camera and computer must be in

the same network segment, e.g.: 192.168.4.X

Lumens Network Camera

 Account: admin  Password: 9999

6.1.4 Using RTSP Player to View the Images

<Remark> For VC-A71PN, to support this function, please turn off NDI|HX (Please

refer to 6.2.5 Setting-Video)

In addition to the browser and VMS, other free softwares also can be used for RTSP connection,such as VLC, Quick Time and PotPlayer RTSP connection address formats are as follows:

 RTSP Streaming 1 (4K@H.265) => rtsp://camera IP:8554/hevc  RTSP Streaming 2 (1080P@H.264) => rtsp://camera IP:8557/h264  RTSP Streaming 3 (720P@H.264) => rtsp://camera IP:8556/h264

For password authentication, the RTSP connection address is as follows:  RTSP Streaming 1

rtsp://Username:Password@VC IP address:port/hevc

 RTSP Streaming 2/ 3

rtsp://Username:Password@VC IP address:port/h264

 To enable password authentication, please refer to 6.2.9 Setting - Network

Example: Open VLC software, click [Open Network Stream], and enter a URL: rtsp://192.168.4.48:8554/hevc

6.1.5 Using NDI Studio Monitor to View the Images

<Remark> Only VC-A71PN is available. Support when NDI|HX is on (Please refer to

6.2.5 Setting - Video)

For NewTek product operation or instructions, please visit the website:

https://www.newtek.com/.

To download NDI 4 Tool, click the link: http://new.tk/NDIHX-Driver-Win

6.1.6 Using USB to View the Images

<Remark> When using 4K resolution for USB output, the video is encoded in H.264 format, while resolutions of 1080P and below are encoded in either H.264 or MJPEG format (the media player will choose automatically). However, some media players or

conference meeting apps may not display images when using 4K resolution due to conflicts between the A71P H.264 format and the software itself. In that case, please lower the resolution to 1080P.

To utilize the USB camera source, launch a media player like PotPlayer or a conference meeting app such as Zoom, then select the camera source.

6.2 Web Page Function Description

6.2.1 Login Screen

Item

Function Descriptions

Username

Enter user account (default: admin)

Password

Enter user password (default: 9999)

*For the first login, please refer to 6.2.3 Account Management the

default password

Language selection

Currently, the system supports English, Traditional Chinese and Simplified Chinese

Remember password

Save user account name and password to the browser. When you log in next time, there is no need to re-enter them

Log into the administrator screen on the website

2 3 5

6.2.2 Live View

Item

Function Descriptions

VC-A71P

VC-A71PN

Pan / Tilt setting

Adjust the Pan/Tilt position of the camera screen

V V 2

Zoom ratio

Adjust the zoom-in or zoom-out ratio via scroll bar

Preview window

Display the screen currently captured by the camera

Support

when

NDI|HX is

Off

Preset setting

Select the number first and then select SAVE or LOAD

PTZ Only

Enable/disable PTZ Only  Disable (Default): Call the preset, execute Pan/Tilt/Zoom/Focus + picture parameters setting  Enable: Call the preset, only execute Pan/ Tilt/ Zoom/ Focus

Switch to Full Screen

Switch the preview window to full screen

Support

when

NDI|HX is

Off

Power button

Turn on or turn off the camera power

4 3 2 1 5

6.2.3 Account Management

Item

Function Descriptions

Add user account

Enter a user name and password to add a new user

Permission setting

Set the new account management permissions

User Type

Admin

Operator

Viewer

View images

V V V

Settings V V

Account management

V X X

Applying setting

Add the newly created user to the list of account

List of accounts

Edit: Modify the user password and permissions Delete: Delete the user account

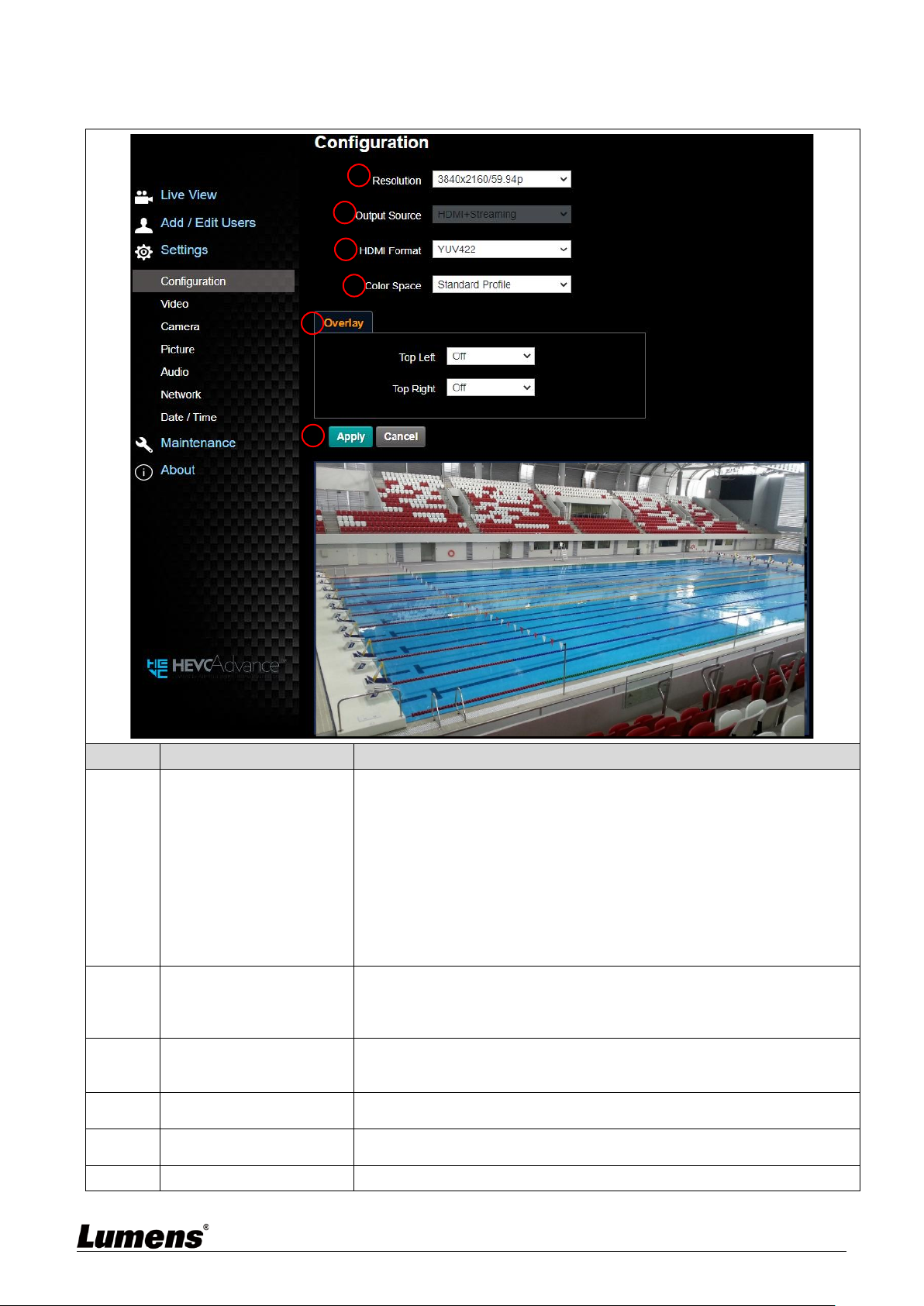

6.2.4 Setting - System Setting

<Remark> Preview pane is not supported when VC-A71PN NDI|HX is on

Item

Function Descriptions

Resolution

Set the resolution of the camera, resolutions supported by the camera are as follows: 3840 x 2160 59.94 / 50 / 29.97 / 25 fps 1080P 59.94 / 50 / 29.97 / 25 720P 59.94 / 50 / 29.97 / 25 1080i 59.94/50 After switching to the resolution, the camera will restart. Please refresh the browser

<Remark>VC-A71PN does not support 720p 29.97/25 fps resolutions <Remark>1080i mode only supports HDMI/SDI output. When 1080i

mode is set, NDI output is 1080p

Output signal

According to the output resolution, you can select HDMI + streaming output or HDMI + UVC output <Remark> When it is set to UVC output, 3840 x 2160 29.97p or lower resolutions are supported

HDMI Format

Select YUV422 / YUV420 / RGB <Remark> When it is set to YUV420, 3840 x 2160 59.94p and 3840 x 2160 50p resolutions are supported

Color Space

Set the standard for color space Standard Profile/ REC.709/ BT.2020 <Remark> VC-A71PN does not support this feature

Overlay

Set the stream to display “date and time” or “custom content” and to display location

Apply

After the setting has been modified, select this button to apply the setting

3 5 6

6.2.5 Setting – Video

<Remark> Preview pane is not supported when VC-A71PN NDI|HX is on

Item

Function Descriptions

VC-A71P

VC-A71PN

Camera name

Modify the camera name

 Camera names are limited to 1 - 12 characters  Please use a camera name by mixing uppercase and

lowercase letters or numbers. Do not use “/” and

“space” or special symbols

<Remark> Modifying this field will modify the Onvif device

name synchronously

Camera Location

Modify the location of the camera, such as Meeting Room 1

 Camera location is limited to 1 - 12 characters  Please use a camera name by mixing uppercase and

lowercase letters or numbers. Do not use “/” and

“space” or special symbols

<Remark> Modifying this field will modify the Onvif device

name synchronously

NDI|HX

VC-A71PN can turn NDI|HX on/off  On: Support NDI (ONVIF cannot find devices, and

RTSP/RTMP/RTMPS/MPEG-TS/SRT streams cannot be used.)

 Off: Support RTSP/RTMP/RTMPS/MPEG-TS/SRT, and

ONVIF can find devices but cannot be used with NDI Tool

3.1

Group Name

The group name can be modified here and set with Access Manager - Receive in NDI Tool  If no group is assigned, the machine belongs to Public. As

Support

when

NDI|HX is

VC-A71PN

the default of Access Manager includes Public, Studio Monitor can discover this machine.

 If a group is assigned, but this group is not added into

Access Manager, Studio Monitor cannot discover this machine.

 If a group is assigned and this group is added into Access

Manager, Studio Monitor can discover this machine.

The name can contain commas (,) to distinguish different groups Example: “default, 123, abc" means this machine belongs to three groups at the same time (default / 123 / abc)

Streaming 1/ Streaming 2/ Streaming 3

Setting - System Setting - Output Signal Display when it is set to HDMI + streaming VC-A71P supports 3 streaming outputs. Please refer to

6.2.5.1 Streaming Parameter Setting for relevant settings

Support

when

NDI|HX is

4.1

UVC

Setting - System Setting - Output Signal Display when it is set to HDMI + UVC

 Encode Format:

 3840 x 2160 29.97 / 25 fps: H.264  Less than 1080p (inclusive): H.264/MJPEG

 Resolution: It is shown based on Settings - System

Settings - Resolution

Frame Rate: 3840 x 2160 can only select the highest 29.97 fps

Apply

After the setting has been modified, select this button to apply the setting

6.2.5.1 Streaming parameter setting

Function

Streaming 1

Streaming 2

Streaming 3

Encode Format

H.265

H.264

Resolution

4K /1080p / 720p

1080p / 720p / 1080i

640 x 360

Frame Rate

Setting according to the supported resolution

<Remark> Only 59.94 / 50 are supported when the resolution of Streaming 2 is 1080i

Bit Rate (kbps)

2,000 ~

20,000

2,000 ~ 20,000

512 ~ 5,000

7,000

15,000

7,500

1,000

Rate Control

CBR / VBR

IP Ratio

Setting according to the supported resolution

<Remark> Only 15 / 25 are supported when the resolution is 1080i

6.2.6 Setting – Camera

<Remark> Preview pane is not supported when VC-A71PN NDI|HX is on

Item

Function Descriptions

Zoom ratio

Adjust the zoom-in or zoom-out ratio via scroll bar

Exposure

 Mode: Select exposure mode (Automatic/Shutter Priority/Aperture Priority/

Manual)

 Exposure Comp. Level: Select exposure compensation level  Gain: The gain limit is adjustable when the exposure mode is set to

“Manual”

 Iris: The size of aperture is adjustable when the exposure mode is set to

“Manual” or “Aperture Priority”

 WDR: Set the level of wide dynamic range (WDR) in order to obtain better

images

 Shutter Speed: The shutter speed is adjustable when the exposure mode

is set to “Manual” or “Shutter Priority”

 Smart Exposure: Enable/Disable Smart Exposure; Available when

“Focus - SMART AF” is on (Currently it’s the beta version. Please refer to Web Page Firmware Update Information for the official version release schedule.)

5 4 3 2 1

6 7 8

White Balance

 Mode: Select the color temperature mode  Open Push WB: One push color temperature is adjustable when the

white balance mode is set to “One Push WB”

 Manual Red/Blue: Manually adjust blue/red color temperature

Focus

 Mode: Select manual/automatic focus  Focus Range: The focusing range is adjustable when the focus mode is

set to “Manual”

 AF Sensitivity: Set automatic focus sensitivity  AF Frame: Set automatic focus range  Zoom Tracking: Set the focus mode during lens zooming in Manual

Focus mode

 PTZ Assist: Set Auto Focus in manual mode  Smart AF: Turn on this function and AF will mainly focus on the face  One-shot Focus: When manual focus mode is on, click this function for

one-shot autofocus

MIRROR

 Mirror: Set automatic flip mode

[Off / Mirror / Flip / Mirror + Flip]

Pan Tilt Zoom

 Pan/Tilt Limit: Set the Pan/Tilt limit  Pan/Tilt Flip: Set Pan/Tilt flip  Preset Speed: Set the rotation speed of the cradle head when Preset is

executed

 PTZ Speed Comp: Set the Pan/Tilt moving speed to vary from the zoom

position

 Initial Position: Set the camera lens to return to the last operated position

or the first preset position after POWER ON

<Remark>First default position = Preset 0

 D-Zoom Limit: Set the D-Zoom Limit, x1 - x12  Motionless Preset: When the function is enabled, the screen will Freeze

when Preset is executed. Freeze will be released after Preset is completed

 PTZ Motion Sync: After turning on, operate Preset to achieve PTZ Motion

Sync <Remark> This function will refer to the default speed setting, but may automatically adjust the speed due to the difference in PTZ movement range

Tally Lamp

 Enable/Disable Tally Lamp  Indicator Light Link Mode: Set whether the indicator light is linked with

RS232 command

 General (Not linked): The indicator light switch and mode shall be set

separately.

-When the indicator light is on and the default mode is off, additional command is required to set the indicator light mode

-Setting indicator light mode when the indicator light is off will not trigger

the indicator light

 Link:

-When the indicator light is on, the default mode is red light

-Setting indicator light mode when the indicator light is off will turn on the

indicator light

IQ Sync Set IQ main synchronized device

Available when “Exposure” and “White Balance” is set to “Auto” mode

(Currently it’s the beta version. Please refer to Web Page Firmware Update

Information for the official version release schedule.)

6.2.7 Setting – Picture

<Remark> Preview pane is not supported when VC-A71PN NDI|HX is on

Item

Function Descriptions

Picture Effect

Set picture effect, Off/Neg/Black and White

2D noise reduction settings

3D noise reduction settings

Image mode

The user may customize his/her desired image mode.

Image Mode Load

When no custom setting is needed, reset the picture parameters back to the factory default by selecting this item

Gamma

Gamma Level adjustment; Adjustable when the image mode is set to Custom

Brightness

Brightness adjustment; Adjustable when the image mode is set to Custom

1 2 3 4 5 6 7 8 9

Contrast

Contrast adjustment; Adjustable when the image mode is set to Custom

Saturation

Saturation adjustment of the image; Adjustable when the image mode is set to Custom

Sharpness

Adjust the sharpness of the image

6.2.8 Setting - Audio

Item

Function Descriptions

VC-A71P

VC-A71PN

Open audio

Turn on/ off sound

Soundtrack effect setting

Set MIC In/Line In

Audio Volume

Adjust Volume

Audio Delay

Turn on/ off Audio Delay

Support

when

NDI|HX is Off

Audio Delay Time(ms)

Set Audio Delay Time (-1~-500ms)

Encode Type

AAC/ G.711

Encode sample rate

Set Encode sample rate

 48 KHz (AAC)  44.1 KHz (AAC)  16 KHz (AAC)  16 KHz (G.711)  8 KHz (G.711)

1 2 3 4 5 6 7

6.2.9 Setting - Network

Item

Function Descriptions

VC-

A71P

VC-A71PN

Network

Network setting of camera. Change of setting is available when DHCP function is closed.

RTMP Setting

Copy the RTMP web address provided by the RTMP service platform and paste it to the RTMP connection address to publish the camera images on the RTMP service platform

To upload to YouTube for live streaming, the audio function must be turned on first To upload to YouTube for live streaming, please see 6.2.8 Setting - Audio to turn on the audio function first

Support

when

NDI|HX is

Off

RTSP Setting

Enable / Disable Multicast

When more than 4 people are connected to watch live video at the same time, it is recommended to enable the multicast function

 Enable / Disable Account Password Authentication

 Refer to 6.1.4 Using RTSP Player to View Images for

RTSP connection format

 The account password is the same as that for the

camera web login page. Please refer to 6.2.3 Account

Management to add/revise the account information

4 5 7 6 8

3-1

Multicast Setting

The setting can be configured after Multicast is enabled

Support

when

NDI|HX is

MPEG-TS Setting

Set MPEG-TS format

<Remark> The port setting range 1025 ~ 65535 <Remark>The following port has been used by the camera. Setting

of the port may not connect correctly 1935, 8080, 8554, 8556, 8557, 9090

Support

when

NDI|HX is

Off

SRT Setting

1. Set the field of SRT and then check the item to open SRT streaming After the SRT streaming is opened, it will be connected automatically upon startup

2. The port setting range 1025 ~ 65535 <Reamark>The following port has been used by the camera. Setting of the port may not connect correctly

1935,8554,8555,8556,8557

3. Delay time is for 20 to 8000 microseconds. The default value is 120 microseconds

Support

when

NDI|HX is

Off

SNTP Setting

Set the SNTP server address

Port Setting

Set HTTP port. The default Port value is 80 Set HTTPS port. The default Port value is 81 <Remark> The settings can only be modified when the camera's DHCP function is turned off

Tracking Data Output Setting

When enabled, PTZ position information can be fed back when the camera is moving

1. Serial port output: The protocol must be set to VISCA, and the

baud rate should be 38400 (For related settings, please refer to 6.2.14 Setting -

Maintenance - System Service)

2. IP output: It can set IP address and communication port

3. The port numbers should be > 1024. 1935, 8555, 8556, 8557

cannot be used.

<Remark> The performance of the camera may be affected when Tracking Data Output is enabled

6.2.10 Setting - Time

Item

Function Descriptions

Camera Time

Display the date and time of the camera

Set the Time

 Manual Configuration Set time manually  Synchronize with computer time: Set the camera time according

to the computer time

 Synchronize with SNTP server: Set the camera time

synchronously with the SNTP server

<Remark>SNTP server address: Please change in network setting

6.2.11 Setting - Maintenance - Upgrading Firmware

Item

Function Descriptions

Firmware Upgrade

The camera firmware may be upgraded via web page. For the upgrade method, please download the FW upgrade manual from Lumens official website <Remark> Please do not operate or turn off the power of the device during the update to avoid firmware update failure

6.2.12 Setting - Maintenance - Incident Log

Item

Function Descriptions

Event Log

If the camera encounters errors, an error code log will be established

<Remark> When an error code appears, please try to clear it to make sure whether the issue has occurred repetitively

6.2.13 Setting – Maintenance - Security

Item

Function Descriptions

802.1x Setting

Enable/Disable 802.1x Protocol. Setting can be made after enabling. <Remark> In order to enable this function, the router must support

802.1x Protocol.

<Remark> VC-A71PN does not support this function.

6.2.14 Setting - Maintenance - System Service

Item

Function Descriptions

Factory Reset

Select the reset button to resume the factory default setting as the web page setting

Setting Profile

The web page setting parameters can be exported from the computer and imported/applied to another camera

Control Port

Communication protocol related settings for connection with RS232/RS-422 communication

6.2.15 Setting - Maintenance - Reboot

Item

Function Descriptions

Reboot

Reboot immediately

Disable

Disable the reboot settings

Daily reboot

Set the daily reboot time <Remark> Please go to Settings - Time to complete the SNTP server synchronization to set daily reboot

Timing Reboot

Set the timing reboot time

2 3 4

6.2.16 About

Item

Function Descriptions

Camera ID

Display the camera name

Firmware Version

Display the firmware version of the camera

Detail Information

Display firmware version-related information

Serial Number

Display the camera serial No.

Uptime

Displaying the running time of the camera (the timing of standby continues; the time will be reset when the camera is rebooted or turned off)

2 3 4

Chapter 7 DIP Switch Setting

7.1 DIP SWITCH

7.1.1 OUTPUT Switch (Switch to different output resolutions) To switch via the OSD/ RS-232 Command is also available based on the last executed action

7.1.2 IR SELECT (Selected by Remote control)

When using the remote control, please make sure the settings of IR SELECT and the Camera Select of the remote control are consistent

Setting

1 2 3

Resolution

Frame Rate

3840x2160p

59.94

29.97

1920x1080p

59.94

29.97

1280x720p

59.94

29.97

<Remark> VC-A71PN does not support 720p

29.97/25 fps resolutions

1920x1080i

59.94

<Remark> 1080i mode only supports HDMI/SDI output. When 1080i mode is set, NDI output is 1080p

Reserved

Chapter 8 Troubleshooting

This chapter describes problems you may encounter while using VC-A71P/VC-A71PN. If you

have questions, please refer to related chapters and follow all the suggested solutions. If the

problem still occurred, please contact your distributor or the service center.

No.

Problems

Solutions

Boot without power

signal

1. Make sure you have plugged in the power cord.

2. When using a PoE connection, ensure that the power supply supports PoE+ / PoE++ hubs

 VC-A71P : PoE++ (IEEE802.3bt)  VC-A71PN : PoE+ (IEEE802.3at)

There is no image

output from VC-A71P

1. Check the power supply or PoE supply functions.

2. Confirm the output signals are in streaming output.

3. Confirm whether the camera resolution can be used together with the monitor equipment

 If 4k output, confirm the monitor equipment supports 4K

output

4. Replace the cables and make sure they are not faulty.

RS-232 cannot be

controlled

1. Confirm the connection is correct (RS-232 In/ Out)

2. Please make sure the Baud rate setting is the same as the

control equipment

Whether the Internet can be used for

operation

Please refer to Chapter 6 Network Function Settings

Description for the Internet usage

ONVIF software cannot

locate the machine

Please be sure to use only English alphabets or numbers in [Setting]>[Video]> [Camera](Location) of the webpage. Using special characters and pressing the spacebar will cause the

ONVIF software unable to locate the machine.

<Remark> For VC-A71PN, either NDI or ONVIF can be used. Please go to the [Setting] > [Video] > [NDI|HX] on the web page to check if it is [Off].

Tally lamp is not

working when applying RS232 setting

Please make sure if the Tally lamp function is enabled from the setting

menu or web page.

 Setting Menu: System - Tally Lamp

 Web page: Setting - Camera - Tally Lamp

The camera does not

save the relevant

parameters (PTZ, AWB …) after reboot

Please make sure if the Initial Position is set to Last Operated

Position from the setting menu or web page

 Setting Menu: System - Initial Position

 Web page: Setting - Camera - Pan Tilt Zoom

Tracking Data Output is

delayed or not updated

Please make sure that the camera is not in the following conditions.

The following function settings may cause data output to be delayed or

not updated:

- Modify output resolution

- Modify camera mode

- Modify HDMI format

- Enable OSD menu

- Streaming setting

- Audio setting

Supplier's Declaration of Conformity

47 CFR § 2.1077 Compliance Information

Manufacturer：Lumens Digital Optics Inc. Product Name：VC-A71P/ VC-A71PN Model Number：4KPTZ Video Camera

Responsible Party – U.S. Contact Information

Supplier：Lumens Integration, Inc.

4116 Clipper Court, Fremont, CA 94538, United States

e-mail ：support@mylumens.com

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Lumens VC-A71P,VC-A71PN Users Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
