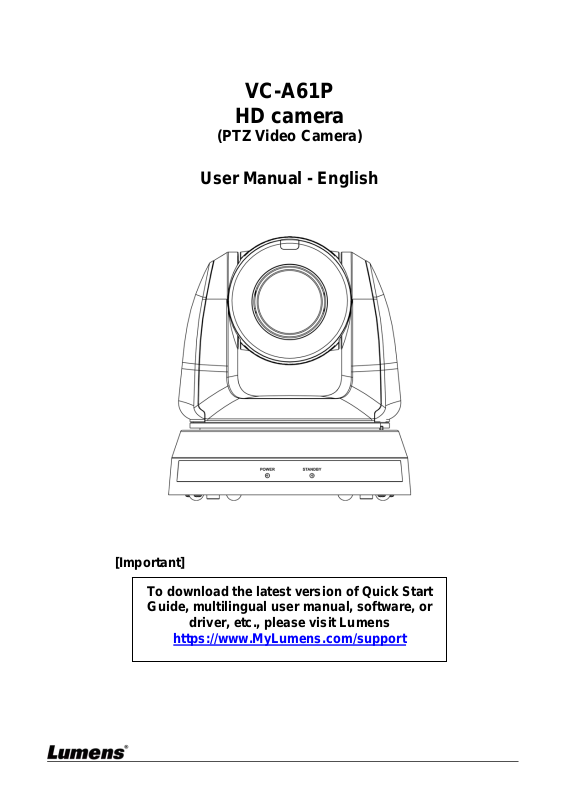

Lumens VC-A61P Users Manual

HD camera
(PTZ Video Camera)
User Manual - English
[Important]
To download the latest version of Quick Start
Guide, multilingual user manual, software, or
driver, etc., please visit Lumens
https://www.MyLumens.com/support
Table of Contents
Copyright Information ...................................................................................... 2
Chapter 1 Safety Instructions ......................................................................... 3
Chapter 2 Package Contents ........................................................................... 5
Chapter 3 Function Introduction ..................................................................... 6
3.1 I/O functions Introduction .................................................................................... 6
3.2 Description of LED indicator ................................................................................ 7
3.3 Tally Indicator Light Function Description ......................................................... 7
Chapter 4 Instruction for installation ............................................................. 8
4.1 Preparation before installation ............................................................................ 8
4.2 Instruction for installation .................................................................................... 8
4.3 Connecting devices ............................................................................................ 15
Chapter 5 Remote Control and Setting Menu .............................................. 20
5.1 Functions of remote control .............................................................................. 20
5.2 Setting Menu ....................................................................................................... 21
Chapter 6 Network Function Settings Description ..................................... 30
6.1 Connecting Camera to Network ......................................................................... 30
6.2 Web Page Function Description ......................................................................... 33
Chapter 7 DIP Switch Setting ........................................................................ 45
7.1 DIP SWITCH ......................................................................................................... 45
Chapter 8 Troubleshooting ........................................................................... 46
English - 1
Copyright Information
Copyrights © Lumens Digital Optics Inc. All rights reserved.
Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc.
Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product.
In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. The information in this file is subject to change without prior notice.
To fully explain or describe how this product should be used, this manual may refer to names of other products or companies without any intention of infringement.
Disclaimer of warranties: Lumens Digital Optics Inc. is neither responsible for any possible technological, editorial errors or omissions, nor responsible for any incidental or related damages arising from providing this file, using, or operating this product.
English - 2
Chapter 1 Safety Instructions
Always follow these safety instructions when using the product:
1 Operation
1.1 Please use the product in the recommended operating environment.
1.2 Do not place the product in tilted position.
1.3 Do not place the product on an unstable trolley, stand or table.
1.4 Do not use this product near water or source of heat.
1.5 Use attachments only as recommended.
1.6 Use the type of power source indicated on the product. If you are not sure of the type of power available, consult your distributor or local electricity company for advice.
1.7 Always take the following precautions when handling the plug. Failure to do so may result in sparks or fire:
Ensure the plug is free of dust before inserting it into a socket. Ensure that the plug is inserted into the socket securely.
1.8 Do not overload wall sockets, extension cords or multi-way plug boards to avoid potential risks.
1.9 Do not block the slots and openings in the case of the product. They provide ventilation and prevent the product from overheating.
1.10 Except as specifically instructed in this User Manual, do not open or remove covers, otherwise it may expose you to electric shock and other hazards. Refer all servicing to licensed service personnel.
1.11 Unplug the product from the wall outlet and refer servicing to licensed service personnel when the following situations happen:
If the power cords are damaged or frayed. If liquid is spilled into the product or the product has been exposed to rain or water.
2 Installation
2.1 For security considerations, please make sure the standard hanging rack you bought is in line with UL or CE safety approbations and installed by technician personnel approved by agents.
3 Storage
3.1 Do not place the product where the cord can be stepped on as this may result in fraying or damage to the lead or the plug.
3.2 Never push objects of any kind through cabinet slots. Never allow liquid of any kind to spill into the product.
3.3 Unplug this product during thunderstorms or if it is not going to be used for an extended period.
3.4 Do not place this product or accessories on top of vibrating equipment or heated objects.
4 Cleaning
4.1 Unplug all the cables before cleaning. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners.
5 Remote control (if the accessories are equipped with remote control)
5.1 Using an incorrect battery type in the remote control may result in breakdown. Follow local instructions on how to dispose of used batteries.
English - 3
Precautions
p
Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
If the HD camera will not be used for an extended time, unplug it from the power socket.
Caution
Risk of Electric Shock
Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to licensed service personnel.
This symbol indicates that this appliance may contain dangerous voltage which could cause electric shock.
Please do not o
en it by yourself
This symbol indicates that there are important operating and maintenance instructions in this User Manual with this appliance.
FCC Warning
This HD Camera has been tested and found to comply with the limits for a Class A digital device, pursuant to Article 15-J of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation.
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus," ICES-003 of Industry Canada.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils numeriques de Classe A prescrites dans la norme sur le material brouilleur: "Appareils Numeriques," NMB-003 edictee par l'Industrie.
EN55032 (CE Radiation) Warning
Operation of this equipment in a residential environment could cause radio interference.
English - 4
Chapter 2 Package Contents
VC-A61P
Instruction for
installation
Quick Installation Guide
Remote Control
Power Cord
Appearance may vary
Power Adapter
RS-422 Connector
depending on
country/region
Metal Plate A Metal Plate B M3 Screws
English - 5
Silver x8 / Black x2
Chapter 3 Functi on Introduction
3.1 I/O functions Introduction
Front View Back View
NO. Item Function Descriptions
1.
Tally indicator light Display the tally light status of the camera
2.
Camera lens 30x HD camera lens
Power LED
3.
4.
5.
6.
7.
8.
9.
10.
11.
indicator
Standby LED indicator
RS-232 input
RS-232 output
Kensington lock hole
IR SELECT
DC 12 V power Port
Ethernet port
Audio input Support Line In/Mic In
Display the status of the camera
Display the status of the camera
RS-232 input port, at most 7 cameras can be connected in a serial connection
RS-232 output port, at most 7 cameras can be connected in a serial connection
Lock hole of safety lock
The remote control ID setting is only controlled after corresponding to the Camera Select on the remote control
DC power supply connecting port
Network cable port supports routers or hubs of PoE+ (IEEE
802.3at) with power supply
12.
13.
14.
15.
OUTPUT Switch Adjust the resolution setting. The default is 1080p/59.94
RS-422 Port
HDMI output HDMI output (Audio output supported)
3G-SDI output 3G-SDI output(Audio output supported)
English - 6
RS-422 connecting port, at most 7 cameras can be connected in a serial connection
3.2 Description of LED indicator Status Power Standby
Startup in progress
(initialization)
Green light Orange light
In use Green light No indicator
In standby mode No indicator Orange light
3.3 Tally Indicator Light Function Description
3.3.1 The tally indicator light function may be enabled through the control of RS-232 command. The setting method is as follows:
Tally Mode: 8x 01 7E 01 0A 01 0p FF
p = 0: OFF
p = 4: Red light (half-brightness)
p = 5: Red light (full-brightness)
p = 6: Green light (full-brightness)
p = 7: Orange light (full-brightness)
English - 7
Chapter 4 Instruction for installation
4.1 Preparation before installation
Installation and connection of VC-A61P HD camera requires special skills. To install by yourself, please follow necessary steps, ensure steady and tight installation of the device, and pay attention to your safety to avoid any accident.
4.1.1 Ensure the safety of the installation environment. Please do not install the device on unstable ceiling or in a place where the device is in danger of falling to avoid any accident.
4.1.2 Please check whether accessories in the box are complete or not. Please contact the supplier for any shortage, and make sure to keep the accessories in the box intact.
4.1.3 Please choose a proper place for installation of camera in advance. Please determine an installation place according to the following requirements
4.1.1.1 Confirm the position for the object to be captured.
4.1.1.2 Confirm whether the camera is set at a proper distance from other light sources.
4.2 Instruction for installation
4.2.1 I would like to install camera on the desk
4.2.1.1 Precautions for installation
Please install the machine on a flat desk Do not grab the camera head by hand when handling the device Do not rotate the camera head by hand, improper rotation may result in breakdown
of the camera
4.2.1.2 Installation steps
1. Please adjust DIP switch at first prior to installation
<Remark> Please refer to Chapter 7 DIP Switch Setting for the relevant descriptions
on DIP switch.
2. Place the camera on a flat desk directly to ensure the normal vertical and horizontal operation of the machine
English - 8
4.2.2 I would like to install the camera on the ceiling
4.2.2.1 Prepare for the parts and equipment required during the installation
1. Accessories in the box (metal plates A, B, M3 screw silver x 8, black x 2)
2. Screw for locking on ceiling mounted hanger x 4
3. Drilling machine, screw driver, ladder
4.2.2.2 Camera Size
L x W x H : 174 x 186.1 x 189.7 mm
Weight: 2.0 Kg
4.2.2.3 Max. rotation dimension of camera
English - 9
4.2.2.4 Size Diagram
1. Bottom of machine
The camera can be mounted on a 1/4”, -20 UNC PTZ tripod deck by using the lock
holes on the bottom for the tripod
English - 10
2. Metal Plate size diagram
Metal plate B - ceiling side
Metal plate B locking screw
Metal plate B locking bolt
M3 threaded hole
M3 threaded hole
Metal plate B - ceiling side
M3 threaded hole
English - 11
Metal plate A - machine side
Metal plate A locking screw
Metal plate A - machine side
English - 12
4.2.2.5 Precautions for installation
1. Before installation, please confirm the orientation of the machine relative to the object to be captured
2. It is recommended that the machine should be set at a distance of more than 1 meter away from the object to be captured. Please adjust for a best distance according to the magnification of the lens
Projector
1 meter
Computer
3. The machine (including metal plates) is weighed at about 2.5 kg. If it is to be installed on the ceiling, please use the hanger that has obtained UL security approval to prevent the machine from falling down.
4. Please check whether the camera is installed securely on a regular basis
4.2.2.6 Installation steps
1. Please adjust resolution on DIP switch at first
<Remark> Please refer to Chapter 7 DIP Switch Setting for the relevant descriptions
on DIP switch
2. Fix the metal plate A on the machine base with 4 M3 silver screws
English - 13
3. Lock the metal plate B on ceiling mounted hanger
Caution: (1) Please use the hanger that has obtained UL security approval
(2) Please reserve the hole for the connecting wires of the camera
4. Combine the metal plate A and the metal plate B
(1) Push the metal plate A up to the ceiling and then to the right to latch the metal
plate B
(2) And then secure with 2 M3 silver screws and 1 M3 black screw
black
screw
4.2.2.7 How to remove
1. Remove the connecting wires from the camera
2. Uninstall the camera together with the ceiling, loosen the three screws that fix the
metal plates A and B and push to the left to remove the machine
3. Then remove the screws on the hanger and the machine
English - 14
4.3 Connecting devices
4.3.1 Connecting to PC (video conference) SDI supports the audio output of 48 KHz only
HDMI Cable
Or
SDI Cable
MTU
4.3.2 Connecting to an HDTV/computer monitor (HDMI)
HDMI cable
English - 15
4.3.3 Connecting to Internet
A
For details of web page connection setting and description, please refer to Chapter 6
Network Function Settings Description
Network cable
4.3.4 Connecting AUDIO IN Set the [Audio In] in the OSD to reflect the input device
Router
or Hub
udio Cable
MIC or audio mixer
English - 16
4.3.5 Connecting RS-232 With RS-232 in/out, at most 7 Lumens cameras can be connected.
RS-232 pins definition instructions
English - 17
4.3.6 Connecting RS-422 With RS-422, at most 7 Lumens cameras can be connected.
<Note> When RS-422 connection is being used, do not use RS-232 connection.
RS-422 pins definition instructions
English - 18
RS-422 connection instructions
1. Hold the two sides of RS-422 connector and pull out in the direction shown by the arrow
in the figure below
2. Peel off a section of copper wire (AWG Nos. 28 to 18) and insert it into the connector
hole; then use flat screw driver to fix it
3. Insert the wired RS-422 connector back to the Camera. Now the connection is
completed
English - 19
Chapter 5 Remote Control and Setting Menu
5.1 Functions of remote control
<Remark> The below functions are listed alphabetically.
Item Description
,,,
Back Light Turn on/off back light compensation
Camera select Choose Camera ID 1 ~ 3
Focus-
Manual /
Far/Near
Focus-Auto Auto Focus
Freeze Freeze the screen
Home-Enter Go back to the main page / Execute
Info Status information
L/R
Direction Set
Menu Display OSD menu
Move the lens
Turn on manual focus to adjust the focal length
L/R Direction / Normal
Mirror
Pan/Tilt
Reset
Picture Switch image effect (OFF / Neg / B&W)
Power Power Switch
Preset
Reset
Zoom-Fast Adjust image size
Zoom-Slow Fine-tune image size
Rotate the image (OFF / Mirror / Flip / Rotate)
Clear the Pan / Tilt setting
Appoint an ID (0 ~ 9) to save the current position data
Appoint an ID (0 ~ 9) to delete the current position data
English - 20
5.2 Setting Menu
<Remark> Press [Menu] on the remote control to enter the setting menu; the bold underlined
values in the following table are defaults.
1st Level
Major Items
2nd Level
Minor Items
3rd Level
Adjustment Values
1. Full Auto
2. Shutter Pri
Mode
3. Iris Pri
4. Manual
Exposure
On / Off
Comp.
Exposure
-5 ~ C ~ 5
Comp. Level
Spot Light On / Off
Spot Light
X (0 ~ 6) Y (0 ~ 4)
Position
Function Descriptions
Exposure mode setting
AE Level
The value can be adjusted
after Exposure Comp. is
activated
The value can be adjusted
after Spot Light is activated
Exposure
Shutter Pri
60/30
mode
50/25
mode
1/10000 1/10000
1/5000 1/5000
1/3000 1/3000
1/2500 1/2500
1/2000 1/1750
1/1500 1/1250
1/1000 1/1000
1/725 1/600
1/500 1/425
1/350 1/300
1/250 1/215
1/180 1/150
Adjustable when the
Exposure mode is set to Shutter Pri
1/120 1/120
1/100 1/100
English - 21
Iris Pri
1/90 1/75
1/60 1/50
1/30 1/25
1/15 1/12
1/8 1/6
1/4 1/3
1/2 1/2
1/1 1/1
1. F1.6
2. F2
3. F2.2
4. F2.7
5. F3.2
6. F3.8
7. F4.5 Adjustable when the
8. F5.4
Exposure mode is set to Iris
9. F6.3
Pri
10. F7.8
11. F9
12. F11
13. F13
14. F16
15. F18
16. Close
English - 22
Manual Gain
1. 0 dB
2. 3 dB
3. 6 dB
4. 9 dB
5. 12 dB
6. 15 dB
7. 18 dB Adjustable when the
8. 21 dB
Exposure mode is set to
9. 24 dB
Manual
10. 27 dB
11. 30 dB
12. 33 dB
13. 36 dB
14. 39 dB
15. 42 dB
Manual Speed
16. 45 dB
60/30
mode
50/25
mode
1/10000 1/10000
1/5000 1/5000
1/3000 1/3000
1/2500 1/2500
1/2000 1/1750
1/1500 1/1250
1/1000 1/1000
1/725 1/600
1/500 1/425
1/350 1/300
1/250 1/215
1/180 1/150
Manually set the shutter
1/120 1/120
1/100 1/100
1/90 1/75
1/60 1/50
1/30 1/25
1/15 1/12
English - 23
Manual Iris
1/8 1/6
1/4 1/3
1/2 1/2
1/1 1/1
1. F1.6
2. F2
3. F2.2
4. F2.7
5. F3.2
6. F3.8
7. F4.5
8. F5.4 Manually set the iris
9. F6.3
10. F7.8
11. F9
Gain Limit
12. F11
13. F13
14. F16
15. F18
16. Close
1. 9 dB
2. 12 dB
3. 15 dB
4. 18 dB
5. 21 dB
6. 24 dB Max. limit value of electron
7. 27 dB
gain
8. 30 dB
9. 33 dB
10. 36 dB
11. 39 dB
12. 42 dB
13. 45 dB
English - 24
Iris Limit
1. F3.2
2. F3.8
3. F4.5
4. F5.4 Max. limit value of iris
5. F6.3
6. F7.8
7. F9
8. F11
1. Off
White
Balance
WDR
2. 1
3. 2
4. 3
1. Auto
2. Indoor
3. Outdoor
Mode
4. One Push WB
5. ATW
6. Manual
7. Sodium Lamp
One Push
ENTER
Trigger
Manual Red 0 ~ C ~ 128
Select the color temperature mode
1. 4000k ~ 7000k
2. 3200k
3. 5800k
4. 1700k ~ 10000k
5. 1700k ~ 10000k
6. Custom
7. 2800k
One push trigger
Adjustable when the white balance mode is set to
Manual
Adjustable when the white
Manual Blue 0 ~ C ~ 128
balance mode is set to
Manual
1. Off
Picture effect
2. Neg
3. B & W
Sharpness 0 ~ A ~ 14
1. Off
2. 1
2D NR
3. 2
4. 3
English - 25
1. Off
3D NR
2. Low
3. Typ
4. Max
1. Default
Image Mode
2. Custom
Image Mode
ENTER
Load
Brightness 0 ~ A ~ 15
Hue 0 ~ A ~ 15
The user may customize
his/her desired image mode
Adjustable when the Image mode is set to Custom.
After selected, the
corresponding Image mode
parameters will be read and
applied to Custom Adjustable when the Image
mode is set to Custom Adjustable when the Image
mode is set to Custom
Pan Tilt
Zoom
Adjustable when the Image
Saturation 0 ~ A ~ 15
mode is set to Custom Adjustable when the Image
Gamma 0 ~ A ~ 3
mode is set to Custom
Turn on/off the angle limit
Pan/Tilt Limit On / Off
setting
Pan Right Limit 0 ~ 170 Limit the right angle Pan Left Limit -170 ~ 0 Limit the left angle Tilt UP Limit 0 ~ 90 Limit the upward angle Tilt Down Limit -30 ~ 0 Limit the downward angle
Activate the reverse Pan
Pan Flip On / Off
command
Activate the reverse Tilt
Tilt Flip On / Off
command
English - 26
Preset Speed
1. 5 deg/sec
2. 25 deg/sec
3. 50 deg/sec
4. 80 deg/sec
5. 120 deg/sec
6. 160 deg/sec
7. 200 deg/sec
8. 300 deg/sec
Set the rotation speed of the cradle head when Preset is executed
PTZ Speed Comp
D-Effect Mirror
AF Sensitivity
Auto Focus
AF Frame
On / Off
1. Off
2. Mirror
3. Flip
4. Mirror + Flip
1. Low
2. Middle
3. High
1. Center
2. Full Frame
3. Auto
Set the Pan/Tilt moving speed to vary from the zoom position
Set the mode at which the image is turned
For AF triggering speed, the higher the speed is, the faster AF is triggered
AF frame setting, when central area was set as AF frame, focusing will be on the center of the screen. When Full Frame was set as AF frame, focusing will be calculated based on the full screen
Ethernet
PTZ Assist
On / Off
Turn on the auto focus function in Manual
Enable/Disable DHCP setting using left and right
DHCP On / Off
arrow keys and press [ENTER] to apply setting.
Press [ENTER] to be in modify mode; select the item to be modified using the up
IP Address 192.168.100.100
and down keys, and modify the value using the left and right keys or the numeric keys.
English - 27
Press [ENTER] to be in modify mode; select the item to be modified using the up
Subnet Mask 255.255.255.0
and down keys, and modify the value using the left and right keys or the numeric keys.
Press [ENTER] to be in modify mode; select the item to be modified using the up
Gateway 192.168.100.254
and down keys, and modify the value using the left and right keys or the numeric keys.
Audio
System
Audio In Line In/Mic In Audio Enable On / Off Audio Volume 0 ~ A ~ 10
1. 48 KHz (AAC)
Encode Sample Rate
2. 44.1 KHz (AAC)
3. 16 KHz (G.711)
4. 8 KHz (G.711)
Prompt On / Off
IR Receive On / Off Tally Lamp Enable / Disable Language English / Chinese
Last MEM / 1st
Initial Position
Preset
Set Audio In
Turn on/off audio output
Volume Setting
Set the encode type and sample rate
SDI supports the audio output of 48 KHz only
Turn on/off the prompt information on the display
Set the camera lens to return to the last operated position or the first preset position after POWER ON
Control Device setting,
Encoder /
Control Device
Controller: for joystick
Controller
Encoder: for tracking system
English - 28
Motionless
On / Off
Preset
Control Port RS-232/RS-422
When the function is enabled, the screen will Freeze when Preset is executed. Freeze will be released after Preset is completed.
Choose whether the control interface used is RS-232 or RS-422
Protocol VISCA/Pelco D
Baud Rate 9600/38400
VISCA Address 0 ~ 7
Pelco D
1 ~ 255
Address
1. 3840 x
2160/29.97p
2. 3840 x 2160/25p
3. 1080p/59.94
4. 1080p/50
Output Mode
5. 1080p/29.97
6. 1080p/25
7. 720p/59.94
Choose the transmission speed of the control signal
The Protocol set to Pelco D allows the camera ID address to be assigned
Choose the output resolution
8. 720p/50
9. 720p/29.97
10. 720p/25
Resume the factory default
Factory Reset On / Off
setting
Display the current setting
Status
status
English - 29
Chapter 6 Network Function Settings Description
A
p
A
6.1 Connecting Camera to Network
6.1.1 Connecting to Internet
Two common connection methods are shown below
1. Connecting via switch or router
Network cable
61P
VC-
Network cable
Switch or router
Com
uter
2. To connect directly through network cable, the IP address of the computer should be
changed so that it is on the same network segment as the camera
e.g.: The factory-preset default IP address of VC-A61P is 192.168.100.100. The
computer IP address must be set with the same network segment, such as
192.168.100.101, so that the computer can be connected correctly with the camera
Network cable
VC-
61P Computer
Change network settings
English - 30
6.1.2 Using the Browser to View the Images
Open the browser, and enter the URL of VC-A61P in the IP address bar
e.g.: http://192.168.100.100 (default IP address)
Enter administrator’s account and password
Lumens IP Camera
Account: admin
Password: 9999
6.1.3 Using Lumens VMS Software to View the Images
Open LUMENS VMS software
Search for the camera: Press [automatically search for the device] button to
locate the VC-A61P camera
Click VC-A61P in the list and start operation after connecting to network
<Note> When using automatic search, the camera and computer must be in the
same network segment, e.g.: 192.168.4.X
English - 31
6.1.4 Using RTSP Player to View the Images
In addition to the browser and VMS, other free softwares also can be used for RTSP
connection,such as VLC, Quick Time and PotPlayer
RTSP connection address formats are as follows:
RTSP Main Streaming => rtsp://camera IP:8554/hevc
RTSP Sub1 Streaming => rtsp://camera IP:8557/h264
RTSP Sub2 Streaming => rtsp://camera IP:8556/h264
Example: Open VLC software and enter URL: rtsp://192.168.100.150:8557/h264
English - 32
6.2 Web Page Function Description
6.2.1 Login Screen
1
2
3
4
5
No Item Function Descriptions
1 Username Enter user account (default: admin)
2 Password Enter user password (default: 9999)
3 Language selection
4 Remember password
Currently, the system supports English, Traditional Chinese and Simplified Chinese
Save user account name and password to the browser. When you log in next time, there is no need to re-enter them
5 Login Log into the administrator screen on the website
English - 33
6.2.2 Viewing In Real Time
5
1
2
3
4
6
No Item Function Descriptions
1 Pan / Tilt setting Adjust the Pan/Tilt position of the camera screen
2 Zoom ratio Adjust the zoom-in or zoom-out ratio via scroll bar
3 Preview window Display the screen currently captured by the camera
4 Preset setting Select the number first and then select SAVE or LOAD
5 Power button Turn on or turn off the camera power
6 Switch to Full Screen Switch the preview window to full screen
English - 34
6.2.3 Account Management
1
2
3
4
No Item Function Descriptions
1 Add user account
Enter a user name and password to add a new user
Set the new account management permissions
2 Permission setting
User Type
View images
Settings
Account management
Admin Operator Viewer
V V V V V X
V X X
3 Applying setting Add the newly created user to the list of account
4 List of accounts
Edit: Modify the user password and permissions Delete: Delete the user account
English - 35
6.2.4 Setting-System Setting
1
2
No Item Function Descriptions
Set the resolution of the camera, resolutions supported by the camera are as follows:
3840 x 2160 29.97/25 fps
1 Resolution
1080P 59.94/50/29.97/25 fps 720P 59.94/50/29.97/25 fps
After switching to the resolution, the camera will restart. Please refresh the browser
2 Apply
After the setting has been modified, select this button to apply the setting
English - 36
6.2.5 Setting - Video
1
2
3
4
5
No Item Function Descriptions
Modify the camera name
1 Camera name
Camera names are limited to 1 - 12 characters  Please use a camera name by mixing uppercase and lowercase
letters or numbers. Do not use “/” and “space” or special symbols
Modify the location of the camera, such as Meeting Room 1
2 Camera Location
Camera location is limited to 1 - 12 characters  Please use a camera name by mixing uppercase and lowercase
letters or numbers. Do not use “/” and “space” or special symbols
Streaming 1/ Streaming 2/
3
Streaming 3
4
Open Streaming
5
Force I Frame
VC-A61P supports 3 streaming outputs. Please refer to 6.2.5.1
Streaming Parameter Setting for relevant settings
Confirm whether or not the streaming function is opened
Check this item to insert IDR frame into specified series flow and apply its setting. User’s setting will be reserved and displayed in GUI interface
6.2.5.1 Streaming parameter setting
Function Streaming 1 Streaming 2 Streaming 3
Encode Format H.265 H.264
Resolution 4K /1080P / 720P 1080P/720P 640 x 360
Frame Rate Setting according to the supported resolution
Range 2,000 ~ 20,000 2,000 ~ 20,000 512 ~ 5,000
Bit Rate (kbps)
Factory
Default
7,000 7,000 1,000
Rate Control CBR/VBR
English - 37
IP Ratio Setting according to the supported resolution
6.2.6 Setting - Camera
1
2
43
5
No Item Function Descriptions
1 Zoom ratio
Adjust the zoom-in or zoom-out ratio via scroll bar
Mode: Select exposure mode (Automatic/Shutter Priority/Aperture
Priority/Manual)
Exposur e Comp. Lev el: Select exposure compensation level Gain: The gain limit is adjustable when the exposure mode is set to
“Manual”
2 Exposure
Iris: The size of aperture is adjustable when the exposure mode is
set to “Manual” or “Aperture Priority”
WDR: Set the level of wide dynamic range (WDR) in order to obtain
better images
Shutter Speed: The shutter speed is adjustable when the exposure
mode is set to “Manual” or “Shutter Priority”
3 White Balance
English - 38
Mode: Select the color temperature mode
Auto
Indoor
Outdoor
One Push WB
ATW
Manual
Sodium Lamp
One Push WB: One push color temperature is adjustable when
the white balance mode is set to “One Push WB”
Manual Red/Blue: Manually adjust blue/red color temperature
4 Focus
Mode: Sele ct manual/automatic focus Focus Rang e: The focusing range is adjustable when the focus
mode is set to “Manual”
AF Sensitivity: Set automatic focus sensitivity AF Frame: Set automatic focus range
5 Mirror
6.2.7 Setting - Picture
Mirror: Set automatic flip mode
1
2
3
4
5
6
7
8
9
10
No Item Function Descriptions
1
Picture Effect Set picture effect, Off/Neg/Black and White
2
2D noise reduction settings
3D noise reduction
3
settings
2D noise reduction settings
3D noise reduction settings
4 Image mode The user may customize his/her desired image mode
5 Image Mode Load
6 Gamma
7 Brightness
When no custom setting is needed, reset the picture parameters back to the factory default by selecting this item
Gamma Level adjustment; Adjustable when the image mode is set to Custom
Brightness adjustment; Adjustable when the image mode is set to Custom
8 Contrast Contrast adjustment; Adjustable when the image mode is set to Custom
9 Saturation
Saturation adjustment of the image; Adjustable when the image mode is set to Custom
10 Sharpness Adjust the sharpness of the image
English - 39
6.2.8 Setting - Audio
1
2
3
4
No Item Function Descriptions
1 Open audio
Soundtrack effect
2
setting
3 Volume
Turn on/off sound
Set MIC In/Line In
Adjust Volume
Set Encode sample rate
48 KHz (AAC)
4 Encode sample rate
44.1 KHz (AAC)
16 KHz (G.711)
8 KHz (G.711)
English - 40
6.2.9 Setting - Network
1
3
4
5
2
6
No Item Function Descriptions
1 Network
Network setting of camera. Change of setting is available when DHCP function is closed.
Copy the RTMP web address provided by the RTMP service platform and paste it to the RTMP connection address to publish the camera
2 RTMP Setting
images on the RTMP service platform To upload to YouTube for live streaming, the audio function must be
turned on first
Enable/Disable Multicast. It is suggested to enable Multicast when the
3 RTSP Setting
number of users online watching the live image simultaneously is more than 4
Set MPEG-TS format
4 MPEG-TS Setting
<Remark> The following port has been used by the camera. Setting of
the port may not connect correctly
8554, 8556, 8557, 8080, 80, 81, 9090, 23
5 SNTP Setting
Set SNTP Server IP
Set HTTP port. The default Port value is 80
6 Port Setting
<Remark> Change of setting is available only when DHCP function of
camera is closed
English - 41
6.2.10 Setting-Time
1
2
No Item Function Descriptions
1 Camera Time
Display the date and time of the camera
Manually: Set time manually  Synchronize with computer time: Set the camera time according
2 Set the Time
to the computer time
Synchronize with SNTP server: Set the camera time
synchronously with the SNTP server
<Remark> SNTP server address: Please change in network setting
6.2.11 Setting - Maintenance - Upgrading Firmware
No Item Function Descriptions
The camera firmware may be upgraded via web page. For the upgrade
1 Firmware Update
method, please download the FW upgrade manual from Lumens official website
English - 42
6.2.12 Setting - Maintenance - Incident Log
No Item Function Descriptions
1 Event Logs
If the camera encounters errors, an error code log will be established
6.2.13 Setting - Maintenance - System Service
1
2
3
No Item Function Descriptions
Reset to the default
1
value
2 Setting File
3 Baud Rate
Select the reset button to resume the factory default setting as the web page setting
The web page setting parameters can be exported from the computer and imported/applied to another camera
Set the camera Baud Rate for the use of connecting RS-232 communication
English - 43
6.2.14 About
1
2
3
No Item Function Descriptions
1 Camera name Display the camera name
2 Firmware Version Display the firmware version of the camera
3 Serial No. Display the camera serial No.
English - 44
Chapter 7 DIP Switch Setting
7.1 DIP SWITCH
7.1.1 OUTPUT Switch To switch via the OSD/ RS-232 Command is also available based on the last executed action
ID Resolution Frame Rate
0
3840 x 2160
1 25 2 3 50
1920 x 1080
4 29.97 5 25 6 7 50
1280 x 720
8 29.97
9 25 A B C
Reserved Reserved
D E
29.97
59.94
59.94
7.1.2 IR SELECT
English - 45
F
ID Setting
1
2
3
Chapter 8 Troubleshooting
This chapter describes problems you may encounter while using VC-A61P. If you have questions,
please refer to related chapters and follow all the suggested solutions. If the problem still
occurred, please contact your distributor or the service center.
No. Problems Solutions
Boot without power
1.
signal
There is no image
2.
output from VC-A61P
VC-A61P image is
3.
severely delayed
RS-232 cannot be
4.
controlled
Whether the Internet
1. Make sure you have plugged in the power cord.
2. When using a PoE connection, ensure that the power supply
supports POE+ (IEEE 802.3at) hubs
1. Check the power supply or PoE supply functions.
2. Confirm the output signals are in streaming output.
3. Confirm whether the camera resolution can be used together
with the monitor equipment
If 4k output, confirm the monitor equipment supports 4K
output
4. Replace the cables and make sure they are not faulty.
Please use 1080p or 720p 60/50 fps rather than 25/30 fps
signals.
1. Confirm the connection is correct (RS-232 In/ Out)
2. Please make sure the Baud rate setting is the same as the
control equipment
Please refer to Chapter 6 Network Function Description for
5.
can be used for
operation
the Internet usage
English - 46
Loading...
