To download the latest version of Quick Start
Guide, multilingual user manual, software, or
driver, etc., please visit Lumens™
http://www.Mylumens.com/goto.htm
PS760
Document Camera
User Manual
[Important]
English -
1
Table of contents
Copyright Information ....................................................................................... 4
Chapter 1 Safety Instructions ........................................................................ 5
Precautions .................................................................................................. 6
FCC Warning ................................................................................................ 6
EN55022 (CE Radiation) Warning ............................................................... 6
Chapter 2 Package Contents ......................................................................... 7
Chapter 3 Product Overview ......................................................................... 8
3.1 Relative position of the presenter and document ............................... 8
Chapter 4 Installation and Connections ....................................................... 9
4.1 System diagram .................................................................................. 9
4.2 Connecting to a projector or monitor ................................................ 10
4.3 Connecting to a Computer and Use Lumens Software or an
Interactive Whiteboard (IWB) ........................................................... 10
4.4 Connecting to Internet ...................................................................... 11
4.5 Connecting to a Projector, 2 PCs, and a Monitor at the Same Time 11
4.6 Connecting to a TV (C-Video or S-Video) ........................................ 12
4.7 Connecting to an HDTV ................................................................... 12
4.8 Connecting to DVD and display DVD images .................................. 13
4.9 Connecting to a Computer with RS232 ............................................ 14
4.10 Connecting to Audio Input and Output ............................................. 14
4.11 Installing application software........................................................... 15
Chapter 5 Start Using ................................................................................... 16
Chapter 6 Control Panel/Remote Control and Setting Menu ................... 17
6.1 Functions of control panel and remote control ................................. 17
6.2 Setting Menu .................................................................................... 19
English -
2
Chapter 7 Descriptions of major functions ................................................ 26
7.1 I would like to automatically adjust the image to have best brightness
and focusing performance (Auto Tune) ............................................ 26
7.2 I would like to switch image sources ................................................ 26
7.3 I would like to set the image source of VGA OUT2 .......................... 26
7.4 I would like to make text clearer and photos more colorful .............. 27
7.5 I would like to zoom in/out images ................................................... 27
7.6 I would like to adjust the focal length................................................ 27
7.7 I would like to adjust the brightness ................................................. 28
7.8 I would like to turn on/off the lamp .................................................... 28
7.9 I would like to freeze images ............................................................ 28
7.10 I would like to adjust the volume ...................................................... 28
7.11 I would like to capture images .......................................................... 29
7.12 I would like to record videos ............................................................. 30
7.13 I would like to view captured/recorded images ................................ 30
7.14 I would like to delete the captured/recorded images ........................ 31
7.15 I would like to automatically delete the stored images whenever it is
turned off (Auto Erase) ..................................................................... 31
7.16 I would like to use the MASK and Spotlight function ........................ 31
7.17 I would like to enlarge a part of the image (PAN) ............................. 32
7.18 I would like to play the slides (Slide Show) ...................................... 32
7.19 I would like to view the X-ray film ..................................................... 33
7.20 I would like to compare images (compare live images with stored
images (PIP)) .................................................................................... 33
7.21 I would like to reduce the image noise (Projector Type) .................. 34
7.22 I would like to set the time for PS760 ............................................... 34
7.23 I would like to lock/unlock keys ........................................................ 36
7.24 I would like to resume the factory default settings (Factory Reset) . 36
7.25 I would like to change the Start Video/Off Video .............................. 36
English -
3
7.26 I would like to use a USB disk .......................................................... 37
7.27 Computer-related functions .............................................................. 37
7.28 I would like to use the network remote control function ................... 41
Chapter 8 Connecting to Microscope ......................................................... 49
Chapter 9 DIP Switch .................................................................................... 51
9.1 Connecting to a projector or monitor ................................................ 51
9.2 Connecting to a TV/DVD .................................................................. 52
Chapter 10 Packing the Machine ................................................................ 53
Chapter 11 Troubleshooting ........................................................................ 54
Attachment 1 .................................................................................................... 58
English -
4
Copyright Information
Copyrights © Lumens Digital Optics Inc. All rights reserved.
Lumens is a trademark that is currently being registered by Lumens Digital Optics
Inc.
Copying, reproducing or transmitting this file is not allowed if a license is not
provided by Lumens Digital Optics Inc. unless copying this file is for the purpose
of backup after purchasing this product.
In order to keep improving the product, Lumens Digital Optics Inc. hereby
reserves the right to make changes to product specifications without prior notice.
The information in this file is subject to change without prior notice.
To fully explain or describe how this product should be used, this manual may
refer to names of other products or companies, nevertheless without any intention
of infringement.
Disclaimer of warranties: Lumens Digital Optics Inc. is neither responsible for any
possible technological, editorial errors or omissions, nor responsible for any
incidental or related damages arising from providing this file, using, or operating
this product.
English -
5
Chapter 1 Safety Instructions
Always follow these safety instructions when setting up and using the Document Camera:
1. Do not place Document Camera in tilted position.
2. Do not place the Document Camera on an unstable trolley, stand or table.
3. Do not use the Document Camera near water or source of heat.
4. Use attachments only as recommended.
5. Use the type of power source indicated on the Document Camera. If you are not sure
of the type of power available, consult your dealer or local electricity company for
advice.
6. Place the Document Camera on a place that it can be unplugged easily.
7. Always take the following precautions when handling the plug. Failure to do so may
result in sparks or fire.
Ensure the plug is free of dust before inserting it into a socket.
Ensure that the plug is inserted into the socket securely.
8. Do not overload wall sockets, extensions leads or multi-way plug boards as this may
cause fire or electric shock.
9. Do not place the Document Camera where the cord can be stepped on as this may
result in fraying or damage to the lead or the plug.
10. Unplug the projector from the wall socket before cleaning. Use a damp cloth for
cleaning. Do not use liquid or aerosol cleaners.
11. Do not block the slots and openings in the projector case. They provide ventilation
and prevent the Document Camera from overheating. Do not place the Document
Camera on a sofa, rug or other soft surface or in a built-in installation unless proper
ventilation is provided.
12. Never push objects of any kind through cabinet slots. Never allow liquid of any kind
to spill into the Document Camera.
13. Except as specifically instructed in this User Manual, do not attempt to operate this
product by yourself. Opening or removing covers may expose you to dangerous
voltages and other hazards. Refer all servicing to licensed service personnel.
14. Unplug the Document Camera during thunderstorms or if it is not going to be used for
an extended period. Do not place the Document Camera or remote control on top of
heat-emitting equipment or heated objects such as a car, etc.
15. Unplug the Document Camera from the wall outlet and refer serving to licensed
service personnel when the following situations happen:
If the power cable or plug becomes damaged or frayed.
If liquid is spilled into it or the Document Camera has been exposed to rain or
water.
<Note> Using an incorrect battery type in the remote control may result in
breakdown. Follow relevant instructions on how to dispose of used batteries.
English -
6
Precautions
Note: To reduce the risk of electric shock, do not remove cover (or back). No
user-serviceable parts inside. Refer servicing to licensed service Personnel only.
This symbol indicates that
this equipment may contain
dangerous voltage which
could cause electric shock.
This symbol indicates that
there are important operating
and maintenance
instructions in this User
Manual with this unit.
Note
Risk of Electric Shock
Warning: To reduce the risk of fire or electric shock, do not expose this
appliance to rain or moisture.
This Document Camera has a 3-wire AC line Plug. This is a safety feature to
ensure that the plug will fit into the power outlet. Do not try to disable this safety
feature.
If the Document Camera will not be used for an extended time, unplug it from the
power socket.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A
or B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
EN55022 (CE Radiation) Warning
This product is intended for use in a commercial, industrial, or educational
environment. It is not intended for residential use.
This is a Class A product. In a domestic environment it may cause radio
interference, in which case the user may be required to take adequate measures.
The typical use is in a conference room, meeting room or auditorium.
English -
7
Chapter 2 Package Contents
PS760
Quick Start Guide
4-Step Card
(Note to Teacher)
(For download of other
language versions, please visit
Lumens website)
VGA Cable
USB Cable
Audio Cable
Power Adapter
Mini-DIN Adapter
Power Cord
Appearance may vary depending
on country/region
Microscope Adapter
Remote Control
Remote Control Holder
English -
8
Chapter 3 Product Overview
1. Lens
2. Camera arm
3. Auxiliary floodlight and lamp arm
4. Backlight
5. Remote Control Holder
6. DIP Switch
7. Control panel
8. Remote sensor
9. Input/output port
3
1.
3 4 6
2 9 5
7
8
3.1 Relative position of the presenter and document
English -
9
Chapter 4 Installation and Connections
Computer (2)
Projector or monitor
LCD TV
TV
Computer (1)
Projector or monitor
DVD
COMPUTER or TV
Computer
Earphone or speaker
Router or
HUB
Computer (1) and
Computer (2)
4.1 System diagram
English -
10
4.2 Connecting to a projector or monitor
Monitor or
Projector
VGA Cable
Power Cord
AC Outlet
Power
Adapter
AC Outlet
Power
Cord
Power
Adapter
VGA Cable
USB Cable
Computer
USB
Cable
Projector
4.3 Connecting to a Computer and Use Lumens Software
or an Interactive Whiteboard (IWB)
Software can be downloaded from Lumens website.
English -
11
4.4 Connecting to Internet
VGA Cable
Power
Cord
AC Outlet
Power
Adapter
VGA Cable
VGA Cable
VGA Cable
Computer (1)
Computer (2)
Projector
Monitor
(Default)
Router or HUB
Power Cord
AC Outlet
Power
Adapter
For the related setting, please refer to 7.28 I would like to use the
network remote control function.
4.5 Connecting to a Projector, 2 PCs, and a Monitor at the
Same Time
Press button to switch the image source.
For VGA 1 setting, refer to 7.2 I would like to switch image sources.
For VGA 2 setting, refer to 7.3 I would like to set the image source of
VGA OUT2.
English -
12
4.6 Connecting to a TV (C-Video or S-Video)
HDTV
Power Cord
AC Outlet
Power
Adapter
HDMI Cable
S-Video
Cable
Mini-DIN
Adapter
C-Video Cable
DIP Switch
NTSC: USA, Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea, and
Mexico.
PAL: Countries/regions not listed above.
Please adjust it to be suitable for the local voltage frequency of 50/60Hz. For the
frequency in actual use, please refer to the manual. (Attachment 1)
<Note> You should unplug and reconnect the power cord, and then
restart the machine for DIP Switch Settings to take effect.
4.7 Connecting to an HDTV
English -
13
4.8 Connecting to DVD and display DVD images
Monitor or
Projector
VGA Cable
Power
Cord
AC Outlet
Power
Adapter
C-Video Cable
DVD
Audio Cable
Monitor or
Projector
VGA Cable
Power
Cord
AC Outlet
Power
Adapter
S-Video Cable
DVD
Audio Cable
Press button to switch the image source.
For VGA 1 setting, refer to 7.2 I would like to switch image sources.
For VGA 2 setting, refer to 7.3 I would like to set the image source of
VGA OUT2.
4.8.1 C-Video
4.8.2 S-Video
English -
14
4.9 Connecting to a Computer with RS232
Computer (1)
Audio Cable
Power
Cord
AC Outlet
Power
Adapter
Computer (2)
Speaker
Audio Cable
Audio Cable
TV or DVD
RS232 Cable
Power
Cord
AC Outlet
Power
Adapter
Mini-DIN Adapter
Computer
4.10 Connecting to Audio Input and Output
<Remark> The default of Audio Output is based on VGA OUT(1).
<Remark> Or connect to an additional amplifier before connecting
to the speaker.
English -
15
4.11 Installing application software
The application software installed on the computer enables you to:
Control the PS760.
Capture and record images.
Annotate the image, highlight important details and save it.
Support the full screen function.
<Note> Please refer to Podium View™ software user manual for
installation steps and software operation.
English -
16
Chapter 5 Start Using
<Note>: Please adjust it to be suitable for the local voltage frequency of
50/60Hz. For the frequency in actual use, please refer to the
manual. (Attachment 1)
1. Remove the lens cap.
2. Pull up the camera and the camera arm. The camera should aim at the
center of the presenter.
3. Pull up the lamp arm to a proper position.
4. Place an object to be displayed under the camera.
5. Press [POWER] button to turn on the power. (Remark: Do not
press [POWER] button until the red light stays lit)
6. Press [AUTO TUNE] button to optimize the image. You are ready to
teach/present.
<Note>: According to your request, you can adjust the camera head
slightly to aim at the center of the documents when the anchor
of lens was reached.
When using the remote control, aim at the remote sensor on the DC190,
and press the power button.
Once PS760 is turned on, the LED indicator on the control panel will
light up red. Please contact your dealer if the LED is not on.
English -
17
Chapter 6 Control Panel/Remote Control
Name
Function Descriptions
Operation
Turn on and off the Document Camera.
Remote control/
Control panel
,,,
Move up, down, left or right to select the
needed function.
Remote control/
Control panel
AUTO TUNE
Automatically adjust the image to have the
best brightness and focusing performance.
Press and hold the button on the control
panel for 2 seconds to lock/unlock keys (for
control panel only).
Remote control/
Control panel
BRT+/-
Manually adjust the brightness of the image.
Remote control/
Control panel
CAPTURE
Capture images to the USB disk (priority) or
internal memory.
Remote control/
Control panel
DELETE
Delete images from the USB disk (priority)
or internal memory.
Remote Control
ENTER
Enter/Activate functions.
Remote control/
Control panel
FREEZE
Freeze the current image to temporarily
stay on the screen. Press again to defreeze.
Remote control/
Control panel
LAMP
Turn on/off the lamp.
Control panel
MASK
Enter Mask/Spotlight mode.
Remote Control
MENU
Activate the setting menu/exits the menu.
Remote control/
Control panel
and Setting Menu
6.1 Functions of control panel and remote control
<Remark> The below functions are listed alphabetically.
English -
18
PAN
Enable/Disable the Partial Enlarged mode.
Remote Control
PIP
Image comparison (compares live images
with captured image files).
Remote Control
PLAYBACK
Read files stored in the USB disk (priority)
or internal memory.
Remote Control
RECORD
Record motion images. Press [RECORD] to
record images to USB disk (priority) or
internal memory, and then press [RECORD]
again to stop recording.
Remote Control
SLIDE
SHOW
Show the photos or videos stored in the
USB disk (priority) or internal memory in
Slide mode.
Remote Control
VGA 1
Switch between different image sources of
VGA 1.
Visual Presenter/VGA IN(1)/VGA
IN(2)/DVD.
Remote control/
Control panel
ZOOM +/-
Increase or decrease the image size.
Remote control/
Control panel
English -
19
6.2 Setting Menu
1st Level
Major Items
2nd Level
Minor Items
3rd Level
Adjustment
values
Function Descriptions
Display
Auto Tune
Enter
Automatically adjust the image to
have the best brightness and
focusing performance.
Auto Focus
Enter
Automatically adjust the focal
length of image.
Focus
0~A~Max
Use the left and right arrow keys to
adjust focal length on an object.
Brightness
0~A~Max
Use the left and right arrow keys to
adjust the brightness.
Rotate
1. 0°
2. 90°
3. 180°
4. 270°
Rotate the image by
0°/90°/180°/270°.
Mode
Normal/Slide/
Film/Microscope
Use the left and right arrow keys to
select the image mode.
Photo/Text
Photo/Text/Gray
Use the left and right arrow keys to
select Photo/ Text/ Gray mode.
Mask
Enter
Press [ENTER] to enter the MASK
Mode. For details, please refer to
6.2.2 MASK Mode Setting Menu
and 6.2.3 Spotlight Mode Setting
Menu.
Night Vision
On/Off
Use the left and right arrow keys to
select. The night vision mode suits
with darker environment.
6.2.1 Main Menu:
<Remark> Press [Menu] on the remote control or control panel to enter the
setting menu; The bold underlined values in the following table are defaults.
English -
20
1st Level
Major Items
2nd Level
Minor Items
3rd Level
Adjustment
values
Function Descriptions
Storage
Slide Show
Enter
Press [ENTER] to show the photos
or videos stored in the USB disk
(priority) or internal memory in Slide
mode.
Playback
Enter
Press [ENTER] to enter the
thumbnail mode of image.
Delay
1. 0.5 Sec
2. 1 Sec
3. 3 Sec
4. 5 Sec
5. 10 Sec
6. Manual
Use the left and right arrow keys to
select the delay time. Select
manual mode to switch images
manually.
Capture Mode
Photo/Video
Use the left and right arrow keys to
select CAPTURE setting.
Image Quality
1. High
2. Medium
3. Low
Use the left and right arrow keys to
select the image quality for the
captured images and recorded
videos.
Copy To USB
Disk
Yes/No
Press [ENTER] to immediately
copy the data in internal memory to
the USB Disk.
Delete All
Yes/No
Use the left and right arrow keys to
select, press [ENTER] to confirm
the deletion of all images from the
USB disk (priority) or internal
memory.
Format
Yes/No
Use the left and right arrow keys to
select, and then press [ENTER] to
format the USB disk (priority) or
internal memory.
Auto Erase
On/Off
Use the left and right arrow keys to
turn on/off the auto erase function.
When “On” is selected, the stored
images will automatically be
deleted when the system is turned
off.
English -
21
1st Level
Major Items
2nd Level
Minor Items
3rd Level
Adjustment
values
Function Descriptions
Setting
Capture Action
1. Single
2. Continuous
Capture
3. Disable
Use the left and right arrow keys to
select the capture mode.
(Single/Continuous/Video/
Disable)
<Note> The image cannot be
captured when the capture mode
is set to [VIDEO].
Capture Time
1. 1 hr
2. 2 hr
3. 4 hr
4. 8 hr
5. 24 hr
6. 48 hr
7. 72 hr
Use the left and right arrow keys to
select the capture time.
<Note> It only works when the
capture mode is set to
[continuous].
Capture Interval
1. 5 Sec
2. 10 Sec
3. 30 Sec
4. 1 min
5. 2 min
6. 5 min
Use the left and right arrow keys to
select the capture interval.
<Note> It only works when the
capture mode is set to
[continuous].
Auto Exposure
On/Off
Regardless of outside environment,
the machine will adjust the
brightness to the optimal condition.
Use the left and right arrow keys to
select.
White Balance
Enter
Regardless of outside light or color,
the machine will adjust the color to
the optimal condition; Press
[ENTER] to activate.
Volume
0~A~Max
Use the left and right arrow keys to
adjust the volume.
Projector Type
DLP/LCD
Use the left and right arrow keys to
select the projector type and
reduce image noise.
Digital Zoom
On/Off
Use the left and right arrow keys to
turn on/off digital zoom.
Advanced
Key tone
On/Off
Use the left and right arrow keys to
turn the key tone on and off.
English -
22
1st Level
Major Items
2nd Level
Minor Items
3rd Level
Adjustment
values
Function Descriptions
Ethernet
Enter
Press [ENTER] to show the
Ethernet window. For details, please
refer to 6.2.5 Ethernet Setting Menu.
Language
1. English
2. 繁體中文
3. 简体中文
4. Deutsch
5. Français
6. Español
7. Русский
8. Nederlands
9. Suomi
10. Polski
11. Italiano
12. Português
13. Svenska
14. dansk
15. ČESKY
16. ةيبرعلا
17. 日本語
18. 한국의
19. ελληνικά
English
Traditional Chinese
Simplified Chinese
German
French
Spanish
Russian
Dutch
Finnish
Polish
Italian
Portuguese
Swedish
Danish
Czech
Arabic
Japanese
Korean
Greek
Use the left and right arrow keys in
the Language option to select the
preferred language.
VGA OUT(2)
1. VGA OUT(1)
2. VGA IN(1)
3. VGA IN(2)
4. DVD
Use the left and right arrow keys to
select the images output from VGA
OUT(2).
Date & Time
Enter
Press [ENTER] to show the Date &
Time window. For details, please
refer to 6.2.4 Date & Time Setting
Menu.
Lock Down
On/Off
Use the left and right arrow keys to
turn on/off the lock down function.
You can set the password when
[On] is selected.
Preset Load
Yes/No
Read the value of the current
image mode.Use the left and right
arrow keys to select, and then
confirm by pressing [ENTER].
English -
23
1st Level
Major Items
2nd Level
Minor Items
3rd Level
Adjustment
values
Function Descriptions
Preset Save
Yes/No
Store the value of the current image
mode.Use the left and right arrow
keys to select, and then confirm by
pressing [ENTER].
Factory Reset
Yes/No
Use the left and right arrow keys to
select, and then confirm by
pressing [ENTER] to restore the
factory defaults.
1st Level
Major Items
2nd Level
Minor Items
3rd Level
Adjustment
values
Function Descriptions
Mask Mode
Transparency
0~4~6
Adjust the transparency of the
mask using left and right arrow
keys.
Step
Large/Medium/
Small
Select the step distance of the
mask using left and right arrow
keys.
V Size
0~A~Max
Adjust the vertical height of the
mask using left and right arrow
keys.
H Size
0~A~Max
Adjust the horizontal length of the
mask using left and right arrow
keys.
Spotlight
Enter
Press [ENTER] to enter the
Spotlight mode.
1st Level
Major Items
2nd Level
Minor Items
3rd Level
Adjustment
values
Function Descriptions
Spotlight
Mode
Transparency
0~4~6
Adjust the transparency of the
border in the Spotlight mode using
left and right arrow keys.
Step
Large/Medium/
Small
Select the step distance of the
spotlight zone using left and right
arrow keys.
V Size
0~A~Max
Adjust the height of the spotlight
zone using left and right arrow
keys.
6.2.2 MASK Mode Setting Menu
6.2.3 Spotlight Mode Setting Menu
English -
24
H Size
0~A~Max
Adjust the width of the spotlight
zone using left and right arrow
keys.
Live
Enter
Press [ENTER] to return to live
image.
1st Level
Major Items
2nd Level
Minor Items
3rd Level
Adjustment
values
Function Descriptions
Date & Time
Year
00~36
Press [ENTER] to modify the
values using left and right arrow
keys.
Month
01~12
Press [ENTER] to modify the
values using left and right arrow
keys.
Date
01~31
Press [ENTER] to modify the
values using left and right arrow
keys.
Hour
00~23
Press [ENTER] to modify the
values using left and right arrow
keys.
Minute
00~59
Press [ENTER] to modify the
values using left and right arrow
keys.
1st Level
Major Items
2nd Level
Minor Items
3rd Level
Adjustment
values
Function Descriptions
Ethernet
DHCP
On/Off
Enable/Disable DHCP using left
and right arrow keys.
IP Address
192.168.100.150
Press [ENTER] to modify the values
using left and right arrow keys.
Netmask
255.255.255.0
Press [ENTER] to modify the values
using left and right arrow keys.
Geteway
192.168.100.254
Press [ENTER] to modify the values
using left and right arrow keys.
6.2.4 Date & Time Setting Menu
6.2.5 Ethernet Setting Menu
English -
25
6.2.6 Annotation Tools (Annotation)
Icon
Description
/
Expand/Collapse the Annotation menu
Open/Close the Free-hand Drawing
Tool menu
Select the line width
Select pen color
Clear all
Free-hand drawing tool
Draw a line
Draw a rectangle
Draw a polygon
Draw an ellipse
Eraser
(Clear marks of free-hand drawing
tool)
After the mouse or Wacom writing pad is connected, right click the
mouse to start the tools.
<Note> When the setting menu is activated, the tools cannot be used.
<Note> For the supported Wacom models, please visit our download
center “The table model Lumens supports.”
Icon of
Annotation
Main Menu
Free-hand
Drawing Tool
menu
English -
26
Chapter 7 Descriptions of major functions
7.1 I would like to automatically adjust the image to have
best brightness and focusing performance (Auto
Tune)
1. Press [AUTO TUNE] on the remote control or control panel to adjust
automatically.
7.2 I would like to switch image sources
The default of image source is Live Image. Press [VGA 1] on the remote
control or control panel to switch setting, and PS760 as well as audio
output will switch among the following four modes in turn:
1. Live images (default)
2. VGA IN(1)
3. VGA IN(2)
4. DVD (C-Video/S-Video)
<Note> VGA IN mode will be switched to DVD mode automatically in
turn when it is not connected to input equipment.
<Remark> This button is disabled in C-VIDEO Out mode.
7.3 I would like to set the image source of VGA OUT2
Press [MENU] on the remote control or control panel to enter the setting
menu
1. Press [] or [] to the [Advanced] menu.
2. Press [] to enter [VGA OUT2].
3. Press [ ] or [] to select [VGA OUT(1)/VGA IN(1)/VGA IN(2)/DVD].
4. Press [MENU] to exit.
<Note> VGA IN mode will be switched to DVD mode automatically in
turn when it is not connected to input equipment.
<Remark> If VGA OUT(1) is connected simultaneously, the audio
output will be based on VGA OUT(1).
English -
27
7.4 I would like to make text clearer and photos more
colorful
7.4.1 Photo/Text mode descriptions
The default [Photo/Text] mode is in Photo (Photo mode). To change this
setting, please use the remote control or the control panel to enter the
Options of the Setting Menu.
[Photo] (default): for viewing photos or text with photos, making photos
more colorful.
[Text]: for viewing text files, making the text clearer.
[Gray]: for viewing black & white photos which will make the grayscale
differentiation distinct.
7.4.2 Setting Photo/Text mode
To change the settings, please use the remote control or the control panel:
1. Press [MENU] to enter the setting menu.
2. Press [] or [] to select [Display].
3. Press [] to select [Photo/Text]. (Please refer to 7.4.1 Photo/Text mode
descriptions to make the best choice.)
4. Press [] or [] to select the [Photo/Text/Gray].
5. Press [MENU] to exit.
7.5 I would like to zoom in/out images
1. Press [ZOOM+] on the remote control or control panel to zoom in
images.
2. Press [ZOOM-] on the remote control or control panel to zoom out
images.
7.6 I would like to adjust the focal length
7.6.1 Auto Tracking
1. Press [MENU] on the remote control or control panel to enter the
setting menu.
2. Press [] or [] to the [Display] menu.
3. Press [] to [AF button].
4. Press [ENTER] to activate AF button.
5. Press [MENU] to exit.
English -
28
7.6.2 Manual Tracking
1. Press [MENU] on the remote control or control panel to enter the
setting menu.
2. Press [] or [] to the [Display] menu.
3. Press [] to the [Focus].
4. Press [] or [] to adjust focal length.
5. Press [MENU] to exit.
7.7 I would like to adjust the brightness
1. Use Remote Control or Control Panel and press [BRT+] to make it
brighter.
2. Use Remote Control or Control Panel and press [BRT-] to make it
darker.
7.8 I would like to turn on/off the lamp
The default of the lamp is ON. When using the control panel:
1. Press [LAMP] to switch ON/OFF. (in the sequence of arm
lamp/backlight/OFF)
7.9 I would like to freeze images
1. Press [FREEZE] on the remote control or control panel to freeze the
current image on the screen.
7.10 I would like to adjust the volume
<Note> Volume control is intended to control the external audio output
equipment only.
7.10.1 Adjust Volume (OSD)
1. Press [MENU] on the remote control or control panel to enter the
setting menu.
2. Press [] or [] to the [Setting] menu.
3. Press [] to the [Volume].
4. Press [] or [] to adjust the volume.
5. Press [MENU] to exit.
English -
29
7.10.2 Adjust the volume of the video
In PLAYBACK mode, Press [] or [] to adjust the volume of
the video.
7.11 I would like to capture images
7.11.1 Capturing and saving images
1. Press [CAPTURE] on the remote control or control panel to
capture and save images.
You cannot capture images when the capture mode is set to
[Disable]. If it is set to [Continuous], you can capture images
continuously. Press [CAPTURE] to start capturing
continuously, or press [CAPTURE] again to exit.
To change the quality of captured images, please refer to
7.11.2 Setting the quality of captured images.
To change the settings of captured images, please refer to
7.11.3 Setting continuous capture.
7.11.2 Setting the quality of captured images
1. Press [MENU] on the remote control or control panel to enter the
setting menu.
2. Press [] or [] to the [Storage] menu.
3. Press [] to find [Image Quality].
4. Press [] or [] to select among [High/Medium/Low].
5. Press [MENU] to exit.
7.11.3 Setting continuous capture
1. Press [MENU] on the remote control or control panel to enter the
setting menu.
2. Press [] or [] to the [Setting] menu.
3. Press [] to find [Capture Action].
4. Press [] or [] to select [continuous].
5. Press [] to the [Capture Mode].
6. Press [] or [] to select [Photo].
7. Press [] to find [Capture Time]; Press [] or [] to select capture
time.
8. Press [] to find [Capture Interval]; Press [] or [] to select
interval time.
9. Press [MENU] to exit.
English -
30
7.12 I would like to record videos
7.12.1 Recording motion images
<Note> You may not be able to capture or record images when
[Capture Action] mode is set to [Disable].
Remote control:
1. Press [RECORD] to record videos.
2. Record sounds with the built-in microphone of the control panel.
3. Press [RECORD] again to stop recording.
Control panel:
1. Press [MENU] to enter the setting menu.
2. Press [] or [] to the [Setting] menu.
3. Press [] to the [Capture Mode].
4. Press [] or [] to select [Video].
5. Press [MENU] to exit.
6. Press [CAPTURE] to record videos.
7. Press [CAPTURE] again to stop recording.
7.12.2 Setting the image quality
1. Press [MENU] on the remote control or control panel to enter the
setting menu.
2. Press [] or [] to the [Storage] menu.
3. Press [] to find [Image Quality].
4. Press [] or [] to select among [High/Medium/Low].
5. Press [MENU] to exit.
7.12.3 Playing videos
For playing videos, please refer to 7.13 I would like to view
captured/recorded images.
7.13 I would like to view captured/recorded images
1. Press [PLAYBACK] on the remote control to show the thumbnails
of all stored files.
2. Press [] or [] or [] or [] to select the thumbnail you want you
browse.
3. Press [ENTER] for the full-screen display of the image.
4. Press [] or [] to select different video and audio files.
5. Press [] or [] to adjust the volume of the video.
English -
31
6. Press [MENU] to exit.
Live image
MASK mode
Spotlight mode
<Note> A better playback performance will be achieved when an
external speaker is connected to AUDIO OUT.
7.14 I would like to delete the captured/recorded images
1. Use the remote control and press [PLAYBACK].
2. Press [] or [] or [] or [] to select the file you want to delete.
3. Pressing [DELETE] will open a [Delete File] window.
4. Press [] or [] to select [Yes] (The default value is No).
5. Press [ENTER] to delete the selected file.
6. Press [MENU] to exit.
7.15 I would like to automatically delete the stored images
whenever it is turned off (Auto Erase)
1. Press [MENU] on the remote control or control panel to enter the
setting menu.
2. Press [] or [] to the [Storage] menu.
3. Press [] or [] to [Auto Erase].
4. Press [] or [] to select [On].
5. Press [MENU] to exit.
<Remark> It will automatically delete all captured photos when it
is turned off.
7.16 I would like to use the MASK and Spotlight function
7.16.1 I would like to use the MASK or Spotlight mode
Use Remote control:
1. Press [MASK] to enter the Mask mode, and press [], [], [], or [] to
move the mask position.
2. Press [MASK] again to enter the Spotlight mode, and press [], [], [],
or [] to move the zone position.
3. Press [MASK] again to exit and return to the live image screen.
English -
32
7.16.2 I would like to set the size of Mask/Spotlight function
In Mask/Spotlight mode, use the remote control:
1. Press [MENU] to enter the image OSD menu.
2. Press [] or [] to select the item to be modified [Transparency/Step/V
Size/H Size]. (For details, please refer to 6.2 Setting Menu.)
3. Press [] or [] to perform the modification.
4. Press [MENU] to exit the image OSD menu and return to the Mask
mode.
7.17 I would like to enlarge a part of the image (PAN)
Use Remote control:
1. Press [PAN] to enter the Partial Enlarged mode.
2. Press [], [], [], or [] to move and view the partial enlarged images.
3. Press [PAN] to exit the partial enlarged mode.
7.18 I would like to play the slides (Slide Show)
7.18.1 Setting delay time
1. Press [MENU] on the remote control or control panel to enter the
setting menu.
2. Press [] or [] to the [Storage] menu.
3. Press [] to find [Delay].
4. Press [] or []] to select image switch mode between [0.5 Sec/1 Sec/3
Sec/5 Sec/10 Sec/Manual].
5. Press [MENU] to exit.
7.18.2 Activating/Stopping the slide show
<Note> Upper Limit: The maximum size of single photo is 7 MB.
Remote control:
1. Press [SLIDE SHOW] to start playing.
2. Press [ENTER] to pause playing.
3. Press [ENTER] again to continue playing.
4. Press [SLIDE SHOW] again to stop playing.
English -
33
Control panel:
C1
C3
C2
C4
C5
C6
C7
Stored image
Live image
1. Press [MENU] to enter the setting menu.
2. Press [] or [] to the [Storage] menu.
3. Press [] to find [Slide Show].
4. Press [ENTER] to play.
5. Press [ENTER] to pause playing.
6. Press [ENTER] again to continue playing.
7. To stop playing, repeat Steps 1 and 4.
7.19 I would like to view the X-ray film
1. Place an X-ray film to be displayed under the camera.
2. Press [Lamp] button on the control panel to switch on the Backlight (in
the sequence of arm lamp/backlight/OFF)
3. Press [AUTO TUNE] button to optimize the image.
7.20 I would like to compare images (compare live images
with stored images (PIP))
This function will compare and contrast a live image with a stored image.
Remote control:
1. Press [PIP] to enter the photo selection screen.
2. Press [], [], [], or [] to select the file to be compared.
3. Press [ENTER] to activate image comparison.
4. Press [], [], [], or [] to move the live image.
5. Press [PLAYBACK] to return to image thumbnails and compare it with
other images.
6. Press [MENU] to exit.
English -
34
7.21 I would like to reduce the image noise (Projector
Type)
1. This function enables Document Camera to automatically clear image
noise. The noise is especially obvious when Document Camera is
connected to a DLP projector. You can set the DLP projector to
improve the image quality.
2. If there is special noise when VGA out is connected, please set DLP
option to improve the image quality.
2.1. Press [MENU] on the remote control or control panel to enter the
setting menu.
2.2. Press [] or [] to the [Setting] menu.
2.3. Press [] to enter [Projector Type].
2.4. Press [] or [] to select [LCD/DLP].
2.5. Press [MENU] to exit.
7.22 I would like to set the time for PS760
7.22.1 If you use the remote control or the control panel
1. Press [MENU] on the remote control or control panel to enter the
setting menu. (Refer to 6.2.4 Date & Time Setting Menu of 6.2
Setting Menu.)
2. Press [] or [] to select [Advanced] menu.
3. Press [] to the [Date & Time].
4. Press [ENTER] to open the date & time OSD menu.
5. Press [] or [] to the item to be set [Year/Month/Day/Hour/Minute].
6. Press [] or [] to modify the value.
7. Press [] or [] to move to the next item.
8. Press [MENU] to exit the item you have set.
9. Repeat steps 5 through 9 until you have completed the modifications.
10. Press [MENU] to exit OSD menu.
English -
35
7.22.2 To use web remote control
1
2
3
<Remark> For more information about the website login page, please refer to
7.28.1 I would like to view the live image or use the control keys.
1. Click [Settings].
2. Click [System Config].
3. Set the date and time.
<Remark> Set Manually: Set the date and time manually.
Synchronize with Computer Time: Synchronize time with
the PC.
Synchronize with SNTP Server: Synchronize time with
SNTP server.
Synchronize Server: Check the SNTP Server.
Time Zone: Set the Time Zone.
Automatically adjust for daylight saving time: Automatically adjust
for daylight saving
time.
4. Select formats of date and time.
5. Click [OK] to submit.
English -
36
7.23 I would like to lock/unlock keys
Press and hold [AUTO TUNE] on the control panel for 2 seconds to lock
keys. To unlock keys, repeat the above procedure.
<Remark> When the keys are locked, the LED indicator of [ENTER]
on the remote control will light up red.
<Remark> This function applies to the keys of the control panel
only. The remote control can still be used. If you use the remote
control to turn off the power, the keys will be unlocked
automatically after reboot.
7.24 I would like to resume the factory default settings
(Factory Reset)
7.24.1 Using OSD menu
1. Press [MENU] on the remote control or control panel to enter the
setting menu.
2. Press [] or [] to select [Advanced] menu.
3. Press [] to select [Factory Reset].
4. Press [] or [] to select [Yes].
5. Press [ENTER] to activate.
7.24.2 Use Compound Key
1. Use the control panel, and press [ENTER + AUTO TUNE]
simultaneously to restore the initial value.
7.25 I would like to change the Start Video/Off Video
<Note> The file size of the Start Video/Off Video should be less than
5MB and the AVI file in H.264 compression format should be used.
7.25.1 Changing the Start Video
1. Press [ENTER] + [] on the control panel to enter Service Menu.
2. Press [] or[] to select [Pwr On] menu.
3. Press [] to [Image Select] and press [ENTER] to read the saved file.
4. Press [] or [] or [] or [] to select the picture file and press
English -
37
[ENTER] to apply the change.
Copy To USB Disk
Yes
No
5. Press [] to [Start Video Select] and press [] or [] to select [Default
Video/ Customer Video].
6. Press [] to [Logo Show time] and press [] or [] to modify the
playback time.
7. Press [MENU] to exit.
7.25.2 Changing the Off Video
1. Press [ENTER] + [] on the control panel to enter Service Menu.
2. Press [] or [] to select [Pwr Off] menu.
3. Press [] to [Image Select] and press [ENTER] to read the saved file.
4. Press [] or [] or [] or [] to select the picture file and press
[ENTER] to apply the change.
5. Press [] to [Off Video Select] and press [] or [] to select [Default
Video/ Customer Video].
6. Press [MENU] to exit.
7.26 I would like to use a USB disk
1. Insert the USB disk and a [Copy To USB Disk] dialog box will appear,
and you are asked whether to copy files from PS760 to the USB disk.
Press [] or [] on the remote control or control panel
to select.
7.27 Computer-related functions
Ensure that the USB cable is connected and the software and drivers are
installed before using the computer-related functions. Refer to Chapter 4
Installation and Connections 4.11 Installing application software in
this user manual.
English -
38
7.27.1 I would like to insert a photo in MS-Paint
USB Video Device
<Remark> Support Windows XP Operation System only.
1. Click [File/From Scanner or Camera] in MS-Paint as shown in the
bottom left figure.
2. Click [Get Picture] will capture the photos of live images and insert the
files in use shown as top right figure.
7.27.2 I would like to insert a photo in MS-Word
<Remark> Support Windows XP Operation System only.
1. Click [Insert/Image/From Scanner or Camera] in MS-Word.
2. Select [USB Video Device] and click [Custom Insert].
English -
39
3. Click [Get Picture]. It will capture the photo of live image.
Lumens Document Camera Twain
7.27.3 I would like to change the setting of the PS760 and then
capture a photo in MS-Word
<Remark> For Windows Office 2003 or later versions, please use the
function with OneNote.
1. Click [Insert/Image/From Scanner or Camera] in MS-Word.
2. Select [Lumens Document Camera Twain] and click [Custom Insert].
English -
40
3. A window showing a live image (see below) will be displayed.
Lumens
Document
Lumens
Document
4. Press [Capture] to capture images in MS-Word.
5. Press [Cancel] to exit.
7.27.4 I would like to set the PS760 as a PC Camera
<Remark> For Windows XP, please set by system name (USB video
device)
Open [My Computer] and click [Lumens Document] to open a live image.
English -
41
7.28 I would like to use the network remote control
function
Network has a longer distance for controlling than USB and RS232
interface do. Each function of PS760 could be controlled and used by
the browser (IE) on the computer for users.
7.28.1 I would like to view the live images or use the control keys
7.28.1.1 Login to the PS760 network control page
1. Open the web browser (Internet Explorer) and enter the IP
address : PORT number.
(Sample: http://192.168.100.150:80/)
<Remark> To check IP address, please refer to 7.28.1.2 I would
like to check the network settings.
2. Enter the account [admin].
3. Enter the password (default password is [9999]), and then click
[OK].
7.28.1.2 I would like to check the network settings
DHCP is enabled by default. Please follow the steps below to check
the IP address.
1. Press [MENU] on the remote control or control panel to enter the
setting menu.
2. Press [] or [] to the [Advanced] menu.
3. Press [] or [] to the [Ethernet].
4. Press [ENTER] to open the Ethernet OSD menu.
5. Press [MENU] to exit OSD menu.
English -
42
Ethernet
DHCP
IP address
Netmask
Getway
ON
2 3 1
7.28.1.3 View the live image
A. Use IE browser
Please modify web page security setting and install ActiveX controls
according to the instructions on the screen when using the system for
the first time

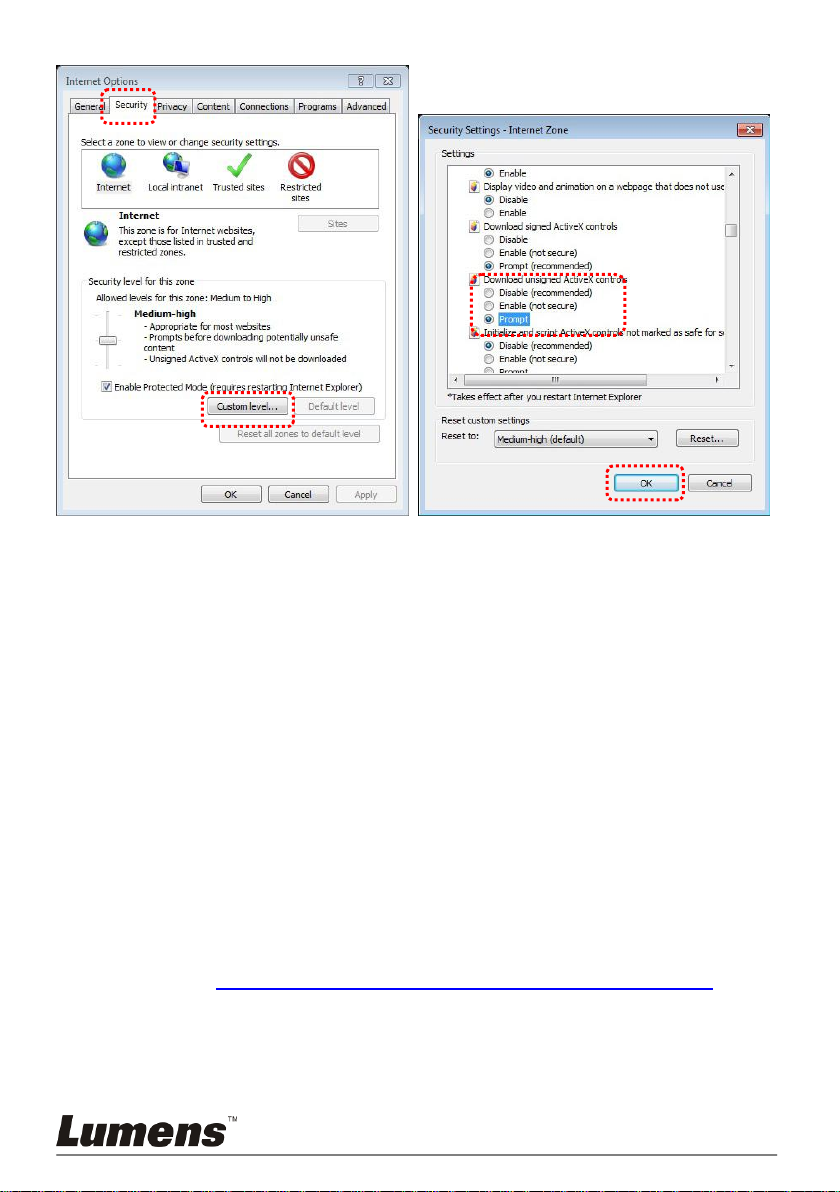

1. Modify web page security settings:
Open the web page → click [Tools] in function bar → [Internet
Options] → [Security] → [Custom Level] → select [Download
Unsigned ActiveX Controls] and set to [Prompt] → [OK]
English -
43
Restart your IE browser
2. Install ActiveX controls:
Follow the instructions on the screen and click [Install ActiveX
Controls]
Please install the ActiveX control according to the instruction on the
screen before the first use
Select “Install ActiveX control” by pressing the mouse button at the
position indicated on the screen
Accept the security alert and click [Install]
Software security alert, click [Unblock]
The installation is completed
3. View the live image.
4. The control method of control keys is the same as that of the remote
control. The button will be gray and disabled for users whose
permission is view-only.
5. Change the size and brightness of live image.
<Remark> For more information about user permissions, please
refer to 7.28.2 I would like to add or modify the user account.
B. Using VLC
<Remark> VLC is only provided for viewing. No control keys are
available.
1. Start the VLC player
English -
44
2. Select “ media → Open Network Stream”
3. Input “rtsp://A:B@IP:8557/h264” at the “Please enter a network
URL” of the Network page
A: Account name
B: Account password
IP: For the IP address of the Document Camera, please refer
to 7.28.1.2 “I would like to check the network settings”for
method of checking the IP address.
Example: rtsp://admin:9999@192.168.100.150:8557/h264
4. Press “Play” to preview.
C. Multicast
<Remark> Please select this setting when the number of users
online to watch the live image simultaneously is more than 4.
Besides, all users must be in the same domain.
1. Log in to PS760 web control screen
2. Click [Settings] on the top
3. Click [Network Config]
4. Select [Enable Multicast]
5. Press “Confirm”
6. Please click [LIVE Video] or turn on VLC Player to watch the live
image.
<Remark> After the use, please reset to cancel [Enable Multicast].
English -
45
7.28.2 I would like to add or modify the user account
User Type
Admin
Operator
Viewer
Applications
IE or VLC
IE or VLC
IE or VLC
Operation of
LIVE Video
Y
Y
N
View images
Y Y Y
Settings Y N
N
File List
management
Y
N
N
<Remark> Reference for User Permissions
7.28.2.1 I would like to add the user account
1. Click [Settings].
2. Click [User Config].
3. Enter the username in the [User Name].
4. Enter the new password in the [Password].
5. Enter the password in the [Confirm Password] again.
6. Set the permissions in the [Authority].
7. Click [OK] to conform and submit.
7.28.2.2 I would like to delete the user account
1. Click Username.
English -
46
2. Click [Delete] field to delete the user.
7.28.2.3 I would like to modify the user password and
permissions
1. Click Username.
2. Enter the new password in the [Password].
3. Enter the password in the [Confirm Password].
4. Set the permissions in the [Authority].
5. Click [OK] to submit.
7.28.3 I want to manage saved image files
1. Click [Information].
2. Click [File list].
7.28.3.1 View image files
1. Click the file name to open the saved image file.
7.28.3.2 Delete image files
1. Select the file to be deleted and click [Delete]. Press [YES]
to confirm.
English -
47
7.28.4 Firmware version
1
2
3
4
Current Firmware Version
1. Product ID: Product Name
2. Software Version: Current Firmware Version
3. Video Player Version: Current Video Player Version
4. GUI Version: Current GUI version
7.28.5 Upgrade Firmware Version
<Remark> Please download the latest firmware version from the
Lumens website.
1. Click [Settings].
2. Click [Maintenance].
3. Click “View” in the [Firmware upload] field, and select the firmware
files to upgrade.
English -
48
4. Click [UPLOAD] to start upgrading.
5. When the firmware files are uploaded, all files in the built-in memory
will be deleted. If you want to store the files, click “Cancel” to cancel
upgrading. You should proceed upgrading only after the file back-up
is completed. If the files don’t need to be stored, click “Yes” to start
upgrading.
6. When the upgrading procedure processes to “Step 3/3”, please
follow the instruction on the screen to login the Administrator
Account.
7. When the installation is completed, please close the IE Browser, and
then open IE Browser again to start network connection.
English -
49
Chapter 8 Connecting to Microscope
If the eyepiece is Ø 33 mm or Ø 34 mm, only one Lumens microscope
adapter is needed.
If the eyepiece is Ø 28 mm or Ø 31 mm, you need two microscope
adapters. (1. The Lumens microscope adapter. 2. The microscope
adapter suitable for the eyepiece size Ø 28 mm or Ø 31 mm).
1 Mount the microscope adapter (Optional) onto the microscope.
<Note> Please choose an appropriate microscope adapter. Microscope
adapter accessories are applicable to eyepieces of Ø 28 mm, Ø 31 mm, Ø
33 mm, and Ø 34 mm.
2 The lens of PS760 connects with the microscope adapter
English -
50
3 Select the [Microscope] mode
3.1. If you use the remote control or the control panel
3.1.1. Press [MENU] to enter the setting menu.
3.1.2. Press [] or [] to the [Display].
3.1.3. Press [] to select [Mode].
3.1.4. Press [] or [] to the [Microscope].
4 If the image is not clear
4.1. Please adjust the focus of microscope.
4.2. Please press the remote control or the control panel [AUTO TUNE]
button to activate the auto focus.
5 Digital Zoom
5.1. If you use the remote control or the control panel
5.1.1. Press [MENU] to enter the setting menu.
5.1.2. Press [] or [] to the [Display].
5.1.3. Press [] to select [Digital Zoom].
5.1.4. Press [] or [] to the [On].
5.1.5. Press [ZOOM +] / [ZOOM -].
<Note> Please reset to normal mode after using the microscope,
otherwise, you are unable to use zoom in/out function.
1. Press [MENU] on the remote control or control panel to enter the
setting menu.
2. Press [] or [] to the [Display].
3. Press [] to select [Mode].
4. Press [] or [] to the [Normal].
English -
51
Chapter 9 DIP Switch
<Note> You should unplug and reconnect the power cord, and then restart
the PS760 for all DIP Switch Settings to take effect.
9.1 Connecting to a projector or monitor
9.1.1 XGA 60Hz output XGA 50Hz output
(default values)
9.1.2 SXGA 60Hz output SXGA 50Hz output
9.1.3 WXGA 60Hz output WXGA 50Hz output
9.1.4 UXGA 60Hz output UXGA 50Hz output
English -
52
9.1.5 1080P 60 Hz output 1080P 50 Hz output
9.2 Connecting to a TV/DVD
9.2.1 NTSC: USA, Taiwan, Panama, Philippines, Canada, Chile,
Japan, Korea, and Mexico.
60Hz 50Hz
9.2.2 PAL: Countries/regions not listed above.
60Hz 50Hz
English -
53
Chapter 10 Packing the Machine
1. Put the remote control back to the holder.
2. Fold back the camera head to align with the arm.
3. Turn the two lamp arms and the arm of camera head down and adjust
them to be parallel with the platform.
4. Put the lens cap on the camera head.
5. Finally, fold the machine as in the following figure.
English -
54
Chapter 11 Troubleshooting
No.
Problems
Solutions
1
Boot without power
signal
Make sure you have plugged in the power cord.
2
No image output
from the PS760
1. Check the power
2. Check all cable connections. Refer to Chapter 4
Installation and Connections in this manual.
3. Check the , refer to PS750 User Manual Chapter 7
Descriptions of major functions 7.2 I would like to
switch image sources.
4. Check the settings for the source of the projector. For
the appropriate input selection of the projector, refer to
the projectors user manual.
5. Check if DIP Switch is properly set. Refer to Chapter 9
DIP Switch Settings for related settings.
3
Unable to focus
Probably the document is too close. Press [ZOOM-] on the
remote control or control panel. Or pull away the
distance between document and lens, then press [AUTO
TUNE].
4
The image is
incomplete
Check the Auto Image setting of your projector. Please
refer to the user manual of the projector or check for the
DIP SWITCH settings.
5
Forget the password
for turning on
Please contact your distributor or the service center.
6
Lumens Document
Camera, Lumens™
and other
applications cannot
be used
simultaneously
Lumens Document Camera, Lumens™ and other
applications cannot be executed simultaneously. Only one
application can be executed at a time. Please close the
currently running applications and then execute the
application to be used.
7
When the unit is
turned on, the
auxiliary floodlight
do not light
Please make sure the arm lamp is set to [OFF]. For the
switch-on or -off of arm lamp, refer to PS750 User Manual
Chapter 7 Descriptions of major functions 7.8 I would
like to turn on/off the lamp.
8
PS760 fails to store
images or react
1. Check to see if the stored data have reached the
maximum size of the USB device (priority) or internal
memory.
2. Please make sure if the Capture function is set to
This chapter describes problems you may encounter while using PS760. If you
have questions, please refer to related chapters and follow all the suggested
solutions. If the problem still occurred, please contact our distributors or service
center.
English -
55
Continuous mode or the time for capture is set to be
long. For the related setting, refer to 7.11 I would like
to capture images of Chapter 7 Descriptions of
major functions.
9
The images
outputted from
PS760 are too bright,
dark or vague
Press [AUTO TUNE] to automatically adjust to the optimal
brightness and focal length.
10
Unable to record
images
1. Check to see if the stored data have reached the
maximum size of the USB disk (priority) or internal
memory.
2. Please confirm the rotation angle. You may not able to
record when the image is rotated by 90°/270°.
11
The operating steps
in the manual are not
applicable to the
machine
The operating steps in the manual may be not
applicable to the machine due to improvement in
functions.Check to see if the Firmware version of your
machine is up-to-date.
1 Please go to Lumens official website to check whether
the latest version is available for update.
http://www.Mylumens.com/goto.htm
2 The steps to check the FW version are as below:
2.1 Press [MENU] on the remote control or control
panel to enter the setting menu.
2.2 Press [] or [] to select [Advanced] menu.
If you are not sure whether it is the latest version,
please consult your dealer for advice.
http://www.Mylumens.com/en/Request_form.
php
12
Unable to login to the
network control page
If DHCP is enabled, the IP address may not be updated.
Please follow the steps below:
1 Press [MENU] on the remote control or control panel
to enter the setting menu.
2 Press [] or [] to the [Advance] menu.
3 Press [] or [] to the [Ethernet].
4 Press [ENTER] to open the Ethernet OSD menu.
5 Press [] to find [DHCP].
6 Press [ENTER] to modify it.
7 Press [] or [] to select [On].
Master: PVC039 Slave: PVD035
Firmware
version
English -
56
8 Press [MENU] to exit the Ethernet OSD menu.
9 Repeat steps 3 ~ 4 and check IP address.
13
The images
outputted are not
clear, and the moire
appears
Please refer to the manual (Attachment 1), confirm the
voltage frequency and reset it according to Chapter 9 DIP
Switch Settings.
14
The live image does
not display after you
login to the website
1. Please install the ActiveX control according to the
instruction on the screen
2. If the instruction for installing the ActiveX control does
not appear, please follow the following steps to confirm
and remove the old version of ActiveX control
components, and then re-install the ActiveX control
components.
2.1 Remove the components (Browser IE 8.0/IE
9.0):
Open the IE browser, activate [Tool] → [Manage
Add-ons] → in the drop-down menu of [Display] at
the left side, select [All add-ons]. Then, after
selecting “GFFMpeg Class” and “GoDB Class”,
right-click the mouse to open the menu, and click
[More Info (R)]. Click the [Remove] button at the
bottom left, and then press the [Close] button at the
bottom right to complete the removal of
components.
2.2 Remove the components (Browser IE 7.0):
Open the IE browser, activate [Tool] → [Manage
Add-ons] → [Enable/Disable Add-ons] → in the
drop-down menu of [Display], select [Add-ons that
have been used by Internet Explorer]. Then, after
selecting “GFFMpeg Class” and “GoDB Class”,
press the [Delete] button at the lower right corner.
2.3 After reloading the website, please follow the
instruction on the screen.
15
Q: A warning message (“Windows has blocked this software because it can't
verify the publisher.”) appears when installing the ActiveX controls as shown
in the figure below:
English -
57
A: Please follow the steps below to modify security settings and re-install ActiveX
control components again:
1. Setup steps: Open the web page -> click [Tools] in function bar -> [Internet
Options] -> [Security] -> [Custom Level] -> select [Download Unsigned
ActiveX Controls] and set to [Prompt] -> [OK]
2. Exit the “Internet Option” setup screen, restart your IE browser, and install
control components according to the instructions on the screen.
16
Only video signal
is produced from
the video recorded
using Lumens
software. No audio
output.
USB Audio is not supported in PS760. Therefore, the
built-in microphone cannot work in a computer. To
record the sound, please use an external microphone
for a desktop or a microphone built in a notebook.
English -
58
Attachment 1
Region/Country
Frequency
Region/Country
Frequency
Region/Country
Frequency
Chinese
English
Chinese
English
Chinese
English
阿 富 汗
Afghanistan
50
大陸
China
50
關島
Guam
60
阿爾及利亞
Algeria
50
哥 倫 比 亞
Colombia
60
石榴島
Grenada
50
安 哥 拉
Angola
50
剛果
Congo
50
瓜地馬拉
Guatemala
60
安 地 瓜
Antiqua
50
哥斯大黎加
Costa Rica
60
幾內亞
Guinea
50
阿 根 廷
Argentina
50
古巴
Cuba
60
蓋亞納
Gayana
50
澳洲
Australia
50
塞 普 路 斯
Cyprus
50
海地
Haiti
60
澳 地 利
Austria
50
捷克
Czechoslov
akia
50
夏威夷
Hawaii
60
亞 述 爾
Azores
50
達荷美
Dahomey
50
宏都拉斯
Honduras
60
巴 哈 馬
Bahamas
60
丹麥
Den mark
50
香港
Hong Kong
50
巴林
Bahrain
60
多 明 尼 加
Dominican
60
匈牙利
Hungary
50
孟 加 拉
Bangladesh
50
杜貝
Dubai
50
冰島
Ice land
50
巴 貝 多
Babados
50
厄 瓜 多 爾
Ecuador
60
印度
India
50
比 利 時
Belgium
50
埃及
Egypt
50
印尼
Indonesin
50
百 慕 達
Bermuda
60
薩 爾 瓦 多
El Salvador
60
伊朗
Iran
50
玻利維亞
Bolivia
50
赤道幾內亞
Equatorial
Guinea
50
伊拉克
Iraq
50
波 札 那
Botswana
50
衣 索 匹 亞
Ethiopia
50
愛爾蘭
Ireland
50
巴西
Brazil
50
60
法 羅 群 島
Faeroe
Island
50
曼島
Isle of Man
50
保加利亞
Bulgaria
50
裴濟
Fiji
50
以色列
Israel
50
緬甸
Burma
50
芬蘭
Finland
50
義大利
Italy
50
蒲 隆 地
Burundi
50
法國
France
50
象牙海岸
Ivory Coast
50
高棉
Cambodia
50
蓋亞那
French
Guiana
50
牙買加
Jamaica
50
喀 麥 隆
Cameroon
50
加彭
Gabon
50
日本
Japan
50
60
加 拿 大
Canada
60
甘比亞
Gambia
50
約旦
Jordan
50
康那利群島
CanaryIslan
d
50
德國
Germany
50
肯亞
Kenya
50
中非共和國
Central
Africa Rep.
50
迦納
Ghana
50
韓國
Korea
60
錫蘭
Ceylon
50
直 布 羅 陀
Gibraltar
50
科威特
Kuwait
50
查德
Chad
50
大 不 列 顛
Great
Britain
50
黎巴嫩
Lebanon
50
海峽群島
Channel
Island
50
希臘
Greece
50
賴索托
Lesotho
50
World voltage & frequency
English -
59
Region/Country
Frequency
Region/Country
Frequency
Region/Country
Frequency
Chinese
English
Chinese
English
Chinese
English
智利
Chile
50
格陸蘭
Greenland
50
賴比瑞亞
Liberia
60
利 比 亞
Libya
50
阿曼
Oman
50
敘利亞
Syria
50
盧 森 堡
Luxembourg
50
巴 基 斯 坦
Pakistan
50
大溪地
Tahiti
60
澳門
Macao
50
巴拿馬
Panama
60
中華民國
R.O.C.
Taiwan
60
馬得拉群島
Madeiral
50
巴拉奎
Paraguay
50
坦尚尼亞
Tanzania
50
馬約卡島
Majokca
Island
50
秘魯
Peru
60
泰國
Thailand
50
馬拉加西
Malagasy
50
菲律賓
Philippines
60
多哥共和國
Togo
Rep.of
50
馬 拉 威
Malawi
50
波蘭
Poland
50
東加
Tonga
50
馬來西亞
Malaysia
50
葡蔔牙
Portugal
〞
千里達
Trinidad
60
馬利
Mali Rep.
50
波 多 黎 各
Puerto Rico
60
他巴哥
Tobago
60
馬 爾 他
Malta
50
科托
Qatar
50
突尼西亞
Tunisia
50
馬丁尼克島
Martinique
50
羅 德 西 亞
Rhodesia
50
土耳其
Turkey
50
茅里塔尼亞
Mauritania
50
羅 馬 尼 亞
Romania
50
烏干達
Uganda
50
模里西斯
Mauritius
50
盧安達
Rwanda
50
美國
USA.
60
墨 西 哥
Mexico
60
沙烏地
阿拉伯
Saudi
Arabia
50
60
蘇 聯
USSR
50
摩 那 哥
Monaco
50
蘇格蘭
Scotland
50
英國
United
Kingdom
50
蒙特色納島
Montserrat
60
塞 內 加 爾
Senegal
50
上伏塔
Upper
Volta
50
摩 洛 哥
Morocco
50
獅子山
Sierra
Leone
50
烏拉奎
Uruguay
50
莫桑鼻克
Mozambique
50
新加坡
Singapore
50
委內瑞拉
Venezuela
60
尼 泊 爾
Nepal
50
索 馬 利 亞
Somalia
50
越南
Viet-Nam
50
荷爾
Netherlands
50
南非共和國
South
Africa Rep.
50
維爾京群島
Virgin
Island
60
新蘇格蘭
New
Caledonia
50
西班牙
Spain
50
西薩摩亞
Western
Samoa
50
紐 西 蘭
New
Zealand
50
斯 里 蘭 卡
Sri Lanka
50
葉門亞丁
Yeman(Aden)
50
尼加拉瓜
Nicaragua
60
蘇丹
Sudan
50
葉門阿拉伯
Yemen(Arab)
50
尼日
Niger
50
蘇利南
Surinam
60
南斯拉夫
Yugoslavia
50
奈及利亞
Nigeria
50
史 瓦 濟 蘭
Swaziland
50
薩伊共和國
Zaire Rep.
of
50
挪威
Norway
50
瑞典
Sweden
50
尚比亞
Zambia
50
琉球
Okinawa
60
瑞士
Switzerland
50
English -
Loading...
