AURA Light Engine®
Instruction Manual
!
Lumencor, Inc. Document Number 52-10141, Rev. C www.lumencor.com
Regulatory Models
Lumencor utilizes regulatory model names for all certified and CE marked products. The regulatory model names
are traceable to all regulatory documentation, third party reports and certifications.
“Regulatory Model: Aura II” is used as a representative model for all certified and CE marked Aura II Products.
Emissions
This equipment has been tested and found to comply with the limits of EMC directive 2014/30/EU. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications.
Safety Certifications
Underwriters Laboratories (UL), CB Certification (IEC 61010-1:2010)
Underwriters Laboratories (UL), NRTLus Certification (UL 61010-1:2012)
Underwriters Laboratories (UL), cNRTL Certification (CAN/CSA-C22.2 No. 61010-1:2012)!
Underwriters Laboratories (UL), EN Certification (EN 61010-1:2010)!
Underwriters Laboratories (UL), CB Certification (IEC 62471:2006)
CE Marking
Low Voltage Directive (2014/35/EU)
EMC Directive (2014/30/EU)
RoHS Directive (2011/65/EU)
REACH Regulation (EC) No. (1907/2006/EC)
EU Declarations of Conformity can be found at http://lumencor.com/company/regulatory-compliance/
Lumencor, Inc.
14940 NW Greenbrier Parkway
Beaverton, OR 97006
T 503.213.4269
www.lumencor.com
Document Number 52-10141, Rev. C!
AURA Light Engine Instruction Manual
1
Table of Contents
1.
Introduction!
2.
Precautions and Warnings!
3.
Installation and Operating Instructions!
4.
Spectral Output!
5.
Product Specifications!
6.
Routine Maintenance and Trouble Shooting!
7.
Customer Support!
8.
Warranty"
AURA Light Engine Instruction Manual
2
1. Introduction
Lumencor AURA light engines are designed for laboratory use by bioanalytical researchers and/or developers of biooptical instrumentation. The AURA provides 2, 3, 4, or 5 individually controllable solid state light sources that have
been optimized to produce spectrally discrete spectral outputs.
This manual covers all AURA II models identified by the designation
AURA II X-YYY-ZZ on the identification label affixed to the back panel
of the light engine. X denotes the number of sources, YYY denotes a
unique customer code and ZZ denotes options and revisions. Any
reference to “AURA” in this manual shall apply to all AURA II models
unless noted otherwise.
The light sources within the AURA are controlled by a serial command
interface connecting to the Lumencor light engine control pod
accessory (83-10007) or a computer running a Lumencor supplied
GUI or a third party microscopy software application. Alternatively,
the light sources may be enabled by TTL inputs from a trigger device
such as a camera. The user can enable or disable each source
independently (serial or TTL) and change the intensity of each source
independently (serial only). The only manual control is a power switch on the front panel to turn on/off the electrical
power supply to the unit. A green indicator above the power switch is lit when the power supply is connected to the
AURA and the power switch is in the on position (see Figure 3, below).
2. Precautions and Warnings {Précautions et mises en garde}
A few simple practices will ensure trouble-free operation for the life of the light engine.
Les quelques règles simples suivantes permettront d’assurer un fonctionnement fiable pendant toute la durée de
service de la source lumineuse.
Safety Instructions:
Please read and follow all safety instructions provided BEFORE using your new AURA. Failure to comply with the
safety instructions may result in fire, electrical shock, or personal injury and may damage or impair protection
provided by equipment. Please save all safety instructions.
Instructions de sécurité:
Veiller à lire et à respecter toutes les instructions de sécurité fournies AVANT d’utiliser le nouveau AURA afin
d’écarter les risques d’incendie, de décharge électrique, de blessure corporelle et de possibles dommages ou
défaillance de la protection offerte par l’appareil. Conserver toutes les instructions de sécurité.
Safety Definitions {Définitions relatives à la sécurité}:
Warning: Statements identify conditions or practices that could result in personal injury.
Avertissement: déclarations qui identifient des situations ou des pratiques susceptibles d’entraîner
des blessures corporelles.
AURA Light Engine Instruction Manual
3
Caution: Statements identify conditions or practices that could result in damage to your equipment.
Attention: déclarations qui identifient des situations ou des pratiques susceptibles d’endommager le matériel.
Safety Items {Mesures de sécurité}:
Warning: ONLY use the power supply provided by Lumencor. The Lumencor-supplied 24 VDC, 9.2 A external
power supply is required for use with the AURA light engine. It is imperative that the DC power supply has output
over-current protection, as the power input of the AURA is not fused. The DC power supply must have the AC
power cord connected to a receptacle with a protective safety (earth) ground terminal.
Avertissement: utiliser uniquement l'alimentation fournie par Lumencor. Le Lumencor fourni 24 VDC/9.2 A
alimentation externe est recommandé pour une utilisation avec le moteur de lumière AURA. Il est impératif que
l'alimentation DC a la sortie protection contre les surintensités, que la puissance de l'AURA est pas fusionné.
L'alimentation DC doit répondre aux exigences d'un circuit courant limité par la clause 9.4 de la IEC 61010-1 3rd
ed. Branchez le cordon d'alimentation à une prise avec une sécurité de protection (terre) borne de terre.
Warning: DO NOT stare into the output of the light engine. The brightness of this light source is higher than
most commercial lighting fixtures and is intended to couple directly into a microscope or other bioanalytjcal
instrument.
Avertissement: NE PAS regarder directement la sortie de la source lumineuse. L’intensité lumineuse de cette
source est supérieure à celle de la majorité des appareils d’éclairage disponibles dans le commerce et est conçue
pour un raccordement direct à un microscope ou autre appareil de bioanalyse.
Warning: DO NOT turn on the light without!the output end of the light guide safely!directed!into an
enclosed optical path. #The light output at the end of the light guide has the potential to get very hot and may
cause burns or fire if used in a way other than directed by this instruction guide.!
Avertissement: NE PAS allumer la lumière sans l'extrémité de sortie du guide de lumière dirigée en toute
sécurité dans un chemin optique fermé. La sortie de la lumière à la fin du guide de lumière a le potentiel de
devenir très chaud et peut causer des brûlures ou d'incendie si elle est utilisée d'une manière autre que la
direction de ce guide d' instruction.
RISK GROUP 3
Warning: Possibly hazardous optical radiation emitted from this product. Do not look at operating lamp. Eye injury
may result.
Warning: UV emitted from this product. Avoid eye and skin exposure to unshielded product.
Warning: IR emitted from this product. Do not look at operating lamp.
AURA Light Engine Instruction Manual
4
GROUPE DE RISQUE 3
Avertissement: Rayonnement optique Peut-être dangereux émis par ce produit . Ne regardez pas la lampe
d'exploitation. Une blessure oculaire peut entraîner.
Avertissement: UV émis par ce produit . Évitez les yeux et la peau exposition au produit non blindé.
Avertissement: IR émise par ce produit. Ne regardez pas la lampe d’exploitation.
Caution: DO NOT open the unit. There are no serviceable parts inside and opening the light engine enclosure will
void the manufacturer’s warranty.
Attention: NE PAS ouvrir l’appareil. Il ne contient aucune pièce réparable et l’ouverture de son boîtier a pour effet
d’annuler la garantie.
Caution: DO NOT connect a video cable to the TTL input enable port. Although the connector might look
compatible, this input is not intended to be driven by a video signal.
Attention: NE PAS raccorder un câble vidéo au port d’activation d’entrée TTL. Bien que le connecteur
puisse paraître compatible, cette entrée n’est pas conçue pour être contrôlée par un signal vidéo.
Caution: DO NOT set liquids on the light engine. Spilled liquids may damage your light engine.
Attention: NE PAS placer de liquide sur la source lumineuse. Les liquides renversés peuvent endommager la
source lumineuse.
Caution: DO NOT drop the light engine. It contains glass optical components that could be damaged or
misaligned by the shock produced by a drop onto a hard surface.
Attention: NE PAS laisser tomber la source lumineuse. Elle contient des composants optiques en verre
susceptibles d’être endommagés ou désalignés par le choc résultant d’une chute sur une surface dure.
DISCLAIMER: Lumencor shall not be liable for injury to the user or damage to the product resulting from
the AURA being used in a way for which it was not intended and in complete disregard for all posted
safety precautions and warnings.
AVIS DE NON-RESPONSABILITÉ: Lumencor décline toute responsabilité pour les blessures corporelles
ou les dommages au produit résultant d’une utilisation du AURA autre que celle prévue et du mépris
total de toutes les mesures de sécurité et mises en garde affichées.
3. Installation and Operating Instructions!
All AURA family light engines ship with the following list of standard components:
1.
AURA light engine, configured with three, four or five solid-state light sources (color channels). The output of
each source is refined by a bandpass filter. Bandpass filters are installed to order according to customer
specifications and are not user-exchangeable. The filter configuration for each AURA light engine is shown on
the certificate of conformance issued to the customer when the light engine is shipped by Lumencor (Figure 2).
2.
A 24V/9.2A (220 W) DC power supply (Lumencor part no. 27-10019)
3.
A 6ft AC power cord for the power supply (for North American customers, Lumencor part no. 29-10002, for UK
customers, Lumencor part no. 29-10004 and for European customers, Lumencor part no. 29-10005).
4.
A USB A-to-RS232 cable (Lumencor part no. 29-10011) or USB B (M) to USB A (M) cable (Lumencor part no.
29-10058)
AURA Light Engine Instruction Manual
4
AURA light engines incorporate fan-assisted air cooling. When positioning the AURA for use, place the unit on a
hard surface and avoid blocking or restricting airflow at the air intake (front panel) and exhaust (rear panel) ports.
Restricting the airflow will cause the unit to operate at elevated temperatures and will result in decreased operating
lifespan and/or premature failure.
AURA light engines may be configured for light delivery via a 3 mm liquid light guide or an SMA-terminated optical
fiber. The output couplers are built into the light engine front panel and are not field-exchangeable (Figure 3). The
3 mm liquid light guide output coupler incorporates an electrical power interlock switch in the back of the receptacle.
The liquid light guide must be fully inserted in the receptacle to activate the interlock. Electrical power supply to the
light engine cannot be turned on via front panel power switch until the interlock is activated. After fully inserting the
liquid light guide, lock it in position using the set screw on the side of the receptacle to prevent inadvertent
disconnection of the light guide during use.
The AURA can be controlled via serial commands delivered through the RS-232 port from the Lumencor light engine
control pod accessory (83-10007), a Windows GUI (free download from www.lumencor.com) or via customersupplied instrumentation control software. Serial commands provide controls for on/off switching and intensity
adjustment (0 to 100% in 1% increments) of individual color channels. Refer to Figure 3 for the location of the
various connectors. TTL signals delivered to the DB15 connector (Figure 3) provide high speed (10 µs) on/off
switching of individual color channels.!
AURA Light Engine Instruction Manual
4
Figure 2. Specimen certificate of conformance for AURA Light Engine.
!
AURA Light Engine Instruction Manual
7
Light guide locking
set screw
Connector Pin Definitions
DB15HD connector (TTL)
Pins
Definition
DC Characteristics
1, 2, 3, 12, 15
Channel 5, 3, 2, 1, 4 enables
respectively.
VCC = 5.0V
V
ilow
(max) = 1.5V, V
ihigh
(min) = 3.3V,
I
ilow
= 0.5mA, I
ihigh
= 1.0μA
6, 7, 8, 10
Gnd
5
Dosimeter
4, 9, 11,13,14
N/C
DB9 connector (RS-232)
Pins
Definition
DC Characteristics
1, 2, 3, 4, 6, 7, 8
DCD, RXD, TXD, DTR, D3R, RTS,
CTS
VCC = 5.0V
V
ilow
(max) = 0.8V, V
ihigh
(min) = 2.4V,
I
ilow
= 0.5mA, I
ihigh
= 1.0μA
5
Gnd
9
N/C

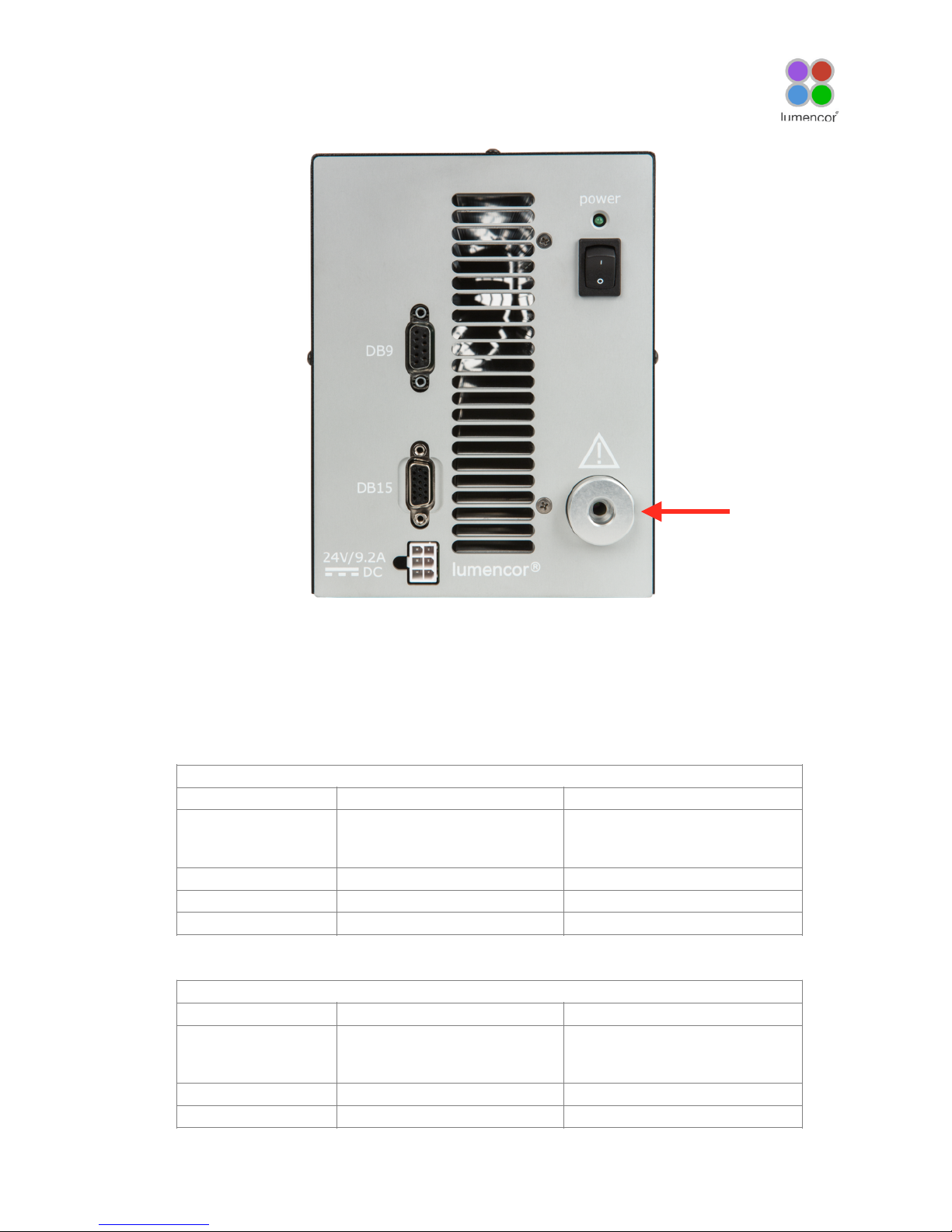

Figure 3. Aura Light Engine front panel.
DB9 = Serial communication receptacle for RS-232-to-USB cable (replaced by USB B on some models).
DB15 = Receptacle for TTL breakout cable. Lower left (24V/9.2A DC) = Input from DC power supply. Top
right: Electrical power on/off switch with green indicator LED above. Lower right: Light output port with
receptacle for 3 mm diameter liquid light guide.
3.1 GUI Installation and Operation!
1.
Operation and installation of the AURA GUI requires a computer running the Windows operating system
with a free USB port.
2.
Download the zip file for the AURA GUI from http://lumencor.com/resources/documentation-software/.
3.
Unzip the file and run setup.exe to install the AURA GUI.
4.
Connect the USB-to-RS-232 cable between the computer and the DB9 RS-232 port on the AURA (Figure
3) [1].
5.
Successful installation is indicated by the appearance of “USB Serial Port (COM #)” under the “Ports (COM
&LPT)” tab in the Windows Device Manager. If the virtual COM port (VCP) is not registered by the
operating system, download and install the VCP driver from http://lumencor.com/resources/
documentation-software/.
6.
Connect the DC power supply to the AURA.
7.
Check that the liquid light guide is fully inserted and locked in the front panel receptacle (Figure 3).
8.
Toggle the power switch on the front panel to the ON position. The green LED above the switch (Figure 3)
should light.
9.
Run the GUI by going to the Program Menu and selecting LLE Controller.
10.
In the COM pulldown menu (GUI window, upper left), select COM # assigned to USB-Serial port.
11.
Press the “INIT” button in the GUI
12.
The computer should now have control of the AURA. Graduated sliders control the source output intensity
for each color channel. ON/OFF buttons for each color channel are located below the respective slider
controls [2, 3].
Notes
[1] On some AURA models, the port is USB B and the connecting cable is USB B (M) to USB A (M).
[2] The identity of the source outputs corresponding to control channels 1–5 differs among AURA light engine
models. If you are unsure of the correspondence, please contact our Technical Support Group (see Section
7). Please provide notification of the serial number of your AURA light engine with your inquiry.
[3] Two luminescent light pipe sources (e.g. Green and Yellow, Figure 5A) cannot be ON simultaneously.
3.2 Light Engine Control Pod Interface!
1.
Connect the USB A port of the light engine control pod accessory (83-10007) to the DB9 port on the
AURA (Figure 3) using the USB-to-RS-232 cable (29-10011) [1]. Connect the USB B port of the control
pod to a USB A port on a host computer. For applications not requiring a host computer, connect a DC
power supply (5V/500mA) to the USB B port.!
AURA Light Engine Instruction Manual
8
Figure 4. USB connectors on rear of the light engine controller pod
2.
Press and hold the right button on the pod until a menu of light engines appears. Turn the rotary dial to
select “AURA” from the menu. Press the right button again to return to the main (0–100 analog intensity)
display screen.
3.
Press the left button to select the desired color channel. Successive presses will cycle through the
available color channels.
4.
Press the right button to turn the selected light source on. Adjust the output intensity using the rotary dial.
Press the right button again to turn the selected light source off.
5.
Press and hold the left button to obtain digital output intensity settings for each color channel [2]. Press
the right button to return to the main display screen.
Notes
[1] On some AURA models, the port is USB B and the connecting cable is USB B (M) to USB A (M).
[2] The current intensity settings are internally stored. When the pod is powered down, the settings are
retained and will be restored at the next restart.
3.3 TTL Interface!
The TTL Interface provides users with a faster method of switching color channel outputs on and off. Individual TTL
lines are provided for each color channel. These can be conveniently addressed using an accessory BNC breakout
cable (Lumencor part no. 29-10015 or 29-10080) connected to the front panel DB15 port (Figure 3). As a
safeguard against unintended light output when the inputs are initially connected, the TTL port is disabled and must
be enabled by a serial command. To enable the TTL port, establish a serial connection as described in Section 3.1
and click the TTL ON (SFT) button in the GUI. A description of the serial command string for this operation is
available on request from Lumencor Technical Support (Section 7). Note that TTL and serial on/off commands have
a logical OR relationship. Therefore on/off controls in the GUI or other serial control software must be set in the
“OFF” state when using TTL control. TTL polarity (ACTIVE = HIGH or ACTIVE = LOW) is factory set according to
order specifications. TTL polarity can be reversed using controls provided in the GUI.
AURA Light Engine Instruction Manual
9
4. Spectral Output!
The spectral output of AURA light engines depends on the configuration of color channels installed and the
bandpass filters associated with each channel. Two typical examples are shown in Figure 5.
AURA Light Engine Instruction Manual
10
Figure 5. Output spectra for 4-channel AURA light engines
A
B
5. Product Specifications
AURA light engines must be operated and stored within the environmental conditions specified.
Performance specifications for individual light engines are listed on the certificate of conformance included with the
shipping documents e-mailed to the customer (see example shown in Figure 2). It is important to retain the
certificate of conformance for reference. In the event that the light engine is sold, the certificate of conformance
should be transferred to the new owner. Certificates of conformance are also recorded in Lumencor’s database and
copies can be requested by e-mail to techsupport@lumencor.com. The request message must include the 4- or 5-
digit serial number of the light engine.
Specification
Detail
Temperature
Operating
32 to 95° F (0 to 35° C)
Non-operating
-4 to 158° F (-20 to 70° C)
Humidity
Operating and non-operating
0 to 80% relative humidity, non-condensing
Altitude
Operating
0 to 10,000 feet (3,048 meters)
Non-operating
0 to 45,000 feet (13,176 meters)
Dimensions
Size (W x L x H)
12.5 cm x 26.3 cm x 16.3 cm (4.9 in x 10.4 in x 6.4 in)
Weight
3.6 kg (8 lb)
Lifetime
> 20,000 hours
#
Input Power Requirements
24VDC / 9.2A
Warm-up Period
1 s
Ingress Protection
IP Rating of X0
Sound Level
Sound level at 1 meter < 65db(A)
Control Interfaces
Serial (USB to RS-232), TTL
Warranty
36 months parts and labor
# Hours of operation with light output >70% of levels reported on the original certificate of conformance
AURA Light Engine Instruction Manual
11
6. Routine Maintenance and Trouble Shooting
No routine maintenance is required. There are no user-replaceable components or sub-assemblies in the AURA
light engine. Opening the light engine enclosure will void the manufacturer’s warranty. In the event that the light
engine fails to perform in accordance with the specifications listed on the certificate of conformance, please contact
Lumencor Technical Support for assistance, as directed in Section 7.
7. Customer Support
For technical support of the AURA light engine, please contact Lumencor by phone at 503.213.4269 (select option
#4) or via e-mail at techsupport@lumencor.com. Please be prepared to provide the 4- or 5-digit serial number of the
light engine (see Figure 1), a description of the problems encountered and information on the usage context (e.g.
what microscope and what control software is being used). This information will help to determine whether the
problems can be resolved in situ by adjustments to the system configuration, or whether a fault has developed in the
light engine that requires its return to Lumencor’s facility in Beaverton, Oregon for evaluation and, if necessary, repair.
Any light engine return to Lumencor for service or repair requires a material authorization (RMA) number. To obtain a
RMA number, submit the online request form at http://lumencor.com/support/lumencor-rma-request-form. It is the
customer’s responsibility to properly package and safely ship products to Lumencor. Instructions for shipping will be
provided in the e-mail giving notification of the RMA number.
8. Warranty!
The AURA family of light engines is backed by a 36 month warranty. An extended warranty option is available;
extended warranties must be purchased in advance of receipt of goods or within 90 days of the date of original
shipment from Lumencor. Accessories including (but not limited to) liquid light guides, optical fibers, collimators,
cables and control consoles are not covered by the warranties attached to light engines.
AURA Light Engine Instruction Manual
12
Loading...
