Lumberjack BM16 Operating Manual

BM16

Bench Morticer with Sliding Table
BM16

ORIGINAL INSTRUCTIONS

SAFETY AND OPERATING MANUAL

BM16

TABLE OF CONTENTS

Welcome to Lumberjack!

Dear customer, Congratulations on your purchase. Before using the

product for the first time please be sure to read these instructions for use.

They provide you with all information necessary for using the product safely and to

ensure its long service life.

Closely observe all safety information in these instructions!

General Power Tool Safety Warnings………………………………….…......01

Symbols & Cable Rating Chart ……….…………………………………….………05

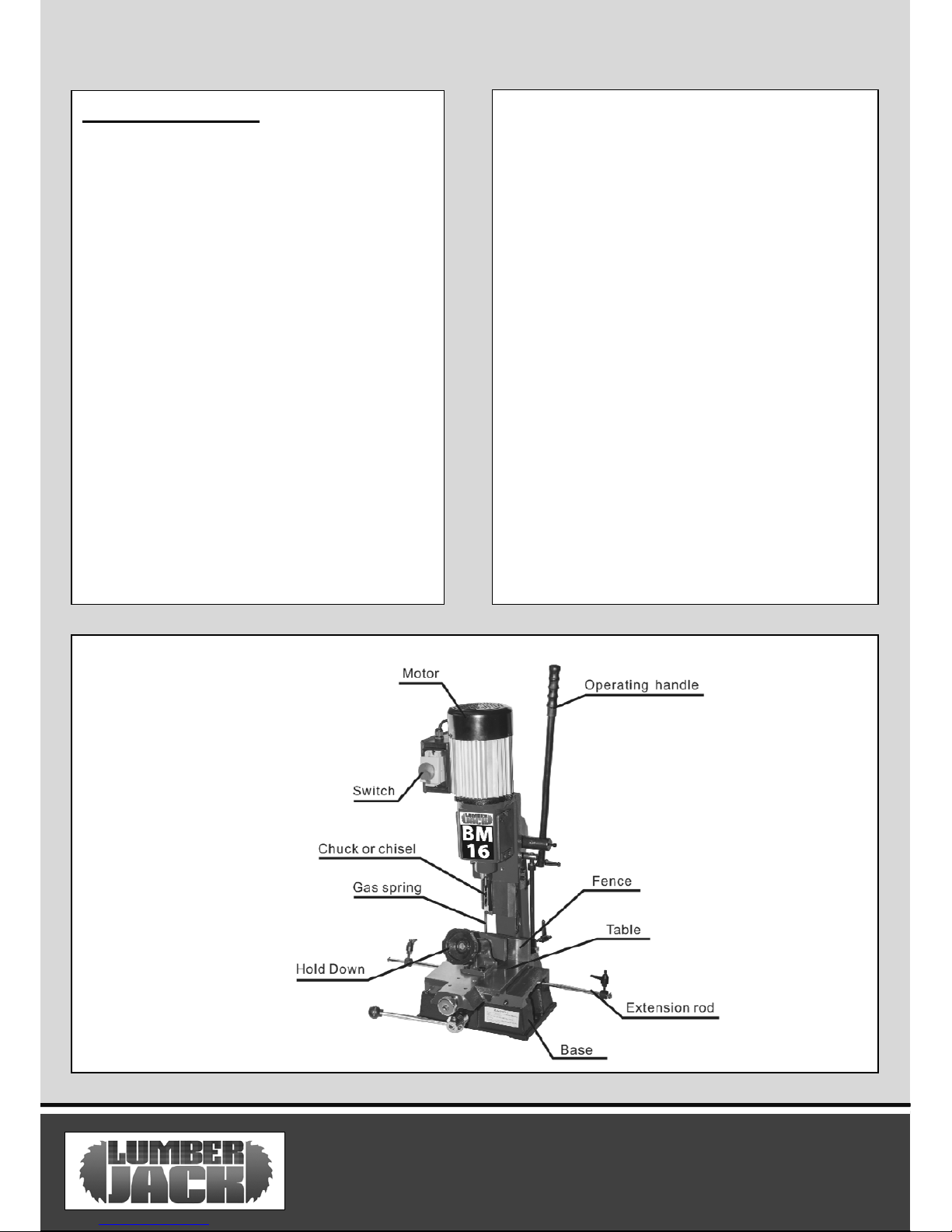

Machine Details and Product Features……….…………………………….….06

Assembly……………………………………………………………………………………..07

Operation, Maintenance and Service…………………………………………..08

Lumberjack Guarantee………….…………………………………………………….09

Declaration of Conformity……………………………………………………………11

Parts List…………..………………………………………………………………………...12

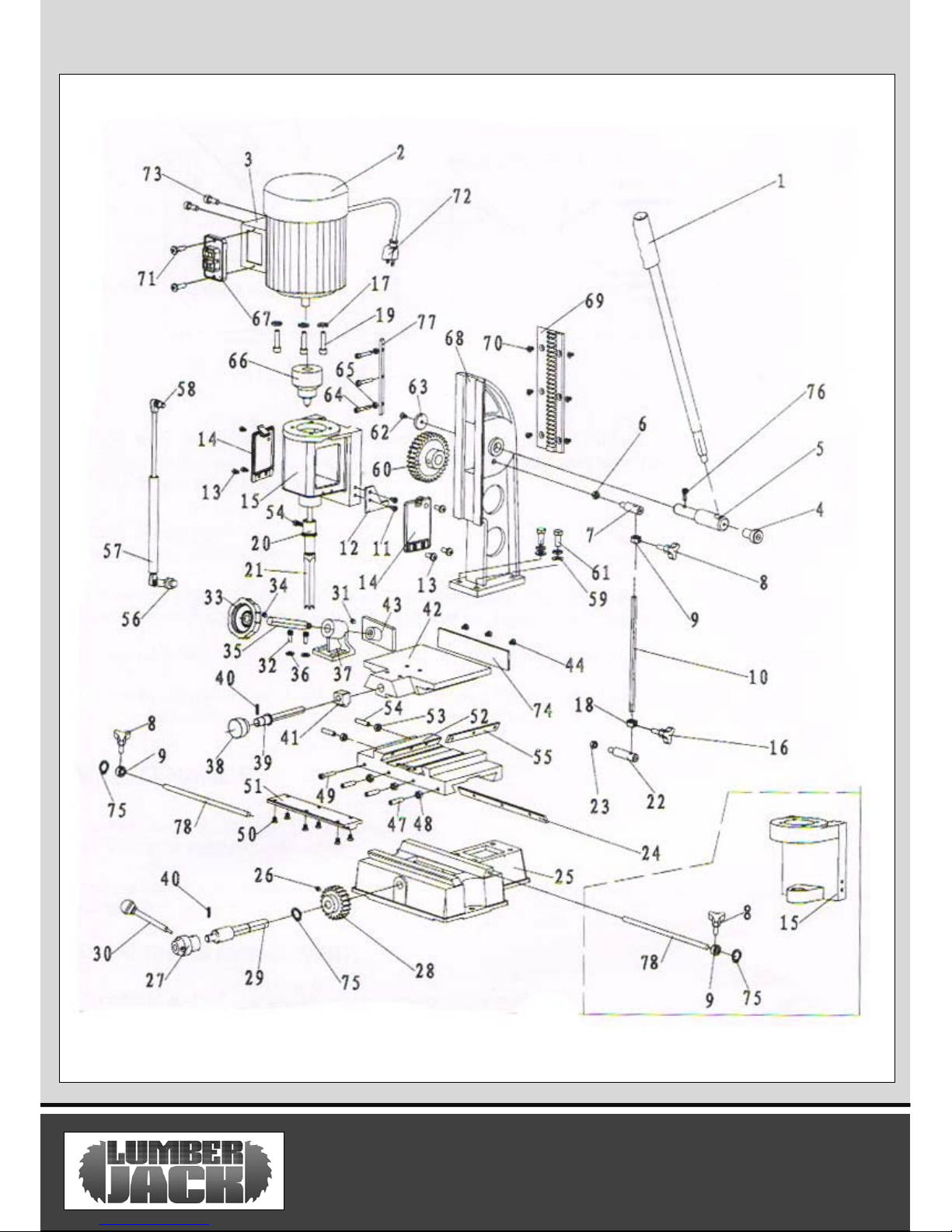

Parts Diagram………………………………………………………………………………13

BM16 01

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and
all instructions

.

Failure to follow the warnings

and instructions may result in electric shock, fire
and/or serious injury.

Save all warnings and instructions for
future reference

.

The term "power tool" in

the warnings refers to your electric (corded)
power tool or battery-operated (cordless) power
tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered

or dark areas invite accidents.

b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools

create sparks which may ignite the dust or
fumes.

c) Keep children and bystanders away while
operating a power tool. Distractions can cause

you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with grounded power tools.

Unmodified plugs and matching outlets will
reduce risk of electric shock.

b) Avoid body contact with grounded surfaces,
such as pipes, radiators, ranges and
refrigerators. There is an increased risk of

electric shock if your body is grounded.

c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will

increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords

increase the risk of electric shock.

e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a

cord suitable for outdoor use reduces the risk of
electric shock.

f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk

of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A

moment of inattention while operating power
tools may result in serious personal injury.

b) Use personal protective equipment. Always
wear eye protection. Protective equipment such

as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.

c) Prevent unintentional starting. Ensure the
switch is in the off position before connecting to
power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your

finger on the switch or energising power tools that
have the switch on invites accidents.

d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left

attached to a rotating part of the power tool may
result in personal injury.

BM16 02

GENERAL POWER TOOL SAFETY WARNINGS

e) Do not overreach. Keep proper footing and
balance at all times. This enables better control

of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes,

jewellery or long hair can be caught in moving
parts.

g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of

dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct
power tool for your application. The correct

power tool will do the job better and safer at the
rate for which it was designed.

b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that

cannot be controlled with the switch is
dangerous and must be repaired.

c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such

preventive safety measures reduce the risk of
starting the power tool accidentally.

d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are

dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused

by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions, taking
into account the working conditions and the work
to be performed. Use of the power tool for

operations different from those intended could
result in a hazardous situation.

5. Service

a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power

tool is maintained.

b) If the replacement of the supply cord is
necessary, this has to be done by the
manufacturer or its agent in order to avoid a
safety hazard.

6. Battery Tool Use and Care

a) Recharge only with the charger specified by
the manufacturer. A charger that is suitable for

one type of battery pack may create a risk of fire
when used with another battery pack.

b) Use power tools only with specifically
designated battery packs. Use of any other

battery packs may create a risk of injury or fire.

BM16 03

GENERAL POWER TOOL SAFETY WARNINGS

c) When Battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal object
that can make a connection from one terminal
to another. Shorting the battery terminals

together may cause burns or a fire.

d) User abusive conditions, liquid may be
ejected from the battery; Avoid contact. If
contact accidentally occurs, flush with copious
amounts of water. If liquid contacts eyes, seek
medical help immediately. Liquid ejected from

the batter may cause irritation or burns.

7. Additional Safety and Working
Instructions

a) Dusts from materials such as lead-containing
coatings, some wood types, minerals and
metals can be harmful to one’s health and
cause allergic reactions, leading to respiratory
infections and/or cancer. Materials containing

asbestos may only be worked by specialists.
Observe the relevant regulations in your country
for the materials to be worked.

b) Prevent dust accumulation at the workplace.

Dusts can easily ignite.

8. Additional Safety Warning for hollow
chisel mortisers

a) DO NOT OPERATE THIS MACHINE until it is
assembled and installed according to the
instructions.

b) OBTAIN ADVICE FROM YOUR SUPERVISOR,
instructor, or another qualified person if you are not

familiar with the operation of this machine.

c) FOLLOW ALL WIRING CODES and recommended
electrical connections.

d) MAKE CERTAIN the machine is fastened to a
supporting surface to prevent it from tipping over
during operation.
e) NEVER turn the mortiser “ON” before clearing
the table of all objects (tools, scrap pieces, etc.).

f) ALWAYS keep hands, fingers and hair away from the
rotating bit.

g) DO NOT attempt to mortise material that does not
have a flat surface, unless a suitable support is used.

h) ALWAYS position holddown directly over workpiece
to prevent workpiece from lifting during operation.

i) ALWAYS support workpiece securely against fence to
prevent rotation.

j) BE SURE drill bit is sharp, not damaged, and properly
secured in the chuck before operation.

k) MAKE SURE chuck key is removed before starting
machine.

l) NEVER turn on the power with the drill bit or chisel
contacting the workpiece.

m) NEVER perform layout, assembly, or set-up work on
the table while the mortiser is operating.

n) ADJUST the depth stop to avoid drilling into the
table.

o) ALWAYS turn off the power before removing scrap
pieces from the table.

p) SHUT-OFF the power, remove the drill bit and chisel,
and clean the table before leaving the machine.

q) FOR YOUR OWN SAFETY – Don’t wear gloves
when operating the machine.

r) SHOULD any part of your tool be missing, damaged,
or fail in any way, or any electrical component fail to
perform properly, shut off switch and remove plug
from power supply outlet. Replace missing, damaged,
or failed parts before resuming operation.

BM16 04

GENERAL POWER TOOL SAFETY WARNINGS

s) THE USE of attachments and accessories not
recommended by Delta may result in the risk of
injuries.

t) TURN THE MACHINE “OFF” AND DISCONNECT
THE MACHINE from the power source before
installing or removing accessories, before adjusting
or changing set-ups, or when making repairs.

u) TURN THE MACHINE “OFF”, disconnect the
machine from the power source, and clean the
table/work area before leaving the machine. LOCK
THE SWITCH IN THE “OFF” POSITION to prevent
unauthorized use.

9. Using an Extension Cable

.

a) If an extension cable is required, use an
approved triple core extension cable suitable for
the power input of the tool.

b) Grounded tools always require a three wire
extension cable.

c) As the distance from the supply outlet
increases you must use a heavier gauge
extension cable. Using extension cables with
inadequately sized wire causes a serious drop in
voltage, resulting in loss of power and possible
tool damage.

d) The smaller the gauge number of the wire the
greater the capacity of the cord.

e) When using a cable reel, always unwind the
cable completely.

BM16 05

SYMBOLS AND POWER RATING CHART

Danger! – Read the operating
instructions to reduce the risk of
injury.

Caution! Wear safety goggles.

Caution! Wear ear defenders. The
impact of noise can cause damage
to hearing.

Amperes 7.5M 15M 25M 30M 45M 60M

0 – 2.0 6 6 6 6 6 6

2.1 – 3.4 6 6 6 6 6 6

3.5 - 5.0 6 6 6 6 10 15

5.1 – 7.1 10 10 10 10 15 15

7.1 – 12.0 15 15 15 15 20 20

12.1 – 20.0 20 20 20 20 25 -

Caution! Risk of Injury! Do
not reach into the running
saw blade

.

Caution! Wear a dust mask.

AIR6V 01AIR6V 01AIR6V 01AIR6V 01

BM16 06

MACHINE DETAILS AND PRODUCT FEATURES

Machine Details

Specifications:

230V / 50Hz
370W

No load Speed -

1400rpm
1/4”-5/8”
76mm

Drill Chuck Capacity -

110mm

Gross Weight -

39kg

Package Contents:

Mortising Machine
3/8” Chisel & Auger

Can be used with 1/4” & 1/2” Chisel & Auger (Not supplied) and
also 5/8”(with 1/2” bit shank)

Intended Use

This power tool is intended to remove and
collect wood shavings only. Any other use
is considered as not intended use and any
damages or injuries result from this
unintended use is at operators own risk.
This item is also not intended to be used
for continuous production or production
line use.

Product Features

Mains Voltage
Power Consumption -

Chisel Capacity -
Max. Mortising Depth -

1-13mm

Chisel to Table(Max.) -

41kg

Nett Weight -

BM16 07

Assembly Instructions

Assembly

Avoid unintentional starting of the machine.
During assembly and for all work on the
machine, the power plug must not be
connected to the mains supply.

Carefully remove all parts included in the
delivery from their packaging.

Remove all packaging material from the machine
and the accessories provided.

Before starting the operation of the machine for
the first time, check if all parts listed in the box
content section have been supplied

Note: Check the power tool for possible damage.
Before further use of the machine, check that all
protective devices are fully functional. Any
lightly damaged parts must be carefully checked
to ensure flawless operation of the tool. All parts
must be properly mounted and all conditions
fulfilled that ensure faultless operation.

Damaged protective devices and parts must be
immediately replaced by an authorised service
centre.

Assembling the Handle

- Assemble hub of handle assembly(A)

- Raise mortising machine head (A) , to the up
position by turning handle (B) clockwise.

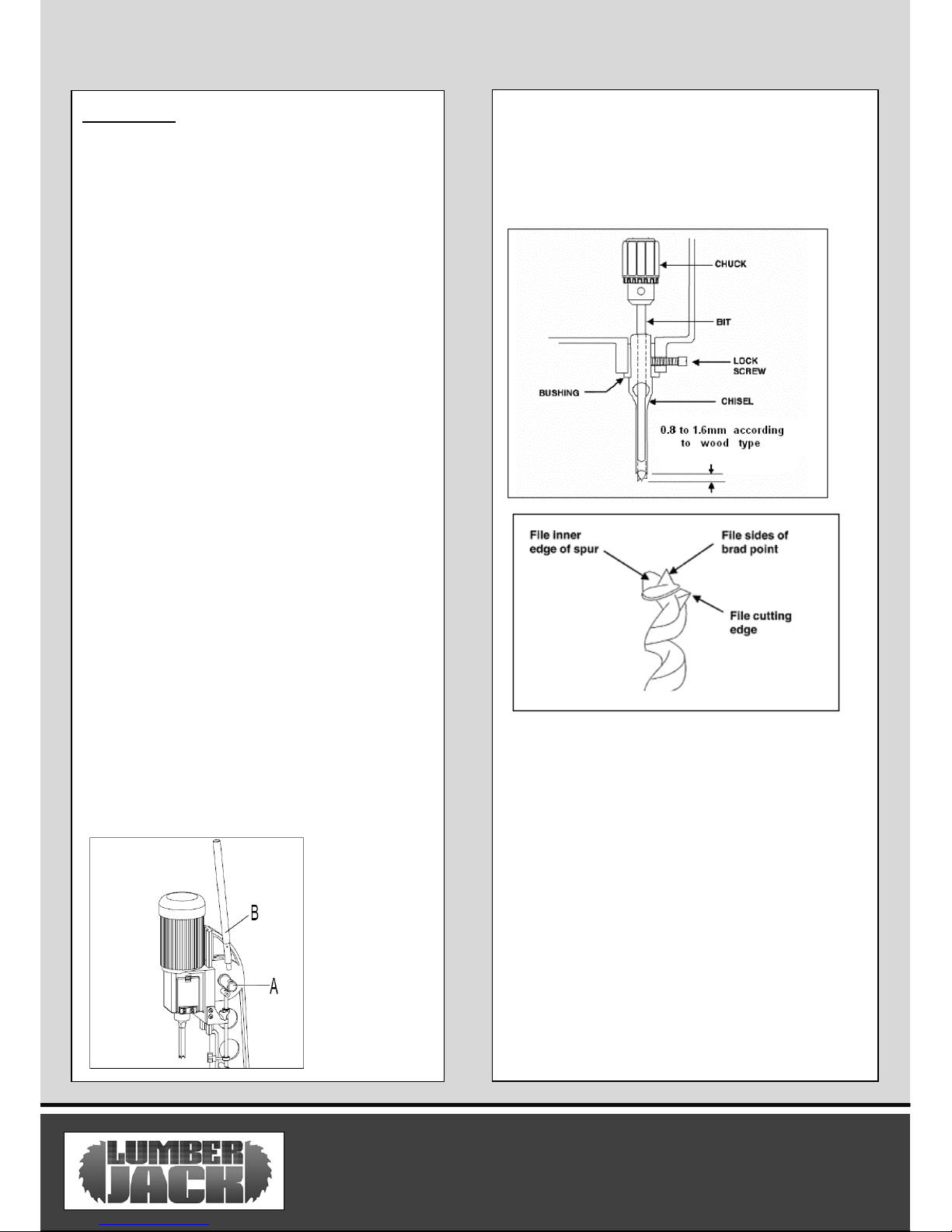

Installing chisel & bit

– Loosen lock screw, shown in Figure .

- Insert chisel bushing (with the hole facing
forward) into the head. Tighten the screw just
enough to hold the chisel in place.

NOTE:

Set the slot in the side of the chisel to the
left or right, NOT to the front or back. This will
allow chips to escape when cutting mortises.

–

Push the chisel up as far as possible into the
head. Then lower the chisel approximately 0.8mm
to 1.6mm, depending on the type of wood being
worked. Tighten the screw to hold chisel in place.

BM16 08

Assembly Instructions

- Push bit up through the chisel opening as far as
it will go. Lock the drill bit in place with the chuck
key.

- Loosen screw and push chisel up against the
bushing, then tighten screw. This should provide
the proper distance between the points of the
chisel and the bit.

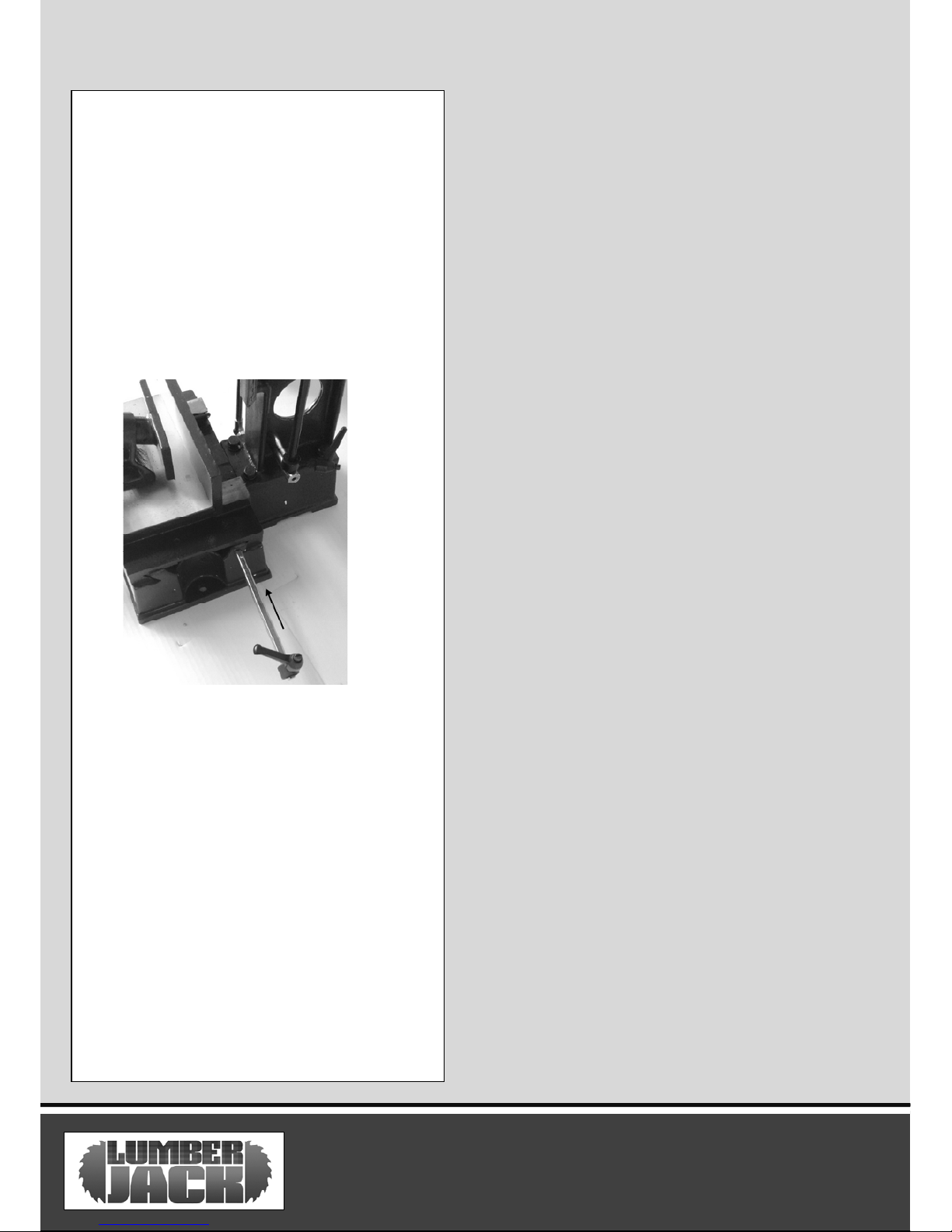

Installing extension rod

- Insert extension rod in hole, show in Figure.

BM16 09

OPERATION

Operation

Before any work on the machine itself, remove
the mains plug from outlet.

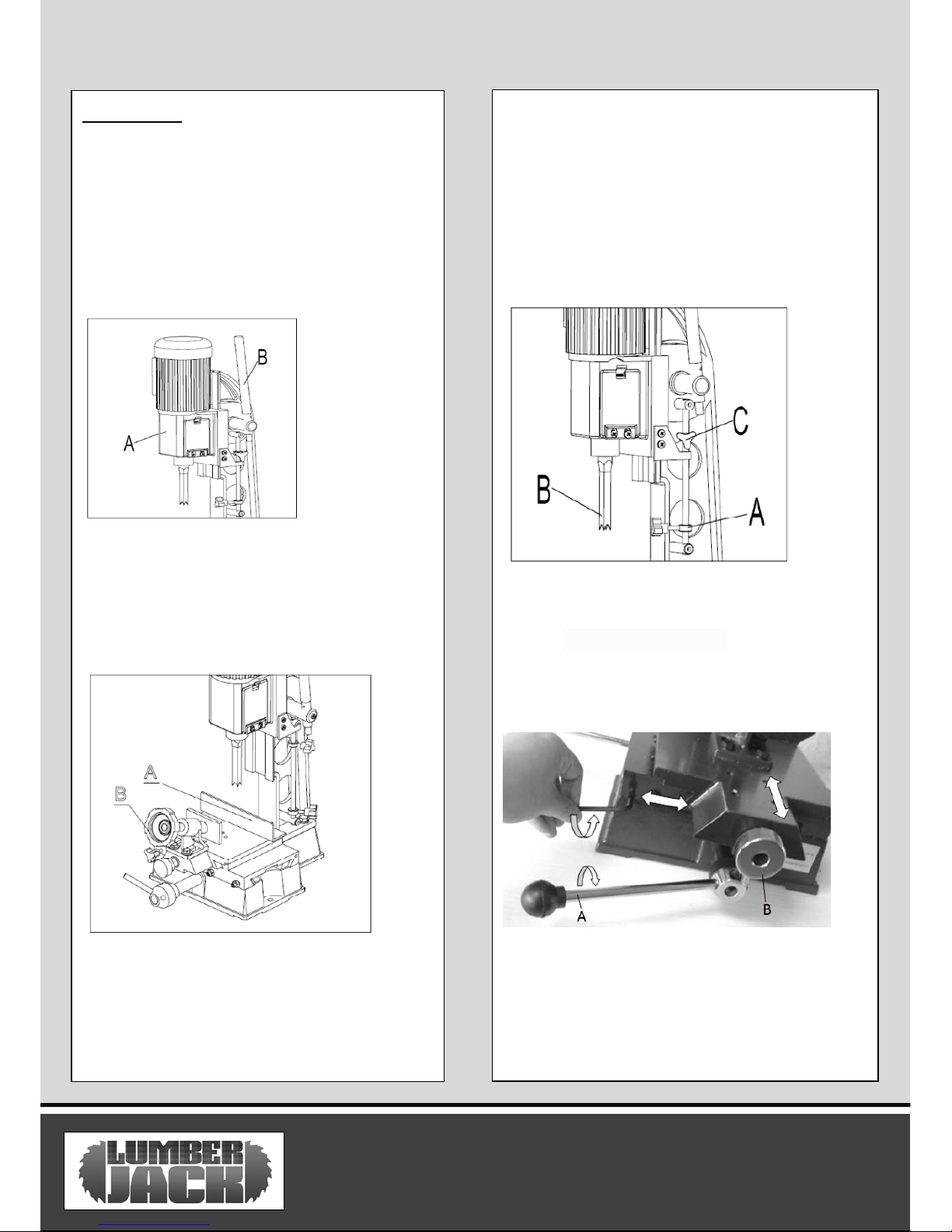

Raising and lowering the head

-The head (A) Fig. 4, is raised and lowered by
means of the lever (B).

Fence

-The fence (A) can be moved in or out by
loosening lever (B), sliding fence to the desired
position and tightening lever (B).

Depth stop

- A depth stop guide (A) Fig. 6, is provided to limit
the depth of the chisel (B). To adjust the depth
stop guide (A), loosen handle (C) and lower head
until the chisel (B) is at the desired depth. Lower
depth stop guide (A) until it is at the desired
depth, tighten handle (C).

Guide the operation

- please

Loosen the screw before

use the handle (A) ,

rotate the handle (A) can move around.

- Rotate the handle (B) can move front or back.

BM16 10

MAINTENANCE AND SERVICE

Maintenance and Service

The Mortiser requires only minor maintenance,
such as cleaning and lubrication and routine
adjustment and sharpening of the chisel and bit.

Dust the machine down after each use and, as
necessary, use light applications of oil or grease
to lubricate linkages, moving parts, etc.

SHARPENING CHISEL & BIT

The chisel and bit should be kept sharp for best
performance. Blunt edges will give inaccurate

mortises and can lead to overheating and
breakage to chisel or bit. If chisel and bit are
badly worn and become difficult to sharpen,
they should be replaced.

1. Sharpen the bit by using a small, smooth file,
following the original shape of the bit. File the
inside edge of the spur, the sides of the brad
point, and the cutting edge inwards toward the
flute of the bit. See Fig. 8. Do not file the outside
edge of the spur as this will affect the diameter
of the bit.

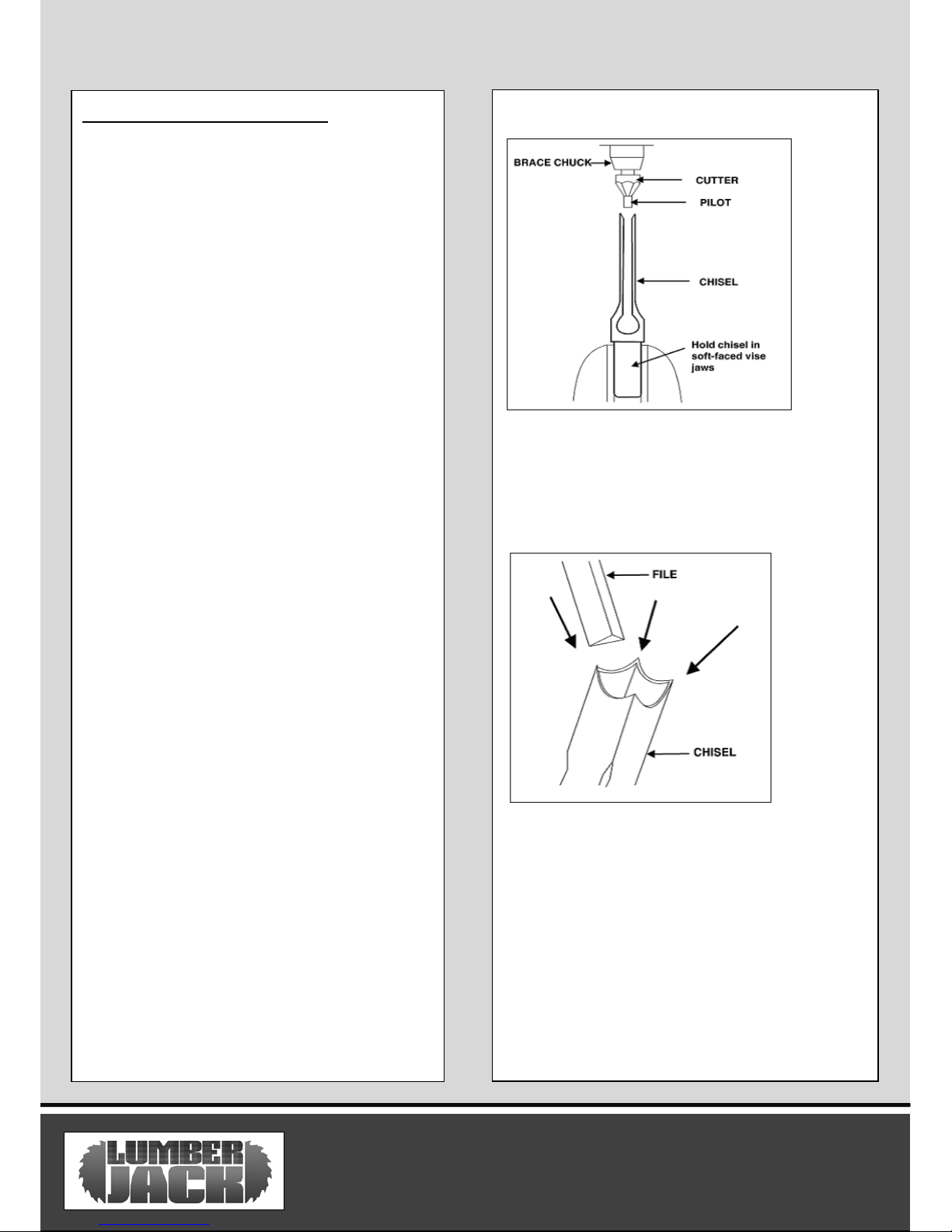

2. Sharpen the chisel with a mortise chisel cutter
with the correct size pilot. (Pilot size will differ
depending on the size of your chisel). Two or
three turns of the cutter in a carpenter's brace
chuck should be enough to sharpen the chisel, as
shown in Figure.

3. Use a small, triangular, smooth file to relieve
the inner corners of the chisel. See Figure. Remove
any burrs from the outside of the chisel with a fine
oilstone.

BM16 11

LUMBERJACK GUARANTEE

1. Guarantee

1.1 Lumberjack guarantees that for a period of

12 months from the date of purchase the
components of qualifying products (see clauses

1.2.1 to 1.2.8) will be free from defects caused
by faulty construction or manufacture.

1.2. During this period Lumberjack, will repair or
replace free of charge any parts which are
proved to be faulty in accordance with
paragraph 1.1 providing that:

1.2.1 You follow the claims procedure set out in
clause 2

1.2.2 Lumberjack and its authorised dealers are
given reasonable opportunity after receiving
notice of the claim to examine the product

1.2.3 If asked to do so by Lumberjack or its
Authorised dealer, you return the product at
your own cost to Lumberjack’s or supplying
Authorised Dealer’s premises, for the
examination to take place clearly stating the
Returns Material Authorisation number given by
Lumberjack or an Authorised Dealer.

1.2.4 The fault in question is not caused by
industrial use, accidental damage, fair wear and
tear, wilful damage, neglect, incorrect electrical
connection, misuse, or alteration or repair of the
product without approval.

1.2.5 The product has been used in a domestic
environment only

1.2.6 The fault does not relate to consumable
items such as blades, bearings, drive belts, or
other wearing parts which can reasonably be
expected to wear at different rates depending
on usage.

1.2.7 The product has not been used for hire
purposes.

1.2.8 The product has been purchased by you as
the guarantee is not transferable from a private
sale.

2. Claims Procedure

2.1 In the first instance please contact the

Authorised Dealer who supplied the product to
you. In our experience many initial problems with
machines that are thought to be faulty due to
faulty parts are actually solved by correct setting
up or adjustment of the machine. A good
Authorised Dealer should be able to resolve the
majority of these issues much more quickly than
processing a claim under the guarantee. If a
return is requested by the Authorised Dealer or
Lumberjack, you will be provided with a Returns
Material Authorisation number which must be
clearly stated on the returned package, and any
accompanying correspondence. Failure to provide
a Returns Material Authorisation number may
result in item being refused delivery at Authorised
Dealer.

2.2 Any issues with the product resulting in a
potential claim under the guarantee must be
reported to the Authorised Dealer from which it
was purchased within 48 hours of Receipt.

2.3 If the Authorised Dealer who supplied the
product to you has been unable to satisfy your
query, any claims made under this Guarantee
should be made directly to Lumberjack. The Claim
itself should be made in a letter setting out the
date and place of purchase, giving a brief
explanation of the problem which has led to the
claim. This letter should be then sent with proof

BM16 12

LUMBERJACK GUARANTEE

of purchase to Lumberjack. If you include a
contact number with this it will speed your claim
up.

2.4 Please note that it is essential that the letter
of claim reaches Lumberjack on the last day of
this Guarantee at the latest. Late claims will not
be considered.

3. Limitation of Liability

3.1 We only supply products for domestic and

private use. You agree not to use the product for
any commercial, business or resale purposes and
we have no liability to you for any loss of profit,
loss of business, business interruption or loss of
business opportunity.

3.2 This Guarantee does not confer any rights
other than these expressly set out above and
does not cover any claims for consequential loss
or damage. This Guarantee is offered as an extra
benefit and does not affect your statutory rights
as a consumer.

4. Notice

This Guarantee applies to all product purchased
from an Authorised Dealer of Lumberjack within
the United Kingdom. Terms of Guarantee may
vary in other countries.

BM16 13

CE DECLARATION OF CONFORMITY

TOOLSAVE

Unit C, Manders Ind. Est.,
Old Heath Road, Wolverhampton,
WV1 2RP.
Tel: [phone]

Declares that the Bench Morticer (BM16)

Is in compliance with the regulations included in the Directives:2006/95/EC

EC DECLARATION OF CONFORMITY

Certificate for EC-type examination delivered by TÜV Rheinland LGA Rheinland LGA Products GmbH

– Tillystraße 2 – 90431 Nürnberg (Verification No.:AM 50306313 0001)

Person who declares: Bill Evans

01.11.2016

The Director

AIR6V 01AIR6V 01AIR6V 01

BM16 14

No. Description No. Description

1 Handle 30 Handle
2 Motor 31 Screw
3 Switch Box 32 Screw

4 Screw 33 Knob
5 Gear shaft 34 Screw
6 Screw 35 Lead screw

7 Screw 36 Washer
8 Handle 37 Connecting bend
9 Setting collar 38 Knob
10 Guide column 39 Lead screw

11 Screw 40 Pin
12 Localizer 41 Lead nut
13 Screw 42 Table

14 Cover 43 Clamp plate
15 Gear casing 44 Screw
16 Handle 47 Screw
17 Washer 48 Nut

18 Setting collar 49 Screw
19 Bolt 50 Screw
20 Chisel bushing 51 Rack

21 Chisel 52 Sliding plate
22 Screw 53 Washer
23 Nut 54 Screw
24 Drift 55 Drift
25 Base 56 Screw
26 Screw 57 Gas spring
27 Knob 58 Screw
28 Gear 59 Washer
29 Gear shaft 60 Gear

Parts List

AIR6V 01AIR6V 01AIR6V 01

BM16 15

No. Description No. Description

61 Bolt 70 Screw
62 Screw 71 Screw
63 Drift 72 Power cord

64 Screw 73 Screw
65 Washer 74 Angle block
66 Chuck 75 Closing ring

67 Switch 76 Screw
68 Column 77 Drift
69 Rack 78 Shaft

Parts List

BM16 16

Parts Diagram
